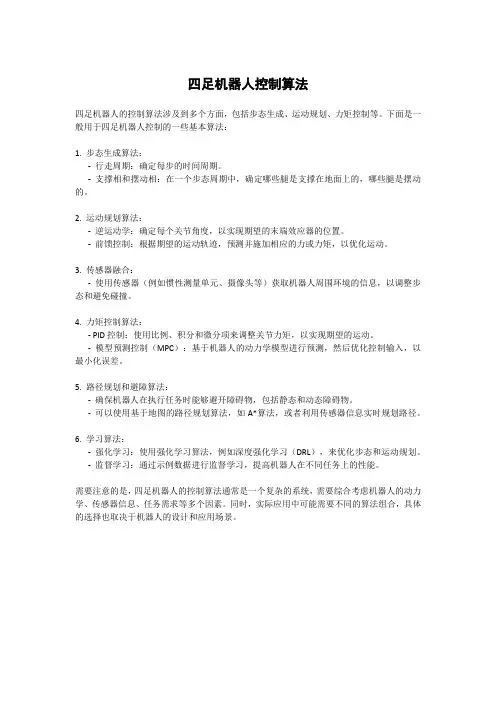

四足机器人控制算法
四足机器人的控制算法涉及到多个方面,包括步态生成、运动规划、力矩控制等。
下面是一般用于四足机器人控制的一些基本算法:
1. 步态生成算法:
-行走周期:确定每步的时间周期。
-支撑相和摆动相:在一个步态周期中,确定哪些腿是支撑在地面上的,哪些腿是摆动的。
2. 运动规划算法:
-逆运动学:确定每个关节角度,以实现期望的末端效应器的位置。
-前馈控制:根据期望的运动轨迹,预测并施加相应的力或力矩,以优化运动。
3. 传感器融合:
-使用传感器(例如惯性测量单元、摄像头等)获取机器人周围环境的信息,以调整步态和避免碰撞。
4. 力矩控制算法:
- PID控制:使用比例、积分和微分项来调整关节力矩,以实现期望的运动。
-模型预测控制(MPC):基于机器人的动力学模型进行预测,然后优化控制输入,以最小化误差。
5. 路径规划和避障算法:
-确保机器人在执行任务时能够避开障碍物,包括静态和动态障碍物。
-可以使用基于地图的路径规划算法,如A*算法,或者利用传感器信息实时规划路径。
6. 学习算法:
-强化学习:使用强化学习算法,例如深度强化学习(DRL),来优化步态和运动规划。
-监督学习:通过示例数据进行监督学习,提高机器人在不同任务上的性能。
需要注意的是,四足机器人的控制算法通常是一个复杂的系统,需要综合考虑机器人的动力学、传感器信息、任务需求等多个因素。
同时,实际应用中可能需要不同的算法组合,具体的选择也取决于机器人的设计和应用场景。
四足机器人运动控制的方法四足机器人是一种模仿动物四肢结构和步态特点的机器人,它可以通过四肢的运动来实现移动和平衡。
在实际应用中,四足机器人的运动控制是一个非常重要的问题。
本文将介绍一些常用的四足机器人运动控制方法。
一、开环控制方法开环控制是最简单的控制方法之一,它通过预先设定的运动轨迹来控制机器人的运动。
在四足机器人中,开环控制方法可以通过控制每个关节的角度和速度,来实现机器人的运动。
但是由于四足机器人的动力学特性比较复杂,开环控制方法往往不能达到理想的效果,容易造成运动不稳定或者无法适应复杂的环境。
二、闭环控制方法闭环控制是一种基于反馈的控制方法,它通过不断地测量和比较机器人的实际状态和期望状态,来调整控制量,使机器人保持稳定的运动。
在四足机器人中,闭环控制方法可以通过测量机器人的姿态、速度和加速度等参数,来实时调整关节的控制量,从而实现机器人的平衡和运动。
三、模型预测控制方法模型预测控制是一种基于动态模型的控制方法,它通过建立机器人的运动模型,预测机器人在未来一段时间内的运动轨迹,然后根据预测结果调整控制量,使机器人达到期望的运动目标。
在四足机器人中,模型预测控制方法可以通过建立机器人的动力学模型和环境模型,预测机器人的运动轨迹和外部干扰,然后根据预测结果调整关节的控制量,从而实现机器人的平衡和运动。
四、神经网络控制方法神经网络控制是一种基于人工神经网络的控制方法,它通过训练神经网络来学习机器人的运动规律和控制策略,然后根据学习结果控制机器人的运动。
在四足机器人中,神经网络控制方法可以通过训练神经网络来学习机器人的运动模式和环境感知,然后根据学习结果调整关节的控制量,从而实现机器人的平衡和运动。
五、遗传算法控制方法遗传算法控制是一种基于遗传算法的控制方法,它通过模拟生物进化的过程,来搜索机器人的最优控制策略。
在四足机器人中,遗传算法控制方法可以通过编码机器人的控制策略为染色体,然后通过遗传算法的选择、交叉和变异等操作,不断优化机器人的控制策略,从而实现机器人的平衡和运动。
