1-888-INTERSIL or 321-724-7143|Copyright © Intersil Corporation 1999CD4078BMS

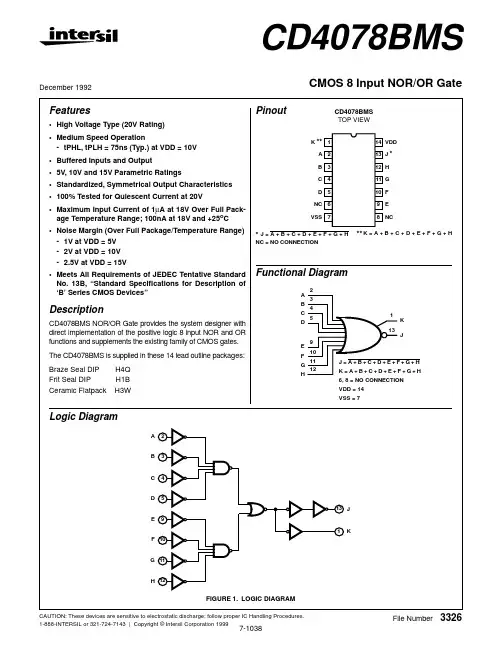

CMOS 8 Input NOR/OR Gate

Features

•High Voltage Type (20V Rating)

•Medium Speed Operation

-tPHL, tPLH = 75ns (Typ.) at VDD = 10V

•Buffered Inputs and Output

•5V, 10V and 15V Parametric Ratings

•Standardized, Symmetrical Output Characteristics

•100% Tested for Quiescent Current at 20V

•Maximum Input Current of 1µA at 18V Over Full Pack-

age Temperature Range; 100nA at 18V and +25o

C

•Noise Margin (Over Full Package/Temperature Range)

-1V at VDD = 5V

-2V at VDD = 10V

-2.5V at VDD = 15V

•Meets All Requirements of JEDEC Tentative Standard

No. 13B, “Standard Specifications for Description of

‘B’ Series CMOS Devices”

Description

CD4078BMS NOR/OR Gate provides the system designer with

October 1987

Revised January 1999CD4094BC 8-Bit Shift Register/Latch with 3-STATE Outputs

© 1999 Fairchild Semiconductor CD4094BC

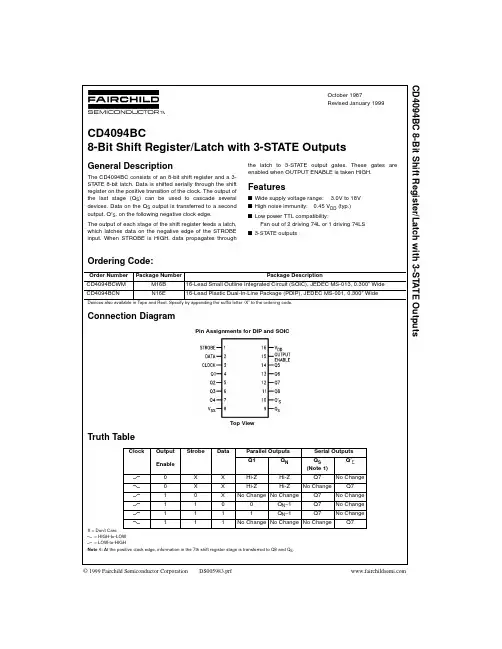

8-Bit Shift Register/Latch with 3-STATE Outputs

General Description

The CD4094BC consists of an 8-bit shift register and a 3-STATE 8-bit latch. Data is shifted serially through the shiftregister on the positive transition of the clock. The output ofthe last stage (QS) can be used to cascade several

devices. Data on the QS output is transferred to a second

output, Q′S, on the following negative clock edge.

The output of each stage of the shift register feeds a latch,which latches data on the negative edge of the STROBEinput. When STROBE is HIGH, data propagates throughthe latch to 3-STATE output gates. These gates areenabled when OUTPUT ENABLE is taken HIGH.
