Features• Plastic package has Underwriters Laboratory Flammability Classification 94V-0• Dual rectifier construction, positive center tap • Metal silicon junction, majority carrier conductionPlated leads, solderable per As marked Mounting Position: Any 10 in-lbs maximum MBR20H150CT , MBRF20H150CT & MBRB20H150CT-1 SeriesVishay Semiconductorsformerly General SemiconductorDocument Number New ProductReverse Voltage 150V Forward Current 20AMax. Junction Temperature 175°CPIN 1PIN 3TO-220AB (MBR20H150CT)TO-262AA (MBRB20H150CT-1)Maximum Ratings (TC= 25°C unless otherwise noted)ParameterSymbol MBR20H150CTUnit Maximum repetitive peak reverse voltage V RRM 150V Working peak reverse voltage V RWM 150V Maximum DC blocking voltageV DC150V Maximum average forward rectified current Total device20Per legI F(AV)10A Peak forward surge current8.3ms single half sine-wave superimposed I FSM 200A on rated load (JEDEC Method) per legPeak repetitive reverse current per leg at t p = 2µs, 1KH Z I RRM 1.0A Peak non-repetitive reverse surge energy per leg E RSM 10mJ (8/20µs waveform)Non-repetitive avalanche energy per leg at 25°C, I AS = 1.5A, L=10mH E AS 11.25mJ Voltage rate of change (rated V R )dv/dt 10,000V/µs Operating junction and storage temperature range T J , T STG –65 to +175°C RMS Isolation voltage (MBRF type only) from terminals 4500(1)to heatsink with t = 1 second, RH ≤30%V ISOL3500(2)V1500 (3)Electrical Characteristics (TC= 25°C unless otherwise noted)ParameterSymbolValue UnitMaximum instantaneous I F = 10A,T C = 25°C 0.90forward voltage per leg at (4):I F = 10A,T C = 125°C 0.75I F = 20A,T C = 25°C V F 0.99V I F = 20A,T C = 125°C 0.86Maximum reverse current per leg T J = 25°C 5.0µA at working peak reverse voltageT J = 125°CI R1.0mAThermal Characteristics (TC= 25°C unless otherwise noted)ParameterSymbol MBR MBRF MBRB Unit Typical thermal resistance per legR ΘJC2.24.22.2°C/WNotes:(1) Clip mounting (on case), where lead does not overlap heatsink with 0.110” offset (2) Clip mounting (on case), where leads do overlap heatsink(3) Screw mounting with 4-40 screw, where washer diameter is ≤ 4.9 mm (0.19”)(4) Pulse test: 300µs pulse width, 1% duty cycleMBR20H150CT , MBRF20H150CT & MBRB20H150CT-1 SeriesVishay Semiconductorsformerly General Semiconductor Document Number 88864MBR20H150CT , MBRF20H150CT & MBRB20H150CT-1 SeriesVishay Semiconductorsformerly General SemiconductorDocument Number 0.10.30.20.40.60.8 1.00.50.70.9 1.1 1.2100100.110.10.011101001,00010,0000.01110010101000.10.11Fig. 3 – Typical Instantaneous Forward Characteristics Per LegI R -- I n s t a n t a n e o u s R e v e r s e C u r r e n t (µA )J u n c t i o n C a p a c i t a n c e (p F )1101001001000100000.110Reverse Voltage (V)102030507010040608090Fig. 4 – Typical Reverse Characteristics Per LegFig. 6 – Typical Transient Thermal Impedance Per Legt -- Pulse Duration (sec.)Instantaneous Forward Voltage (V)Percent of Rated Peak Reverse Voltage (%)I F -- I n s t a n t a n e o u s F o r w a r d C u r r e n t (A )T r a n s i e n t T h e r m a l I m p e d a n c e (°C /W )51015202530255075100125150175A v e r a g e F o r w a r d C u r r e n t (A )Case T emperature (°C)020406080100120140160180200220240200110100P e a k F o r w a r d S u r g e C u r r e n t (A )Number of Cycles at 60 H ZFig. 5 – Typical Junction CapacitancePer LegFig. 1 – Forward Derating Curve(Total)Fig. 2 – Maximum Non-Repetitive Peak Forward Surge Current Per LegRatings andCharacteristic Curves (T A = 25°C unless otherwise noted)This datasheet has been download from: Datasheets for electronics components.。

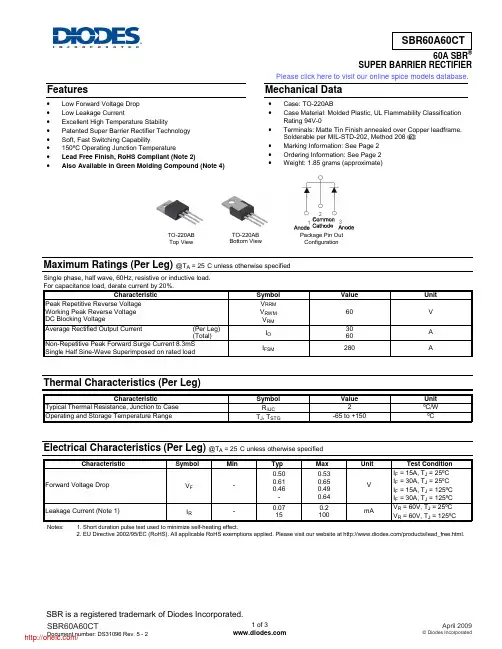

SBR60A60CTDocument number: DS31096 Rev. 5 - 21 of 3April 2009© Diodes IncorporatedSBR is a registered trademark of Diodes Incorporated.60A SBRSUPER BARRIER RECTIFIERFeatures• Low Forward Voltage Drop • Low Leakage Current • Excellent High Temperature Stability • Patented Super Barrier Rectifier Technology • Soft, Fast Switching Capability • 150ºC Operating Junction Temperature • Lead Free Finish, RoHS Compliant (Note 2) • Also Available in Green Molding Compound (Note 4)Mechanical Data• Case: TO-220AB • Case Material: Molded Plastic, UL Flammability ClassificationRating 94V-0 • Terminals: Matte Tin Finish annealed over Copper leadframe.Solderable per MIL-STD-202, Method 208 • Marking Information: See Page 2 • Ordering Information: See Page 2 • Weight: 1.85 grams (approximate)Maximum Ratings (Per Leg) @T A = 25°C unless otherwise specifiedSingle phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%.Characteristic Symbol Value UnitPeak Repetitive Reverse VoltageWorking Peak Reverse Voltage DC Blocking Voltage V RRM V RWM V RM 60 V Average Rectified Output Current (Per Leg) (Total) I O3060 A Non-Repetitive Peak Forward Surge Current 8.3mSSingle Half Sine-Wave Superimposed on rated load I FSM280 AThermal Characteristics (Per Leg)Characteristic Symbol Value UnitTypical Thermal Resistance, Junction to Case R θJC 2 ºC/W Operating and Storage Temperature Range T J , T STG -65 to +150 ºCElectrical Characteristics (Per Leg) @T A = 25°C unless otherwise specifiedCharacteristic Symbol Min Typ Max Unit TestConditionForward Voltage Drop V F- 0.500.610.46 - 0.53 0.65 0.49 0.64 V I F = 15A, T J = 25ºC I F = 30A, T J = 25ºC I F = 15A, T J = 125ºC I F = 30A, T J = 125ºCLeakage Current (Note 1) I R- 0.07 15 0.2100 mA V R = 60V, T J = 25ºC V R = 60V, T J = 125ºCNotes:1. Short duration pulse test used to minimize self-heating effect.2. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at /products/lead_free.html.Package Pin Out ConfigurationTO-220ABTop View TO-220AB Bottom View/Please click here to visit our online spice models database.SBR60A60CTDocument number: DS31096 Rev. 5 - 22 of3 April 2009© Diodes IncorporatedSBR is a registered trademark of Diodes Incorporated.Fig. 2 Typical Reverse CharacteristicsV , INSTANTANEOUS REVERSE VOLTAGE (V)R I , I N S T A N T A N E O U S R E V E R S E C U R R E N T (m A )RFig. 4 Operating Temperature DeratingV , DC REVERSE VOLTAGE (V)R T , D E R A T E D A M B I E N T T E M P E R A T U R E (°C )AOrdering Information (Notes 3 & 4)Part Number Case PackagingSBR60A60CT TO-220AB 50 pieces/tube SBR60A60CT-G TO-220AB 50pieces/tubeNotes: 3. For packaging details, go to our website at /datasheets/ap02007.pdf.4. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR60A60CT-G.Marking InformationSBR60A60CT = Product Type Marking Code AB = Foundry and Assembly Code YYWW = Date Code Marking YY = Last two digits of year (ex: 07 = 2007)WW = Week (01-52) /SBR60A60CT Document number: DS31096 Rev. 5 - 23 of 3April 2009© Diodes IncorporatedSBR is a registered trademark of Diodes Incorporated.Package Outline DimensionsIMPORTANT NOTICEDIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages.Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks.LIFE SUPPORTDiodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:A. Life support devices or systems are devices or systems which: 1. are intended to implant into the body, or2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in thelabeling can be reasonably expected to result in significant injury to the user.B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness.Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.Copyright © 2009, Diodes IncorporatedTO-220ABDim Min Typ Max A 3.56- 4.82 A10.51- 1.39 A2 2.04- 2.92 b 0.390.81 1.01 b2 1.15 1.24 1.77 c 0.356- 0.61 D 14.22- 16.51 D1 8.39- 9.01 e 2.54 e1 5.08 E 9.66- 10.66 H1 5.85- 6.85 L 12.70- 14.73 L1 - -6.35 P 3.54- 4.08 Q 2.54- 3.42 All Dimensions in mm/分销商库存信息: DIODESSBR60A60CT。

20A SBR®Super Barrier RectifierFeatures MechanicalData• Case Material: Molded Plastic, UL FlammabilityClassification Rating 94V-0• Moisture Sensitivity: Level 1 per J-STD-020C• Terminals: Matte Tin Finish annealed overCopper leadframe. Solderable per MIL-STD-202,Method 208• Marking: See Page 3• Ordering Information: See Page 3• Low Forward Voltage Drop• Excellent High Temperature Stability• Super Barrier Design• Soft, Fast Switching Capability• Molded Plastic TO-220AB,and ITO-220AB packages• Lead Free Finish, RoHS Compliant (Note 2)Maximum Ratings @ T A = 25ºC unless otherwise specifiedSingle phase, half wave, 60Hz, resistive or inductive load.For capacitive load, derate current by 20%.Characteristic SymbolValueUnit Peak Repetitive Reverse VoltageWorking Peak Reverse VoltageDC Blocking VoltageV RRMV RWMV RM60 VRMS Reverse Voltage V R(RMS)42 VAverage Rectified Output Current @ T C = 110ºC I O20 ANon-Repetitive Peak Forward Surge Current 8.3msSingle Half Sine-Wave Superimposed on Rated LoadI FSM200 APeak Repetitive Reverse Surge Current (2uS-1Khz) I RRM 3 AMaximum Thermal Resistance (per leg)Package = TO-220ABPackage = ITO-220ABRӨJC 24°C/WOperating and Storage Temperature Range T J, T STG-65 to +150 ºCElectrical Characteristics@ T A = 25ºC unless otherwise specifiedCharacteristic SymbolMin Typ Max Unit Test ConditionReverse Breakdown Voltage (Note 1) V(BR)R60 - - V I R = 0.5 mAForward Voltage Drop V F--0.45-0.570.470.71VI F = 10A, T J = 25ºCI F = 10A,T J = 125ºCI F = 20A, T J = 25ºCLeakage Current (Note 1) I R- -0.5100mAV R = 60V, T J= 25 ºCV R = 60V, T J = 125 ºCNotes:1. Short duration pulse test used to minimize self-heating effect.2. RoHS revision 13.2.2003. High temperature solder exemption applied, see EU Directive Annex Note 7.__________SBR is a registered trademark of Diodes Incorporated.Package Outline DrawingsTO-220ABITO-220ABTO-220ABDIM. MIN. MAX.A 4.47 4.67 b 0.71 0.91 b1 1.17 1.37 c 0.31 0.53 D 14.65 15.35 D1 8.50 8.90 E 10.01 10.31 e 2.54 typ e1 4.98 5.18 F 1.17 1.37 J1 2.52 2.82 L 13.40 13.80 L1 3.56 3.96 ØP 3.735 3.935 Q 2.59 2.89All Dimensions in MillimetersITO-220ABDIM. MIN. MAX.A 4.30 4.70b 0.50 0.75 b1 1.10 1.35 b2 1.50 1.75c 0.50 0.75 D 14.80 15.20 E 9.96 10.36 e 2.54 typ F 2.80 3.20 J1 2.50 2.90 L 12.80 13.60 L1 1.70 1.90 ØP 3.50 typ Q 2.70 typAll Dimensions in MillimetersMarking, Polarity, Weight & Ordering InformationSBR20U60CT SBR20U60CTFP Case StyleTO-220AB ITO-220ABtAnodeCommonCathode AnodePolarityCasetAnodeCommonCathode AnodeMarking2.1g 1.9gWeightOrderingInformationSBR20U60CT SBR20U60CTFP50 pieces/tube50 pieces/tubeYY = Last two digits of year, ex = 06 = 2006Date CodeWW = Week (01-52)Other MarkingInformationA = Foundry CodeB = Assembly CodeIMPORTANT NOTICEDiodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changeswithout further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any productdescribed herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shallassume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,harmless against all damages.LIFE SUPPORTDiodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed writtenapproval of the President of Diodes Incorporated.。

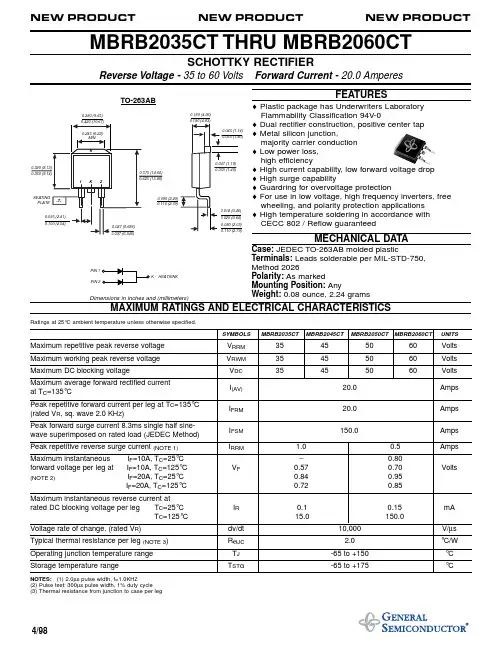

MBRB2035CT THRU MBRB2060CTSCHOTTKY RECTIFIERReverse Voltage - 35 to 60 Volts Forward Current -20.0 AmperesFEATURES♦Plastic package has Underwriters Laboratory Flammability Classification 94V-0♦ Dual rectifier construction, positive center tap ♦ Metal silicon junction,majority carrier conduction ♦ Low power loss,high efficiency♦ High current capability, low forward voltage drop ♦ High surge capability♦ Guardring for overvoltage protection♦ For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications ♦ High temperature soldering in accordance with CECC 802 / Reflow guaranteedMECHANICAL DATACase:JEDEC TO-263AB molded plasticTerminals:Leads solderable per MIL-STD-750,Method 2026Polarity:As marked Mounting Position:AnyWeight:0.08 ounce, 2.24 gramsMAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICSRatings at 25°C ambient temperature unless otherwise specified.SYMBOLS MBRB2035CT MBRB2045CT MBRB2050CTMBRB2060CT UNITSMaximum repetitive peak reverse voltage V RRM 35455060Volts Maximum working peak reverse voltage V RWM 35455060Volts Maximum DC blocking voltageV DC 35455060Volts Maximum average forward rectified current at T C =135°CI (AV)20.0Amps Peak repetitive forward current per leg at T C =135°C (rated V R , sq. wave 2.0 KH Z )I FRM 20.0Amps Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)I FSM 150.0AmpsPeak repetitive reverse surge current (NOTE 1)I RRM 1.00.5Amps Maximum instantaneous I F =10A, T C =25°C _0.80forward voltage per leg atI F =10A, T C =125°C V F0.570.70Volts(NOTE 2)I F =20A, T C =25°C 0.840.95I F =20A, T C =125°C0.720.85Maximum instantaneous reverse current at rated DC blocking voltage per leg T C =25°CI R 0.10.15mA T C=125°C 15.0150.0Voltage rate of change, (rated V R )dv/dt 10,000V/µs Typical thermal resistance per leg (NOTE 3)R ΘJC 2.0°C/W Operating junction temperature range T J -65 to +150°C Storage temperature rangeT STG-65 to +175°CNOTES:(1) 2.0µs pulse width, f=1.0KH Z(2) Pulse test: 300µs pulse width, 1% duty cycle (3) Thermal resistance from junction to case per leg4/98Dimensions in inches and (millimeters)NEW PRODUCTNEW PRODUCT NEW PRODUCT元器件交易网元器件交易网。
