马脊梁矿井选煤厂及配套建设项目工业场地综合楼人工挖孔桩施工组织设计

山西冶金岩土工程勘察总公司 1

大同煤矿集团有限责任公司马脊梁矿井选煤厂及配套建设项目工业场地综合楼

人工挖孔桩基础工程

施工组织设计

编制：

审核：

审批：

山西冶金岩土工程勘察总公司

2013年9月5日

马脊梁矿井选煤厂及配套建设项目工业场地综合楼人工挖孔桩施工组织设计

山西冶金岩土工程勘察总公司 1 目 录

第一章 施工组织设计 ·································································································································· 2

一、工程概况和主要工作量 ·············································································································· 2

二、施工组织及主要施工方法 ·········································································································· 2

第二章 水电用量及主要设备投入计划 ··································································································· 6

一、水电用量计划 ······························································································································ 6

二、主要设备 ······································································································································ 6

三、 主要材料进场及施工设备进场计划 ························································································· 7

四、保证措施 ······································································································································ 7

第三章 劳动力安排计划及其保证措施 ··································································································· 7

一、劳动力安排 ·································································································································· 7

二、劳动力保证措施 ·························································································································· 8

第四章 工期计划和保证措施 ···················································································································· 9

一、工期计划 ······································································································································ 9

二、确保工期的组织措施 ·················································································································· 9

三、确保工期的技术措施 ·················································································································· 9

第五章 施工平面布置和临时设施布置 ································································································· 10

一、施工平面布置 ···························································································································· 10

二、施工现场布置 ···························································································································· 10

第六章 确保工程质量的技术组织措施 ································································································· 11

一、工程质量标准 ···························································································································· 11

二、本工程施工采用的主要技术规范、规程 ················································································ 11

三、 确保工程质量的组织措施 ······································································································ 11

四、 确保工程质量的技术措施 ······································································································ 12

五、 确保工程质量的管理措施 ······································································································ 12

六、 质量管理制度 ·························································································································· 13

第七章 确保安全生产的技术组织措施 ································································································· 14

第八章 确保文明施工的技术组织措施 ································································································· 16

附件一···························································································································································· 17

附件二···························································································································································· 18

附件三···························································································································································· 19

附件四···························································································································································· 20

附件五···························································································································································· 21

附件六···························································································································································· 22

合集下载

人工挖孔桩专项施工方案

人工挖孔桩专项施工方案

人工挖孔桩专项施工方案

人工挖孔桩专项施工方案

一、工程概况

该项目位于某市区域内，建设单位计划建设一幢高层建筑地上40层，地下室3层的建筑。基础采用桩基础形式，其中地下室采用人工挖孔桩。本方案主要对人工挖孔桩专项施工进行说明。

二、技术方案

1.挖孔前的准备工作

1.1确定孔位置和孔径

根据设计要求，确定孔的位置和孔径。在孔洞的两侧打马脚线，并严格按照设计要求进行搭设，确保孔的安全施工和效果。

1.2材料准备

挖孔所需用到的器具、材料以及机械设备等需要进行准备。

1.3检查地下管线

在挖孔前，需要进行地下管线检查，确保挖孔过程中不会影响到已有的各类管道。如有影响到管道，需要及时进行管道搬迁。

2.挖孔操作

2.1挖孔

在准备工作完成之后，开始进行挖孔操作。根据设计要求，在孔洞两侧分别打开孔道，依次进行挖掘和疏通操作，直到挖完孔的深度和直径。

2.2清理孔壁

挖孔深度达到一定程度后，需要进行孔壁的清理工作。清理孔壁时，要确保不影响孔的直径和深度。清理完毕后，应将孔口清理干净，确保孔内无泥土。

2.3测量孔深孔径

在挖掘完成后，需要对孔深和孔径进行测量。以确保其符合设计要求。如有不符合要求的，需要及时进行修正处理。

2.4放置钢筋骨架

在挖孔完成后，需要进行放置钢筋骨架的工作。钢筋骨架应该设置在孔洞内，竖向直到孔底，横向应穿过孔洞的两端和中间。

2.5施工方案审核

在挖孔后，应将施工方案进行审核。审核内容包括孔深的控制、钢筋骨架的加固、孔壁的支护等。

3.加固与支护

3.1分层加固

进行分层加固时，需要根据孔的直径和深度，分别将混凝土依次浇入孔内，防止孔内土体坍塌。同时，在浇筑时需要注意控制混凝土的流动，确保其充满整个孔壁。

3.2钢套管加固

钢套管加固适用于较深的孔洞，其主要作用是增加孔洞的稳定性和承载能力。加固材料主要采用钢材和混凝土。在混凝土浇筑的同时需要将钢管套入孔内，钢管的直径一般比孔洞直径略小。

完整版 人工挖孔桩专项施工方案

完整版 人工挖孔桩专项施工方案

1

人工挖孔桩专项施工方案

一、编制依据

序号 名称 备注

1 《建筑桩基技术规范》 （JGJ94-2008）

2 《建筑地基基础工程施工质量验收规范》 （GB50202-2018）

3 《建筑工程施工质量验收统一标准》 （GB50300-2013）

4 《建筑机械使用安全技术规程》 （JGJ33-2012）

二、施工准备

（一）技术准备

1、核对图纸上的坐标，轴线、水平基点布置合理，轴线放样、高程测量满足施工要求。

2.认真研究地勘报告、桩位超前钻探资料、分析地质情况对可能发生的流砂、流泥、有害气体等情况，应制定有针对性的安全措施，配置相应的材料。

3、编制专项施工方案，开挖深度为16米及以上，属于一定规模，危险性较大的分项工程，需组织专家论证。

四、评审报批后，对项目交底。

（二）材料准备

钢筋、模板、木枋、钢筋、混凝土等材料需用计划，并按计划进场。

（三）现场准备

1、工程竣工前场地的“三通一平”工程完成，地下管线、地面废弃建筑等全部拆除完毕，临水、临电已接驳到位，满足施工需求。

2、结合拟采用的设备型号参数，在场内修建临时施工道路，满足大型机械设备和物资运输车辆通行。

3、在现场进行场地交接。

4、计划好护壁、水泥、沙、石子、钢筋等堆放场、加工场地，并做好护壁混凝土配合比。

（四）机械准备

常用机械设备表 2

序号 设备名称 数量 规格型号 备注

1 挖机 若干 / 场地平整

2 手摇/电动葫芦 若干 / 垂直出土

3 镐、锹 若干 / 桩成孔

4 风镐、 若干 / 桩成孔

5 空压送风机 若干 / 送风

6 对讲机/电铃 若干 / 通讯工具

7 钢筋调直机 若干 / 钢筋加工

8 钢筋切断机 若干 / 钢筋加工

9 钢筋弯曲机机 若干 / 钢筋加工

10 钢筋套丝机 若干 / 钢筋加工

11 塔吊/履带吊 若干 / 钢筋笼吊装

12 直流电焊机 若干 / 钢筋笼焊接

13 经纬仪 若干 / 测量放线

人工挖孔桩施工方案

人工挖孔桩施工方案

青云路市政工程 人工挖孔桩施工方案

深圳市鸿轩建筑工程有限公司 1 目 录

第一章 编制依据及说明

第一节 编制依据

本施工组织设计作为主导施工的主要依据，编制时对目标工期、工程质量、项目管理机构设置、劳动力组织、施工进度计划控制、机械设备及周转材料配备、主要分部分项工程施工方法、安全保证措施、文明施工及环境保护措施、降低成本措施等诸多因素尽可能充分考虑，突出科学性及可行性。本施工组织设计依据以下几项编制:

1．广州市市政工程设计研究院的青云路施工图；

2．湖南省农林工业勘察设计研究院总院提供的《青云路工程地质勘察报告》；

4．《建筑地基与基础施工验收规范》 GB202—2001；

5．《建筑施工安全检查标准》 （JGJ 59-99)；

6.《施工现场临时用电安全技术规范》（JGJ46—88）；

7.深圳市鸿轩建筑工程有限公司的质量管理体系文件；

8。现行国家有关规范、标准和规程；

9.广东省及深圳市有关文件及规定.

第二节 编制说明

本施工组织设计作为主导施工的依据，编制是结合我公司土方开挖、基坑边坡支护及人工挖孔桩施工的经验和技术装备能力的基础上对目标工期、工程质量、项目管理机构设置、劳动组织、施工进度计划控制、机械设备及周转材料配备,主要分部分项工程施工方法，安全保证措施，文明施工环境保护措施、减低成本措施等尽可能充分考虑，突出科学性和可行性。 青云路市政工程 人工挖孔桩施工方案

深圳市鸿轩建筑工程有限公司 2 第二章 工程概况

一栋综合楼施工组织设计-土建

一栋综合楼施工组织设计-土建

************综合大楼 ※ 施工组织设计 ※ 土建部分

~1~

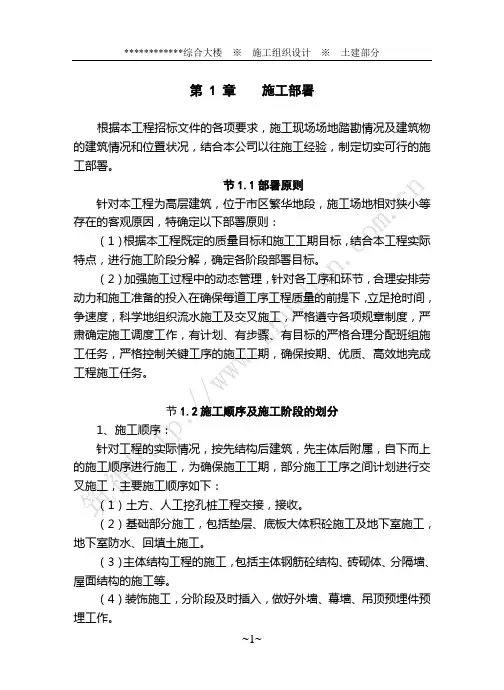

第 1 章 施工部署

根据本工程招标文件的各项要求，施工现场场地踏勘情况及建筑物的建筑情况和位臵状况，结合本公司以往施工经验，制定切实可行的施工部署。

节1.1部署原则

针对本工程为高层建筑，位于市区繁华地段，施工场地相对狭小等存在的客观原因，特确定以下部署原则：

（1）根据本工程既定的质量目标和施工工期目标，结合本工程实际特点，进行施工阶段分解，确定各阶段部署目标。

（2）加强施工过程中的动态管理，针对各工序和环节，合理安排劳动力和施工准备的投入在确保每道工序工程质量的前提下，立足抢时间，争速度，科学地组织流水施工及交叉施工，严格遵守各项规章制度，严肃确定施工调度工作，有计划、有步骤、有目标的严格合理分配班组施工任务，严格控制关键工序的施工工期，确保按期、优质、高效地完成工程施工任务。

节1.2施工顺序及施工阶段的划分

1、施工顺序：

针对工程的实际情况，按先结构后建筑，先主体后附属，自下而上的施工顺序进行施工，为确保施工工期，部分施工工序之间计划进行交叉施工，主要施工顺序如下：

（1）土方、人工挖孔桩工程交接，接收。

（2）基础部分施工，包括垫层、底板大体积砼施工及地下室施工，地下室防水、回填土施工。

（3）主体结构工程的施工，包括主体钢筋砼结构、砖砌体、分隔墙、屋面结构的施工等。

（4）装饰施工，分阶段及时插入，做好外墙、幕墙、吊顶预埋件预埋工作。 ************综合大楼 ※ 施工组织设计 ※ 土建部分

~2~ 2、根据施工的特点，将本工程的施工分为四个施工阶段，其中安装工程和能源中心工程穿插到各施工阶段中。

（1）基础施工阶段：大体积砼底板、地下室钢筋砼结构、地下室防水等的施工。

（2）主体结构施工阶段；

（3）装修施工阶段；

（4）室外扫尾工程施工阶段：包括室外的各种配套项目施工。
