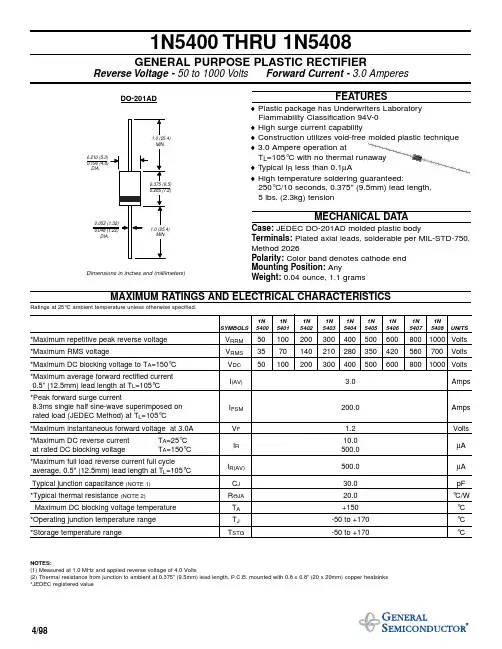

1N5400 THRU 1N5408GENERAL PURPOSE PLASTIC RECTIFIERReverse Voltage -50 to 1000 Volts Forward Current -3.0 AmperesFEATURES♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0♦ High surge current capability♦ Construction utilizes void-free molded plastic technique ♦ 3.0 Ampere operation atT L =105°C with no thermal runaway ♦ Typical I R less than 0.1µA♦ High temperature soldering guaranteed:250°C/10 seconds, 0.375" (9.5mm) lead length,5 lbs.(2.3kg) tensionMECHANICAL DATACase:JEDEC DO-201AD molded plastic bodyTerminals:Plated axial leads, solderable per MIL-STD-750,Method 2026Polarity:Color band denotes cathode end Mounting Position:AnyWeight:0.04 ounce, 1.1 gramsMAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICSRatings at 25°C ambient temperature unless otherwise specified.1N 1N 1N 1N 1N 1N 1N 1N 1N SYMBOLS540054015402540354045405540654075408UNITS*Maximum repetitive peak reverse voltage V RRM 501002003004005006008001000Volts *Maximum RMS voltageV RMS 3570140210280350420560700Volts*Maximum DC blocking voltage to T A =150°C V DC 501002003004005006008001000Volts*Maximum average forward rectified current 0.5” (12.5mm) lead length at T L =105°C I (AV) 3.0Amps *Peak forward surge current8.3ms single half sine-wave superimposed on rated load (JEDEC Method) at T L =105°C I FSM 200.0Amps *Maximum instantaneous forward voltage at 3.0A V F 1.2Volts *Maximum DC reverse current T A =25°C 10.0at rated DC blocking voltageT A =150°CI R 500.0µA *Maximum full load reverse current full cycle average, 0.5" (12.5mm) lead length at T L =105°C I R(AV)500.0µA Typical junction capacitance (NOTE 1)C J 30.0pF *Typical thermal resistance (NOTE 2)R ΘJA 20.0°C/W Maximum DC blocking voltage temperature T A +150°C *Operating junction temperature range T J -50 to +170°C *Storage temperature rangeT STG-50 to +170°CNOTES:(1) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts(2) Thermal resistance from junction to ambient at 0.375” (9.5mm) lead length, P.C.B. mounted with 0.8 x 0.8” (20 x 20mm) copper heatsinks *JEDEC registered value4/98Dimensions in inches and (millimeters)。

原理框图
V+IN
13
4
RG
3
VI–N
2
VLIN IR1
12 1
IR2 14
800µA 800µA
RLIN 1kΩ
100µA
VREG V+
11
10 5.1V
B
9
Q1
I = 100µA + VIN RG 975Ω
E 8
25Ω
7
I = 4mA + V •
( ) 40
O
IN
RG
6
IRET
引脚分配
Top View
5.35 5.30
VREG 输出电压 vs VREG 输 出 电 流 125°C
5.25
25°C
5.20
5.15 –55°C
5.10
5.05
NOTE: Above 1mA, Zero Output Degrades
5.00
–1.0 –0.5
0
0.5
1.0
1.5
2.0
VREG 输出电流 (mA)
20 30 2.6
±25 ±0.5 0.2
in Volts, G in Ω R
±50 ±0.9
单位
A mA mA mA
mA µA µA/°C µA/V µA/V µA/mA µAPP
S = 40/RG
±0.05
±0.2
±3
±25
0.003
0.01
±50
±100
±0.4
±1.5
±0.3
±3
±10
±50
1.25
3.5
5
25
20

5KP36A,TVS瞬变抑制二极管中文资料VOLTAGE RANGE: 5.0 - 19 0 V5KP5.0A(CA) - 5KP190A(CA)POWER: 5000Wa tAXIAL LEADED TRANSIENT VOLTAGE SUPPRESSORS DIODE Case: JEDEC R-6 Molded Plastic Uni- and Bi-Directional Versions Available Excellent ClampingCapability Fast Response Time Plastic Case Material has UL FlammabilityClassification Rating 94V-OMechanical DataTerminals: Axial Leads, Solderable per MIL-STD-750, Method 2026Polarity: Cathode Band or Cathode Notch FeaturesMaximum Ratings and Electrical Characteristics@T A =25°C unless otherwise specifiedCharacteristicSymbol Value Unit Peak Pulse Power Dissipation at T A = 25°C (Note 1, 2, 5) Figure 3P PPM 5000 MinimumW Peak Forward Surge Current (Note 3)I FSM 400A Peak Pulse Current on 10/1000μS Waveform (Note 1) Figure 1I PPM See Table 1A Steady State Power Dissipation (Note 2, 4)P M(AV)8.0W Operating and Storage Temperature RangeT j , T STG-55 to +175°CNote: 1. Non-repetitive current pulse, per Figure 1 and derated above T A = 25°C per Figure 4.2. Mounted on 20mm 2 copper pad.3. 8.3ms single half sine-wave duty cycle = 4 pulses perminutes maximum,4. Lead temperature at 75°C = T L .5. Peak pulse power waveform is 10/1000μS.Weight: 2.10 grams (approx.)!5KP36A5KP36A14.413.612.912.094.086.083.071.112.2 10.0 9.448.898.337.226.676.40(uA)R RMW RMW@V leakage Reverse CurrentPulse Peak (A)Vc(V)(mA)BR MAX CurrentMax.BR MIN @IMin.Volgtage Breakdown (V)(BI)(Uni)Voltage Stand-Off Reverse Maximum Clamping V TPP(V)V @I Volgtage Breakdown Test (V)V T Volgtage @I PP 5KP5.0A 5KP5.0CA 5.0 7.25 10 9.2 543.5 1000.0 5KP6.0A5KP6.0CA 6.0 7.67 10 10.3 485.4 1000.05KP6.5A 5KP6.5CA 6.58.30 10 11.2 446.4 500.05KP7.0A 5KP7.0CA 7.0 7.78 8.95 10 416.7 200.0 5KP7.5A 5KP7.5CA 7.5 9.58 1.0 387.6 50.0 5KP8.0A 5KP8.0CA 8.0 10.23 1.0 367.6 10.0 5KP8.5A 5KP8.5CA 8.5 10.82 1.0 347.2 5.05KP9.0A 5KP9.0CA 9.0 11.5 1.0 15.4 324.7 5.05KP10A 5KP10CA 10 11.112.8 1.0 17.0 294.1 5.0 5KP11A 5KP11CA 11 14.0 1.0 18.2 274.7 5.0 5KP12A 5KP12CA 12 13.3 15.3 1.0 19.9 251.3 5.0 5KP13A 5KP13CA 13 14.4 16.5 1.0 21.5 232.6 5.0 5KP14A 5KP14CA 14 15.6 17.9 1.0 23.2 215.5 5.0 5KP15A 5KP15CA 15 16.7 19.2 1.0 24.4204.95.0 5KP16A 5KP16CA 16 17.8 20.5 1.0 26.0 192.3 5.0 5KP17A 5KP17CA 17 18.9 21.7 1.0 27.6 181.2 5.0 5KP18A 5KP18CA 18 20.0 23.3 1.0 29.2 171.2 5.0 5KP20A 5KP20CA 20 22.2 25.5 1.0 32.4 154.3 5.0 5KP22A 5KP22CA 22 24.4 28.0 1.0 35.5 140.8 5.0 5KP24A 5KP24CA 24 26.7 30.7 1.0 38.9 128.5 5.0 5KP26A 5KP26CA 26 28.9 33.2 1.0 42.1 118.8 5.0 5KP28A 5KP28CA 28 31.1 35.8 1.0 45.4 110.1 5.0 5KP30A 5KP30CA 30 33.3 38.3 1.0 48.4 103.3 5.0 5KP33A 5KP33CA33 36.7 42.2 1.0 53.3 93.8 5.0 5KP36A5KP36CA 36 40.0 46.0 1.0 58.1 86.1 5.0 5KP40A 5KP40CA 40 44.4 51.1 1.0 64.5 77.5 5.0 5KP43A 5KP43CA 4347.8 54.9 1.0 69.4 72.0 5.0 5KP45A 5KP45CA 45 50.0 57.5 1.0 72.7 68.85.0 5KP48A 5KP48CA 48 53.3 61.3 1.0 77.4 64.6 5.0 5KP51A 5KP51CA 51 56.7 65.2 1.0 82.4 60.7 5.0 5KP54A 5KP54CA 54 60.0 69.0 1.0 87.1 57.4 5.0 5KP58A 5KP58CA 58 64.4 74.1 1.0 93.6 53.4 5.05KP60A 5KP60CA 60 66.7 76.7 1.0 96.8 51.7 5.05KP64A 5KP64CA 64 81.8 1.0 103 48.5 5.0 5KP70A 5KP70CA 70 77.8 89.5 1.0 113 44.2 5.0 5KP75A 5KP75CA 75 95.8 1.0 121 41.3 5.0 5KP78A 5KP78CA 78 99.7 1.0 12639.75.05KP85A 5KP85CA 85 108.2 1.0 137 36.5 5.0 5KP90A 5KP90CA 90100 115.5 1.0 146 34.2 5.05KP100A 5KP100CA 100 111 128.0 1.0 162 30.9 5.0 5KP110A 5KP110CA 110 122 140.51.0 177 28.2 5.0 5KP120A 5KP120CA120133 153.0 1.0 193 25.9 5.0 5KP130A 5KP130CA 130144 165.5 1.0 209 23.9 5.0 5KP150A 5KP150CA 150 167 192.5 1.0 243 20.6 5.0 5KP160A 5KP160CA 160 178 205.0 1.0 259 19.3 5.0 5KP170A 5KP170CA 170 189 217.5 1.0 275 18.2 5.0 5KP180A 5KP180CA 180 200 230.4 1.0 290 17.2 5.0 5KP190A 5KP190CA 190211243.21.030616.35.0TYPE5KP36A110100200100010,000100,000V ,REVERSE STANDOFF VOLTAGE (V) Fig.2Typical Junction Capacitance RWM C ,C A P A C I T A N C E (p F ) j1.010100100010,0001.0101001000T PULSE WIDTH (s)Fig.3Pulse Derating Curve P ,μP ,P E A K P U L S E P O W E R (k W )P257510012515017520002.04.06.08.0T ,LEAD TEMPERATURE (C)Fig.5Steady State Power Derating L °P ,S T E A D Y S T A T E P O W E R D I S S I P A T I O N (W )D 02550751001251501752001007550250T ,AMBIENT TEMPERATURE (C)Fig.4Pulse Derating CurveA °P E A K P U L S E D E R A T I N G I N %O F P E A K P O W E R O R C U R R E N T123I ,PE A K P U L S E C U R R E N T (%I ) P p p t,TIME (ms)Fig.1Pulse Waveform5KP36A。
