SDX Series

Plastic Silicon Pressure Sensors

Low Cost, Temperature

Compensated, DIP, 0 psi to 1 psi,

0 psi to 100 psi

DESCRIPTION

The SDX Series sensors provide a very cost-effective solution

for pressure applications that require small size plus

performance. These calibrated and temperature-compensated

sensors give an accurate and stable output over a 0 °C to 50

°C [32 °F to 122 °F] temperature range. This series is intended

for use with non-corrosive, non-ionic working fluids such as air

and dry gases.

Devices are available to measure absolute and gage pressures

from 1 psi (SDX01) up to 100 psi (SDX100). The absolute

devices have an internal vacuum reference and an output

voltage proportional to absolute pressure. The SDX devices

are available in standard commercial and prime grades

(SDCXXXXX-A) to allow optimization of accuracy and cost in

1.Product profile

1.1General description

Ultra low capacitance ElectroStatic Discharge (ESD) protection diode in a SOT23(TO-236AB) small SMD plastic package designed to protect one high-speed data linefrom the damage caused by ESD and other transients.

1.2Features

1.3Applications

1.4Quick reference data

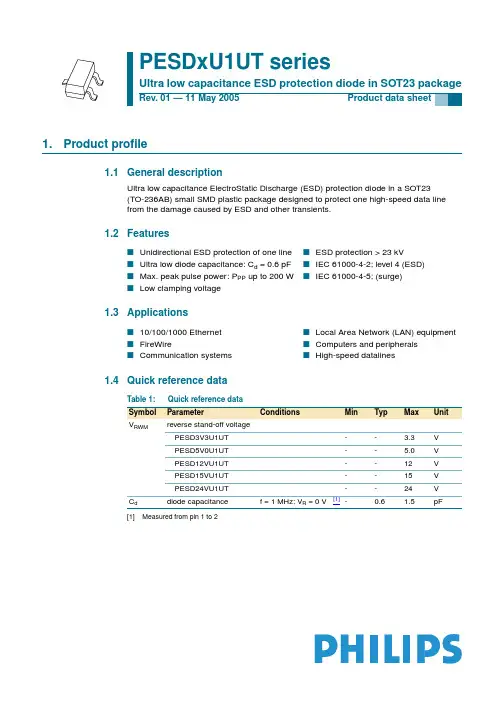

[1]Measured from pin 1 to 2PESDxU1UT series

UltralowcapacitanceESDprotectiondiodeinSOT23

packageRev. 01 — 11 May 2005

Product data sheet

sUnidirectional ESD protection of one linesESD protection > 23 kVsUltra low diode capacitance: Cd = 0.6pFsIEC 61000-4-2; level 4 (ESD)

sMax. peak pulse power: PPP up to 200WsIEC 61000-4-5; (surge)

sLow clamping voltage

s10/100/1000 EthernetsLocal Area Network (LAN) equipmentsFireWiresComputers and peripheralssCommunication systemssHigh-speed datalines

Table 1:Quick reference dataSymbolParameterConditionsMinTypMaxUnit

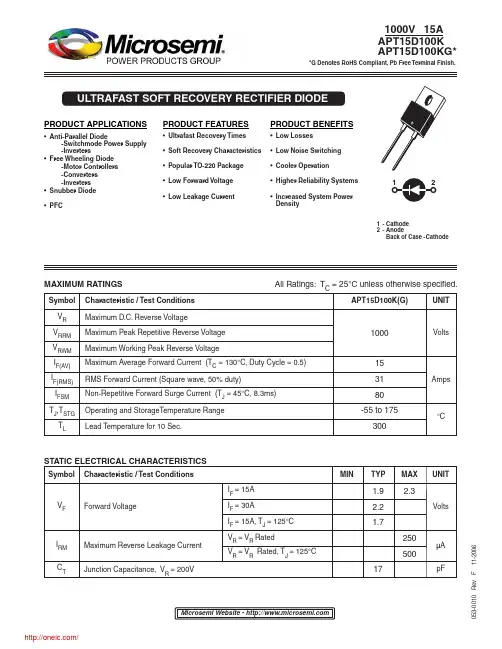

PRODUCT BENEFITS• Low Losses

• Low Noise Switching

• Cooler Operation

• Higher Reliability Systems

• Increased System Power

DensityPRODUCT FEATURES• Ultrafast Recovery Times

• Soft Recovery Characteristics

• Popular TO-220 Package • Low Forward Voltage

•

Low Leakage CurrentPRODUCT APPLICATIONS• Anti-Parallel Diode -Switchmode Power Supply -Inverters• Free Wheeling Diode -Motor Controllers -Converters -Inverters• Snubber Diode

• PFC 1000V 15A APT15D100K APT15D100KG* *G Denotes RoHS Compliant, Pb Free Terminal Finish.

MAXIMUM RATINGS All Ratings: TC = 25°C unless otherwise specifi ed.

STATIC ELECTRICAL CHARACTERISTICSSymbol

VF

IRM

CT UNIT

Volts

µA pF MIN TYP MAX

1.9 2.3

2.2

1.7

250

500

17 Characteristic / Test Conditions

Forward Voltage

Maximum Reverse Leakage Current

Junction Capacitance, VR = 200VIF = 15A

IF = 30A

/Data Sheet1

o This data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.

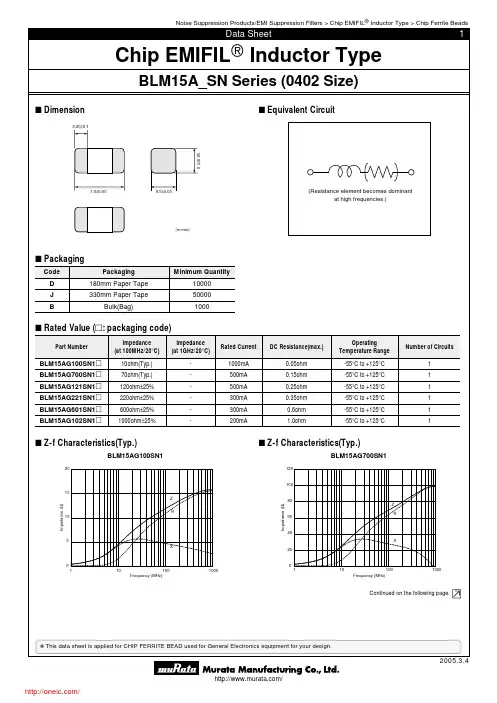

2005.3.4Noise Suppression Products/EMI Suppression Filters > Chip EMIFILr Inductor Type > Chip Ferrite Beads

(in mm)0.5±0.050.5±0.05

1.0±0.050.25±0.1

(Resistance element becomes dominantat high frequencies.)Chip EMIFILr Inductor Type

BLM15A_SN Series (0402 Size)

I DimensionI Equivalent Circuit

I Packaging

CodePackagingMinimum Quantity

D180mm Paper Tape10000

J330mm Paper Tape50000

BBulk(Bag)1000

I Rated Value (p: packaging code)

Part NumberImpedance(at 100MHz/20°C)Impedance(at 1GHz/20°C)Rated CurrentDC Resistance(max.)OperatingTemperature RangeNumber of Circuits

BLM15AG100SN1p10ohm(Typ.)-1000mA0.05ohm-55°C to +125°C1

BLM15AG700SN1p70ohm(Typ.)-500mA0.15ohm-55°C to +125°C1

BLM15AG121SN1p120ohm±25%-500mA0.25ohm-55°C to +125°C1
