RCCN 日成BLS型耐高温不锈钢电缆防水接头 BLS-Type Stainless steel Cable Gland

单位／Ｕｎｉｔ：ｍｍ产品材质：金属：不锈钢，橡胶：硅橡胶 螺牙规格：M/PG/NPT/G 产品认证：CE ROHS 工作温度：-50°C至250°C 防护等级：IP68

使用方法：将本体固定机板，旋紧迫紧头即可固定电缆　Thread:Metric/PG/NPT/G(PF)

Material:Brass,nickel plated Seal/Oring:silicon rubber Certificates:CE,EX,ROHS

Tempe.range:-50°C to +250°C Protection:IP68。ThreadHE2SW

螺母Lock NutAＯ形圈O-RingB本体BodyC夹紧圈SealE迫紧头SealingNutFL1

D1

L1E1

WWW.RCCN.COM.CN螺纹长度ThreadLength L1

100PCS

25PCS

1PCS板手SpannerSWA/F包装

Std.Pkg.

pcs接合长度JointLengthH外层橡胶without inletE2内层橡胶with inletE1适用电缆CableRange公制螺纹 M 德制螺纹 PG美制螺纹　NPT英制螺纹 G型号　Item No.日

成

B

L

S

型

大

范

围

不

锈

钢

电

缆

防

水

接

头

A40BLS-Type

Stainless steel

Cable Gland RCCN

BLS-M12×1.5-8 BLS-PG7-8 BLS-NPT1/4-8 BLS-G1/4-8 2-8 2-5 5-8 7 21 19

BLS-M16×1.5-11 BLS-PG9-11 4-11 4-7 7-11 8 25 21

BLS-M18×1.5-11 BLS-PG11-11 BLS-NPT3/8-11 BLS-G3/8-11 4-11 4-7 7-11 8 25 23

BLS-M20×1.5-14 BLS-PG13.5-14 BLS-NPT1/2-14 BLS-G1/2-14 5-14 5-9 9-14 9 29 25

BLS-M22×1.5-14 BLS-PG16-14 5-14 5-9 9-14 10 29 28

BLS-M24×1.5-20 11-20 11-16 16-20 11 30 30

BLS-M25×1.5-20 BLS-PG21-20 BLS-NPT3/4-20 BLS-G3/4-20 11-20 11-16 16-20 11 30 30

BLS-M27×1.5-20 11-20 11-16 16-20 11 30 30

BLS-M30×2.0-25 15-25 15-20 20-25 11 32 36

BLS-M32×1.5-25 BLS-NPT1-25 BLS-G1-25 15-25 15-20 20-25 11 32 36

BLS-M33×2.0-25 15-25 15-20 20-25 11 32 36

BLS-M36×2.0-25 15-25 15-20 20-25 11 32 40

BLS-M40×1.5-32 BLS-PG29-32 BLS-NPT1-1/4-32 BLS-G1-1/4-32 20-32 20-26 26-32 12 35 45

BLS-PG36-42 31-42 31-35 35-42 13 39 55

BLS-M50×1.5-42 BLS-PG42-42 BLS-NPT1-1/2-42 BLS-G1-1/2-42 31-42 31-35 35-42 14 39 60

BLS-M63×1.5-54 BLS-PG48-54 BLS-NPT2-54 BLS-G2-54 41-54 41-54 46-54 14 40 70

BLS-M72×2.0-54 50-54 50-54 60-65 20 47 90

BLS-M75×1.5-54 BLS-NPT2-1/2-54 BLS-G2-1/2-54 50-54 50-54 60-65 20 47 90

BLS-M72×1.5-65 BLS-NPT2-1/2-65 BLS-G2-1/2-65 54-65 54-58 58-65 20 47 90

BLS-M75×1.5-65 BLS-NPT2-1/2-65 BLS-G2-1/2-65 54-65 54-58 58-65 20 47 90

BLS-M85×2.0-77 BLS-NPT3-77 BLS-G3-77 65-77 65-70 70-77 20 49 100

BLS-M90×2.0-77 65-77 65-70 70-77 20 49 100

合集下载

DIN型金属电缆接头

DIN型金属电缆接头

日成DIN型金属电缆接头　Brass Cable GlandRCCN 日成DIN型金属电缆接头 Brass Cable Gland产品材质:采用黄铜镀镍，密封圈采用硅橡胶制成。防护等级:在规定的卡口范围内,并使用O形密 封圈旋紧迫紧头,达到IP66。本品外部结构可做圆体不带六角边。型号例:DINR-M12×1.5-8Material:brass coated nickel,seal ring made of rubber Protect grade:up to IP66 using with O ring and claw, underthe fixed rangeThis items can be produced in round without hexagon adge, part no. like DINR-M12X1.5-8

单位／Ｕｎｉｔ：ｍｍRCCN日成EXS隔爆金属电缆接头 EXS Brass Cable Gland50PCS25PCS1PCS板手SpannerSWA/F包装Std.Pkg.pcs配套螺母上限板厚+Nut Maxplatethick接合长度JointLengthH本体橡胶Outersealing 螺纹长度ThreadLengthL1公制螺纹 M 德制螺纹 PG美制螺纹　NPT英制螺纹 G型号　Item No. EXS-M16×1.5-8 EXS-PG9-8 EXS-NPT1/2-8 EXS-G1/2-8 16 4-8.5 ≤10.5 33 24 EXS-M16×1.5-11 EXS-PG9-11 EXS-NPT1/2-11 EXS-G1/2-11 16 8-11.5 ≤10.5 33 24 EXS-M20×1.5-8 EXS-PG13.5-8 16 4-8.5 ≤10.5 33 24 EXS-M20×1.5-11 EXS-PG13.5-11 16 8-11.5 ≤10.5 33 24 EXS-M20×1.5-14 EXS-PG13.5-14 EXS-NPT1/2-14 EXS-G1/2-14 16 7-14 ≤10.5 33 30 EXS-M25×1.5-20 EXS-PG21-20 EXS-NPT3/4-20 EXS-G3/4-20 16 13-20 ≤10.5 33 36 EXS-M32×1.5-26 EXS-PG29-26 EXS-NPT1-26 EXS-G1-26 16 19-26 ≤10.5 37 44 EXS-M40×1.5-32 EXS-PG36-32 EXS-NPT1-1/4-32 EXS-G1-1/4-32 16 25-32 ≤10.5 37 54 EXS-M50×1.5-38 EXS-PG42-38 EXS-NPT1-1/2-38 EXS-G1-1/2-38 16 28-38 ≤10.5 37 64 EXS-M50×1.5-44 EXS-PG42-44 EXS-NPT1-1/2-44 EXS-G1-1/2-44 16 36-44 ≤10.5 37 64 EXS-M63×1.5-50 EXS-PG48-50 EXS-NPT2-50 EXS-G2-50 19 42-50 ≤13.5 37 81 EXS-M63×1.5-56 EXS-PG48-56 EXS-NPT2-56 EXS-G2-56 19 50-56 ≤13.5 37 81 EXS-M75×1.5-62 EXS-NPT2-1/2-62 EXS-G2-1/2-62 19 54-62 ≤13.5 37 96 EXS-M75×1.5-68 EXS-NPT2-1/2-68 EXS-G2-1/2-68 19 60-68 ≤13.5 37 96 EXS-M80×2.0-72 19 62-72 ≤13.5 110 110 EXS-M85×2.0-80 19 70-80 ≤13.5 110 110 EXS-M90×2.0-84 EXS-NPT3-84 EXS-G3-84 19 74-84 ≤13.5 110 110 EXS-M100×2.0-90 EXS-NPT3-1/2-90 EXS-G3-1/2-90 19 80-90 ≤13.5 110 110Technical detailsSafety Requirements EN 60079-0:2009 / EN 60079-1:2007 / EN 60079-/ EN 60079-11:2010/ EN 60079-31:2009/ EN 61241-0 / EN 61241-1 Equipment Marking Flameproof Ex-d and Increased Safety Ex-e EX I M2/ Ex II 2GD EX d I Mb/Ex e I Mb / EX d IIC Gb / Ex e IIC Gb / Ex tb IIIC Db Suitable for use in Equipment ZONE1, ZONE2, ZONE21, ZONE22, Gas Groups IIA, IIB, IIC For Gas & Dust potenally explosive atmospheres Degree Of Protecon IP66-IP68 (EN 60529) Marking EX.. CE0722 II 2GD Exd IIC GB / Exe IIC Gb Ta-30ºC +120ºC Ex tb IIIC Db IP66/68 IMQ 11 ATEX 037 Temperature Classes -60°C / +180°C with SILICONE Sealing Ring Material Brass Stainless Steel 304 单位／Ｕｎｉｔ：ｍｍ100PCS10PCS板手SpannerSWA/F包装Std.Pkg.pcs配套螺母上限板厚+Nut Maxplatethick接合长度JointLengthH本体橡胶Outersealing 螺纹长度ThreadLengthL1公制螺纹 M 德制螺纹 PG美制螺纹　NPT英制螺纹 G型号　Item No. DIN-M12×1.5-8 DIN-PG7-8 DIN-NPT1/4-8 DIN-G1/4-8 5 6-8 ≤2 15 14/14 DIN-M16×1.5-10 DIN-PG9-10 DIN-NPT3/8-10 DIN-G3/8-10 6 8-10 ≤3 15 18/18 DIN-M18×1.5-12 DIN-PG11-12 6 10-12 ≤3 17 20/18 DIN-M20×1.5-14 DIN-PG13.5-14 DIN-NPT1/2-14 DIN-G1/2-14 7 12-14 ≤4 20 22/20 DIN-M22×1.5-16 DIN-PG16-16 9 14-16 ≤5 22 24/22 DIN-M25×1.5-19 DIN-PG21-19 DIN-NPT3/4-19 DIN-G3/4-19 10 17-19 ≤5 24 36/30 DIN-M32×1.5-25 DIN-NPT1-25 DIN-G1-25 11 23-25 ≤5 26 36/30 DIN-M40×1.5-35 DIN-PG29-35 DIN-NPT1-1/4-35 DIN-G1-1/4-35 11 33-35 ≤5 30 44/40 DIN-M50×1.5-41 DIN-PG36-41 DIN-NPT1-1/2-41 DIN-G1-1/2-41 11 39-41 ≤5 34 54/50 DIN-M63×1.5-47 DIN-PG48-47 DIN-NPT2-47 DIN-G-47 14 45-47 ≤9 37 68/64L1HSWA垫片SWFRCCN螺纹标准及开孔数据　参考A26页　螺纹标准及开孔数据　参考A26页　RoHS防爆认证RoHS

上海日成电子 冷压接线端子 接线鼻 铜线耳 叉形裸端头铜鼻子接头

上海日成电子 冷压接线端子 接线鼻 铜线耳 叉形裸端头铜鼻子接头

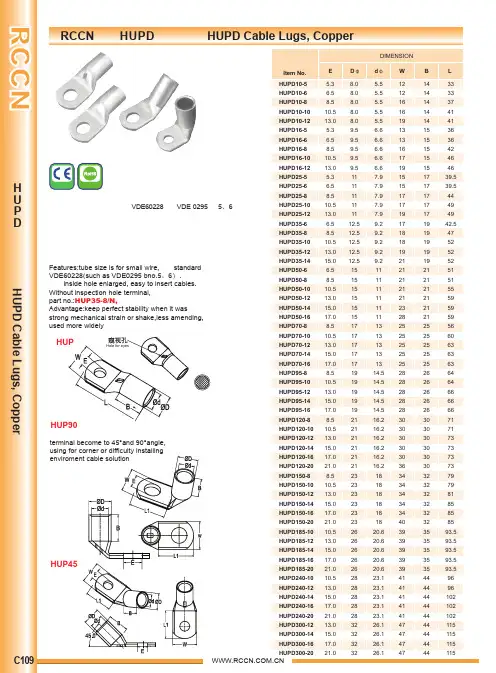

RCCN 日成HUPD铜管端子 HUPD Cable Lugs, Copper尺寸 DIMENSION EDφ dφ W B L型　号Item No.RCCN

terminal become to 45°and 90°angle,using for corner or difficulty installing enviroment cable solutionHUP

HUP45HUP90Recommend推荐

特性：管端尺寸适于细绞线，标准　VDE60228（如VDE 0295 第　5、6　类）ＨＵＰＤ内孔扩大型，易于插入电缆

Hole for eyes

细绞线截面图优势：在受到机械应力时或在强振下连接，同样可以实现最优的稳定性。维修和维护工作较少。应用领域更为广泛。

压接电缆端子形成　４５°和　９０°的角度。为即使是转角型的和困难的安装提供合适的解决方案。HUPD10-5 5.3 8.0 5.5 12 14 33 HUPD10-6 6.5 8.0 5.5 12 14 33 HUPD10-8 8.5 8.0 5.5 16 14 37 HUPD10-10 10.5 8.0 5.5 16 14 41 HUPD10-12 13.0 8.0 5.5 19 14 41 HUPD16-5 5.3 9.5 6.6 13 15 36 HUPD16-6 6.5 9.5 6.6 13 15 36 HUPD16-8 8.5 9.5 6.6 16 15 42 HUPD16-10 10.5 9.5 6.6 17 15 46 HUPD16-12 13.0 9.5 6.6 19 15 46 HUPD25-5 5.3 11 7.9 15 17 39.5 HUPD25-6 6.5 11 7.9 15 17 39.5 HUPD25-8 8.5 11 7.9 17 17 44 HUPD25-10 10.5 11 7.9 17 17 49 HUPD25-12 13.0 11 7.9 19 17 49 HUPD35-6 6.5 12.5 9.2 17 19 42.5HUPD35-8 8.5 12.5 9.2 18 19 47 HUPD35-10 10.5 12.5 9.2 18 19 52 HUPD35-12 13.0 12.5 9.2 19 19 52 HUPD35-14 15.0 12.5 9.2 21 19 52 HUPD50-6 6.5 15 11 21 21 51 HUPD50-8 8.5 15 11 21 21 51 HUPD50-10 10.5 15 11 21 21 55 HUPD50-12 13.0 15 11 21 21 59 HUPD50-14 15.0 15 11 23 21 59 HUPD50-16 17.0 15 11 28 21 59 HUPD70-8 8.5 17 13 25 25 56 HUPD70-10 10.5 17 13 25 25 60 HUPD70-12 13.0 17 13 25 25 63 HUPD70-14 15.0 17 13 25 25 63 HUPD70-16 17.0 17 13 25 25 63HUPD95-8 8.5 19 14.5 28 26 64 HUPD95-10 10.5 19 14.5 28 26 64 HUPD95-12 13.0 19 14.5 28 26 66 HUPD95-14 15.0 19 14.5 28 26 66 HUPD95-16 17.0 19 14.5 28 26 66 HUPD120-8 8.5 21 16.2 30 30 71 HUPD120-10 10.5 21 16.2 30 30 71 HUPD120-12 13.0 21 16.2 30 30 73 HUPD120-14 15.0 21 16.2 30 30 73 HUPD120-16 17.0 21 16.2 30 30 73 HUPD120-20 21.0 21 16.2 36 30 73 HUPD150-8 8.5 23 18 34 32 79 HUPD150-10 10.5 23 18 34 32 79 HUPD150-12 13.0 23 18 34 32 81 HUPD150-14 15.0 23 18 34 32 85 HUPD150-16 17.0 23 18 34 32 85 HUPD150-20 21.0 23 18 40 32 85 HUPD185-10 10.5 26 20.6 39 35 93.5 HUPD185-12 13.0 26 20.6 39 35 93.5 HUPD185-14 15.0 26 20.6 39 35 93.5 HUPD185-16 17.0 26 20.6 39 35 93.5 HUPD185-20 21.0 26 20.6 39 35 93.5 HUPD240-10 10.5 28 23.1 41 44 96 HUPD240-12 13.0 28 23.1 41 44 96 HUPD240-14 15.0 28 23.1 41 44 102 HUPD240-16 17.0 28 23.1 41 44 102 HUPD240-20 21.0 28 23.1 41 44 102 HUPD300-12 13.0 32 26.1 47 44 115 HUPD300-14 15.0 32 26.1 47 44 115 HUPD300-16 17.0 32 26.1 47 44 115 HUPD300-20 21.0 32 26.1 47 44 115 日成HUPD铜管端子HUPD Cable Lugs, CopperFeatures:tube size is for small wire,ＨＵＰ standard VDE60228(such as VDE0295 bno.5、6）.ＨＵＰ inside hole enlarged, easy to insert cables.Without inspection hole terminal, part no.:HUP35-8/N, Advantage:keep perfect stability when it was strong mechanical strain or shake,less amending,used more widely 本品用于欧洲德国国标线及德国工具RCCN

RCCN日成RF型绝缘端子

RCCN日成RF型绝缘端子

RCCN日成RF型绝缘端子RCCN 日成RF型绝缘端子 RF Insulated Ring Terminals

型　号Item No. B L F H Dφ mm mm mm mm mmd2尺寸　DIMENSION颜色color型　号Item No. B L F H Dφ mm mm mm mm mmd2尺寸DIMENSION颜色color

RF2-3 #4 3.2mm 6.6 17.8 4.3 RFS2-3.5 #6 3.7mm 6.6 17.8 4.3 RFM2-3.5 #6 3.7mm 6.6 21.0 7.0 RFL2-3.5 #6 3.7mm 8.5 22.5 7.75 RFS2-4 #8 4.3mm 6.6 19.5 6.5 RFL2-4 #8 4.3mm 8.5 22.5 7.75 10.0 4.9 蓝 RFS2-5 #10 5.3mm 8.5 22.5 7.75 RFL2-5 #10 5.3mm 9.5 22.5 7.25 RF2-6 1/4 6.5mm 12.0 27.6 11.0 RF2-8 5/16 8.4mm 12.0 27.6 11.0 RF2-10 3/8 10.5mm 14 31 13.9 RF2-12 1/2 13.0mm 19.2 36.5 16.5 B L F H Dφ mm mm mm mm mmd2尺寸 DIMENSION颜色color RF3.5-4 #8 4.3mm 8.0 24.5 7.7 RFS3.5-5 #10 5.3mm 8.0 24.5 7.7 RFL3.5-5 #10 5.3mm 12.0 27.9 7.7 13.5 6.7 黑 RF3.5-6 1/4 6.5mm 12.0 27.9 7.7 RF3.5-8 5/16 8.4mm 15.0 32.0 13.5 RF3.5-10 3/8 10.5mm 15.0 32.0 13.5型　号Item No. B L F H Dφ mm mm mm mm mmd2尺寸 DIMENSION颜色color RF5.5-3.5 #6 3.7mm 7.2 21.4 5.9 RFS5.5-4 #8 4.3mm 7.2 21.4 5.9 RFL5.5-4 #8 4.3mm 9.5 26.5 8.3 RF5.5-5 #10 5.3mm 9.5 26.5 8.3 RF5.5-6 1/4 6.5mm 12.0 31 13.0 13.5 6.7 黄 RF5.5-8 5/16 8.4mm 15.0 33.7 13.7 RF5.5-10 3/8 10.5mm 15.0 33.7 13.7 RF5.5-12 1/2 13.0mm 19.2 38.1 16.0型　号Item No. RF1.25-3 #4 3.2mm 5.7 17.8 4.95 RFS1.25-3.5 #6 3.7mm 5.7 17.8 4.95 RFM1.25-3.5 #6 3.7mm 6.6 20.1 6.3 RFL1.25-3.5 #6 3.7mm 8.0 21.5 7.0 RFS1.25-4 #8 4.3mm 6.6 20.1 6.3 10.0 4.3 红 RFL1.25-4 #8 4.3mm 8.0 21.5 7.0 RF1.25-5 #10 5.3mm 8.0 21.5 7.0 RFL1.25-5 #10 5.3mm 9.8 23.0 8.5 RFS1.25-6 1/4 6.5mm 9.8 23.0 8.5 RF1.25-6 1/4 6.5mm 11.6 27.5 11.1 RF1.25-8 5/16 8.4mm 11.6 27.5 11.1 RF1.25-10 3/8 10.5mm 13.6 31.6 13.9 RF1.25-12 1/2 13.0mm 19.2 36.0 16.5RF Insulated Ring Terminals

RCCN日成NBF型内螺纹金属软管接头

RCCN日成NBF型内螺纹金属软管接头

RCCN

A78日

成

N

B

F

型

内

螺

纹

金

属

软

管

接

头

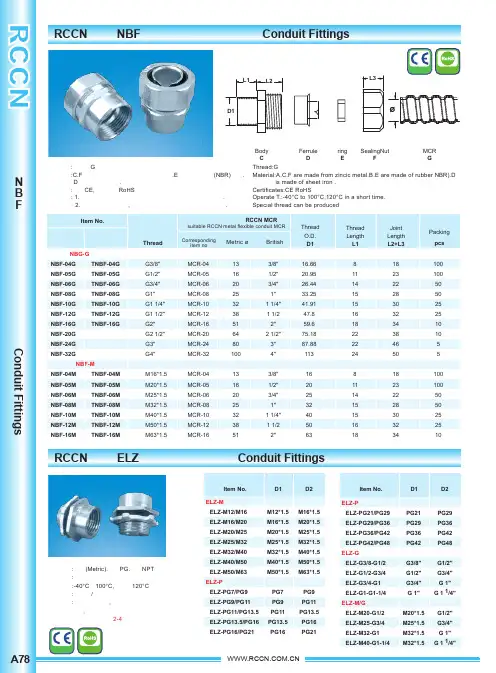

头RCCN 日成NBF型内螺纹金属软管接头 Conduit Fittings
