YNHADO智能恒温热水器说明书

智能热水器产品说明书产品简介：智能热水器是一款结合了先进科技和用户需求的创新产品。

它采用智能控制系统，具有自动调温、定时预约、远程控制等功能，旨在为用户提供更加舒适和便捷的热水使用体验。

本说明书将详细介绍智能热水器的特点、功能、使用方法以及注意事项，帮助用户更好地了解和使用产品。

一、产品特点1. 智能控制系统：智能热水器配备先进的智能控制芯片，能够自动感知水温并进行调整，确保热水始终处于用户设定的舒适温度范围内。

2. 安全可靠：产品内置多重安全保护装置，如漏电保护、过热保护等，保障用户使用时的安全和稳定。

3. 省电环保：智能热水器采用节能技术，有效降低能耗，满足用户对热水需求的同时，积极响应节能环保的呼吁。

4. 人性化设计：产品外观简约、大气，操作界面简单直观，便于用户使用。

同时还具备省时、省力、省心的特点，为用户提供更多便捷。

5. 远程控制：通过手机APP，用户可以实现远程控制智能热水器，可以随时随地调整水温、设置定时预约等功能，方便用户的日常使用。

二、产品功能1. 自动调温：智能热水器能够根据用户设定的水温范围进行自动调节，保持热水的恒温状态，满足用户不同需要。

2. 定时预约：用户可以通过设定时间和水温，实现智能热水器的定时启动和停止，方便用户按需使用热水，避免不必要的能源浪费。

3. 节能模式：智能热水器配备了节能模式，可以根据用户习惯和需求，自动调整加热功率和使用时间，最大程度地节约能源，提升节能效果。

4. 智能检测：智能热水器内置多个传感器，能够实时监测水位、水质、加热功率等参数，及时发出警报，提醒用户注意和处理问题。

5. 儿童锁定：智能热水器设有儿童锁定功能，避免孩子误操作导致安全问题，保障家庭的安全。

三、使用方法1. 安装：根据产品的安装手册进行正确安装，确保热水器处于稳固、通风良好的位置。

2. 连接电源：将热水器连接电源，并确保电源线路符合安全要求。

3. 开机操作：按下电源开关，启动智能热水器，待显示屏亮起后，进入待机状态。

热水器控制器的说明书感谢您购买我们的热水器控制器。

为了确保您能更好地使用我们的产品，请认真阅读以下说明书并按照指示操作。

1. 控制器概述本产品为热水器驱动控制器，具有以下特点：- 采用先进的数字控制技术，能够精确控制水温，使您的洗浴体验更为舒适；- 具有简单直观的操作界面，方便使用；- 内置安全保护功能，可以有效避免热水器过热现象发生。

2. 使用方法2.1 接口说明- 电源接口：接入AC220V电源；- 控制接口：接入热水器；- 控制按键：包括加热按键、降温按键、休眠按键；- 数码显示屏：用于显示当前水温和控制状态。

2.2 操作流程2.2.1 开机将控制器的电源线接入AC220V电源，此时液晶显示屏将亮起，系统开始工作。

如图1所示：(图1)2.2.2 升温按“加热”按键，将开启加热模式。

此时，控制器将自动读取水温，然后根据设定温度加热。

如图2所示：(图2)2.2.3 降温如果您觉得水温过高，可以按“降温”按键，控制器将立即停止加热，并根据设定温度降温。

如图3所示：(图3)2.2.4 休眠如果您不需要热水一段时间，可以按“休眠”按键，控制器将自动停止加热，并进入休眠模式。

在休眠模式下，当前设置的温度仍将保持不变。

如图4所示：(图4)2.3 温度设置按“加热”或“降温”按键，您可以设置水的温度。

每次按下按键，水温将上下调整1℃。

您可以在液晶显示屏上查看当前温度设置。

如图5所示：(图5)3. 安全说明为了确保您的使用安全，请遵循以下建议：- 如不使用，请保持控制器在离线状态。

- 请勿擅自拆卸、修改产品，以免造成危险。

- 如控制器故障，请勿自行修理，应联系厂家或者专业的售后服务。

- 控制器只能连接热水器，严禁使用于其他设备上。

4. 注意事项4.1. 清洗规范使用过一段时间后，为了保持热水器的效率和卫生，应及时清洗。

请注意，控制器的主体部分不能接触水，也不能放入水中清洗，否则会损坏产品。

4.2. 使用环境要求控制器只能在室内使用，不能在潮湿、有化学腐蚀性气体或尘埃较大的地方使用。

智能热水器使用说明书尊敬的顾客，感谢您选择使用我们的智能热水器。

为了使您更好地了解和使用这款产品，我们特别为您提供了以下使用说明。

请您仔细阅读本手册，并按照指示正确操作。

1. 产品概述我们的智能热水器是一款集热水供应、温度控制和安全保护为一体的智能家居设备。

它采用先进的技术，通过智能控制系统实现水温调节、定时预约等功能，为您带来便捷舒适的用水体验。

2. 安全注意事项- 在安装之前，请确保电源已断开，以免触电事故发生。

- 请避免将热水器倒置、撞击或受到其他物体的损坏，以防止设备故障。

- 不要将水温调至过高，以免烫伤或引发其他安全问题。

- 请勿将其他杂物放置在热水器周围，以确保良好的散热和防火安全。

- 如发现热水器存在任何异常情况，请立即停止使用并联系售后服务。

3. 热水器安装- 请确保热水器的安装环境符合相关安全规范，并由专业的安装人员进行安装。

- 安装前请检查热水器的外观是否完好，确保配件齐全，并与售后服务确认是否有损坏。

- 请按照说明书中的示意图正确连接水管、电源线，并确保连接牢固、绝缘良好。

4. 使用方法- 接通电源后，按下电源开关，热水器将进入待机状态。

- 使用流量调节开关调整所需的热水流量大小。

- 调节温度旋钮可控制热水的温度。

请选择适宜的温度以满足您的需求。

- “加热”指示灯将亮起表示热水器正在工作，当温度达到设定值后，将自动停止加热，绿色“工作”指示灯亮起。

- 可使用定时预约功能，在需要的时间段内自动启动热水器，方便您在指定时间享受热水。

5. 清洁与维护- 在清洁热水器之前，请断开电源，避免发生触电危险。

- 清洁热水器时，请勿使用酸性、腐蚀性或磨损性的清洁剂，以免损坏设备。

- 定期检查热水器的电源线、水管等连接部分，确保其牢固可靠。

- 如发现任何异常情况，如漏水、异响等，请及时联系专业技术人员进行检修。

6. 故障排除若热水器出现以下情况，请先检查常见问题：- 无电源供应：请确保电源插座正常连接。

设备操作说明书
第 1 页 共 2页
设备名称 电热水器 设备功能 供应热水 文件编号 设备型号
DSZF-50
厂 商
华时雅
版 本
B0
一﹑各部件名称(附图)
名称﹕1﹑电源开关 2﹑温度设置 3﹑封头 4﹑保温指示灯 5﹑外壳 6﹑温度显示 7﹑排污垢 8﹑冷水进水管 9﹑热水出水管 二﹑使用方法
2.1 电热水器安装完毕后﹐进水口保持常通﹐打开混水阀热水出口﹐给热水器注水﹐待喷头喷出水时﹐表示热水器已注满水﹔再将混水阀手柄沿逆时针方向调至极限位置﹐停止给热水器注水﹐插上电源接通开关﹐热水器电源指示灯亮。

2.2 依据需加热水温转动控温器旋钮﹐旋钮标记指向低中高温档﹐由低到高在35℃～75℃温度范围内可无级选用加热温度﹐在加热状态下加热指示灯会亮﹐通常情况下应将旋钮处于高温位置。

2.3 本机可自动控温﹐当温度达到设定温度时会自动断电﹐保温指示灯亮。

当水温下降到一定温度时(通常比设定温度低3-5℃左右)会自动接通电源﹐继续加热﹐保温指示灯熄灭。

核 准 审 核 制 作 日 期
5
2
1
3
4
6
7 8 9
设备操作说明书
第 2 页共2 页。

FEATURESߜ Moisture ResistantTerminal EnclosureߜStandardPolypropylene GuardߜSide MountedConstruction with PVCMounting FlangeߜOvertemperatureProtection IntegralManual Reset Cutout[116°C (240°F)]ߜLow Profile, Light Weight MOST POPULAR MODEL HIGHLIGHTED!(Specify Model Number)WeightTPR-Round Cross Section Elements,1. Corrosion Resistant:Thermoplastic fluoropolymercoated stainless steel sheath forlong life in almost all types ofcorrosive solutions for operatingtemperatures up to 212°F. Pinhole free, durable coating, 100%tested at factory.2. Overtemperature Shutoff:Standard on all units. A manualreset cutout will deactivate theheater in the event of anovertemperature condition (rated25 amps up to 277 volts). A visualminimum level indication is alsoprovided on the heater guard.2000 W, 240V, $650.TRP-101, $550,shown smallerthan actual size.3. Low Profile:Single and threephrase heaters have flat profileswhich permit maximum work areaand minimum interference withplating process. Heater projectsless than 2" away from the sideof the tank.Continued on page 114Terminal EnclosureߜStandard PolypropyleneGuardߜSide MountedConstruction withPVC Mounting FlangeߜOvertemperatureProtection IntegralManual ResetCutout (240°F)ߜLow Profile,Light Weight(Specify Model Number)Dimensions: cm (in) WeightModel No.Price kg (lb)TPF-302$1000 4 (8)TPF-3041795 4 (8)TPF-Flat Element, Three Phase Models4. Vapor Tight Terminal:Enclosure of PVC material withleft or right hand conduit entry.5. Mounting Bracket:Made of PVCmaterial with conveniently locatedmounting slots.6. Polypropylene Guard:Standard on all units. It protectsthe heater from work in processin heating tank. Guard easilydisassembles for ease ofcleaning heating elements.7. Grounded Construction:Withmetal sheath heating elements toallow for proper grounding safety.1Ordering Example: TPF-404,three phase, flat element immersion heater, 4000 W, 480V, $1100.It is not UL Listed or CSA Certified.TPF-302, $1000,shown smallerthan actual size.8. Low Watt Density: 20 watts persquare inch heat output suitablefor almost all corrosive solutions.9. Light Weight:Simple designpermits easy installation andremoval for cleaning.MOST POPULAR MODELS HIGHLIGHTED!CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. Manchester, England0800-488-488GERMANY www.omega.deDeckenpfronn, Germany************FRANCE www.omega.frGuyancourt, France088-466-342BENELUX www.omega.nl Amstelveen, NL 0800-099-33-44UNITED STATES 1-800-TC-OMEGA Stamford, CT.CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic596-311-899TemperatureCalibrators, Connectors, General Test and MeasurementInstruments, Glass Bulb Thermometers, Handheld Instruments for Temperature Measurement, Ice Point References,Indicating Labels, Crayons, Cements and Lacquers, Infrared Temperature Measurement Instruments, Recorders Relative Humidity Measurement Instruments, RTD Probes, Elements and Assemblies, Temperature & Process Meters, Timers and Counters, Temperature and Process Controllers and Power Switching Devices, Thermistor Elements, Probes andAssemblies,Thermocouples Thermowells and Head and Well Assemblies, Transmitters, WirePressure, Strain and ForceDisplacement Transducers, Dynamic Measurement Force Sensors, Instrumentation for Pressure and Strain Measurements, Load Cells, Pressure Gauges, PressureReference Section, Pressure Switches, Pressure Transducers, Proximity Transducers, Regulators,Strain Gages, Torque Transducers, ValvespH and ConductivityConductivity Instrumentation, Dissolved OxygenInstrumentation, Environmental Instrumentation, pH Electrodes and Instruments, Water and Soil Analysis InstrumentationHeatersBand Heaters, Cartridge Heaters, Circulation Heaters, Comfort Heaters, Controllers, Meters and SwitchingDevices, Flexible Heaters, General Test and Measurement Instruments, Heater Hook-up Wire, Heating Cable Systems, Immersion Heaters, Process Air and Duct, Heaters, Radiant Heaters, Strip Heaters, Tubular HeatersFlow and LevelAir Velocity Indicators, Doppler Flowmeters, LevelMeasurement, Magnetic Flowmeters, Mass Flowmeters,Pitot Tubes, Pumps, Rotameters, Turbine and Paddle Wheel Flowmeters, Ultrasonic Flowmeters, Valves, Variable Area Flowmeters, Vortex Shedding FlowmetersData AcquisitionAuto-Dialers and Alarm Monitoring Systems, Communication Products and Converters, Data Acquisition and Analysis Software, Data LoggersPlug-in Cards, Signal Conditioners, USB, RS232, RS485 and Parallel Port Data Acquisition Systems, Wireless Transmitters and Receivers。

智能恒温热水器使用说明智能恒温热水器使用说明1. 安装•选择适合的位置，确保电源和水源供应充足•将恒温热水器固定在墙面上，确保稳固可靠•接通电源和水源，确保正常工作2. 开关机•使用智能恒温热水器前，请确保开关处于关闭状态•打开水龙头，调整水温至需要的温度•按下开关，恒温热水器将开始工作，水温将保持在设定的温度3. 温度调节•通过操作面板上的温度调节按钮，可以调整所需的水温•按下“+”按钮，水温将上升，按下“-”按钮，水温将下降•根据个人需求，选择舒适的温度范围4. 定时功能•智能恒温热水器配备了定时功能，可以预先设置开机和关机时间•进入定时功能设置界面，按照提示设置所需的开关机时间•确保时间设定准确，恒温热水器将按照设定的时间自动开关机•注意：定时功能只在开机状态下有效5. 节能模式•智能恒温热水器提供了节能模式，可帮助减少能耗•进入节能模式设置界面，按照提示设置所需的节能模式•根据实际需要选择适当的节能模式•注意：节能模式下，水温可能会稍有下降，但在舒适范围内6. 清洁与维护•定期清洁恒温热水器外壳，避免积灰影响美观或散热•清理内部水垢，以保持热水器的正常工作•长时间不使用时，可选择关闭电源，以节约能源•如遇到故障，请联系售后服务热线进行咨询或维修以上是智能恒温热水器的使用说明。

请严格按照说明操作，以确保安全使用并延长产品寿命。

如有其他疑问，请查阅产品使用手册或咨询专业人士。

7. 安全注意事项•仅供家庭和办公场所使用，禁止用于其他商业用途•使用前，请确保恒温热水器的电源和插座符合安全标准，并避免电源线被压扁或暴露在外•不得在恒温热水器上放置易燃物品，以防发生火灾•使用过程中，严禁将电源线浸入水中或触碰湿手操作•当恒温热水器发生故障、异常或发出异常声响时，应立即停止使用并联系专业人士进行检修•请勿擅自拆卸或修理恒温热水器，以免造成触电或其他安全隐患•在清洁和维护恒温热水器时，应先断开电源，避免触电事故发生•请务必放置在儿童无法接触到的地方，以防意外伤害发生•在使用过程中，若长时间未使用，建议关闭电源，以节约能源和确保安全以上是智能恒温热水器的使用注意事项，请务必遵守，以保障使用安全和正常功能。

热水器使用说明书型号JSQ25-13WM6DWMGU1• 本说明书为通用手册• 本公司保留说明书解释权• 产品外观请以实物为准• 阅后请与发票一并妥善保存• 如遇产品技术或软件升级，恕不另行通知• 本产品只适合在中国大陆销售和使用1. 产品介绍1 1.1. 产品部件1 1.1.1. 内部结构图1 1.1.2. 电气原理图21.2. 技术参数22. Wi-Fi连接4 2.1. 应用下载42.2. 绑定流程43. 使用说明5 3.1. 注意事项5 3.1.1. 电气方面5 3.1.2. 使用方面5 3.1.3. 维护方面5 3.2. 安装指南6 3.2.1. 装箱单6 3.2.2. 安装示意图6 3.2.3. 安装注意事项7 3.2.4. 安装方法7 3.3. 控制面板11 3.3.1. 控制面板113.3.2. 功能介绍114. 售后服务13 4.1. 用户须知13 4.2. 疑难解答13 4.2.1. 故障代码13 4.3. 清洗保养14 4.4. 保修说明14 4.5. 一键报修151. 产品介绍1.1. 产品部件1.1.1. 内部结构图内部结构图JSQ25-13WM6DWMGU1结构图JSQ30-16WM6DWMGU1结构图结构图仅供参考，厂家变动不做另行通知，以实物为准。

1.1.2. 电气原理图电气原理图注：电气原理图仅供参考，厂家变动不做另行通知，以实物为准。

1.2. 技术参数技术数据产品型号JSQ25-13WM6DWMGU1JSQ30-16WM6DWMGU1燃气种类天然气天然气气质12T12T额定燃气压力2000Pa2000Pa能效等级2级2级额定热负荷24.5kW30.0kW额定最小热负荷≤7.5kW≤9.5kW点火方式电脉冲放电点火电脉冲放电点火额定电压/频率220V~/50Hz220V~/50Hz适用水压0.02MPa~1.0MPa0.02MPa~1.0MPa启动水流量≥2.3L/min≥2.3L/min 额定产热水能力（折算温升25K时）13kg/min16kg/min外形尺寸（长×宽×高）（mm）540×340×145540×340×165热水器净重/毛重见包装箱贴见包装箱贴额定电功率见铭牌见铭牌防冻电功率见铭牌见铭牌外壳防护等级见铭牌见铭牌2. Wi-Fi连接2.1. 应用下载海尔智家客户端软件下载说明：海尔物联网燃气热水器需配套海尔独立研发的客户端使用，请扫描文字下方二维码或应用市场搜索“海尔智家”APP进行下载。

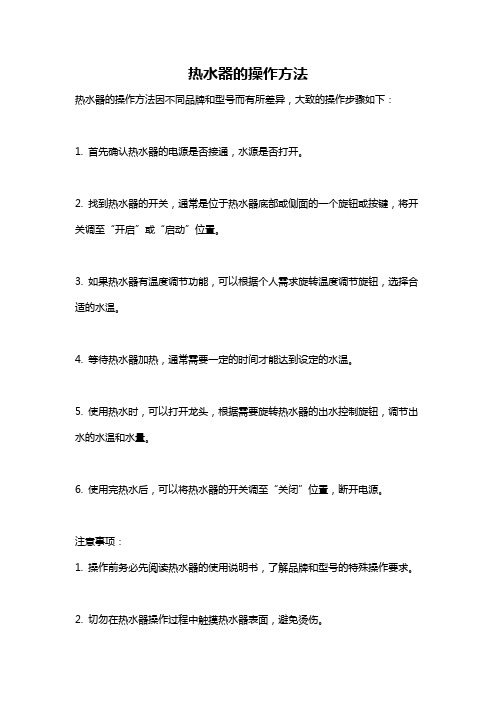

热水器的操作方法
热水器的操作方法因不同品牌和型号而有所差异，大致的操作步骤如下：
1. 首先确认热水器的电源是否接通，水源是否打开。

2. 找到热水器的开关，通常是位于热水器底部或侧面的一个旋钮或按键，将开关调至“开启”或“启动”位置。

3. 如果热水器有温度调节功能，可以根据个人需求旋转温度调节旋钮，选择合适的水温。

4. 等待热水器加热，通常需要一定的时间才能达到设定的水温。

5. 使用热水时，可以打开龙头，根据需要旋转热水器的出水控制旋钮，调节出水的水温和水量。

6. 使用完热水后，可以将热水器的开关调至“关闭”位置，断开电源。

注意事项：
1. 操作前务必先阅读热水器的使用说明书，了解品牌和型号的特殊操作要求。

2. 切勿在热水器操作过程中触摸热水器表面，避免烫伤。

3. 长期不使用热水器时，应断开电源，注意安全。

4. 定期清洁热水器，以保持良好的工作状态。

以上为一般热水器的操作方法，具体使用方法请以用户手册为准。

SENS-IN-7B 18-HD60D35-2LibraryService LiteratureProduct Section UnitaryProduct Unitary AccessoryModel T'Stats, Panels, Timers, RelaysLiterature Type Installation InstructionsSequence 7BDate January 2001File No.SV-UN-ACC-SENS-IN-7B 1/01SupersedesSENS-IN-7AZone Sensor Modulefor Heat Pump Units Dual Setpoint, Auto C/OBAYSENS09B ASYSTAT664BDescriptionThis Zone Sensor Module provides the following features and system control functions:- System control switch to select heating mode (HEAT), cooling mode (COOL) automatic selection of heating or cooling as re-quired (AUTO), Emergency Heat only (EM. HEAT), or to turn the system off (OFF).- Fan control switch to select automatic fan operation while ac-tively heating or cooling (AUTO), or continious fan operation (ON). - Dual Temperature setpoint levers for setting desired tempera-ture. The blue lever controls cooling, and the red lever controls heating.- Thermometer to indicate temperature in the zone. (This indicator has been factory calibrated.)Application- Used with Heat Pump packaged units (2 - 20 ton).Installer's GuideCustomer Property: Contains wiring and service informa-tion. Please retain.Models :Since the manufacturer has a policy of continuous product improvement,it reserves the right to change design and specifications without notice.InspectionCheck packaging and contents for damage. Check for concealed damage before storing. Report any damage immediately to the transportation company, and make any appropriate claims. Installation Steps1.Mounting location. Choose a spot on an interior wallnear the return air grille, about five feet above floor level,where air circulates freely and is of average tempera-ture for the zone.Avoid areas such as:- behind doors;- on outside walls, or any walls with unheated oruncooled areas behind the zone sensor;- in direct sunlight, or any source of radiant heat thatcould affect the temperature measurements; or- in line with the discharge air from the unit beingcontrolled.2. Mount subbase. Remove zone sensor cover from the sub-base, and mount subbase on the wall or in a 2 x 4 handy box.Route the wires through the wire access hole in the subbase.(See Figure 1) Seal the hole in the wall behind the subbase. Figure 1 - Zone Sensor Mounting (typical)Wiring!H A Z A R D O U S V O LTA G E!DISCONNECT ALL ELECTRIC POWER INCLUDING RE-MOTE DISCONNECTS BEFORE SERVICING.Failure to disconnect power before servicing can cause severe personal injury or death.Note: Guidelines for wire sizes and lengths are shown in Table 1.The total resistance of these low voltage wiresmust not exceed 2.5 ohms per conductor. Any resis-tance greater than 2.5 ohms may cause the control tomalfunction due to excessive voltage drop.Note: Do Not run low-voltage control wiring in sameconduit with high-voltage power wiring.1.Run wires. Run wires between the unit control paneland the zone sensor subbase. To determine the numberof wires required, refer to Unit IOM for Wiring Connections.2. Connect wires. Connect the wiring to the appropriateterminals at the unit control panel and at the ZoneSensor subbase. In general, zone sensor connections to the unit use the convention of connecting Zone Sensor terminals to like numbered Unit terminals (1 to 1, 2 to 2, etc.). The connec-tion detail is shown on the unit wiring diagrams which can be found in the unit service literature and on the unit.3. Replace cover. Place zone sensor cover back on thesubbase, snap securely into place.Table 1151 - 240 feet20 gauge241 - 385 feet18 gauge386 - 610 feet16 gauge611 - 970 feet14 gaugeOptional Remote Sensor (BAYSENS017)When using the optional remote sensor (BAYSENS017), mount it in the space that is to be controlled. Clip the thermistor (RT1) on the zone sensor module. Wire remote sensor to the zone sensor module according to the interconnecting wiring dia-grams in the unit's IOM.© American Standard Inc. 2001Technical Literature Printed in USA2。

5 规格·装箱单外观及部件介绍装箱单检查电表，电线直径是否符合热水器的额定电流，必要时请有资质的电工师傅检查一下。

该热水器使用交流２２０Ｖ／５０Ｈｚ电源，使用独立插座（禁止使用多功能插座）并进行可靠接地，严禁在无可靠接地的情况下使用热水器。

请不要使用受损的电源线和电源插座及插头十分松弛的电器产品。

否则会引起触电、短路、火灾等事故。

应该确认电源插头能够与电源插座严密结合。

插座质量要符合国家标准，并且要及时擦拭电源插头上的金属片，防止金属片上沾有污渍而引起火灾等事故。

安装好后，首次使用必须先注满水后再接通电源。

若在容器水不满的情况下通电，加热管过热会造成故障。

寒冷地区冬季若长期不使用请掀动安全阀手柄，将水排空以防结冰损坏热水器。

热水器电源插座应安置在水喷淋不到的干燥处，请勿湿手插拔电源插头。

否则会出现触电、受伤等事故。

当电热水器被水严重浸湿后，再次使用前须经本公司认可的技术人员检验。

请您在开关水阀时，不要将喷头朝向人体，以免被一小股热水烫伤（５０℃以上的水可能导致烫伤）。

如果电热水器的电源线损坏，必须由售后人员用专用线缆进行更换（厂家提供）。

除专门技术维修人员外其他人不得拆卸、维修。

此不要放置在太冷能够结冰的环境中，如果结冰，容器和水管就会破裂，造成烫伤和漏水。

不要安装在室外。

不要落地安装。

应挂于坚实、牢固的墙壁上。

不要安装在无法排水的地方。

若连接排水管，应将排水管接于下水道口处，以免将室内溅污。

检查电表、电线电源线及插座要求机器使用前长期不使用热水器时当电源线损坏时儿童淋浴时必须在大人的操作指导下进行！小心烫伤放置环境外不要将汽油等易燃物品放置在热水器附近，否则可能会引起火灾。

关于安全阀的使用关于机配管路的使用本电热水器配有安全阀，为了使用安全，不可私自改动其安装位置，严禁堵塞其出口。

安全预警专家注意防水本产品的机配管路是“防电墙”产品的有机组成部分，切勿随意拆除，否则由此带来的安全隐患所造成的伤害，本公司不予承担。

WIFI Thermostat User ManualⅠ.Technical Data1Power Supply:AC100-240V.2Maximum load:EU plug 3680W/16A.3Wireless standard: IEEE802.11b/g/n .4Frequency range:2.412~2.484GHz .5Security mechanism: WEP/WPA-PSK/.WPA2-PSK 6Encryptiontype: WEP/TKIP/AES.7Standby power consumption:<0.8W.8Workingenvironment: temperature -5 ~ 50;.℃humidity 10% -95%9Size:L112mm*W52mm*H78mm .10Unit net weight: 165g.Ⅱ.Product Description WIFI thermostat can be usedwith kinds of heaters, controlled by mobile phone throughinternet, function includes,●WIFIremote control ●adjust temperature ●weekly programme on/off andtemperature setting●count down poweroff ●group control●share to other usersⅢ.WIFI ConnectingInstructions1Scan the code belowwith a mobile.phoneand install,finished APP icon→→2. Select room name , and click “Add Device”or the upper right corner "+" icon.3. Click”All devices”4. Swipe down to find and select“Heater”→5. Plug the WIFI thermostat into a socket and long press 8-10 seconds until the indicator light blink,1if blink rapidly , Click the blue bare”Confirm ）indicator rapidly blink”, then select your WIFInetwork and input password for connecting.2if blink slowly, click “AP Mode”in the upper ）right corner, and then click “confirm indicator slowly blink”then select your WIFI network ，and input password then click Go connect ,“”“-to find a hot spot named Smart Life XXXX”and connect, then click back to wait for WIFIconnecting.UK plug 3120W/13A6. Wait for 20-30 seconds to connect the WIFIsignal.“Device added successfully”will be displayed after connected, and mean time the red indicator of the thermostat lights up. Red light means this thermostat is online.You can name this device, for example“infraredpanel heater”, and note which room it locates.Ⅳ.Operation Instructions1. Main view of the APP after thermostat connectedsuccessfully as below.2. Click the green to turn on/off the powersupply of the heater, the indicator light color isblue, blue light up means the heater has beenpowered on.You can also press the button ofthe thermostat to turn on/off the heater, andmean time the color of power icon in the APPwill change accordingly.3. Click device name“infrared panel heater”toenter the interface of the thermostat.of the heater, set temperature should be alsoat least 0.5higher than room temperature if℃you want the heater to be powered on.on/off and room temperature wanted.You canprogram every day with non-limited timing,ON and OFF timing is separate, you need toadd individually. Don’t forget to turn on the \weekly button to green after programming.betweem and℉℃.NOTE: weekly,Timer and TEMP these threefunctions can be edit only under power on mode!description as elow.b1Device name: you can change the thermostat)name.2Device location: you can note which room this)thermostat locates.3Check network: check if network connecting)and working well.4Share device: you can share the control of this)thermostat to other mobile numbers/emailaddresses if they have been registered in“SmartLife”APP.5Create Group: you can group different)thermostats to control together.6Device information: to check the network,)device information.7Feedback: to report any problems to the APP)supplier.8Check for firmware upgrades to see which)Version it is.9Remove Device: remove this thermostat from)your APP.4. means turning on/off the power supply5. means weekly programming the timing6. means count down powering off the heater.7. means convert temperature display8. means other editing of the thermostat,V. Important notes1. Red indicator light will be always on onceWIFI connected finished successfully andWIFI network works well.2.Red light does not light up means the thermostatis off line, you can press the button to poweron/off the heater directly, and it will works underdefault 25temperature setting.℃3.The blue LED indicator of the thermostat doesnot light up at the first time when you finishedthe WIFI connecting, you need to wait f or acouple of seconds due to network searchingand onnecting.c4.The set temperature should be at least 0.5℃higher than room temperature to power on theheater.5.The room temperature sensor is at the top ofthe plug, do not cover or put the thermostatwhere there will be heat, and better to makethe temperature sensor down while you plugthe thermostat into wall socket.6. Maximum load of this thermostat is7.Do not use this thermostat in wet or runningwater environment.8.Please pull out the thermostat from yoursocket if long time no use.plug 3680W/16AEUplug 3120W/13AUKplug 2200W/10ACN。

热水器使用1、热水器启动：打开室内控制器盖板→插上电源插头，打开热水器的电源开关，届时控制面板首次通电，液晶显示屏所有字段全亮，背光点亮，数秒钟后全部熄灭，进入关机状态。

2、热水器开机：按控制面板上“ON/OFF”键→加热指示灯亮（控制面板与控制器门内分别都亮，第一次点火时，由于管道内存有空气，需要重新点火数次，直至管道内的空气排尽）→当燃烧器被点燃后，热水器开始工作。

盖上控制器门盖板，液晶显示屏显示出水温度和时钟。

3、热水器运行:热水器的运行均由电脑板自动控制。

4、普通状态：当水箱内的水温低于设定温度时，热水器加热，面板上的加热指示灯显红色；当水箱内水温达到设定温度后，热水器就自动停止加热，加热指示灯显绿色，处于保温状态。

5、定时状态：在设定时间段内，当水箱内的水温低于设定温度时，热水器加热，面板上的加热指示灯显红色；当水箱内水温达到设定温度后，热水器就自动停止加热，加热指示灯显绿色，在非设定时间内，热水器不加热。

即时加热：在定时状态非设定时间内，若需要热水器加热可用即时加热功能，加热状态至温度达到设定温度后，自动退出即时加热，恢复原状态。

6、时钟设定：按“时钟设定”键进入时钟设定状态，按“↑”或“↓”键设定小时，再按“时钟设定”键可设定分钟，按其它键或停止按键5秒后确认当前设置。

7、温度设定：按“↑”或“↓”键直接进入温度设定状态，再“↑”或“↓”键可设置温度，按其它键或停止5秒后确认当前设置。

设定范围为“45-65℃”。

8、定时加热：按“定时设定”键进入定时设定状态，按“↑”或“↓”键先设定“定时开时间”，（设定范围为“1-24”）再按“定时设定”可设定“定时关时间”，按其它键或停止5秒后确认当前设置。

若在定时状态按“定时设定”键立即退出定时状态。

AES:在开机状态下按“AES”键，控制器切换到“AES”模式，同时取消其它工作模式。

再次按“AES”，可退出到原工作模式。

9、AES状态：AES存在学习功能，能自动记忆你每天的习惯大量用热水（如洗浴）的时段，并在第二天该时段之前提前加热到设定的最高水温，而平时少水量用热水（如洗手，洗菜时），热水器就不会加热到最高设定温度而保持在低温状态，只要在某时段发生了大量用热水的信号控制器内的存储器就记录该事件，在下一个该时段之前自动加热到设定温度。

智能热水器用户手册2023欢迎使用智能热水器2023！本用户手册将为您提供详细的使用指南和注意事项，帮助您充分了解和使用本产品。

请仔细阅读以下内容，以确保您的安全和使用体验。

I. 产品概述智能热水器2023是一款集热水供应和智能控制于一体的创新产品。

通过先进的技术，该热水器能够智能感知用户需求，实现精确的温度控制和节能运行。

除了提供舒适的热水浴体验外，它还具备以下特点：1. 快速加热：采用高效加热元件，快速加热水，缩短供水时间。

2. 温度自动调节：智能感知用户需求，根据不同时间段和气候温度自动调整水温，确保您的舒适体验。

3. 节能环保：利用先进的节能技术，减少能源消耗，节约用水，降低对环境的影响。

4. 安全可靠：具备多重安全保护机制，如过热保护、漏电保护等，确保使用过程中的安全性。

5. 智能互联：支持与智能手机等设备的连接，通过手机APP实现远程开关机和温度调节，提供更便利的控制方式。

II. 使用指南1. 安装与连接（1）在选择安装位置时，请确保热水器稳固可靠，避免安装在潮湿、易受撞击或高温的地方。

（2）请根据产品说明书进行正确的电源和水管接线，并确保接地良好，以避免漏电和其他安全隐患。

2. 开关机和温度调节（1）手动操作：热水器设备上设有开关和温度调节按钮，您可以直接按下相应按钮进行操作。

（2）远程操作：您可以下载并安装相应的手机APP，并通过APP实现远程开关机和温度调节。

具体操作步骤请参考APP的使用说明。

3. 清洁和维护（1）定期清洁热水器外壳和周围环境，保持设备干净整洁。

（2）定期检查水管连接情况，确保无渗漏或堵塞现象的发生。

（3）如需更换热水器内部滤网或其他部件，请联系售后服务中心，并按照售后人员的指导进行操作。

III. 注意事项1. 使用环境：请避免在高温、潮湿或腐蚀性气体比较重的环境中使用热水器，以免影响产品寿命和安全。

2. 用电要求：请使用符合规定的电源插座和电源线，并确保电源线不受损或过度拉扯，确保安全使用。

热水器使用说明1. 热水器的使用目的和背景介绍热水器是一种常见且必需的家用电器，主要用于加热水，提供洗浴、清洁和烹饪等各种日常生活需求。

本文将为您详细介绍如何正确使用热水器，以确保您的使用安全并延长热水器的使用寿命。

2. 热水器安装与调试在使用热水器之前，首先确保正确安装热水器。

请按照以下步骤进行操作：(1) 安装位置选择：选择一个通风良好、稳固平整且无明火的地方安装热水器。

(2) 确保电源供应：将热水器连接到稳定的电源，并确保所接的电源线符合热水器的额定电流。

(3) 排水系统连接：连接好热水器的排水系统并确保排水通畅。

(4) 进排水管路连接：将热水器与供水系统和热水系统正确连接。

3. 热水器操作步骤在热水器安装完成后，按照以下步骤进行操作：(1) 打开电源开关：将热水器的电源开关打开，此时热水器进入待机状态。

(2) 设置温度：根据需要，使用控制面板上的温度调节按钮设置所需的热水温度。

(3) 使用热水：打开热水器上的水龙头，调节出水温度，即可使用热水。

4. 热水器维护与保养定期的维护与保养可以确保热水器的正常运行并延长其使用寿命。

请注意以下几点：(1) 清洁热水器外壳：使用软布擦拭热水器表面，防止灰尘和污垢积累。

(2) 清洁水龙头：定期清洁热水器上的水龙头，以确保水流畅。

(3) 防止结垢：根据当地水质情况，定期进行除垢操作，避免热水器内部结垢影响加热效果。

(4) 安全检查：定期检查热水器的接地情况，确保使用安全。

5. 热水器的安全注意事项在使用热水器时，请遵循以下安全注意事项：(1) 避免触摸热水器表面：在热水器工作期间，避免触摸其表面，以防烫伤。

(2) 确保良好通风：热水器应安装在通风良好的地方，以防止积聚的瓦斯中毒。

(3) 孩童禁止接近：热水器工作时，应将其安置在孩童无法触及的地方。

(4) 注意电源问题：在维护热水器或进行其他操作前，请务必切断电源。

6. 总结与建议热水器是现代生活中不可或缺的电器，正确使用热水器可以提供更舒适的生活环境。

MODEL EH-M3 ELECTRIC BOILERMulti-stage electronic control with energy saving and other features.EH-08-135-M3 through EH-20-135-M3, single phase, 3 wire, 120/208V, 120/240VEH-12-345-M3 through EH-20-345-M3, three phase, 4 wire, 120/208V, 120/240VCONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .PAGEDescription . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 & 4 Air Eliminator and Expansion Tanks . . . . . . . . . . . . . . . . . .2 Flow Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Wiring (Warning: DO NOT turn on breakers on unit) . . . . . . . . .2 Wall Thermostat Flow Switch and Circulator . . . . . . . . . . .2 “Rough-In” Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Service Connections and Electrical Ratings . . . . . . . . . . . .6Electrical Connections & Sensor Locations . . . . . . . . . . . . . . . .5Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Fill System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Air Elimination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Bypass Flow Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Check for Proper Boiler and System Operation . . . . . . . . .7Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Periodic Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Control Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8Appendix A, B, C, & D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9Publication No. EH-M3-40 Rev. A • Printed in U.S.A. 315Part No. 793860000INI TRONLISTED89C4DESCRIPTIONThe Minitron boiler is a low pressure hot water heating electric boiler. The control is a two stage electronic control with energy saving and other features. The heating elements are sheathed resistance type. The heat exchanger is cast-iron. The heat exchanger is constructed, inspect-ed, and stamped in accordance with Section IV of the American Society of Mechanical Engineers (ASME) Boiler and Pressure Vessel Code. In addition, the Minitron Boiler is equipped with a safety relief valve con-forming to ASME requirements and two separate limit controls conform-ing to U.L. requirements. The Minitron boiler is Underwriters' Laboratories, Inc. listed. MOUNTING THE BOILER ON A WALLBe sure that the wall is vertically plumb and capable of carrying the weight of the boiler and the system piping, when full of water. The boiler full of water is approximately 110 lbs. Add to this the weight of the sys-tem piping that the boiler will be supporting.Be sure that there are studs available in the proper locations, for secur-ing the boiler wall bracket and back panel.(See Figures 1 and 1a).For wood stud walls, use lag screws or wood screws with a coarse thread and a minimum of 3” in length.For metal stud walls, use toggle-style bolts that are specifically designed for such and maximum capacity exceeds the weight of the boiler and the system piping when full of water.DO NOT use anchors driven into sheetrock to hold the boiler up on the wall. If mounting the boiler on a cement wall, use anchors that are specifically designed for such, and maximum capacity exceeds the weight of the boiler and the system piping, when full of water.A. INSTALL THE WALL BRACKET. SEE FIGURE 1a.1. Remove the wall bracket from the wood packing, by unfastening the two screws that holds it in place, for shipping purposes only.2. Select the location on the wall where the boiler will be mounted. The upward facing tabs of the wall bracket will align with the top surface of the boiler jacket.3. For sheetrock and stud construction, locate the studs anddetermine which set of holes in the wall bracket best alignwith the center of the studs. For cement walls, determine alocation for the wall bracket to mount where the anchors will be secure, devoid of seams or cracks.4. Place the bracket in the selected location, with the 2 tabspositioned up and facing outward, level it out, and mark theholes to be used. A minimum of 4 of these holes must beutilized, regardless of wall material.5. Drill the appropriate diameter and depth holes for thefasteners used in the wall, where marked.6. Fasten the wall bracket to the wall, being sure that the tabsface upward and outward, and the fasteners have engagedthe wall properly.B. INSTALL THE BOILER ON THE WALL. SEE FIGURE 1.1. Lift the boiler up against the wall, with the top edge of the jacket slightly above the wall bracket tabs. Engage the boiler jacket near top lip notches properly.2. There are fastener holes in the lower area of the boiler rearpanel to ensure that the boiler does not move off the wall bracket. Mark these 2 holes, with the boiler in place, then lift the boiler off the wall bracket.3. Determine which fastener type will best engage with the wall con- struction at the location of the 2 market holes. Drill out the appro- priate diameter and depth holes for the fasteners, where marked.4. Lift the boiler up onto the wall bracket again, as described in Step 1. Secure the boiler to the wall, with the 2 fasteners in the lower rear panel area.PIPING Air Separator and Expansion TanksThe recommended piping arrangement is shown in Figures 2 through 4. Note that there is a built-in air eliminator in the heat exchanger (air vent, however, is by others). A 1/8" air vent may be used (bushing is needed for 1/2" NPT tapping). Additional air vents should be installed at points just upstream from all drops in elevation of the piping system (high points). Relief Valve Discharge PipingUse same size or larger piping than valve outlet piping. Must terminate 152mm ( 6”) minimum from floor with a plain (no threads) end. Place a bucket under pressure relief valve discharge piping. Make sure dis-charge is always visible. DO NOT hard-pipe to drain piping. Flow SwitchA FLOW SWITCH MUST BE INSTALLED. It is intended to prevent the burnout of heater elements should the circulator fail, or should air accu-mulate in the boiler due to faulty air elimination (see Table 2 for flow switch size required). FLOW SWITCH MUST BE INSTALLED IN HORI-ZONTAL POSITION.BypassThe bypass shown must be set so that a sufficient amount of water can circulate through the boiler when all zone valves are closed. See Figure 3.Multi-zone BalancingRaise all zone thermostat settings and verify that all zone valves are open (not bypassed). Close all electrical panels. Turn on 10 amp control circuit breaker ONLY. Pump should operate. Note the pressure reading on the pump discharge. Lower each zone thermostat setting to close correspon-ding zone valve. Adjust the corresponding balancing valve to maintain pump discharge pressure. The pump discharge pressure should remain the same when all zones are in bypass or when all zones are open or any combination of opened and closed. See Figure 4. WIRINGTo wire the electric boiler, perform the following procedures: 1.Wall Thermostat Flow Switch and Circulator• All circuit breakers ahead of and at boiler must be OFF. Remove the Control Panel (left-hand front) Cover by removing 5 screws from top, bottom and side flanges.• The right-hand compartment under the Control Panel Cover con-tains a terminal board marked, (SLANT/FIN “INTERFACE BOARD”). Wire a 2-wire 24V room heating thermostat or the aux-iliary end switch terminals of zone valves (see Figure 5) to termi-nals 3 and 4 at this time. The 1 and 2 terminals are for the flow switch. The flow switch circuit is a low voltage circuit.•Wire the circulator and connect 115V wires and conduit through 1/2" knockout. provided on bottom left hand corner, to the “INTERFACE BOARD” at terminals “L” and “N”, where it is marked “CIRC. PUMP”.2. Service Connections and Electrical RatingsA.All circuit breakers ahead of and at boiler must be OFF. Remove the Service Connection Panel (right hand front). Cover by removing 5 screws from the top, bottom and side flanges (see wiring diagram on back of the Service Connection Panel and Figure 5).B.Draw power feeder cable (75°C minimum) and conduit through service knockout provided on top and bottom.C.Connect hot lines to distribution block provided in service compart-ment. A ground lead should be drawn and wired to the ground lug in the service compartment. If rating plate indicates boiler is a sin-gle phase 3-wire or 3-phase 4-wire model, draw a neutral wire #12 AWG maximum, 75˚C. minimum and connect to neutral lug mount provided in service compartment. See Tables 1 and 3 for lug sizes and current ratings.3. Wiring Control• See EM-10 Electronic Control Set Up Instructions #790860000 for setting up control.* See page 8 for basic setup example.2EH-M3-40 Boiler Operation and Installation InstructionsBRACKET INTO STUDSWITH APPROPRIATE FASTENERSEH-M3-40 Boiler Operation and Installation Instructions 34EH-M3-40 Boiler Operation and Installation InstructionsNOTES:1. Optional blocking gate valve and hose end valve used (with drain valve) for fast fill and purge of system. IMPORTANT : Close bypass line valve (if used) during purging.2. Circulator should not be installed at lowest point of piping.3. There should be no elbows, tees, or change of pipe size for at least 5 diameters of pipe size (see Table 2) upstream and downstream of flow switch. Flow switch should always be mounted in the horizontal position. See Table 2.Figure 2. Typical SIngle Zone PipingFigure 3. Typical Multi-Zone Using 2-Way ValvesFigure 4. Typical Multi-Zone Using 3-Way ValvesFigure 5. Electrical ConnectionsFigure 6. DHW ConnectionsEH-M3-40 Boiler Operation and Installation Instructions 5† ALUMINUM conductors may be used, lug size, conduit size, ampacity and allapplicable codes permitting.† Leg with the highest value of line current of an unbalanced 3-phase load.‡ 125 VAC maximum rating of all hot conductors.6EH-M3-40 Boiler Operation and Installation InstructionsSTART-UP Array NOTE: Make sure that all circuit breakers ahead of and at theboiler are OFF.Fill SystemSee Figures 2 through 4 for suggested purge valve and blockingvalve. If system is filled but not purged, radiators must be ventedindividually, to prevent air blocking of water flow. Fill to approxi-mately 12 psi (cold water), whether automatic or manual fill isused. DO NOT apply full line pressure to system; boiler andrelief valve are rated at 30 or 50 psi (see rating plate). Suddenlyapplied main pressure can exceed 100 psi.Air EliminationDiaphragm tank and air vent valve are recommended, see Figures2 through 4. Air remaining in system will vent from the automaticvent valve during system operation. Valve cap must be loose orremoved to allow automatic venting. Open relief valve briefly afterfilling to pressure, to make sure boiler is free of air.Bypass flow adjustment(Figure 3)Close bypass valve. Turn down all zone thermostats. Inspectall zone valves to be sure all are closed. Put a jumper on ther-mostat terminals 3 and 4. Close ALL panels and turn on the 10AMP control circuit breaker ONLY. Be certain that the flowswitch wires are not connected to the flow switch terminals1 and2 and the ends of the wires are taped. Be certain that ajumperwire is between terminals 1 and 2. Connect the ohmme-ter or other continuity tester across the flow switch common ter-minal and the terminal that is normally open during NO FLOW.Slowly open bypass valve until continuity tester lights or ohmme-ter kicks to zero: flow switch now has closed contacts, indicatingrequired minimum bypass flow rate when piping circuits are shutoff. Bypass valves should be locked at this position. Shut OFFALL circuit breakers ahead of and at boiler and open CONTROLPANEL (left hand) FRONT COVER. Remove jumper on ther-mostat terminals 3 and 4. Remove flow switch jumper wire fromterminals 1 and 2. Connect flow switch wire to flow switch termi-nals 1 and 2. Connect zone valve end switches (in parallel) tothermostat terminals 3 and 4. See Figure 5 and wiring diagramon boiler. Replace CONTROL PANEL COVER.Check for Proper Boiler and System OperationT o check for proper boiler and system operation, perform thefollowing procedure:1. Turn up all room thermostats.2. On boiler models with a multiple stage electronic control sys-tem (model number on rating plate contains an "M3"), therewill be a delay whose response time will depend on operatingmode and other settings.3. Current may be checked by a qualified electrician at the feed-er panel and compared to the values shown in T able 3.4. Water flow through the boiler should be sufficient to keep theflow switch closed. The limit thermostat should also remainclosed. Consult the multiple stage electronic control manualfor control setup.EH-M3-40 Boiler Operation and Installation Instructions 7“Factory” position on dip switch has to be returned to “installer” position to prevent unauthorized changes to factory settings. *Local design input may vary from the example shown. Be sure to use design inputs for your geographical location.ExAMPLE SETTINGS MAY VARY ACCORDING TO ACTUAL DESIGN REqUIREMENTS.8EH-M3-40 Boiler Operation and Installation InstructionsAppendix AThermostat Heat Anticipator SettingsFixed anticipator thermostats are not adjustable. Adjustable anticipator thermostats, depending on thermostat model, may be adjustable from a . 18 to a .9 setting by moving a pointer on the anticipator.The higher the anticipator setting (towards .9) the longer it will take for the thermostat to respond to a change in room temperature. T oo high a setting and the boiler will be slow to respond to a temperature change in the room. This can cause the room temperature to drop to an uncomfortable level before the boiler starts. This may generate homeowner complaints.The lower the anticipator setting (toward .18) the faster the thermostat will respond to a change in room temperature. T oo low a setting and the boiler will short cycle. Boiler short cycling will cause unnecessary wear on the equipment and in the case of oil boilers it can lead to poor combustion and more frequent cleaning of the combustion area.It is important to understand what the thermostat is controlling and then determine the amp rating of that relay, gas valve, zone valve or control. This information is usually stamped somewhere on the component. A properly set anticipator will allow the system to operate at its maximum effectiveness.Appendix BAccumulation of foreign deposits in heat exchangerRecent investigations of boilers which were installed in hard water areas, revealed that mineral deposits had accumulated in the heat exchanger. In addition, sludge, scale and other solid contaminants were present in boilers installed in older systems or where the water was supplied from a well. This accumulation creates an insulating layer that drastically may affect boiler efficiency.THE TERMS OF THE BOILER WARRANTY WILL NOT APPLY TO FAILURES ENCOUNTERED UNDER THESE CIRCUMSTANCES.RECOMMENDATIONS:On all installations in hard water areas:1. The system should be thoroughly inspected for leaks which must be repairedhowever minor they may be.2. The initial water charge of the system must be treated to reduce its hardnessto an acceptable level.In addition to the aforementioned, older systems and those supplied from wells may require that a filter or strainer be incorporated in the circuit at some point on the return line closest to the boiler. Suitable water treatment filters are commercially available for this purpose. WE STRONGLY RECOMMEND THAT YOU CONVEY THIS VITAL INFORMATION TO ALL PARTIES CONCERNED. Water TreatmentA good water treatment program will not only extend the useful life of this boiler but it will also save much of the time and expense of repairs made necessary by preventable occurrences. A reputable water treatment company should be consulted to evaluate and determine the best overall treatment program for your boiler equipment.Appendix CReplacement of Electric Heaters and gasketsWhen replacing heating elements replace the gasket at the same time. It is not recommended to re-use an old gasket as it may have become damaged or brittle. T o prevent binding and leaks when installing a new gasket wet the gasket with water or coat it with talcum powder to allow it to move into position properly without binding.Appendix DUse of Non-oxygen Diffusion Barrier Underfloor TubingThe boiler warrenty does not cover leaks resulting from corrosion caused by the use of underfloor plastic tubing without an oxygen diffusion barrier. Systems must have the non-oxygen diffusion barrier tubing separated from the boiler with a heat exchanger. Slant/Fin recommends the use of underfloor plastic tubing with an oxygen diffusion barrier. Other systems components may also require protection from oxygen permeation.EH-M3-40 Boiler Operation and Installation Instructions 910EH-M3-40 Boiler Operation and Installation InstructionsEH-M3-40 Boiler Operation and Installation Instructions 11。

威王热水器使用说明书
1、首先打开进水阀和水龙头，插上热水器电源，按下热水器的开关按钮。

2、然后根据液晶显示屏上面相关的数据，设置一下适宜的水温。

3、等水烧开了之后，先把阀门调至中间位置，再放会水试下水温，等流出来的水不凉了再开始使用。

4、使用完毕后，先关闭热水器上的开关，将手擦干之后，再拔掉电源。

注意事项：使用热水器时，当打开水阀而没有出水时，要立即断开电源，防止因停水的原因使热水器在无流动水的情况下工作而损坏。

总结：
1、打开进水阀和水龙头，插上电源，按下热水器的开关按钮；
2、设置水温；
3、水烧开后先把阀门调至中间位置，试下水温合适即可使用；
4、使用完毕后，先关闭热水器上的开关，等手擦干之后，再拔掉电源。

1、开/关机
首次开启，热水器控制面板上的指示灯全亮，然后在几秒后会熄灭，进入加热模式，调整温度，热水器就处于开机状态。

如果关闭，指示灯会熄灭，温度开关处于关闭状态。

2、温度调节
在开机状态下，屏幕显示实际水温，如果要调节，可以旋转调温旋钮。

温度可调节范围为35度-75度。

如果调太低，低于这一范围，会听到“啪”的一声，指示灯熄灭。

3、断电记忆
在断电情况下，所有设定的数据在三天内不会丢失，自己可以查看以往的数据。

4、智能休眠
三分钟内如果没有操作，会自动进入休眠状态，但这属于正常现象，所以不用担心。

新飞12L冬夏智能分段节能恒温使用说明书
1、先打开自来水，然后开启电源，如果你的即热式电热水器是档位机那么就可以根据实际情况调节功率，如果是恒温热水器就可以调节温度就可以了。

2、如果你购买的即热式电热水器功率不足，在冬天的时候会出现不够热的情况，这时候你可以调节调温阀，把水量减少，从而提高谁的温度。

3、如果你想保证的你即热式电热水器安全可以安装一个防电墙
整体评价：外表很小巧使用情况：使用起来方便快捷，制冷效果很好性价比：值得推荐外观做工：做工很细致产品材质：环保放在出租房，。
