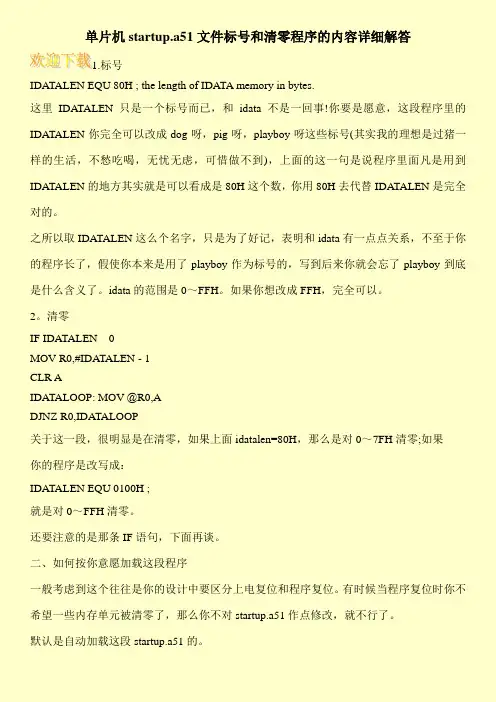

单片机startup.a51文件标号和清零程序的内容详细解答1.标号IDATALEN EQU 80H ; the length of IDATA memory in bytes.这里IDATALEN只是一个标号而已，和idata不是一回事!你要是愿意，这段程序里的IDATALEN你完全可以改成dog呀，pig呀，playboy呀这些标号(其实我的理想是过猪一样的生活，不愁吃喝，无忧无虑，可惜做不到)，上面的这一句是说程序里面凡是用到IDATALEN的地方其实就是可以看成是80H这个数，你用80H去代替IDATALEN是完全对的。
之所以取IDATALEN这么个名字，只是为了好记，表明和idata有一点点关系，不至于你的程序长了，假使你本来是用了playboy作为标号的，写到后来你就会忘了playboy到底是什么含义了。
idata的范围是0～FFH。
如果你想改成FFH，完全可以。
2。
清零IF IDATALEN 0MOV R0,#IDATALEN - 1CLR AIDATALOOP: MOV @R0,ADJNZ R0,IDATALOOP关于这一段，很明显是在清零，如果上面idatalen=80H，那么是对0～7FH清零;如果你的程序是改写成：IDATALEN EQU 0100H ;就是对0～FFH清零。
还要注意的是那条IF语句，下面再谈。
二、如何按你意愿加载这段程序一般考虑到这个往往是你的设计中要区分上电复位和程序复位。
有时候当程序复位时你不希望一些内存单元被清零了，那么你不对startup.a51作点修改，就不行了。
默认是自动加载这段startup.a51的。
