设备制造质量检验规程(Vessels-and-Tanks-in-Reinforced-Plastics)

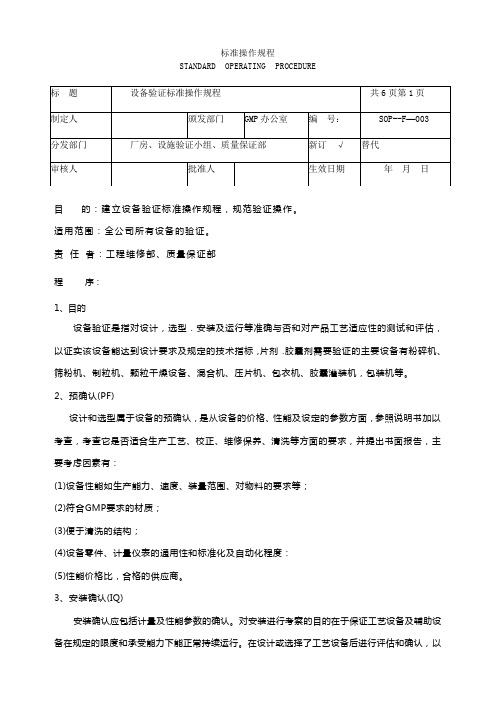

标准操作规程STANDARD OPERATING PROCEDURE目的：建立设备验证标准操作规程，规范验证操作。

适用范围：全公司所有设备的验证。

责任者：工程维修部、质量保证部程序：1、目的设备验证是指对设计，选型．安装及运行等准确与否和对产品工艺适应性的测试和评估，以证实该设备能达到设计要求及规定的技术指标，片剂．胶囊剂需要验证的主要设备有粉碎机、筛粉机、制粒机、颗粒干燥设备、混合机、压片机、包衣机、胶囊灌装机，包装机等。

2、预确认(PF)设计和选型属于设备的预确认，是从设备的价格、性能及设定的参数方面，参照说明书加以考查，考查它是否适合生产工艺、校正、维修保养、清洗等方面的要求，并提出书面报告，主要考虑因素有：(1)设备性能如生产能力、速度、装量范围、对物料的要求等；(2)符合GMP要求的材质；(3)便于清洗的结构；(4)设备零件、计量仪表的通用性和标准化及自动化程度：(5)性能价格比，合格的供应商。

3、安装确认(IQ)安装确认应包括计量及性能参数的确认。

对安装进行考察的目的在于保证工艺设备及辅助设备在规定的限度和承受能力下能正常持续运行。

在设计或选择了工艺设备后进行评估和确认，以便确认在工艺所要求的运行限度内，设备性能良好，并检查影响工艺及生产的关键部位的性能，用这些测得的数据制定设备的校正、维护保养、操作的书面规程即标准操作规程草案，为运行确认提供基础。

3．1安装确认所需文件：(1)设备规格标准及使用说明书；(2)设备安装图及质量验收标准；(3)设备各部件及备件的清单；(4)设备安装相应公用工程和建筑设施；(5)安装、操作、清洁SOP；(6)记录表式。

3．2安装确认的主要确认内容：(1)检查及登记设备生产厂商名称，设备名称、型号、生厂商编号、生产日期、本公司内部设备登记号。

(2)检查、编号、归档技术资料：操作手册、维修手册、备件清单、技术说明书(功能测试的依据)；证书(压力容器，仪表安全阀等)及证书有效期；图纸、管路、电路、气路(真空、压缩空气等)、阀门、调节器、仪表等；竣工图及资料。

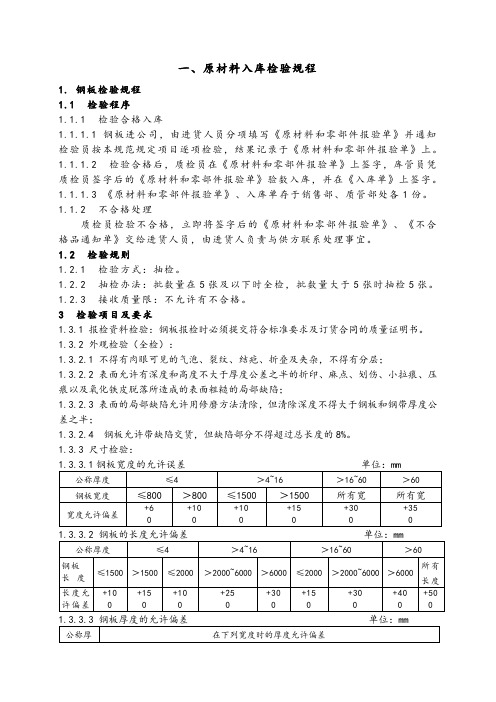

一、原材料入库检验规程1. 钢板检验规程1.1 检验程序1.1.1 检验合格入库1.1.1.1 钢板进公司，由进货人员分项填写《原材料和零部件报验单》并通知检验员按本规范规定项目逐项检验，结果记录于《原材料和零部件报验单》上。

1.1.1.2 检验合格后，质检员在《原材料和零部件报验单》上签字，库管员凭质检员签字后的《原材料和零部件报验单》验数入库，并在《入库单》上签字。

1.1.1.3 《原材料和零部件报验单》、入库单存于销售部、质管部处各1份。

1.1.2 不合格处理质检员检验不合格，立即将签字后的《原材料和零部件报验单》、《不合格品通知单》交给进货人员，由进货人负责与供方联系处理事宜。

1.2 检验规则1.2.1 检验方式：抽检。

1.2.2 抽检办法：批数量在5张及以下时全检，批数量大于5张时抽检5张。

1.2.3 接收质量限：不允许有不合格。

3 检验项目及要求1.3.1 报检资料检验：钢板报检时必须提交符合标准要求及订货合同的质量证明书。

1.3.2 外观检验（全检）：1.3.2.1 不得有肉眼可见的气泡、裂纹、结疤、折叠及夹杂，不得有分层；1.3.2.2 表面允许有深度和高度不大于厚度公差之半的折印、麻点、划伤、小拉痕、压痕以及氧化铁皮脱落所造成的表面粗糙的局部缺陷；1.3.2.3 表面的局部缺陷允许用修磨方法清除，但清除深度不得大于钢板和钢带厚度公差之半；1.3.2.4 钢板允许带缺陷交货，但缺陷部分不得超过总长度的8%。

1.3.3 尺寸检验：1.3.3.1钢板宽度的允许误差单位：mm公称厚度≤4 ＞4~16 ＞16~60 ＞60 钢板宽度≤800＞800≤1500＞1500所有宽所有宽宽度允许偏差+6+10+10+15+30+351.3.3.2 钢板的长度允许偏差单位：mm公称厚度≤4 ＞4~16 ＞16~60 ＞60钢板长度≤1500 ＞1500 ≤2000 ＞2000~6000 ＞6000 ≤2000 ＞2000~6000 ＞6000所有长度长度允许偏差+10+15+10+25+30+15+30+40+501.3.3.3 钢板厚度的允许偏差单位：mm 公称厚在下列宽度时的厚度允许偏差度mm 600-750 750-1000 1000-1500 1500-2000 2000-2300 2300-2700 2700-3000 ≤1 ±0.10 ±0.10 —————＞1-2 ±0.15 ±0.17 ±0.18 ±0.20 ———＞2-3 ±0.18 ±0.20 ±0.21 ±0.22 ±0.25 ——＞3-4 ±0.23 ±0.26 ±0.28 ±0.28 ±0.30 ——＞3-4 +0.2-0.4+0.3-0.4+0.3-0.5+0.4-0.5+0.45-0.5——＞4-5 +0.2-0.5+0.2-0.6+0.25-0.6+0.4-0.6+0.45-0.6——＞5-6 +0.2-0.8+0.2-0.8+0.3-0.8+0.35-0.8+0.45-0.8+0.6-0.8—＞6-7 +0.2-0.8+0.2-0.8+0.3-0.8+0.40-0.8+0.50-0.8+0.7-0.8+1.0-0.8公称厚度mm 负偏差mm下列宽度时的厚度允许正偏差1000-12001200-1500 1500-1800 1800-2000 2000-2500 ＞2500＞7-8 0.8 0.2 0.2 0.4 0.6 0.8 1.0 ＞8-9 0.9 0.2 0.2 0.4 0.6 0.9 1.1＞9-10 1.0 0.2 0.3 0.4 0.6 0.9 1.2＞10-11 1.1 0.3 0.4 0.6 0.7 1.0 1.3＞11-12 1.2 0.4 0.5 0.7 0.8 1.1 1.4＞12-13 1.3 0.6 0.7 0.9 1.0 1.1 1.3＞13-14 1.8 —— 1.0 1.0 1.1 1.3＞14-15 2.0 —— 1.2 1.2 1.3 1.5 1.3.3.4钢板平面度公差单位：mm测量单位长度1000公称厚度≤1.5 ＞1.5~4 ＞4~10 ＞10~25 ＞25平面度公差15 12 10 8 7 注：表中规定的不平度只适用于屈服点下限值不超过460N/mm²的钢板，屈服点超过的以及进行调质的钢板，其不平度的最大值为表内规定的1.5倍。

MANUFACTURERS WORKS Date:11/03/04INSPECTION GUIDELINESSTORAGE TANKSPREFABRICATION INMANUFACTURERS WORKS0For Approval11/03/2004J. C. Brotton B. Tremain B. Tremain June 2004 Rev.Description Date Prepared Checked Approved DateMANUFACTURERS WORKS Date:11/03/04CONTENTS1PURPOSE2SCOPE3PROCEDURE4DOCUMENTS5INSPECTION PROCESS6SHIPPING7STORAGE TANK DATA DOSSIER8INSPECTION CHECK LISTMANUFACTURERS WORKS Date:11/03/041.0 PURPOSEThis instruction covers the inspection, test and verification activities required to validate thesupply, manufacture and test of storage tanks for general use in refineries and chemical plants.This instruction is primarily for mill and prefabrication stages at fabricators works2.0 SCOPEThis instruction covers all necessary stages in the production of the storage tank from theexamination of certification from procurement sources to the final inspection, preservation andpacking to despatch to site.Although the methodology in compiling this instruction is to systematically progress through theconstruction of a typical storage tank. Experienced, inspectors may interpret the intent of theinstruction to accommodate local or novel practices or to utilise the instruction for a one-offdesign of storage tank, the design having been approved by the client. Any such variationsshould be noted on the inspector's report.3.0 PROCEDURE3.1 GENERALThis instruction together with its associated check sheet may be used on any order or contract.It is intended to act as a guide to the inspector in the course of the inspection programme. Anypart of the document may be invoked and the sections to be used and the level of inspectionrequired will be specified on the check list.All tests and inspections will be carried out against the approved drawings, purchase orderspecifications, purchasers or company standards, and within the practices and rules of thecountry, state or province and any government decrees, laws, ordinance or regulation as mayapply.If any conflict or contradictions should be apparent in any of the above then the more onerousrequirement will apply unless the purchaser or client directs otherwise in writing.3.2 REFERENCE DOCUMENTSApplicable codes and specifications.•Design code (to be stated on inspection report)•Purchase order specification•Purchaser's standards•Approved drawings•SGS company standardsApplicable codes and standards (sample only)•BS 2654•BS 2594•BS 7777•API 620•API 650•API 653•EEMUA 159MANUFACTURERS WORKS Date:11/03/044.0 DOCUMENTS TO BE RECEIVED/AVAILABLE AT INSPECTIONPurchase Order or ContractInspection and Test Plan [ITP]Data sheetApproved drawings, [arrangements]Sub-assembly drawingsMaterial test certificatesWeld procedures and Procedure Qualification RecordsList of qualified welders or welding operatorsWelders' qualificationsInspection and test planCalibration of measuring and test equipmentNDE procedures, (appropriate to material of construction)List of qualified NDE operators/inspectorsNDE /inspectors' qualificationsHeat treatment procedurePreparation and painting procedurePreservation, packing and shipping procedureSupply list (packing list]5.0 INSPECTION PROCESS5.1 MATERIAL5.1.1 REVIEW OF CERTIFICATIONOriginal or authenticated copies of certificates should be available at the manufacturer'spremises. These should be examined for compliance with specifications and where appropriate,drawings:The review will include checks on:-•Manufacturer's name•Certificate No•Material Specification•Heat or cast No•Makers No or Plate No•Chemical composition•Mechanical properties•Heat treated condition•NDE applied and results•Surface finish•Structural observations, notable defects.5.1.2 VISUAL AND DIMENSIONAL VERIFICATION•Material identification on certificates against product markings.•Material supplied against drawing, material list and specification as appropriate.•Transfer identification to cut off components, (Cast No transfer), as specified.•Visual and dimensional compliance with specification.MANUFACTURERS WORKS Date:11/03/04 5.1.3 ADDITIONAL/SPECIAL REQUIREMENTSMay apply on special components, e.g. thick components.Check to ensure specification contract requirements have been met.Witness NDE examinations as necessary.5.1.4 REPORTINGReporting on the material checks should include•Conformation of satisfactory document review•Record of endorsement of certification "Reviewed"•Record of any non-conformities•Record of any tests witnessed and the result5.2 STORAGE TANK FABRICATIONAfter clearance of above points to satisfaction of the inspector, then the fabricator will proceedwith the manufacture of sub-assemblies and components of the storage tank.Inspectors will pay attention to the following points on a basis to be outlined in the purchaser's documentation, inspection and test plan, or other document, as notified to the inspector.5.2.1 PLATE PREPARATIONCarry out visual and dimensional check to ensure compliance with WPS and specification. Where specified, weld bevels shall be examined by MT or PT after grinding/machining. Edgesand weld bevels will be clean, dry and free from surface defects, laminations, cracks, voids, notches, etc. These shall be a cause for rejection unless suitable/satisfactory remedial actioncan be taken. Welding repairs to bevels are not permitted, without approval from the engineer/inspector. Inspectors must report excessive or serious defects.Plates subject to forming, rolling or dishing may require additional heat treatment, NDE to meetcode requirements.5.2.2 SHELL COURSES OR BASE PLATES, CONTAINING WELDED SEAMSThis stage inspection will be carried out when plates have been tacked using welding consumables and parameters from an approved WPS.Inspectors shall check and report on:-Cleanliness and fit up accuracy of weld preparation.Flatness of plates, methods of preventing distortion, e.g sequenced welding, strongbacks, backstep, etc.Application of preheat.Storage and handling of welding consumables.Interpass condition where welding is in progress.Cleaning of welds.Completion of test coupons, (where specified)NDE. Results shall meet specifications or code requirements.Hardness tests - when specified.Impact tests - when specified.MANUFACTURERS WORKS Date:11/03/045.2.3 REPAIR WELDSRepair welds may be permitted in accordance with the code requirements and must be carriedout only after investigation of the probable cause and in accordance with approved WPS documents. All weld repairs should be reported to the client.5.2.4 POST WELD HEAT TREATMENT OF HOT FORMED COMPONENTSCarry out dimensional check and review furnace record chart to ensure heat treatment was carried out as specified. Hardness measurement may be used to establish condition of material,heat affected zone or welds, as may be specified. Check dimensions, curvature, etc., after PWHT.INSPECTION5.3 ASSEMBLYStorage tanks may sometimes be assembled prior to despatch, this should be witnessed andthe results of any filling test recorded.The number and thickness of the plates should be checked if no trial assembly has been possible. Plates with access holes, manways and valve openings must be visually and dimensionally checked.5.3.1 MARKINGMatch marks, identification marks will be checked to the drawing requirement. Name plates if attached should be in accordance with the approved drawing.5.4 PAINTING INSPECTION5.4.1SURFACE PREPARATIONSurface preparation for painting will be checked for the following points, according to specification.•Cleaning method (Blast or scraping and wire brushing)•Preparation grades•Freedom from weld spatter, blow-holes and other defectsHumidity and steel temperature to be checked prior to paintingPaint Manufactures – type and colour to be checked against clients requirementsDry film thickness to be checked according to specificationSurface condition to be free from pin-holes, runs damage and other discontinuity.5.5 ADDITIONAL ITEMS5.5.1QUANTITY/QUALITY CHECKSpare parts, loose items, tools and accessories to be checked visually and for dimensions, materials, workmanship and quantity according to purchase order specification and supply list.Marking and/or Tag shall be checked for identification.MANUFACTURERS WORKS Date:11/03/045.6 REPORT AND RELEASE5.6.1REPORTINGA final report summarising the activities carried out will be issued in accordance with the contractrequirements and circulated within the laid down time limits. The report will be in the formrequired by the client and will clearly indicate the final acceptance or rejection of the goods.5.6.2RELEASE NOTESWhere required by the contract a Release Document will be issued to the manufacturer whenthe storage tank has been finally accepted.6.0 SHIPPING PREPARATION AND PACKING6.1PREPARATION AND PACKINGThe following points shall be checked to ensure they meet with contract requirements andaccepted standards of good practice.•Cleanliness and dryness of components•Rust prevention for all machined surfaces and welding bevels•Protection and covers for all openings and protruding parts•Spacing of plates•Security from warping/transit damage•Packing style and suitability for transportation including slinging points•Shipping marks and other markings7.0DOCUMENTATION PACKAGE7.1FABRICATION SHOP DOCUMENTSThe following final documents shall be reviewed and signed off to the contract requirement.These may apply to both shop and site operations.Component detail drawingsManufacturer's data reportsMaterial certificate or certified mill test reportsMaterial list or mapWelder record for each seamHeat treatment records (Temperature-time record chart during PWHT)Dimensional recordNDE recordsHardness test recordPacking listSpare parts and tool list.MANUFACTURERS WORKS Date:11/03/048.0INSPECTION CHECK LISTINSPECTION CHECK LIST(1)VISUAL INSPECTION/WITNESSING BY BUYER REPRESENTATIVE(2)CERTIFICATES/RECORDS TO BE CHECKED BY BUYER REPRESENTATIVE(3) CERTIFICATES/DATA TO BE PROVIDED BY VENDOR/SUPPLIER/MANUFACTURERPre-Fabrication/Production Requirements Specification Details/NotesPurchase Order RequirementsInspection & Test Plan (ITP)Approved Drawings (Arrangements)Sub-Assembly DrawingsWeld Procedures Specification (WPS) &Procedure Qualification Records (PQR)Welder Qualification RecordsNDT Personnel Records and ProceduresHeat Treatment ProceduresIn-Process Inspection & Testing RequirementsMaterial Test Certificates & IdentificationWeld and Edge PreparationFit Up Inspection (Shell Course Plates or BasePlates to be welded in works)Heat Treatment of Hot Formed ComponentsMonitoring Weld ConditionsWeld Back Gouging InspectionPost Weld InspectionNDE ExaminationWeld RepairsPost Weld Heat TreatmentVisual & Dimensional ExaminationTrial Assembly (if required)Final Inspection & Testing RequirementsVisual & Dimensional CheckMarkingPainting/Coating InspectionReview of Storage Tank Fabrication DataDossierAdditional/Supplementary RequirementsPreparation & Packing。

Date:11/03/04 INSPECTION GUIDELINESINDUSTRIAL VALVES0For Approval11/03/2004J. C. Brotton B. Tremain B. Tremain June 2004 Rev.Description Date Prepared Checked Approved DateDate:11/03/04CONTENTS1PURPOSE2SCOPE3PROCEDURE4DOCUMENTS5INSPECTION PROCESS6SHIPPING7VALVE DATA DOSIER8INSPECTION CHECK LISTDate:11/03/04 1.0PURPOSEThis instruction covers the inspection, test and verification activities required to validate thesupply, manufacture and test of valve s.2.0SCOPEThis instruction covers all necessary stages in the production of a valve from the examination ofcertification from procurement sources to the final inspection, preservation and packing todespatch to site. It is particularly suitable for the inspection of Gate, Globe, Ball and Checkvalves.Although the methodology in compiling this instruction is to systematically progress through theconstruction of a typical valve. Experienced, inspectors may interpret the intent of the instructionto accommodate local or novel practices or to utilise the instruction for a one-off, or alternativedesign of valve, the design having been approved by the client. Any such variations should benoted on the inspector's report.3.0PROCEDURE3.1GENERALThis instruction together with the associated check sheet may be used on any order or contract.It is intended to act as a guide to the inspector in the course of the inspection programme. Anypart of the document may be invoked and the sections to be used and the level of inspectionrequired will be specified on the check list.All tests and inspections will be carried out against the approved drawings, purchase orderspecifications, purchasers or company standards, and within the practices and rules of thecountry, state or province and any government decrees, laws, ordinance or regulation as mayapply.If any conflict or contradictions should be apparent in any of the above then the more onerousrequirement shall apply unless the purchaser or client directs otherwise in writing.The range of valve types, materials, sizes and pressure ratings included within standardmanufacturer's catalogues is large and infinitely varied and excludes the possibility of producingan overall instruction, which defines precisely to what extent inspection is required on anyspecific item or purchase order. The inspector will first establish whether the extent ofinspection is stipulated within the body of the Purchase Order documentation or Projectinstructions.3.2SPECIALISED VALVES FOR CRITICAL SERVICESWhen such stipulations are not provided, as a general guide, all valves over 8" NB will normallybe individually witnessed on test. With very large or special valves, such inspection may beextended to detailed component inspection of major components. Such detail inspection willalways apply to valves intended for high pressure steam, cryogenic, nuclear or other criticalservice, and in such instances, will extend to valves smaller than 8" NB.3.3GENERAL PURPOSE VALVESWith quantity orders for general purpose valves in the smaller sizes and pressure ratings in non-critical service, review of the supplier's material and test certification coupled with a monitoring ofvalve test and percentage strip and final inspection will normally suffice to establish whether theorder requirements are being satisfactorily met.Date:11/03/043.4REFERENCE DOCUMENTSApplicable codes and specifications.•Design code (to be stated on inspection report)•Purchase order specification•Purchaser's standards•Approved drawings•SGS company standardsApplicable codes and standards (sample only)•API 598 Valve Inspection and Test•API 6D. Pipeline valves•API 594. Wafer type check valves•ASME/ANSI B16.5 Flanges, Valves and Fittings•API 600, 602, 603, 604.4.0DOCUMENTS TO BE RECEIVED/AVAILABLE AT INSPECTIONPurchase orderInspection and Test Plans [ITP]Data sheetApproved drawings, (arrangements)Sub-assembly drawingsMaterial test certificatesWeld procedures and Procedure Qualification RecordsList of qualified welders or welding operatorsWelders' qualificationsCalibration certificates for test and inspection equipmentNDE procedures, (appropriate to material of construction)List of qualified NDE operators/inspectorsNDE /inspectors' qualificationsHeat treatment procedureHydrostatic testing procedure, water quality documentPreparation and painting procedurePreservation, packing and shipping procedureSpares/operating manualsSupply list (packing list)5.0INSPECTION PROCESS5.1MATERIAL5.1.1REVIEW OF CERTIFICATIONOriginal or authenticated copies of mill certificates shall be available at manufacturer's premises.These should be examined for compliance with specifications and where appropriate todrawings.The review will include checks on:•Maker's name and locationDate:11/03/04•Certificate No•Material Specification•Heat or cast No•Makers No or Plate No•Chemical composition•Mechanical properties•Heat treated condition•NDE applied and results•Surface finish•Structural observations, notable defects.This covers body stem material, shell material, trim materials, gland materials, anti-friction materials, ball, wedge or flap materials, operating components, support material, well end, flanges and any other specified component.5.1.2VISUAL AND DIMENSIONAL VERIFICATIONMaterial identification on certificates against product markings.Material supplied against drawing, material list and specification as appropriate.Transfer identification to cut off components, (Cast No transfer), as specified.Visual and dimensional compliance with specification.5.1.3ADDITIONAL/SPECIAL REQUIREMENTSMay apply on special components, e.g. thick components, dissimilar material,alloy steels or non-ferrous alloys. Check to ensure contract/specification requirements have been met. Witness NDE examinations as necessary.5.1.4REPORTINGReporting on the material checks should include:•Confirmation of satisfactory document review.•Record of the endorsement of certification reviewed/witnessed.•Record of all non-conformities.•Record of any tests witnessed and the result.5.2VALVE FABRICATIONAfter clearance of above points to satisfaction of the inspector, then the fabricator will proceedwith the manufacture of sub-assemblies and components of the valves.Inspectors will review the following points on a basis to be outlined in the purchaser's documentation, quality plan, test and inspection plan, or other document, as notified to the inspector.5.2.1MACHINED COMPONENTS, SUBJECTED TO WELDINGCarry out visual and dimensional check to ensure compliance with WPS and specification. Where specified, weld bevels shall be examined by MT or PT after grinding/machining. Edgesand weld bevels will be clean, dry and free from surface defects, laminations, cracks, voids, notches, etc. These shall be a cause for rejection unless suitable/satisfactory remedial actioncan be taken. Welding repairs to bevels are not permitted, without approval from the client. Inspectors must report excessive or serious defects.5.2.2WELDINGDate:11/03/04 This stage inspection will be carried out when components, have been tacked using welding consumables and parameters from an approved WPS.Inspectors shall check and report on:-Cleanliness and fit up accuracy of preps.Roundness of form of components.Application of preheat.Welding in progress.Cleaning of welds.Completion of test coupons, (where specified)NDE. Results shall meet specifications or code requirements.Hardness tests - when specified in the contractImpact tests - when specified in the contract5.2.3POST WELD INSPECTIONSCarry out dimensional check and PWHT as specified. When PWHT has been completed then portable hardness measurement may be used to establish hardness of material, heat affectedzone or welds, as may be specified.5.2.4VISUAL AND DIMENSIONAL INSPECTIONInspection shall include, but not necessarily be limited to:To verify that the model and various features and components comply with the purchase order description and valve specification and drawings as applicable.To verify that the dimensions of valves, flanges, flange drilling, bore, stem, threading, wall thickness and any other dimensions, as applicable, comply with the requirements of the specification and other.Witnessing required pressure tests.Witnessing functional test of actuator on valve, when actuators are specified.Radiographic examination and other NDE in accordance with the applicable references noted above.5.2.5TESTING5.2.5.1LOW PRESSURE AIR TESTSSpecialised testing of seats, the seals, by-passes, etc., may be required. Details will be as required by the Purchaser's Technical specification.A minimum of 2 gauges with correct working ranges shall be used. The calibration of the gauges will be checked.5.2.5.2HYDRAULIC TESTINGCheck all previous items have been accepted by authorised bodies.The following items will be verified.Date:11/03/04•Body tests, high pressure closure tests, back seat tests as detailed in applicable procedure and code specification.•Calibration status and correct working ranges of gauges. A minimum of 2 pressure gauges will be attached to item under test.•Adequate provision for venting of high points and draining of the test medium will be provided.•Test pressure shall be applied as directed by procedure or code until test limiting pressure is reached. During hold period, a methodical check for leakswill be conducted.•Test pressures, metal and water temperatures will be recorded.Water quality will be as specified.5.2.5.3POST HYDRAULIC TESTINGAfter depressurisation, valve components will be drained and dried to meet specified requirements.Stamping of Inspection authority stamps, will be carried out in approved area, as required by client/code.Stamps used shall be low stress type.Application of desiccant/preservative will be as directed in client's specification.5.2.6FINAL INSPECTIONAll valves, will be checked for cleanliness and dryness.Check nozzle, outlets, flanged or butt welded, saddle, bracket locations and orientations against assembly drawings.Check operation of valve indicator and correct functioning.5.3NAME PLATEContents to be checked in accordance with the approved drawings and specificationsand stamped/marked in accordance to clients requirements.5.4PAINTING/COATING INSPECTIONSurface preparation for painting shall be checked for the following points, according to specification.•Cleaning method (Blast or scraping and wire brushing)•Preparation grades•Freedom from weld spatter, blow-holes and other defects[a] Prior to painting Humidity and steel temperatures to be checked[b] Paint manufactures – type and colour to be checked against clients requirements[c] Dry film thickness to be checked according to specificationSurface condition to be free from pin-holes, runs, damage and other discontinuity.Date:11/03/045.5SPARE PARTS, LOOSE ITEMS AND ACCESSORIESSpare parts, loose items and accessories will be checked visually and for dimensions, materials,workmanship and quantity according to purchase order specification and supply list.Marking and/or Tag shall be checked for identification.5.6REPORT AND RELEASE5.6.1REPORTINGA final report summarising the activities carried out will be issued in accordance with the contractrequirements and circulated within the time limits specified in the contract. The report will be in aformat approved by the client and must clearly indicate the final acceptance or rejection of thevalves.5.6.2RELEASE NOTEWhen required by the contract a release document will be issued to the manufacturer when thevalves have been finally accepted.6.0SHIPPING6.1PREPARATION AND PACKINGThe following points shall be checked.•Cleanliness and dryness of components•Rust prevention for all machined surfaces•Protection for cover for all opening and protruding parts•Packing style and suitably for overseas transportation•Shipping marks and other markings7.0 VALVE DATA DOSSIERThe following final documents shall be revised and signed off if required.As built drawingsManufacturer's data reportsMaterial certificate or certified mill test reports for all pressure parts.Material list or mapWelder record for each weldHeat treatment records (Temperature-time record chart during PWHT)Dimensional recordNDE recordsPneumatic test recordHydrostatic test recordHardness test recordFinal assembly checksMarkingsPacking listSpare partsDate:11/03/048.0INSPECTION CHECK LISTINSPECTION CHECK LIST(1)VISUAL INSPECTION/WITNESSING BY BUYER REPRESENTATIVE(2)CERTIFICATES/RECORDS TO BE CHECKED BY BUYER REPRESENTATIVE(3) CERTIFICATES/DATA TO BE PROVIDED BY VENDOR/SUPPLIER/MANUFACTURERPre-Fabrication/Production Requirements Specification Details/NotesPurchase Order RequirementsInspection & Test Plan (ITP)Approved Drawings (Arrangements)Sub-Assembly DrawingsWeld Procedures Specification (WPS) &Procedure Qualification Records (PQR)Welder Qualification RecordsNDT Personnel and ProceduresIn-Process Inspection & Testing RequirementsMaterial Test Certificates & IdentificationWeld Edge PreparationFit Up InspectionMonitoring Weld ConditionsPost Weld InspectionNDE ExaminationPost Weld Heat Treatment & Hardness ChecksVisual & Dimensional ExaminationNACE RequirementsLow Pressure Air TestHydraulic Testing (Body – Seat etc.)Draining and DryingFinal Assembly InspectionFinal Inspection & Testing RequirementsVisual & Dimensional CheckNameplate & Identification MarkingPainting/Coating InspectionSpare Parts & ToolsShippingDocumentation packageAdditional/Supplementary RequirementsPreparation & Packing。

INSPECTION GUIDELINESINSPECTION SURVEILLANCEREPORT WRITING0For Approval07/06/2004J.Brotton B. Tremain B. Tremain June 2004 Rev.Description Date Prepared Checked Approved DateCONTENTS 1GENERAL2THE ASSIGNMENT 3PROCEDURE1.0 GENERALThese guidelines describe report inputs, writing techniques and distribution requirementsassociated to inspection surveillance and material/equipment release reports.Client’s requirements can over rule any of the basic input, writing technique and distributionrequirements as described within.2.0THE ASSIGNMENTThe assigned SGS inspector representative is responsible for the basic report input, writingtechnique and distribution of the inspection surveillance and material/ equipment releasereports within 24 hours from visit.The assigned SGS Contract / Co-ordinator engineer is responsible for review of the report and distribution.3.0PROCEDURE3.1INSPECTION SURVEILLANCE REPORT (ISR)3.1.2 SGS Assignment NoEnter the SGS Assignment No as stated on the Inspection Assignment Transmittal formissued by SGS Contract / Co-ordinator Engineer.3.1.3 Inspection Surveillance Report NoEnter the inspection surveillance report number starting at 01, 02 etc until Completion, or inaccordance with Assignment Transmittal form instructions.3.1.4 SECTION 1 - GENERALClientEnter Client name and address as stated on the Inspection AssignmentTransmittal form.Client’s PO Number issued to SGSEnter Clients PO Number issued to SGS as stated on the Inspection AssignmentTransmittal form.Project NameEnter Project Name (if known) as stated on the Inspection Assignment Transmittal form.PO NumberEnter Purchase Order number in accordance with purchase order received with theAssignment and Inspection Assignment Transmittal form or as obtained from place ofinspection.RevEnter the Purchase Order revision number in accordance with Purchase Order. Revisionnumber is to be updated as new revisions are issued.Technical Specification NumberEnter the procurement technical specifications or material requisition number where notechnical specification exists.RevEnter the technical specification revision number or material requisition revision number.Revision number is to be updated as new revisions are issued.Material on OrderEnter the material or equipment description as described on Purchase Order and/orInspection Assignment Transmittal form.Surveillance LevelEnter the inspection level as stated on the Inspection Assignment form.Supplier’s Works Order NoEnter the suppliers controlling shop order or factory order number, which is assigned andprovided, by the supplier for the procurement order.Prime SupplierEnter the procurement prime supplier name.LocationEnter the procurement prime supplier address and country.SupplierEnter the sub-supplier’s name if inspection was performed at his works for the reportperiod.LocationEnter the Sub-supplier address and country.3.1.5PRODUCTION STATUSIn this section information is to be updated with each visitation.Visit DateEnter the visitation date for the report period and type of visit.Engineering in ProcessEnter a basic percentage of completion associated to status of supplier, submittal ofengineering data and drawings as established by procurement documentationrequirements.A brief description of outstanding submittals is referenced in this section. Where extensivereferences are being made, it is to be provided within the summary section of the report.Procurement in ProcessEnter a basic percentage of completion associated to status of supplier procurementissued, outstanding procurements to be issued, status of receipt of procurements. A briefdescription of issued, outstanding procurements and receipt of procurements is referencedin this section. Where extensive references are being made, it is to be provided within thesummary section of the report.Manufacture StatusEnter the basic overall percentage of completion associated to major fabrications requiredby procurement. Reference a brief status description associated to these majorfabrications. Identify if fabrications are on hold, in process, projected start or completiondate, and/or completed. Where extensive references are being made, it is provided withinthe summary section of the report.Estimated Completion DateEnter the projected procurement shipment completion date for the total procurement andmajor components where split shipments will occur.CONTACTS3.1.6 SUPPLIERContact NameEnter the primary supplier contact name. Enter a secondary contact name if provide by thesupplier.TitleEnter the title of the primary supplier contact. Enter the title of the supplier secondarycontact.TelephoneEnter the primary contact telephone number. Enter the secondary contact telephonenumber.FacsimileEnter the primary contact facsimile number. Enter the secondary contact facsimile number.EmailEnter the primary contact electronic mail address. Enter the secondary contact electronicmail address.3.1.7 MATERIAL RELEASED FOR SHIPMENT WITH THIS REPORT:This section provides automated check boxes Yes NoYes This box is to be checked when equipment / material is authorised to shipduring this report period.Where the inspection assignment transmittal form requires the issuance of amaterial/equipment release form, it is to be issued in conjunction with thereport.Where the inspection assignment transmittal form does not specificallyreference the issuance of a material/equipment release form then authorisedequipment/material is to be referenced within this section.No This box is to be checked when equipment / material is authorised to shipduring this report period.3.1.8. NON-CONFORMANCESThis section provides automated check boxes Yes No, and a table that identifiesnon-conformances and required data.Yes This box is to be checked if there are new or existing open non-conformances.No This box is to be checked if there are no new or all existing non-conformances are closed for the given report period.TableThis table requires informational input and continual update.ItemEach as found non-conformance is to be numbered sequentially as 1, 2, 3, etc.Primary ComponentThe component of the non-conformance is to be referenced. Typical entries can beincorrect component, incorrect dimensions weld undercut, missing documents etc.Condition DescriptionA description of the non-conformance is to be referenced The description reference thecontrolling document requirement verses the specific non-conformance.The supplier position can be referenced where clarification may be necessary.NOTE:The information that is entered into the non-conformancetable is preferred to remain from report to report even afterissues are closed. Utilising this preference provides arunning history and aids addressing approved non-conformances at the time the material/equipment releasereport form is issued.3.1.9 DOCUMENTS USED ON INSPECTIONEnter all Documents, Codes, Specifications and Drawing Numbers used during Inspectionvisitation.RevEnter the Document, Code, Specification and Drawing revision number and dates.Revision numbers and dates are to be updated as new revisions are issued.3.1.10 SUMMARY OF INSPECTION SURVEILLANCE ACTIVITIES PERFORMED:This section provides narrative summary area for visitation activities and hours box.Initial Visit This box checked when an initial visit is performedStatus Report This box checked if a status only was performedWitness/Hold Point:This box is checked if a witness or hold point was performedor observed for the given report periodIn-Process:This box is checked if a in-process only visit was performedFinal Inspection:This box is checked if a final inspection was performedThis box is checked if a documentation review was performed DocumentationReview:Narrative Summary InformationSufficient detail is to be addressed to assure that all activities that were performed are clearly understood by reviewing personnel.The following attributes constitute a balanced report.•Identify date of visit and supplier facility and location.•Identify purpose of visitation.•Identify procurement item number, description of material or equipment and tag number under scope of inspection.•Identify material/equipment associated controlling specifications, data sheets, drawings, procedures, revisions and submittal status code where applicable.•For each inspection activity performed a typical summary should address:•General overall status performed.If sufficient detail has already been provided in section 2.0 of the report a reference to “See Section 2” is appropriate. If not, more details is to be addressed as part of summary.•Dimensional and orientation inspection performed.Be specific by referencing the material/equipment, P.O. item number, tag number, drawing number, revision, review code, calibrated measurement equipment used, dimension and orientations verified, acceptable or Non-conforming result determined, if activity was performed as in process or final.•Welding inspection performed.Be specific by referencing the material/ equipment, P.O. item number and tag number, welds inspected, acceptability or non-conformance in accordance with specific welding code acceptance criteria’s. If operation was witnessed the summary should address the WPS and PQR revision, review code, WQR of the welder, weld materials utilised, process essential variables were verified and held, and the acceptance or non-conformance in accordance with the WPS and welding code acceptance criteria.•NDE inspection witnessed.Be specific by referencing the material/equipment PO item number and tag number.NDE process, NDE procedure, revision, review code, NDE personnel qualification level, NDE materials utilised by batch number, NDE equipment calibration status is current, process was correctly performed, and the acceptance or non-conformance in accordance with NDE procedure and NDE code acceptance criteria.•Hydrostatic test witnessed.Be specific referencing the equipment/component PO item number, tag number, hydrostatic procedure and/or drawing number, revision, review code, test set up is in accordance with the procedure measurements and monitoring equipment current calibration, test medium, test pressure, hold time, and acceptance or non-conformance of the test.•Performance test witnessed.Be specific by referencing the equipment/component, PO item number, tag number, performance test procedure number, revision and review code. Comment that the test set up is in accordance with procedure, measurements and monitoring equipment current calibration, test medium, primary contract guarantee points observed and values obtained, and the acceptance or non-conformance of the test.•Document review performed.Be specific by referencing the material/equipment, PO item number, tag number, typical documents reviewed (Material Certificates, NDE records, test reports, etc).Typically reference that material certificates reviewed against associated material specifications, NDE reports reference code required attributes, test reports reviewed against contract data sheet requirements etc. Documentation was verified to be complete, accurate, legible and traceable. Documentation was stamped to indicate review actions were performed.NOTE: The above examples provide a balanced report information. For Inspection activities that were not described, the main attributesshould always be addressedNOTE:Pertinent digital photographs are recommended for insertion into r eports. Discretion is to be utilised as to quantity of digital photographsthat are inserted. Typically digital photographs inserted should identifynon-conformances, partial fabrications, completed fabrications andshipment preparations.NOTE:When the assignment has released the last procurement item on order and there are no other inspection activities to be performed, afinal typical statement is to be made in the narrativeALL INSPECTION ACTIVITIES ARE NOW COMPLETE ON THIS PO, ALL EQUIPMENT RELEASED TO SHIP. THIS IS THE FINAL REPORT ISSUED AGAINST THIS ASSIGMENT AND THE ASSIGNMENT IS CLOSED.HOURSBudgetedEnter the budgeted hours identified by the Inspection Assignment Transmittal form. If inspection assignment transmittal form does not indicate budget hours, leave this box blank.This VisitEnter the hours utilised during this report period.To DateEnter the total numbers of hours accumulated for the total assignment to date3.2 MATERIAL/EQUIPMENT RELEASE3.2.1 HEADER SECTION:Assignment NumberEnter the assignment number in accordance with issued Inspection AssignmentTransmittal form.Supplier Order NumberEnter the suppliers controlling shop order number of factory order number, which isassigned and provided, by the supplier for the procurement order.P.O. NumberEnter the PO number in accordance with the purchase order and Inspection AssignmentTransmittal form.RevEnter PO revision number in accordance with the purchase order. Revision number is tobe updated as new revisions are issued.Inspection Surveillance Report (ISR)Enter all ISR No’s appertaining to this inspection assignment orderRelease NumberEnter the Release Number in accordance with purchase order and InspectionAssignment Transmittal.SupplierEnter the name of the supplier shipping the material/equipment.LocationEnter the address location of the supplier shipping material/equipment.3.2.2P.O. ITEM, QUANTITY, DESCRIPTION, TAG, MARK/EQUIPMENT OROTHE I.D No TABLEP.O. ItemEnter the PO line item number being released.QuantityEnter the quantity of items order on P.O. and enter quantity PO line number beingreleased.DescriptionEnter the description of the PO line item number being released.Tag/Mark/Equipment or other ID NoEnter the PO or Data Sheet assigned tag/mark/equipment or other identification numberof the material/equipment being released.If no number is assigned, enter None3.2.3 Name of InspectorThis section covers for signature of assigned inspector, data, automated checkbox Yes No, with the following authorised exceptions and comments.Signature of InspectorPrint name of inspector. If a formal signature is required, the form must be printed andthen signed.DateEnter the date of the release.With the following authorised exceptions:This box to be checked when supplier has taken exceptions form procurement and/orspecification contractual requirements. All exceptions require approval and are to besummarised by referencing the contract approval supplier deviation disposition requestnumber, or project disposition document with brief description of the approved exceptionand approver name.CommentsEnter any appropriate comment here that may be beneficial to site receiving personnel or projectpersonnel handling this document.3.2.4.Document Package mailed to: (Name, Location and Person)Enter the name of office, location and name of person to where the quality documentationpackage is being distributed.3.2.5DistributionEnter the name of companies and personnel that the Material/ Equipment release formare being distributed to.。

(SHOP APPLIED)Date:07/04/04 INSPECTION GUIDELINESCOATING OF LINE PIPE(SHOP APPLIED)0For Approval07/04/04J. C. Brotton B. Tremain B. Tremain June 2004 Rev.Description Date Prepared Checked Approved Date(SHOP APPLIED)Date:07/04/04CONTENTS1PURPOSE2SCOPE3PROCEDURE4DOCUMENTS5INSPECTION PROCESS6SHIPPING7LINE PIPE COATING DATA DOSSIER8INSPECTION CHECK LIST(SHOP APPLIED)Date:07/04/04 1.0PURPOSEThis inspection instruction covers the inspection, test and verification activities required tovalidate the coating and testing of Line Pipe external coating shop applied.2.0SCOPEThis instruction covers all necessary stages in the external coating of Line Pipe from theexamination of certification from procurement sources to the final inspection, preservation andpacking for despatch to site.Although the methodology in compiling this instruction is to systematically progress through theshop applied cycle for the external coating of a typical length of line pipe. Experienced,inspectors may interpret the intent of the instruction to accommodate local or novel practices.Any variations should be noted on the inspector's report. This instruction is based on the mostregularly used specification.3.0PROCEDURE3.1GENERALThis instruction together with its associated check sheet may be used on any order or contract.It is intended to act as a guide to the inspector during the course of the inspection programme.Any part of the document may be invoked and the sections to be used with the level ofinspection required will be specified on the check sheet.All tests and inspections will be carried out against approved purchase order specifications,procedures, purchasers or company standards, and within the practices and rules of thecountry, state or province and any government decrees, laws, ordinance or regulation as mayapply.If any conflict or contradictions should be apparent in any of the above then the more onerousrequirement will apply unless the purchaser or client directs otherwise in writing.3.2REFERENCE DOCUMENTSApplicable codes and specifications.•Design code•Purchase order specification•Purchaser's standards•Coating Procedures•SGS Company standards4.0DOCUMENTS TO BE RECEIVED/AVAILABLE AT INSPECTIONPurchase order/contractPipe Inspection and Test Plan [ITP]Material Test Certificates [if applicable]Coating SpecificationsCoating Material Storage ConditionsCoating ProceduresShipping procedure(SHOP APPLIED)Date:07/04/045.0INSPECTION PROCESS5.1MATERIAL5.1.1REVIEW OF CERTIFICATION [IF APPLICABLE]Original or authenticated copies of mill certificates will be available at the coatingmanufacturer’s premises. These should be examined for compliance with specifications.The review will include:•Maker's name and location•Certificate number•Material Specification•Heat or cast number•Chemical composition•Mechanical properties•Heat treated condition•NDE applied [if required]5.1.2VISUAL AND DIMENSIONAL VERIFICATIONMaterial identification on certificates.Material supplied in accordance with specification.Visual and dimensional compliance with specification.5.1.3REPORTING [IF APPLICABLE]Reporting on the material checks must include:Confirmation of satisfactory document review.Record of the endorsement of certificates reviewed/witnessed.Record of all non-conformities.Record of any tests witnessed and the result.5.2COATING INSPECTIONAfter clearance of the above points to the satisfaction of the inspector, the manufacturer willproceed with the production of coating the Line Pipe.Inspectors will review the following points on a basis to be outlined in the, applicable NationalStandard, purchaser's documentation, test and inspection plan, or other document, as notified tothe inspector.5.2.1SURFACE PREPARATIONCheck following prior to blastingAbrasive Type, performance, shape, dryness and cleanliness of Blast MaterialTemperature & Dew Point ReadingsCompressed Air Supply Blotter TestCheck following after Blasting(SHOP APPLIED)Date:07/04/04 Surface ProfileVisual inspection for Scabs, Silvers, Gouges, Laminations, flash rusting, dust and surface debris5.2.2 COATINGS INSPECTIONCheck following prior to and during coatingPaint Manufacture, type and colour against clients requirementsAtmospheric Conditions and Substrate TemperatureSubstrate Surface InspectionWet and Dry Film Coatings Thickness ReadingsTemperature of Pipe SurfacesAdhesion Test5.2.3FINAL INSPECTIONVisual Inspection of finished coatingsHoliday Detection TestingDry film final coating thickness reading5.3MARKINGMarking of pipes in accordance with clients requirements will be checked.5.4 REPORT AND RELEASE5.4.1. REPORTINGA final report summarising the activities carried out will be issued in accordance with thecontract requirements and circulated within the time limits laid down.The report will be in a format approved by the client and must clearly indicate the finalacceptance or rejection of Line Pipes coating5.4.2RELEASE NOTEWhen required by the contract a release document will be issued to the manufacture whenthe Line Pipes coating have been finally accepted6.0SHIPPINGCheck pipe protection on each end of pipesCheck shipping marks or marking instructions and recordCheck handling marksVerify that the packing conforms to clients specification for mode of transport7.0LINE PIPE DATA DOSSIERThe following final documents will be reviewed and endorsed as necessaryManufacture Data ReportsMaterial Certification [If applicable]Painting ReportsCoating test Results(SHOP APPLIED)Date:07/04/04(SHOP APPLIED)Date:07/04/048.0 INSPECTION CHECK LISTINSPECTION CHECK LIST(1)VISUAL INSPECTION/WITNESSING BY BUYER REPRESENTATIVE(2)CERTIFICATES/RECORDS TO BE CHECKED BY BUYER REPRESENTATIVE(3) CERTIFICATES/DATA TO BE PROVIDED BY VENDOR/SUPPLIER/MANUFACTURERPre-Fabrication/Production Requirements Specification Details/NotesPurchase Order RequirementsInspection & Test Plan (ITP)Material CertificatesCoating ProcedureCoating Material Storage ConditionsIn-Process Inspection & Testing RequirementsCheck abrasive type, performance, shape,dryness and cleanliness of blast material &processBlast abrasive chemical analysisSurface preparation prior to blasting & afterblastingTemperature & dew point readingsCompressed air supply blotter testCleaning; Spent abrasive removalVisual inspection for Scabs, Silvers Gouges etc.Surface profile and surface finishCoating applications check for:Atmospheric conditions & substratetemperatureSubstrate surface inspectionWet & dry film coating thickness readingsTemperature of pipe surfaceAdhesion testsFinal Inspection & Testing RequirementsHoliday detection testVisual inspection of finished coatingMarkingPipe handling & storageCoating Reports reportAdditional/Supplementary RequirementsPreparation & Packing。

机械制造业检验规程机械制造业检验规程1-版本记录1-1 修订日期修订人员MM/YYYY2-引言2-1 目的和范围本文档旨在规范机械制造业的检验流程，确保产品质量符合相关国家和行业标准。

2-2 定义和缩写2-2-1 检验：指对机械制造产品进行质量检查和测试的过程。

2-2-2 检验员：指负责执行检验工作的工作人员。

2-2-3 缺陷：指产品在生产制造过程中出现的不符合规范要求的问题。

2-3 参考文献在编写本文档时，参考了以下标准和规范：●国家标准GB/T X-X《机械制造业产品质量检验通用规定》●行业标准-X《机械制造业产品检验细则》3-检验准备3-1 检验计划制定3-1-1 确定检验项目、内容和方法3-1-2 制定检验计划和时间安排3-2 检验设备和工具准备3-2-1 准备适当的检测设备和工具，并确保其校准合格 3-2-2 确保所有检验设备和工具易于访问和操作3-3 检验环境准备3-3-1 确保检验环境符合相关标准，如温度、湿度等要求3-3-2 为检验人员提供适当的安全设备和防护用具4-检验过程4-1 样品接收4-1-1 检查样品数量和完整性4-1-2 记录样品接收日期和来源4-2 检验标准应用4-2-1 针对每个检验项目，参考相应的标准和规定4-2-2 确定合格和不合格的标准4-3 检验方法选择4-3-1 根据检验项目的特点和要求，选择适当的检验方法4-3-2 确保检验方法的可行性和准确性4-4 检验执行4-4-1 严格按照检验计划和方法进行检验4-4-2 记录检验结果和发现的缺陷4-5 检验文件和记录管理4-5-1 建立并维护完整的检验文件和记录4-5-2 确保检验文件和记录的可追溯性和保密性5-缺陷处理和纠正措施5-1 缺陷评估5-1-1 对发现的缺陷进行评估和分类5-1-2 判断缺陷对产品质量的影响程度5-2 缺陷处理5-2-1 确定合适的缺陷处理措施，如修复、更换等5-2-2 与生产部门和供应商协商，明确责任和时间安排 5-3 纠正措施5-3-1 分析缺陷产生的原因，并制定纠正措施5-3-2 跟踪和监控纠正措施的实施和效果6-检验报告和结果记录6-1 检验报告编制6-1-1 根据检验结果和文件，编制详细的检验报告6-1-2 报告中应包含样品信息、检验项目、结果和结论等内容6-2 检验结果记录6-2-1 记录所有的检验结果和缺陷情况6-2-2 确保结果记录的准确性和可靠性7-附件本文档涉及以下附件：●附件1：检验计划表●附件2：检验设备校准证书8-法律名词及注释●法律：注释：该法律规定了的相关要求和规定。

机械厂产品质量检查标准规程1 目的1.1 订定公司产品品质之判定标准，以提供品管检验时之依据。

2 适用范围2.1 用于本公司所生产产品所有机种从进料，制程到成品出货检验，若客户有其他特殊要求或另外提供检验标准，则以单机种检验标准或客户标准为准。

3 责任品管部门负责此标准之维护及执行。

4 定义4.1 表面等级定义。

4.1.1 A级表面：能直接正视的外部表面和全部需丝印的表面。

4.1.2 B级表面：不明显的外部表面和开启后能看见的内部表面。

4.1.3 C级表面：不易察看的内部和外部表面。

4.2 缺点程度定义4.2.1 严重缺点(Critical Defect)根据经验或判断，认为此种缺点将导致装配者或使用者受到严重伤害或造成产品不能执行其功能之缺点。

4.2.2 主要缺点(Major Defect)将可能造成产品之功能故障，降低其使用效能或其他有关客户主要规定之品质偏差的缺点，或可能影响出货的标准规定及对产品的使用者造成不良抱怨，均属主要缺点。

4.2.3 次要缺点(Minor Defect)指不影响产品的适用性和功能性或外观的缺点，对产品的使用者不会造成不良反应或影响之缺点，均属于次要缺点。

4.2.4 相同次要缺点出同批量性问题时应累积成主要缺点处理；相同主要缺点出现批量性问题时应以重缺点对待。

4.3 限度样品定义对于文字难以描述清楚或不易判定合格与不合格之外观缺点，则以提供承认样品或说明图片，供检验时供依据。

4.4 产品缺陷定义4.4.1 铁件类4.4.1.1 毛刺：由于模具刀口钝化或刀口较短配合不良造成切边产生锋利的突出物。

4.4.1.2 模痕：在折弯时工程造成部件折弯处出现黑条或凹状槽。

4.4.1.3 碰伤：因与其他物件碰撞造成表面凹状变形。

4.4.1.4 生锈：因在空气中氧化造成黄色点状或块状物。

4.4.1.5 流漆：因过量油漆不整齐下垂或流动所形成的区域，比一般烤漆面有更明显的高度。

4.4.1.6 溢漆：油漆溢出烤漆件本身所规定之边沿。

机械制造业检验规程机械制造业检验规程1. 引言机械制造业是现代工业的重要组成部分，对其质量的要求也越来越高。

检验是保证产品质量的重要环节，能够确保机械制造的产品符合相关的标准和规定。

为了规范机械制造业的检验工作，制定本规程。

2. 检验标准2.1 国家标准机械制造业的检验工作应遵循国家相关的标准。

根据不同的机械产品，可以参考以下国家标准进行检验：- GB/T 5- 机械产品质量检验标准- GB/T 54321- 机械产品技术要求2.2 企业标准在实际的生产过程中，企业可以根据自身的特点和需求制定适用于自己产品的检验标准。

企业标准应与国家标准保持一致或者更高，确保产品质量的稳定和可靠。

3. 检验内容机械制造业的检验范围很广泛，涉及到多个方面的内容。

根据具体的产品和国家标准的要求，可以将检验内容划分为以下几个方面：3.1 尺寸检验尺寸检验是机械制造业中最常见的一种检验内容。

主要包括外形尺寸、内部尺寸、连接尺寸等的检验。

检验的目的是确保产品的尺寸符合设计要求，以保证产品的正常使用和安装。

3.2 材料检验材料检验是机械制造过程中非常重要的一部分。

通过对材料的检验，可以确保其质量符合要求。

常见的材料检验包括金属材料的化学成分检验、硬度检验等。

3.3 功能检验功能检验是对机械制造产品的功能进行测试和验证。

通过模拟实际使用环境，对产品进行各种性能测试，包括负载测试、运行时间测试、噪音测试等，以确保产品在使用中的正常性能。

3.4 电气检验对于有电气部分的机械制造产品，电气检验是必不可少的一部分。

主要包括电气安全性能的检验、接地电阻检验、绝缘电阻检验等。

3.5 环境适应性检验机械产品在使用过程中会接触到各种不同的环境条件，包括温度、湿度、气候等。

环境适应性检验的目的是确保产品在各种环境条件下都能正常工作。

4. 检验方法4.1 目视检验法目视检验法是检验工作中最常用的一种方法。

通过对产品的外观、表面质量等进行直接观察和判断，以确定产品的合格与否。
