DESCO WEST - 3651 Walnut Avenue, Chino, CA 91710 • (909) 627-8178 • Fax (909) 627-7449DESCO EAST - One Colgate Way, Canton, MA 02021-1407 • (781) 821-8370 • Fax (781) 575-0172 • Website: TB-3046 Page 1 of 4© 2010 DESCO INDUSTRIES, INC.Employee OwnedMade in AmericaAnalog Surface Resistance Test KitOperation and Maintenance

DescriptionThe Desco Analog Surface Resistance Test Kit is a portable battery-powered instrument designed to measure resistance point-to-point (RTT) and surface to ground (RTG). The meter is equipped with an automatic test voltage selector. The test voltage will switch from 10V to 100V should the measured resistance exceed 10E5 ohms.ESD protected area products should be tested:A. Prior to installation to qualify for listing in user’s ESD control plan. Approved ESD materials (see product qualification table at ANSI/ESD S20.20-2007 Table 3 EPA ESD control items)B. During initial installationC. For periodic checks of installed products as part of ANSI/ESD S20.20-2007 Compliance Verification testing per ESD pliance Verification Plan“A Compliance Verification Plan shall be established to ensure the Organization’s fulfillment of the technical requirements of the ESD Control Program Plan. Process monitoring (measurements) shall be conducted in accordance with a Compliance Verification Plan that identifies the technical requirements to be verified, the measurement limits and the frequency at which those verifications shall occur. The Compliance Verification Plan shall document the test methods and equipment used for process monitoring and measurements. If the test methods used by the Organization differ from any of the standards referenced in the document, then there must be a tailoring statement that is documented as part of the ESD Control Program Plan. Compliance verification records shall be established and maintained to provide evidence of conformity to the technical requirements.The test equipment selected shall be capable of making the measurements defined in the Compliance Verification Plan.” (ANSI/ESD S20.20-2007 section 7.3)The Analog Surface Resistance Meter and its accessories are available as the following item numbers:Figure 1. Desco 19784 Analog Surface Resistance Test Kit

This document was generated on 08/09/2012PLEASE CHECK FOR LATEST PART INFORMATION

Part Number:73944-1000Status:ActiveOverview:HDM®Description:2.00mm Pitch HDM® Board-to-Board Backplane Header, Vertical, SMC, Solder Tail,Guide Pin Option, 144 Circuits

Documents:3D ModelProduct Specification PS-73670-9999 (PDF)Drawing (PDF)RoHS Certificate of Compliance (PDF)

Agency CertificationCSALR19980ULE29179GeneralProduct FamilyBackplane ConnectorsSeries73944ApplicationBackplaneComponent TypePCB HeaderOverviewHDM®Product NameHDM®StyleN/AUPC800755031010PhysicalCircuits (Loaded)144Circuits (maximum)144Color - ResinBlack, NaturalDurability (mating cycles max)250First Mate / Last BreakNoFlammability94V-0Guide to Mating PartYesKeying to Mating PartYesMaterial - MetalPhosphor Bronze, Stainless SteelMaterial - Plating MatingGoldMaterial - Plating TerminationTinMaterial - ResinHigh Temperature ThermoplasticNumber of Columns24Number of PairsOpen Pin FieldNumber of Rows6OrientationVerticalPC Tail Length2.00mmPCB LocatorYesPCB RetentionNonePCB Thickness - Recommended2.50mmPackaging TypeTubePitch - Mating Interface2.00mmPitch - Termination Interface2.00mmPlating min - Mating0.762µmPlating min - Termination2.540µmPolarized to PCBNoStackableNoSurface Mount Compatible (SMC)NoTemperature Range - Operating-55°C to +105°CTermination Interface: StyleThrough HoleSeriesimage - Reference only

UC1907, UC2907, UC3907

LOAD SHARE CONTROLLERą

SLUS165C – MARCH 1999 - REVISED JANUARY 2002

FEATURES

DFully Differential High Impedance Voltage

Sensing

DAccurate Current Amplifier for Precise

Current Sharing

DOpto Coupler Driving Capability

D1.25% Trimmed Reference

DMaster Status Indication

D4.5-V to 35-V Operation

DESCRIPTION

The UCx907 family of load share controller ICs provides all the necessary features to allow

multiple-independent-power modules to be paralleled such that each module supplies only its proportionate share

to total-load current.

This sharing is accomplished by controlling each module’s power stage with a command generated from a

voltage-feedback amplifier whose reference can be independently adjusted in response to a common-share-bus

voltage. By monitoring the current from each module, the current share bus circuitry determines which paralleled

1/3

®1N5711

SMALLSIGNALSCHOTTKYDIODE

October 2001 - Ed: 1B

DO-35

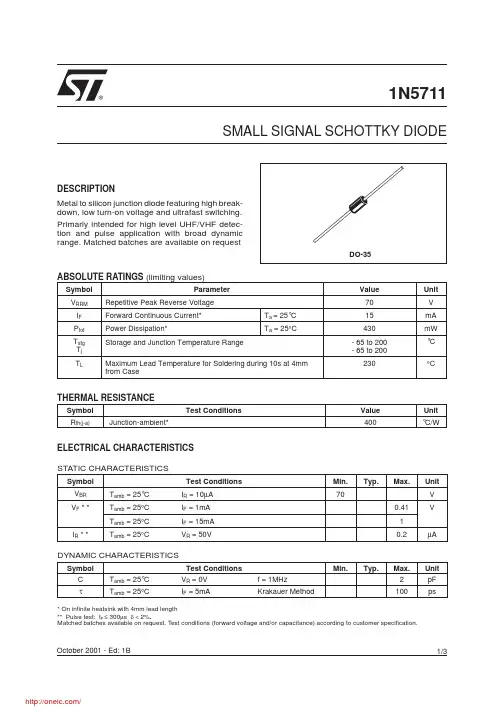

SymbolParameterValueUnitVRRMRepetitive Peak Reverse Voltage70VIFForward Continuous Current*Ta= 25°C15mAPtotPower Dissipation*Ta= 25°C430mWTstgTjStorage and Junction Temperature Range- 65 to 200- 65 to 200°C

TLMaximum Lead Temperature for Soldering during 10s at 4mmfrom Case230°CABSOLUTE RATINGS(limiting values)

SymbolTest ConditionsValueUnitRth(j-a)Junction-ambient*400°C/WTHERMALRESISTANCE

* On infinite heatsink with 4mm lead length**Pulse test: tp≤300µsδ<2%.Matched batches available on request. Test conditions (forward voltage and/or capacitance) according to customer specification.SymbolTest ConditionsMin.Typ.Max.UnitVBRTamb= 25°CIR= 10µA70VVF* *Tamb= 25°CIF= 1mA0.41V

Tamb= 25°CIF= 15mA1IR* *Tamb= 25°CVR= 50V0.2µASTATIC CHARACTERISTICSELECTRICALCHARACTERISTICS
