GPS使用说明书

GPS Vehicle TrackerUser ManualFor Car,Motorcycle,Truck,Bus etcPlease read the manual carefully before use,so that you can install the device correctly and activate it quickly on the internet.The outlook and true color are subject to the actual product.Web server platform:/Skins/DefaultIndex/Default_en.html?locale=en&back=true Demo account:gwxyPassword:1234561．Accessories：2.Technical parameter1）.GSM：850/900/1800/1900Quad band 2）.GPRS:Class12,TCP/IP3）.Working Voltage：9-90V DC4）.Working current：≈22mA(12vDC) 5）.Working current：≈12mA(24vDC)6）.GPS locating time：Cold start≈38s（Open sky）Warm start≈32sHot start≈2s（Open sky）7）.GPS Precision：10m（2D RM）8）.Working temperature：-20℃～+70℃9）.Working humidity：20%～80%RH10）.Measurement：78（L）×27（W）×15（H）mm3.Out look4.Device status indicators(Save power mode) GPS LED Indicator-YellowSolid yellow Searching GPS signalFlashing GPS working normallyOFF Sleep modeGSM LED Indicator-BlueSolid Blue No GSM signal or SIM card not be recognized Flashing quickly(interval0.1s)GSM data transportingFlashing slowly(interval2s)GSM working normallyPower LED Indicator-RedSolid Red Working power from vehicleFlashing(interval1s)Device low batteryOFF Working power from device built-in battery5.Installation5.1Prepare installation(1)ProductCheck.Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete,please contact the dealer.(2)Choose SIM card.Please take dealer’s advice as reference before insert SIM card.(3)SIM card installation.Insertthe SIM card(as follows).(4)Putback the front cover and screw it up.(5)Connect the device to the9-24Vpower supply.（the red LED constant glow）(6)Install the device in the hidden place of the car；The SIM card must be with GPRS function and enough credit.If your SIM card need input PIN code when power on,please refer to the mobile phone user manual to cancel it5.2InstallationThe GPS tracker must be installed by professional person:(1)Please install the device in the hidden place as followings：-Under Front windshield；-In the front instrument panel；-Under back windshield；(2)Avoid being placed with signal radiators like reverse sensor；(3)The device has built-in GSM and GPS antenna.Please ensure thereceiving side of the device is face up and without metal cover.Note：The metal cover will lessen the GPS signals receiving.6.Device wiring requirements6.1The device power supply is DC9-100V.The red line is positive pole while the black line is negative pole.6.2The negative pole of power supply connects with ground or the metals.Please do not connect with other ground lines.6.3After finished the power supply wire connection,please plug the power supply wire into the device.7.The Device Working7.1Power on:The device will be powered on when detect the current.Then the three LEDindicators will light on continuously.The device will upload the data to the online platform (The uploading data default interval is 10seconds).When the car is in static state for a long time,the device will switch to energy saving mode.7.2Power off ：Pull off the power wire to power off the device.Optional MIC and SOS wiring diagram7.3Feature list:er SMS TEXT Settings(1)Set Admin NumberSMS TextCommandParameter SampleAdd Number 710#number#711#number#710#135****5000#711#138****8000#Delete Number D01#D02#D01#D02#Command Description 1)Admin number can control the oil,power and resume factory settings2)Admin number can receive the alarms call and text of vibration,over speeding,out geo-fence,etc3)SIM must display the income call number to control oil and power.4)Only two number can be set as admin number.5)Resend the command to change admin number.CommandFeedbackSuccessful Setting：Add admin account1OK!(2)Check Admin NumberSMS TextCommandParameter Sample Check901#901# CommandDescriptionView the device admin number directly.Command Feedback Successful Setting：Admin1:135****5000,Admin2:138****8000(3)Set Authorization NumberSMS TextCommandParameter SampleAdd Number101#number#102#number#103#number#101#135****5000# 102#12345678912# 103#12345678913#Delete Number D11#D12#D13#D11#D12#D13#Command Description 1)Authorization Number used to control oil by SMS2)Only three number can be set as authorization Number3)Before change the authorization Number should delete previous number first.CommandFeedbackSuccessful Setting：Add Authorization account1OK!(5)APNTextcommandParameter SampleAPN Setting 802#username#password1：802#internet#123#123#2:802#internet#Command Description APN differs according to the local telecommunication operators.For example：If APN request password，please refer to Sample1,Sample2for no password.Command Feedback Successful Setting：apn setting OK！(4)Check authorized numberSMS TextCommandParameter Sample Check C10#C10# CommandDescriptionCheck the device authorization number directly.Command Feedback Successful Setting：Authorization1：135****5000Authorization2：12345678912Authorization3：12345678913(6)Set/View SERVER HOSTSMS TextCommandParameter SampleSERVERHOSTParameter803#SERVER#port#803#58.61.154.231#7018#ViewSERVERCIP#1）CIP#Command Description Change the IP and port when move to a new server port：10~65535.1is domain and0is IP；Command Feedback SERVER Successful Setting：The setting of HOST NAME is successful! HOST:SERVERPORT:7018CIP#Successful Setting：IP:58.61.154.231Port:7018(7)TIMMER(Set data uploading time interval while car is MOVING) SMS TextCommandParameter Sample TIMEERsetting730#uploading interval#730#20#Command Description Time setting scope：10~3600seconds；20means time interval,the default value is15seconds！CommandFeedbackSuccessful Setting：Set upload move ITV20seconds,OK！(8)Alert on/offSMS TextCommandParameter Sample Alert onCommand911#911# Alert offCommand910#910#Command Description This command is used to set the alert on/off,in case of unknown movement or shake.Command Feedback 911#Successful Setting：Defence setting,OK!910#Successful Setting：Cancel Defence setting,OK!(9)STATIC(Set data uploading time interval while car is STATIC) SMS TextCommandParameter SampleSTATIC SUP#time interval#SUP#5#Command Description Time scope：1~1440minutes；The device has3D transmission and the default time interval is5minutes.CommandFeedbackSuccessful Setting：Set upload still ITV5Mins,OK！(10)Cancel the continuous uploadingSMS TextCommandParameter Sample NUP NUP#NUP#Command Description This command is used to cancel sending data to the platform.If need to restore the uploading,need to reset TIMEER or STATIC ParameterCommandFeedbackSuccessful Setting：Close upload gps information OK！(11)RELAY(Remote cut off fuel/power)SMS TextCommandParameter SampleRELAYParameter1222#222#cut off fuel and power RELAYParameter2333#333#recover fuel and powerCommand Description 1)RELAY control the ON/OFF of the vehicle relay;2)Only admin number can set this parameter.3)Only cut off the oil circuit while vehicle driving speed below20KM/H or in static state.4)When send the command,the vehicle speed is over 20KM/H,device will reply“please waiting”Command Feedback 222#Successful Setting：Oil is cut off! 333#Successful Setting：Oil is restore!(13)VIBRATIONSMS Text Command Parameter SampleVIBRATION Alarm Parameter 123#2#,alarming way#1)123#2#1#2)123#2#2#3)123#2#3#Set the vibration alarmtime intervalV123#1#V123#1# Cancel vibration alarm456#456#Command Description Vibration sensitivity level is from1to5，1is the most sensitive and0is close.Alarming ways:1calling,2:text,3:call and text.Must set the admin number and receiving number.Command Feedback Successful Setting:shock setting,OK!way:1shock interval setting,1Mins,OK! noshock setting,OK!(12)GMTSMS TextCommandParameter SampleGMT 801#location,time#801#E8#Command Description The default time zone is Beijing time.If need change, please operate according to the above command.CommandFeedbackSuccessful Setting:time zone ok!(14)OVER SPEED ALARM SETTINGSMS TextCommandParameter SampleSPEED Parameter SSA#120#alarming way#SSA#120#1#Command Description Speed range:60-220,if not inside this range,the alarm off.Alarming way1:call,2:text,3:call and text. Must set the admin number and receiving number.CommandFeedbackSuccessful Setting：Speeding Alarm setting，OK!(15)RESETSMS TextCommandParameter SampleRESET930#930#CommandDescriptionReset the deviceCommandFeedbackSuccessful Setting：Reset system,ok!(16)FACTORY RESTORESMS TextCommandParameter SampleParameter940#940#CommandDescriptionRestore the factory setting,only admin number can set. CommandFeedbackSuccessful Setting：Factory,OK！(17)LANGUAGE SETTINGSMS TextCommandParameter SampleLANG Parameter LANG1#LANG0#LANG1#LANG0#Command Description Set the language of command feedback,LANG1is Chinese,LANG0is EnglishCommandFeedbackSuccessful Setting：Set language,OK！(18)WHERE(Optional)SMS TextCommandParameter Sample WHERE988#988#Command Description Check the longitude and altitude and other information of the deviceCommandFeedbackReply with longitude and altitude,speed and IMEL.(19)URLSMS TextCommandParameter Sample WHERE666#666# CommandDescriptionCheck the location link of Google mapCommand Feedback GPS!Lat:22.66349long:114.22066,speed:000.0T:04/19/1913:47Location URL:/maps?q=N22.540885,E113.95265(20)PARAM(Device details)SMS TextCommandParameter Sample PARAM886#886#Command Description The command is to check the settings or the default parameter.Command Feedback IMEI:351190012535936 APN:cmnetIP:58.61.154.231 PORT:7018 LANGUAGE:English TIMEZONE:E8 NUMBER INFOR SOS:135****5000 ADMIN1:135****5000 ALARM WAY:1BAT VOL:12.73V(21)STATUSSMS TextCommandParameter SampleSTATUS902#902#CommandDescriptionDesigned for checking the device’s working status.Command Feedback IMEI:353327022096317Basic informationVERSION:61M-Q3_T3-HS-SLW-XY_V2.6_190402 RSSI_LEVEL:83APN:cmnetIP:58.61.154.231PORT:7018PROTOCOL:TCP/IPGPS informationGPS moving report intervals:20secstatic report intervals:5minGPS:UNFIXEDGPS Satellites:0NUMBER INFORSOS:136****5118ADMIN1:136****5118ALARM WAY:3BAT VOL:12.73VOptional functions of one way calling and SOS SMS TextCommandParameter Sample One waycallingSSS#SSS#Command Description Designed for checking the device’s surrounding status. After send the text“SSS#”to the device SIM card number, the device will immediately call back to you.SOS Press the SOS button for more than3s,device will call the admin number immediately in circles until the call will be picked up.Note:Should set the admin number by setting “710#number#”or“711#number#”first.9.Trouble shooting9.1The device is unused or offline on the web server platform9.1.1First,please check the three LED working state.If possible,callthe device’s SIM card number to check:①If the call can not connect to device and feedback the device is notin the GSM service area,please get the GSM signal first.②If reminding the device SIM card is out of fee,please top up the SIM card.③If calling can connect to device,means the SIM card still have fee inside,please check with the SIM card operator that the GPRS function has been opened or not.④If the call can not connect to device and feedback the device waspowered off,please take the device back to analysis as below:a)If the Red LED and blue GSM LED are solid light on,please check theinstallation status of SIM card,if installation no problem,change a new SIM card to retest.b)If the Red LED is off,please check the power terminal wiring isdisconnected or the power line end fuse is blown.Also can use a multimeter to measure the voltage of the main power2P connector.If the voltage is normal,please send the device to the factory for repair.9.1.2Please check there is how many offline devices in the same area,inorder to judge whether its the SIM Card operator’s network problem or not.9.2When GPS cannot receive the signals,please drive to a open skyplace,and ensure there is no metal cover on the device.9.3When the device cannot receive the GSM signal,please check the SIMcard installation.If the GSM signals cannot reach your location(such as the basement),please drive to a open sky place.9.4The red LED can not power on.Check fuse,if its broken,please replace the fuse.。

XSE-N709型北斗/GPS车载信息屏使用说明书北京朝宇慧科信息技术有限公司请先阅读本节◎感谢您购买本公司的产品，在使用产品之前，请认真阅读本说明书。

当您开始使用产品时，本公司认为您已经认真地阅读了本说明书。

◎本说明书提供的信息，经仔细核对，务求精准。

如有任何印刷或翻译错误，本公司不承担因此产生的后果。

◎本设备属于高技术产品，其中包括操作系统和其他第三方提供的软件。

制造商在硬件的制造的过程和软件的开发以及运用过程中已经尽到了充分的注意义务，以确保产品能够正常工作。

如果产品发生故障，制造商除了根据品质保证规定承担维修责任之处，对于用户因使用本产品而导致的财产损害和经济损失不承担任何赔偿责任。

◎本设备使用的电子地图由第三方提供，该第三方拥有的电子地图的版权受到法律保护，除了在本设备上使用以外，用户不得复制或用于其他用途。

◎对于本设备用的电子地图中信息的有效性，完整性和准确性本设备制造商不做任何明示或默认的担保或保证，对于由电子地图中存在缺陷给用户造成的任何人身损害和财产损失，本设备制造商均不承担任何赔偿责任。

◎此说明书的所有著作权都归公司所有，不得随意复制或翻译此说明书的全部或部分进行商业活动，本公司保留对此说明书内容的最终解释权。

北京朝宇慧科信息技术有限公司目录1XSE-N709型车载信息屏产品简介.................................................................. 1-61.1功能概述........................................................................................................................................ 1-61.2北斗/GPS导航 .............................................................................................................................. 1-61.2.1精确定位................................................................................................................................ 1-61.2.2全国地图................................................................................................................................ 1-61.2.3路径规划................................................................................................................................ 1-61.2.4语音提示................................................................................................................................ 1-61.2.5自动纠错................................................................................................................................ 1-61.2.6设施咨询................................................................................................................................ 1-61.2.7快速查找................................................................................................................................ 1-61.2.8显示设定................................................................................................................................ 1-6 2技术指标及配置................................................................................................. 2-72.1产品标准配置................................................................................................................................ 2-7 3车载智能信息屏使用须知................................................................................. 3-83.1安装注意事项................................................................................................................................ 3-83.2主要功能........................................................................................................................................ 3-83.2.1即时定位................................................................................................................................ 3-83.2.2车载电话/短信....................................................................................................................... 3-83.2.3求助功能(可选) ..................................................................................................................... 3-93.2.4定时信息回传........................................................................................................................ 3-93.2.5现场编程................................................................................................................................ 3-93.3使用提示........................................................................................................................................ 3-9 4车载智能信息屏操作使用说明......................................................................... 4-94.1产品说明：.................................................................................................................................. 4-104.2使用准备...................................................................................................................................... 4-104.2.1车用支架的安装.................................................................................................................. 4-104.2.2SD卡的使用........................................................................................................................ 4-104.2.3触摸式屏幕和手写笔的使用.............................................................................................. 4-104.3界面介绍...................................................................................................................................... 4-114.4存诸器.......................................................................................................................................... 4-11 5功能操作........................................................................................................... 5-125.1呼叫中心...................................................................................................................................... 5-125.2导航.............................................................................................................................................. 5-125.3电话.............................................................................................................................................. 5-125.4通话记录...................................................................................................................................... 5-145.5通迅录.......................................................................................................................................... 5-145.6写信息.......................................................................................................................................... 5-145.7收件箱.......................................................................................................................................... 5-155.8固定短语...................................................................................................................................... 5-155.9发件箱.......................................................................................................................................... 5-165.10音乐.............................................................................................................................................. 5-165.11图片.............................................................................................................................................. 5-175.12电子书.......................................................................................................................................... 5-185.13设置.............................................................................................................................................. 5-195.13.1语言...................................................................................................................................... 5-205.13.2声音...................................................................................................................................... 5-205.13.3电源...................................................................................................................................... 5-215.13.4参数设置.............................................................................................................................. 5-215.13.5卫星监视器.......................................................................................................................... 5-225.13.6触摸屏校准.......................................................................................................................... 5-225.13.7日期和时间.......................................................................................................................... 5-235.13.8应用程序路径...................................................................................................................... 5-235.13.9系统信息.............................................................................................................................. 5-245.13.10恢复出厂设置...................................................................................................................... 5-24 6文件存储路径说明........................................................................................... 6-25 7注意事项........................................................................................................... 7-257.1存放.............................................................................................................................................. 7-257.2电池.............................................................................................................................................. 7-257.3使用.............................................................................................................................................. 7-25北斗/GPS系统应用小常识北斗卫星导航系统﹝BeiDou（COMPASS）Navigation Satellite System﹞是中国正在实施北斗卫星导航系统工程的自主研发、独立运行的全球卫星导航系统，缩写为BDS。

中海达GPS接收机管理软件使用说明书广州市中海达测绘仪器有限公司HI-TARGET SURVING INSTRUMENT CO.,LTDI手册修订情况 修订日期修订次数 说明 2012年08月 1 中海达GPS 接收机管理软件使用说明书1.0版本II 前言说明书用途欢迎使用中海达GPS接收机管理软件使用说明书，本说明书介绍了如何使用中海达GPS接收机管理软件。

说明书简介本说明书是以中海达GPS接收机管理软件V1.3.7版本软件为例，指导您如何使用中海达GPS接收机管理软件。

本说明书主要由两部分组成，第一部分为简要介绍，第二部分为软件功能的详细介绍。

经验要求为了您能更好的使用中海达GPS接收机管理软件V1.3.7，中海达建议您具备一定的测量知识，并仔细阅读本说明书。

如果您有任何疑问，请查阅中海达官方网站：。

责任免除使用本产品之前，请您务必仔细阅读使用说明书，这会有助于您更好地使用本产品。

中海达不对您未按照使用说明书的要求而操作本产品，或未能正确理解使用说明书的要求而误操作本产品所造成的损失承担责任。

中海达致力于不断改进产品功能和性能、提高服务质量，并保留对使用说明书的内容进行更改而不预先另行通知的权利。

我们已对印刷品中所述内容与硬件和软件的一致性作过检查，然而不排除存在偏差的可能性，使用说明书中的图片仅供参考，若有与产品实物不符之处，请以产品实物为准。

III安全技术提示注意 ：注意提示的内容一般是操作特殊的地方，需要引起您的特殊注意，请认真阅读。

警告 ：警告提示的内容一般为非常重要的提示，如果没有按照警告内容操作，将会造成仪器的损害，数据的丢失，以及系统的崩溃，甚至会危及到人身安全。

技术与服务如果您有任何技术问题，可以电话联系各分支机构技术中心、总部技术部，我们会及时的解答您的问题。

相关信息您可以通过以下途径找到该说明书：1、购买中海达RTK 系列产品后会附带一个光盘，打开光盘可以在说明书文件夹里找到此说明书；2、登陆中海达官方网站，在“下载中心”→“产品说明书”→“测绘产品”里即可找到。

GPS Vehicle tracker(GPS+GSM+SMS/GPRS)User Manual(Version 5.0N)This user manual has been specially designed to guide you through the functions and features of your GPS vehicle tracker.1. Accessories:▶Device▶Power cord▶Relay▶Microphone▶SOS alarm cable & button▶User Manual2. SpecificationsDimension 106(L) x 54(W) x 16(H) mm Weight 96gBackup Battery 450mAh / 3.7VOperation Temperature-25℃-60℃Humidity 5% - 95%Standby Time 60hoursGSM Frequencies 850/900/1800/1900 MHz GPRS Class 12GPS Channel 20GPS Sensitivity -159dBmAcquisition Sensitivity -144dBmPosition Accuracy 10mTTFF （Open Sky）Cold Start: ＜38s Warm Start：＜15s Hot Start：＜2sGSM/GPS Antenna Built-in designLED Indicator GSM-green, GPS-blue, Power-redData Transmit TCP, SMSGeo-fence View any existing Geo-fence in the mapSpeeding Alarm Report when speeds higher than the pre-set value. Low Power Alarm Alarm when backup battery is running outNon-movement Detection Movement alarm based on built-in 3D motion sensor Mileage Report Track by time/distance intervalRemote Control Cut off petrol/electricity3. LED IndicationsGPS LED Indicator - BlueFlashing (interval 0.1s) Searching GPS signalSolid blue GPS fixOFF No GPS fix or initializingGSM LED Indicator - GreenQuick flashing (interval 0.1s) GSM initializingSlow flashing (flash 0.1s every 2s) Receive GSM signal normally Solid green Connected to GSM network OFF No GSM signalPower Status - RedFlashing (interval 0.1s) Low batterySlow flashing (interval 0.2s) Full chargeSlow flashing (flash 0.1s every 2s) Normal operatingSolid Red ChargingOFF Low battery/Power offIgnition detection indication: three LED indicators take turns flashing.4. Getting StartedPlease follow below instructions for ensuring safe and correct use.4.1 Install the SIM cardPlace the SIM card into the device with the gold-colored side facing down.Note: Make sure there is enough credit on the SIM card. If you will be using the GPRS function, you should pay attention to the current SIM card GPRS charge.4.2 Install the deviceYou need to choose somewhere that it won't be found, because the whole point of fitting covert GPS vehicle tracker is the secrecy element.Installation please refers to below picture.NOTE:1. Any high power devices such as reversing radar, anti-theft device or communication equipment would affect the signal of the device.2. All metallic cases of the windshield will attenuate the signal on the tracking device. It’s simply due to the shielding effects of the metal compound of the case.4.3 Wiring configurationLine No. Specification Color Instruction1. 2 Keypod Orange / Orange Connect to SOS button3. 4 MIC-,MIC+ Black / Red Connect to Microphone5 TX Green Sending data (TX) / backup6 RX White Receiving data (RX) / backup7 GND Black Ground wire8 MOTOR Yellow Connect to relay control line9 ACC White Connect to ACC ignition10 V- Black(thick) Negative side of 12V/24Vcar storage battery.11 V+ Red(thick)Notes of the relay wiringThe relay wiring of pump: oil connectors of both ends are a fine white line (85) and a fine yellow line (86). The fine white line (85) is connected to vehicle positive power (+12V). The fine yellow line is connected to the device relay control line.Cut off the positive connection line of the pump; then connect in series to the relay N.C. contact (thick green line 87a) and the other end to relay COM contact (thick green line 30).4.4 Device wiring diagramPlease choose the right relay (12V-standard / 24V-optional) for the proper installation. 4.5 Power/ACC/Tele-cutoff(petrol/electricity) control line (4 pin) 1. Your device comes with a power cord and is designed to use only manufacturer-specified original device. The red line is positive while the black one is negative (the side should not be connect with ground wire).2. The ACC line (white) connects to ACC switch of the vehicle. Please be sure to connect the ACC line; otherwise the device will enter ignition detectionstatus when disconnect the ACC line. If you don’t need to anti-theft temporarily, just connect the ACC line to the positive side in parallel.3. Tele-cutoff (petrol/ electricity) control line (yellow) is connected to pin 86 of the Tele-cutoff (petrol/ electricity) relay (equal to the yellow line of the relay socket).4. USB cable (3 pin)Firmware updating interface/expanded function to reserve space.5. MIC line (2 pin)Externally connect to microphone for voice monitoring function.6. SOS line (2 pin)Externally connect to SOS switch for SOS function.5. Quick Operation InstructionsOperation Tips: To properly use the device, common parameters should be set before initial use. This can be done by using the parameter editor or by sending SMS commands to the device. (“,”should be English comma and no space before and after the comma)5.1 APN settingTo connect default platform , please send the SMS command below:APN command format: APN,APN's Name#E.g: APN,internet# (“internet” is the APN of carrier)The device will reply “OK” if setting successfully.Note: The APN of some countries have user name and password, you may need to send SMS command as following:APN,APN name,user name,password#E.g: APN,internet,CLIENTE,AMENA#5.2 DNS settingTo connect other platform, please send the two SMS commands bleow: Command format：SERVER,1,DNS,Port,0#E.g:SERVER, 1,,8841,0#It will reply “OK” after set successfully.5.3 ON /OFF GPRSWhen you want to disable GPRS, you can SMS command to the SIM card number which used in the device.Command format:GPRS ON：GPRSON,1#GPRS OFF：GPRSON,0#It will reply “OK” after set successfully.5.4 Add specific numberSMS command to the device to set the SOS number.SOS,A,No.1,No.2,No.3#“A” means to add new numbers, for example:SOS,A,135****5991,135****5992,135****5993#If there is only one SOS number, you can appoint a specific number as SOS number. And the null means no adding.For example:SOS,A,135****5991#means to set the first number as SOS number SOS,A,,135****5992#means to set the second number as SOS number SOS,A,,,135****5993#means to set the third number as SOS numberIf set successfully, there is a “success” reply SMS.5.5 Delete specific numberBefore deleting specific number, please check its corresponding code. For the code, please SMS “PARAM#” to the device.SMS command to the device to delete the number.SOS,D,serial NO.1,serial NO.2,serial NO.3#“D” means to delete the number, for example:SOS,D,1# means to delete the first numberSOS,D,3# means to delete the third numberIf you want to delete more than one numbers, you can send this command: SOS,D,1,3# means to delete the first and third numbers.If you forget serial number of the mobile number you want delete, you can send this command:SOS,D,mobile number# means to delete the mobile number directly.For example:SOS,D,135****2360#meanstodeletethe135********directly.After deleting the SOS number, it will receive “Delete number 135XXXXXXXX success! specific number total 2” for successful deleting of the specific number.5.6 Set the center numberIf you want to cut off/restore oil by SMS command, you have to set a centernumber firstly. Only the center number can send the cut off/restore oil command to the device. You can set your own mobile number as center number.The command for setting center number is:CENTER,A,mobile number#Forexample:CENTER,A,159****3401#If set successfully, there is an “OK” reply message.NOTE：Only the SOS number can be used to set center number successfully.5.7 Delete the center numberSMS command to the device to delete the center number.The command is:CENTER,D#For example:CENTER,D#If set successfully, there is an “OK” reply SMS.NOTE：Only the SOS number can be used to delete center number successfully.Only SOS phone number can send this command successfully to set the center number. There is only one center number can be set.5.8 Check parameter settingSend command to the terminal, you can check the parameter setting. Command format: PARAM#e.g.: PARAM#
Information replied:IMEI: 353419032348877 ---IMEI number of the device;Timer: 10,10; ---GPS data uploading Interval;SENDS:5; --- the GPS working time when ACC is OFF;SOS:159****3401;---SOSnumbers,maximum3SOSnumberscanbeset and used for alarm and monitoring;CenterNumber:159****3401;---only1centernumbercanbesetandused for cutting off /restoring oil command;Sensorset:10,1,5,180 --- detect 5 vibrations in 10s; the alarm delay is 180s; Defense time: 10; --- the defense delay is 10 minute;TimeZone:E,8,0; --- set time zone; default as E8.The replied information contains IMEI number, GPS data uploading interval, SENDS, SOS, center number, sensor set time interval, defense time and time zone.5.9 Check GPRS parametersSMS command format：GPRSSET#Eg：GPRSSET#Reply message：GPRS:ON //GPRS on/off status// Currently use APN:,,; //APN setting information// Server:1,,8841,0; //platform information// URL:/maps?q=; //preset web link setting information // 5.10 GPS data uploading intervalThe default sending interval is 10,10. It means when ACC ON ,the device will upload positioning data to platform server every 10s.when ACC OFF ,the device will upload positioning data to platform server every 10s.Users can modify sending interval by SMS“TIMER,time1(seconds), time2(seconds)”The time1&time2 ranges from 10-18000sFor example:TIMER,10,20#It means when ACC ON ,the device will upload positioning data to platform server every 10s.when ACC OFF ,the device will upload positioning data to platform server every 20s.5.11 Sensor alarm time settingWhen the vehicle power is off and ACC is in low-level, if ACC is off over 10 minutes, the device will enter sensor alarm state. In this case, if the vehicle vibrates for a few times, it will activate the vibration alarm system. If the vehicle battery is still not on (ACC is in low level) after 3 minutes, the device will start vibration alarm.SMS format: “DEFENSE,TIME(minutes)#” The time ranges from 1 to 60 mins.For example: DEFENSE,15#. It means when ACC is in low level for 15mins, it will enter sensor alarm status (vehicle power is off)NOTE：1. Preset SOS numbers when send SMS alarm messages and calls2. If there is no need for vibration alarm, please SMS SENSOR,0# to close it.5.12 Restore to factory settingSMS command format: “FACTORY#” to set all parameter to default factory value. Once received “OK”, it succeeds.5.13 Reboot deviceWhen there is something wrong with the link of GPRS, e.g., The parameter setting of the device is correct, but you can't track the car on the platform. At this moment you can send a command to the device to reboot the device. The format is: RESET#After receiving this command, the device will reboot after 1mins.6. Operation of device6.1 Power on/ Power offPower on: Once insert a valid SIM card and connect all the wires, turn on the device, then Power LED will flash first, During signal searching process, GSM and GPS LED will flash. Once GPS LED keeps solid light, it means the device has been located and it starts to work.Power off: Just turn off the power switch.The device will begin to upload positioning data to server once inserting a valid SIM card and power on. During the working time, it can upload data to server every 10 seconds.6.2 Check location1. Via SMS1.1 SMS “WHERE#”, to the SIM number of device. The device will send a location message automatically. You can get the coordinates. If the device does not search any information of location, it will send “No data” to the cell phone.Example:Lat:N22.571285,Lon:E113.877115,Course:42.20,Speed:0.0740,DateTime:10-11-23 22:28:511.2 SMS “URL#”, to the SIM number of device. The device will send a location Google Map link. If the device does not search any information of location, it will send “No data” to the cell phone.Example:<Date Time：10-11-23 23:42:51> /maps?q=N22.571490,E113.8771032. Via platformGo to the platform website offered by dealers to check your vehicle location.6.3 SOS alarmIn emergent case, press SOS for 3s to activate SOS alarm. Then the device will send SOS SMS to preset specific numbers and then dial the numbers in circles until the call is picked up. At the meantime, the device will upload SOS alarm data to the server. And it will send:SOS Alarm! <DateTime:11-06-17 14：53：06>，/maps?q=N22576713,E113.916585Note: The specific numbers should be preset, just refer to 6.46.4 Wire cut-off alarmWhen the electricity supply of device is cut off, it will activate cut-off alarm. In this case, the device will send related SMS to the specific numbers and dial the numbers in circles. If nobody answers, the call just keeps 3 loops at most. At the meantime, the device will upload SOS alarm data to the server. And it will send:Cut Power！<Date Time:11-06-17 14：53：06>，/maps?q=N22576713,E113.916585Note: The specific numbers should be preset, just refer to 6.46.5 Low battery alarmWhen the device is only working with battery, once the internal voltage of battery is less than 3.7V, device will send low battery alarm sms to specific number and alarm on platform.Low battery alarm sms content example: “Attentionbattery too low, please charge.” Which means the battery is to low, to inform user charging it i n time. Note: The specific numbers should be preset, just refer to 6.46.6 Vibration alarmThe vibration alarm function is off by default. To activate this function, please send the following command: SENALM, ON#. The alarm will be sent to both the service platform and SOS numbers.When vehicle power is off, ACC status is low, and if the lead time of low ACC is more than 10 minutes （settable）, device will activate security alarm. When the security alarm is on, once the vehicle vibrates for several times, the alarm will be activated; in the next 3 minutes, if vehicle power is still off（ACC status is low）, device will start alarm. At this time, it will send alarm message to the service platform with the latitude and longitude, while the platform will reply the Chinese address. Then the terminal will send vibration alarm message to SOS numbers with the Chinese address, and call the SOS numbers in cycle. If nobody answers, it will stop calling after 3 loops.If the Chinese address can not be acquired for certain reason, the terminal will send a message with the website link to the SOS numbers.e.g.:Sensor Alarm！<11-23 14:53>,/maps?q=N22576713,E113.916585Note:1.The SOS numbers should be preset.2.Send “SEN ALM, OFF#” to turn off the vibration alarm.6.7 Voice monitoringWhen the special number cell phone dial device, ringing for 10 seconds, it will enter voice monitoring status. At this time, caller can monitoring the sound in vehicle. Incoming call from non special number will not activate voice monitoring function.Note:To realize this function, please set special number beforehand.The SIM card put into the device should be equipped with caller identification.6.8 Oil cut-off1. Via platformSend oil cut-off command on platform. To make sure the security of vehicle, tracker can only indicate to cut off oil when GPS is in valid position status, and the speed is less than 20KM/H or in static. Platform account password is needed when sending oil cut off command.2. Via SMSFirstly, you should set a center number. Please refer to 6.6.Only center number can send the command to the device to cut off and restore oil.The format is: RELAY,1#After the command is carried out, it will reply “Cut off the fuel supply: Success! Speed:0 Km/h”. If the command didn't carry out, it will reply the reason about fail to carry out.Note: To ensure the safety of the driver and the car, this command is valid only under two conditions: the GPS is located; the speed is less than 20km/h 6.9 Restoring Oil1. Via platformWhen the alarm is off, sending recover oil commands manually. Device will restore oil supplying, and vehicle will work normally again.Platform account password is needed when sending oil cut off command.2. Via SMSOnly center number can send the command to the device to restore oil.The format is: RELAY,0#After the command is carried out, it will receive “Restore fuel supply:Success!”6.10 Over speed AlarmWhen the car is moving over a limited speed in average in a limited time period, then the device will send over speed alarm SMS to user.To turn on the over speed function, please send below SMS command: SPEED,ON/OFF,Time,Limited speed,uploading mode#Speed alarm switch:ON/OFF default:OFFTime range (seconds):5-600s(default as 20s)Limited speed range(km/h):1-255km/h. default:100Mode:0/1. default:1 way of alarming,0 means GPRS only,1 meansSMS+GPRSExample:SPEED,ON,20,100,1#Means when the car is moving over 100km/h in average in 20 seconds,the device will send over speed alarm to user7．Web based tracking online activationThe GPRS web based tracking platform allows real time tracking with the latest Google maps. There is also a playback feature that allows you to view where the vehicle has been for up to 30 days in the past making it ideal for fleet management.8．Trouble shootingIf you are having trouble with your device, try these troubleshooting procedures before contacting a service professional.Problems Causes SolutionsFail to connect platform The fuse blows Replace the fuse ACC ignition disconnected Turn on ACC with keyFail to connect network Wrong installation of SIMcardCheck SIM card installation(Refer to 4.1 Install SIM card) Filth on the SIM card ironsurface.Clean itUseless SIM Contact internet serviceproviderImproper installation Check installation of device(Refer to 4.2 Install the device) Beyond GSM service area Use it in effective GSM serviceoffer areaBad signal Try again in a better signalareaFail to charge The voltage is unsuitable Connect with power withsuitable voltage Improper connection Check connection withcharger1. The warranty is valid only when the warranty card is properly completed, and upon presentation of the proof of purchase consisting of original invoice indicating the date of purchase, model and serial No.of the product. Wereserve the right to refuse warranty if this information has been removed or changed after the original purchase of the product from the dealer.2. Our obligations are limited to repair of the defect or replacement the defective part or at its discretion replacement of the product itself.3. Warranty repairs must be carried out by our Authorized Service Centre. Warranty cover will be void, even if a repair has been attempted by any unauthorized service centre.4. Repair or replacement under the terms of this warranty does not provide right to extension or renewal of the warranty period.5. The warranty is not applicable to cases other than defects in material, design and workmanship.Maintenance RecordShenZhen Concox Information Technology CO.,LtdTel: +86 755 2912 1200Fax: +86 755 2912 1290E-mail:**************.Add: 4/F, Building B, Gaoxinqi Industrial Park,Liuxian 1st Road, No.67 Bao'an District, Shenzhen DateServiced by Product ModelIMEI NumberFaultDescriptionsCommentsWarranty instructions and service。

GPS/北斗定位模块说明书GPS/北斗定位模块使用说明书V2.4济南智泽贸易有限公司目录1.产品介绍 (1)1.1.产品概述 (1)1.2.产品特点 (1)1.3.技术指标 (1)1.4.产品尺寸 (1)1.5.硬件接口 (2)2.通信协议 (3)2.1.通信协议 (3)2.2.寄存器定义 (4)3.协议详解 (6)3.1.读保持寄存器 (6)3.2.读取版本号 (6)3.3.读取设备地址 (7)3.4.读取设备波特率 (7)3.5.读取奇偶校验位 (7)3.6.读取定位数据（RMC） (8)3.7.定位数据（RMC）解析 (8)3.8.修改设备地址（广播） (9)3.9.修改波特率 (9)3.10.修改奇偶校验位 (9)4.保修期限 (10)5.技术支持 (10)6.联系方式 (10)7.免责声明 (10)1.产品介绍1.1.产品概述GPS/北斗定位模块，是一款具有GPS定位和北斗定位的双模定位终端，可以快速、精确定位位置。

定位模块内含双模定位芯片，快速定位位置，并且将定位信息以RS485接口和Modbus协议的方式提供给用户使用，串口波特率最高可达115200bps，可以通过PC机设置软件或串口命令轻松控制，使用方便快捷。

1.2.产品特点⏹同时支持GPS定位和北斗定位⏹串口波特率自定义，支持2400～115200bps⏹串口支持全双工和半双工串口通讯，支持RS485收发自动切换⏹模块串口波特率等参数可通过PC机或串口命令配置⏹RS485带TVS、过流等保护⏹提供天线状态诊断，提供天线开路、短路等状态信息1.3.技术指标环境参数⏹工作温度：-40℃~80℃⏹工作湿度：5%~95%RH，无凝露供电⏹工作电压：DC5~28V⏹功耗：≤0.3W定位精度⏹出色的定位功能，支持BDS/GPS/GLONASS卫星导航系统的单系统定位，以及任意组合的多系统联合定位⏹冷启动捕获灵敏度：-148dBm跟踪灵敏度：-162dBm⏹定位精度：2.5米（CEP50）⏹内置天线检测及天线短路保护功能1.4.产品尺寸产品尺寸长x宽x高为：95mm x50mm x30mm，其中95mm包含长度80mm和两个安装孔15m图1-1产品尺寸1.5.硬件接口图1-2硬件接口硬件接口定义见表1-2硬件接口定义。

GPS车辆防盗追踪器安装使用指南（版本1.3）GPS定位防盗一体替代传统防盗器手机就是你的遥控器安装使用前请仔细阅览说明书绑定激活说明（必须要做，否则无法进行其它操作）车主手机给追踪器手机号码发送激活短信：（注：发短信前先确定开机状态，并可正常接收短信）短信格式：SZMM,老密码,新密码, 定位器手机号码其中初始密码为123456，新密码由用户自己设置。

【举例】注：(隔开符号为：逗号)SZMM,123456,123456,138XXXXXXXX 其中“138XXXXXXXX”为定位器内所插卡的手机号码。

收到提示成功的短信后，车主可以进行其它短信指令操作或网上查车操作。

（需要修改密码也同上操作）设置参数：（车主手机发送短信代码给定位器手机号）车主发送“SZCS”指令，可以对车辆的相关配置信息进行修改。

指令格式如下：SZCS,密码,参数名=参数值（,参数名=参数值，……）(隔开符号为：逗号)参数名可以为下列几种：例如：开启震动短信通知：SZCS,密码,VIB =1关闭振动短信通知：SZCS,密码,VIB =0 （默认）开启震动电话通知：SZCS,密码,VIBCALL=1 （默认）关闭震动电话通知：SZCS,密码,VIBCALL=0注：短信通知每次短信费0.1元电话通知直接挂机零费用开启自动休眠：SZCS,密码,SLEEP=1关闭自动休眠：SZCS,密码,SLEEP=0 （默认）自动休眠说明：静止超过30分钟自动进入休眠省电状态，有震动立即唤醒，或者车主拨打定位器卡号即唤醒开启超速短信通知：SZCS,密码,SPEED =130（超速130公里即短信报警，数值自由设定）关闭超速短信通知：SZCS,密码,SPEED =0 （默认）关闭追踪：GBZZ 开启追踪：KQZZ定位：车主手机发送短信“DW”到追踪器电话号码上，追踪器将回复中文短信，短信中描述车辆当前所处的位置。

比如：XX 省XX市XX路XX大厦附近。

使用说明书
1、GPS基本用健说明
本机只适用于日常巡线作
用，不能打接电话或是发送短
信。

1、电源开关键：长按此
健可以可关机或开机；操作时，
按此健可以可以返回上一菜
单，长按此键可以返回待机界
面。

2、音量健：“+”可以曾大声
音，“—”可以减小声音。

3、手电筒开关键：上下拨动
可以启停夜间手电功能。

4、确认健：按此键可以确定
所选功能。

5、导航键：可以上下翻动光
标。

6、FM健：是收音机开启收
音机功能。

7、键盘锁：可以拨动键盘锁
开关将键盘锁定或是开启。

2、使用方法：
2.1、电池装好后，长按电源键，GPS将开机。

2.2、开机后待读卡成功后，显示屏上方将显示在等图标，
这样为正常状态，正常后，为便于携带，把键盘锁锁上。

2.3、
2.3．1、
2.3．2、
3、注意事项：
3.1、GPS使用过程中，不能进水、烘烤（电池会爆炸）、摔打等。

3.2、GPS要时常保证电池有电状态。

（一）功能说明一．主机各部功能位置说明二．主机启动显示说明1．开机启动程序1-1 开机时会先进行荧幕测试,所有字幕会全亮（包括电子罗盘/雷达频率/距离速度显示）。

1-2 会播报欢迎词【欢迎使用全球卫星雷达系统，请系好安全带】。

1-3 坐标版本显示，目前GPS版本ΧΧΧΧ。

1-4 当地时间显示，目前时间ΧΧ：ΧΧ(12小时制)。

1-5 驾驶模式提示，预设值为『安全驾驶限速模式』。

1-6 雷达频率显示当主机接收到雷达讯号时，显示幕会显示收到的雷达频率。

在市区行驶时，当主机收到干扰讯号时，主机也会显示干扰讯号频率雷达频率的种类如下：2．卫星启动状态2-1 当卫星连接成功时，会先播报"祝旅途平安"。

2-2 当机器处于卫星连结状态时，时间中的‘：'会持续闪烁（见图），反之当无法与卫星连接时，时间中的‘：'将不会持续闪烁，在无法与卫星连接的状态时，电子罗盘的东、西、南、北会持续轮流闪烁，当与卫星连接时，电子罗盘会依据车子行进的方向而显示方位。

三．主机功能查询1．系统资讯查询与下载模式▲此功能项目查询需轻按【SET】一秒，方始能进入系统资讯循环查询.如需重复播报，则可轻按【MOD】一秒1-1 经纬度查询，此项目需在机器与卫星连结后，方能查询。

机器会依据目前使用者所在方位播报经纬度与海拔高度，当汽车处于行驶状态也会播报行驶方向。

1-2 日期时间查询，此项目需在机器与卫星连结后，方能查询。

会透过卫星交替显示目前的日期和时间1-3 电瓶电压查询，会依据汽车目前的状况播报电瓶电压数值。

1-4 系统更新模式，当使用者需要更新坐标资料时，需切换GPS主机到系统更新模式。

才能开始进行坐标更新，座标更新网址是 ，在更新之前须注意以下事项：▲系统需求：WINDOWS XP （SP1/SP2 ）或WINDOWS VISTA WINDOWS XP （SP1/SP2 ）1.DTL USB-to-Serial2.Microsoft Installer3.1 Framework 2.0▲浏览器需求：Microsoft Internet Explorer四．系统功能设定1．系统功能循环设定▲此功能项目查询需长按【SET】三秒，方能进入系统功能循环设定.▲进入系统功能设定后，每按【SET】轻按一秒，就可循环选择设置系统功能，当设置完毕后可长按【SET】三秒储存设定，或静待三秒即回到预设画面。

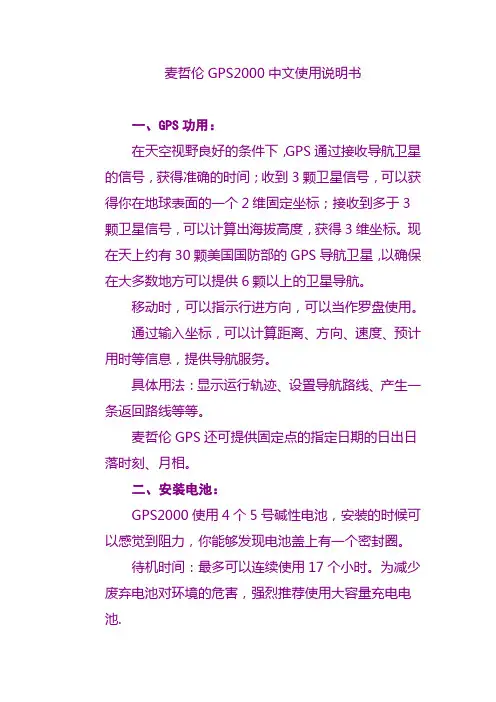

麦哲伦GPS2000中文使用说明书一、GPS功用：在天空视野良好的条件下，GPS通过接收导航卫星的信号，获得准确的时间；收到3颗卫星信号，可以获得你在地球表面的一个2维固定坐标；接收到多于3颗卫星信号，可以计算出海拔高度，获得3维坐标。

现在天上约有30颗美国国防部的GPS导航卫星，以确保在大多数地方可以提供6颗以上的卫星导航。

移动时，可以指示行进方向，可以当作罗盘使用。

通过输入坐标，可以计算距离、方向、速度、预计用时等信息，提供导航服务。

具体用法：显示运行轨迹、设置导航路线、产生一条返回路线等等。

麦哲伦GPS还可提供固定点的指定日期的日出日落时刻、月相。

二、安装电池：GPS2000使用4个5号碱性电池，安装的时候可以感觉到阻力，你能够发现电池盖上有一个密封圈。

待机时间：最多可以连续使用17个小时。

为减少废弃电池对环境的危害，强烈推荐使用大容量充电电池.快速应用：(前提：已经过初始化)得到当前位置坐标，按ON/OFF(开关机)键开机，在数秒钟后，屏幕下方显示“SEARCHING”，GPS2000开始搜索卫星，把接收机放到开阔的地方接收信号。

当接收到卫星时，屏幕下方的SEARCHING变成一个状态条，当3个空格全部变黑时表示能够接收到3颗卫星的信号，如果能够保持几分钟，GPS2000即可锁定卫星，此时屏幕左下角的锁关闭，并给出正确的平面(2维)坐标。

如果能够锁定第4颗卫星，屏幕下方的2D图标消失，能够显示海拔高度。

此时表示GPS2000已经定位，已获得立体(3维)坐标。

三、名词解释：固定点：GPS2000接收卫星信号来计算出一个坐标值来描述你在地球上唯一的位置，这叫做获得一个固定点。

计算出的坐标就是这个固定点。

固定点坐标值可以在“POSITION”（在3.04版为LAT/LON，下同）屏幕看到。

地标：（LandMarK简写为LMK）固定点可以命名后保存，实际应用中可能有很多情况下也称作路点。

去：（GOTO）你可以按"GOTO"键选择一个目的地地标，GPS2000将从现在的位置引导你到目的地并可以获得方位和距离信息。
