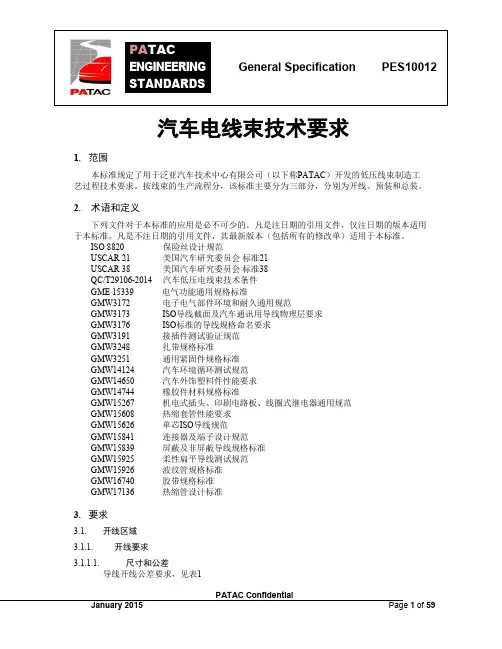

汽车电线束技术要求1.范围本标准规定了用于泛亚汽车技术中心有限公司（以下称PATAC）开发的低压线束制造工艺过程技术要求。
按线束的生产流程分，该标准主要分为三部分，分别为开线、预装和总装。
2.术语和定义下列文件对于本标准的应用是必不可少的。
凡是注日期的引用文件，仅注日期的版本适用于本标准。
凡是不注日期的引用文件，其最新版本（包括所有的修改单）适用于本标准。
ISO 8820 保险丝设计规范USCAR 21 美国汽车研究委员会标准21USCAR 38 美国汽车研究委员会标准38QC/T29106-2014 汽车低压电线束技术条件GME 15339 电气功能通用规格标准GMW3172 电子电气部件环境和耐久通用规范GMW3173 ISO导线截面及汽车通讯用导线物理层要求GMW3176 ISO标准的导线规格命名要求GMW3191 接插件测试验证规范GMW3248 扎带规格标准GMW3251 通用紧固件规格标准GMW14124 汽车环境循环测试规范GMW14650 汽车外饰塑料件性能要求GMW14744 橡胶件材料规格标准GMW15267 机电式插头、印刷电路板、线圈式继电器通用规范GMW15608 热缩套管性能要求GMW15626 单芯ISO导线规范GMW15841 连接器及端子设计规范GMW15839 屏蔽及非屏蔽导线规格标准GMW15925 柔性扁平导线测试规范GMW15926 波纹管规格标准GMW16740 胶带规格标准GMW17136 热缩管设计标准3.要求3.1.开线区域3.1.1.开线要求3.1.1.1.尺寸和公差导线开线公差要求，见表1PATAC Confidential表1导线开线长度公差表3.1.1.2.设计标准1)电线原材料符合标准GMW 15626和GMW 15839；2)同轴电缆、水管、USB导线等特殊电线材料，需满足图纸要求；3)断线符合USCAR 21要求。
3.1.1.3.工艺要求，具体如下：1)铜丝不能外露；2)切割须平整；3)绝缘皮不能回缩；4)导线绝缘层完好。
0JIS化学成分(%)标准号C Si Mn P S CuSWRM 60.08 max. 0.60 max. 0.045 max. 0.045 max.SWRM 80.10 max. 0.60 max. 0.045 max. 0.045 max.SWRM 100.08~0.13 0.30~0.60 0.045 max. 0.045 max.SWRM 120.10~0.15 0.30~0.60 0.045 max. 0.045 max.SWRM 150.13~0.18 0.30~0.60 0.045 max. 0.045 max.SWRM 170.15~0.20 0.30~0.60 0.045 max. 0.045 max.SWRM 200.18~0.23 0.30~0.60 0.045 max. 0.045 max.SWRM 220.20~0.25 0.30~0.60 0.045 max. 0.045 max.备注：明确表示镇静钢时，以最后字符'％”表示，例如，SWRM 10K。
°SAE/AISI化学成分(%)标准号C Mn P S Si10050.06 max. 0.35 max. 0.040 max. 0.050 max. -10060.08 max. 0.25~0.40 0.040 max. 0.050 max. MM 10080.10 max. 0.30~0.50 0.040 max. 0.050 max. MM 10100.08~0.13 0.30~0.60 0.040 max. 0.050 max. MM 10120.10~0.13 0.30~0.60 0.040 max. 0.050 max. MM 10130.11~0.16 0.50~0.80 0.040 max. 0.050 max. MM 10150.13~0.18 0.30~0.60 0.040 max. 0.050 max. MM 10160.13~0.18 0.60~0.80 0.040 max. 0.050 max. MM 10170.15~0.20 0.30~0.60 0.040 max. 0.050 max. MM 10180.15~0.20 0.60~0.90 0.040 max. 0.050 max. MM 10190.15~0.20 0.70~1.00 0.040 max. 0.050 max. MM 10200.18~0.23 0.30~0.60 0.040 max. 0.050 max. MM 10210.18~0.23 0.60~0.90 0.040 max. 0.050 max. MM 10220.18~0.23 0.70~1.00 0.040 max. 0.050 max. MM 10230.20~0.25 0.30~0.60 0.040 max. 0.050 max. MM 10250.22~0.28 0.30~0.60 0.040 max. 0.050 max. MM 10260.22~0.28 0.30~0.60 0.040 max. 0.050 max. MM 2. 硬钢线材°JIS化学成分(%)标准号C Si Mn P SSWRH 270.24~0.31 0.15~0.35 0.30~0.60 0.040 max. 0.040 max.SWRH 320.29~0.36 0.15~0.35 0.30~0.60 0.040 max. 0.040 max.SWRH 370.34~0.41 0.15~0.35 0.30~0.60 0.040 max. 0.040 max.SWRH 42A0.39~0.46 0.15~0.35 0.30~0.60 0.040 max. 0.040 max.SWRH 42B0.39~0.46 0.15~0.35 0.60~0.90 0.040 max. 0.040 max.SWRH 47A0.44~0.51 0.15~0.35 0.30~0.60 0.040 max. 0.040 max.SWRH 47B0.44~0.51 0.15~0.35 0.60~0.90 0.040 max. 0.040 max.SWRH 52A0.49~0.56 0.15~0.35 0.30~0.60 0.040 max. 0.040 max.SWRH 52B0.49~0.56 0.15~0.35 0.60~0.90 0.040 max. 0.040 max.SWRH 57A0.54~0.61 0.15~0.35 0.30~0.60 0.040 max. 0.040 max.SWRH 57B0.54~0.61 0.15~0.35 0.60~0.90 0.040 max. 0.040 max.SWRH 62A0.59~0.66 0.15~0.35 0.30~0.60 0.040 max. 0.040 max.SWRH 62B0.59~0.66 0.15~0.35 0.60~0.90 0.040 max. 0.040 max.SWRH 67A0.64~0.71 0.15~0.35 0.30~0.60 0.040 max. 0.030 max.SWRH 67B0.64~0.71 0.15~0.35 0.60~0.90 0.040 max. 0.030 max.SWRH 72A0.69~0.76 0.15~0.35 0.30~0.60 0.040 max. 0.030 max.SWRH 72B0.69~0.76 0.15~0.35 0.60~0.90 0.040 max. 0.030 max.SWRH 77A0.74~0.81 0.15~0.35 0.30~0.60 0.040 max. 0.030 max.SWRH 77B0.74~0.81 0.15~0.35 0.60~0.90 0.040 max. 0.030 max.SWRH 82A0.79~0.86 0.15~0.35 0.30~0.60 0.040 max. 0.030 max.SWRH 82B0.79~0.86 0.15~0.35 0.60~0.90 0.040 max. 0.030 max. 备注：按照买方和卖方的协议，含碳量按表中的最小值或最大值可以减少0.01%。
