±1°C Remote and Local Temperature Sensor with SMBus Serial InterfaceFeaturesTwo Channels: Measures Both Remote andLocal Temperatures No Calibration RequiredSMBus 2-Wire Serial InterfaceProgrammable Under/Overtemperature Alarms Supports SMBus Alert Response Accuracy:±1°C (+60°C to +100°C, remote) ±3°C (+60°C to + 100°C, local)320µA (typ) Average Supply Current During Conversion+3V to +5.5V Supply Range Small 8-Lead SO PackageApplications Desktop and Notebook Central Office Computers Telecom Equipment Smart Battery Packs Test and Measurement LAN Servers Multi-Chip Modules Industrial Controllers General DescriptionThe G781 is a precise digital thermometer that reports the temperature of both a remote sensor and its own package. The remote sensor is a diode-connected transistor typically a low-cost, easily mounted 2N3904 NPN type that replace conventional thermistors or thermocouples. Remote accuracy is ±1°C with no cali-bration needed. The remote channel can also meas-ure the die temperature of other ICs, such as micro-processors, that contain an on-chip, diode-connected transistor.The 2-wire serial interface accepts standard System Management Bus (SMBus) Write Byte, Read Byte, Send Byte, and Receive Byte commands to program the alarm thresholds and to read temperature data.The data format is 11bits plus sign, with each bit cor-responding to 0.125°C, in two’s-complement format. Measurements can be done automatically and autonomously, with the conversion rate programmed by the user or programmed to operate in a single-shot mode. The adjustable rate allows the user to control the supply current drain.The G781 is available in a small, 8-pin SOP sur-face-mount package.Ordering InformationPART* TEMP. RANGE PIN-PACKAGEG781-20°C to +120°C8-SOPPin ConfigurationTypical Operating Circuit3V TO 5.5VEACHCLOCK DATAINTERRUPT TO µCSMBDATA SMBCLK GNDG781ALERTAbsolute Maximum RatingsVCC to GND………….….……..………….-0.3V to +6V DXP to GND……….……………..…-0.3V to VCC + 0.3V DXN to GND……………..……………..-0.3V to +0.8V SMBCLK, SMBDATA,ALERT to GND..…-0.3V to +6V SMBDATA,ALERT Current………….-1mA to +50mA DXN Current……………………..………………….±1mA ESD Protection (SMBCLK, SMBDATA,ALERT , humanbody model).……………………………………….2000V ESD Protection (other pins, human body model)..2000V Continuous Power Dissipation (T A = +70°C) ..SOP (derate 8.30mW/°C above +70°C)…………......667mW Operating Temperature Range………-20°C to +120°C Junction Temperature………………….………..+150°C Storage temperature Range………….-65°C to +165°C Lead Temperature (soldering, 10sec)……..……...+300°CStresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the opera-tional sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.Electrical Characteristics(VCC = + 3.3V, T A = 0°C to +85°C, unless otherwise noted.)PARAMETER CONDITIONS MIN TYP MAX UNITST R = +60°C to +100°C, VCC = 3.0V to 3.6V-1+1Temperature Error, Remote Di-ode (Note 1)T R = 0°C to +125°C (Note 2)-3 +3 °CT A = +60°C to +100°C-3 +3Temperature Error, Local DiodeT A = 0°C to +85°C (Note 2)-5 +5°CSupply-Voltage Range3.0 5.5 V Undervoltage Lockout Threshold VCC input, disables A/D conversion, rising edge 2.8 V Undervoltage Lockout Hysteresis 50 mV Power-On Reset Threshold VCC, falling edge 1.7 V POR Threshold Hysteresis 50 mVSMBus static3Standby Supply Current Logic inputs forced to VCC or GND Hardware or softwarestandby, SMBCLK at 10kHz4 µA0.5 conv/sec 35Average Operating Supply CurrentAuto-convert mode. Logic inputs forced to VCC or GND 8.0 conv/sec 320 µAConversion Time From stop bit to conversion complete (both channels) 125 ms Conversion Rate Timing Conversion-Rate Control Byte=04h, 1Hz 1 sec High level176Remote-Diode Source CurrentDXP forced to 1.5VLow level11µAElectrical Characteristics (continued)(VCC = + 3.3V, T A = 0 to +85°C, unless otherwise noted.)Note 1: A remote diode is any diode-connected transistor from Table1. T R is the junction temperature of the remote of the remote diode. See Remote Diode Selection for remote diode forward voltage requirements.Note 2: Guaranteed by design but not 100% tested.Pin DescriptionDetailed DescriptionThe G781 is a temperature sensor designed to work in conjunction with an external microcontroller (µC) or other intelligence in thermostatic, process-control, or monitoring applications. The µC is typically a power- management or keyboard controller, generating SMBus serial commands by “bit-banging” general- purpose input-output (GPIO) pins or via a dedicated SMBus interface block.Essentially an serial analog-to digital converter (ADC) with a sophisticated front end, the G781 contains a switched current source, a multiplexer, an ADC, an SMBus interface, and associated control logic (Figure 1). Temperature data from the ADC is loaded into two data registers, where it is automatically compared with data previously stored in several over/under- tem-perature alarm registers.ADC and MultiplexerThe ADC is an averaging type that integrates over a 60ms period (each channel, typical), with excellent noise rejection.The multiplexer automatically steers bias currents through the remote and local diodes, measures their forward voltages, and computes their temperatures. Both channels are automatically converted once the conversion process has started, either in free-running or single-shot mode. If one of the two channels is not used, the device still performs both measurements, and the user can simply ignore the results of the un-used channel. If the remote diode channel is unused, tie DXP to DXN rather than leaving the pins open. The worst-case DXP-DXN differential input voltage range is 0.25V to 0.95V.Excess resistance in series with the remote diode causes about +0.6°C error per ohm. Likewise, 240µV of offset voltage forced on DXP-DXN causes about 1°C error.Figure 1. Functional DiagramSMBDATA SMBCLKA/D Conversion SequenceIf a Start command is written (or generated automati-cally in the free-running auto-convert mode), both channels are converted, and the results of both meas-urements are available after the end of conversion. A BUSY status bit in the status byte shows that the de-vice is actually performing a new conversion; however, even if the ADC is busy, the results of the previous conversion are always available.Remote Diode SelectionTemperature accuracy depends on having a good- quality, diode-connected small-signal transistor. The G781 can also directly measure the die temperature of CPUs and other integrated circuits having on-board temperature-sensing diodes.The transistor must be a small-signal type with a rela-tively high forward voltage; otherwise, the A/D input voltage range can be violated. The forward voltage must be greater than 0.25V at 10µA; check to ensure this is true at the highest expected temperature. The forward voltage must be less than 0.95V at 300µA; check to ensure this is true at the lowest expected temperature. Large power transistors don’t work at all. Also, ensure that the base resistance is less than 100Ω. Tight specifications for forward-current gain (+50 to +150, for example) indicate that the manufac-turer has good process controls and that the devices have consistent V be characteristics.Thermal Mass and Self-HeatingThermal mass can seriously degrade the G781’s ef-fective accuracy. The thermal time constant of the SOP- package is about 140 in still air. For the G781 junction temperature to settle to within +1°C after a sudden +100°C change requires about five time con-stants or 12 minutes. The use of smaller packages for remote sensors, such as SOT23s, improves the situa-tion. Take care to account for thermal gradients be-tween the heat source and the sensor, and ensure that stray air currents across the sensor package do not interfere with measurement accuracy. Self-heating does not significantly affect measurement accuracy. Remote-sensor self-heating due to the diode current source is negligible. For the local diode, the worst-case error occurs when auto-converting at the fastest rate and simultaneously sinking maximum current at the ALERT output. For example, at an 8Hz rate and with ALERT sinking 1mA, the typical power dissipation isVCC x 320µA plus 0.4V x 1mA. Package theta J-A is about 120°C /W, so with VCC = 3.3V and no copper PC board heat-sinking, the resulting temperature rise is:dT =1.45mW x 120°C /W =0.17°CEven with these contrived circumstances, it is difficultto introduce significant self-heating errors.Table 1. Remote-Sensor Transistor Manufacturers MANUFACTURER MODELNUMBER Philips PMBS3904Motorola(USA) MMBT3904 National Semiconductor (USA) MMBT3904Note:Transistors must be diode-connected (baseshorted to collector).ADC Noise FilteringThe ADC is an integrating type with inherently good noise rejection. Micropower operation places con-straints on high-frequency noise rejection; therefore, careful PC board layout and proper external noise fil-tering are required for high-accuracy remote meas-urements in electrically noisy environments.High-frequency EMI is best filtered at DXP and DXNwith an external 2200pF capacitor. This value can be increased to about 3300pF(max), including cable ca-pacitance. Higher capacitance than 3300pF introduces errors due to the rise time of the switched current source.Nearly all noise sources tested cause the ADC meas-urements to be higher than the actual temperature, typically by +1°C to 10°C, depending on the frequencyand amplitude.PC Board LayoutPlace the G781 as close as practical to the remote diode. In a noisy environment, such as a computer motherboard, this distance can be 4 in. to 8 in. (typical)or more as long as the worst noise sources (such as CRTs, clock generators, memory buses, and ISA/PCI buses) are avoided.Do not route the DXP-DXN lines next to the deflection coils of a CRT. Also, do not route the traces across a fast memory bus, which can easily introduce +30°C error, even with good filtering, Otherwise, most noise sources are fairly benign.Route the DXP and DXN traces in parallel and in close proximity to each other, away from any high-voltage traces such as +12V DC. Leakage currents from PC board contamination must be dealt with carefully, since a 10MΩ leakage path from DXP to ground causes about +1°C error.Connect guard traces to GND on either side of the DXP-DXN traces (Figure 2). With guard traces in place, routing near high-voltage traces is no longer an issue.Route through as few vias and crossunders as possible to minimize copper/solder thermocouple ef-fects.When introducing a thermocouple, make sure that both the DXP and the DXN paths have matching thermocouples. In general, PC board-induced ther-mocouples are not a serious problem, A copper-solder thermocouple exhibits 3µV/°C, and it takes about 240µV of voltage error at DXP-DXN to cause a +1°C measurement error. So, most parasitic thermocouple errors are swamped out.Use wide traces. Narrow ones are more inductive and tend to pick up radiated noise. The 10 mil widths and spacing recommended on Figure 2 aren’t absolutely necessary (as they offer only a minor improvement in leakage and noise), but try to use them where practi-cal.Keep in mind that copper can’t be used as an EMI shield, and only ferrous materials such as steel work will. Placing a copper ground plane between the DXP-DXN traces and traces carrying high-frequency noise signals does not help reduce EMI.PC Board Layout ChecklistPlace the G781 close to a remote diode.Keep traces away from high voltages (+12V bus).Keep traces away from fast data buses and CRTs. Use recommended trace widths and spacing.Place a ground plane under the tracesUse guard traces flanking DXP and DXN and con necting to GND.Place the noise filter and the 0.1µF VCC bypass capacitors close to the G781.Figure 2. Recommended DXP/DXN PC Traces Twisted Pair and Shielded CablesFor remote-sensor distances longer than 8 in., or in particularly noisy environments, a twisted pair is rec-ommended. Its practical length is 6 feet to 12feet (typi cal) before noise becomes a problem, as tested in a noisy electronics laboratory. For longer distances, the best solution is a shielded twisted pair like that used for audio microphones. Connect the twisted pair to DXP and DXN and the shield to GND, and leave the shield’s remote end unterminated.Excess capacitance at DX_limits practical remote sen-sor distances (see Typical Operating Characteristics), For very long cable runs, the cable’s parasitic capaci-tance often provides noise filtering, so the 2200pF ca-pacitor can often be removed or reduced in value. Ca-ble resistance also affects remote-sensor accuracy; 1Ωseries resistance introduces about + 0.6°C error.Low-Power Standby ModeStandby mode disables the ADC and reduces the supply-current drain to about 10µA. Enter standby mode by forcing high to the RUN/STOP bit in the con-figuration byte register. Software standby mode be-haves such that all data is retained in memory, and the SMB interface is alive and listening for reads and writes.Software standby mode is not a shutdown mode. With activity on the SMBus, extra supply current is drawn (see Typical Operating Characteristics). In software standby mode, the G781 can be forced to perform A/D conversions via the one-shot command, despite the RUN/STOP bit being high.10 MILSMINIMUM10 MILS10 MILSIf software standby command is received while a con-version is in progress, the conversion cycle is trun-cated, and the data from that conversion is not latched into either temperature reading register. The previous data is not changed and remains available.Supply-current drain during the 125ms conversion period is always about 320µA. Slowing down the con-version rate reduces the average supply current (see Typical Operating Characteristics). In between con-versions, the instantaneous supply current is about 25µA due to the current consumed by the conversion rate timer. In standby mode, supply current drops to about 3µA. At very low supply voltages (under the power-on-reset threshold), the supply current is higher due to the address pin bias currents. It can be as high as 100µA, depending on ADD0 and ADD1 settings. SMBus Digital InterfaceFrom a software perspective, the G781 appears as a set of byte-wide registers that contain temperature data, alarm threshold values, or control bits, A stan-dard SMBus 2-wire serial interface is used to read temperature data and write control bits and alarm threshold data.Each A/D channel within the device responds to the same SMBus slave address for normal reads and writes.The G781 employs four standard SMBus protocols: Write Byte, Read Byte, Send Byte, and Receive Byte (Figure 3). The shorter Receive Byte protocol allows quicker transfers, provided that the correct data regis-ter was previously selected by a Read Byte instruction. Use caution with the shorter protocols in multi-master systems, since a second master could overwrite the command byte without informing the first master.The temperature data format is 11bits plus sign in twos-complement form for remote channel, with each data bit representing 0.125°C (Table 2,Table 3), transmitted MSB first. Table 2. Temperature Data Format(Two’s-Complement)DIGITAL OUTPUTDATA BITSTEMP.(°C)SIGN MSB LSB EXT+127.875 0 111 1111 111+126.375 0 111 1110 011+25.5 0 001 1001 100+1.75 0 000 0001 110+0.5 0 000 0000 100+0.125 0 000 0000 001-0.125 1 111 1111 111-1.125 1 111 1110 111-25.5 1 110 0110 100-55.25 1 100 1000 110-65.000 1 011 1111 000Table 3. Extended Temperature Data FormatEXTENDEDRESOLUTIONDATA BITS0.000°C 000000000.125°C 001000000.250°C 010000000.375°C 011000000.500°C 100000000.625°C 101000000.750°C 110000000.875°C 11100000Slave AddressThe G781 appears to the SMBus as one device hav-ing a common address for both ADC channels. The G781 device address is set to 1001100.The G781 also responds to the SMBus Alert Re-sponse slave address (see the Alert Response Ad-dress section).One-Shot RegisterThe One-shot register is to initiate a single conversion and comparison cycle when the device is in standby mode and auto conversion mode. The write operation to this register causes one-shot conversion and the data written to it is irrelevant and is not stored.Serial Bus Interface ReinitializationWhen SMBCLK are held low for more than 30ms (typical) during an SMBus communication the G781 will reinitiateits bus interface and be ready for a new transmission. Alarm Threshold RegistersFour registers store alarm threshold data, with high-temperature (T HIGH) and low-temperature (T LOW) registers for each A/D channel. If either measured temperature equals or exceeds the corresponding alarm threshold value, an ALERT interrupt is as-serted.The power-on-reset (POR) state of both T HIGH registers is full scale (01010101, or +85°C). The POR state of both T LOW registers is 0°C.Diode Fault AlarmThere is a fault detector at DXP that detects whether the remote diode has an open-circuit condition. At the beginning of each conversion, the diode fault is checked, and the status byte is updated. This fault de-tector is a simple voltage detector. If DXP rises above VCC – 1V (typical) due to the diode current source, a fault is detected and the device alarms through pulling ALERT low while the remote temperature reading doesn’t update in this condition. Note that the diode fault isn’t checked until a conversion is initiated, so im-mediately after power-on reset the status byte indicates no fault is present, even if the diode path is broken.If the remote channel is shorted (DXP to DXN or DXP to GND), the ADC reads 1000 0000(-128°C) so as not to trip either the T HIGH or T LOW alarms at their POR settings. ALERT InterruptsThe ALERT interrupt output signal is latched and canonly be cleared by reading the Alert Response ad-dress. Interrupts are generated in response to T HIGHand T LOW comparisons and when the remote diode is disconnected (for fault detection). The interrupt doesnot halt automatic conversions; new temperature datacontinues to be available over the SMBus interfaceafter ALERT is asserted. The interrupt output pin isopen-drain so that devices can share a common in-terrupt line. The interrupt rate can never exceed theconversion rate.The interface responds to the SMBus Alert Responseaddress, an interrupt pointer return-address feature(see Alert Response Address section). Prior to takingcorrective action, always check to ensure that an in-terrupt is valid by reading the current temperature.Alert Response AddressThe SMBus Alert Response interrupt pointer providesquick fault identification for simple slave devices thatlack the complex, expensive logic needed to be a busmaster. Upon receiving an ALERT interrupt signal,the host master can broadcast a Receive Byte trans-mission to the Alert Response slave address (0001100). Then any slave device that generated an inter-rupt attempts to identify itself by putting its own ad-dress on the bus (Table 4).The Alert Response can activate several differentslave devices simultaneously, similar to the SMBusGeneral Call. If more than one slave attempts to re-spond, bus arbitration rules apply, and the device withthe lower address code wins. The losing device doesnot generate an acknowledge and continues to holdthe ALERT line low until serviced (implies that thehost interrupt input is level-sensitive). Successfulreading of the alert response address clears the inter-rupt latch.Table 4. Read Format for Alert Response Address(0001 100)BIT NAME7(MSB) ADD76 ADD65 ADD54 ADD43 ADD32 ADD21 ADD10(LSB) 1Command Byte FunctionsThe 8-bit command byte register (Table 5) is the mas-ter index that points to the various other registers within the G781. The register’s POR state is 0000 0000, so that a Receive Byte transmission (a protocol that lacks the command byte) that occurs immediately after POR returns the current local temperature data.The one-shot command immediately forces a new conversion cycle to begin. In software standby mode (RUN/STOP bit = high), a new conversion is begun, after which the device returns to standby mode. If a conversion is in progress when a one-shot command is received in auto-convert mode (RUN/STOP bit = low) between conversions, a new conversion begins, the conversion rate timer is reset, and the next auto-matic conversion takes place after a full delay elapses.Configuration Byte FunctionsThe configuration byte register (Table 6) is used to mask interrupts and to put the device in software standby mode. The other bits are empty. Status Byte FunctionsThe status byte register (Table 7) indicates which (if any) temperature thresholds have been exceeded. This byte also indicates whether or not the ADC is converting and whether there is an open circuit in the remote diode DXP-DXN path. After POR, the normal state of all the flag bits is zero, assuming none of the alarm conditions are present. The status byte is cleared by any successful read of the status, unless the fault persists. Note that the ALERT interrupt latch is not automatically cleared when the status flag bit is cleared.When reading the status byte, you must check for in-ternal bus collisions caused by asynchronous ADC timing, or else disable the ADC prior to reading the status byte (via the RUN/STOP bit in the configura-tion byte). In one-shot mode, read the status byte only after the conversion is complete, which is approxi-mately 125ms max after the one-shot conversion is commanded.Table 5. Command-Byte Bit Assignments*If the device is in standby mode at POR, both temperature registers read 0°C.Table 6. Configuration-Byte Bit AssignmentsTable 7. Status-Byte Bit Assignments*These flags stay high until cleared by POR, or until the status byte register is read.Table 8. Conversion-Rate Control ByteDATA CONVERSION RATE (Hz)00h 0.062501h 0.12502h 0.2503h 0.504h 105h 206h 407h 808h 16 09h to FFh RFUTo check for internal bus collisions, read the status byte. If the least significant seven bits are ones, dis-card the data and read the status byte again. The status bits LHIGH, LLOW, RHIGH, and RLOW are refreshed on the SMBus clock edge immediately fol-lowing the stop condition, so there is no danger of los-ing temperature-related status data as a result of an internal bus collision. The OPEN status bit (diode con-tinuity fault) is only refreshed at the beginning of a conversion, so OPEN data is lost. The ALERT inter-rupt latch is independent of the status byte register, so no false alerts are generated by an internal bus colli-sion. When auto-converting, if the THIGH and TLOW limits are close together, it’s possible for both high-temp and low-temp status bits to be set, depending on the amount of time between status read operations (espe-cially when converting at the fastest rate). In these circumstances, it’s best not to rely on the status bits to indicate reversals in long-term temperature changes and instead use a current temperature reading to es-tablish the trend direction.For bit 1 and bit 0, a high indicates a temperature alarm happened for remote and local diode respec-tively. THERM pin also asserts. These two bits wouldn’t be cleared when reading status byte.Conversion Rate ByteThe conversion rate register (Table 8) programs the time interval between conversions in free-running auto-convert mode. This variable rate control reduces the supply current in portable-equipment applications. The conversion rate byte’s POR state is 08h (16Hz). The G781 looks only at the 4 LSB bits of this register, so the upper 4 bits are “don’t care” bits, which should be set to zero. The conversion rate tolerance is ±25% at any rate setting.Valid A/D conversion results for both channels are available one total conversion time (125ms,typical) after initiating a conversion, whether conversion is initiated via the RUN/STOP bit, one-shot command, or initial power-up.POR AND UVLOThe G781 has a volatile memory. To prevent ambiguous power-supply conditions from corrupting the data in memory and causing erratic behavior, a POR voltage detector monitors VCC and clears the memory if VCC falls below 1.7V (typical, see Electrical Characteristics table). When power is first applied and VCC rises above 1.7V (typical), the logic blocks begin operating, although reads and writes at V CC levels below 3V are not recom-mended. A second VCC comparator, the ADC UVLO comparator, prevents the ADC from converting until there is sufficient headroom (VCC= 2.8V typical).ALERT Fault QueueTo suppress unwanted ALERT triggering the G781 em-bedded a fault queue function. The ALERT won’t as-sert until consecutive out of limit measurements have reached the queue number. The mapping of fault queue register (ALERTFQ, 22h) value to fault queue number is shown in the Table 9.Table 9. Alert Fault QueueALERTFQVALUEFAULT QUEUE NUMBER XXXX000X 1XXXX001X 2XXXX010X 3XXXX011X 3XXXX100X 4XXXX101X 4XXXX110X 4XXXX111X 4 Operation of The THERM FunctionA local and remote THERM limit can be programmed into the G781 to set the temperature limit above which the THERM pin asserts low and the bit 1, of status byte will be set to 1 corresponding to remote and local over temperature. These two bits won’t be cleared to 0 by reading status byte it the over temperature condi-tion remain. A hysteresis value is provided by writing the register 21h to set the temperature threshold to release the THERM pin alarm state, The releasing temperature is the value of register 19h, 20h minus the value in register 21h. The format of register 21h is 2’s complement. The THERM signal is open drain and requires a pull-up resistor to power supply.Figure 4. SMBus Write Timing DiagramA = start condition H = LSB of data clocked into slaveB = MSB of address clocked into slave I = slave pulls SMBDATA line lowC = LSB of address clocked into slave J = acknowledge clocked into masterD = R/W bit clocked into slave K = acknowledge clocked pulseE = slave pulls SMBDATA line low L = stop condition data executed by slaveF = acknowledge bit clocked into master M = new start conditionG = MSB of data clocked into slaveFigure 5. SMBus Read Timing DiagramA = start condition G = MSB of data clocked into masterB = MSB of address clocked into slave H = LSB of data clocked into masterC = LSB of address clocked into slave I = acknowledge clocked pulseD = R/W bit clocked into slave J = stop conditionE = slave pulls SMBDATA line low K= new start conditionF =acknowledge bit clocked into master。

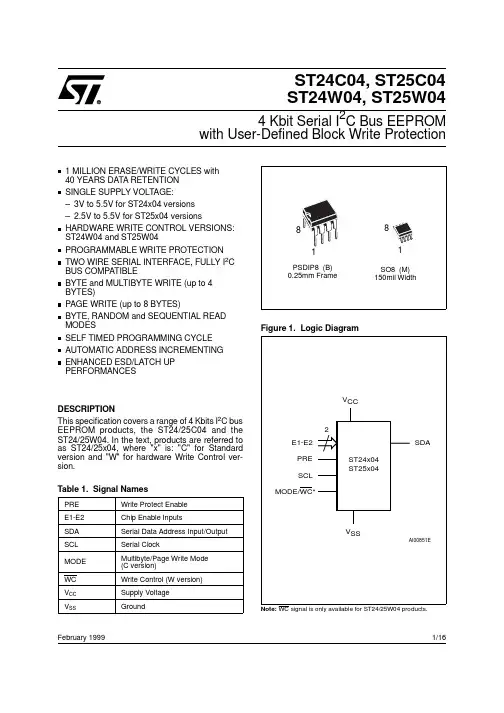

ST24C04, ST25C04 ST24W04, ST25W044 Kbit Serial I 2C Bus EEPROMwith User-Defined Block Write ProtectionFebruary 19991/16AI00851E2E1-E2SDAV CCST24x04ST25x04MODE/WC*SCLV SSPRE Figure 1. Logic Diagram1 MILLION ERASE/WRITE CYCLES with 40 YEARS DATA RETENTION SINGLE SUPPLY VOLTAGE:–3V to 5.5V for ST24x04 versions –2.5V to 5.5V for ST25x04 versionsHARDWARE WRITE CONTROL VERSIONS:ST24W04 and ST25W04PROGRAMMABLE WRITE PROTECTION TWO WIRE SERIAL INTERFACE, FULLY I 2C BUS COMPATIBLEBYTE and MULTIBYTE WRITE (up to 4BYTES)PAGE WRITE (up to 8 BYTES)BYTE, RANDOM and SEQUENTIAL READ MODESSELF TIMED PROGRAMMING CYCLE AUTOMATIC ADDRESS INCREMENTING ENHANCED ESD/LATCH UP PERFORMANCESDESCRIPTIONThis specification covers a range of 4 Kbits I 2C bus EEPROM products, the ST24/25C04 and the ST24/25W04. In the text, products are referred to as ST24/25x04, where "x" is: "C" for Standard version and "W" for hardware Write Control ver-sion.PRE Write Protect Enable E1-E2Chip Enable InputsSDA Serial Data Address Input/Output SCL Serial ClockMODE Multibyte/Page Write Mode (C version)WC Write Control (W version)V CC Supply Voltage V SSGroundTable 1. Signal Names81SO8 (M)150mil Width81PSDIP8 (B)0.25mm FrameNote: WC signal is only available for ST24/25W04 products.The ST24/25x04 are 4 Kbit electrically erasable programmable memories (EEPROM), organized as 2 blocks of 256 x8 bits. They are manufactured in STMicroelectronics’s Hi-Endurance Advanced CMOS technology which guarantees an endur-ance of one million erase/write cycles with a data retention of 40 years.Both Plastic Dual-in-Line and Plastic Small Outline packages are available.The memories are compatible with the I 2C stand-ard, two wire serial interface which uses a bi-direc-tional data bus and serial clock. The memoriescarry a built-in 4 bit, unique device identification code (1010) corresponding to the I 2C bus defini-tion. This is used together with 2 chip enable inputs (E2, E1) so that up to 4 x 4K devices may be attached to the I 2C bus and selected individually.The memories behave as a slave device in the I 2C protocol with all memory operations synchronized by the serial clock. Read and write operations are initiated by a START condition generated by the bus master. The START condition is followed by a stream of 7 bits (identification code 1010), plus one read/write bit and terminated by an acknowledge bit.SDAV SSSCL MODE/WC E1PRE V CCE2AI00852EST24x04ST25x0412348765Figure 2A. DIP Pin Connections 1AI01107E2348765SDAV SSSCL MODE/WC E1PRE V CCE2ST24x04ST25x04Figure 2B. SO Pin ConnectionsDESCRIPTION (cont’d)Symbol ParameterValue Unit T A Ambient Operating Temperature –40 to 125 °C T STG Storage Temperature –65 to 150°C T LEAD Lead Temperature, Soldering (SO8 package)(PSDIP8 package)40 sec 10 sec215260°C V IO Input or Output Voltages –0.6 to 6.5 V V CC Supply Voltage–0.3 to 6.5V V ESDElectrostatic Discharge Voltage (Human Body model) (2)4000V Electrostatic Discharge Voltage (Machine model) (3)500VNotes:1.Except for the rating "Operating Temperature Range", stresses above those listed in the Table "Absolute Maximum Ratings"may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute MaximumRating conditions for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other relevant quality documents.-STD-883C, 3015.7 (100pF, 1500 Ω).3.EIAJ IC-121 (Condition C) (200pF, 0 Ω).Table 2. Absolute Maximum Ratings (1)2/16ST24/25C04, ST24/25W04ModeRW bit MODE Bytes Initial SequenceCurrent Address Read ’1’X 1START, Device Select, RW = ’1’Random Address Read ’0’X1START, Device Select, RW = ’0’, Address,’1’reSTART, Device Select, RW = ’1’Sequential Read ’1’X 1 to 512Similar to Current or Random Mode Byte Write ’0’X 1START, Device Select, RW = ’0’Multibyte Write (2)’0’V IH 4START, Device Select, RW = ’0’Page Write’0’V IL8START, Device Select, RW = ’0’Notes:1.X = V IH or V IL2.Multibyte Write not available in ST24/25W04 versions.Table 4. Operating Modes (1)Device CodeChip EnableBlock Select RW Bitb7b6b5b4b3b2b1b0Device Select11E2E1A8RWNote: The MSB b7 is sent first.Table 3. Device Select CodeWhen writing data to the memory it responds to the 8 bits received by asserting an acknowledge bit during the 9th bit time. When data is read by the bus master, it acknowledges the receipt of the data bytes in the same way. Data transfers are termi-nated with a STOP condition.Power On Reset: V CC lock out write protect. In order to prevent data corruption and inadvertent write operations during power up, a Power On Reset (POR) circuit is implemented. Until the V CC voltage has reached the POR threshold value, the internal reset is active, all operations are disabled and the device will not respond to any command.In the same way, when V CC drops down from the operating voltage to below the POR threshold value, all operations are disabled and the device will not respond to any command. A stable V CC must be applied before applying any logic signal.SIGNAL DESCRIPTIONSSerial Clock (SCL). The SCL input pin is used to synchronize all data in and out of the memory. A resistor can be connected from the SCL line to V CC to act as a pull up (see Figure 3).Serial Data (SDA). The SDA pin is bi-directional and is used to transfer data in or out of the memory.It is an open drain output that may be wire-OR’edwith other open drain or open collector signals on the bus. A resistor must be connected from the SDA bus line to V CC to act as pull up (see Figure 3).Chip Enable (E1 - E2). These chip enable inputs are used to set the 2 least significant bits (b2, b3)of the 7 bit device select code. These inputs may be driven dynamically or tied to V CC or V SS to establish the device select code.Protect Enable (PRE). The PRE input pin, in ad-dition to the status of the Block Address Pointer bit (b2, location 1FFh as in Figure 7), sets the PRE write protection active.Mode (MODE). The MODE input is available on pin 7 (see also WC feature) and may be driven dynami-cally. It must be at V IL or V IH for the Byte Write mode, V IH for Multibyte Write mode or V IL for Page Write mode. When unconnected, the MODE input is internally read as V IH (Multibyte Write mode). Write Control (WC). An hardware Write Control feature (WC) is offered only for ST24W04 and ST25W04 versions on pin 7. This feature is usefull to protect the contents of the memory from any erroneous erase/write cycle. The Write Control sig-nal is used to enable (WC = V IH ) or disable (WC =V IL ) the internal write protection. When uncon-nected, the WC input is internally read as V IL and the memory area is not write protected.3/16ST24/25C04, ST24/25W04AI01100V CCC BUSSDA R LMASTERR LSCLC BUS10020030040048121620C BUS (pF)R L m a x (k Ω)V CC = 5VFigure 3. Maximum R L Value versus Bus Capacitance (C BUS ) for an I 2C BusThe devices with this Write Control feature no longer support the Multibyte Write mode of opera-tion, however all other write modes are fully sup-ported.Refer to the AN404 Application Note for more de-tailed information about Write Control feature.DEVICE OPERATION I 2C Bus BackgroundThe ST24/25x04 support the I 2C protocol. This protocol defines any device that sends data onto the bus as a transmitter and any device that reads the data as a receiver. The device that controls the data transfer is known as the master and the other as the slave. The master will always initiate a data transfer and will provide the serial clock for syn-chronisation. The ST24/25x04 are always slave devices in all communications.Start Condition. START is identified by a high to low transition of the SDA line while the clock SCL is stable in the high state. A START condition must precede any command for data transfer. Except during a programming cycle, the ST24/25x04 con-tinuously monitor the SDA and SCL signals for a START condition and will not respond unless one is given.Stop Condition. STOP is identified by a low to high transition of the SDA line while the clock SCL is stable in the high state. A STOP condition termi-nates communication between the ST24/25x04and the bus master. A STOP condition at the end of a Read command, after and only after a No Acknowledge, forces the standby state. A STOP condition at the end of a Write command triggers the internal EEPROM write cycle.Acknowledge Bit (ACK). An acknowledge signal is used to indicate a successfull data transfer. The bus transmitter, either master or slave, will release the SDA bus after sending 8 bits of data. During the 9th clock pulse period the receiver pulls the SDA bus low to acknowledge the receipt of the 8 bits of data.Data Input. During data input the ST24/25x04sample the SDA bus signal on the rising edge of the clock SCL. Note that for correct device opera-tion the SDA signal must be stable during the clock low to high transition and the data must change ONLY when the SCL line is low.Memory Addressing. To start communication be-tween the bus master and the slave ST24/25x04,the master must initiate a START condition. Follow-ing this, the master sends onto the SDA bus line 8bits (MSB first) corresponding to the device select code (7 bits) and a READ or WRITE bit.SIGNAL DESCRIPTIONS (cont’d)4/16ST24/25C04, ST24/25W04Symbol ParameterTest ConditionMinMax Unit C IN Input Capacitance (SDA)8pF C IN Input Capacitance (other pins)6pF Z WCL WC Input Impedance (ST24/25W04)V IN ≤ 0.3 V CC 520k ΩZ WCH WC Input Impedance (ST24/25W04)V IN ≥ 0.7 V CC500k Ωt LPLow-pass filter input time constant (SDA and SCL)100nsNote: 1. Sampled only, not 100% tested.Table 5. Input Parameters (1) (T A = 25 °C, f = 100 kHz )Symbol ParameterTest Condition MinMax Unit I LI Input Leakage Current 0V ≤ V IN ≤ V CC ±2µA I LO Output Leakage Current 0V ≤ V OUT ≤ V CC SDA in Hi-Z ±2µA I CCSupply Current (ST24 series)V CC = 5V, f C = 100kHz (Rise/Fall time < 10ns)2mA Supply Current (ST25 series)V CC = 2.5V, f C = 100kHz 1mA I CC1Supply Current (Standby)(ST24 series)V IN = V SS or V CC ,V CC = 5V 100µA V IN = V SS or V CC , V CC = 5V, f C = 100kHz 300µA I CC2Supply Current (Standby) (ST25 series)V IN = V SS or V CC , V CC = 2.5V 5µA V IN = V SS or V CC , V CC = 2.5V, f C = 100kHz50µA V IL Input Low Voltage (SCL, SDA)–0.30.3 V CC V V IH Input High Voltage (SCL, SDA)0.7 V CC V CC + 1V V IL Input Low Voltage(E1-E2, PRE, MODE, WC)–0.30.5V V IH Input High Voltage(E1-E2, PRE, MODE, WC)V CC – 0.5V CC + 1V V OLOutput Low Voltage (ST24 series)I OL = 3mA, V CC = 5V 0.4V Output Low Voltage (ST25 series)I OL = 2.1mA, V CC = 2.5V0.4VTable 6. DC Characteristics(T A = 0 to 70°C, –20 to 85°C or –40 to 85°C; V CC = 3V to 5.5V or 2.5V to 5.5V)5/16ST24/25C04, ST24/25W04The 4 most significant bits of the device select codeare the device type identifier, corresponding to the I 2C bus definition. For these memories the 4 bits are fixed as 1010b. The following 2 bits identify the specific memory on the bus. They are matched to the chip enable signals E2, E1. Thus up to 4 x 4K memories can be connected on the same bus giving a memory capacity total of 16 Kbits. After a START condition any memory on the bus will iden-tify the device code and compare the following 2bits to its chip enable inputs E2, E1.The 7th bit sent is the block number (one block =256 bytes). The 8th bit sent is the read or write bit (RW), this bit is set to ’1’ for read and ’0’ for write operations. If a match is found, the corresponding memory will acknowledge the identification on the SDA bus during the 9th bit time.Input Rise and Fall Times ≤ 50nsInput Pulse Voltages0.2V CC to 0.8V CCInput and Output Timing Ref. Voltages 0.3V CC to 0.7V CCAC MEASUREMENT CONDITIONSAI008250.8V CC0.2V CC0.7V CC 0.3V CCFigure 4. AC Testing Input Output WaveformsDEVICE OPERATION (cont’d)Symbol Alt ParameterMinMax Unit t CH1CH2t R Clock Rise Time 1µs t CL1CL2t F Clock Fall Time 300ns t DH1DH2t R Input Rise Time 1µs t DL1DL1t F Input Fall Time300ns t CHDX (1)t SU:STA Clock High to Input Transition 4.7µs t CHCL t HIGH Clock Pulse Width High4µs t DLCL t HD:STA Input Low to Clock Low (START)4µs t CLDX t HD:DAT Clock Low to Input Transition 0µs t CLCH t LOW Clock Pulse Width Low4.7µs t DXCX t SU:DAT Input Transition to Clock Transition 250ns t CHDH t SU:STO Clock High to Input High (STOP) 4.7µs t DHDL t BUF Input High to Input Low (Bus Free) 4.7µs t CLQV (2)t AA Clock Low to Next Data Out Valid 0.3 3.5µs t CLQX t DH Data Out Hold Time 300ns f C f SCL Clock Frequency 100kHz t W (3)t WRWrite Time10msNotes:1.For a reSTART condition, or following a write cycle.2.The minimum value delays the falling/rising edge of SDA away from SCL = 1 in order to avoid unwanted START and/or STOP conditions.3.In the Multibyte Write mode only, if accessed bytes are on two consecutive 8 bytes rows (6 address MSB are not constant) themaximum programming time is doubled to 20ms.Table 7. AC Characteristics(T A = 0 to 70°C, –20 to 85°C or –40 to 85°C; V CC = 3V to 5.5V or 2.5V to 5.5V)6/16ST24/25C04, ST24/25W04SCL SDA INSCL SDA OUTSCL SDA INtCHCLtDLCLtCHDXSTARTCONDITIONtCLCHtDXCXtCLDXSDAINPUTSDACHANGEtCHDHtDHDLSTOP &BUS FREEDATA VALIDtCLQV tCLQXDATA OUTPUTtCHDHSTOPCONDITIONtCHDXSTARTCONDITIONWRITE CYCLEtWAI00795BFigure 5. AC WaveformsWrite OperationsThe Multibyte Write mode (only available on the ST24/25C04 versions) is selected when the MODE pin is at V IH and the Page Write mode when MODE pin is at V IL. The MODE pin may be driven dynami-cally with CMOS input levels.Following a START condition the master sends a device select code with the RW bit reset to ’0’. The memory acknowledges this and waits for a byte address. The byte address of 8 bits provides ac-cess to one block of 256 bytes of the memory. After receipt of the byte address the device again re-sponds with an acknowledge.For the ST24/25W04 versions, any write command with WC = 1 will not modify the memory content. Byte Write. In the Byte Write mode the master sends one data byte, which is acknowledged by the memory. The master then terminates the transfer by generating a STOP condition. The Write mode is independant of the state of the MODE pin which could be left floating if only this mode was to be used. However it is not a recommended operating mode, as this pin has to be connected to either V IH or V IL, to minimize the stand-by current.7/16ST24/25C04, ST24/25W04SCL SDASCL SDASDASTARTCONDITIONSDAINPUTSDACHANGEAI00792STOPCONDITION 123789MSB ACKSTARTCONDITIONSCL123789MSB ACKSTOPCONDITION Figure 6. I2C Bus ProtocolMultibyte Write. For the Multibyte Write mode, the MODE pin must be at V IH. The Multibyte Write mode can be started from any address in the memory. The master sends from one up to 4 bytes of data, which are each acknowledged by the mem-ory. The transfer is terminated by the master gen-erating a STOP condition. The duration of the write cycle is t W = 10ms maximum except when bytes are accessed on 2 rows (that is have different values for the 6 most significant address bits A7-A2), the programming time is then doubled to a maximum of 20ms. Writing more than 4 bytes in the Multibyte Write mode may modify data bytes in an adjacent row (one row is 8 bytes long). However, the Multibyte Write can properly write up to 8 consecutive bytes as soon as the first address of these 8 bytes is the first address of the row, the 7 following bytes being written in the 7 following bytes of this same row.Page Write. For the Page Write mode, the MODE pin must be at V IL. The Page Write mode allows up to 8 bytes to be written in a single write cycle, provided that they are all located in the same ’row’in the memory: that is the 5 most significant mem-8/16ST24/25C04, ST24/25W04ory address bits (A7-A3) are the same inside one block. The master sends from one up to 8 bytes of data, which are each acknowledged by the mem-ory. After each byte is transfered, the internal byte address counter (3 least significant bits only) is incremented. The transfer is terminated by the master generating a STOP condition. Care must be taken to avoid address counter ’roll-over’ which could result in data being overwritten. Note that, for any write mode, the generation by the master of the STOP condition starts the internal memory pro-gram cycle. All inputs are disabled until the comple-tion of this cycle and the memory will not respond to any request.Minimizing System Delays by Polling On ACK.During the internal write cycle, the memory discon-nects itself from the bus in order to copy the data from the internal latches to the memory cells. The maximum value of the write time (t W ) is given in the AC Characteristics table, since the typical time is shorter, the time seen by the system may be re-duced by an ACK polling sequence issued by the master.WRITE Cycle in ProgressAI01099BNext Operation is Addressing the MemorySTART Condition DEVICE SELECT with RW = 0ACK ReturnedYESNOYESNOReSTARTSTOPProceedWRITE OperationProceedRandom Address READ OperationSend Byte AddressFirst byte of instruction with RW = 0 already decoded by ST24xxxFigure 8. Write Cycle Polling using ACKAI00855B1FFhb7b3b2XX100hBlock 1Block 0Protect Flag Enable = 0Disable = 18 byte boundary address Protect Location Figure 7. Memory Protection9/16ST24/25C04, ST24/25W04The sequence is as follows:–Initial condition: a Write is in progress (see Figure 8).–Step 1: the Master issues a START condition followed by a Device Select byte (1st byte of the new instruction).–Step 2: if the memory is busy with the internal write cycle, no ACK will be returned and the master goes back to Step 1. If the memory has terminated the internal write cycle, it will re-spond with an ACK, indicating that the memory is ready to receive the second part of the next instruction (the first byte of this instruction was already sent during Step 1).Write Protection. Data in the upper block of 256bytes of the memory may be write protected. The memory is write protected between a boundary address and the top of memory (address 1FFh)when the PRE input pin is taken high and when the Protect Flag (bit b2 in location 1FFh) is set to ’0’.The boundary address is user defined by writing it in the Block Address Pointer. The Block Address Pointer is an 8 bit EEPROM register located at the address 1FFh. It is composed by 5 MSBs Address Pointer, which defines the bottom boundary ad-dress, and 3 LSBs which must be programmed atDEVICE OPERATION (cont’d)’0’. This Address Pointer can therefore address a boundary in steps of 8 bytes.The sequence to use the Write Protected feature is:–write the data to be protected into the top of the memory, up to, but not including, location 1FFh;–set the protection by writing the correct bottom boundary address in the Address Pointer (5MSBs of location 1FFh) with bit b2 (Protect flag)set to ’0’. Note that for a correct fonctionality of the memory, all the 3 LSBs of the Block Address Pointer must also be programmed at ’0’.The area will now be protected when the PRE input pin is taken High. While the PRE input pin is read at ’0’ by the memory, the location 1FFh can be used as a normal EEPROM byte.Caution: Special attention must be used when using the protect mode together with the Multibyte Write mode (MODE input pin High). If the Multibyte Write starts at the location right below the first byte of the Write Protected area, then the instruction will write over the first 3 bytes of the Write Protected area. The area protected is therefore smaller than the content defined in the location 1FFh, by 3 bytes.This does not apply to the Page Write mode as the address counter ’roll-over’ and thus cannot go above the 8 bytes lower boundary of the protected area.S T O PS T A R TBYTE WRITEDEV SELBYTE ADDR DATA INS T A R TMULTIBYTE ANDPAGE WRITEDEV SEL BYTE ADDR DATA IN 1DATA IN 2AI00793S T O PDATA IN NACKACKACKR/W ACKACKACKR/WACKACKFigure 9. Write Modes Sequence (ST24/25C04)10/16ST24/25C04, ST24/25W04S T O PS T A R TBYTE WRITEDEV SELBYTE ADDR DATA INWCS T A R TPAGE WRITEDEV SELBYTE ADDR DATA IN 1WCDATA IN 2AI01101BPAGE WRITE (cont'd)WC (cont'd)S T O PDATA IN NACKACKACKR/WACKACKACKR/WACKACKFigure 10. Write Modes Sequence with Write Control = 1 (ST24/25W04)Read OperationsRead operations are independent of the state of the MODE pin. On delivery, the memory content is set at all "1’s" (or FFh).Current Address Read. The memory has an inter-nal byte address counter. Each time a byte is read,this counter is incremented. For the Current Ad-dress Read mode, following a START condition,the master sends a memory address with the RW bit set to ’1’. The memory acknowledges this and outputs the byte addressed by the internal byte address counter. This counter is then incremented.The master does NOT acknowledge the byte out-put, but terminates the transfer with a STOP con-dition.Random Address Read. A dummy write is per-formed to load the address into the address counter, see Figure 11. This is followed by another START condition from the master and the byte address is repeated with the RW bit set to ’1’. The memory acknowledges this and outputs the byte addressed. The master have to NOT acknowledge the byte output, but terminates the transfer with a STOP condition.Sequential Read. This mode can be initiated with either a Current Address Read or a Random Ad-dress Read. However, in this case the master DOES acknowledge the data byte output and the memory continues to output the next byte in se-quence. To terminate the stream of bytes, the master must NOT acknowledge the last byte out-11/16put, but MUST generate a STOP condition. The output data is from consecutive byte addresses,with the internal byte address counter automat-ically incremented after each byte output. After a count of the last memory address, the addresscounter will ’roll- over’ and the memory will continue to output data.Acknowledge in Read Mode. In all read modes the ST24/25x04 wait for an acknowledge during the 9th bit time. If the master does not pull the SDA line low during this time, the ST24/25x04 terminate the data transfer and switches to a standby state.S T A R TDEV SEL *BYTE ADDRS T A R TDEV SELDATA OUT 1AI00794CDATA OUT NS T O PS T A R TCURRENT ADDRESS READDEV SELDATA OUTRANDOM ADDRESS READS T O PS T A R TDEV SEL *DATA OUTSEQUENTIAL CURRENT READS T O P DATA OUT NS T A R TDEV SEL *BYTE ADDR SEQUENTIAL RANDOM READS T A R TDEV SEL *DATA OUT 1S T O PACKR/WNO ACKACKR/WACKACK R/WACKACK ACK NO ACKR/WNO ACKACKACKR/WACK ACKR/WACK NO ACKFigure 11. Read Modes SequenceNote:*The 7 Most Significant bits of DEV SEL bytes of a Random Read (1st byte and 3rd byte) must be identical.DEVICE OPERATION (cont’d)12/16ORDERING INFORMATION SCHEMENotes: 3 * Temperature range on special request only.Parts are shipped with the memory content set at all "1’s" (FFh).For a list of available options (Operating Voltage, Range, Package, etc...) or for further information on any aspect of this device, please contact the STMicroelectronics Sales Office nearest to you.Operating Voltage ST24C04 3V to 5.5V ST24W04 3V to 5.5V ST25C04 2.5V to 5.5V ST25W04 2.5V to 5.5VRangeStandardHardware Write Control StandardHardware Write ControlPackage B PSDIP80.25mm Frame MSO8 150mil WidthTemperature Range 10 to 70 °C 5–20 to 85 °C 6–40 to 85 °C 3 *–40 to 125 °COption TRTape & Reel PackingExample: ST24C04 M 1 TR13/16PSDIP-aA2A1A Le1DE1EN1CeA eBB1BSymbmm inches TypMin Max TypMin Max A 3.90 5.900.1540.232A10.49–0.019–A2 3.30 5.300.1300.209B 0.360.560.0140.022B1 1.15 1.650.0450.065C 0.200.360.0080.014D 9.209.900.3620.390E 7.62––0.300––E1 6.00 6.700.2360.264e1 2.54––0.100––eA 7.80–0.307–eB –10.00–0.394L 3.00 3.800.1180.150N88Drawing is not to scalePSDIP8 - 8 pin Plastic Skinny DIP , 0.25mm lead frame14/16SO-aENCPBe ADCLA1α1Hh x 45˚Symbmm inches TypMin Max TypMin Max A 1.35 1.750.0530.069A10.100.250.0040.010B 0.330.510.0130.020C 0.190.250.0070.010D 4.80 5.000.1890.197E 3.80 4.000.1500.157e 1.27––0.050––H 5.80 6.200.2280.244h 0.250.500.0100.020L 0.400.900.0160.035α0°8°0°8°N 88CP0.100.004Drawing is not to scaleSO8 - 8 lead Plastic Small Outline, 150 mils body width15/16Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.The ST logo is a registered trademark of STMicroelectronics© 1999 STMicroelectronics - All Rights ReservedSTMicroelectronics GROUP OF COMPANIESAustralia - Brazil - Canada - China - France - Germany - Italy - Japan - Korea - Malaysia - Malta - Mexico - Morocco - The Netherlands - Singapore - Spain - Sweden - Switzerland - Taiwan - Thailand - United Kingdom - U.S.A.16/16。
1EXTERNAL LOADV CC WP SCL SDAA V CC WP SCL SDAA A V A A A V SSDESCRIPTIONThe CAT24WC32/64 is a 32K/64K-bit Serial CMOSE 2PROM internally organized as 4096/8192 words of 8bits each. Catalyst’s advanced CMOS technology sub-stantially reduces device power requirements. The* Catalyst Semiconductor is licensed by Philips Corporation to carry the I 2C Bus Protocol.I Commercial, industrial, automotive and extended automotive temperature ranges I Write protection– Entire array protected when WP at V IHI 1,000,000 Program/erase cycles I 100 year data retentionCAT24WC32/64 features a 32-byte page write buffer.The device operates via the I 2C bus serial interface and is available in 8-pin DIP or 8-pin SOIC packages.PIN CONFIGURATIONBLOCK DIAGRAMPIN FUNCTIONSPin Name FunctionA0, A1, A2Device Address Inputs SDA Serial Data/Address SCL Serial Clock WP Write ProtectV CC +1.8V to +6V Power Supply V SSGroundCAT24WC32/6432K/64K-Bit I 2C Serial CMOS EEPROM I 400 KHz I 2C bus compatible*I 1.8 to 6 volt read and write operation I Cascadable for up to eight devices I 32-Byte page write bufferI Self-timed write cycle with auto-clear I 8-pin DIP or 8-pin SOICI Schmitt trigger inputs for noise protectionFEATURESDIP Package (P, L)© 2004 by Catalyst Semiconductor, Inc.Characteristics subject to change without noticeDoc. No. 1039, Rev. FHAL O G E N F R E ETML EA D F R E ECAT24WC32/642Doc. No. 1039, Rev. FABSOLUTE MAXIMUM RATINGS*Temperature Under Bias .................–55°C to +125°C Storage Temperature.......................–65°C to +150°C Voltage on Any Pin withRespect to Ground (1)...........–2.0V to +V CC + 2.0V V CC with Respect to Ground ...............–2.0V to +7.0V Package Power DissipationCapability (Ta = 25°C)...................................1.0W Lead Soldering Temperature (10 secs)............300°C Output Short Circuit Current (2)........................100mA *COMMENTStresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device.These are stress ratings only, and functional operation of the device at these or any other conditions outside of those listed in the operational sections of this specification is not implied. Exposure to any absolute maximum rating for extended periods may affect device performance and reliability.RELIABILITY CHARACTERISTICS Symbol Parameter Min.Max.Units Reference Test Method N END (3)Endurance 1,000,000Cycles/Byte MIL-STD-883, Test Method 1033T DR (3)Data Retention 100Years MIL-STD-883, Test Method 1008V ZAP (3)ESD Susceptibility 2000Volts MIL-STD-883, Test Method 3015I LTH (3)(4)Latch-up100mAJEDEC Standard 17LimitsSymbol Parameter Min.Typ.Max. Units Test Conditions I CC Power Supply Current 3mA f SCL = 100 KHz I SB (5)Standby Current (V CC = 5V) 1µA V IN = GND or V CC I LI Input Leakage Current 10µA V IN = GND to V CC I LO Output Leakage Current 10µA V OUT = GND to V CCV IL Input Low Voltage –1V CC x 0.3V V IH Input High VoltageV CC x 0.7V CC + 0.5V V OL1Output Low Voltage (V CC = +3.0V)0.4V I OL = 3.0 mA V OL2Output Low Voltage (V CC = +1.8V)0.5VI OL = 1.5 mA D.C. OPERATING CHARACTERISTICSV CC = +1.8V to +6.0V, unless otherwise specified.CAPACITANCE T A = 25°C, f = 1.0 MHz, V CC = 5V Symbol TestMax.Units Conditions C I/O (3)Input/Output Capacitance (SDA)8pF V I/O = 0V C IN (3)Input Capacitance (A0, A1, A2, SCL, WP)6pFV IN = 0VNote:(1)The minimum DC input voltage is –0.5V. During transitions, inputs may undershoot to –2.0V for periods of less than 20 ns. Maximum DCvoltage on output pins is V CC +0.5V, which may overshoot to V CC + 2.0V for periods of less than 20ns.(2)Output shorted for no more than one second. No more than one output shorted at a time.(3)This parameter is tested initially and after a design or process change that affects the parameter.(4)Latch-up protection is provided for stresses up to 100 mA on address and data pins from –1V to V CC +1V.(5)Maximum standby current (I SB ) = 10µA for the Automotive and Extended Automotive temperature range.CAT24WC32/643Doc. No. 1039, Rev. FThe write cycle time is the time from a valid stop condition of a write sequence to the end of the internal program/erase cycle. During the write cycle, the businterface circuits are disabled, SDA is allowed to remain high, and the device does not respond to its slave address.A.C. CHARACTERISTICSV CC = +1.8V to +6V, unless otherwise specified Output Load is 1 TTL Gate and 100pF Read & Write Cycle LimitsCAT24WC32/644Doc. No. 1039, Rev. FFUNCTIONAL DESCRIPTIONThe CAT24WC32/64 supports the I 2C Bus data trans-mission protocol. This Inter-Integrated Circuit Bus proto-col defines any device that sends data to the bus to be a transmitter and any device receiving data to be a receiver. The transfer is controlled by the Master device which generates the serial clock and all START and STOP conditions for bus access. The CAT24WC32/64operates as a Slave device. Both the Master device and Slave device can operate as either transmitter or re-ceiver, but the Master device controls which mode is activated.PIN DESCRIPTIONSSCL: Serial ClockThe serial clock input clocks all data transferred into or out of the device.SDA: Serial Data/AddressThe bidirectional serial data/address pin is used to transfer all data into and out of the device. The SDA pin is an open drain output and can be wire-ORed with other open drain or open collector outputs.A0, A1, A2: Device Address InputsThese pins are hardwired or left unconnected (for hard-ware compatibility with CAT24WC16). When hardwired,up to eight CAT24WC32/64s may be addressed on a single bus system (refer to Device Addressing ). When the pins are left unconnected, the default values are zeros.WP: Write ProtectThis input, when tied to GND, allows write operations to the entire memory. For CAT24WC32/64 when this pin is tied to Vcc, the entire memory is write protected.When left floating, memory is unprotected.5020 FHD F05Figure 3. Start/Stop TimingSTART BITSDASTOP BITSCL5020 FHD F04STOPCONDITIONSTARTCONDITIONADDRESSSCLSDA5020 FHD F03SCLSDA INSDA OUTCAT24WC32/645Doc. No. 1039, Rev. FI 2C BUS PROTOCOLThe features of the I 2C bus protocol are defined as follows:(1)Data transfer may be initiated only when the bus isnot busy.(2)During a data transfer, the data line must remainstable whenever the clock line is high. Any changes in the data line while the clock line is high will be interpreted as a START or STOP condition.START ConditionThe START Condition precedes all commands to the device, and is defined as a HIGH to LOW transition of SDA when SCL is HIGH. The CAT24WC32/64 monitors the SDA and SCL lines and will not respond until this condition is met.STOP ConditionA LOW to HIGH transition of SDA when SCL is HIGH determines the STOP condition. All operations must end with a STOP condition.DEVICE ADDRESSINGThe bus Master begins a transmission by sending a START condition. The Master sends the address of the particular slave device it is requesting. The four most significant bits of the 8-bit slave address are fixed as 1010 (Fig. 5). The next three bits (A2, A1, A0) are the device address bits; up to eight 32K/64K devices may to be connected to the same bus. These bits mustFigure 4. Acknowledge Timing5027 FHD F07Figure 5. Slave Address Bits5020 FHD F06ACKNOWLEDGESTARTSCL FROM MASTERDATA OUTPUTFROM TRANSMITTERDATA OUTPUT FROM RECEIVER11A2A1A0R/Wcompare to the hardwired input pins, A2, A1 and A0. The last bit of the slave address specifies whether a Read or Write operation is to be performed. When this bit is set to 1, a Read operation is selected, and when set to 0, a Write operation is selected.After the Master sends a START condition and the slave address byte, the CAT24WC32/64 monitors the bus and responds with an acknowledge (on the SDA line) when its address matches the transmitted slave address. The CAT24WC32/64 then performs a Read or Write opera-tion depending on the state of the R/W bit.AcknowledgeAfter a successful data transfer, each receiving device is required to generate an acknowledge. The Acknowledg-ing device pulls down the SDA line during the ninth clock cycle, signaling that it received the 8 bits of data.The CAT24WC32/64 responds with an acknowledge after receiving a START condition and its slave address.If the device has been selected along with a write operation, it responds with an acknowledge after receiv-ing each 8-bit byte.When the CAT24WC32/64 begins a READ mode it transmits 8 bits of data, releases the SDA line, and monitors the line for an acknowledge. Once it receives this acknowledge, the CAT24WC32/64 will continue to transmit data. If no acknowledge is sent by the Master,the device terminates data transmission and waits for a STOP condition. The master must then issue a stop condition to return the CAT24WC32/64 to the standby power mode and place the device in a known state.CAT24WC32/646Doc. No. 1039, Rev. FSLAVE C KC KC KBUS ACTIVITY:MASTERSDA LINES T A R BYTE ADDRESS C K S T O C KC K C K A 15–A 8SLAVE ADDRESSSA C KAC KDATAA C KS T O P P BUS ACTIVITY:MASTERSDA LINES T A R T A 7–A 0BYTE ADDRESS A C K*X X X WRITE OPERATIONSByte WriteIn the Byte Write mode, the Master device sends the START condition and the slave address information (with the R/W bit set to zero) to the Slave device. After the Slave generates an acknowledge, the Master sends two 8-bit address words that are to be written into the address pointers of the CAT24WC32/64. After receiving another acknowledge from the Slave, the Master device transmits the data to be written into the addressed memory location. The CAT24WC32/64 acknowledges once more and the Master generates the STOP condi-tion. At this time, the device begins an internal program-ming cycle to nonvolatile memory. While the cycle is in progress, the device will not respond to any request from the Master device.Page WriteThe CAT24WC32/64 writes up to 32 bytes of data, in a single write cycle, using the Page Write operation. The page write operation is initiated in the same manner as the byte write operation, however instead of terminating after the initial byte is transmitted, the Master is allowed to send up to 31 additional bytes. After each byte has been transmitted, CAT24WC32/64 will respond with an acknowledge, and internally increment the five low order address bits by one. The high order bits remain un-changed.If the Master transmits more than 32 bytes before sending the STOP condition, the address counter ‘wraps around’,and previously transmitted data will be overwritten.When all 32 bytes are received, and the STOP condition has been sent by the Master, the internal programming cycle begins. At this point, all received data is written to the CAT24WC32/64 in a single write cycle.Acknowledge PollingDisabling of the inputs can be used to take advantage of the typical write cycle time. Once the stop condition is issued to indicate the end of the host's write operation,CAT24WC32/64 initiates the internal write cycle. ACK polling can be initiated immediately. This involves issu-ing the start condition followed by the slave address for a write operation. If CAT24WC32/64 is still busy with the write operation, no ACK will be returned. If CAT24WC32/64 has completed the write operation, an ACK will be returned and the host can then proceed with the next read or write operation.WRITE PROTECTIONThe Write Protection feature allows the user to protect against inadvertent programming of the memory array.If the WP pin is tied to V CC , the entire memory array is protected and becomes read only. The CAT24WC32/64will accept both slave and byte addresses, but the24WC32/64 F09Figure 7. Page Write TimingFigure 6. Byte Write Timing24WC32/64 F08* = Don't care bit for 24WC32X= Don't care bitCAT24WC32/647Doc. No. 1039, Rev. Fmemory location accessed is protected from program-ming by the device’s failure to send an acknowledge after the first byte of data is received.READ OPERATIONSThe READ operation for the CAT24WC32/64 is initiated in the same manner as the write operation with one exception, that R/W bit is set to one. Three different READ operations are possible: Immediate/Current Ad-dress READ, Selective/Random READ and Sequential READ.Immediate/Current Address ReadThe CAT24WC32/64’s address counter contains the address of the last byte accessed, incremented by one.In other words, if the last READ or WRITE access was to address N, the READ immediately following would access data from address N+1. If N=E (where E=4095for 24WC32 and E=8191 for 24WC64), then the counter will ‘wrap around’ to address 0 and continue to clock out data. After the CAT24WC32/64 receives its slave ad-dress information (with the R/W bit set to one), it issues an acknowledge, then transmits the 8 bit byte requested.The master device does not send an acknowledge, but will generate a STOP condition.Selective/Random ReadSelective/Random READ operations allow the Master device to select at random any memory location for a READ operation. The Master device first performs a‘dummy’ write operation by sending the START condi-tion, slave address and byte addresses of the location it wishes to read. After CAT24WC32/64 acknowledges,the Master device sends the START condition and the slave address again, this time with the R/W bit set to one.The CAT24WC32/64 then responds with its acknowl-edge and sends the 8-bit byte requested. The master device does not send an acknowledge but will generate a STOP condition.Sequential ReadThe Sequential READ operation can be initiated by either the Immediate Address READ or Selective READ operations. After the CAT24WC32/64 sends the initial 8-bit byte requested, the Master will respond with an acknowledge which tells the device it requires more data. The CAT24WC32/64 will continue to output an 8-bit byte for each acknowledge sent by the Master. The operation will terminate when the Master fails to respond with an acknowledge, thus sending the STOP condition.The data being transmitted from CAT24WC32/64 is outputted sequentially with data from address N fol-lowed by data from address N+1. The READ operation address counter increments all of the CAT24WC32/64address bits so that the entire memory array can be read during one operation. If more than E (where E=4095 for 24WC32 and E=8191 for 24WC64) bytes are read out,the counter will ‘wrap around’ and continue to clock out data bytes.Figure 8. Immediate Address Read Timing24WC32/64 F10SCL SDA 8TH BIT STOPNO ACKDATA OUT89SLAVE ADDRESSSA C KBUS ACTIVITY:MASTERSDA LINES T A R T N O A C KDATAS T O P PCAT24WC32/648Doc. No. 1039, Rev. FA 15–A 8SLAVE ADDRESSSA C KAC KA C K BUS ACTIVITY:MASTERSDA LINES T A R T A 7–A 0BYTE ADDRESS SLAVE ADDRESSSA C KN O A C KS T A R T DATAPS T O P X X X *Figure 9. Selective Read Timing24WC32/64 F11* = Don't care bit for 24WC32X= Don't care bitFigure 10. Sequential Read Timing5020 FHD F12BUS ACTIVITY:MASTERSDA LINEDATA n+xDATA n C KC KDATA n+1C KS T O O A C KDATA n+2C KSLAVE ADDRESSCAT24WC32/649Doc. No. 1039, Rev. FORDERING INFORMATIONNotes:(1)The device used in the above example is a 24WC32JI-1.8TE13 (SOIC, Industrial Temperature, 1.8 Volt to 6 Volt OperatingVoltage, Tape & Reel)(2)Product die revision letter is marked on top of the package as a suffix to the production date code (e.g., AYWWB). For additionalinformation, please contact your Catalyst sales office.Prefix Device #Suffix(2)Catalyst Semiconductor, Inc.Corporate Headquarters 1250 Borregas Avenue Sunnyvale, CA 94089Phone: 408.542.1000Fax: 408.542.1200Publication #:1039Revison:FIssue date:7/28/04Copyrights, Trademarks and PatentsTrademarks and registered trademarks of Catalyst Semiconductor include each of the following:DPP ™AE 2 ™Catalyst Semiconductor has been issued U.S. and foreign patents and has patent applications pending that protect its products. For a complete list of patents issued to Catalyst Semiconductor contact the Company’s corporate office at 408.542.1000.CATALYST SEMICONDUCTOR MAKES NO WARRANTY, REPRESENTATION OR GUARANTEE, EXPRESS OR IMPLIED, REGARDING THE SUITABILITY OF ITS PRODUCTS FOR ANY PARTICULAR PURPOSE, NOR THAT THE USE OF ITS PRODUCTS WILL NOT INFRINGE ITS INTELLECTUAL PROPERTY RIGHTS OR THE RIGHTS OF THIRD PARTIES WITH RESPECT TO ANY PARTICULAR USE OR APPLICATION AND SPECIFICALLY DISCLAIMS ANY AND ALL LIABILITY ARISING OUT OF ANY SUCH USE OR APPLICATION, INCLUDING BUT NOT LIMITED TO, CONSEQUENTIAL OR INCIDENTAL DAMAGES.Catalyst Semiconductor products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the Catalyst Semiconductor product could create a situation where personal injury or death may occur.Catalyst Semiconductor reserves the right to make changes to or discontinue any product or service described herein without notice. Products with data sheets labeled "Advance Information" or "Preliminary" and other products described herein may not be in production or offered for sale.Catalyst Semiconductor advises customers to obtain the current version of the relevant product information before placing orders. Circuit diagrams illustrate typical semiconductor applications and may not be complete.REVISION HISTORYDate Rev.Reason7/7/2004E Added die revision to Ordering Information 7/28/2004FUpdated FeaturesUpdated DC operating characteristics and notes。
