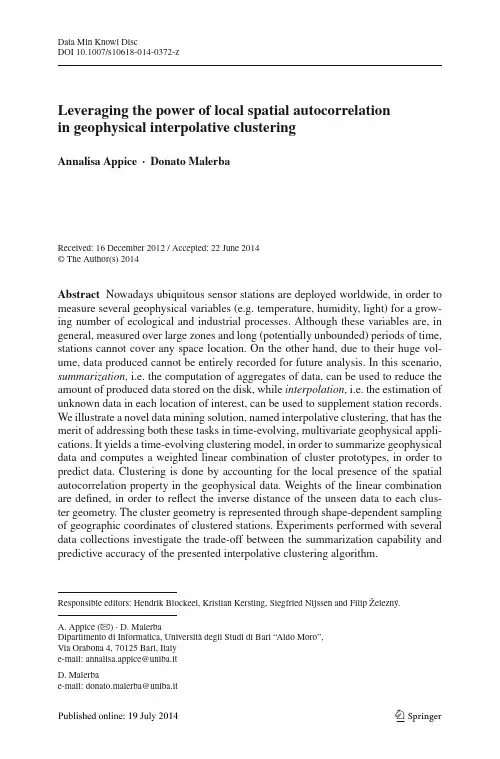

Data Min Knowl DiscDOI10.1007/s10618-014-0372-zLeveraging the power of local spatial autocorrelationin geophysical interpolative clusteringAnnalisa Appice·Donato MalerbaReceived:16December2012/Accepted:22June2014©The Author(s)2014Abstract Nowadays ubiquitous sensor stations are deployed worldwide,in order to measure several geophysical variables(e.g.temperature,humidity,light)for a grow-ing number of ecological and industrial processes.Although these variables are,in general,measured over large zones and long(potentially unbounded)periods of time, stations cannot cover any space location.On the other hand,due to their huge vol-ume,data produced cannot be entirely recorded for future analysis.In this scenario, summarization,i.e.the computation of aggregates of data,can be used to reduce the amount of produced data stored on the disk,while interpolation,i.e.the estimation of unknown data in each location of interest,can be used to supplement station records. We illustrate a novel data mining solution,named interpolative clustering,that has the merit of addressing both these tasks in time-evolving,multivariate geophysical appli-cations.It yields a time-evolving clustering model,in order to summarize geophysical data and computes a weighted linear combination of cluster prototypes,in order to predict data.Clustering is done by accounting for the local presence of the spatial autocorrelation property in the geophysical data.Weights of the linear combination are defined,in order to reflect the inverse distance of the unseen data to each clus-ter geometry.The cluster geometry is represented through shape-dependent sampling of geographic coordinates of clustered stations.Experiments performed with several data collections investigate the trade-off between the summarization capability and predictive accuracy of the presented interpolative clustering algorithm.Responsible editors:Hendrik Blockeel,Kristian Kersting,Siegfried Nijssen and FilipŽelezný.A.Appice(B)·D.MalerbaDipartimento di Informatica,Universitàdegli Studi di Bari“Aldo Moro”,Via Orabona4,70125Bari,Italye-mail:annalisa.appice@uniba.itD.Malerbae-mail:donato.malerba@uniba.itA.Appice,D.Malerba Keywords Spatial autocorrelation·Clustering·Inverse distance weighting·Geophysical data stream1IntroductionThe widespread use of sensor networks has paved the way for the explosive living ubiquity of geophysical data streams(i.e.streams of data that are measured repeatedly over a set of locations).Procedurally,remote sensors are installed worldwide.They gather information along a number of variables over large zones and long(potentially unbounded)periods of time.In this scenario,spatial distribution of data sources,as well as temporal distribution of measures pose new challenges in the collection and query of data.Much scientific and industrial interest has recently been focused on the deployment of data management systems that gather continuous multivariate data from several data sources,recognize and possibly adapt a behavioral model,deal with queries that concern present and past data,as well as seen and unseen data.This poses specific issues that include storing entirely(unbounded)data on disks withfinite memory(Chiky and Hébrail2008),as well as looking for predictions(estimations) where no measured data are available(Li and Heap2008).Summarization is one solution for addressing storage limits,while interpolation is one solution for supplementing unseen data.So far,both these tasks,namely summa-rization and interpolation,have been extensively investigated in the literature.How-ever,most of the studies consider only one task at a time.Several summarization algo-rithms,e.g.Rodrigues et al.(2008),Chen et al.(2010),Appice et al.(2013a),have been defined in data mining,in order to compute fast,compact summaries of geophysical data as they arrive.Data storage systems store computed summaries,while discarding actual data.Various interpolation algorithms,e.g.Shepard(1968b),Krige(1951),have been defined in geostatistics,in order to predict unseen measures of a geophysical vari-able.They use predictive inferences based upon actual measures sampled at specific locations of space.In this paper,we investigate a holistic approach that links predictive inferences to data summaries.Therefore,we introduce a summarization pattern of geo-physical data,which can be computed to save memory space and make predictive infer-ences easier.We use predictive inferences that exploit knowledge in data summaries, in order to yield accurate predictions covering any(seen and unseen)space location.We begin by observing that the common factor of several summarization and inter-polation algorithms is that they accommodate the spatial autocorrelation analysis in the learned model.Spatial autocorrelation is the cross-correlation of values of a variable strictly due to their relatively close locations on a two-dimensional surface.Spatial autocorrelation exists when there is systematic spatial variation in the values of a given property.This variation can exist in two forms,called positive and negative spatial autocorrelation(Legendre1993).In the positive case,the value of a variable at a given location tends to be similar to the values of that variable in nearby locations. This means that if the value of some variable is low at a given location,the presence of spatial autocorrelation indicates that nearby values are also low.Conversely,neg-ative spatial autocorrelation is characterized by dissimilar values at nearby locations. Goodchild(1986)remarks that positive autocorrelation is seen much more frequentlyLocal spatial autocorrelation and interpolative clusteringin practice than negative autocorrelation in geophysical variables.This is justified by Tobler’sfirst law of geography,according to which“everything is related to everything else,but near things are more related than distant things”(Tobler1979).As observed by LeSage and Pace(2001),the analysis of spatial autocorrelation is crucial and can be fundamental for building a reliable spatial component into any (statistical)model for geophysical data.With the same viewpoint,we propose to:(i) model the property of spatial autocorrelation when collecting the data records of a number of geophysical variables,(ii)use this model to compute compact summaries of actual data that are discarded and(iii)inject computed summaries into predictive inferences,in order to yield accurate estimations of geophysical data at any space location.The paper is organized as follows.The next section clarifies the motivation and the actual contribution of this paper.In Sect.3,related works regarding spatial autocorre-lation,spatial interpolators and clustering are reported.In Sect.4,we report the basics of the presented algorithm,while in Sect.5,we describe the proposed algorithm.An experimental study with several data collections is presented in Sect.6and conclusions are drawn.2Motivation and contributionsThe analysis of the property of spatial autocorrelation in geophysical data poses spe-cific issues.One issue is that most of the models that represent and learn data with spatial autocorrelation are based on the assumption of spatial stationarity.Thus,they assume a constant mean and a constant variance(no outlier)across space(Stojanova et al. 2012).This means that possible significant variabilities in autocorrelation dependen-cies throughout the space are overlooked.The variability could be caused by a different underlying latent structure of the space,which varies among its portions in terms of scale of values or density of measures.As pointed out by Angin and Neville(2008), when autocorrelation varies significantly throughout space,it may be more accurate to model the dependencies locally rather than globally.Another issue is that the spatial autocorrelation analysis is frequently decoupled from the multivariate analysis.In this case,the learning process accounts for the spa-tial autocorrelation of univariate data,while dealing with distinct variables separately (Appice et al.2013b).Bailey and Krzanowski(2012)observe that ignoring complex interactions among multiple variables may overlook interesting insights into the cor-relation of potentially related variables at any site.Based upon this idea,Dray and Jombart(2011)formulate a multivariate definition of the concept of spatial autocorre-lation,which centers on the extent to which values for a number of variables observed at a given location show a systematic(more than likely under spatial randomness), homogeneous association with values observed at the“neighboring”locations.In this paper,we develop an approach to modeling non stationary spatial auto-correlation of multivariate geophysical data by using interpolative clustering.As in clustering,clusters of records that are similar to each other at nearby locations are identified,but a cluster description and a predictive model is associated to each clus-A.Appice,D.Malerba ter.Data records are aggregated through clusters based on the cluster descriptions. The associated predictive models,that provide predictions for the variables,are stored as summaries of the clustered data.On any future demand,predictive models queried to databases are processed according to the requests,in order to yield accurate esti-mates for the variables.Interpolative clustering is a form of conceptual clustering (Michalski and Stepp1983)since,besides the clusters themselves,it also provides symbolic descriptions(in the form of conjunctions of conditions)of the constructed clusters.Thus,we can also plan to consider this description,in order to obtain clusters in different contexts of the same domain.However,in contrast to conceptual clus-tering,interpolative clustering is a form of supervised learning.On the other hand, interpolative clustering is similar to predictive clustering(Blockeel et al.1998),since it is a form of supervised learning.However,unlike predictive clustering,where the predictive space(target variables)is typically distinguished from the descriptive one (explanatory variables),1variables of interpolative clustering play,in principle,both target and explanatory roles.Interpolative clustering trees(ICTs)are a class of tree structured models where a split node is associated with a cluster and a leaf node with a single predictive model for the target variables of interest.The top node of the ICT contains the entire sample of training records.This cluster is recursively partitioned along the target variables into smaller sub-clusters.A predictive model(the mean)is computed for each target variable and then associated with each leaf.All the variables are predicted indepen-dently.In the context of this paper,an ICT is built by integrating the consideration of a local indicator of spatial autocorrelation,in order to account for significant vari-abilities of autocorrelation dependencies in training data.Spatial autocorrelation is coupled with a multivariate analysis by accounting for the spatial dependence of data and their multivariate variance,simultaneously(Dray and Jombart2011).This is done by maximizing the variance reduction of local indicators of spatial autocorrelation computed for multivariate data when evaluating the candidates for adding a new node to the tree.This solution has the merit of improving both the summarization,as well as the predictive performance of the computed models.Memory space is saved by storing a single summary for data of multiple variables.Predictive accuracy is increased by exploiting the autocorrelation of data clustered in space.From the summarization perspective,an ICT is used to summarize geophysical data according to a hierarchical view of the spatial autocorrelation.We can browse gen-erated clusters at different levels of the hierarchy.Predictive models on leaf clusters model spatial autocorrelation dependencies as stationary over the local geometry of the clusters.From the interpolation perspective,an ICT is used to compute knowledge1The predictive clustering framework is originally defined in Blockeel et al.(1998),in order to com-bine clustering problems and classification/regression problems.The predictive inference is performed by distinguishing between target variables and explanatory variables.Target variables are considered when evaluating similarity between training data such that training examples with similar target values are grouped in the same cluster,while training examples with dissimilar target values are grouped in separate clusters. Explanatory variables are used to generate a symbolic description of the clusters.Although the algorithm presented in Blockeel et al.(1998)can be,in principle,run by considering the same set of variables for both explanatory and target roles,this case is not investigated in the original study.Local spatial autocorrelation and interpolative clusteringto make accurate predictive inferences easier.We can use Inverse Distance Weighting2 (Shepard1968b)to predict variables at a specific location by a weighted linear com-bination of the predictive models on the leaf clusters.Weights are inverse functions of the distance of the query point from the clusters.Finally,we can observe that an ICT provides a static model of a geophysical phe-nomenon.Nevertheless,inferences based on static models of spatial autocorrelation require temporal stationarity of statistical properties of variables.In the geophysical context,data are frequently subject to the temporal variation of such properties.This requires dynamic models that can be updated continuously as new fresh data arrive (Gama2010).In this paper,we propose an incremental algorithm for the construction of a time-adaptive ICT.When a new sample of records is acquired through stations of a sensor network,a past ICT is modified,in order to model new data of the process, which may change their properties over time.In theory,a distinct tree can be learned for each time point and several trees can be subsequently combined using some gen-eral framework(e.g.Spiliopoulou et al.2006)for tracking cluster evolution over time. However,this solution is prohibitively time-consuming when data arrive at a high rate. By taking into account that(1)geophysical variables are often slowly time-varying, and(2)a change of the properties of the data distribution of variables is often restricted to a delimited group of stations,more efficient learning algorithms can be derived.In this paper,we propose an algorithm that retains past clusters as long as they discrimi-nate between surfaces of spatial autocorrelated data,while it mines novel clusters only if the latest become inaccurate.In this way,we can save computation time and track the evolution of the cluster model by detecting changes in the data properties at no additional cost.The specific contributions in this paper are:(1)the investigation of the property of spatial autocorrelation in interpolative clustering;(2)the development of an approach that uses a local indicator of the spatial autocorrelation property,in order to build an ICT by taking into account non-stationarity in autocorrelation and multivariate analysis;(3)the development of an incremental algorithm to yield a time-evolving ICT that accounts for the fact that the statistical properties of the geophysical data may change over time;(4)an extensive evaluation of the effectiveness of the proposed (incremental)approach on several real geophysical data.3Related worksThis work has been motivated by the research literature for the property of spatial autocorrelation and its influence on the interpolation theory and(predictive)clustering. In the following subsections,we report related works from these research lines.2Inverse distance weighting is a common interpolation algorithm.It has several advantages that endorse its widespread use in geostatistics(Li and Revesz2002;Karydas et al.2009;Li et al.2011):simplicity of implementation;lack of tunable parameters;ability to interpolate scattered data and work on any grid without suffering from multicollinearity.A.Appice,D.Malerba3.1Spatial autocorrelationSpatial autocorrelation analysis quantifies the degree of spatial clustering (positive autocorrelation)or dispersion (negative autocorrelation)in the values of a variable measured over a set of point locations.In the traditional approach to spatial autocorre-lation,the “overall pattern”of spatial dependence in data is summarized into a single indicator,such as the familiar Global Moran’s I,Global Geary’s C or Gamma indi-cators of spatial associations (see Legendre 1993,for details).These indicators allow us to establish whether nearby locations tend to have similar (i.e.spatial clustering),random or different values (i.e.spatial dispersion)of a variable on the entire sample.They are referred to as global indicators of spatial autocorrelation,in contrast to the local indicators that we will consider in this paper.Procedurally,global indicators (see Getis 2008)are computed,in order to indicate the degree of regional clustering over the entire distribution of a geophysical variable.Stojanova et al.(2013),as well as Appice et al.(2012)have recently investigated the addition of these indicators to predictive inferences.They show how global measures of spatial autocorrelation can be computed at multiple levels of a hierarchical clustering,in order to improve predictions that are consistently clustered in space.Despite the useful results of these studies,a limitation of global indicators of spatial autocorrelation is that they assume a spatial stationarity across space (Angin and Neville 2008).While this may be useful when spatial associations are studied for the small areas associated to the bottom levels of a hierarchical model,it is not very meaningful or may even be highly misleading in the analysis of spatial associations for large areas associated to the top levels of a hierarchical model.Local indicators offer an alternative to global modeling by looking for “local pat-terns”of spatial dependence within the study region (see Boots 2002for a survey).Unlike global indicators,which return one value for the entire sample of data,local indicators return one value for each sampled location of a variable;this value expresses the degree to which that location is part of a cluster.Widely speaking,a local indi-cator of spatial autocorrelation allows us to discover deviations from global patterns of spatial association,as well as hot spots like local clusters or local outliers.Several local indicators of spatial autocorrelation are formulated in the literature.Anselin’s local Moran’s I (Anselin 1995)is a local indicator of spatial autocorre-lation,that has gained wide acceptance in the literature.It is formulated as follows:I (i )= (z (i )−z )m 2 n j =1,j =i(λ(i j )(z (j )−z )),(1)where z (i )is the value of a variable Z measured at the location i ,z = n i =1z (i )n is themean of the data measured for Z ,λ(i j )is a spatial (Gaussian or bi-square)weight between the locations i and j over a neighborhood structure of the training data and m 2=1n j (z (j )−z )2is the second moment.Anselin’s local Moran’s I is related to the global Moran I as the average of I (i )is equal to the global I,up to a factor of proportionality.A positive value for I (i )indicates that z (i )is surrounded by similar values.Therefore,this value is part of a cluster.A negative value for I (i )indicates that z (i )is surrounded by dissimilar values.Thus,this value is an outlier.Local spatial autocorrelation and interpolative clusteringThe standardized Getis and Ord local GI∗(Getis and Ord1992)is a local indicator of spatial autocorrelation that is formulated as follows:G I∗(i)=1S2n−1nnj=1,j=iλ(i j)2−Λ(i)2⎛⎝nj=1,j=iλi j z(j)−zΛ(i)⎞⎠,(2)whereΛ(i)= nj=1,j=iλ(i j)and S2=nj=1(z(j)−z)2n.A positive value for G I∗(i)indicates clusters of high values around i,while a negative value for G I∗(i)indicates clusters of low values around i.The interpretation of GI∗is different from that of I:the former distinguishes clusters of high and low values,but does not capture the presence of negative spatial auto correlation(dispersion);the latter is able to detect both positive and negative spatial autocorrelations,but does not distinguish clusters of high or low values.Getis and Ord (1992)recommend computing GI∗to look for spatial clusters and I to detect spatial outliers.By following this advice,Holden and Evans(2010)apply fuzzy C-means to GI∗values,in order to cluster satellite-inferred burn severity classes.Scrucca(2005) and Appice et al.(2013c)use k-means to cluster GI∗values,to compute spatially aware clusters of the data measured for a geophysical variable.Measures of both global and local spatial autocorrelation are principally defined for univariate data.However,the integration of multivariate and autocorrelation informa-tion has recently been advocated by Dray and Jombart(2011).The simplest approach considers a two-step procedure,where data arefirst summarized with a multivariate analysis such as PCA.In a second step,any univariate(either global or local)spatial measure can be applied to PCA scores for each axis separately.The other approach finds coefficients to obtain a linear combination of variables,which maximizes the product between the variance and the global Moran measure of the scores.Alterna-tively,Stojanova et al.(2013)propose computing the mean of global measures(Moran I and global Getis C),computed for distinct variables of a vector,as a global indicator of spatial autocorrelation of the vector by blurring cross-correlations between separate variables.Dray et al.(2006)explore the theory of the principal coordinates of neighbor matrices and develop the framework of Morans eigenvector maps.They demonstrate that their framework can be linked to spatial autocorrelation structure functions also in multivariate domains.Blanchet et al.(2008)expand this framework by taking into account asymmetric directional spatial processes.3.2Interpolation theoryStudies on spatial interpolation were initially encouraged by the analysis of ore mining, water extraction or pumping and rock inspection(Cressie1993).In thesefields,inter-polation algorithms are required as the main resource to recover unknown information and account for problems like missing data,energy saving,sensor default,as well as to support data summarization and investigation of spatial correlation between observed data(Lam1983).The interpolation algorithms estimate a geophysical quantity in any geographic location where the variable measure is not available.The interpolated valueA.Appice,D.Malerba is derived by making use of the knowledge of the nearby observed data and,some-times,of some hypotheses or supplementary information on the data variable.The rationale behind this spatially aware estimate of a variable is the property of positive spatial autocorrelation.Any spatial interpolator accounts for this property,including within its formulation the consideration of a stronger correlation between data which are closer than for those that are farther apart.Regression(Burrough and McDonnell1998),Inverse Distance Weighting(IDW) (Shepard1968a),Radial Basis Functions(RBF)(Lin and Chen2004)and Kriging (Krige1951)are the most common interpolation algorithms.These algorithms are studied to deal with the irregular sampling of the investigated area(Isaaks and Srivas-tava1989;Stein1999)or with the difficulty of describing the area by the local atlas of larger and irregular manifolds.Regression algorithms,that are statistical interpolators, determine a functional relationship between the variable to be predicted and the geo-graphic coordinates of points where the variable is measured.IDW and RBF,which are both deterministic interpolators,use mathematical functions to calculate an unknown variable value in a geographic location,based either on the degree of similarity(IDW) or the degree of smoothing(RBF)in relation to neighboring data points.Both algo-rithms share with Kriging the idea that the collection of variable observations can be considered as a production of correlated spatial random data with specific statistical properties.In Kriging,specifically,this correlation is used to derive a second-order model of the variable(the variogram).The variogram represents an approximate mea-sure of the spatial dissimilarity of the observed data.The IDW interpolation is based on a linear combination of nearby observations with weights proportional to a power of the distances.It is a heuristic but efficient approach justified by the typical power-law of the spatial correlation.In this sense,IDW accomplishes the same strategy adopted by the more rigorous formulation of Kriging(Li and Revesz2002;Karydas et al.2009; Li et al.2011).Several studies have arisen from these base interpolation algorithms.Ohashi and Torgo(2012)investigate a mapping of the spatial interpolation problem into a multiple regression task.They define a series of spatial indicators to better describe the spatial dynamics of the variable of interest.Umer et al.(2010)propose to recover missing data of a dense network by a Kriging interpolator.By considering that the compu-tational complexity of a variogram is cubic in the size of the observed data(Cressie 1993),the variogram calculus,in this study,is sped-up by processing only the areas with information holes,rather than the global data.Goovaerts(1997)extends Krig-ing,in order to predict multiple variables(cokriging)measured at the same location. Cokriging uses direct and cross covariance functions that are computed in the sample of the observed data.Teegavarapu et al.(2012)use IDW and1-Nearest Neighbor,in order to interpolate a grid of rainfall data and re-sample data at multiple resolutions. Lu and Wong(2008)formulate IDW in an adaptive way,by accounting for the varying distance-decay relationship in the area under examination.The weighting parameters are varied according to the spatial pattern of the sampled points in the neighborhood. The algorithm proves more efficient than ordinary IDW and,in several cases,also better than Kriging.Recently,Appice et al.(2013b)have started to link IDW to the spatio-temporal knowledge enclosed in specific summarization patterns,called trend clusters.Nevertheless,this investigation is restricted to univariate data.Local spatial autocorrelation and interpolative clusteringThere are several applications(e.g.Li and Revesz2002;Karydas et al.2009;Li et al.2011)where IDW is used.This contributes to highlighting IDW as a determinis-tic,quick and simple interpolation algorithm that yields accurate predictions.On the other hand,Kriging is based on the statistical properties of a variable and,hence,it is expected to be more accurate regarding the general characteristics of the recorded data and the efficacy of the model.In any case,the accuracy of Kriging depends on a reliable estimation of the variogram(Isaaks and Srivastava1989;¸Sen and¸Salhn 2001)and the variogram computation cost is proportional to the cube of the number of observed data(Cressie1990).This cost can be prohibitive in time-evolving applica-tions,where the statistical properties of a variable may change over time.In the Data Mining framework,the change of the underlying properties over time is usually called concept drift(Gama2010).It is noteworthy that the concept drift,expected in dynamic data,can be a serious complication for Kriging.It may impose the repetition of costly computation of the variogram each time the statistical properties of the variable change significantly.These considerations motivate the broad use of an interpolator like IDW that is accurate enough and whose learning phase can be run on-line when data are collected in a stream.3.3Cluster analysisCluster analysis is frequently used in geophysical data interpretation,in order to obtain meaningful and useful results(Song et al.2010).In addition,it can be used as a sum-marization paradigm for data streams,since it underlines the advantage of discovering summaries(clusters)that adjust well to the evolution of data.The seminal work is that of Aggarwal et al.(2007),where a k-means algorithm is tailored to discover micro-clusters from multidimensional transactions that arrive in a stream.Micro-clusters are adjusted each time a transaction arrives,in order to preserve the temporal locality of data along a time horizon.Another clustering algorithm to summarize data streams is presented in Nassar and Sander(2007).The main characteristic of this algorithm is that it allows us to summarize multi-source data streams.The multi-source stream is com-posed of sets of numeric values that are transmitted by a variable number of sources at consecutive time points.Timestamped values are modeled as2D(time-domain)points of a Euclidean space.Hence,the source location is neither represented as a dimension of analysis nor processed as information-bearing.The stream is broken into windows. Dense regions of2D points are detected in these windows and represented by means of cluster feature vectors.Although a spatial clustering algorithm is employed,the spatial arrangement of data sources is still neglected.Appice et al.(2013a)describe a clustering algorithm that accounts for the property of spatial autocorrelation when computing clusters that are compact and accurate summaries of univariate geophysical data streams.In all these studies clustering is addressed as an unsupervised task.Predictive clustering is a supervised extension of cluster analysis,which combines elements of prediction and clustering.The task,originally formulated in Blockeel et al.(1998),assumes:(1)a descriptive space of explanatory variables,(2)a predictive space of target variables and(3)a set of training records defined on both descriptive and predictive space.Training records that are similar to each other are clustered and a predictive model is associated to each cluster.This allows us to predict the unknown。
