Inchange Semiconductor Product Specification Silicon PNP Power Transistors 2SB1159 DESCRIPTION ・ ・With TO-3PFa package ・Complement to type 2SD1714 ・High fT ・Wide area of safe operation APPLICATIONS ・For high power amplifier applications PINNING PIN DESCRIPTION 1 Base 2 Collector 3 Emitter Absolute maximum ratings(Ta=25℃) SYMBOL PARAMETER CONDITIONS VALUE UNIT VCBO Collector-base voltage Open emitter -140 V VCEO Collector-emitter voltage Open base -140 V VEBO Emitter-base voltage Open collector -5 V IC Collector current -7 A ICP Collector current-peak -12 A TC=25℃ 80 PC Collector power dissipation Ta=25℃ 3 W Tj Junction temperature 150 ℃ Tstg Storage temperature -55~150 ℃ 固电半导体INCHANGE SEMICONDUCTOR元器件交易网www.cecb2b.comInchange Semiconductor Product Specification

2Silicon PNP Power Transistors 2SB1159 CHARACTERISTICS Tj=25℃ unless otherwise specified SYMBOL PARAMETER CONDITIONS MIN TYP. MAXUNITVCEsat Collector-emitter saturation voltage IC=-5A ;IB=-0.5A -2.0 V VBE Base-emitter on voltage IC=-5A ; VCE=-5V -1.8 V ICBO Collector cut-off current VCB=-140V; IE=0 -50 μA IEBO Emitter cut-off current VEB=-3V; IC=0 -50 μA hFE-1 DC current gain IC=-20mA ; VCE=-5V 20 hFE -2 DC current gain IC=-1A ; VCE=-5V 60 200 hFE -3 DC current gain IC=-5A ; VCE=-5V 20 COB Output capacitance IE=0 ; VCB=-10V;f=1MHz 220 pF fT Transition frequency IC=-0.5A ; VCE=-5V 20 MHz 󰂋 hFE-2 classifications Q S P 60-120 80-160 100-200 固电半导体INCHANGE SEMICONDUCTOR元器件交易网www.cecb2b.comInchange Semiconductor Product Specification

3

Silicon PNP Power Transistors 2SB1159 PACKAGE OUTLINE Fig.2 Outline dimensions (unindicated tolerance:±0.30mm) 固电半导体INCHANGE SEMICONDUCTOR元器件交易网www.cecb2b.com

合集下载

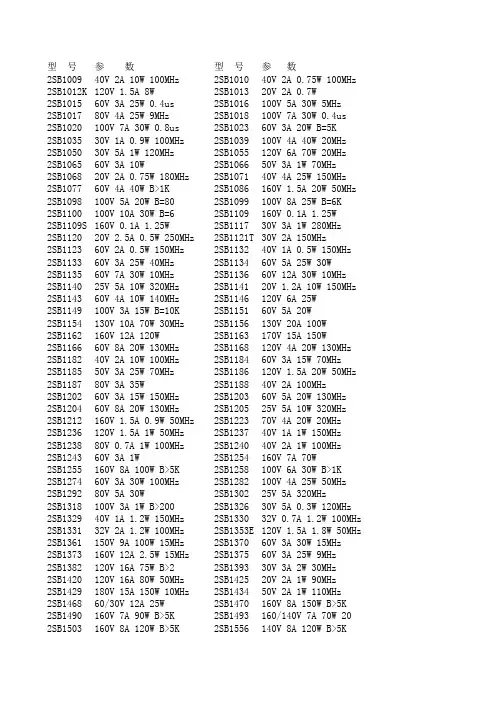

2SB三级管参数

2SB三级管参数

型 号参 数型 号参 数2SB100940V 2A 10W 100MHz2SB101040V 2A 0.75W 100MHz2SB1012K120V 1.5A 8W2SB101320V 2A 0.7W2SB101560V 3A 25W 0.4us2SB1016100V 5A 30W 5MHz2SB101780V 4A 25W 9MHz2SB1018100V 7A 30W 0.4us2SB1020100V 7A 30W 0.8us2SB102360V 3A 20W B=5K2SB103530V 1A 0.9W 100MHz2SB1039100V 4A 40W 20MHz2SB105030V 5A 1W 120MHz2SB1055120V 6A 70W 20MHz2SB106560V 3A 10W2SB106650V 3A 1W 70MHz2SB106820V 2A 0.75W 180MHz2SB107140V 4A 25W 150MHz2SB107760V 4A 40W B>1K2SB1086160V 1.5A 20W 50MHz2SB1098100V 5A 20W B=802SB1099100V 8A 25W B=6K2SB1100100V 10A 30W B=62SB1109160V 0.1A 1.25W2SB1109S160V 0.1A 1.25W2SB111730V 3A 1W 280MHz2SB112020V 2.5A 0.5W 250MHz2SB1121T30V 2A 150MHz2SB112360V 2A 0.5W 150MHz2SB113240V 1A 0.5W 150MHz2SB113360V 3A 25W 40MHz2SB113460V 5A 25W 30W2SB113560V 7A 30W 10MHz2SB113660V 12A 30W 10MHz2SB114025V 5A 10W 320MHz2SB114120V 1.2A 10W 150MHz2SB114360V 4A 10W 140MHz2SB1146120V 6A 25W2SB1149100V 3A 15W B=10K2SB115160V 5A 20W2SB1154130V 10A 70W 30MHz2SB1156130V 20A 100W2SB1162160V 12A 120W2SB1163170V 15A 150W2SB116660V 8A 20W 130MHz2SB1168120V 4A 20W 130MHz2SB118240V 2A 10W 100MHz2SB118460V 3A 15W 70MHz2SB118550V 3A 25W 70MHz2SB1186120V 1.5A 20W 50MHz2SB118780V 3A 35W2SB118840V 2A 100MHz2SB120260V 3A 15W 150MHz2SB120360V 5A 20W 130MHz2SB120460V 8A 20W 130MHz2SB120525V 5A 10W 320MHz2SB1212160V 1.5A 0.9W 50MHz2SB122370V 4A 20W 20MHz2SB1236120V 1.5A 1W 50MHz2SB123740V 1A 1W 150MHz2SB123880V 0.7A 1W 100MHz2SB124040V 2A 1W 100MHz2SB124360V 3A 1W2SB1254160V 7A 70W2SB1255160V 8A 100W B>5K2SB1258100V 6A 30W B>1K2SB127460V 3A 30W 100MHz2SB1282100V 4A 25W 50MHz2SB129280V 5A 30W2SB130225V 5A 320MHz2SB1318100V 3A 1W B>2002SB132630V 5A 0.3W 120MHz2SB132940V 1A 1.2W 150MHz2SB133032V 0.7A 1.2W 100MHz2SB133132V 2A 1.2W 100MHz2SB1353E120V 1.5A 1.8W 50MHz2SB1361150V 9A 100W 15MHz2SB137060V 3A 30W 15MHz2SB1373160V 12A 2.5W 15MHz2SB137560V 3A 25W 9MHz2SB1382120V 16A 75W B>22SB139330V 3A 2W 30MHz2SB1420120V 16A 80W 50MHz2SB142520V 2A 1W 90MHz2SB1429180V 15A 150W 10MHz2SB143450V 2A 1W 110MHz2SB146860/30V 12A 25W2SB1470160V 8A 150W B>5K2SB1490160V 7A 90W B>5K2SB1493160/140V 7A 70W 202SB1503160V 8A 120W B>5K2SB1556140V 8A 120W B>5K2SB1557140V 7A 100W B>5K2SB1559160V 8A 80W B>5K2SB1560160V 10A 100W 50MHz2SB156580V 3A 25W 15MHz2SB1587160V 8A 70W B>5K2SB1624110V 6A 60W B>5K2SB20680V 30A 80W2SB32432V 1A 0.25W2SB33750V 7A 30W LF-POWER2SB40730V 7A 30W2SB48132V 1A 6W 15KHz2SB49225V 2A 6W2SB511E35V 1.5A 10W 8MHz2SB52460V 1.5A 10W 70MHz2SB527110V 0.8A 10W 70MHz2SB53190V 6A 50W 8MHz2SB536130V 1.5A 20W 40MHz2SB537130V 1.5A 20W 60MHz2SB541110V 8A 80W 9MHz2SB54425V 1A 0.9W 180MHz2SB546A200V 2A 25W 5MHz2SB549120V 0.8A 10W 80MHz2SB557120V 8A 80W2SB560100V 0.7A 0.9W 100MHz2SB56125V 0.7A 0.5W2SB56430V 1A 0.8W2SB59825V 1A 0.5W 180MHz2SB600200V 15A 200W 4MHz2SB601100V 5A 30W2SB60560V 0.7A 0.8W 120MHz2SB62125V 1.5A 0.6W 200MHz2SB621A50V 1A 0.75W 200MHz2SB631100V 1A 8W2SB63225V 2A 10W 100MHz2SB633100V 6A 40W 15MHz2SB63750V 0.1A 0.3W 200MHz2SB64130V 0.1A 120MHz2SB647120V 1A 0.9W 140MHz2SB649A160V 1.5A 1W 140MHz2SB656160V 12A 125W 20MHz2SB673100V 7A 40W 0.8us2SB676100V 4A 30W 0.15us2SB681150V 12A 100W 13MHz2SB688120V 8A 80W 10MHz2SB700160V 12A 100W2SB703100V 4A 40W 18MHz2SB705140V 10A 120W 17MHz2SB70780V 7A 40W POWER2SB70945V 0.1A 0.2W 80MHz2SB716120V 0.05A 0.75W2SB720200V 2A 25W 100MHz2SB727120V 6A 50W B>1K2SB73160V 1A 10W 75MHz2SB73320V 2A 1W >50MHz2SB73460V 1A 1W 80MHz2SB73920/16V 2A 0.9W 80MHz2SB74070V 1A 0.9W2SB74470V 3A 10W 45MHz2SB75060V 2A 35W B>1002SB753100V 7A 40W 0.4us2SB76460V 1A 0.9A 150MHz2SB765120V 3A 30W B>1K2SB76630V 1A 200MHz2SB77240V 3A 10W 80MHz2SB77430V 0.1A 0.4W 150MHz2SB775100V 6A 60W 13MHz2SB776120V 7A 70W 15MHz2SB788120V 0.02A 0.4W 150MHz2SB791120V 8A 40W B>102SB79460V 1.5A 10W B=72SB79580V 1.5A 10W B<32SB80820V 0.7A 0.25W 250MHz2SB81030V 0.7A 0.35W 160MHz2SB81520V 0.7A 0.25W 250MHz2SB816150V 8A 80W 15MHz2SB817160V 12A 100W2SB817F160V 12A 90W 15MHz2SB81950V 1.5A 1W 150MHz2SB82240V 2A 0.75W 100MHz2SB82460V 5A 30W 30 MHz2SB82560V 7A 40W 10MHz2SB82660V 12A 40W 10MHz2SB82760V 7A 80W 10MHz2SB82860V 12A 80W 10MHz2SB82960V 15A 90W 20MHz2SB85750V 4A 40W NF/S-L2SB861200V 2A 30W2SB863140V 10A 100W 15MHz2SB86580V 1.5A 0.9W2SB87330V 5A 1W 120MHz2SB88270V 10A 40W B>5K2SB88370V 15A 70W B=5K2SB884110V 3A 30W B=4K2SB885110V 3A 35W B=4K2SB89140V 2A 5W 100MHz2SB89260V 2A 1W2SB895A60V 1A B=80002SB897100V 10A 80W B>12SB90880V 4A 15W 0.15us2SB90940V 1A 1W 150MHz2SB922120V 12A 80W 20MHz2SB92630V 2A 0.75W2SB938A60V 4A 40W B>1K2SB940200V 2A 35W 30MHz2SB94160V 3A 35W POWER2SB945130V 5A 40W 30MHz2SB946130V 7A 40W 30MHz2SB950A80V 4A 40W B>1K2SB953A50V 7A 30W 150MHz2SB955120V 10A 50W B=42SB975100V 8A 40W B>6K2SB97627V 5A 0.75W 120MHz2SB98560V 3A 1W 150MHz2SB98660V 4A 10W 150MHz2SB98860V 3A 30W <400/2200

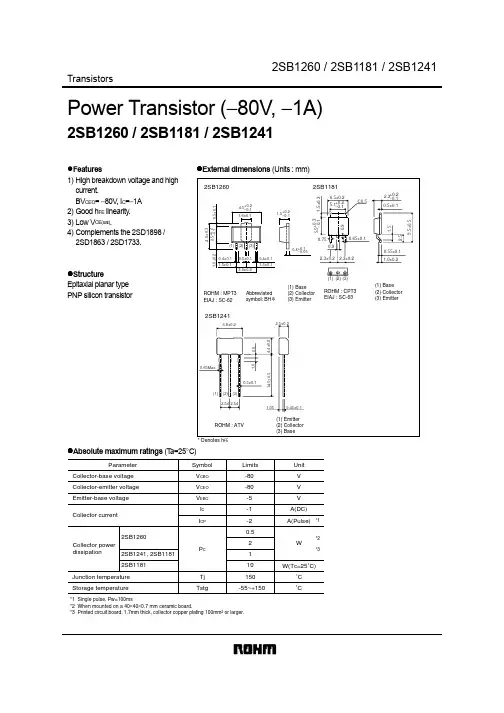

2SB1181中文资料
