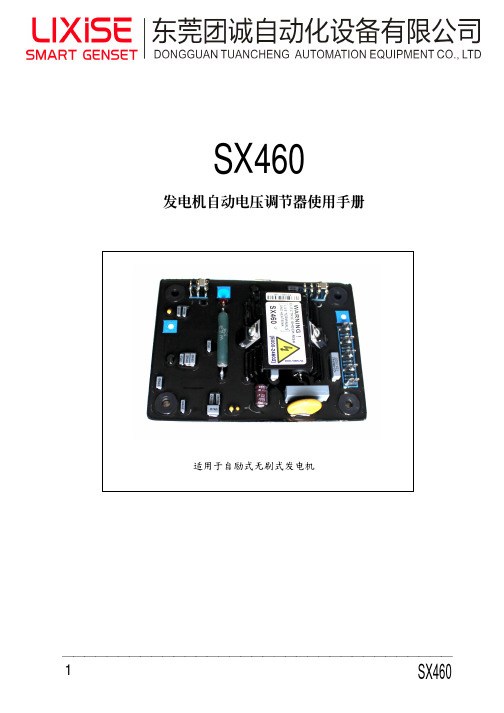

发电机自动调压板使用手册

SX460發電机自動電壓調節器使用手冊适用于自励式无刷式发电机1. 技術參數检测与检测与电源电源电源输入输入 电压 95 ~ 132 V AC 或190 ~ 264 V AC 电压调节率 < ±1.5% (发动机转速变动在4%内)单相 以跨接铜片设定 电压建立 在A VR 输入端子需剩磁电压5 V AC 以上频率 50/60 Hz 以跨接铜片设定 温差稳定度 每℃变化，电压漂移0.05% 输 出 电压 207 V AC 输入时 最大90 VDC 消耗功率 最大10 Watt电流 连续4A ，非连续为10秒内10A 低频保护 出厂设定点：95% Hz电阻 最小15 Ohm斜率：下降至30 Hz 时为170% 外部电压调节 用1K Ohms 1 Watt 电位器时为±7% 尺 寸 135mm L * 100mm W * 49mm H 电压缓慢建立时间2秒重 量243公克 ± 2%2. 接線 (如圖四、五)2.1 将发电机之磁场引线连接于F+、F-接口. 2.2 连接检测电源线于7、8 (出厂设定220V ，若需设定110V 时请将3、4跨接短路). 2.3 外部电压调节器如图四 (视需求). 2.4 选择50Hz 或60Hz. 2.5 选择R.S.T 三相电压.注：建议使用一较高遮断容量之保险加装于电源(如图四)，熔丝容量须依实际满载励磁场电流的120%.3. 使用時注意事項3.1 安装时注意事项：(配置参考图一). 3.1.1 安装、连接、调节、检查的作业由有专业知识人员实施. 3.1.2 将调节器安装于发电机内防潮、防蚀且防止他人易碰触的地方. 3.2 发电机运转时注意事项：3.2.1 在一般运转状况下，调节器表面温度会超过60℃. 3.2.2 运转时，请勿碰触调节器散热板，也不可将调节器散热板接地或触碰外壳，已张贴警告标志.3.3 开机程序： 3.3.1 初步设定：(1) 确定一切接线正确. (2) 将电压调节至最小.(3) 假如使用外部电压电位器，则调节至中点.(4) 调节稳定旋钮调节至最大.(5) 用110VDC 电压表或三用表接F+、F − ( F+接正、F −接负 ).(6) 用300VAC 表接交流输出端，检测交流输出电压. 3.3.2 系统开动：(1) 在空载状态下启动发电机，调节正确之转速，电压应建立于最低电压水平，假如不能建立电压时，(参阅5.以电瓶初期励磁或洽发电机商).(2) 缓慢调节电压调节钮至所需. (3) 顺时钟方向调节稳定调节钮直到出现不稳定状态时，再往反时钟方向调节至稳定点，即最适当之位置(参阅4.3.2)，故意中断本调节器之电源1~2秒再恢复，假如电压仍保持稳定则不需进一步调节，否则需以反时针方向调节稳定钮.4. 調節4.1 低频调节 (U/F).4.1.1 在50Hz 使用时，将 “ 跨接铜片 ” 插于C 与50Hz 之间，在60Hz 使用时将 “ 跨接铜片 ” 插于C 与60Hz 之间. 4.1.2 U/F 旋钮为设定低频保护之频率拐点值，其设定步骤为：(1) 使发动机启动，且电压建立. (2) 调节发动机转速至所须之低频值. (3) 缓慢调节U/F 旋钮使红色低频指示灯亮，即可(出厂设定50Hz 时45Hz 、60Hz 时55Hz)。

电话：07-8121771 传真：07-8121775 网址： 公司地址：台湾高雄市前镇区千富街201巷3号(邮政编码806-64)EA04A发电机自动电压调节器使用手册适用于自励式无刷式发电机可直接替代Basler *VR63-4, VR63-4A且相容于Marathon SE100A稳压器( *本产品并非Basler原厂产品，但能与其兼容)若AVR需并网可与Kutai EP200并网模块搭配使用___________________________________________________________________________________________ 2EA04A第一章 技术参数检测电压输入 低频保护 (出厂预设)电压 90 - 132 Vac 单相 50 Hz 系统 拐点值为45 Hz* 171 - 264 Vac 60 Hz 系统 拐点值为55 Hz* 频率 45/65 Hz (*拐点值为出厂预设值) 电源输入 过励磁自动关闭电压 90 - 240 Vac 单相二线 45 +/- 5 Vdc 延迟关闭；频率 45/65 Hz 67 +/- 5 Vdc 立即关闭 @ 110 Vac 励磁场输出 100 +/- 5 Vdc 延迟关闭；电压 最大 32 Vdc @ 电源输入120 Vac 135 +/- 5 Vdc 立即关闭 @ 220 Vac 最大 63 Vdc @ 电源输入240 Vac 电压温度飘移电流 连续4A ，非连续为60秒内7A -40至+70 ˚C ，小于 3% 励磁阻抗 最小15 Ω、最大100 Ω 工作环境 熔丝规格 5 x 20mm S505-5A / 250V 慢熔型 工作温度 -40至+60 ˚C 外部电压调节储存温度 -40至+85 ˚C 最大 +/- 15% @ 1 KΩ 1 watt 电位器 相对湿度 95%以下 调压精度振 动 1.5 Gs @ 5 - 30 Hz 小于 +/- 1% (频率变动在4%内) 5.0 Gs @ 30 - 500 Hz 电压建立尺 寸电源输入剩磁电压 5 Vac 以上 100.0 (L) x 68.5 (W) x 33.0 (H) mm EMI 抑制重 量内建电磁干扰滤波器 230 g +/- 2% 静态消耗功率第二章 接线2.1 3、4：电源输入. 2.2 F+、F-：励磁线圈. 2.3 VAR ：外部电压调节.2.4 Hz ：频率选择 (60 Hz 开路、50 Hz 跨接).第三章 V/Hz 自动关闭频率选择3.1 使用于50 Hz 时标示Hz 之二线，必须接合才能于45 Hz 以下时关闭本调节器之输出. (如图二、低频保护特性曲线)3.2 使用于60 Hz 时标示Hz 之二线，必须剪断才能于55 Hz 以下时关闭本调节器之输出.第四章 过励磁关闭于110V 系统下，假如励磁电压超过45 +/- 5 Vdc ，本调节器将依照电压/时间曲线适时关闭，但超过67 +/- 5 Vdc 时即刻关闭.于220V 系统下，假如励磁电压超过100 +/- 5 Vdc ，本调节器将依照电压/时间曲线适时关闭，但超过135 +/- 5 Vdc 时即刻关闭.___________________________________________________________________________________________ EA04A3第五章 开机手续5.1 初步设定：(1) 选择电压：以指拨开关选择120 Vac 或240Vac. (2) 确定一切接线正确. (3) 确认熔丝之规格.(4) 将「电压调节」钮与「稳定调节」钮反时针方向调至极限.(5) 假如使用遥控电压电位器，则调节至中点. (6) 用300 Vac 表接交流输出端，检测交流输出电压.5.2 系统开动：(1) 在空载状态下启动发电机，调节正确之转速，电压应建立于最低电压水平，假如不能建立电压时，参考发电机使用手册初期励磁章节. (2) 顺时针方向缓慢调节「电压调节」钮，达到所须额定电压即可.第六章 稳定调节6.1 稳定调节「STAB.」：缓慢调节「稳定调节」钮 (顺时针方向)可改变AVR 与发电机之间的反馈时间，调节过大会使电压不稳，太小会使重载瞬间电压变化大.6.2 建议以三用电表(指针式) DCV 监测 F+、F- 调节「稳定调节」使三用表指针晃动最小即可，如此亦可改善重载时的负载电压变动率.注意!!1. 调压板可装设于发电机组任何适当位置，其外型与固定孔径(如图一).2. 使用高阻计或耐压测试器检测前，须先将AVR 连接线拆离，避免高压损坏AVR.3. 不恰当之低频保护调节，可能于负载变动下，导致机组输出电压下降或不稳定，非必要请勿随意调节U/F 旋钮设定.图一 尺寸图___________________________________________________________________________________________ 4EA04A图二 低频保护特性曲线1. 将标示Hz 引线切断时为60 Hz.2. 外部调节电阻1 KΩ时，可调范围+/- 15% Vac.图三 接线图第七章 故障排除表※ 仅能使用本说明书指定类型和额定值的熔丝做更换。

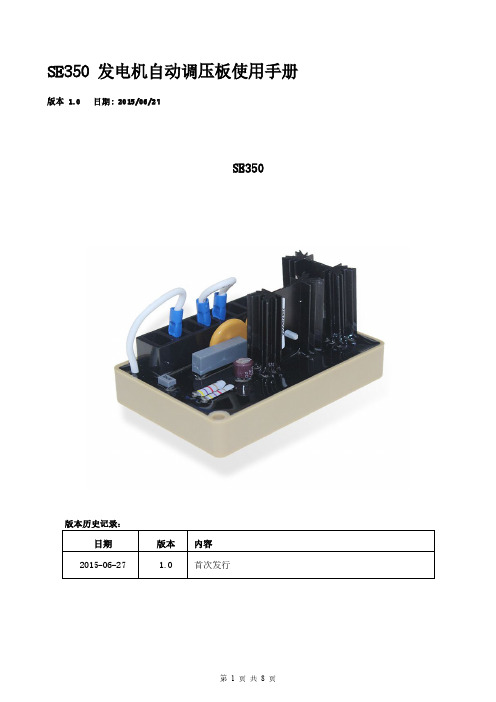

SE350发电机自动调压板使用手册版本 1.0日期:2015/06/27SE350版本历史记录：日期版本内容2015-06-27 1.0首次发行目录2．技术参数 (3)3．尺寸图 (4)4．接线 (5)3.1.励磁场接线“+、一” (5)3.2.检测&电源输入“3、4” (5)3.3.外接电压调节器“6、7” (5)3.4.低频保护一频率选择“50/60” (5)5．操作说明 (6)6．测试图： (8)1．技术参数项目参数说明电源检测输入电压85-135VAC/190-r240VAC单相频率50/60Hz以跨接线设定电压选择指拨开关选择120/240VAC输出电压120VAC输入时最大36VDC240VAC输入时最大73VDC电流连续4A非连续为10秒内7A(52/105VDC)电阻最小15Ohm最大100Ohm电压建立在AV R输入端子需剩磁电压5VAC以上，25Hz EMI抑制内建与突波吸收器与滤波器调压精度<士1%(发动机转速变动在4%内)外部电压调节用1K Ohms1Watt电位器时为士5%用2K Ohms1Watt电位器时为士10%消耗功率最大8Watt低频保护50Hz系统转折点为45-51Hz60Hz系统转折点为54-61Hz(*拐点值为出厂设定值)尺寸99.5mm L*67mm W*47.5mm H重量0.3KG2．尺寸图图一3．接线3.1.励磁场接线“+、一”(1)将调压板上注“F+”之引线连接于励磁机磁场“+”，将注“F-”引线连接至磁场“一”。

注:励磁机磁场直流电阻为15-100Ω。

(2)如果磁场电阻小于15Ω且在发电机全载时，磁场电压小于70V DC时可串接一适当瓦数(W)的电阻，使磁场总电阻为15一100Ω。

3.2.检测&电源输入“3、4”调压板上注“3、4”引线接至发电机组绕组，可由电压选择开关选择120或240VAC系统。

3.3.外接电压调节器“6、7”(1)调压板内部提供一发电机电压粗调预设旋钮(VOLT)，顺时针方向增加。

SX460發電机自動電壓調節器使用手冊适用于自励式无刷式发电机1. 技術參數检测与检测与电源电源电源输入输入 电压 95 ~ 132 V AC 或190 ~ 264 V AC 电压调节率 < ±1.5% (发动机转速变动在4%内)单相 以跨接铜片设定 电压建立 在A VR 输入端子需剩磁电压5 V AC 以上频率 50/60 Hz 以跨接铜片设定 温差稳定度 每℃变化，电压漂移0.05% 输 出 电压 207 V AC 输入时 最大90 VDC 消耗功率 最大10 Watt电流 连续4A ，非连续为10秒内10A 低频保护 出厂设定点：95% Hz电阻 最小15 Ohm斜率：下降至30 Hz 时为170% 外部电压调节 用1K Ohms 1 Watt 电位器时为±7% 尺 寸 135mm L * 100mm W * 49mm H 电压缓慢建立时间2秒重 量243公克 ± 2%2. 接線 (如圖四、五)2.1 将发电机之磁场引线连接于F+、F-接口. 2.2 连接检测电源线于7、8 (出厂设定220V ，若需设定110V 时请将3、4跨接短路). 2.3 外部电压调节器如图四 (视需求). 2.4 选择50Hz 或60Hz. 2.5 选择R.S.T 三相电压.注：建议使用一较高遮断容量之保险加装于电源(如图四)，熔丝容量须依实际满载励磁场电流的120%.3. 使用時注意事項3.1 安装时注意事项：(配置参考图一). 3.1.1 安装、连接、调节、检查的作业由有专业知识人员实施. 3.1.2 将调节器安装于发电机内防潮、防蚀且防止他人易碰触的地方. 3.2 发电机运转时注意事项：3.2.1 在一般运转状况下，调节器表面温度会超过60℃. 3.2.2 运转时，请勿碰触调节器散热板，也不可将调节器散热板接地或触碰外壳，已张贴警告标志.3.3 开机程序： 3.3.1 初步设定：(1) 确定一切接线正确. (2) 将电压调节至最小.(3) 假如使用外部电压电位器，则调节至中点.(4) 调节稳定旋钮调节至最大.(5) 用110VDC 电压表或三用表接F+、F − ( F+接正、F −接负 ).(6) 用300VAC 表接交流输出端，检测交流输出电压. 3.3.2 系统开动：(1) 在空载状态下启动发电机，调节正确之转速，电压应建立于最低电压水平，假如不能建立电压时，(参阅5.以电瓶初期励磁或洽发电机商).(2) 缓慢调节电压调节钮至所需. (3) 顺时钟方向调节稳定调节钮直到出现不稳定状态时，再往反时钟方向调节至稳定点，即最适当之位置(参阅4.3.2)，故意中断本调节器之电源1~2秒再恢复，假如电压仍保持稳定则不需进一步调节，否则需以反时针方向调节稳定钮.4. 調節4.1 低频调节 (U/F).4.1.1 在50Hz 使用时，将 “ 跨接铜片 ” 插于C 与50Hz 之间，在60Hz 使用时将 “ 跨接铜片 ” 插于C 与60Hz 之间. 4.1.2 U/F 旋钮为设定低频保护之频率拐点值，其设定步骤为：(1) 使发动机启动，且电压建立. (2) 调节发动机转速至所须之低频值. (3) 缓慢调节U/F 旋钮使红色低频指示灯亮，即可(出厂设定50Hz 时45Hz 、60Hz 时55Hz)。

MX321Generator Automatic Voltage RegulatorOperation ManualSelf Excited Automatic Voltage Regulator1. SPECIFICATIONSensing InputVoltage 190 ~ 264 VAC Max, 2 or 3 phaseFrequency 50 / 60 Hz, selectablePower Input (PMG)Voltage 170 ~ 220 VAC Max, 3 phase 3 wire Current 3A / PhaseFrequency 100 ~ 120 Hz, nominalOutputVoltage Max. 120 VDCCurrent Continuous 4AIntermittent 7A for 60 secResistance Min. 15 ohmVoltage Regulation< ± 0.5% RMS ( with 4% engine governing )Voltage Build-upResidual voltage at AVR terminal > 5 VACThermal Drift0.05% per °C change in AVR ambientExternal Volt Adjustment± 10% with 5K ohm 1 watt trimmerUnit Power DissipationMax. 18 wattUnder Frequency Protection (Factory Setting) Set point 95% HzSlope 100 ~ 300% down to 30 HzMax. Dwell 20% volts/sec. recoveryCurrent Limit Input10 ohms burdenSensitivity range 0.5 ~ 1A Soft Start Ramp Time0.4 ~ 4 sec.Analogue InputMax. Input ± 5 VDCSensitivity 1V for 5% generator voltInput Resistance 1K ohmDroop InputBurden 10 ohmMax. sensitivity 0.22 A for 5% droop (PF=0) Max. input 0.33 AOver Voltage Detector InputSet point 300V. Time delay 1 sec (fixed)CB trip coil volt 10 ~ 30 VDC / 0.5 AmpCB trip coil resistance 20 ~ 60 ohmsOver Excitation ProtectionSet point 120 VDCTime delay 8 ~ 15 secTypical System ResponseAVR response 10 msFiled current to 90% 80 msMachine Volt to 97% 300 msEnvironmental100Hz ~ 2K Hz 3.3gRelative Humidity 0 ~ 70 °C 95% (see note 7)Operating temperature -40 to +70 °CStorage temperature -40 to +85 °CDimensions203mm L * 153mm W * 45mm HWeight530g ± 2%2. GENERAL DESCRIPTION●EA321 is a two phase sensed Automatic VoltageRegulator and forms part of the excitation system for a brush-less generator. Excitation power is derived from a three-phase permanent magnet generator (PMG), to isolate the AVR control circuits from the effects of nonlinear loads and to reduce radio frequency interference on the generator terminals. Sustained generator short circuit current is another feature of the PMG system. ●The AVR senses the voltage in the maingenerator winding and controls the power fed to the exciter stator and hence the main rotor to maintain the generator output voltage within the specified limits, compensating for load, speed, temperature and power factor of the generator. ●Soft start circuitry is included to provide a smoothcontrolled build up of generator output voltage.●A frequency measuring circuit continuallymonitors the shaft speed of the generator and provides under-speed protection of the excitation system by reducing the generator output voltage proportionally with speed below a pre-settable threshold. A further enhancement of this feature is an adjustable volt per Hertz slope to improve engine recovery time on turbo charged engines.Soft start circuitry is included to provide a smooth controlled build up of generator output voltage. ●Uncontrolled excitation is limited to a safe periodby internal shutdown of the AVR output device.This condition remains latched until the generator has stopped.●Provision is made for the connection of a remotevoltage trimmer, allowing the user fine control of the generator’s output.●An analogue input is provided allowingconnection to a controller or other external devices with compatible output. ●The AVR has the facility for droop CT connection,to allow parallel running with other similarly equipped generators.NOTE :1. Derate linearly from 3.7A at 50 °C to2.7A at 70 °C.2. The stated voltage regulation may not bemaintained in the presence of certain transmitted radio signals. Any change in regulation will fall within the limits in criteria B of S.EN.61000-6-2 : 2001.3. After 10 minutes.4. Applies to Mod status E onwards. Generatorde-rate may apply. Check with factory. Factory set, semi-sealed, jumper selectable.5. Any device connected to the analogue input mustbe fully looting (galvanically isolated from ground), with an insulation strength of 500V ac.6. Non condensing.3. SUMMARY OF AVR CONTROLSCONTROL FUNCTION DIRECTIONVOLT To adjust generator output voltage Clockwise increases output voltage STABILITY To prevent voltage hunting Clockwise increase the damping effect UFRO To set the UFRO knee point Clockwise reduces the knee point frequency DROOP To set the generator droop to 5% at 0pf Clockwise increases the droopTRIM To optimize analogue input sensitivity Clockwise increases the gain or sensitivity EXC To set the over excitation cut off level Clockwise increase the cut off levelDIP To set the frequency related voltage dip Clockwise increases the voltage dip DWELL To set the HZ related recovery time Clockwise increases the recovery timeI LIMIT To set the stator current limit Clockwise increases the current limit OVER V To set the over voltage trip level Clockwise increases the trip levelRAMP To set the no load voltage RAMP up time Clockwise increases the voltage ramp time RMS To set 3 phase RMS detected4. ADJUSTMENT OF AVR CONTROLS 4.1 Voltage AdjustmentThe generator output voltage is set at the factory, but can be altered by careful adjustment of the VOLT control on the AVR board, or by the external hand trimmer if fitted.Terminals 1 and 2 on the AVR will be fitted with a shorting link if no hand trimmer is required.WARNINGDo not increase the voltage above the rated generator voltage. If in doubt, refer to the rating plate mounted on the generator case. Do not ground any of the hand trimmer terminals, as these could be above earth potential. Failure to observe this could cause equipment damage.If a replacement AVR has been fitted or re-setting of the VOLT adjustment is required, proceed as follows :1. Before running generator, turn the VOLT controlfully anti-clockwise.2. Turn remote VOLT trimmer (if fitted) to midwayposition.3. Turn STABILITY control to midway position.4. Connect a suitable voltmeter (0~300V ac) acrossline to neutral of the generator.5. Start generator set, and run on no load atnominal frequency e.g. 50~53Hz or 60~63Hz. 6. If the red Light Emitting Diode (LED) isilluminated, refer to the Under Frequency Roll Off (UFRO) adjustment..7. Carefully turn VOLT control clockwise until ratedvoltage is reached.8. If instability is present at rated voltage, refer tostability adjustment, then re-adjust voltage if necessary.9. Voltage adjustment is now completed.4.2 Stability Adjustment●The AVR includes stability or damping circuit toprovide good steady state and transient performance of the generator.●A jumper link selector is provided to optimize theresponse of the stability circuit to various size generators.●The link should be positioned as shown in thediagram according to the KW rating of the generator. The correct setting of the Stability adjustment can be found by running the generator at no load and slowly turning the stability control anti-clockwise until the generator voltage starts to become unstable. The optimum or critically damped position is slightly clockwise from this point (i.e. where the machine volt are stable but close to the unstable region).4.3 Under Frequency Roll Off (UFRO)AdjustmentThe AVR incorporates an under-speed protection circuit which gives a VOLT / Hz characteristic when the generator speed falls below a presentable threshold known as the “knee” point. The red Light Emitting Diode (LED) gives indication that the UFRO circuit is operating.The UFRO adjustment is preset and sealed and only requires the selection of 50 or 60Hz and 4 pole or 6 pole, using the jumper link as shown in the diagram. For optimum setting, the LED should illuminate as the frequency falls just below nominal, i.e. 47Hz on a 50Hz system or 57Hz on a 60Hz system.4.4 DROOP AdjustmentGenerators intended for parallel operation are fitted with a quadrature droop C.T. which provides a power factor dependent signal for the AVR. The C.T. is connected to S1, S2 on the AVR, (see generator wiring diagram for details). The DROOP adjustment is normally preset in the works to give 5% voltage droop at full load zero power factors. Clockwise increases the amount of C.T. signal injected into the AVR and increases the droop with lagging power factor (cos Ø). With the control fully anti-clockwise there is no droop.4.5 Trim Adjustment●An analogue input (A1 A2) is provided to connectto the controller or other devices. It is designed to accept dc signals up to ±5 VOLT.●The dc signal applied to this input adds to theAVR sensing circuit. A1 is connected to the AVR0 VOLT. Positive on A2 increases excitation.Negative on A2 decreases excitation.●The TRIM control allows the user to adjust thesensitivity of the input. With TRIM fully anti-clockwise the externally applied signal has no effect. Clockwise it has maximum effect.●Normal setting is fully clockwise when used witha controller.WARNINGAny devices connected to this input must be fully floating and galvanically isolated from ground, with an insulation capability of 500V ac. Failure to observe this could result in equipment damage.4.6 Er Excitation (EXC) AdjustmentThis adjustment is set and sealed in the works and should not be tampered with. An over excitation condition is indicated by the illumination of the red LED which also indicates under-speed running and over-volt.The generator must be stopped to reset an over-excitation trip.4.7 DIP AdjustmentThis feature is mostly used when the generator is coupled to turbo charged engines with limited block load acceptance. The feature works by increasing the V/Hz slope to give greater voltage roll off in proportion to speed.With the DIP control fully anti-clockwise, the generator voltage will follow the normal V/Hz line as the speed falls below nominal. Turning the DIP control clockwise provides greater voltage roll off aiding engine recovery.4.8 DWELLThis feature is mostly used when the generator is coupled to turbo charged engines with limited block load acceptance. The feature works by introducing a delay between speed recovery and voltage recovery and allows a greater DIP setting without instability. With the DWELL control fully anti-clockwise, the generator voltage will follow the V/Hz line. Turning the DWELL control clockwise increase the delay time between speed recovery and voltage recovery. 4.9 Current Limit (I LIMIT) AdjustmentThis feature is mostly used to limit short circuit current or to provide a current limit on motor starting. To use this feature, current limit CT’s of the correct ratio need to be connected to the AVR S1 S2 terminals. There is an internal time limit of 10 seconds. Consult the factory before using this feature.4.10 Over Voltage (OVER V) Adjustment This adjustment is set and sealed in the works and should not be tampered with. An over voltage condition is indicated by the illumination of the red LED which also indicates under-speed running and over-excitation. The generator must be stopped to reset an over-voltage trip.4.11 RAMPThe AVR includes a soft start or voltage ramp-up circuit to control the rate of voltage build up, when the generator runs up to speed. This is normally pre-set and sealed to give a voltage ramp-up time of approximately 3 seconds. If required, this can be adjusted between the limits defined in the specification.5. FITTING AND OPERATING ( Refer to generator wiring diagram for connectiondetails )Figure 1Outline Drawing UNIT : mmATTENTION1. Leave sufficient space for the highoutput resistor to dissipate heat.Install the AVR with an up right position where the high output resistor is above heat sink.2. AVR can be mounted directly on theengine, genset, switchgear, control panel, or any position that will not affects operation. For dimension reference, please see Figure 1.3. All voltage readings are to be takenwith an average-reading voltmeter Meggers and high-potential test equipment must not be used. Use of such equipment could damage the AVR.※Use only original supplied spare protection fuse for fuse replacement.※Please accept our sincere apology if any modification in performance, specification or appearance is made without prior notice.。

SX440发电机自动电压调节器中文使用说明书尊敬的用户：欢迎您使用 SX440 发电机自动电压调节器。

本调节器旨在为您的发电机提供稳定、可靠的电压输出，确保电力供应的质量和稳定性。

在使用本调节器之前，请您仔细阅读本使用说明书，以便正确操作和维护设备，充分发挥其性能和延长使用寿命。

一、产品概述SX440 发电机自动电压调节器是一款先进的电子设备，专门设计用于调节发电机的输出电压。

它采用了最新的控制技术和高精度的传感器，能够快速、准确地响应负载变化，保持输出电压在设定范围内。

二、技术参数1、输入电压：＿____2、输出电压：＿____3、调节精度：±＿____%4、响应时间：＿____毫秒5、工作温度：＿____℃至+＿____℃6、防护等级：＿____三、安装步骤1、在安装之前，请确保发电机处于停机状态，并断开电源。

2、打开调节器的包装盒，检查调节器及其附件是否齐全、完好。

3、将调节器安装在发电机控制箱内的合适位置，使用螺丝固定。

4、按照调节器上的接线图，将输入、输出和控制线路正确连接。

注意接线的牢固性和正确性，避免短路或接触不良。

5、安装完成后，仔细检查一遍接线，确保无误。

四、操作方法1、开机前，将调节器的电源开关置于“ON”位置。

2、调节电压设定旋钮，将输出电压设定为您所需的值。

3、启动发电机，调节器将自动检测发电机的输出电压，并进行调节。

4、在发电机运行过程中，您可以通过观察调节器上的指示灯和电压表，了解调节器的工作状态和输出电压情况。

五、功能特点1、自动调节功能：SX440 能够实时监测发电机的输出电压，并根据负载变化自动调整励磁电流，保持电压稳定。

2、过压保护功能：当发电机输出电压超过设定的上限值时，调节器会自动切断励磁电流，保护负载设备不受过高电压的损害。

3、欠压保护功能：若发电机输出电压低于设定的下限值，调节器会增加励磁电流，提高输出电压，以确保负载正常运行。

4、短路保护功能：在发生短路故障时，调节器能够迅速切断励磁电流，保护发电机和调节器本身不受损坏。

R230發電机自動電壓調節器使用手冊1. 技術參數检测与检测与电源电源电源输入输入 电压 120 V AC (90 ~ 140 V AC) 消耗功率 最大6 Watt单相二线 50/60Hz低频保护 频率 47 / 57Hz (可调式) 输 出 电压 120 V AC 输入时 最大100 VDC 励磁阻抗 电阻 最小15 Ohm电流 连续8A ，非连续为10秒内10A 过励磁自动关闭 调压精度 小于 ±1% (发动机转速变动在4%内) 电压建立在A VR 输入端子需剩磁电压5 V AC 以上 励磁电流超过8ADC ，则先经延迟时间后自动关闭；励磁电流大于10ADC ，则立即关闭 外部电压调节 用1K Ohms 0.5Watt 电位器时为±5% 尺 寸 140mm L * 75mm W * 51mm H 温差稳定度 每℃变化，电压漂移0.03% 重 量 310公克 ± 2% EMI 抑制 内建电磁干扰滤波器图一 尺寸图低频保护设定过低低频保护设定过低，，可能导致AVR 及励磁机损坏. 建议!! 使用60Hz 时，设为57Hz 使用50Hz 时，设为47Hz 2. 接線2.1 熔丝安装使用8A / 250V 高遮断容量熔丝，当系统异常时，可保护AVR 与设备.2.2 110V 、0V 端子为A VR 检测及电源输入，若发电机系统为220V 时(请参考图二、三). 2.3 E+、E – 端子为励磁输出端，接至发电机励磁场(励磁阻抗最小8Ω). 2.4 VR(如图二、三)外部电压调节端子，将跨接线拆除在端子两端跨接一电位器 1K Ω 1/2W 调节范围±5%. 2.5 Hz (如图二、三)频率设定，跨接为50Hz打开为60Hz ，出厂默认值47 / 57Hz. 2.6 设定步骤如下(1) 将U/F ADJ 旋钮反时计调至最大. (2) 启动发电机并调到额定电压值. (3) 调节发电机频率至所须 “低频” 保护频率. (4) 缓慢调节U/F ADJ (顺时针)，当发电机电压，开始下降时即可.3. 操作說明3.1 在发电机启动前请如下步骤确认： 3.1.1 起始设定A. 确认调压板规格是否符合系统需求?B. 确认调压板接线是否如下：C. 确认AVR 正确连接于发电机系统.D. 设定 “ VOLT ADJ ” AVR 电压调节与外部电压调节如下：(1) “ VOLT ADJ ”内部电压调节钮反时针调至最大. (2) 外部电压调节钮调至中央位置. E. “STAB.”调至中央位置. 3.2 系统起动3.2.1 完成如上述 “ 起始设定 ”.3.2.2 启动发电机且至额定转速(发电机应建立电压，如无请进行 “ 励磁 ” ) 3.2.3 缓慢顺时针调节 “ VOLT ADJ ” 钮至发电机额定电压. 3.2.4 缓慢顺或反时针方向调节“ STAB ”在励磁电压摆动至最小(几乎静止)时即可.注：当电压无法建立时当电压无法建立时，，请检查发电机回路是否短路? 或剩磁电压太低. 3.2.5 确认发电机工作正常，能承受的负载下，调压精度应小于 ±1% (空载至满载)，如无法达到时，检查如下：(1) 加负载时发电机频率是否下降到“低频保护” 频率. (2) 更换新AVR.注：AVR 所读取及演算均为平均值.3.3 A VR 测试3.3.1 如图四接线，灯泡电压为120V ，且勿超过100W. 3.3.2 A VR 上的 “电压调节” 与外部电压调节(如有)，稳定调节均顺时针调至最大.3.3.3 供应120V AC 50/60Hz 电源到A VR ，此时灯泡应亮起. 3.3.4 反时针缓慢旋转 “电压调节” 到某区段时灯泡开始熄灭，在这区段上来回转动，灯泡会亮---灭---亮---即表示A VR 的大部份功能是完好的.图二 120 / 240V 1ψ 3W 接线图三 120 / 208V 3ψ 4W 接线※ 请用原厂备份熔丝。

KUTAI ELECTRONICS INDUSTRY CO., LTD.TEL : +886-7-8121771FAX : +886-7-8121775Website : Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 806037, TaiwanEA480Generator Automatic Voltage RegulatorOperation ManualAnalog, single-phase sensing,Excitation output 5 Amp with half-wave rectifierFor use with self-excited, brushless generatorsCompatible with Newage Stamford AS480*Supports connection with Stamford Excitation Boost System (EBS)*Note：The manufacturer name and number are used for reference purpose only and do not imply that any part is the product of these manufacturer.SECTION 1 : SPECIFICATIONVoltage Sensing / Power Input (7,8) Average Reading Static Power DissipationVoltage 60 300 Vac, 1 phase 2 wire Max. 4 wattsFrequency 50/60 Hz (Jumper Selected)Quadrature Droop Input (S1, S2)Excitation Output (F1, F2) Input resistance 10 ohms110V 1 phase Continuous 31 Vdc 5A Sensitivity 0.07A for 5% voltage drop (PF= 0) Max. 45 Vdc 7.5A for 10 secs. Max. Input 0.33A220V 1 phase Continuous 63 Vdc 5AMax. 90 Vdc 7.5A for 10 secs. Under Frequency Protection (knee point factory preset) Note：If AVR is mounted externally to alternator 45 Hz for 50 Hz systemscontinuous current is reduced by 20% 55 Hz for 60 Hz systemsResistance Min. 6 ohms, Max. 100 ohm @ 110VMin. 13 ohms, Max. 100 ohm @ 220V Over Excitation ProtectionExcitation Voltage 70 Vdc +/- 10 %External Voltage Adjustment (1, 2)Time Delay 10 – 15 secondsMax. +/- 10% @ 1K ohm 1 watt potentiometerUse 7.5K ohms resistor to enable 110Vac sensing Voltage Thermal DriftLess than 3% at temperature range -40 to +70 ˚C Voltage RegulationLess than +/- 0.5% (with 4% engine speed governing) EnvironmentOperating Temperature -40 to +60 ˚CBuild up Voltage Storage Temperature -40 to +85 ˚C4 Vac 25 Hz residual volts at power input terminal Relative Humidity Max. 95%Vibration 5.5 Gs @ 60 HzSoft Start Ramp Time3 seconds +/- 10% Dimensions130.0 (L) x 90.0 (W) x 39.0 (H) mmTypical System Response 5.12 (L) x 3.54 (W) x 1.54 (H) inchLess than 20 millisecondsWeightEMI 260 g +/- 2%Built-in Harmonic suppression 0.573 lb +/- 2%___________________________________________________________________________________________ 2EA480___________________________________________________________________________________________ EA4803SECTION 2 : APPEARANCE / DIMENSIONS / INSTALLATION DRAWINGUnit : mm [inch]SECTION 3 : LED INDICATORS AND POTENTIOMETER ADJUSTMENTS1, 2：External VR Input used ；Use 7.5K ohms resistor enable 110Vac sensing. 7, 8：Power Input： to ExcitationS1, S2：InputMax. Input 0.33AD ：Stability range：> 100KW：< 100KW Slow ：< 100KW Fast ：Under Frequency ：60 Hz system ：50 Hz system STAB ：StabilityF1, F2：Connect to generator excitation fieldU/F ：Under Frequency when U/FUFRO ：Under Frequency Protection50 Hz system ：Adjustable 40 – 51 Hz Factory preset 45 Hz 60 Hz system ：Adjustable 50 – 61 Hz Factory preset 55 HzVOLT ：Voltage adjustment DROOP ：Voltage droop (for parallel operation)Figure 1 Outline DrawingFigure 2___________________________________________________________________________________________ 4EA480SECTION 4 : CONNECTION DIAGRAMSFigure 3 220 VacFigure 4 380/440 Vac※ Use only replacement fuses specified in this user manual.※ Appearance and specifications of products are subject to change for improvement without prior notice.。

SX460AUTOMATIC VOLTAGEREGULATOR (AVR)SPECIFICATION,INSTALLATION AND ADJUSTMENTSGeneral descriptionTechnical specificationSX460is a half-wave phase-controlled thyristor typeAutomatic Voltage Regulator (AVR)and forms part of the excitation system for a brush-less generator.INPUTVoltage Jumper selectable 95-132V ac or 190-264V acIn addition to regulating the generator voltage,the AVR circuitry includes under-speed and sensing loss protection features.Excitation power is derived directly from the generator terminals.Positive voltage build up from residual levels is ensured by the use of efficient semiconductors in the power circuitry of Frequency PhaseOUTPUTVoltage CurrentResistance50-60Hz nominal 1max 90V dc at 207V ac input continuous 4A dcIntermittent 6A for 10secs 15ohms minimumthe AVR.The AVR is linked with the main stator windings and the exciter field windings to provide closed loop control of the output voltage with load regulation of +/-1.0%.REGULATION+/-1.0%(see note 1)THERMAL DRIFT0.05%per deg.C change in AVR ambient (note 2)In addition to being powered from the main stator,the AVR also derives a sample voltage from the output windings for voltage control purposes.In response to this samplevoltage,the AVR controls the power fed to the exciter field,TYPICAL SYSTEM RESPONSEAVR responseFiled current to 90%Machine Volts to 97%20ms 80ms 300msand hence the main field,to maintain the machine output voltage within the specified limits,compensating for load,speed,temperature and power factor of the generator.A frequency measuring circuit continually monitors the generator output and provides output under-speedprotection of the excitation system,by reducing the output voltage proportionally with speed below a pre-settable threshold.A manual adjustment is provided for factory setting of the under frequency roll off point,(UFRO).This can easily be changed to 50or 60Hz in the field by push-on link selection.EXTERNAL VOLTAGE ADJUSTMENT+/-10%with 1k ohm 1watt trimmer (see note 3)UNDER FREQUENCY PROTECTIONSet point 95%Hz (see note 4)Slope 170%down to 30Hz UNIT POWER DISSIPATION 10watts maximum BUILD UP VOLTAGE4Volts @AVR terminals Provision is made for the connection of a remote voltage trimmer,allowing the user fine control of the generator's output.ENVIRONMENTALVibration20-100Hz 100Hz –2kHzOperating temperature Relative Humidity 0-70°C Storage temperatureNOTES50mm/sec 3.3g-40to +70°C 95%(see note 5)-55to +80°C1.2.3.4.5.With 4%engine governing After 10minutes.Applies to Mod status F onwards.Generator de-rate mayapply.Check with factory.Factory set,semi-sealed,jumper selectable Non condensing.DESIGN DETAILThe main functions of the AVR are:Potential Divider and Rectifier takes a proportion of the generator output voltage and attenuates it.This input chain of resistors includes the range potentiometer and hand trimmer which adjust the generator voltage.Arectifier converts the a.c.into d.c.for further processing.The Amplifier (Amp)compares the sensing voltage to the Reference Voltage and amplifies the difference (error)to provide a controlling signal for the power devices.The Ramp Generator and Level Detector and Driver infinitely control the conduction period of the Power ControlDevices and hence provides the excitation system with the required power to maintain the generator voltage within specified limits.A The Stability Circuit provides adjustable negative ac feedback to ensure good steady state and transient performance of the control system.The Synchronising circuit is used to keep the Ramp Generator and Low Hz Detector locked to the generator waveform period.The Low Pass Filter prevents distorted waveforms affecting the operation of the AVR.Power Control Devices vary the amount of exciter field current in response to the error signal produced by the Amplifier.Suppression components are included to prevent sub cycle voltage spikes damaging the AVR components and also to reduce the amount of conducted noise on the generator terminals.The Power Supply The Low Hz Detector measures the period of each electrical cycle and causes the reference voltage to be reduced approximately linearly with speed below a presettable threshold.Light Emitting Diode gives indication of underspeed running.ADJUSTMENT OF AVR CONTROLSVOLTAGE ADJUSTMENTThe generator output voltage is set at the factory,but can be altered by careful adjustment of the VOLTS control on the AVR board,or by the external hand trimmer if fitted.Terminals 1and 2on the AVR will be fitted with a shorting link if no hand trimmer is required.Terminals 3and 4are linked only for special low voltage applications.CAUTION Do not increase the voltage above the rated generator voltage.If in doubt,refer to the rating plate mounted on the generator case.CAUTION Do not ground any of the hand trimmerterminals as these could be above earth potential.Failure to observe this could cause equipment damage.If a replacement AVR has been fitted or re-setting of the VOLTS adjustment is required,proceed as follows:CAUTION1.Before running generator,turn the VOLTS control fully anti-clockwise.2.Turn remote volts trimmer (if fitted)to midway position.3.Turn STABILITY control to midway position.4.Connect a suitable voltmeter (0-300V ac)across line to neutral of the generator.5.Start generator set,and run on no load at nominal frequency e.g.50-53Hz or 60-63Hz.6.If the red Light Emitting Diode (LED)is illuminated,refer to the Under Frequency Roll Off (UFRO)adjustment.7.Carefully turn VOLTS control clockwise until rated voltage is reached.8.If instability is present at rated voltage,refer tostability adjustment,then re-adjust voltage if necessary.9.Voltage adjustment is now completed.FITTING AND OPERATINGSTABILITY ADJUSTMENTThe AVR includes a stability or damping circuit toprovide good steady state and transient performance of the generator.The correct setting can be found by running the generator at no load and slowly turning the stabilitycontrol anti-clockwise until the generator voltage starts to become unstable.The optimum or critically damped position is slightly clockwise from this point (i.e.where the machine volts are stable but close to the unstable region).UNDER FREQUENCY ROLL OFF (UFRO)ADJUSTMENTThe AVR incorporates an underspeed protection circuit which gives a volts/Hz characteristic when the generator speed falls below a presettable threshold known as the "knee"point.The red Light Emitting Diode (LED)gives indication that the UFRO circuit is operating.The UFRO adjustment is preset and sealed and only requires the selection of 50/60Hz using the jumper link.For optimum setting,the LED should illuminate as the frequency falls just below nominal,i.e.47Hz on a 50Hz system or 57Hz on a 60Hz system.。

发电机自动调压板使用手册版本 1.0日期:2015/06/27SE350版本历史记录：日期版本内容2015-06-27 1.0首次发行目录2．技术参数 (3)3．尺寸图 (4)4．接线 (5)3.1.励磁场接线“+、一” (5)3.2.检测&电源输入“3、4” (5)3.3.外接电压调节器“6、7” (5)3.4.低频保护一频率选择“50/60” (5)5．操作说明 (5)6．测试图： (8)1．技术参数项目参数说明电源检测输入电压85-135VAC/190-r240VAC单相频率50/60Hz以跨接线设定电压选择指拨开关选择120/240VAC输出电压120VAC输入时最大36VDC240VAC输入时最大73VDC电流连续4A非连续为10秒内7A(52/105VDC)电阻最小15Ohm最大100Ohm电压建立在AV R输入端子需剩磁电压5VAC以上，25Hz EMI抑制内建与突波吸收器与滤波器调压精度<士1%(发动机转速变动在4%内)外部电压调节用1K Ohms1Watt电位器时为士5%用2K Ohms1Watt电位器时为士10%消耗功率最大8Watt低频保护50Hz系统转折点为45-51Hz60Hz系统转折点为54-61Hz(*拐点值为出厂设定值)尺寸99.5mm L*67mm W*47.5mm H重量0.3KG2．尺寸图图一3．接线3.1.励磁场接线“+、一”(1)将调压板上注“F+”之引线连接于励磁机磁场“+”，将注“F-”引线连接至磁场“一”。

注:励磁机磁场直流电阻为15-100Ω。

(2)如果磁场电阻小于15Ω且在发电机全载时，磁场电压小于70V DC时可串接一适当瓦数(W)的电阻，使磁场总电阻为15一100Ω。

3.2.检测&电源输入“3、4”调压板上注“3、4”引线接至发电机组绕组，可由电压选择开关选择120或240VAC系统。

3.3.外接电压调节器“6、7”(1)调压板内部提供一发电机电压粗调预设旋钮(VOLT)，顺时针方向增加。
