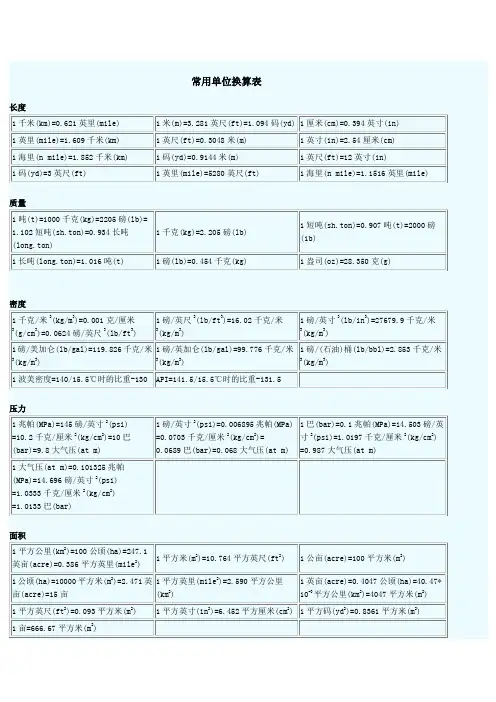

线路板（PCB）常用度量衡单位术语换算1英尺=12英寸1英寸inch=1000密尔mil1mil=25.4um1mil=1000uin mil密耳有时也成英丝1um=40uin（有些公司称微英寸为麦，其实是微英寸）1OZ=28.35克/平方英尺=35微米H=18微米4mil/4mil=0.1mm/0.1mm线宽线距1ASD=1安培/平方分米=10.76安培/平方英尺1AM=1安培分钟=60库仑主要用于贵金属电镀如镀金1平方分米=10.76平方英尺1盎司=28.35克,此为英制单位1加仑(英制)=4.5升1加仑美制=3.785升1KHA=1000安小时1安培小时=3600库仑比重波美度=145-145/比重SG.SG.比重（克/立方厘米）=145/（145-波美度)PCB基材类词汇中英文对照：1、基材：base material2、层压板：laminate3、覆金属箔基材：metal-clad bade material4、覆铜箔层压板：copper-clad laminate (ccl)5、单面覆铜箔层压板：single-sided copper-clad laminate6、双面覆铜箔层压板：double-sided copper-clad laminate7、复合层压板：composite laminate8、薄层压板：thin laminate9、金属芯覆铜箔层压板：metal core copper-clad laminate10、金属基覆铜层压板：metal base copper-clad laminate11、挠性覆铜箔绝缘薄膜：flexible copper-clad dielectric film12、基体材料：basis material13、预浸材料：prepreg14、粘结片：bonding sheet15、预浸粘结片：preimpregnated bonding sheer16、环氧玻璃基板：epoxy glass substrate17、加成法用层压板：laminate for additive process18、预制内层覆箔板：mass lamination panel19、内层芯板：core material20、催化板材：catalyzed board ,coated catalyzed laminate21、涂胶催化层压板：adhesive-coated catalyzed laminate22、涂胶无催层压板：adhesive-coated uncatalyzed laminate23、粘结层：bonding layer24、粘结膜：film adhesive25、涂胶粘剂绝缘薄膜：adhesive coated dielectric film26、无支撑胶粘剂膜：unsupported adhesive film27、覆盖层：cover layer (cover lay)28、增强板材：stiffener material29、铜箔面：copper-clad surface30、去铜箔面：foil removal surface31、层压板面：unclad laminate surface32、基膜面：base film surface33、胶粘剂面：adhesive faec34、原始光洁面：plate finish35、粗面：matt finish36、纵向：length wise direction37、模向：cross wise direction38、剪切板：cut to size panel39、酚醛纸质覆铜箔板：phenolic cellulose paper copper-clad laminates(phenolic/paper ccl)40、环氧纸质覆铜箔板：epoxide cellulose paper copper-clad laminates (epoxy/paper ccl)41、环氧玻璃布基覆铜箔板：epoxide woven glass fabric copper-clad laminates42、环氧玻璃布纸复合覆铜箔板：epoxide cellulose paper core, glass cloth surfaces copper-clad laminates43、环氧玻璃布玻璃纤维复合覆铜箔板：epoxide non woven/woven glass reinforced copper-clad laminates44、聚酯玻璃布覆铜箔板：ployester woven glass fabric copper-clad laminates45、聚酰亚胺玻璃布覆铜箔板：polyimide woven glass fabric copper-clad laminates46、双马来酰亚胺三嗪环氧玻璃布覆铜箔板：bismaleimide/triazine/epoxide woven glass fabric copper-clad lamimates47、环氧合成纤维布覆铜箔板：epoxide synthetic fiber fabric copper-clad laminates48、聚四乙烯玻璃纤维覆铜箔板：teflon/fiber glass copper-clad laminates49、超薄型层压板：ultra thin laminate50、陶瓷基覆铜箔板：ceramics base copper-clad laminates51、紫外线阻挡型覆铜箔板：uv blocking copper-clad laminatesPCB综合词汇中英文对照：1、印制电路：printed circuit2、印制线路：printed wiring3、印制板：printed board4、印制板电路：printed circuit board (pcb)5、印制线路板：printed wiring board(pwb)6、印制元件：printed component7、印制接点：printed contact8、印制板装配：printed board assembly9、板：board10、单面印制板：single-sided printed board(ssb)11、双面印制板：double-sided printed board(dsb)12、多层印制板：mulitlayer printed board(mlb)13、多层印制电路板：mulitlayer printed circuit board14、多层印制线路板：mulitlayer prited wiring board15、刚性印制板：rigid printed board16、刚性单面印制板：rigid single-sided printed borad17、刚性双面印制板：rigid double-sided printed borad18、刚性多层印制板：rigid multilayer printed board19、挠性多层印制板：flexible multilayer printed board20、挠性印制板：flexible printed board21、挠性单面印制板：flexible single-sided printed board22、挠性双面印制板：flexible double-sided printed board23、挠性印制电路：flexible printed circuit (fpc)24、挠性印制线路：flexible printed wiring25、刚性印制板：flex-rigid printed board, rigid-flex printed board26、刚性双面印制板：flex-rigid double-sided printed board, rigid-flex double-sided printe d27、刚性多层印制板：flex-rigid multilayer printed board, rigid-flex multilayer printed bo ard28、齐平印制板：flush printed board29、金属芯印制板：metal core printed board30、金属基印制板：metal base printed board31、多重布线印制板：mulit-wiring printed board32、陶瓷印制板：ceramic substrate printed board33、导电胶印制板：electroconductive paste printed board34、模塑电路板：molded circuit board35、模压印制板：stamped printed wiring board36、顺序层压多层印制板：sequentially-laminated mulitlayer37、散线印制板：discrete wiring board38、微线印制板：micro wire board39、积层印制板：buile-up printed board40、积层多层印制板：build-up mulitlayer printed board (bum)41、积层挠印制板：build-up flexible printed board42、表面层合电路板：surface laminar circuit (slc)43、埋入凸块连印制板：b2it printed board44、多层膜基板：multi-layered film substrate(mfs)45、层间全内导通多层印制板：alivh multilayer printed board46、载芯片板：chip on board (cob)47、埋电阻板：buried resistance board48、母板：mother board49、子板：daughter board50、背板：backplane51、裸板：bare board52、键盘板夹心板：copper-invar-copper board53、动态挠性板：dynamic flex board54、静态挠性板：static flex board55、可断拼板：break-away planel56、电缆：cable57、挠性扁平电缆：flexible flat cable (ffc)58、薄膜开关：membrane switch59、混合电路：hybrid circuit60、厚膜：thick film61、厚膜电路：thick film circuit62、薄膜：thin film63、薄膜混合电路：thin film hybrid circuit64、互连：interconnection65、导线：conductor trace line66、齐平导线：flush conductor67、传输线：transmission line68、跨交：crossover69、板边插头：edge-board contact70、增强板：stiffener71、基底：substrate72、基板面：real estate73、导线面：conductor side74、元件面：component side75、焊接面：solder side76、印制：printing77、网格：grid78、图形：pattern79、导电图形：conductive pattern80、非导电图形：non-conductive pattern81、字符：legend82、标志：markPCB原材料化学用语中英文对照：1、 a阶树脂：a-stage resin2、 b阶树脂：b-stage resin3、 c阶树脂：c-stage resin4、环氧树脂：epoxy resin5、酚醛树脂：phenolic resin6、聚酯树脂：polyester resin7、聚酰亚胺树脂：polyimide resin8、双马来酰亚胺三嗪树脂：bismaleimide-triazine resin9、丙烯酸树脂：acrylic resin10、三聚氰胺甲醛树脂：melamine formaldehyde resin11、多官能环氧树脂：polyfunctional epoxy resin12、溴化环氧树脂：brominated epoxy resin13、环氧酚醛：epoxy novolac14、氟树脂：fluroresin15、硅树脂：silicone resin16、硅烷：silane17、聚合物：polymer18、无定形聚合物：amorphous polymer19、结晶现象：crystalline polamer20、双晶现象：dimorphism21、共聚物：copolymer22、合成树脂：synthetic23、热固性树脂：thermosetting resin24、热塑性树脂：thermoplastic resin25、感光性树脂：photosensitive resin26、环氧当量：weight per epoxy equivalent (wpe)27、环氧值：epoxy value28、双氰胺：dicyandiamide29、粘结剂：binder30、胶粘剂：adesive31、固化剂：curing agent32、阻燃剂：flame retardant33、遮光剂：opaquer34、增塑剂：plasticizers35、不饱和聚酯：unsatuiated polyester36、聚酯薄膜：polyester37、聚酰亚胺薄膜：polyimide film (pi)38、聚四氟乙烯：polytetrafluoetylene (ptfe)39、聚全氟乙烯丙烯薄膜：perfluorinated ethylene-propylene copolymer film (fep)40、增强材料：reinforcing material41、玻璃纤维：glass fiber42、 e玻璃纤维：e-glass fibre43、 d玻璃纤维：d-glass fibre44、 s玻璃纤维：s-glass fibre45、玻璃布：glass fabric46、非织布：non-woven fabric47、玻璃纤维垫：glass mats48、纱线：yarn49、单丝：filament50、绞股：strand51、纬纱：weft yarn52、经纱：warp yarn53、但尼尔：denier54、经向：warp-wise55、纬向：weft-wise, filling-wise56、织物经纬密度：thread count57、织物组织：weave structure58、平纹组织：plain structure59、坏布：grey fabric60、稀松织物：woven scrim61、弓纬：bow of weave62、断经：end missing63、缺纬：mis-picks64、纬斜：bias65、折痕：crease66、云织：waviness67、鱼眼：fish eye68、毛圈长：feather length69、厚薄段：mark70、裂缝：split71、捻度：twist of yarn72、浸润剂含量：size content73、浸润剂残留量：size residue74、处理剂含量：finish level75、浸润剂：size76、偶联剂：couplint agent77、处理织物：finished fabric78、聚酰胺纤维：polyarmide fiber79、聚酯纤维非织布：non-woven polyester fabric80、浸渍绝缘纵纸：impregnating insulation paper81、聚芳酰胺纤维纸：aromatic polyamide paper82、断裂长：breaking length83、吸水高度：height of capillary rise84、湿强度保留率：wet strength retention85、白度：whitenness86、陶瓷：ceramics87、导电箔：conductive foil88、铜箔：copper foil89、电解铜箔：electrodeposited copper foil (ed copper foil)90、压延铜箔：rolled copper foil91、退火铜箔：annealed copper foil92、压延退火铜箔：rolled annealed copper foil (ra copper foil)93、薄铜箔：thin copper foil94、涂胶铜箔：adhesive coated foil95、涂胶脂铜箔：resin coated copper foil (rcc)96、复合金属箔：composite metallic material97、载体箔：carrier foil98、殷瓦：invar99、箔（剖面）轮廓：foil profile100、光面：shiny side101、粗糙面：matte side102、处理面：treated side103、防锈处理：stain proofing104、双面处理铜箔：double treated foilPCB线路设计词汇中英文对照：1、原理图：shematic diagram2、逻辑图：logic diagram3、印制线路布设：printed wire layout4、布设总图：master drawing5、可制造性设计：design-for-manufacturability6、计算机辅助设计：computer-aided design.(cad)7、计算机辅助制造：computer-aided manufacturing.(cam)8、计算机集成制造：computer integrat manufacturing.(cim)11、电子设计自动化：electric design automation .(eda)12、工程设计自动化：engineering design automaton .(eda2)13、组装设计自动化：assembly aided architectural design. (aaad)14、计算机辅助制图：computer aided drawing15、计算机控制显示：computer controlled display .(ccd)16、布局：placement17、布线：routing18、布图设计：layout19、重布：rerouting20、模拟：simulation21、逻辑模拟：logic simulation22、电路模拟：circit simulation23、时序模拟：timing simulation24、模块化：modularization25、布线完成率：layout effeciency26、机器描述格式：machine descriptionm format .(mdf)27、机器描述格式数据库：mdf databse28、设计数据库：design database29、设计原点：design origin30、优化（设计）：optimization (design)31、供设计优化坐标轴：predominant axis32、表格原点：table origin33、镜像：mirroring36、制造文件：manufacturing documentation37、队列支撑数据库：queue support database38、元件安置：component positioning39、图形显示：graphics dispaly40、比例因子：scaling factor41、扫描填充：scan filling42、矩形填充：rectangle filling43、填充域：region filling44、实体设计：physical design45、逻辑设计：logic design46、逻辑电路：logic circuit47、层次设计：hierarchical design48、自顶向下设计：top-down design49、自底向上设计：bottom-up design50、线网：net51、数字化：digitzing52、设计规则检查：design rule checking53、走（布）线器：router (cad)54、网络表：net list55、计算机辅助电路分析：computer-aided circuit analysis56、子线网：subnet57、目标函数：objective function58、设计后处理：post design processing (pdp)61、工程图：engineering drawing62、方块框图：block diagram63、迷宫：moze64、元件密度：component density65、巡回售货员问题：traveling salesman problem66、自由度：degrees freedom67、入度：out going degree68、出度：incoming degree69、曼哈顿距离：manhatton distance70、欧几里德距离：euclidean distance71、网络：network72、阵列：array73、段：segment74、逻辑：logic75、逻辑设计自动化：logic design automation76、分线：separated time77、分层：separated layer78、定顺序：definite sequencePCB线路形状与尺寸词汇中英文对照：1、导线（通道）：conduction (track)2、导线（体）宽度：conductor width3、导线距离：conductor spacing4、导线层：conductor layer7、圆形盘：round pad8、方形盘：square pad9、菱形盘：diamond pad10、长方形焊盘：oblong pad11、子弹形盘：bullet pad12、泪滴盘：teardrop pad13、雪人盘：snowman pad14、 v形盘：v-shaped pad15、环形盘：annular pad16、非圆形盘：non-circular pad17、隔离盘：isolation pad18、非功能连接盘：monfunctional pad19、偏置连接盘：offset land20、腹（背）裸盘：back-bard land21、盘址：anchoring spaur22、连接盘图形：land pattern23、连接盘网格阵列：land grid array24、孔环：annular ring25、元件孔：component hole26、安装孔：mounting hole27、支撑孔：supported hole28、非支撑孔：unsupported hole29、导通孔：via32、盲孔：blind via (hole)33、埋孔：buried via hole34、埋/盲孔：buried /blind via35、任意层内部导通孔：any layer inner via hole (alivh)36、全部钻孔：all drilled hole37、定位孔：toaling hole38、无连接盘孔：landless hole39、中间孔：interstitial hole40、无连接盘导通孔：landless via hole41、引导孔：pilot hole42、端接全隙孔：terminal clearomee hole43、准表面间镀覆孔：quasi-interfacing plated-through hole44、准尺寸孔：dimensioned hole45、在连接盘中导通孔：via-in-pad46、孔位：hole location47、孔密度：hole density48、孔图：hole pattern49、钻孔图：drill drawing50、装配图：assembly drawing51、印制板组装图：printed board assembly drawing52、参考基准：datum referance54、基准尺寸：reference dimension55、参考尺寸：reaerence dimension58、基准边：reference edge59、导线设计距离：design space of conductor60、导线设计宽度：design width of conductor61、中心距：center to center spacing62、线宽/间距：conductor width/space63、节距：pitch64、精细节距：fine pitch65、层：layer66、层间距：layer-to-layer spacing67、边距：edge spacing68、外形线：trim line69、截面积：crossection area70、真实值表测量：truth table test71、准确位置：true position tolerance72、精确位置：accuracy73、精确位置误差：cumulative tolerance74、精确度：accuracy75、累积误差：cumulative tolerance76、焊垫：footprint77、外层：external layer78、内层：internal layer79、接地层：ground plane80、接地层隔离：ground plane clearance83、电源层：power plane, bus plane84、导通网络：basic grid85、导通网格：track grid86、导通孔网格：via grid87、连通盘网格：pad (land) grid88、定位偏差：positional tolerance89、对准靶标：bornb sight90、梳状图形：comb pattern91、对准标记：register mark92、散热层：heat sink planePCB线路电气互连词汇中英文对照：1、表面间连接：interlayer connection2、层间连接：interlayer connection3、内层连接：innerlayer connection4、非功能表面连接：nonfunctional interfacial connection5、跨接线：jumper wire6、节（交）点：node7、附加线：haywire8、端接（点）：terminal9、连接线：terminated line10、端接：termination11、连接端：pad, land12、贯穿连接：through connection13、支线：stub15、键槽：keying slot16、连接器：connector17、板边连接器：edge board connector18、连接器区：connector area19、直角板边连接器：right angle edge connector20、偏槽口：polarizing slot21、偏置端接区：offset terminal area22、接地：ground23、端接隔离（空环）：terminal clearance24、连通性：continuity25、连接器接触：connector contact26、接触面积：contact area27、接触间距：contact spacing28、接触电阻：contact resistance29、接触尺寸：contact size30、元件引腿（脚）：component lead31、元件插针：component pin32、最小电气间距：minimum electrical spacing33、导电性：conductivity34、边卡连接器：card-edge connector35、插卡连接器：card-insertion connector36、载流量：current-carrying capacity37、蹯径：path38、最短路径：shortest path40、倒角：miter41、串推：daisy chain42、斯坦纳树：steiner tree43、最小生成树：minimum spanning tree (MST)44、瓶颈宽度：necked width45、短叉长度：spur length46、短柱长度：stub length47、曼哈顿路径：manhattan path48、连接度（性）：connectivityPCB线路板其他相关中英文对照：1、主面：primary side2、辅面：secondary side3、支撑面：supporting plane4、信号：signal5、信号导线：signal conductor6、信号地线：signal ground7、信号速率：signal rate8、信号标准化：signal standardization9、信号层：signal layer10、寄生信号：spurious signal11、串扰：crosstalk12、电容：capacitance13、电容耦合：capacitive coupling14、电磁干扰：electromagnetic interference16、噪音：noise17、电磁兼容性：electromagnetic compatbility18、特性阻抗：impedance19、阻抗匹配：impedance match20、电感：inductance21、延迟：delay22、微带线：microstrip23、带状线：stripline24、探测点：probe point25、开窗口：cross hatching26、跨距：span27、共面性（度）：coplanarity28、埋入电阻：buried resistance29、黄金板：golden board30、芯板：core board31、薄基芯：thin core32、非均衡传输线：unbalanced transmission line33、阀值：threshold34、极限值：threshold limit value(TLV)35、散热层：heat sink plane36、热隔离：heat sink plane37、导通孔堵塞：via filiing38、波动：surge39、卡板：card40、卡板盒/卡板柜：card cages/card racks41、薄型多层板：thin type multilayer board42、埋/盲孔多层板：43、模块：module44、单芯片模块：single chip module (SCM)45、多芯片模块：multichip module (MCM)46、多芯片模块层压基板：laminate substrate version of multichip module (MCM-L)47、多芯片模块陶瓷基数板：ceramic substrate version o fmultichip module (MCM-C)48、多芯片模块薄膜基板：deposition thin film substrate version of multilayer module (MCM-D)49、嵌入凸块互连技术：buried bump interconnection technology (B2 it)50、自动测试技术：automatic test equipment (ATE)51、芯板导通孔堵塞：core board viafilling52、对准标记：alignment mark53、基准标记：fiducial mark54、拐角标记：corner mark55、剪切标记：crop mark56、铣切标记：routing mark57、对位标记：registration mark58、缩减标记：reduvtion mark59、层间重合度：layer to layer registration60、狗骨结构：dog hone61、热设计：thermal design62、热阻：thermal resistance。
线路板线路板（（PCB PCB））常用度量衡单位术语换算常用度量衡单位术语换算1英尺=12英寸1英寸inch=1000密尔mil 1mil=25.4um1mm=1000um 1m=10cm 1cm=10mm1mil=1000uin mil 密耳有时也成英丝 1um=40uin （有些公司称微英寸为麦，其实是微英寸）1OZ=28.35克/平方英尺=35微米um H=18微米4mil/4mil=0.1mm/0.1mm 线宽线距 1ASD=1安培/平方分米=10.76安培/平方英尺1AM=1安培分钟=60库仑 主要用于贵金属电镀如镀金 1平方分米=10.76平方英尺1盎司=28.35克,此为英制单位 1加仑(英制)=4.5升1加仑美制=3.785升 1KHA=1000安小时 1安培小时=3600库仑1inch(英寸) = 25.4mm(毫米) = 1000mils(千分之一英寸); 1m(米) = 3.28foot(英尺);1mils(千分之一英寸) = 25.4um(微米) = 1000uinch(微英寸); 1M2(平方米) = 10.7638 SF(平方英尺);1SF(英尺) = 144 square inch(平方英寸); 1OZ(盈司) = 35um(微米）;1OZ(盈司) = 1.38mils(千分之一英寸); 1Lt(公升) = 1dm3(立方分米);1Lt(公升) = 61.026 cubic inch(立方英寸);1Kg(公斤) = 1000g(克);1LB(英镑) = 453.92g(克); 1Kg(公斤) =1000g(克); 1Kg(公斤) = 2.20LB(英镑)1Kg(公斤)= 9.8N (牛顿);1m(米) = 10dm(分米) =100cm( 厘米) = 1000mm(毫米) 1mm (毫米）= 1000um（微米）; 1um（微米）= 1000 nm（纳米）；1Gal(加仑) = 4.546 Lt(公升) 英制；1Gal(加仑) = 3.785Lt(公升)美制；1PSI(磅/平方英寸）= 0.006895Mpa（兆帕斯卡）；1Pa(帕斯卡）= 1N/m2(牛顿/平方米）；1bar （巴）= 0.101Mpa（兆帕斯卡）; 1克= 5 克拉.。
