560KD07NX中文资料

M150XN07 V.2Product SpecificationAU OPTRONICS CORPORATIONProduct Specification15.0” XGA Color TFT-LCD ModuleModel Name: M150XN07 V.2Approved by Prepared byCC Chiu TC TsaiDDBU Marketing Division / AU Optronics corporationCustomer Checked & Approved byProduct Specification15.0” XGA Color TFT-LCD ModuleModel Name: M150XN07V.2 (u) Preliminary Specifications( ) Final Specifications Note: This Specification is subject to change without notice.Contents1.0 Handling Precautions (5)2.0 General Description (6)2.1 Display Characteristics (6)2.2 Optical Characteristics (7)3.0 Functional Block Diagram (12)4.0 Absolute Maximum Ratings (13)4.1 TFT LCD Module (13)4.2 Backlight Unit (13)4.3 Absolute Ratings of Environment (13)5.0 Electrical characteristics (14)5.1 TFT LCD Module (14)5.1.1 Power Specification (14)5.1.2 Signal Electrical Characteristics (15)5.2 Backlight Unit (16)6.0 Signal Characteristic (17)6.1 Pixel Format Image (17)6.2 The input data format (18)6.3 Signal Description (19)6.4 Interface Timing (20)6.4.1 Timing Characteristics (20)6.4.2 Timing diagram (21)6.5 Power ON/OFF Sequence (22)7.0 Connector & Pin Assignment (23)7.1 TFT LCD Module (23)7.2 Backlight Unit (24)7.3 Signal for Lamp connector (24)8.0 Reliability (25)9.0 Safety (26)9.1 Sharp Edge Requirements (26)9.2 Materials (26)9.2.1 Toxicity (26)9.2.2 Flammability (26)9.3 Capacitors (26)10.0 Other requirement (26)10.1 National Test Lab Requirement (26)10.2 Label (26)11.0 Mechanical Characteristics (27)Record of RevisionVersion and Date Page Old description New Description Remark 0.1 2005/02/14 All First Edition for Customer1.0 Handling Precautions1) Since front polarizer is easily damaged, pay attention not to scratch it.2) Be sure to turn off power supply when inserting or disconnecting from input connector.3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth whenhandling.7) Do not open nor modify the Module Assembly.8) Do not press or pat the panel surface by fingers,hand or tooling.9) Do not press the reflector sheet at the back of the module to any directions.10) In case if a module has to be put back into the packing container slot after once it was taken out from thecontainer, do not press the center of the CCFL reflector edge. Instead, press at the far ends of the CCFL reflector edge softly. Otherwise the TFT module may be damaged.11) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the InterfaceConnector of the TFT module.12) After installation of the TFT module into an enclosure (Desktop monitor Bezel, for example), do not twistnor bend the TFT Module even momentary. At designing the enclosure, it should be taken into consideration that no bending/twisting forces are applied to the TFT module from outside. Otherwise the TFT module may be damaged.2.0 General DescriptionThis specification applies to the 15.0 inch Color TFT/LCD Module M150XN07 V2.This module is designed for a display unit of personal computer.The display supports the XGA (1024 (H) x 768(V)) screen format and 16.2M colors (RGB 6-bits + FRC data). All input signals are 1 Channel LVDS interface compatible.This module does not contain an inverter card for backlight.2.1 Display CharacteristicsThe following items are characteristics summary on the table under 25 ℃condition:ITEMS Unit SPECIFICATIONSScreen Diagonal [mm] 381 (15”)Active Area [mm] 304.128 (H) x 228.096Pixels H x V 1024(x3) x 768Pixel Pitch [mm] 0.297 (per one triad) x 0.297Pixel Arrangement R.G.B. Vertical StripeDisplay Mode TN mode, Normally WhiteWhite Luminance [cd/m2] 250 (Typ) @ 8mAContrast Ratio 500 : 1 (Typ)Optical Rise Time/Fall Time [msec] 12 (Typ) (Note 1) Color Saturation 65% NTSCNominal Input Voltage VDD [Volt] +3.3 VPower Consumption(VDD line + CCFL line)[Watt] 13.3 W (Typ.) @8mA (All Black Pattern)Weight [Grams] 1100 (Typ)Min. Typ. Max.Horizatal(H) 326.0 326.5 327.0Vertical(V) 253.0 253.5 254.0Physical Size [mm]Depth(D) - - 12.0Electrical Interface 1 Channel LVDSSupport Color 16.2M colors (RGB 6-bit + FRC data)Temperature RangeOperating Storage (Shipping) [o C][o C]0 to +50-20 to +60Surface Treatment Hard-coating (3H), anti-glare treatment Note 1 :System should warm up for at least one hourmeasuring distance2.2 Optical CharacteristicsThe optical characteristics are measured under stable conditions at 25℃ (Room Temperature):Item Unit Conditions Min. Typ. Max.Note Horizontal (Right) CR = 10 (Left) TBD6565- Vertical (Up) CR = 10 (Down) TBD65 55keep total 120(Mayb e 60,60)Horizontal (Right) CR = 5 (Left) TBD TBD Viewing Angle [degree]Vertical (Up) CR = 5 (Down)TBD TBD Contrast ratioNormal Direction TBD 500 -Rising Time - TBD TBD Falling Time - TBD TBD Response Time[msec]Rising + Falling - 12 Note 1Red x 0.61 0.64 0.67 Red y0.30 0.33 0.36 Green x 0.27 0.30 0.33 Green y 0.56 0.59 0.62 Blue x 0.12 0.15 0.18 Color / Chromaticity Coordinates (CIE)Blue y0.07 0.10 0.13 White x 0.28 0.31 0.34 Color Coordinates(CIE)WhiteWhite y 0.30 0.33 0.36 White Luminance @ CCFL 8mA (center)[cd/m 2] 200 250 - Luminance Uniformity [%] 75 80 Note 2 Crosstalk (in 75Hz) [%] 1.2 1.5 Note 3 FlickerdB-20Note 4 Equipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (PR 880, BM-5A ,BM 7 ,CS-1000, CA210, SR_3 & EZ Contrast(ELDIM)* )Aperture1∘with 50cm viewing distanceTest Point Center (VESA point 9) Environment < 1 lux*’ EZ Contrast is different measurement tool with very close viewing distance.Note 1: Definition of Response timeThe output signals of photo detector are measured when the input signals are changed from “Black” to “White”(rising time), and from “White” to “Black ”(falling time), respectively. The response time is interval between the 10% and 90% of amplitudes.Note 2: Brightness uniformity of these 9 points is defined as below50 %90 % 90 % 50 %10 %10 %Note 3: Crosstalk is defined as below :Unit: percentage of dimension of display areal L A -L A ’ l / L A x 100%= 1.5% max., L A and L Bl L B -L B ’ l / L B x 100%= 1.5% max., L A ’ and L B ’ are brightness at location A ’ and B ’Note 4: Test Paterm: Subchecker Pattern at 127 gray levelR G B R G BR G B R G B R G B R G B1/2 1/21/61/61/2 1/21/61/6 2/3 1/3 1/3 2/3Gray Level = L127Gray Level = L0Time3.0 Functional Block DiagramThe following diagram shows the functional block of the 15.0 inches wide Color TFT/LCD Module:CWY20G – A0G16 / MSB240420 JST-BHR-03VS-1Mating Type : HRS DF14-20S-1.25C SM02(8.0)B-BHS-1-TB4.0 Absolute Maximum RatingsAbsolute maximum ratings of the module is as following:4.1 TFT LCD ModuleItem Symbol Min Max Unit Conditions Logic/LCD Drive VDD 0.3 +3.6 [Volt] Note 1,24.2 Backlight UnitItem Symbol Min Max Unit Conditions CCFL Current IRCFL - 8.5 [mA] rms Note 1,24.3 Absolute Ratings of EnvironmentItem Symbol Min Max Unit Conditions Operating Temperature TOP 0 +50 [o C] Note 3 Operating Humidity HOP 8 90 [%RH] Note 3 Storage Temperature TST -20 +60 [o C] Note 3 Storage Humidity HST 8 90 [%RH] Note 3Note 1: With in Ta (25℃)Note 2: Permanent damage to the device may occur if exceed maximum valuesNote 3:For quality perfermance, please refer to AUO IIS(Incoming Inspection Standard). Please refer the graph below for the corresponding of temperature and humidity."5.0 Electrical characteristics5.1 TFT LCD Module 5.1.1 Power SpecificationInput power specifications are as follows;Symbol Parameter Min Typ Max Units ConditionVDD Logic/LCD Drive Voltage 3.0 3.3 3.6 [Volt] ±10%IDD VDD current - 600 700 [mA] Vin=3.3V , Gray Bar Pattern, at 60HzIrush LCD Inrush Current - - 3 [A] NotePDD VDD Power 2.0 2.3 [Watt] Vin=3.3V , Gray Bar Pattern, at 60HzVDDrpAllowableLogic/LCD Drive Ripple Voltage100[mV] p-pVin=3.3V , All Black Pattern, at 75HzNote: Measurement conditions:SWVin rising time0V3.3V5.1.2 Signal Electrical CharacteristicsInput signals shall be low or Hi-Z state when Vin is offIt is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.Each signal characteristics are as follows;Symbol Parameter Min Typ Max Units ConditionVTH Differential Input High Threshold - - 100 [mV] VICM = 1.2V NoteVTL Differential Input Low Threshold -100 -- [mV] VICM = 1.2V Note │VID │ Input DifferentialVoltage100 400 600 [mV] Note VICMDifferential Input Common ModeVoltage1.1-1.45[V]VTH/VTL = ± 100mV NoteNote: LVDS Signal Waveform5.2 Backlight UnitParameter guideline for CCFL InverterSymbol Parameter Min.Typ.Max.Unit ConditionIRCFL CCFL operation range 2.5 8 8.5 [mA]rms(Ta=25o C)Note 4ICFL CCFL Inrush current - - 20 [mA]FCFL CCFL Frequency 40 55 80 [KHz] (Ta=25o C) Note 1ViCFL(0o C) (reference) CCFL Ignition Voltage1450 - -[Volt]rms(T a=0o C) Note 3ViCF (25o C) (reference) CCFL Ignition Voltage1100 - -[Volt]rms(Ta=25o C) Note 3VCFL CCFL Discharge Voltage-620(@8mA)710(@2.5mA)[Volt]rms(Ta=25o C) Note 2PCFL CCFL Power consumption@8mA(excluding inverter)- 10 11 [Watt] (Ta=25o C) Note 2Note 1: CCFL frequency should be carefully determined to avoid interference between inverter and TFT LCD.Note 2: Calculator value for reference (IRCFLxVCFLx2=PCFL).Note 3: CCFL inverter should be able to give output a voltage more than 1450 volt. Lamp units need 1450 volt minimum for ignition.Note 4: CCFL life time is 30,000hr at 8.0mA, it’s defined as when the brightness is reduced by half. It’s recommended not to exceed 8.0mA for CCFL life time concern and it’s prohibited to exceed 8.5mA for safety concern.6.0 Signal Characteristic6.1 Pixel Format ImageFollowing figure shows the relationship of the input signals and LCD pixel format.6.2 The input data formatDE VS HS OG0OR5OR4OR3OR2OR1OR0OB0OG3OG4OG1OG2OB1OG5OB5OB3OB4OB2OR7OB7OR6OB6OG7OG6CLKIN+RIN0 +/-CLKIN-Rsvd Current CycleRIN1 +/-RIN2 +/-RIN3 +/-Note1: Please follow PSWG. Note2: 8-bit inNote3: R/G/B data 7:MSB, R/G/B data 0:LSB6.3 Signal DescriptionThe module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels while the second LVDSport(RxExxx) transmits even pixels.CWY20G-A0D1T (PTWO) or MSB240420 (STM)Pin No. Symbol Description1 VDD Power Supply, 3.3V (typical)2 VDD Power Supply, 3.3V (typical)3 VSS Ground4 VSS Ground5 Rin0-- LVDS differential data input (R0-R5, G0)6 Rin0++ LVDS differential data input (R0-R5, G0)7 VSS Ground8 Rin1-- LVDS differential data input (G1-G5, B0-B1)9 Rin1++ LVDS differential data input (G1-G5, B0-B1)10 VSS Ground11 Rin2-- LVDS differential data input (B2-B5, HS, VS, DE)12 Rin2++ LVDS differential data input (B2-B5, HS, VS, DE)13 VSS Ground14 ClkIN-- LVDS differential clock input15 ClkIN++ LVDS differential clock input16 VSS Ground17 Rin3-- LVDS differential data input (R6-R7, G6-G7,B6-B7)18 Rin3+- LVDS differential data input (R6-R7, G6-G7,B6-B7)19 VSS Ground20 VSS GroundNote: Please follow PSWG.6.4 Interface Timing6.4.1 Timing CharacteristicsBasically, interface timings described here is not actual input timing of LCD module but output timing of SN75LVDS82DGG (Texas Instruments) or equivalent.Signal Parameter Symbol MIN TYP MAX Unit Clock Timing Clock frequency clk 50 65 81 MHz Hsync TimingHorizontal active Thd 1024 1024 1024 TclkHorizontal blanking Thbl 40 320 400 TclkHorizontal period Th 1064 1344 1424 Tck Vsync TimingVertical active Tvd 768 768 768 ThVertical blanking Tvbl 8 38 75 ThVertical period Tv 776 806 843 ThNote:DE mode onlyNote: Typical value refer to VESA STANDARD6.4.2 Timing diagram6.5 Power ON/OFF SequenceVin power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals from any system shall be Hi-Z state or low level when Vin is off.On7.0 Connector & Pin AssignmentPhysical interface is described as for the connector on module.These connectors are capable of accommodating the following signals and will be following components.7.1 TFT LCD ModuleConnector Name / Designation Interface Connector / Interface card Manufacturer P-TWO or compatibleType Part Number CWY20G – A0G16 / MSB240420Mating Housing Part Number HRS DF14-20S-1.25CPin#Signal Name Pin#Signal Name1 VDD2 VDD3 VSS4 VSS5 Rin0-6 Rin0+7 VSS8 Rin1-9 Rin1+10 VSS11 Rin2-12 Rin2+13 VSS14 ClkIN-15 ClkIN+16 VSS17 Rin3-18 Rin3+19 VSS20 VSS7.2 Backlight UnitConnector Name / Designation For Lamp ConnectorManufacturer JST or compatibleType / Part Number BHR-03VS-1Mating Type / Part Number SM02(8.0)B-BHS-1-TB 7.3 Signal for Lamp connectorPin Symbol Description1 HV Lamp High Voltage2 NC No connection3 LV Groundu Cable length: 140 +- 5 mmu Connector-output position: right side (front view)u Lamp assembly design shall be easy for replacement and repair.8.0 ReliabilityReliability test conditionNo Test Item Test Condition1 Temperature Humidity Bias (THB) 50℃, 80%, 300hours2 High Temperature Operation (HTO) 50℃, 300hours3 Low Temperature Operation (LTO) 0℃, 300hours4 High Temperature Storage (HTS) 60℃, 300hours5 Low Temperature Storage (LTS) -20℃, 300hours6 Thermal Shock Test (TST) -20℃/30min, 60℃/30min, 100 cycles7 On/Off Test On/10sec, Off/10sec, 30,000 cycles8 Shock Test (Non-Operating) 50G, 20ms, Half-sine wave (+ X, +Y, +Z)9 Vibration Test (Non-Operating) 1.5G(10~200Hz P- P), 30 Minutes each Axis (X, Y, Z)10 ESD (ElectroStatic Discharge) Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ pointAir Discharge: ± 15KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ point11 Altitude Test Operation:10,000 ftNon-Operation:30,000 ft12 Drop Test The drop height is 60cm9.0 Safety9.1 Sharp Edge RequirementsThere will be no sharp edges or comers on the display assembly that could cause injury.9.2 Materials9.2.1 ToxicityThere will be no carcinogenic materials used anywhere in the display module. If toxic materialsare used, they will be reviewed and approved by the responsible AUO Toxicologist.9.2.2 FlammabilityAll components including electrical components that do not meet the flammability gradeUL94-V1 in the module will complete the flammability rating exception approval process.The printed circuit board will be made from material rated 94-V1 or better. The actual ULflammability rating will be printed on the printed circuit board.9.3 CapacitorsIf any polarized capacitors are used in the display assembly, provisions will be made to keepthem from being inserted backwards.10.0 Other requirement10.1 National Test Lab RequirementThe display module will satisfy all requirements for compliance toUL 1950, First Edition U.S.A. Information Technology EquipmentCSA C22.2 No.950-M89 Canada, Information Technology EquipmentEEC 950 International, Information Technology EquipmentEN 60 950 International, Information Processing Equipment(European Norm for IEC950)10.2 LabelThe label is on the panel as shown below:。

User Manual（HK560）QingDao Hisense Intelligent Commercial System Co.,Ltd.CONTENTCONTENT (2)PART 1 SYSTEM INTRODUCTION (4)SAFETY NOTICES BEFORE INSTALLATION OR USE (4)1.SYSTEM INTRODUCTION (5)2.BASIC PRODUCT CONFIGURATION (6)3.I/O PANEL (7)4.MAIN BOARD INTERFACE DESCRIPTION (7)PART II SYSTEM ASSEMBLY AND DISASSEMBLY (9)1.MAIN SCREEN,SECOND SCREEN(15.6"/10.1")AND VFD. (9)2.HARD DISK REPLACEMENT (11)3.INSTALLATION OF CARD READER (12)4.FINGERPRINT READER INSTALLATION (13)PART III SYSTEM INSTALLATION (14)1.INSPECTION OF INSTALLATION ENVIRONMENT (14)2.SYSTEM SOFTWARE INSTALLATION (14)3.BIOS (20)PART IV INSTRUCTIONS FOR USAGE (28)1.SWITCHING INSTRUCTION (28)2.INSTRUCTIONS FOR USING MAGNETIC STRIPE CARDS (28)3.INSTRUCTIONS FOR USING RFID CONTACTLESS CARDS (29)PART V ACCESSORIES ANNEXES (30)APPENDIX A (30)APPENDIX B (30)Part 1 System IntroductionSafety Notices Before Installation or Us e☆It is required grounded well and the supply voltage shall be stable, and you must confirm that the voltage of the outlet provides shall be in line with the voltage marked on the label of the unit.☆Be sure not to sprinkle any liquid or fall any object into the unit.☆Be sure not to keep heavy, strenuous movement, shake & heavy strike away from the POS.☆Do not switch on or off the host frequently, because it is easy to result in damage on the machine.☆Be sure not to unplug or plug in any live part or external device when they are in energized state, and the connecting cables of the POS between parts shall be connected securely.☆Be sure neither to lengthen cable nor to replace parts at your will, if you have any demand, please contact with the reseller.☆The unit shall be used under dry, ventilated & clean environment away from sunlight. Avoid to making the air vent of the host machine blocked or covered☆If any liquid sprinkles or any sundry falls into the unit, please shut it down immediately & switch off power supply, take batteries down, dry the liquid or remove the sundry. If you take the batteriesdown, you shall reset CMOS.☆In case of safety fault, such as peculiar smell, abnormal sound, leakage and other faults, you must switch off the power supply at once and then contact with reseller.☆When inserting USB flash or disk, you shall kill virus to prevent the host machine from virus.☆The RJ11 port at the back of the host is connected with the cash drawer, as it is not a communication port, users shall not use the port for dial-up networking.☆The product is a Level A one, it may cause radio interference in living environment. In such case, users may need to take practical & feasible measures against the interference.☆When the POS is not in use, you shall switch off power supply.☆Warning:☆ 1. Environmental absolute grade:☆A) Working temperature: 0-40 C B) Working humidity: 10%-85% RH☆C) Storage temperature: -10-50 C D) Storage humidity: 10%-90% RH☆ 2. The main plug on the power supply is used as a disconnecting device. The socket shall be installed near the equipment and shall be accessible easily.☆ 3. Power input: AC 100-240V 50-60Hz☆ 4. If there is any damage to the power supply or equipment, please contact the local service personnel for help.☆ 5. Static electricity can damage the integrated circuit in the host computer.☆ 6. If the replacement battery is incorrect, it may cause explosion or serious damage. Batteries of the same type or similar type recommended by themanufacturer must be replaced.☆7. Use only with additional AC/DC power supply.The manufacturer has the right to modify the contents of the instructions without prior declaration.Product Standard Number：Q/0202 RSR5271. System IntroductionThe appearance of the whole machine has the following modes:Single-screen Device, length * width * height: 405 * 210 * 330; main screen flip range: 0-45 degreesDual-screen Device, length * width * height: 405 * 250 * 370; main screen flip range: 0-45 and second screen flip angle 0-30.Screen High position + printer, length * width * height: 405 * 250 * 420Self-service Kiosk, length * width * height: 230 * 250 * 450According to the running state of the system, there is a power indicator status light.Status InformationFigRedSystem errors (e.g. lack of hard disk,memory)White Power on （S1）Blue standby mode （S3）2. Basic product configurationCategory Parts HK560SystemCPU Intel® Celeron® processor (Baytrail-D) J1900Quad Core, clock speed1.99GHz up to 2.42GHz, TDP 10W OS Windows 7 / Windows 10 / Ubuntu linux Memory DDRIIIL 4G (Up to 8G) Storage128G SSD, up to 256GBDisplay and Touch Screen LCD 15.6” LCD Resolution 1920*1080Touch screen Capacitive touch screen 2nd display 15.6” screen optional 10.1” screen optional I/OSerial ports* Standard COM,COM1~3:external port, COM4: onboard port COM1 has no Power selectionCOM2 and COM3 can set 5V/12V power supply through BIOS (COM2 \COM3 are set to 0V by default) COM4 can be set to 5V/12V for VFD through jumper （COM4 is set to 5V by default ）. USB 4*USB2.0,1*USB3.0 Ethernet 1 * RJ-45 （1000M ） Audio 1 Line-outCash drawer port 1 * RJ-11 24V for cash drawer DC 24V outputPower USBPower Power Adapter1 Adapter（DC 24V，2.5A）standard for device withoutprinter or CubeXPower Adapter2 Adapter（DC 24V，5A）for device with printer or CubeXExternalPrinter optional 80mm printer58mm printerCash drawer Steel Cash Drawer (Supporting Dual cash drawer) card reader optional Magnetic stripe card reader/RFID contactless cardreaderScanner SupportVFD 2×20 characters VFD (RS232, option)3. I/O Panel1、24V power input2、Cash Drawer Port3、POWER USB4、USB*25、USB*26、COM17、COM2 8、COM39、LAN Port 10、audio output11、USB4. Main Board Interface DescriptionJumpers / Headers and Connectors1 SYS_FAN1 System Fan Connector2 CLR_CMOS1 CMOS Clear Jumper3 J_VGA1 VGA Pin Header4 J_COM4, J_COM5, J_COM6 COM4-6 Pin Headers5 F_USB1 Front USB2.0 Pin Header16 J_PWRCOM4 COM4 VCC Select Jumper7 F_USB2 Front USB2.0 Pin Header28 F_USB3 Front USB2.0 Pin Header39 F_USB4 Front USB2.0 Pin Header410 F_PANEL1 Front Panel FPC Connector11 J_RST1 System Reset Button Pin Header12 J_MIC1 MIC Pin Header13 J_SPK1 Amplifier Pin Header14 R_USB4 USB2.0 TYPE-A Connector15 S_ATA1 SATA2.0 Port (7+15P)16 EDP1 EDP1 Signal Connector17 EDP2 EDP2 Signal Connector18 MINI_PCIE1 Mini PCI-E1 Slot (WIFI+4G)19 DIMM1 SO-DIMM DDR3L Slot20 NGFF1 M.2 (NGFF) Key-B Slot (SSD, 2280)21 DC_IN1 DC24V Power Input Connector (4Pin Jack)22 RJ11_1 Cash Drawer RJ11 Connector23 R_USB1(R_USB5) POWER USB 24V Key-2 Connector (USB2.0TYPE-A Connector)24 R_USB2 USB2.0 Dual TYPE-A Connector25 R_USB3 USB3.0+USB2.0 TYPE-A Connector26 COM1 COM1 RJ50 Connector27 COM2 COM1 RJ50 Connector28 COM3 COM1 RJ50 Connector29 RJ45_1 LAN RJ45 Connector30 PJ1 Line-out 3.5mm JackJ_PWRCOM4 (COM4 VCC Select Jumper 3*2 Pin 2.54mm)CLR_CMOS1 (CMOS Clear Jumper 3*1 Pin 2.54mm)Part II System Assembly and Disassembly1. Main screen, Second screen (15.6"/10.1") and VFD.Note: As the second screen (15.6"/10.1") and the fixed structure of the guest display and the base are fixed with three gaskets and anti-loosening screw, the following is illustrated with the 15.6-inch screen as an example.1.1 Remove the rear housing of the base and unscrew the two screw shown here.Figure 11.2After removing the screw, pull the rear shell of the base forcefully according to the graphic method, remove the rear shell of the base, and then see the transfer plate fixed inside the base.Figure 2Figure 3 15.6 inches screen Figure 4 10.1 inches screen Figure 5 VFD1.3 Remove the two connectors shown in the figure and protect them with the American tapeaccording to the figure (to prevent the connector from being pulled out in the process ofdismantling and threading);15.6 inchscreen cable10.1inch screen cableHost screen cableHost screen cableVFD cableHost screen cable1.4 Rotate the main screen and the secondary screen to the vertical angle, remove the three fixingscrews of the main screen and the second screen (15.6 inch screen/10.1 inch screen/VFD) respectively, and carefully pass the screen cable through the cable hole. Separate the main and auxiliary screen from the base respectively.2. Hard Disk ReplacementDescription: The hard disk can be replaced directly on the host. In order to display pictures more clearly, the base and other components are hidden in the following pictures.1.5 Disassemble the extended interface cover and pull it out at the notch according to thePICTURE. Remove the expanded interface cover.Figure 61.6 Remove the hard disk. Unscrew the hard disk fixing screw and pull out the hard disk in the arrowdirection shown.Figure 73. Installation of Card ReaderDescription: The hard disk can be replaced directly on the host computer. In order to display pictures more clearly, the base and other components are hidden in the following pictures. 1.7 Remove the card reader coverFigure 81.8Insert the cable reserved in the host into the cable socket of the card reader moduleFigure 91.9Install the card brusher in the graphic direction and fix it by locking two M3*8 screws.Card reader coverCard reader cable socketFigure 104. Fingerprint reader installation1.10Remove Fingerprint reader coverFigure 111.11 Insert the reserved cables in the host into the terminal base of the Fingerprint readerFigure 121.12 The Fingerprint reader is installed in the graphical direction and fixed by locking an M3*8 screw.Fingerprint reader coverTerminal baseFigure 13Part III System Installation1. Inspection of installation environmentIt is important to choose a safe and reliable place to install the terminal.Choose a table or table large and strong enough to support the weight of the system and peripherals. Choose a flat, hard surface. Carpet areas can generate static electricity to replace memory or damage system components.Make sure that the system is installed in a well ventilated area and that the space is free.Choose appropriate environmental conditions, such as cool and dry places. Avoid damp and dusty places. At the same time, avoid direct sunlight, rapid temperature change, or place the system near the heat source.Choose the appropriate voltage. Connect all devices to an isolated socket to prevent static electricity and short circuit.Make sure printers and other peripherals have enough power outlets.Do not install near electromagnetic and electrical equipment, such as telephones and motors, which may cause system damage.The socket should be installed near the equipment and should be accessible.2. System software installation1. Mainboard Driver installation and UsageDriverMainboard2. Touch screen settingfind MouserRegister software in Touch PanelDouble-click to run, set the value to 50, click set, set up.3. MSR settingInstallopen and select USBPop up the lower interface and click on the tag locationIn this interface, you can select the settings that need to be modified, click Update, and then update the modified settings to the card switcher.4. RFID testOpen demoThe operation steps are as follows:5. Fingerprint reader driver installation and testingFind the device that needs to install driver in the Device Manager. Double-click to Open. The update steps are as follows:Find the driver storage location, update completedFind the test demo, double-click to openThe fingerprint data can be read out by putting the finger on the fingerprint reader after 1-2-3.6. 10 inch second screen settingsClick on the lower right corner to open the graphics card control softwareAfter you run it, click Display icon as belowMonitor Hisense is selected in blank 1, resolution can be adjusted in blank 2, rotation direction of secondary screen can be adjusted in blank 3, and setting can be saved in blank 4.3. BIOS1. MainThis topic introduces the basic information of the basic input/output system (BIOS) on the main page. Parameter DescriptionBIOS Information BIOS Version: S395A 0.10 x64Build Date and Time:- MM/DD/YEAR hh:mm:ssProduct Serial Number: The Product Serial Number of the MainboardSystem Date Current system date.A system date is in the format of MM/DD/YEAR. Press Enter or Tab to switch amongthe month, day, and year. Change a date value using the following methods:Press + to increase a value by 1.Press - to decrease a value by 1.Press a numeric key to change a value.System Time Current system time.A system time is in the format of HH:MM:SS on a 24-hour clock. Press Enter or Tabto switch among the hour, minute, and second. Change a time value using thefollowing methods:Press + to increase a value by 1.Press - to decrease a value by 1.Press a numeric key to change a value.Access Level Show the current user access level2. AdvancedThis topic introduces the system parameters and related functions on the "Advanced" page. Users can view advanced configuration items of basic input/output system (BIOS), such as ACPI, USB and serial port.Parameter DescriptionACPI Settings System ACPI ParametersSuper IO Configuration System Super IO Chip Parameters Hardware Monitor Monitor hardware statusPower Button Control Power Button Control SettingsPower Control COM2-3 Pin9 SettingsS5 RTC Wake Settings S5 RTC Wake SettingsCPU Configuration CPU Configuration ParametersLCD Control LCD Control ParametersIDE Configuration SATA Configuration ParametersOS Configuration Select Operating System On this Computer CSM Configuration CSM Configuration SettingsUSB Configuration USB Configuration ParametersSuper IO ConfigurationThe switch of COM1-COM4 and its IO and IRQ are controlled here.Hardware MonitorParameter DescriptionCPU Temp The temperature of CPUSYS Temp The temperature of Environment SYS_FAN1 The speed of SYS_FAN1VCC_CPU The Voltage of CPUVCC_DDR The Voltage of DDR+12 The Voltage of +12+5 The Voltage of +5+3.3 The Voltage of +3.3Power Button ControlParameter DescriptionPowerOn after PowerFail Select AC Power state to when power is re-applied after a power failurePower Off: When the current is restored, the computer is shut down.Power On: When the current is restored, the computer is in the boot state.Last State: The last state, that is, when the power is off.Soft-Off by PWR-BTTNChoose Power Button Function Power ControlParameter DescriptionCOM2 Pin9 Selection Set the definition of the Pin9 of COM2(Signal,5V,12V) COM3 Pin9 Selection Set the definition of the Pin9 of COM3(Signal,5V,12V) OS ConfigurationSelect Windows 7 & Android & Windows 8.x and 10，default Windows 10 for US3. BootThis topic introduces the configuration of bootstrap functions.Parameter DescriptionBoot ConfigurationSetup Prompt Timeout Number of seconds to wait for setup activation key.65535(0xFFFF) means indefinite waiting.Bootup NumLock State Select the keyboard NumLock stateFullScreen Logo Enable or disable Full Screen LogoFast Boot Enable or disable Fast BootBoot Option PrioritiesBoot Option #1 Sets the system boot orderBoot Option #2 Sets the system boot orderBoot Option #3 Sets the system boot orderHard Drive BBS Priorities Set the order of the legacy devices in this group4. Save & ExitThis topic describes how to save BIOS parameter modifications on save and exit pages and exit BIOS.Parameter DescriptionSave Changes andResetReset system setup after saving the changes.Discard Changes andResetReset system setup without saving any changes. Restore Defaults Restore/Load Default Values for all the setup options. Save as User Defaults Save the changes done so far as User Defaults Restore User Defaults Restore the User Defaults to all the setup options Boot OverrideLaunch EFI Shell from filesystem deviceAttempts to Launch EFI Shell application (Shell.efi) from one of the available filesystem devicesPart IV Instructions for Usage1. Switching InstructionStart-up: When the adapter is connected, press the Power button on the right back side of the bottom of the machine, see the button indicator light on, and hear a "beep" prompt sound, then start-up can be achieved.Shutdown: Select the shutdown item under the Windows system, and then shut down automatically.2. Instructions for using magnetic stripe cards●When swiping the card, the machine should be placed on a hard horizontalplane.●Please scratch the magnetic strip of the magnetic strip card inward from theswipe slot.●The card swiping process should be smooth and uniform.3. Instructions for using RFID contactless cardsThe RFID contactless card reader module is located behind the right side of the Host.When the induction card is not received, please place the card above the induction area.Part V Accessories AnnexesNo. Item Qty Note1 POS 12 Adaptor 13 Power cable 1Appendix ABIOS Set Up1. Copy all files in the file directory of the compressed package to the U-disk root directory.2. Connect only U-disk, not other storage devices, press F11 to boot, pull out the startup menu, select "UEFI:Built-in EFI Shell" to enter the shell interface, and return.3. Enter up to refresh BIOS on return.4. When the refresh is completed, shut down and power off for 10 seconds.5. Turn on the power and press F2 to enter BIOS Setup interface, then press F9 and F10 to optimize and save.Note: Do not cut off the power supply, shut down or restart during BIOS refresh, otherwise the power will not be able to start.Appendix BSuper IO Information (BIOS default)COM1: 3F8h/4COM2: 2F8h/3COM3: 3E8h/6COM4: 2E8h/6Cash Drawer/*This Demo program for POS boxCD_SENSE GP23CD_OPEN GP36*/#include "stdio.h"#include "conio.h"#include "graphics.h"#include "string.h"#include "io.h"#define BIT0 0x01#define BIT1 0x02#define BIT2 0x04#define BIT3 0x08#define BIT4 0x10#define BIT5 0x20#define BIT6 0x40#define BIT7 0x80#define IO_Base 0xA00#define CDS_PORT IO_Base+1#define CDO_PORT IO_Base+2void Init_DIO_Default(){}/*-----------------------------------------------@brief : Set CD_OPEN power level@Input : Level-- 0:Low 1: High------------------------------------------------*/void Set_CD_OPEN(int Level){ int t;if(Level){ outportb(CDO_PORT,inportb(CDO_PORT)|BIT6); printf(" CD_OPEN is High \n");}else{ outportb(CDO_PORT,inportb(CDO_PORT) &~BIT6); printf("CD_OPEN is Low\n");}}/*-----------------------------------------------@brief : Get CD_SENSE low active@Return : 1:Low active with no jitter------------------------------------------------*/int Get_CD_SENSE_Status(){if(inportb(CDS_PORT)&BIT3){ delay(100);if(inportb(CDS_PORT)&BIT3){printf("CD_SENSE is Low level stability.\n");return 1;}}elseprintf("CD_SENSE is High level\n");return 0;}main(){printf("System ready\n ");/*Set_CD_OPEN High */ Set_CD_OPEN(1);/*Set_CD_OPEN Low */ Set_CD_OPEN(0);while(1){Get_CD_SENSE_Status(); }}。

航行告警接收机NX-700A/B操作说明书* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *确认键指针键进入/推出菜单键开启LIST 选项 开启打印选项开/关键版本号按键说明一、 开机/关机按 键开机，显示器会发出“必”声，显示器会显示开机屏，如下图：1、ROM 、RAM 操作检查OK ，会显示：2、如检查到错误操作，所有的信息都在518KHz 下显示，如下：亮度调节按选择518KHz或490KHz.按关机。

二、 调节亮度按调整亮度，0（全黑）至9（最亮），+ 增加，－ 减少。

三、 确认新信息SAR（搜救）信息1、当接收到一个SAR信息时，回显示信息内容及响报警。

SAR 信息图标2、按开关键以外的任意键静音。

其他信息1、收到SAR信息以外的信息，显示如下其中之一：国际信息本地信息2、如直接读取，按键选择“YES”然后按ENT键；3、如想以后再读取，选择“NO”，然后按ENT键关闭窗口。

四、 信息例子按选择键上的选择一个信息，然后按ENT键显示信息内容。

按ENT键在信息清单和信息明细之间转换。

注意：1、显示屏下方的操作指南显示当前显示下可用的按键；2、字体大小可调整，详细见。

按键显示模式功能清单滚动清单详细滚动信息清单转换国际及本地信息详细显示最新（）及之前（）的信息清单显示主菜单MENU详细清单显示所选择的信息明细ENT详细显示信息清单清单显示菜单选项LIST详细清单显示打印选项PRINT详细五、 选择接收模式有自动及手动两种接收模式选择：AUTO MODE（自动模式）要求航行数据，接收机会根据本船与NA VTEX地面站之间的距离选择。

如果没有输入航行数据，会选择所有的地面站。

ISN模式允许选择模式1、按MUNE/ESC 键，进入主菜单；2、按选择 NA VTEX。

3、按ENT键或键打开NA VTEX菜单；4、按选择接收模式，然后按ENT键或显示所选择的接收模式。

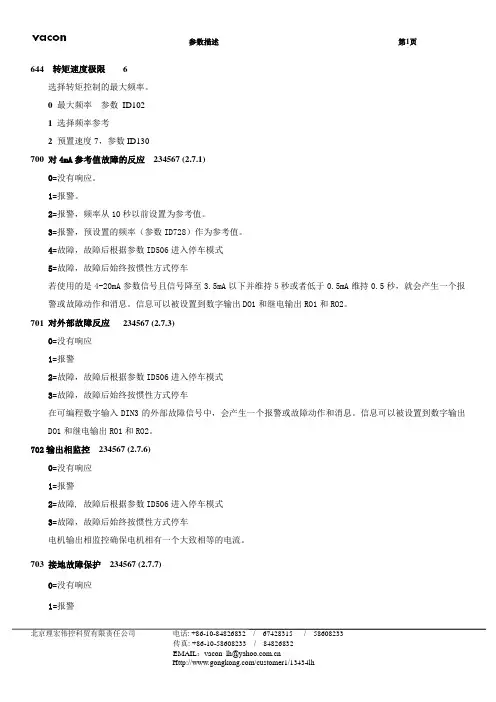

644 转矩速度极限 6选择转矩控制的最大频率。

0最大频率参数ID1021选择频率参考2预置速度7，参数ID130700 对4mA参考值故障的反应234567 (2.7.1)0=没有响应。

1=报警。

2=报警，频率从10秒以前设置为参考值。

3=报警，预设置的频率（参数ID728）作为参考值。

4=故障，故障后根据参数ID506进入停车模式5=故障，故障后始终按惯性方式停车若使用的是4-20mA参数信号且信号降至3.5mA以下并维持５秒或者低于0.5mA维持0.5秒，就会产生一个报警或故障动作和消息。

信息可以被设置到数字输出DO1和继电输出RO1和RO2。

701 对外部故障反应234567 (2.7.3)0=没有响应1=报警2=故障，故障后根据参数ID506进入停车模式3=故障，故障后始终按惯性方式停车在可编程数字输入DIN3的外部故障信号中，会产生一个报警或故障动作和消息。

信息可以被设置到数字输出DO1和继电输出RO1和RO2。

702输出相监控234567 (2.7.6)0=没有响应1=报警2=故障, 故障后根据参数ID506进入停车模式3=故障，故障后始终按惯性方式停车电机输出相监控确保电机相有一个大致相等的电流。

703 接地故障保护234567 (2.7.7)0=没有响应1=报警北京理宏伟控科贸有限责任公司电话: +86-10-84826832 / 67428315 / 586082332=故障，故障后根据参数ID506进入停车模式3=故障, 故障后始终按惯性方式停车接地故障保护确保电机相电流之和为零。

过电流保护始终在工作并保护变频器免受大电流接地故障的危害。

704 电机热保护234567 (2.7.8)0=没有响应1=报警2=故障，故障后根据参数ID506进入停车模式3=故障，故障后始终按惯性方式停车如果选择了跳闸，变频器会停机并且进入故障状态。

释放保护，例如设定参数为0，这会复位电机热状态到0%。
