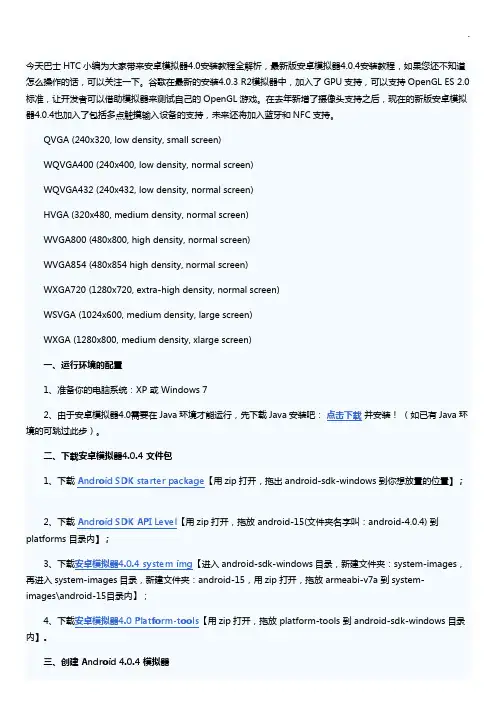

今天巴士HTC小编为大家带来安卓模拟器4.0安装教程全解析，最新版安卓模拟器4.0.4安装教程，如果您还不知道怎么操作的话，可以关注一下。
谷歌在最新的安装4.0.3 R2模拟器中，加入了GPU支持，可以支持OpenGL ES 2.0标准，让开发者可以借助模拟器来测试自己的OpenGL游戏。
在去年新增了摄像头支持之后，现在的新版安卓模拟器4.0.4也加入了包括多点触摸输入设备的支持，未来还将加入蓝牙和NFC支持。
QVGA (240x320, low density, small screen)WQVGA400 (240x400, low density, normal screen)WQVGA432 (240x432, low density, normal screen)HVGA (320x480, medium density, normal screen)WVGA800 (480x800, high density, normal screen)WVGA854 (480x854 high density, normal screen)WXGA720 (1280x720, extra-high density, normal screen)WSVGA (1024x600, medium density, large screen)WXGA (1280x800, medium density, xlarge screen)一、运行环境的配置1、准备你的电脑系统：XP 或 Windows 72、由于安卓模拟器4.0需要在Java环境才能运行，先下载Java安装吧：点击下载并安装！（如已有Java环境的可跳过此步）。
二、下载安卓模拟器4.0.4 文件包1、下载Android SDK starter package【用zip打开，拖出android-sdk-windows 到你想放置的位置】；2、下载Android SDK API Level【用zip打开，拖放 android-15(文件夹名字叫：android-4.0.4) 到platforms 目录内】；3、下载安卓模拟器4.0.4 system img【进入android-sdk-windows目录，新建文件夹：system-images，再进入system-images目录，新建文件夹：android-15，用zip打开，拖放 armeabi-v7a 到system-images\android-15目录内】；4、下载安卓模拟器4.0 Platform-tools【用zip打开，拖放 platform-tools 到 android-sdk-windows目录内】。
