MC34063A,MC33063A,SC34063A,SC33063A, NCV33063A1.5A, 升压、降压转换用开关调整器。

MC34063A系列是包含DC-DC转换器基本功能的单片集成控制电路。

该器件的内部组成包括带温度补偿的参考电压、比较器、带限流电路的占空比控制振荡器、驱动器、大电流输出开关。

该器件专用于降压、升压以及电压极性反转场合，可以减少外部元件的使用数量。

获取更详细的设计参考信息，可参阅应用笔记“AN920A/D”或“AN954/D”.特性●工作输入电压3.0V-40V●低静态电流●具有限流功能●输出开关电流可达1.5A●输出电压可调●工作频率可至100kHz●参考电压精度2%●支持无铅封装封装印记说明：x = 3或4A = 封装地区L，WL = 晶片批号Y，YY = 年份W，WW = 周次G或■ = 无铅封装本手册封装尺寸部分有关于订货、包装的详细信息。

“”(底部视图）该器件包含79个有源晶体管图1 等效原理图MC34063A，MC33063A，SC34063A，SC33063A，NCV33063A图2 引脚分布强制性地超出极限参数将损坏器件。

极限参数只是强制性参数，不代表正常工作要超出推荐工作条件，长期超出推荐工作条件的操作将影响器件的可靠性。

1.必须注意封装的最大功耗限制。

2.该系列器件具备静电放电防护，并通过了以下试验：人体放电模式4000V，美军标MIL-STD-883,3015方式.机械模式400V.3.NCV前缀系列用于汽车电子。

电气特性（VCC=5.0V，T=T至T【注4】，除非另有说明。

）4.对于MC34063，SC34063，Tlow=0℃；对于MC33063，SC33063，MC33063V，NCV33063，Tlow=-40℃；对于MC34063，SC34063，Thigh =+70℃；对于MC33063，SC33063，Thigh=+85℃；对于MC33063V，NCV33063，Thigh =+125.℃5.测试时采用了低占空比以保证结温尽可能接近环境温度。

CXA2095SY/C/RGB/Sync/Deflection for Color TVDescriptionThe CXA2095S is a bipolar IC which integrates the luminance signal processing, chroma signal processing, RGB signal processing, and sync and deflection signal processing functions for NTSC system color TVs onto a single chip.The following functions have been added to the same function IC, CXA2025S.1) Vertical sync pull-in speed switching function 2)YUV SW Y signal switching function 3)fsc output pinFeatures•I 2C bus compatible•Sync signal processing uses a countdown system with non-adjusting H/V oscillator frequencies•Built-in deflection compensation circuit capable of supporting various wide modes •Non-adjusting Y/C block filter •Built-in AKB•Video signal I/Os: Y/C separation input, Y/color difference input, analog RGB input and RGB output•YUV SW Y signal switching function allows picture quality adjustment for the Y signal in the same manner as for the normal Y signal even when Y/color difference input is selected ApplicationsColor TVs (4:3, 16:9)StructureBipolar silicon monolithic ICPin ConfigurationAbsolute Maximum Ratings(Ta = 25°C, SGND, JGND = 0V)•Supply voltage SV CC , JV CC –0.3 to +12V •Operating temperatureTopr –20 to +75°C•Storage temperatureTstg –65 to +150°C•Allowable power dissipationP D 1.5W•Voltages at each pin –0.3 to SV CC , JV CC + 0.3V Operating Conditions Supply voltage SV CC9.0 ±0.5V JV CC9.0 ±0.5VSony reserves the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.48 pin SDIP (Plastic)B L H O L DY I NX T A LA P C F I LC I NS V C CY U V S WE Y I NE R Y I NE B Y I NS G N DY MY SR I NG I NB I NR S HR O U TG S HG O U TB S HB O U TS C LS D AMK I N B L I N /V C O M P B L F I LCS C O U TS I NS I NS F I LR E FG N DG PE R AF C F I L2F I LF C P I N /H O F FD R I V EV C CA W O S CA G C S HW D R I V ED R I VE +/V P R O TD R I VE –/V P R O TT I M (S C P )S D AS C LB G PI R E FV S I NV S F I LH S I NN CA F C F I L J G N D C E R A L 2F I L A F C P I N /H O F F H D R I V E J V C C S A W O S C V A G C S H E W D R I V E V D R I V E +V D R I V E –/V P R O TV T I M A B L I N /V C O M PA B L F I L I K I NY I V B L H O L C I A P C F I X T A S V C Y U V S E Y I E R Y I E B Y I S G N Y Y R I G I B I R S G S B S B O U G O U R O U F S C O U B l o c k D i a g r a mPin DescriptionCXA2095SE l e c t r i c a l C h a r a c t e r i s t i c sS e t t i n g c o n d i t i o n s•T a = 25°C , S V C C = J V C C = 9V , S G N D = J G N D = 0V •M e a s u r e s t h e f o l l o w i n g a f t e r s e t t i n g t h e I 2C b u s r e g i s t e r a s s h o w n i n “I 2C b u s r e g i s t e r i n i t i a l s e t t i n g s ”.N o .I t e m S y m b o lM e a s u r e m e n t c o n d i t i o n sM e a s u r e -m e n t p i n M e a s u r e m e n t c o n t e n t s M i n .T y p .M a x .U n i t1S i g n a l b l o c k c u r r e n t c o n s u m p t i o nS I C CS V C C = 9.0V ,B u s d a t a = c e n t e r6M e a s u r e t h e p i n i n f l o w c u r r e n t .406590m A2S y n c b l o c k c u r r e n t c o n s u m p t i o nJ I C CJ V C C = 9.0V ,B u s d a t a = c e n t e r34M e a s u r e t h e p i n i n f l o w c u r r e n t .254560m AS y n c d e f l e c t i o n b l o c k i t e m s元器件交易网CXA2095SS i g n a l b l o c k i t e m s元器件交易网元器件交易网CXA2095S元器件交易网CXA2095SElectrical Characteristics Measurement Conditions “I2C bus register initial settings”PICTURE= 3F Hex C-TRAP= 0VM= 0HUE= 1F Hex DC-TRAN= 0D-PIC= 0COLOR= 1F Hex TOT= 0AXIS= 0BRIGHT= 1F Hex D-COL= 0ABL= 0SHARPNESS= 7 Hex PRE-OVER= 3SHP-F0= 2SUB-CONT= 7 Hex CTRAP-ADJ= 7 Hex SUB-COLOR= 7 Hex SUB-HUE= 7 Hex SUB-BRIGHT= 1F Hex GAMMA= 0G-DRIVE= 2A Hex AGING1= 0AGING2= 0B-DRIVE= 2A Hex G-CUTOFF= 0 Hex B-CUTOFF= 0 Hex EY-SW= 0CD-MODE2= 0RON= 1GON= 1BON= 1PICON= 1VOFF= 0FHHI= 0CD-MODE= 0AKBOFF= 0V-SIZE= 1F Hex V-COMP= 0V-POSITION= 1F Hex AFC-MODE= 1S-CORR= 0 Hex V-LIN= 7 Hex H-SIZE= 1F Hex REF-POSI= 3PIN-COMP= 1F Hex VBLKW= 0H-POSITION= 7 Hex PIN-PHASE= 7 Hex UP-CPIN= 0 Hex LO-CPIN= 0 Hex AFC-BOW= 7 Hex AFC-ANGLE= 7 Hex V-ASPECT= 0 Hex ZOOMSW= 0HBLKSW= 0V-SCROLL= 1F Hex JMPSW= 0UP-VLIN= 0 Hex LO-VLIN= 0 Hex LEFT-BLK= 7 Hex RIGHT-BLK= 7 HexA p p l i c a t i o n C i r c u i ti n p u t /o u t p u t s i g n a l i n p u t s i g n a l i n p u t R G B i n p u t Y s i g n a l i n p u tV p r o t e c t s i g n a l i n p u tl u c t u a t i o n a l i n p u tA p p l i c a t i o n c i r c u i t s s h o w n a r e t y p i c a l e x a m p l e s i l l u s t r a t i n g t h e o p e r a t i o n o f t h e d e v i c e s . S o n y c a n n o t a s s u m e r e s p o n s i b i l i t y f o r a n y p r o b l e m s a r i s i n g o u t o f t h e u s e o f t h e s e c i r c u i t s o r f o r a n y i n f r i n g e m e n t o f t h i r d p a r t y p a t e n t a n d o t h e r r i g h t d u e t o s a m e .CXA2095S Electrical Characteristics Measurement Circuitare all GND unless otherwise specified in the Measurement conditions column of ElectricalCharacteristics.ABL is 9V unless otherwise specified.33CTRAP-ADJ SUB-HUEB-CUTOFFV-LINPIN-PHASE LO-CPIN AFC-ANGLELO-VLIN RIGHT-BLKPICTURE HUE COLOR BRIGHTSUB-BRIGHT G-DRIVE B-DRIVEV-SIZE V-POSITIONH-SIZE PIN-COMPV-ASPECT V-SCROLLSHARPNESSSUB-CONT SUB-COLORG-CUTOFF S-CORRH-POSITION UP-CPIN AFC-BOWUP-VLIN LEFT-BLK Definition of I 2C Bus Registers Slave Addresses88H: Slave receiver 89H: Slave transmitterControl RegisterBIT0BIT1BIT2BIT3BIT4BIT5BIT6BIT7Sub Address ∗∗∗0 0 0 0 0 00 H ∗∗∗0 0 0 0 1 01 H ∗∗∗0 0 0 1 0 02 H ∗∗∗0 0 0 1 1 03 H ∗∗∗0 0 1 0 0 04 H ∗∗∗0 0 1 0 1 05 H ∗∗∗0 0 1 1 0 06 H ∗∗∗0 0 1 1 1 07 H ∗∗∗0 1 0 0 0 08 H ∗∗∗0 1 0 0 1 09 H ∗∗∗0 1 0 1 0 0A H ∗∗∗0 1 0 1 1 0B H ∗∗∗0 1 1 0 0 0C H ∗∗∗0 1 1 0 1 0D H ∗∗∗0 1 1 1 0 0E H ∗∗∗0 1 1 1 1 0F H ∗∗∗1 0 0 0 0 10 H ∗∗∗1 0 0 0 1 11 H ∗∗∗1 0 0 1 0 12 H ∗∗∗1 0 0 1 1 13 H ∗∗∗1 0 1 0 0 14 H ∗∗∗1 0 1 0 1 15 H ∗∗∗1 0 1 1 0 16 H ∗∗∗1 0 1 1 1 17 H C-TRAP DC-TRAN TOT D-COLVM D-PIC AXIS ABLPRE-OVERSHP-F0GAMMA AGING1EY-SWAGING2CD-MODE2AKBOFFCD-MODE FHHIVOFFPICONBONGONRONV-COMP AFC-MODEREF-POSI VBLKWZOOMSW JMPSW HBLKSW 0Status RegisterBIT00BIT11BIT20BIT3KILLERBIT4HNGBIT5VNGBIT6IKRBIT7HLOCKNote)EY-SW and CD-MODE2 have been added to the CXA2025S.∗: Don't careDescription of Registers<Control Register>Register name No. of bits FunctionPICTURE(6):Picture gain control (RGB gain control)0H = –15dB3FH = 0dB RGB output: 2.4Vp-p (I/O gain: +4.7dB, 1.4Vp-p input)C-TRAP(1):Y block chroma trap ON/OFF switch0 = Trap OFF1 = Trap ON (Y signal delay time adjusted when C-TRAP turned ON or OFF.)VM(1):Y signal differential output ON/OFF switch for VM0: Output OFF1: Output ON (2.0Vp-p)HUE(6):Hue control (Chroma demodulation axis control when SUB-HUE is 8H)0H = +35°Flesh color appears red.1FH = 0°3FH = –35°Flesh color appears green.DC-TRAN(1):Y DC transmission ratio selector switch0 = 100%1 = 82%DPIC(1):Y black expansion ON/OFF switch0 = OFF1 = ON Point of inflection: 30 IRECOLOR(6):Color gain control0H = Color OFF (–40dB or less)1FH = 0dB B output: 1.1Vp-p (I/O gain: +5.7dB, 0.57Vp-p input)3FH = +5.4dBTOT(1):Chroma TOT filter band selector switch0 = TOT-TRAP OFF1 = TOT-TRAP ON (TRAP f0 2.0MHz)AXIS(1):R-Y, G-Y axis selector switch0 = Japan axis R-Y: 95°×0.60, G-Y: 236°× 0.331 = US axis R-Y: 105°× 0.78, G-Y: 236°× 0.33(B-Y: 0°× 1)CXA2095SBRIGHT(6):Bright level control (RGB DC bias control)0H = –300mV1FH = 0mV–300mV from REF-P level3FH = +300mVD-COL(1):Dynamic color ON/OFF switch0 = Dynamic color OFF1 = Dynamic color ON (R, Bch level control)ABL(1):ABL mode selector switch0 = Picture ABL mode1 = Picture/bright ABL modeSHARPNESS(4):Sharpness gain control (Y aperture correction gain control)0H = –8dB7H = 1dBFH = +5.1dBPRE-OVER(2):Sharpness preshoot/overshoot ratio control0H = 1:1(PRE:OVER)3H = 5:1SHP-F0(2):Sharpness f0 control (Delay line current control for aperture correction)0H = 2.5MHz3H = 4.0MHzSUB-CONT(4):Contrast gain control (Y gain control)0H = –3.0dB7H = 0dBFH = +2.5dBCTRAP-ADJ(4):Chroma trap f0 adjustment (Y block chroma trap current control)0H = +300kHz7H = 0kHzFH = –300kHzfsc adjustable to –30dB or less (SHP-F0 min.); adjustment value: 3 to 4SUB-COLOR(4):Color gain control (ACC reference level control)0H = –4.0dB7H = 0dBFH = +2.1dBCXA2095SSUB-HUE(4):Hue control (Phase control for chroma demodulation axis when HUE = 1FH)0H = +10°7H = 0FH = –10°B-Y axis adjustable to 0°SUB-BRIGHT(6):Bright level control (RGB DC bias control)0H = –300mV1FH = 0mV–300mV from REF-P level3FH = +300mVGAMMA(2):Gamma control (RGB gamma correction amount control)0H = Gamma OFF3H = Gamma peak (40 IRE) +400mVG-DRIVE(6):Gch drive gain adjustment (Gch gain control)0H = G/R–3.8dB2AH = G/R0dB3FH = G/R+2.5dBAGING1(1):White output aging mode ON/OFF switch(Has priority over RGBON and PICON control, set to OFF mode at power-on.)0 = Aging mode OFF1 = Aging mode ON60 IRE flat signal output from Y block when input isno signalAGING2(1):Black output aging mode ON/OFF switch(Has priority over AGING1, set to OFF mode at power-on.)0 = Aging mode OFF1 = Aging mode ON Black level outputB-DRIVE(6):Bch drive gain adjustment (Bch gain control)0H = B/R–3.8dB2AH = B/R0dB3FH = B/R+2.5dBEY-SW(1):Internal Y signal fixed mode ON/OFF switch0 = YUV SW (Pin 9) standard operation (EYIN, ERYIN and EBYIN input areselected when Pin 9 is high.)1 = EYIN (Pin 10) input only invalid (Internal Y, ERYIN and EBYIN input areselected when Pin 9 is high.)CD-MODE2(1):Vertical sync pull-in speed switch0 = Standard (equivalent to CXA2025S)1 = High speedCXA2095SG-CUTOFF(4):Gch cut-off adjustment (Gch reference pulse value control of IKIN pin input)0H = 62%7H = 100%(G/R:Gch reference pulse amplitude when Rch referenceFH = 150%pulse amplitude of IKIN pin input is assumed 100%)B-CUTOFF(4):Bch cut-off adjustment (Bch reference pulse value control of IKIN pin input)0H = 62%7H = 100%(B/R:Bch reference pulse amplitude when Rch referenceFH = 150%pulse amplitude of IKIN pin input is assumed 100%)RON(1):ON/OFF switch for Rch video output without a reference pulse(Operates when PICON = 1, set to OFF mode at power-on.)0 = Rch video output OFF (Blanked status, reference pulse only output)1 = Rch video output ONGON(1):ON/OFF switch for Gch video output without a reference pulse(Operates when PICON = 1, set to OFF mode at power-on.)0 = Gch video output OFF (Blanked status, reference pulse only output)1 = Gch video output ONBON(1):ON/OFF switch for Bch video output without a reference pulse(Operates when PICON = 1, set to OFF mode at power-on.)0 = Bch video output OFF (Blanked status, reference pulse only output)1 = Bch video output ONPICON(1):ON/OFF switch for RGB output with a reference pulse (Set to OFF mode atpower-on.)0 = RGB output OFF (All blanked status)1 = RGB output ONVOFF(1):V sawtooth wave oscillation stop ON/OFF switch (Set to OFF mode atpower-on.)0 = Oscillation stop OFF (VDRIVE– and VDRIVE+: normal output)1 = Oscillation stop ON (VDRIVE– and VDRIVE+: DC output and DC valuevary according to V-POSITION.)FHHI(1):H oscillator frequency fixation ON/OFF switch (Set to ON mode at power-on.)0 = H oscillator frequency fixation OFF AFC normal mode1 = H oscillator frequency fixation ON Oscillator frequency fixed tomaximum value (16.252kHz).CD-MODE(1):V countdown system mode selector switch(Set to automatic selection mode during power-on.)0 = Non-standard signal mode, standard signal mode and no signal modeautomatically selected1 = Fixed to non-standard signal mode(V oscillator frequency is 55Hz during no signal mode (free run).)CXA2095S AKBOFF(1):AKB ON/OFF switch (Set to ON mode at power-on.)0 = AKB ON1 = AKB OFF IK clamp, IK S/H and reference pulse fixed to OFF.R, G and B cut-off adjustment at AKB OFF performed by voltageapplied to Pins 19 (RSH), 21 (GSH) and 23 (BSH), respectively.V-SIZE(6):Vertical amplitude adjustment (V sawtooth wave gain control)0H = –14%Vertical picture size decreases.1FH = 0%Amplitude: 1.15Vp-p, center DC : 3V (when V-ASPECT = 1FH)3FH = +14%Vertical picture size increases.V-COMP(2):Compensation amount setting for vertical high voltage fluctuation (V sawtoothwave gain control)0H = 0%V sawtooth wave amplitude compensation amount when 1V isapplied with respect to when 9V is applied of VCOMP (Pin 26)3H = –5%V sawtooth wave amplitude compensation amount when 1V isapplied with respect to when 9V is applied of VCOMP (Pin 26)V-POSITION(6):Vertical position adjustment (V sawtooth wave DC bias control)0H = –0.09V Picture position drops, VDRIVE+ output DC Down1FH = 0V Center DC: 3V2FH = +0.09V Picture position rises, VDRIVE+ output DC UpAFC MODE(2):AFC loop gain control (PLL between Hsync and Hvco)0H = H free run mode1H = Small gain2H = Medium gain3H = Large gainS-CORR(4):Vertical S correction amount adjustment (V sawtooth wave secondary componentgain control)0H = Secondary component amplitude by adding sawtooth wave is 0FH = Secondary component amplitude by adding sawtooth wave is MaximumV-LIN(4):Vertical linearity adjustment (Gain control for V sawtooth wave secondarycomponent)0H = 85% (Bottom/top of picture) Top of picture expanded; bottom of picturecompressed.7H = 100% (Bottom/top of picture)FH = 115% (Bottom/top of picture) Top of picture compressed; bottom ofpicture expanded.H-SIZE(6):Horizontal amplitude adjustment (V parabola wave DC bias control)0H = –0.5V Horizontal picture size decreases, EWDRIVE output DC Down.1FH = 0V Amplitude: 0.58Vp-p, center DC: 4V (when V-ASPECT = 2FH)3FH = +0.5V Horizontal picture size increases, EWDRIVE output DC UpREF-POSI(2):Reference pulse timing setting0H = (From VTIM rise) Rch: 22H, Gch: 23H, Bch: 24H1H = (From VTIM rise) Rch: 20H, Gch: 21H, Bch: 22H2H = (From VTIM rise) Rch: 18H, Gch: 19H, Bch: 20H3H = (From VTIM rise) Rch: 16H, Gch: 17H, Bch: 18HCXA2095S PIN-COMP(6):Horizontal pin distortion compensation amount adjustment (V parabola wavegain control)0H = 0.11Vp-p Compensation amount minimum1FH = 0.47Vp-p Center DC: 4V (when V-ASPECT = 2FH)3FH = 0.84Vp-p Compensation amount maximumVBLKW(2):VBLK width control (Blanked width after reference pulse. Operates whenJMPSW = 1, blanked width after reference pulse is fixed to 1H when JMPSW = 0.)0H = 12H from Bch REF-P1H = 11H from Bch REF-P2H = 10H from Bch REF-P3H = 9H from Bch REF-PH-POSITION(4):Horizontal position adjustment (HAFC phase control)0H = 1µs delay Picture position shifts to right. Video delayed withrespect to HD.7H = 0µsFH = 1µs advance Picture position shifts to left. Video advanced withrespect to HD.PIN-PHASE(4):Horizontal trapezoidal distortion compensation amount adjustment (V parabolawave center timing control)0H = 1.5ms advance Horizontal size for top of picture increases.Horizontal size for bottom of picture decreases.7H = 0ms Center timing is 8.9ms from VTIM.FH = 1.5ms delay Horizontal size for top of picture decreases.Horizontal size for bottom of picture increases.UP-CPIN(4):Horizontal pin distortion compensation amount adjustment for top of picture (Vparabola wave gain control)0H = +0.2V Horizontal size for top of picture decreases.7H = 0V(0.7Vp-p, 4:3 mode)FH = –0.2V Horizontal size for top of picture increases.LO-CPIN(4):Horizontal pin distortion compensation amount adjustment for bottom of picture(V parabola wave gain control)0H = +0.2V Horizontal size for bottom of picture decreases.7H = 0V(0.7Vp-p, 4:3 mode)FH = –0.2V Horizontal size for bottom of picture increases.AFC-BOW(4):Vertical line bow compensation amount adjustment (HAFC phase controlaccording to parabola wave)0H = Top and bottom of picture delayed 500ns with respect to picture center7H = 0nsFH = Top and bottom of picture advanced 500ns with respect to picture center AFC-ANGLE(4):Vertical line slope compensation amount adjustment (HAFC phase controlaccording to sawtooth wave)0H = Top of picture delayed 500ns, bottom of picture advanced 500ns withrespect to picture center7H = 0nsFH = Top of picture advanced 500ns, bottom of picture delayed 500ns withrespect to picture centerV-ASPECT(6):Aspect ratio control(V sawtooth wave gain control)0H = 75%16:9 CRT full2FH = 100%4:3 CRT full (amplitude: 1.23Vp-p)3FH = 112%CXA2095SZOOMSW(1):Zoom mode ON/OFF switch for 16:9 CRT(Top and bottom of V sawtooth wave squeezed and 25% of picture cut)0 = Zoom OFF Sawtooth wave amplitude: 1.23Vp-p1 = Zoom ON Sawtooth wave amplitude: 70%HBLKSW(1):HBLK width control ON/OFF switch during 4:3 software full display mode on a16:9 CRT0 = Control OFF HBLK pulse generated from HPIN.1 = Control ON HBLK pulse generated as pulse generated from HPIN or aspulse generated from HVCO and width adjusted.Width adjustment is performed by the LEFT-BLK and RIGHT-BLK registers.V-SCROLL(6):Vertical picture scroll control during zoom mode on a 16:9 CRT(DC component added to sawtooth wave AGC output to control ZOOMSW cuttiming)0H = –0.25V Scrolled toward top of screen by 32H and top of picturezoomed.1FH = 0V3FH = +0.25V Scrolled toward bottom of screen by 32H and bottom of picturezoomed.JUMPSW(1):Reference pulse jump mode ON/OFF switch(In addition to V-ASPECT control, sawtooth wave gain control performed for100% of VBLK interval and 67% of picture interval)0 = Jump mode OFF1 = Jump mode ONOn a 4:3 CRT, jump mode expands the sawtooth wave amplitude to 112%with V-ASPECT; on a 16:9 CRT, jump mode compresses the sawtoothwave amplitude to 75% with V-ASPECT. The V blanking width is expandedat both the top and bottom of the picture. Blanking for the bottom of thepicture starts 251H after VTIM, and blanking for the top of the picture canbe varied as the blanking width after the reference pulse by the VBLKWregister.UP-VLIN(4):Vertical linearity adjustment for top of picture(Secondary component gain control for sawtooth wave added to sawtooth waveAGC output)0H = 100% (Bottom/top of picture)FH = 115% (Bottom/top of picture) Top of picture compressed.LO-VLIN(4):Vertical linearity adjustment for bottom of picture(Tertiary component gain control for sawtooth wave added to sawtooth waveAGC output)0H = 100% (Bottom/top of picture)FH = 85% (Bottom/top of picture) Bottom of picture compressed.LEFT-BLK(4):HBLK width control for left side of picture when HBLKSW = 1(Phase control for timing pulse generated from HVCO)0H = +1.3µs HBLK width maximum7H = 0µs Center HBLK: 13µsFH = –1.3µs HBLK width minimumRIGHT-BLK(4):HBLK width control for the right side of picture when HBLKSW = 1(Phase control for timing pulse generated from HVCO)0H = +1.3µs HBLK width maximum7H = 0µs Center HBLK: 13µsFH = –1.3µs HBLK width minimum<Status Register>HLOCK(1):Lock status between Hsync and HVCO0 = HVCO free run status1 = Locked to HsyncIKR(1):AKB operation status0 = REF-P return small and AKB loop unstable.1 = REF-P return sufficient and AKB loop stable.VNG(1):Signal input status to VPROT pin0 = No VPROT input1 = VPROT input (In this case, RGB outputs are blanked.)HNG(1):Signal input status to HOFF pin0 = No HOFF input1 = HOFF input (In this case, RGB outputs are blanked.)KILLER(1):Color killer status0 = Killer OFF status1 = Killer ON statusNote)The following have been added to the CXA2025S.EY-SW: Sub Add 09H, Bit 1CD-MODE2: Sub Add 09H, Bit 0Description of Operation1. Power-on sequenceThe CXA2095S does not have an internal power-on sequence. Therefore, all IC operations are controlled by the set microcomputer (I2C bus controller).1) Power-onThe IC is reset and the RGB outputs are all blanked. Hdrive starts to oscillate, but oscillation is at the maximum frequency (16kHz or more) and is not synchronized to the input signal. Output of vertical signal VTIM starts, VDRIVE outputs V sawtooth wave. Bus registers which are set by power-on reset are as follows.AGING1= 0: All white output aging mode OFFAGING2= 0: All black output aging mode OFFRON= 0: Rch video blanking ONGON= 0: Gch video blanking ONBON= 0: Bch video blanking ONPICON= 0: RGB all blanking ONVOFF= 0: V sawtooth wave oscillation mode ∗VOFF = 1 for the CXA2025S.FHHI= 1: H oscillator maximum frequency modeCD-MODE= 0: Automatic selector mode of the countdown modeAKBOFF= 0: AKB mode2) Bus register data transferThe register setting sequence differs according to the set sequence. Register settings for the following sequence are shown as an example.Set sequence CXA2095S register settingsPower-on Reset status in 1) above.↓↓Degauss Reset status in 1) above.The CRT is degaussed in the completely darkened condition.↓↓IC initial setting The IC is set to the power-on initial settings. (See the following page.)The HDRIVE oscillator frequency goes to the standard frequency (around15.734kHz).↓↓AKB operation start PICON is set to 1 and a reference pulse is output from Rout, Gout andBout. Then, the IC waits for the cathode to warm up and the beam currentto start flowing.↓↓AKB loop stable Status register IKR is monitored.IKR = 0: No cathode currentIKR = 1: Cathode currentNote that the time until IKR returns to 1 differs according to the initialstatus of the cathode.↓↓Video output RON, GON and BON are set to 1 and the video signal is output fromRout, Gout and Bout.3) Power-on initial settingsThe initial settings listed here are reference values, and initial settings may be determined freely according to the set usage conditions.PICTURE= 3F Hex Max (User Cont.)C-TRAP= 0Chroma Trap OFFVM= 1VM out ONHUE= 1F Hex Center (User Cont.)DC-TRAN= 0Y DC transmission ratio 100%D-PIC= 1Y black expansion ONCOLOR= 1F Hex Center (User Cont.)TOT= 0Chroma low frequency increasedAXIS= 0R-Y, G-Y Japan axisBRIGHT= 1F Hex Center (User Cont.)D-COL= 1Dynamic Color ONABL= 1Picture/bright ABL modeSHARPNESS= 7 Hex Center (User Cont.)PRE-OVER= 0Sharpness pre/over ratio 2:1SHP-F0= 1Sharpness f0 3MHzSUB-CONT= 7 Hex Center (Adjust)CTRAP-ADJ= 7 Hex Center (Adjust)SUB-COLOR= 7 Hex Center (Adjust)SUB-HUE= 7 Hex Center (Adjust)SUB-BRIGHT= 1F Hex Center (Adjust)GAMMA= 0Gamma OFFG-DRIVE= 1F Hex Center (Adjust)AGING1= 0Aging Mode OFFAGING2= 0Aging Mode OFFB-DRIVE= 1F Hex Center (Adjust)G-CUTOFF= 7 Hex Center (Adjust)B-CUTOFF= 7 Hex Center (Adjust)EY-SW= 0StandardCD-MODE2= 0StandardRON= 0Rch video output OFFGON= 0Gch video output OFFBON= 0Bch video output OFFPICON= 0RGB all blankedVOFF= 0Vdrive oscillation stoppedFHHI= 0Horizontal oscillator frequency standardCD-MODE= 0V countdown auto modeAKBOFF= 0AKB ONV-SIZE= 1F Hex Center (Adjust)V-COMP= 3Vdrive high voltage fluctuation compensation amount maxV-POSITION= 1F Hex Center (Adjust)AFC-MODE= 2CenterS-CORR= 7 Hex Center (Adjust)V-LIN= 7 Hex Center (Adjust)H-SIZE= 1F Hex Center (Adjust)REF-POSI= 0PIN-COMP= 1F Hex Center (Adjust)VBLKW= 0(Power-on initial settings cont.)H-POSITION= 7 Hex Center (Adjust)PIN-PHASE= 7 Hex Center (Adjust)UP-CPIN= 7 Hex Center (Adjust)LO-CPIN= 7 Hex Center (Adjust)AFC-BOW= 7 Hex Center (Adjust)AFC-ANGLE= 7 Hex Center (Adjust)V-ASPECT= 0 Hex16:9 CRT Full ModeZOOMSW= 116:9 CRTHBLKSW= 1Hblk width adjust ONV-SCROLL= 1F Hex Center (User)JMPSW= 016:9 CRT Full ModeUP-VLIN= 7 Hex16:9 CRT Full ModeLO-VLIN= 7 Hex16:9 CRT Full ModeLEFT-BLK= F Hex Hblk width min.RIGHT-BLK= F Hex Hblk width min.2. Various mode settingsThe CXA2095S contains bus registers for deflection compensation which can be set for various wide modes. Wide mode setting registers can be used separately from registers for normal picture distortion adjustment, and once distortion adjustment has been performed in full mode, wide mode settings can be made simply by changing the corresponding register data.•VDRIVE signal picture distortion adjustment registersV-SIZE, V-POSITION, S-CORR, V-LIN•E/WDRIVE signal picture distortion adjustment registersH-SIZE, PIN-COMP, PIN-PHASE, UP-CPIN, LO-CPIN•Wide mode setting registersV-ASPECT, ZOOMSW, HBLKSW, V-SCROLL, JMPSW, UP-VLIN, LO-VLIN, LEFT-BLK, RIGHT-BLKExamples of various modes are listed below. These modes are described using 480 lines as the essential number of display scanning lines. Wide mode setting register data is also listed, but settings may differ slightly due to IC variation. The standard setting data differs for 16:9 CRTs and 4:3 CRTs.Register 16:9 CRT 4:3 CRTV-ASPECT0 H2F HV-SCROLL1F H1F HZOOMSW10UP-VLIN0 H0 HLO-VLIN0 H0 HJMPSW00HBLKSW00LEFT-BLK7 H7 HRIGHT-BLK7 H7 H1) 16:9 CRT full modeThis mode reproduces the full 480 lines on a 16:9 CRT. 4:3 images are reproduced by stretching the picture to the left and right. Normal images are compressed vertically, but 16:9 images can be reproduced in their original 16:9 aspect ratio with a video source which compresses (squeezes) 16:9 images to 4:3 images.The register settings are the 16:9 CRT standard values.2) 16:9 CRT normal modeIn this mode, 4:3 images are reproduced without modification. A black border appears at the left and right of the picture. In this mode, the H deflection size must be compressed by 25% compared to full mode. The CXA2095S also has a register (H-SIZE) which controls the H size, but the control width is not sufficient for 25% compression. Therefore, external measures must be taken such as switching the H deflection coil. Full mode should be used when performing memory processing and attaching a black border to the video signal.H blanking of the image normally uses the flyback pulse input to AFCPIN (Pin 36). However, the blanking width can be varied according to the control register setting when blanking is insufficient for the right and left black borders.The following three settings are added to the 16:9 CRT standard values for the register settings.HBLKSW = 1LEFT-BLK = Adjustment valueRIGHT-BLK = Adjustment valueThe H angle of deflection also decreases, causing it to differ from the PIN compensation amount during H size full status. Therefore, in addition to the wide mode registers, PIN-COMP must also be readjusted only for this mode.3) 16:9 CRT zoom modeIn this mode, 4:3 images are reproduced by enlarging the picture without other modification. The top and bottom of normal 4:3 images are lost, but almost the entire picture can be reproduced for vista size video software, etc. which already has black borders at the top and bottom. The enlargement ratio can be controlled by the V-ASPECT register, and enlarging the picture by 33% compared to full mode allows zooming to be performed for 4:3 images without distortion. In this case, the number of scanning lines is reduced to 360 lines compared to 480 lines for full mode. The zooming position can be shifted vertically by the V-SCROLL register. V blanking of the image normally begins from V sync and continues for 2H after the AKB reference pulse, and the top and bottom parts are also blanked during this mode.Adjust the following two registers with respect to the 16:9 CRT standard values for the register settings.V-ASPECT = 2FHV-SCROLL = 1FH or user control4) 16:9 CRT subtitle-in modeWhen Cinema Scope size images which have black borders at the top and bottom of the picture are merely enlarged with the zoom mode in 3) above, subtitles present in the black borders may be lost. Therefore, this mode is used to super-compress only the subtitle part and reproduce it on the display.Add the LO-VLIN adjustment to the zoom mode settings for the register settings.V-ASPECT = 2FHV-SCROLL = 1FH or user controlLO-VLIN = Adjustment valueThe LO-VLIN register causes only the linearity at the bottom of the picture to deteriorate. Therefore, UP-VLIN should also be adjusted if the top and bottom of the picture are to be made symmetrical. Since the picture is compressed vertically, the number of scanning lines exceeds 360 lines.。

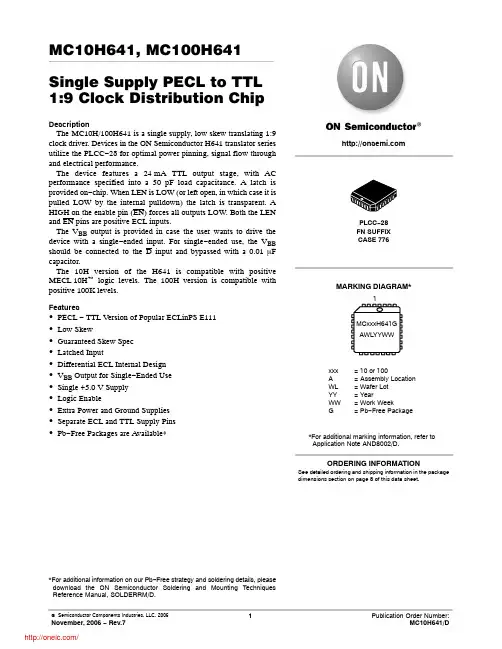

MC10H641, MC100H641 Single Supply PECL to TTL 1:9 Clock Distribution ChipDescriptionThe MC10H/100H641 is a single supply, low skew translating 1:9 clock driver. Devices in the ON Semiconductor H641 translator series utilize the PLCC−28 for optimal power pinning, signal flow through and electrical performance.The device features a 24 mA TTL output stage, with AC performance specified into a 50 pF load capacitance. A latch is provided on−chip. When LEN is LOW (or left open, in which case it is pulled LOW by the internal pulldown) the latch is transparent. A HIGH on the enable pin (EN) forces all outputs LOW. Both the LEN and EN pins are positive ECL inputs.The V BB output is provided in case the user wants to drive the device with a single−ended input. For single−ended use, the V BB should be connected to the D input and bypassed with a 0.01 m F capacitor.The 10H version of the H641 is compatible with positiveMECL 10H™ logic levels. The 100H version is compatible with positive 100K levels.Features•PECL − TTL Version of Popular ECLinPS E111•Low Skew•Guaranteed Skew Spec•Latched Input•Differential ECL Internal Design•V BB Output for Single−Ended Use•Single +5.0 V Supply•Logic Enable•Extra Power and Ground Supplies•Separate ECL and TTL Supply Pins•Pb−Free Packages are Available**For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.MARKING DIAGRAM*xxx= 10 or 100A= Assembly LocationWL= Wafer LotYY= YearWW= Work WeekG=Pb−Free PackagePLCC−28FN SUFFIXCASE 776MCxxxH641GAWLYYWW1*For additional marking information, refer toApplication Note AND8002/D.See detailed ordering and shipping information in the package dimensions section on page 8 of this data sheet.ORDERING INFORMATIONV BB D D VE LEN GE EN1GT Q5VT Q4VT Q3GTGT Q6VT Q7VT Q8GT GTQ2VTQ1VTQ0GT5678910112524232221201926272823418171615141312Figure 1. Pinout: PLCC −28 (Top View)TTL OutputsQ0Q1Q2Q3Q4Q5Q6Q7Q8Figure 2. Logic DiagramTable 2. 10H PECL DC CHARACTERISTICSSymbol Characteristic Condition0°C25°C85°CUnit Min Max Min Max Min MaxI INH Input HIGH Current255175175m A I IL Input LOW Current0.50.50.5m A V IH Input HIGH Voltage V E = 5.0 V (Note 1) 3.83 4.16 3.87 4.19 3.94 4.28V V IL Input LOW Voltage V E = 5.0 V (Note 1) 3.05 3.52 3.05 3.52 3.05 3.55V V BB Output Reference Voltage V E = 5.0 V (Note 1) 3.62 3.73 3.65 3.75 3.69 3.81V NOTE:Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit board with maintained transverse airflow greater than 500 lfpm. Electrical parameters are guaranteed only over the declared operating temperature range. Functional operation of the device exceeding these conditions is not implied. Device specification limit values are applied individually under normal operating conditions and not valid simultaneously.1.PECL V IH, V IL, and V BB are referenced to VE and will vary 1:1 with the power supply. The levels shown are for VE = 5.0 V.Table 3. 100H PECL DC CHARACTERISTICSSymbol Characteristic Condition0°C25°C85°CUnit Min Max Min Max Min MaxI INH Input HIGH Current255175175m A I INL Input LOW Current0.50.50.5m A V IH Input HIGH Voltage V E = 5.0 V (Note 2) 3.835 4.120 3.835 4.120 3.835 4.120V V IL Input LOW Voltage V E = 5.0 V (Note 2) 3.190 3.525 3.190 3.525 3.190 3.525V V BB Output Reference Voltage V E = 5.0 V (Note 2) 3.62 3.74 3.62 3.74 3.62 3.74V NOTE:Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit board with maintained transverse airflow greater than 500 lfpm. Electrical parameters are guaranteed only over the declared operating temperature range. Functional operation of the device exceeding these conditions is not implied. Device specification limit values are applied individually under normal operating conditions and not valid simultaneously.2.PECL V IH, V IL, and V BB are referenced to VE and will vary 1:1 with the power supply. The levels shown are for VE = 5.0 V.Table 4. DC CHARACTERISTICS (V T = V E = 5.0 V ± 5%)Symbol CharacteristicT A = 0°C T A = + 25°C T A = + 85°CUnit Min Typ Max Min Typ Max Min Typ MaxI EE Power Supply CurrentPECL243024302430mA I CCH TTL243024302430mA I CCL273527352735mA NOTE:Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit board with maintained transverse airflow greater than 500 lfpm. Electrical parameters are guaranteed only over the declared operating temperature range. Functional operation of the device exceeding these conditions is not implied. Device specification limit values are applied individually under normal operating conditions and not valid simultaneously.Table 5. TTL DC CHARACTERISTICS (V T = V E = 5.0 V ± 5%)Symbol0°C25°C85°C Characteristic Condition Min Max Min Max Min Max UnitV OH Output HIGH Voltage I OH = −15 mA 2.5 2.5 2.5V V OL Output LOW Voltage I OL = 24 mA0.50.50.5V I OS Output Short Circuit Current V OUT = 0 V−100−225−100−225−100−225mA NOTE:Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit board with maintained transverse airflow greater than 500 lfpm. Electrical parameters are guaranteed only over the declared operating temperature range. Functional operation of the device exceeding these conditions is not implied. Device specification limit values are applied individually under normal operating conditions and not valid simultaneously.Table 6. AC CHARACTERISTICS (V T = V E = 5.0 V ± 5%)Characteristic T J = 0°C T J = + 25°C T J = + 85°CSymbol Condition Min Typ Max Min Typ Max Min Typ Max Unitt PLH t PHL Propagation DelayD to QCL = 50 pF (Note 3) 5.005.365.505.866.006.364.865.275.365.775.866.275.085.435.585.936.086.43nst skew Device SkewPart−to−PartSingle V CCOutput−to−Output CL = 50 pF (Note 4)CL = 50 pF (Note 5)CL = 50 pF (Note 6)100075035010007503501000750350pst PLH t PHL Propagation DelayLEN to QCL = 50 pF 4.9 6.9 4.9 6.9 5.07.0nst PLH t PHL Propagation DelayEN to QCL = 50 pF 5.07.0 4.9 6.9 5.07.0nst r t f Output Rise/Fall0.8 V to 2.0 VCL = 50 pF 1.71.61.71.61.71.6nsf MAX Max Input Frequency CL = 50 pF (Note 7)656565MHz t S Setup Time0.750.500.750.500.750.50ns t H Hold Time0.750.500.750.500.750.50ns NOTE:Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit board with maintained transverse airflow greater than 500 lfpm. Electrical parameters are guaranteed only over the declared operating temperature range. Functional operation of the device exceeding these conditions is not implied. Device specification limit values are applied individually under normal operating conditions and not valid simultaneously.3.Propagation delay measurement guaranteed for junction temperatures. Measurements performed at 50 MHz input frequency.4.Skew window guaranteed for a single temperature across a V CC = V T = V E of 4.75 V to5.25 V (See Application Note in this data sheet).5.Skew window guaranteed for a single temperature and single V CC = V T = V E6.Output−to−output skew is specified for identical transitions through the device.7.Frequency at which output levels will meet a 0.8 V to 2.0 V minimum swing.Determining Skew for a Specific ApplicationThe H641 has been designed to meet the needs of very low skew clock distribution applications. In order to optimize the device for this application special considerations are necessary in the determining of the part−to−part skew specification limits. Older standard logic devices are specified with relatively slack limits so that the device can be guaranteed over a wide range of potential environmental conditions. This range of conditions represented all of the potential applications in which the device could be used. The result was a specification limit that in the vast majority of cases was extremely conservative and thus did not allow for an optimum system design. For non−critical skew designs this practice is acceptable, however as the clock speeds of systems increase overly conservative specification limits can kill a design.The following will discuss how users can use the information provided in this data sheet to tailor a part−to−part skew specification limit to their application. The skew determination process may appear somewhat tedious and time consuming, however if the utmost in performance is required this procedure is necessary. For applications which do not require this level of skew performance a generic part−to−part skew limit of 2.5 ns can be used. This limit is good for the entire ambient temperature range, the guaranteed V CC (V T, V E) range and the guaranteed operating frequency range.Temperature DependenceA unique characteristic of the H641 data sheet is that the AC parameters are specified for a junction temperature rather than the usual ambient temperature. Because very few designs will actually utilize the entire commercial temperature range of a device a tighter propagation delay window can be established given the smaller temperature range. Because the junction temperature and not the ambient temperature is what affects the performance of the device the parameter limits are specified for junction temperature. In addition the relationship between the ambient and junction temperature will vary depending on the frequency, load and board environment of the application. Since these factors are all under the control of the user it is impossible to provide specification limits for every possible application. Therefore a baseline specification was established for specific junction temperatures and the information that follows will allow these to be tailored to specific applications.Since the junction temperature of a device is difficult to measure directly, the first requirement is to be able to “translate” from ambient to junction temperatures. The standard method of doing this is to use the power dissipation of the device and the thermal resistance of the package. For a TTL output device the power dissipation will be a function of the load capacitance and the frequency of the output. The total power dissipation of a device can be described by the following equation:P D (watts) = I CC (no load) * V CC +V S* V CC * f * C L * # Outputswhere:V S= Output V oltage Swing = 3.0 Vf = Output FrequencyC L = Load CapacitanceI CC = I EE + I CCHFigure 1 plots the I CC versus Frequency of the H641 with no load capacitance on the output. Using this graph and the information specific to the application a user can determine the power dissipation of the H641.Figure 1. I CC versus f (No Load)01020304050607080FREQUENCY (MHz)NORMALIZEDICC12345Figure 2 illustrates the thermal resistance (in °C/W) for the PLCC−28 under various air flow conditions. By reading the thermal resistance from the graph and multiplying by the power dissipation calculated above the junction temperature increase above ambient of the device can be calculated.02004006008001000AIRFLOW (LFPM)THERMALRESISTANCE(3040506070C/W)°Figure 2. j JA versus Air FlowFinally taking this value for junction temperature and applying it to Figure 3 allows the user to determine thepropagation delay for the device in question. A more common use would be to establish an ambient temperature range for the H641’s in the system and utilize the above methodology to determine the potential increased skew of the distribution network. Note that for this information if the T PD versus Temperature curve were linear the calculations would not be required. If the curve were linear over all temperatures a simple temperature coefficient could be provided.Figure 3. T PD versus Junction Temperature−30JUNCTION TEMPERATURE (P R O P A G A T I O N D E L A Y (n s )5.2−101030507090110130°C)5.45.65.86.06.26.4V CC DependenceTTL and CMOS devices show a significant propagationdelay dependence with V CC . Therefore the V CC variation in a system will have a direct impact on the total skew of the clock distribution network. When calculating the skew between two devices on a single board it is very likely an assumption of identical V CC ’s can be made. In this case the number provided in the data sheet for part −to −part skew would be overly conservative. By using Figure 4 the skew given in the data sheet can be reduced to represent a smaller or zero variation in V CC . The delay variation due to the specified V CC variation is ≈ 270 ps. Therefore, the 1 ns window on the data sheet can be reduced by 270 ps if the devices in question will always experience the same V CC .The distribution of the propagation delay ranges given in the data sheet is actually a composite of three distributions whose means are separated by the fixed difference inpropagation delay at the typical, minimum and maximum V CC .Figure 4. D T PD versus V CC4.75VCC (V)T −1404.85 4.955.05 5.15 5.25−100−60−202060100140ΔP D (p s )Capacitive Load DependenceAs with V CC the propagation delay of a TTL output is intimately tied to variation in the load capacitance. The skew specifications given in the data sheet, of course, assume equal loading on all of the outputs. However situations could arise where this is an impossibility and it may be necessary to estimate the skew added by asymmetric loading. In addition the propagation delay numbers are provided only for 50 pF loads, thus necessitating a method of determining the propagation delay for alternative loads.Figure 5 shows the relationship between the two propagation delays with respect to the capacitive load on the output. Utilizing this graph and the 50 pF limits the specification of the H641 can be mapped into a spec for either a different value load or asymmetric loads.Figure 5. T PD versus LoadCAPACITIVE LOAD (pF)M O R M A L I Z E D P R O P A G A T I O N D E L A Y (n s )0.751020304050607080901000.800.850.900.951.001.051.101.15Rise/Fall Skew DeterminationThe rise−to−fall skew is defined as simply the difference between the T PLH and the T PHL propagation delays. This skew for the H641 is dependent on the V CC applied to the device. Notice from Figure 4 the opposite relationship of T PD versus V CC between T PLH and T PHL. Because of this the rise−to−fall skew will vary depending on V CC. Since in all likelihood it will be impossible to establish the exact value for V CC, the expected variation range for V CC should be used. If this variation will be the ± 5% shown in the data sheet the rise−to−fall skew could be established by simply subtracting the fastest T PLH from the slowest T PHL; this exercise yields 1.41 ns. If a tighter V CC range can be realized Figure 4 can be used to establish the rise−to−fall skew. Specification Limit Determination ExampleThe situation pictured in Figure 6 will be analyzed as an example. The central clock is distributed to two different cards; on one card a single H641 is used to distribute the clock while on the second card two H641’s are required to supply the needed clocks. The data sheet as well as the graphical information of this section will be used to calculate the skew between H641a and H641b as well as the skew between all three of the devices. Only the T PLH will be analyzed, the T PHL numbers can be found using the same technique. The following assumptions will be used:−All outputs will be loaded with 50 pF−All outputs will toggle at 30 MHz−The V CC variation between the two boards is ± 3 %−The temperature variation between the threedevices is ± 15°C around an ambient of 45°C.−500 lfpm air flowThe first task is to calculate the junction temperature for the devices under these conditions. Using the power equation yields:P D=I CC (no load) * V CC +V CC * V S * f * C L * # outputs=4.3 * 48m A * 5.0 V + 5.0 V * 3.0 V * 30 MHz *50 pF * 9=432 mW + 203 mW = 635 mWUsing the thermal resistance graph of Figure 2 yields a thermal resistance of 41°C/W which yields a junction temperature of 71°C with a range of 56°C to 86°C. Using the T PD versus Temperature curve of Figure 3 yields a propagation delay of 5.42 ns and a variation of 0.19 ns. Since the design will not experience the full ± 5% V CC variation of the data sheet the 1.0 ns window provided will be unnecessarily conservative. Using the curve of Figure 4 shows a delay variation due to a ± 3% V CC variation of ± 0.075 ns. Therefore the 1.0 ns window can be reduced to 1.0 ns − (0.27 ns − 0.15 ns) = 0.88 ns. Since H641a and H641b are on the same board we will assume that they will always be at the same V CC; therefore the propagation delay window will only be 1 ns − 0.27 ns = 0.73 ns.Putting all of this information together leads to a skew between all devices of0.19 ns + 0.88 ns(temperature + supply, and inherent device),while the skew between devices A and B will be only 0.19 ns + 0.73 ns(temperature + inherent device only).In both cases, the propagation delays will be centered around 5.42 ns, resulting in the following t PLH windows: T PLH = 4.92 ns − 5.99 ns; 1.07 ns window(all devices)T PLH= 5.00 ns − 5.92 ns; 0.92 ns window(devices a & b)Of course the output−to−output skew will be as shown in the data sheet since all outputs are equally loaded.This process may seem cumbersome, however the delay windows, and thus skew, obtained are significantly better than the conservative worst case limits provided at the beginning of this note. For very high performance designs, this extra information and effort can mean the difference between going ahead with prototypes or spending valuableFigure 6. Example ApplicationORDERING INFORMATIONDevice Package Shipping†MC10H641FN PLCC−2837 Units / Rail37 Units / RailMC10H641FNG PLCC−28(Pb−Free)MC10H641FNR2PLCC−28500 / Tape & Reel500 / Tape & ReelMC10H641FNR2G PLCC−28(Pb−Free)MC100H641FN PLCC−2837 Units / Rail37 Units / RailMC100H641FNG PLCC−28(Pb−Free)MC100H641FNR2PLCC−28500 / Tape & Reel500 / Tape & ReelMC100H641FNR2G PLCC−28(Pb−Free)†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.Resource Reference of Application NotesAN1405/D−ECL Clock Distribution TechniquesAN1406/D−Designing with PECL (ECL at +5.0 V)AN1503/D−ECLinPS t I/O SPiCE Modeling KitAN1504/D−Metastability and the ECLinPS FamilyAN1568/D−Interfacing Between LVDS and ECLAN1672/D−The ECL Translator GuideAND8001/D−Odd Number Counters DesignAND8002/D−Marking and Date CodesAND8020/D−Termination of ECL Logic DevicesAND8066/D−Interfacing with ECLinPSAND8090/D−AC Characteristics of ECL DevicesPACKAGE DIMENSIONSPLCC −28FN SUFFIXPLASTIC PLCC PACKAGECASE 776−02ISSUE ESL−M S 0.010 (0.250) NST VIEW SNOTES:1.DATUMS −L−, −M−, AND −N− DETERMINED WHERE TOP OF LEAD SHOULDER EXITS PLASTIC BODY AT MOLD PARTING LINE.2.DIMENSION G1, TRUE POSITION TO BEMEASURED AT DATUM −T−, SEATING PLANE.3.DIMENSIONS R AND U DO NOT INCLUDE MOLD FLASH. ALLOWABLE MOLD FLASH IS 0.010 (0.250) PER SIDE.4.DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.5.CONTROLLING DIMENSION: INCH.6.THE PACKAGE TOP MAY BE SMALLER THAN THE PACKAGE BOTTOM BY UP TO 0.012(0.300). DIMENSIONS R AND U ARE DETERMINED AT THE OUTERMOST EXTREMES OF THE PLASTIC BODY EXCLUSIVE OF MOLD FLASH, TIE BAR BURRS, GATE BURRS AND INTERLEAD FLASH, BUT INCLUDING ANY MISMATCH BETWEEN THE TOP AND BOTTOM OF THE PLASTIC BODY.7.DIMENSION H DOES NOT INCLUDE DAMBAR PROTRUSION OR INTRUSION. THE DAMBAR PROTRUSION(S) SHALL NOT CAUSE THE H DIMENSION TO BE GREATER THAN 0.037(0.940). THE DAMBAR INTRUSION(S) SHALL NOT CAUSE THE H DIMENSION TO BE SMALLER THAN 0.025 (0.635).DIM MIN MAX MIN MAX MILLIMETERSINCHES A 0.4850.49512.3212.57B 0.4850.49512.3212.57C 0.1650.180 4.20 4.57E 0.0900.110 2.29 2.79F 0.0130.0190.330.48G 0.050 BSC 1.27 BSC H 0.0260.0320.660.81J 0.020−−−0.51−−−K 0.025−−−0.64−−−R 0.4500.45611.4311.58U 0.4500.45611.4311.58V 0.0420.048 1.07 1.21W 0.0420.048 1.07 1.21X 0.0420.056 1.07 1.42Y −−−0.020−−−0.50Z 2 10 2 10 G10.4100.43010.4210.92K10.040−−− 1.02−−−____ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.“Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates,and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.PUBLICATION ORDERING INFORMATIONECLinPS is a trademark of Semiconductor Components Industries, LLC (SCILLC).MECL 10H is a trademark of Motorola, Inc.分销商库存信息:ONSEMIMC10H641FNR2G MC10H641FNG MC10H641FNR2 MC100H641FN MC100H641FNG MC100H641FNR2 MC100H641FNR2G MC10H641FN。
