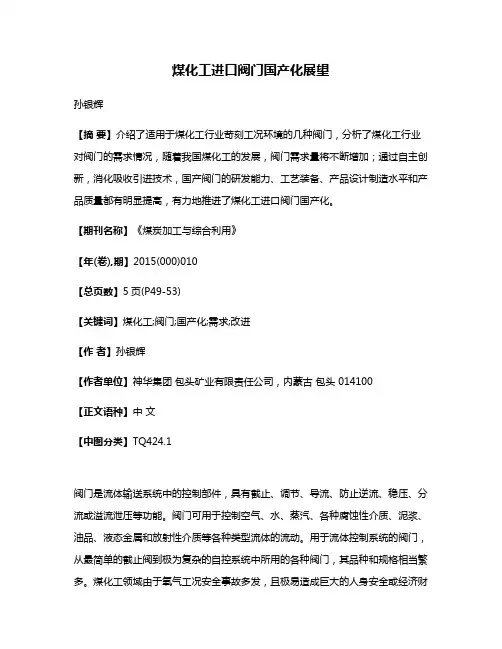

煤化工进口阀门国产化展望孙银辉【摘要】介绍了适用于煤化工行业苛刻工况环境的几种阀门，分析了煤化工行业对阀门的需求情况，随着我国煤化工的发展，阀门需求量将不断增加；通过自主创新，消化吸收引进技术，国产阀门的研发能力、工艺装备、产品设计制造水平和产品质量都有明显提高，有力地推进了煤化工进口阀门国产化。

【期刊名称】《煤炭加工与综合利用》【年(卷),期】2015(000)010【总页数】5页(P49-53)【关键词】煤化工;阀门;国产化;需求;改进【作者】孙银辉【作者单位】神华集团包头矿业有限责任公司，内蒙古包头 014100【正文语种】中文【中图分类】TQ424.1阀门是流体输送系统中的控制部件，具有截止、调节、导流、防止逆流、稳压、分流或溢流泄压等功能。

阀门可用于控制空气、水、蒸汽、各种腐蚀性介质、泥浆、油品、液态金属和放射性介质等各种类型流体的流动。

用于流体控制系统的阀门，从最简单的截止阀到极为复杂的自控系统中所用的各种阀门，其品种和规格相当繁多。

煤化工领域由于氧气工况安全事故多发，且极易造成巨大的人身安全或经济财产损失，因此对氧气工况用阀门设立了远高于一般行业标准的技术与质量要求。

《煤化工设备推荐手册》推荐了上海科科阀门、苏州纽威阀门、上海开维喜、中核苏阀、浙江超达、上海精工等厂家阀门，煤化工领域国产阀门也有应用实践。

1 适用于煤化工严苛工况的几种阀门1.1 氧气切断球阀煤化工领域中的氧气切断球阀必须达到的要求：（1）严格脱油脱脂：密封等级高达ANSI B16.104 VI 级/API 598 （双向）；（2）温度要求高：煤气化工艺靠近气化炉的主氧路最后一个氧气切断阀，要求使用温度高达500 ℃；（3）压差大：氧气放空阀、氧气旁通阀，开启瞬间的压差达到4.7~8.6 MPa，造成阀门开启需要的扭矩大，氧气流速高，要求对于阀门内件的材料选择高；（4) 开关时间要求高：煤气化工艺中的主氧路阀门开关时间要求开关时间较短，尤其阀门关闭时间一般都要求<3 s；（5）密封副表面合金高：球体与阀座之间的摩擦属于干摩擦，容易造成阀门开关不流畅，表面合金容易剥落，这就要求球体与阀座表面为硬化合金。

Cat.no.:E-BFVCat.no.:E-PVCat.no.:E-CSV Cat.no.:E-PS Cat.no.:E-FSVCat.no.:E-PLVNo.999 Xiangjiang Road, Suzhou New District,P .R. China Post Code:215129Tel: 86-512-666-51365Fax: 86-512-666-51360E-Mail: neway@ C a t .n o .:E -P V -2005-U S12315 Parc Crest Drive Suite 190Stafford, T exas 77477Phone: 281-933-5775Fax: 281-933-5779JAG Flocomponents USA, Ltd.U.S. Sole Distributor:Manufacturer:Cat.no.:E-MVN the safety and protection ofe w a y r e c o g n i z e s t h eimportance of valve quality for personnel health and property. It is our quality commitment to focus our resources to provide our customers with first class products at a competitive price, that are designed, manufactured, inspected and tested in accordance with our customers, specifications and that comply with all international standards.With respect to the facts that the current industrial standards do not always take into consideration the likelihood and consequences of possible deterioration in service, related to specific service fluids or the external environment in which they operate. Our customers are requested to keep an open line of communication withNEWAY technical research center utilizes the most advanced computertechnology to improve the existing products and develop the new lines, this includes a highly educated and trained engineering team and a comprehensive internal computer network which links the entire operations of design, manufacturing and administration.NEWAY design philosophy is to develop a safety and cost-efficient valve, we introduced the latest AUTO CAD and I-DEAS software for all our new product design research which include the advanced finite element analysis to virtually verify the new design prior to production, this has resulted in dramatically reducing the new product design time and ensure a safety and cost efficient final product.NEWAY technical personnel are always ready to offer on line or on site technical training and support for all of its distributors, agents and end users.Fire safe is standard design of all NEWAY ball valve.Technical InnovationAPI 6D API 607API 6FA BS 5351BS 6755ANSI B16.34ANSI B16.10ANSI B16.5MSS SP-25MSS SP-55 NACE Std MR0175SHELL MESCAPI 598 Fire Safe Test CertificateTest FacilityTest ChartCNC LatheThe latest computer technology are also widely applied in NEWAY for valve manufacturing, this include a large number of numeric control machines (Machining center, CNC horizontal and vertical lathe, CNC drilling machine) and ERP management system which significantly improve our machining quality and process control. NEWAY also employes a number of conventional lathe with capacity up to machine 48ball valve.NEWAY manufacturing philosophy is to ensure stable quality and just in time delivery.4.2M Lathe CNC Lathe Automatic welding MachineMachining CenterCNC DrillingNEWAY developed an extensive and advanced inspection and test facilities to control the quality from rough castings or forgings to final products. These facilities enable us to do Radio graphic test, Ultra-sonic test, Dye-penetrate test, Magnetic test, Positive Material Identifier (PMI), Impact test, T ensile test, Hardness test, Fire safe test, Cryogenic test, Vacuum test, Low fugitive emission test and Hydro-static test.NEWAY Quality Assurance is dedicated to the pursuit of a zero defect valve, and this has resulted in the company having more quality qualifications and end user approval than most of our competitors. NEWAY is certified by ISO 9001 (certificate under DNV) and API 6D (registered no. 6D-0285) and our off-shore platform valves are type approved by ABS. Moreover, NEWAY is the first valve manufacturer in China to be certified to CE/PED (category IV, mode B+D, certificate under B.V.), All of NEWAY soft seated ball valves are fire safe tested and certified by Lloyd s Register.Part number identificationControlled Stem & Stuffing Box FinishFor the elimination of air pollution, it is essential to control the fugitive emissions leakage of various chemicals from valves in your chemical plant. NEWAY low emissions ball valves installed with our emissions defense packing have been designed and tested to m e e t t h e 100 P P M m a x i m u m e m i s s i o n l e v e l (acceptance test per Shell SPE 77/312). This is NEWAYstandard specification for all series BA, B and BB flanged floating ball valve.The stem surface finish is controlled between Weather proofbelleville-spring washerLow Emission packingFire Safe Seat SealingAdditionally, the fire safe metal seat can prevent the line pressure erosion on soft seat and minimize soft seat creep deformation. All NEWAY floating valves fire safe is designed and test certified in accordance with API 607.When static are generated and concentrated on the ball, the spring-loaded pins installed on ball, stem are provided to ensure electrical continuity throughout the valve.Anti-Static DeviceStem lower end is integral T shaped designed to be blow-out proof. It is internally inserted and functions as the backseat for assured stem sealing at all pressuresBlow-out Proof StemBefore FireBodyStemPacking ClosureBall StemPackingBallSeatBodyPackingStemAnti-Static DeviceClosureBodyBallGasketClosureWhen non-metal sealing material are decomposed or deteriorated by a plant fire, the upstream line pressure pull the ball into contact with the metal seat lip beneath the soft seat to shut off the line fluid to minimize the internal leakage.Design Feature:Live Loaded Gland FlangeLow Emission PackingLive loading is designed to provide gland load retention, compensating for expected in-service consolidation of the packing. A set of Belleville-Spring Washers are used on each gland stud to help exert a continuous compressive force on the gland follower flange and therefore reduce fugitive emissions from the stem packing. NEWAY standard Belleville-Spring Washers are protected by a weatherproof cap to keep them free from environmental contamination, resulting in a longstable life.The packing set is a combination of parallel and vertical layer sealing elements, which are made of expanding graphite in die-formed rings and have features of heat resistance, less stress relaxation and low creep. With this special structure, it allows for a low-friction on rotary & rising stem valves, therefore providing the stabilized seal performance for long cycle life.For medium and low temperature service, the standard V shape PTFE packing rings are installed for lowemission control.Floating Ball Valve Design FeatureLow Emission Control2963161861171514128137541110Series FE1 Ball ValveRegular port, uni-body, end entry designBlow-out Proof StemInternally inserted and functions as the backseat for assured stem sealing at all pressuresMetal-to-Metal Sealing When non-meatl sealing is deteriorated by fire,ball floats to shut off the line fruidEmission-free Graphite primary gasketIndex noPart123456789Index no PartBody Closure BallGland Flange Lever Seat Ring Stem Gland Gasket101112131415161718Grounding Washer Packing Set Stop Plate Thrust Washer Retainer Washer Bolt Rotaining SpringSeries FE1 Ball ValveSeries FE1 Ball ValveRegular port,uni-body,cast steel,end entry designClass 150LBWeight KgW mmH mmL mmD mmd mmSizeinDimensionsWW DLdHWDLddHGear Operator1 / 22 3101 / 23 / 411-1/222-1/23468101 / 23 / 49.512.71930385164761141441879.512.712.71925.43851647610215220325412.719108117127165178191203229267292330140152545964901021121211662082463035459120140140160265265265300400 300 * 400 *120140 1.72.72.985.008.7112.416.6624.38541011502.83.61638111071817962416135151412Series FB2 Ball Valveavailable in size from to 12 full port or witnessed and certified by Lloyd s Register.Double "D" Stem HeadProvides mounting of the lever handle alwaysin parallel to the flow passage Blow-out Proof Stem Internally inserted and functions as the backseat for assured stem sealing at all pressuresEmission-free Graphite primary gasket Metal-to-Metal SealingWhen non-meatl sealing isdeteriorated by fire,ball floats to shut off the line fruid easily for installation of gear, motor or pneumatic actuator 123456789Body Closure Ball Yoke Gland Flange Seat Ring Stem Gland Gasket 101112131415161718Grounding Washer Packing Set Thrust Washer Stud Nut Bolt Bolt Spring Steel BallSeries FB2 material specifications Series FB2 Ball Valve Two-piece,split body,cast steel,side entry design Full Port Size in D mm L mm H mm W mm Weight Kg Reduced Port Size in D mm L mm H mm W mm Weight Kg d mm 150L B Gear Operator Dimensions W H D L Full Port WH d D L Reduced Port W 123456789101112131415161718No. Part Standard Stainless Steel Sour Service Low TemperatureServiceASTM A352-LCB ASTM A352-LCB ASTM A182-F316ASTM A216-WCB ASTM A216-WCB PTFE ASTM A182-F316ASTM A182-F316316SS + Graphite Graphite PTFE PTFE ASTM A320-L7M ASTM A194-7M ASTM A320-L7M ASTM A320-L7M S.S.S.S.ASTM A216-WCB ASTM A216-WCB ASTM A105/ENP ASTM A216-WCB ASTM A216-WCB PTFE ASTM A182-F6a ASTM A276-420316SS + Graphite Graphite PTFE PTFE ASTM A193-B7M ASTM A194-2HM ASTM A193-B7M ASTM A193-B7M S.S.S.S.ASTM A351-CF8M ASTM A351-CF8M ASTM A182-F316ASTM A351-CF8M ASTM A351-CF8M PTFE ASTM A182-F316ASTM A182-F316316SS + Graphite Graphite PTFE PTFE ASTM A193-B8ASTM A194-8ASTM A193-B8ASTM A193-B8S.S.S.S.ASTM A216-WCB ASTM A216-WCB ASTM A105/ENP ASTM A216-WCB ASTM A216-WCB PTFE ASTM A182-F6a ASTM A276-420316SS + Graphite Graphite PTFE PTFE ASTM A193-B7ASTM A194-2H ASTM A193-B7ASTM A193-B7S.S.S.S.Body Closure Ball Yoke Gland Flange Seat Ring Stem Gland Gasket Grounding Washer Packing Set Thrust Washer Stud Nut Bolt Bolt Spring Steel Ball 1 / 23 / 411-1/222-1/23456810121 / 2131925385164761021251522032543051310811712716517819120322935639445753361014059637697107142152178252272342345479591301301602302304004007001100 300 * 300 * 400 * 600 *1303/4*1/2*3/43/4*1/2*3/41*3/4*11-1/2*1-1/22*1-1/2*22-1/2*2*2-1/23*2-1/2*34*3*46*4*68*6*810*8*1012*10*121.782.003.517.2311.0515.022.036.058.0110.0195.0309.0346.02.29131925385164761021522032541319253851647610215220325430519117127165178190203229394457530610152828510011512015316219129034044282130130160230230400400460 300 * 300 * 400 *130 3.04.57.09.515.016.029.548.0123.0212.0230.03.5Series FB2 Ball Valve122019178111354197161021181631415296Blow-out Proof Stem Internally insertedand functions as the backseat for assured stem sealing at all pressuresSeries FB2 Ball Valve Two-piece, split body, forged steel, side entry design This series ball valves are featured with two-piece bolted with flanged end body and floating ball. Body and closure are fully forged steel made which eliminate the inevitable casting defects and is ideal for high pressure service. FB2 series ball valves are available in size from 1 /2 to 4 and offers ANSI class rating 600 to 2500, all meet the fire safe requirements of BS 6755 and API 607. Blowout-proof stem, anti-static device and locking device are standard design, low emission packing with live loaded gland flange design can be available upon request. Manual handle operation is basic standard, but fully machined mounting pad can also easily install with gear, motor or pneumatic operator.ANSI Class 150 to 300 and Three-piece design can be supplied upon request.Double "D" Stem HeadProvides mounting of the lever handle always in parallel to the flow passageSecure LIne Flow Equipped with an integral locking device to secure the line flow Spring-loaded pins installed on ball, stem is provided to ensure electrical continuity throughout the valve Bolted Body/AdapterFlanged body and flanged adapter secured with cap screws to maintain seal integrity Metal-to-Metal SealingWhen non-meatl sealing is deteriorated by fire,ball floats to shut off the line fruid Index no Part 1234567891011Body Closure Ball Lever Lever Sleeve Seat Ring Stem Gland Gasket Steel Ball Packing Set Index no Part 12131415161718192021Stop Plate Thrust Washer Stud NutSpringSpring Washer Stop Pin Nut WasherLocking Plate Series FB2 Ball ValveThis is a typical Series FB2 floating ball valve illustrated cross-section drawing which is only fordemonstrating of basic design features. The actual product design may be slightly different from this sample drawing due to its size and pressure class.Series FB2 material specifications Series FB2 Ball Valve 123456789101112131415161718192021No. Part Standard Stainless Steel Sour Service Low TemperatureServiceBody Closure Ball Lever Lever Sleeve Seat Ring Stem Gland Gasket Steel Ball Packing Set Stop Plate Thrust Washer Stud Nut Spring Spring Washer Stop Pin Nut Washer Locking Plate ASTM A105ASTM A105ASTM A105/ENP Carbon Steel Polyethylene PTFE ASTM A182-F6a ASTM A276-420Graphite S.S.PTFE Carbon Steel PTFE ASTM A193-B7M ASTM A194-2HM S.S.Alloy Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel ASTM A350-LF2ASTM A350-LF2ASTM A182-F316Carbon Steel Polyethylene PTFE ASTM A182-F316ASTM A182-F316316 + Graphite S.S.PTFE S.S.PTFE ASTM A320-L7M ASTM A194-7M S.S.Alloy Steel S.S.S.S.S.S.S.S.ASTM A182-F316ASTM A182-F316ASTM A182-F316Carbon Steel Polyethylene PTFE ASTM A182-F316ASTM A182-F316Graphite S.S.PTFE S.S.PTFE ASTM A193-B8ASTM A194-8S.S.Alloy Steel S.S.S.S.S.S.S.S.ASTM A105ASTM A105ASTM A105/ENP Carbon Steel Polyethylene PTFE ASTM A182-F6a ASTM A276-420Graphite S.S.PTFE Carbon Steel PTFE ASTM A193-B7ASTM A194-2H S.S.Alloy Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel Two-piece,split body,forged steel,side entry design L W H D H Dd WL Dimensions Full Port Size in D mm L mm H mm W mm Weight Kg Reduced Port Size in D mm L mm H mm W mm Weight Kg d mm 600L B B Full Port Reduced Port 3/4*1/2*3/4713131921622970831401707.510.01/2*1/4*1/21 / 23 / 41319216229831121701708.511.01 / 23 / 411-1/2234131925385176102165191216241292356432668890120135180224160170170280300450500 3.55.16.513.229.034.0135.53/4*1/2*3/41*3/4*11-1/2*1*1-1/22*1-1/2*23*2*3713192538517613192538517610216519121624129235643243668890120135180130160170170280300450 2.93.85.310.61342.081.51/2*1/4*1/24*3*4Series FB2 Ball ValveSeries FB2 Ball Valve Series BC Ball Valve Two-piece,split body,forged steel,side entry designL W HD WLHDd DimensionsFull Port Size in D mm L mm H mm W mm Weight Kg Reduced PortSizein D mm L mm H mm W mm WeightKgd mm150LBFull Port Reduced Port1 / 23 / 411-1/22313192538517621622925430536847083112123143177200230230300400450700 6.811.016.032.664.090.0713264751708.01/2*1/4*1/21 / 213264882309.03/4*1/2*3/41*3/4*11-1/2*1*1-1/22*1-1/2*23*2*37131925385113192538517621622925430536847070831121231431771702302303004004507.510.015.028.041.082.01/2*1/4*1/2NEWAY trunnion mounted ball valve contains 3 main series: TB2 series for cast steel two-piece design, TB3 series for forged steel three-piece design and TTE series for top entry uni-body design, all designed conform to API 6D and fire safe test are satisfied to BS 6755 and API 6FA. They are available in size from 2to 48Wide range of body and trim material is available for service00temperature from -46C to 200C and pressure rating from ANSI class 150 to 1500 or for sour service to NACE Mr0175.For 6 inch and larger NEWAY Trunnion mounted ball valveswill be installed with a sealant injection fittings on both stemand seats. When the sealing materials (seat sealing or stemo-ring) are damaged or decomposed by fire or otheraccidental causes, leakage from the seat and stem can beprevented by injection of sealant into these fittings. Fitting isalso internally installed a second check valve to providesbackup sealing. Emergency sealant injection system Cavity Pressure ReliefEach ball seats shut off the line fluid independently on the upstream and downstream side, allowing double block o p e r a t i o n. W h e n t h e p r e s s u r e i s simultaneously applied to both sides of the ball in closed position, the valve bore and the body cavity will be isolated from each other, and the residue within the body cavity can be released through the drain plug.Double block and bleed Top flange Injection Closure Gland Body Ball SeatThe stem is made separately from the ball; The lover end of the stem is designed with an integral collar to be blowout-proof.Antistatic device is a standard feature of NEWAY ball valve . A spring-loaded pin assures the electrical continuity, between ball ,stem and body, so as to avoid sparks during turning of the stem to open and close the valve, which could be dangerous in caseof hazardous area installation.Super Fire safe designExternal leakage preventionLeakage from the valve stem area isprevented by double sealing with 2 O-rings and gland gasket. Leakagethrough the valve body joint is alsoblocked by double sealing with O-ringand body gasket. After a fire hasdeteriorated O-rings, gland gasket,body gasket and stem firesafe packingare the measure that prevents externalfluid leakage. When non-metal materials such as O-ring, seat insert and spacer aredecomposed or deteriorated by fire, theedge of the metal seat preloaded by theBall to shut off the line fluid to minimize internal leakage through the valve bore. Also the fire safe flexible graphite seat packing will be compressed by the seat spring to prevent fluid leakage Internal leakage preventionAnti Blow-out Stem Anti-static Device Top Flange Stem Stem fire safe packingGland O-ring Gland gasket Body Ball Anti-static spring Grounding plunger Drain plug Body Upstream seat Body cavity Closed ball Vent valve Downstream seat Body cavity Total spring force (Fs)Cavity pressure (Pc)Fig b. P*D1>FsP=Pc-Pl Cavity pressure (Pc)Total spring force (Fs)Fig a. P*D1<Fs P=Pc-Pl Stem Top Flange Gland Body Closure O-ring Ball Gland gasket Body gasket Stem firesafe packing Trunnion Mounted Ball ValveDesign FeatureTrunnion Mounted Ball Valve Design FeatureH L Dd W H L D d d mm L mm H mm W mm D mm L mm H mm W mm d mm 517610215220325430533738743843848976102152203254305337387438489540591203229394457533610686762864914101610671651932313293933934414815986436437082304004004601000*500*500*500*500*500*500*500304790161268467560766902113013001520234681012141618202224517610215220325430533738743848954059125121616523018178203229394457533610686762864914101610671651932313293934014414815986437087988632304004601000*500*500*500*500*500*500*500*500*500173350931662734755707789351190134615795176283165230383*2*34*3*46*4*68*6*810*8*1012*10*1214*12*1416*14*1618*16*1820*18*2022*20*2224*20*243*2*3WD mm L mm H mm W mm D mm L mm H mm W mm d mm 51761021522032543053373874384897610215220325430533738743848959135643255966078783888999110921194139717624727636336342654859864874081040075010001500*500*500*500*500*500*500*5004170122255440662010601440186024003240 600L B 234681012141618202451761021522032543053373874384895912351763683811922794601000529729235643559660787838889991109211941397217624727636336342654859864874081092040075010001500*500*500*500*500*500*500*500*500275080251.835060082011301550210028003626517676102381457192279460100083103--------------3*2*34*3*46*4*68*6*810*8*1012*10*1214*12*1416*14*1618*16*1820*18*2024*20*243*2*34*3*4W HL D d L H D d WTwo-piece,split body,cast steel,side entry design Full PortSizeinWeight Kg Reduced Port Size in Weight Kg DimensionsGear Operator Series TB2 Ball Valve Series TB2 Ball ValveTow-piece,split body,cast steel,side entry design Gear OperatorFull Port Size in Weight Kg Reduced Port Size in Weight Kg Dimensions 150L BWDdHWDdHLL22328201315652919810383733341426161127918363538724251221173231302230311Series TB3 Ball ValveIndex noPart12345678910111213141516171819Body Closure BallSeat Assembly( )Seat Insert Seat Ring StemTrunnion Alignment Pin ShimTrunnion Support Gasket Body Gasket Spacer GasketFiresafe Gasket Gland Cap Top Flange Thrust Washer BearingIndex noPartSeat Follower Vent Valve Drain Seat Spring Grounding Spring Grounding Plunger O-Ring O-Ring O-Ring Series TB3 Ball ValveD mmL mmH1mm2346810121416182022242651761021522032543053373884384895405916351782032293944575346106867628649149911067114320030031533540542746550662266673083389590011012616516520022026229334192435480518535265285285*300*300*300*500*600*600*600*600*600*800*80021.1132.0992190345495577859114414401918235228033200W mmH2mmSize inD mmL mmH1mmW mm3*2*34*3*46*4*68*6*810*8*1012*10*1214*12*1416*14*1618*16*1820*18*2022*18*2224*20*2426*22*2628*24*28d mm517610215220325430533738743843848954059176102152203254305337387438489540591635686203229394457534610686762864914991106711431245200300315335405427465506622666666730833895110126165170200220262293341392392435480518265285285*300*300*300*500*600*600*600*600*600*600*80026.4540102225373509730790109511522343206022152700H2mmWH 1H 2DdWLSeries TB3 Ball ValveSeries TB3 material specifications 123456789101112131415161718192021222324252627No. Part Standard Stainless Steel Sour Service Body Closure BallSeat Assembly Seat Insert Seat Ring Stem Trunnion Alignment Pin ShimTrunnion Support Gasket Body Gasket Spacer Gasket Firesafe Gasket Gland Cap Top Flange Thrust Washer Bearing Seat Follower Vent Valve Drain Seat Spring Grounding Spring Grounding Plunger O-Ring O-Ring ASTM A105ASTM A105ASTM A105/ENPAssembled By No.5&625% Glass-filled PTFE ASTM A105/ENP ASTM A105/ENP ASTM A182-F316ASTM A182-F316ASTM A216-WCB/ENP 316SS + Graphite 316SS + Graphite PTFE316SS + Graphite 316SS + Graphite ASTM A105ASTM A105316 + PTFE + MoS2316 + PTFE + MoS2ASTM A105/ENP Assembly S.S.Inconel X-750S.S.ASTM A182-F316NBR NBR ASTM A182-F316ASTM A182-F316ASTM A182-F316Assembled By No.5&625% Glass-filled PTFE ASTM A182-F316ASTM A182-F316ASTM A182-F316ASTM A182-F316ASTM A351-CF8M 316SS + Graphite 316SS + Graphite PTFE316SS + Graphite 316SS + Graphite ASTM A182-F316ASTM A182-F316316 + PTFE + MoS2316 + PTFE + MoS2ASTM A182-F316Assembly S.S.Inconel X-750S.S.ASTM A182-F316NBR NBR ASTM A105ASTM A105ASTM A105/ENPAssembled By No.5&625% Glass-filled PTFE ASTM A105/ENP ASTM A105/ENP ASTM A182-F316ASTM A182-F316ASTM A216-WCB/ENP 316SS + Graphite 316SS + Graphite PTFE316SS + Graphite 316SS + Graphite ASTM A105ASTM A105316 + PTFE + MoS2316 + PTFE + MoS2ASTM A105/ENP Assembly S.S.Inconel X-750S.S.ASTM A182-F316NBR NBR ASTM A350-LF2ASTM A350-LF2ASTM A350-LF2/ENPAssembled By No.5&625% Glass-filled PTFE ASTM A350-LF2/ENPASTM A350-LF2/ENP ASTM A182-F316ASTM A182-F316ASTM A352-LCB/ENP316SS + Graphite 316SS + Graphite PTFE316SS + Graphite 316SS + Graphite ASTM A350-LF2ASTM A350-LF2316 + PTFE + MoS2316 + PTFE + MoS2ASTM A350-LF2/ENP Assembly S.S.Inconel X-750S.S.ASTM A182-F316NBR NBR Low TemperatureServiceDimensionsClass 150LB Full PortSize inWeight KgClass 150LB Reduced portWeight KgGear OperatorThree-piece,split body,forged steel,side entry designD mmL mmH1mm234681012141618202224285176102152203254305337388438489540591686292356432559660787838889991109211941295139715492063153303454154274655196386837488549179581131291691481852262693003504024464925315564007501000*300*300*500*600*600*600*600*600*800*800*8003363.5117273.54527366251230153521352640337049206060W mmH2mmD mmL mmH1mmW mm3*2*34*3*46*4*68*6*810*8*1012*10*1214*12*1416*14*1618*16*1820*18*2022*18*2224*20*2428*24*3030*24*28d mm5176102152203254305337387438438489591591761021522032543053373874384895405916867373564325596607878388899911092119412951397164916512063153303454154274655196386836837489179171131291691481852262693003504024021165315314007501000*300*300*500*600*800*800*600*600*600*600*60046.59917630453690210901310164022702430344042504730H2mmH 1H 2LH 1H 2LD dWKgD mmL mmH1mm2346810121416182022242851761021522032543053373884384895405916862162833054045025696487628399169911093 11431347206315330345415427465519638683748854917958113129169148185226269300350402446492531556265400750*300*300*400*500*600*600*600*600*600*800*800311121137651775890013501715209022202890457545.68W mmH2mmD mmL mmH1mmW mm3*2*34*3*46*4*68*6*810*8*1012*10*1214*12*1416*14*1618*16*1820*18*2022*18*2224*20*2428*24*2830*24*30d mm5176102152203254305337387438438489591591761021522032543053373874384895405916867372833054045025696487628399199911093114313471397206315330345415427465519638683683748917917113129169148185226269300350402402446531531265400750*300*300*500*600*600*600*600*600*600*800*8003655103222381619830970153018302010222032003200H2mmWH 1H 2DdWLH 1H 2Series TB3 Ball ValveDimensionsClass 300LB Full PortSize inWeight KgClass 300LB Reduced PortSize inWeight Kg Gear OperatorDimensionsClass 600LB Full PortSize inWeight KgClass 600 LB Reduced PortSize inGear OperatorThree-piece,split body,forged steel,side entry designThree-piece,split body,forged steel,side entry design Series TB3 Ball ValveWLH 1H 2DdH 1H 2LDdW337302332322330174140826273181665562573325371412213813212810223534362843299391525Series TTE Ball Valve Series TTE Ball ValveWH 1H 2LDd H 1H 2DmmL mm2346810121416182024385176102152203254305337388438489591H2mmW mm701101101751952802853203404104455106404004007501000*300*300*500*600*600*600*600*600*600303880150248438601625123015352135264039602412923564325596607878388899911092119413971-1/2209195240280305400435440505590700775840H1mmD mmL mm2*1-1/2*23*2*34*3*46*4*68*6*810*8*1012*10*1214*12*1416*14*1618*16*1820*18*2024*20*24d mm3851761021522032543053373874384895176102152203254305337387438489591292356432559660787838889991109211941397H2mmW mm701101101751952802853203404104455104004007501000*300*300*500*600*600*600*600*60040549921230451090210901310164024303440209195240280305400435440505590700775H1mm12345678910111213141516171819202122232425262728293031No. Part Standard Stainless Steel Sour Service Body Closure BallSeat Assembly Seat Insert Seat Ring Spring Seat Stem Shim Gasket Gasket Gasket Gland Cap Top Flange Thrust Washer Shim Bearing Bearing Vent V alve DrainRetainer Ring Retainer Ring Retainer Ring Retainer Ring Seat Spring Grounding Spring Grounding Plunger O-Ring O-Ring O-Ring O-Ring ASTM A216-WCB ASTM A105ASTM A105/ENPAssembled By No.5&6Nylon 1010 + 5% MoS2ASTM A105/ENP ASTM A105/ENP ASTM A105/ENP ASTM A182-F316316SS + Graphite 316SS + Graphite 316SS + Graphite ASTM A105ASTM A105316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2Assembly S.S.PTFE PTFE PTFE PTFEInconel X-750S.S.ASTM A182-F316NBR NBR NBR NBR ASTM A351-CF8M ASTM A182-F316ASTM A182-F316Assembled By No.5&6Nylon 1010 + 5% MoS2ASTM A182-F316ASTM A182-F316ASTM A182-F316ASTM A182-F316316SS + Graphite 316SS + Graphite 316SS + Graphite ASTM A182-F316ASTM A182-F316316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2Assembly S.S.PTFE PTFE PTFE PTFEInconel X-750S.S.ASTM A182-F316NBR NBR NBR NBR ASTM A216-WCB ASTM A105ASTM A105/ENPAssembled By No.5&6Nylon 1010 + 5% MoS2ASTM A105/ENP ASTM A105/ENP ASTM A105/ENP ASTM A182-F316316SS + Graphite 316SS + Graphite 316SS + Graphite ASTM A105ASTM A105316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2Assembly S.S.PTFE PTFE PTFE PTFEInconel X-750S.S.ASTM A182-F316NBR NBR NBR NBR ASTM A352-LCB ASTM A350-LF2ASTM A350-LF2/ENPAssembled By No.5&6Nylon 1010 + 5% MoS2ASTM A350-LF2/ENP ASTM A350-LF2/ENP ASTM A350-LF2/ENP ASTM A182-F316316SS + Graphite 316SS + Graphite 316SS + Graphite ASTM A350-LF2ASTM A350-LF2316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2Assembly S.S.PTFE PTFE PTFE PTFEInconel X-750S.S.ASTM A182-F316NBR NBR NBR NBR Low TemperatureServiceSeries TTE material specifications Top entry, trun nion mounted designDimensionsGear OperatorClass 600LB Full PortSize inWeight KgClass 600LB Reduced PortSize inWeight KgSeries TTE Ball ValveSeries TTE Ball Valve。

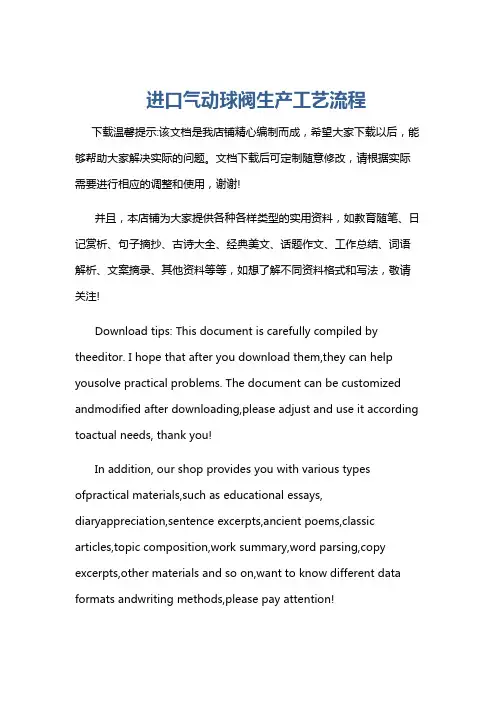

进口气动球阀生产工艺流程下载温馨提示:该文档是我店铺精心编制而成，希望大家下载以后，能够帮助大家解决实际的问题。

文档下载后可定制随意修改，请根据实际需要进行相应的调整和使用，谢谢!并且，本店铺为大家提供各种各样类型的实用资料，如教育随笔、日记赏析、句子摘抄、古诗大全、经典美文、话题作文、工作总结、词语解析、文案摘录、其他资料等等，如想了解不同资料格式和写法，敬请关注!Download tips: This document is carefully compiled by theeditor. I hope that after you download them,they can help yousolve practical problems. The document can be customized andmodified after downloading,please adjust and use it according toactual needs, thank you!In addition, our shop provides you with various types ofpractical materials,such as educational essays, diaryappreciation,sentence excerpts,ancient poems,classic articles,topic composition,work summary,word parsing,copy excerpts,other materials and so on,want to know different data formats andwriting methods,please pay attention!进口气动球阀生产工艺流程一、设计与规划阶段。

在开始生产进口气动球阀之前，需要进行全面的设计与规划工作。

硬密封球阀阀座加工工艺
硬密封球阀是一种由硬密封球阀阀座、阀杆、阀瓣、压紧圈和止回销等部件组成的球阀，它主要用于关断、调节和分级控制流体。

硬密封球阀优点是其结构简单、操作可靠。

与金属密封球阀相比，其开闭时间短、安装空间小、控制精度高等显著优势。

但由于硬密封球阀是由大量不同材料加工而成，其加工工艺复杂，也是硬密封球阀必须要求的限制因素。

因此，正确的硬密封球阀阀座加工工艺，对于保证硬密封球阀的正常使用和有效性性能，具有至关重要的作用。

高品质的硬密封球阀阀座加工工艺，主要包括以下三个方面：（1）阀座加工。

阀座的加工主要是用来阀座的制造，采用了最先进的CNC数控机床，并采用多段加工技术，进行精加工，以保证阀座的成型精度，提高阀座使用寿命。

（2）阀杆加工。

阀杆加工是采用精确的车床加工进行加工，确保阀杆外锥度、螺纹、侧面面积，从而确保正常工作时硬密封球阀的性能特性。

（3）阀瓣加工。

阀瓣加工工艺主要是采用凸轮床和平面磨床加工，有效的确保阀瓣的表面平整度，以提高其磨损性能。

硬密封球阀阀座加工工艺的优势，主要在于它可以减少加工过程中材料塑性变形，提高产品加工精度，改善产品结构及使用寿命，减少制造成本，缩短物料周转时间，并实现轮换利用，从而使产品质量得以提高。

总之，硬密封球阀的阀座加工工艺的正确实施，无疑是保证硬密
封球阀的正常使用和有效性能的关键，也是硬密封球阀的成功实施的基础。

因此，在进行硬密封球阀的加工时，必须正确实施各个环节的工艺，并确保达到加工要求，使其达到最佳状态。

代号连接方式 内螺纹 外螺纹 法兰 承插焊 对焊 对夹 卡箍卡套NWFH SH BCKT6.连接型式代号注：密封副中两密封面材料不同时，用低硬度材料代号代号铬及铬锰系合金钢硬质合金 铜合金 渗氮钢蒙乃尔合金锡基轴承（巴氏）合金聚四氟乙烯密封面或衬里材料H Y T D M B F橡胶尼龙塑料衬胶衬铅衬搪瓷衬聚全氟乙丙烯衬聚三氟乙烯X N J Q C F46 F3代号密封面或衬里材料8. 密封副材料代号1.01.62.54.06.410.016.032.0101625406410016032015030040060080090015002500A1A3A4A6A8A9A15A251020456511014018010K 20K 45K 65K 110K 140K 180K15030040060080090015002500150Lb 300Lb 400Lb 600Lb 800Lb 900Lb 1500Lb 2500Lb16254064100162540641001625406410016025040016254064100160250400国家标准 美国标准 日本标准 英国标准 法国标准 德国标准MPa 代号 CLASS 代号 K 代号 CLASS 代号 Bar 代号 Bar 代号9.压力等级代号例如：国标阀门 - DN100； 美标阀门 4”；缩径阀门 DN100×80（公称×缩径）；4” ×3”。

（公称×缩径）11.口径：为阀门的公称通径5.角行程气动执行机构代号气动方式代号双作用6H单作用(带复位弹簧)6T两段开两段关6P一段开两段关6V双作用6单作用(带复位弹簧)6K 带手轮传动装置6※W气开 气关6B注：执行机构按用户要求配置手动装置时，在后面加“W”代号结构形式1245768930PY形L形 T形三通式直通式浮动球四通式直通式三通式固定球摆动球直通直通（偏心）T L 半球（V型）7.结构形式代号轨道式M Co C 3C 4Z KQHTi代号C（PN16以上省略）I C 6C 9V P P 8P 1P 3R R 8R 1R 3代号碳钢ZG1Cr5Mo、C5WC6WC9铬钼钒钢铬镍钛钢超低碳铬镍钛钢铬镍钼钛钢超低碳铬镍钼钛钢钛钢蒙耐尔合金LCB LC3LC4灰铸铁可锻铸铁球墨铸铁Cr13系不锈钢铬钼钢低温钢主体材料主体材料10.阀门主体材料代号25、WCB、WCC ZG12Cr1MoV ZG15Cr2Mo1V ZG1G18Ni9Ti CF8、304ZG0G18Ni9TiCF3、304L ZG1G18Ni12Mo2TiCF8M 、316ZG0G18Ni12Mo2FiCF3M 、316LTi HT KTQT Cr13 0506球阀阀门型号及图号的编制方法球阀阀门型号及图号的编制方法1-阀体2-螺柱7-阀杆8-键13-螺钉14-O型圈18-O型圈19-阀座24-阀盖25-下轴对于用户有防火要求的球阀，均设有防火结构。

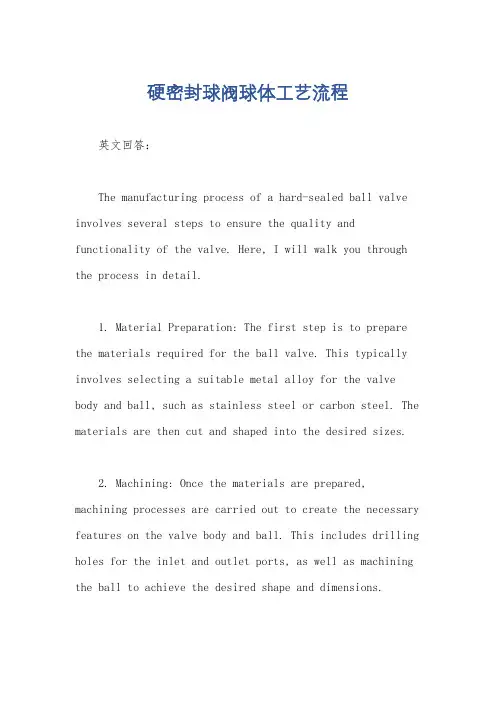

硬密封球阀球体工艺流程英文回答：The manufacturing process of a hard-sealed ball valve involves several steps to ensure the quality and functionality of the valve. Here, I will walk you through the process in detail.1. Material Preparation: The first step is to prepare the materials required for the ball valve. This typically involves selecting a suitable metal alloy for the valve body and ball, such as stainless steel or carbon steel. The materials are then cut and shaped into the desired sizes.2. Machining: Once the materials are prepared, machining processes are carried out to create the necessary features on the valve body and ball. This includes drilling holes for the inlet and outlet ports, as well as machining the ball to achieve the desired shape and dimensions.3. Welding: In some cases, the valve body and ball may need to be welded together. This is done using specialized welding techniques to ensure a strong and leak-proof joint. The welded parts are then carefully inspected for any defects.4. Surface Treatment: After the machining and welding processes, the valve body and ball undergo surface treatment to enhance their corrosion resistance and improve their appearance. This may involve processes such as polishing, plating, or coating.5. Assembly: Once all the individual components are ready, they are assembled together to create the complete ball valve. This includes attaching the valve stem, handle or actuator, and any necessary seals or gaskets. The assembly is done with precision to ensure smooth operation and proper sealing.6. Testing: Before the ball valves are ready for use, they undergo rigorous testing to ensure their performance and reliability. This includes pressure testing to checkfor leaks, as well as functional testing to ensure smooth operation and proper sealing.7. Packaging and Shipping: Finally, the finished ball valves are packaged and prepared for shipping to the customers. They are carefully packed to prevent any damage during transportation.中文回答：硬密封球阀的制造过程包括多个步骤，以确保阀门的质量和功能。

文件号: NWD 0406版本号: 2006BS系列电动固定球阀使用说明书受控本非受控本编制日期 .审核日期 .批准日期 .苏州纽威阀门有限公司NEWAY VALVE（SUZHOU）CO.， LTD地址：中国江苏省苏州新区湘江路999号，215129电话：0086-512-6665 1365传真：0086-512-6665 1360E-mail:***************.cnWEB: 文件修改记录版本号修改页/节修改说明实施日期更改单号2006 新版 2006-3-17目录1．前言 (3)2. 欧共体关于承压设备和防爆指令对健康和安全的基本要求 (3)3. 用途和技术性能 (4)4. 阀门结构 (5)5. 运输和保管 (8)6. 安装 (8)7. 移动 (9)8. 拆卸程序 (9)9. 重装程序 (10)10.阀门操作和维护 (12)11.电动执行器的使用说明 (14)12.故障及维修 (16)13.质量保证及服务 (17)1.前言1.1 感谢您选择纽威阀门。

作为一种承压设备，当阀门用于输送流体及易燃易爆气体时，由于泄露或使用不当往往存在一些安全隐患，从安全角度考虑，用户使用前，应仔细阅读本说明书，了解纽威在设计和制造过程中所采取的安全措施,以防患于未然。

2. 欧共体关于承压设备和防爆指令对健康和安全的基本要求2.1 纽威的设计理念—球阀作为一种标准产品来设计，由于它的范围较广所以并不考虑每一个细节的工作条件。

—球阀设计参照API 6D，阀门强度参照ASME B16.34 压力—温度额定值。

—阀门密封材料应根据介质对材料的抗腐蚀性和耐磨损的要求而选择，参照API 6D。

—阀门设计时应有防静电装置及防火结构，放火实验设备符合API 607及API 6FA 规范，并已通过英国的劳氏船级社认证。

—阀门不含轻金属（例如镁），各零部件通过相互接触形成导电通路，通过管道流向大地，以防止静电积累。

—阀门根据它的型号、扭矩、及操作要求等，配置合适的电动驱动装置。

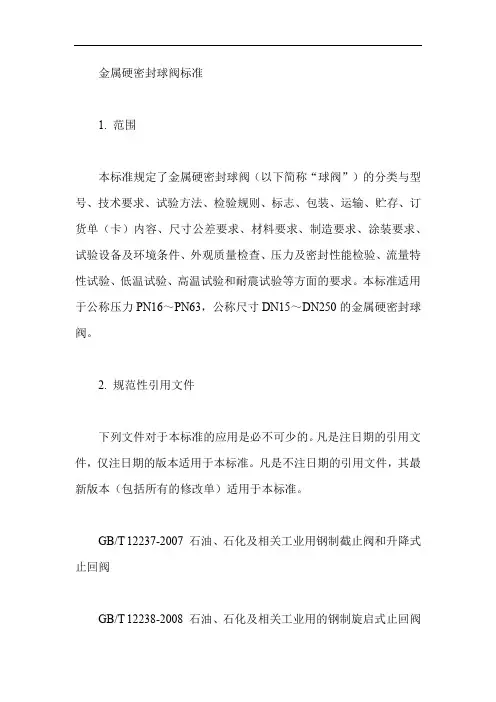

金属硬密封球阀标准
