solidworks替换面的用法SolidWorks是一款广受欢迎的机械设计软件，它可以帮助工程师和设计师创建高质量的3D模型，以及进行各种设计和分析。

在设计过程中，替换面功能是一项非常有用的功能，它可以允许用户在设计过程中快速替换已经存在的面，以改善模型的几何形状和外观。

在本篇文章中，我们将介绍solidworks替换面的用法，并且一步一步地回答这个问题。

一、了解替换面的概念对于第一次学习替换面功能的人来说，最重要的是要了解它是什么以及它是如何工作的。

替换面是SolodWorks设计中的一个功能，它允许用户替换现有的面，并在不影响原始几何形状或修改零件的情况下对它进行改进。

例如，在设计一个复杂的机械零件时，你可能会发现某些面需要更改，以便模型更加真实和精确。

这就是使用替换面功能的一个场景，可以通过替换某个面来改进设计的外观、性能或操作。

二、准备工作在使用替换面功能之前，我们需要做一些准备工作：1. 打开SolidWorks软件并加载准备更改的零件。

这个零件可以是从其他软件导入的，也可以是您最近设计的。

2. 确定那个面需要更改，并了解面的位置、角度和形状。

3. 准备新的面，这个面可以是自己定义的或者是从其他已有的零件中导入的。

三、开始替换面一旦我们确定了使用替换面功能的必要性，就可以开始使用这个功能了。

下面是一些详细的步骤：1. 选择"替换面"功能打开SolidWorks程序后，选择要修改的零件，然后选择"替换面"功能。

这个功能可以在工具栏中找到，也可以在"功能特性树"中找到。

2. 选择要替换的面一旦我们进入了"替换面"功能，我们需要选择要替换的面。

这个面可以是零件、组件或者其他对象的面。

选择面后，这个面会被高亮显示出来，以便我们进行下一步操作。

3. 映射面到新的面上在确定新的面之后，我们需要对这个新的面进行映射，以便SolidWorks可以将这个新的面替换到原来的面上。

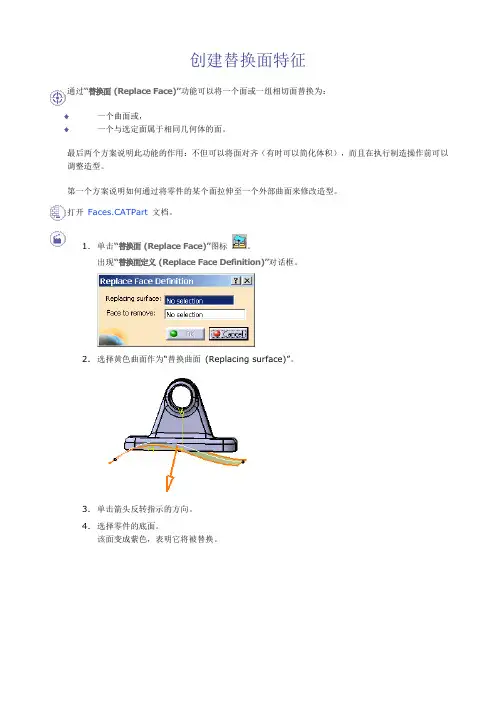

创建替换面特征通过“替换面(Replace Face)”功能可以将一个面或一组相切面替换为：一个曲面或，一个与选定面属于相同几何体的面。

最后两个方案说明此功能的作用：不但可以将面对齐（有时可以简化体积），而且在执行制造操作前可以调整造型。

第一个方案说明如何通过将零件的某个面拉伸至一个外部曲面来修改造型。

打开Faces.CATPart文档。

1.单击“替换面(Replace Face)”图标。

出现“替换面定义 (Replace Face Definitio n)”对话框。

2.选择黄色曲面作为“替换曲面(Replacing surface)”。

3.单击箭头反转指示的方向。

4.选择零件的底面。

该面变成紫色，表明它将被替换。

5.单击“确定(OK)”确认操作。

零件已被整形且新特征（标识为ReplaceFace.xxx）被添加到结构树中。

6.将面替换为其它面从V5R15 开始，可以执行以下操作：按第二个方案中的说明，将一个面与其它面对齐。

按最后一个方案中的说明，将一组相切面替换为其它的一组相切面。

对齐面要执行此方案，请使用先前已设置为当前几何体的Body.3。

1.单击“替换面(Replace Face)”图标。

2.选择较小凸台上的水平面。

选定的第一个面始终为替换面。

选定后，该面显示为蓝色。

3.选择左边凸台的水平面。

选定后，要被替换的面显示为紫色。

4.单击“确定(OK)”确认操作。

两个面将对齐。

替换面要执行此方案，请使用Body.2。

1.单击“替换面 (Repl ace Face)”图标。

2.选择左边的水平面。

现在该面为替换面，显示为蓝色。

由于它与通过圆角化操作产生的面相切，因此该面也被选定且依次包括垂直面。

然后三个面被选定，指示为蓝色。

3.选择右边的水平面。

三个相切面被选定为要被替换的面，且显示为紫色：4.单击“确定(OK)”确认操作。

获得的结果显示替换这些面会影响左边的圆角半径值。

5.自动重设如果用仅含一个面的曲面替换一个面，则自动重设子级。
