两翼自动旋转门操作说明书

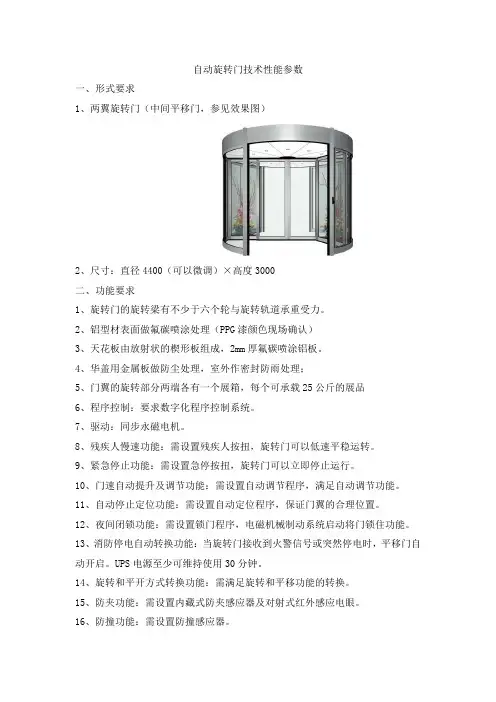

自动旋转门技术性能参数一、形式要求1、两翼旋转门（中间平移门，参见效果图）2、尺寸：直径4400（可以微调）×高度3000二、功能要求1、旋转门的旋转梁有不少于六个轮与旋转轨道承重受力。

2、铝型材表面做氟碳喷涂处理（PPG漆颜色现场确认）3、天花板由放射状的楔形板组成，2mm厚氟碳喷涂铝板。

4、华盖用金属板做防尘处理，室外作密封防雨处理；5、门翼的旋转部分两端各有一个展箱，每个可承载25公斤的展品6、程序控制：要求数字化程序控制系统。

7、驱动：同步永磁电机。

8、残疾人慢速功能：需设置残疾人按扭，旋转门可以低速平稳运转。

9、紧急停止功能：需设置急停按扭，旋转门可以立即停止运行。

10、门速自动提升及调节功能：需设置自动调节程序，满足自动调节功能。

11、自动停止定位功能：需设置自动定位程序，保证门翼的合理位置。

12、夜间闭锁功能：需设置锁门程序，电磁机械制动系统启动将门锁住功能。

13、消防停电自动转换功能：当旋转门接收到火警信号或突然停电时，平移门自动开启。

UPS电源至少可维持使用30分钟。

14、旋转和平开方式转换功能：需满足旋转和平移功能的转换。

15、防夹功能：需设置内藏式防夹感应器及对射式红外感应电眼。

16、防撞功能：需设置防撞感应器。

17、报警功能：出现紧急情况会产生蜂鸣报警提示。

三、参数及配置要求主要配置要求四、质保要求1、使用寿命：不少于15年。

2、质保期：2年。

五、说明1、生产厂家在保证使用功能和质量的前提下，参数和配置可以适度调整（需经业主同意）。

2、包含但不限于以上要求。

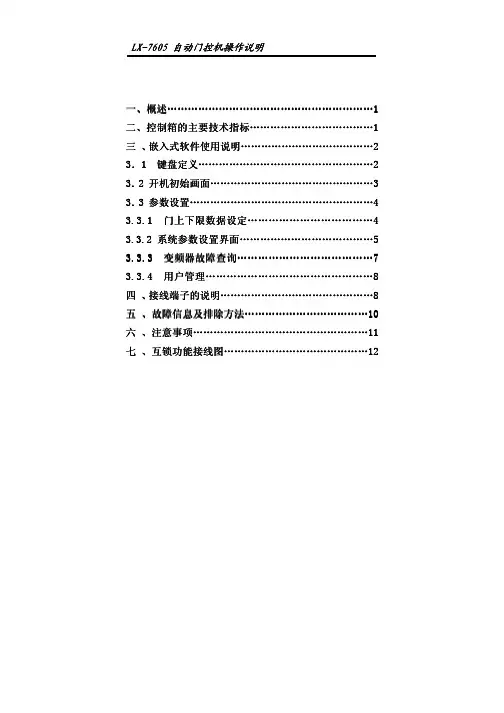

二、控制箱的主要技术指标控制箱的主要技术指标 (11)三 、嵌入式软件使用说明嵌入式软件使用说明..................................................................................................................2 3．1 1 键盘定义键盘定义键盘定义......................................................................................................................................................2 3．2 2 开机初始画面开机初始画面开机初始画面................................................................................................................................................33 3．3 3 参数设置参数设置参数设置..................................................................................................................................................................44 3.3.1 3.3.1 门上下限数据设定门上下限数据设定门上下限数据设定...................................................................................................44 3.3.2 3.3.2 系统参数设置界面系统参数设置界面系统参数设置界面..................................................................................................................5 3.3.3 3.3.3 变频器变频器变频器故障查询故障查询故障查询.....................................................................................................................77 3.3.4 3.3.4 用户管理用户管理用户管理................................................................................................................................................88 四 、接线端子的说明接线端子的说明 (88)五 、故障信息及排除方法故障信息及排除方法 (101010)六 、注意事项注意事项 (111111)七 、互锁功能接线图互锁功能接线图 (121212)z z z Ps g i ol e P f r1.机械限位和编码器可以随意选择。

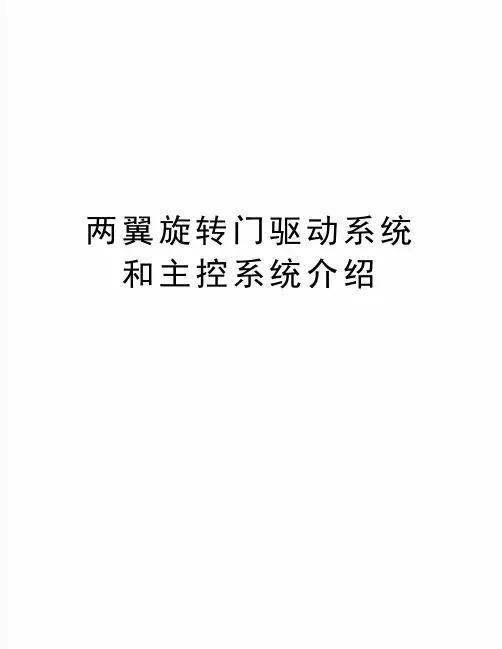

两翼旋转门驱动系统和主控系统介绍两翼旋转门驱动系统和主控系统介绍一、旋转门驱动系统安装于旋转门冠内部：由交流变频减速电动机、变频器、制动器总成、传栋梁、传动轴总成、轴承等组成。

受 PLC 控制系统指挥，可实现旋转门各种运行方式；由于各关键部件均采用欧洲进口的世界知名品牌产品，使其运行非常平稳、安全可靠、使用寿命长、无噪声。

优质的制动器，在接到 PLC的指令后可准确、可靠的实现旋转门的快速制动，是驱动系统制动停止功能中变频缓冲制动的补充和安全紧急制动的保障。

变频缓冲制动使用于制动器动作之前，这种制动方式可减小制动器制动过程中由转动惯量所产生的惯性力，以减小对被碰撞物体的冲击力及延长门的使用寿命。

二、旋转门控制系统宾盛自动门型两翼自动旋转门控制系统主要由主控箱和触摸显示屏两部分组成：1、主控箱又称可编程逻辑控制器（PLC）宾盛自动门型PLC采用日本松下特供产品，平均无故障工作时间，环境适应能力强，抗干扰性能好，易于维护。

其安装于旋转门华盖内部，是控制系统的枢纽，对旋转门各位置感应器反馈的信号加以管理并执行，同时控制旋转门的转速调节、照明灯。

预留一组两芯信号线接口与大厦楼宇消防系统相连。

2、液晶触摸显示屏乘方自动门将触摸屏技术应用到自动门控制领域。

采用触摸屏操作面板，密码管理，使用方便，并有以下两种特别功能：（1）故障自检功能：在旋转门出现故障时，触摸屏将显示故障信息，避免了技术人员重复寻找故障点，便于维护维修，节约了时间。

（2）通过各种提示实现多种工作模式和速度选择以及诸多功能操作。

三、旋转门检测系统由世界知名品牌的各种传感器科实现不同的检测用途。

备有防夹、防撞、动作等功能的红外、雷达传感器。

国内独树一帜的提前减速防撞和安全防夹装置以及人性化的安全设计，确保了行人的安全和转门的可靠运行。

四、结构部分1、框架全部昆山国展型材制作框架。

直径大于 5.4米的旋转门外部再采用钢制的立柱进行加固，以提高门体的稳定性。

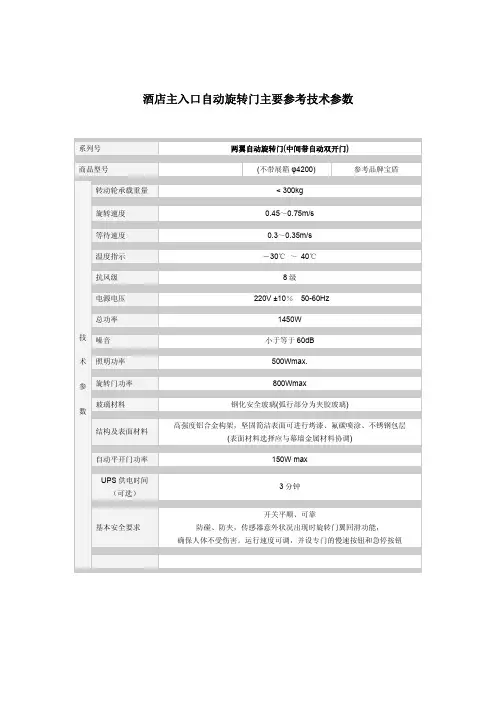

酒店主入口自动旋转门主要参考技术参数
系列号两翼自动旋转门(中间带自动双开门)
商品型号(不带展箱φ4200) 参考品牌宝盾转动轮承载重量< 300kg
旋转速度0.45～0.75m/s
等待速度0.3～0.35m/s
温度指示－30℃～ 40℃
抗风级8级
电源电压 220V ±10％ 50-60Hz
总功率1450W
噪音小于等于60dB
照明功率500Wmax.
旋转门功率800Wmax
玻璃材料钢化安全玻璃(弧行部分为夹胶玻璃)
结构及表面材料高强度铝合金构架，坚固简洁表面可进行烤漆、氟碳喷涂、不锈钢包层(表面材料选择应与幕墙金属材料协调)
自动平开门功率150W max
UPS供电时间
（可选）
3分钟
基本安全要求
开关平顺、可靠
防碰、防夹，传感器意外状况出现时旋转门翼回滑功能，
确保人体不受伤害。

运行速度可调，并设专门的慢速按钮和急停按钮
技术参数
旋转门主要参考尺寸示意
A B C D(内径) E(外径) F
400-600 2400-2600 1700-1900 3600-4200 3800-4400 1660-1960 两翼自动旋转门立面及平面尺寸示意参考图(不带展箱)
主要控制配件示意图参考图。

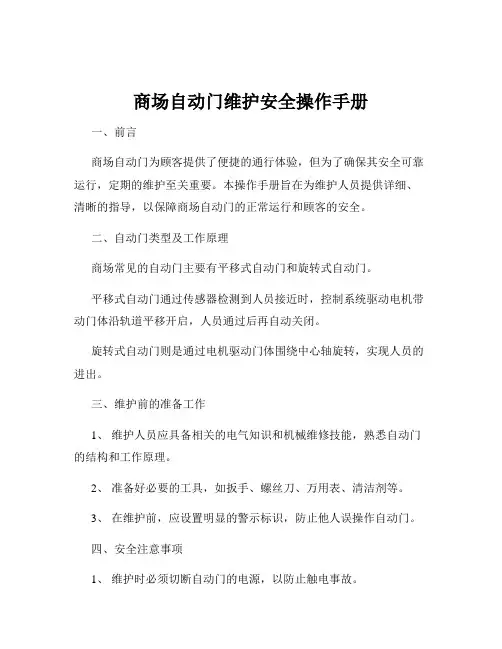

商场自动门维护安全操作手册一、前言商场自动门为顾客提供了便捷的通行体验，但为了确保其安全可靠运行，定期的维护至关重要。

本操作手册旨在为维护人员提供详细、清晰的指导，以保障商场自动门的正常运行和顾客的安全。

二、自动门类型及工作原理商场常见的自动门主要有平移式自动门和旋转式自动门。

平移式自动门通过传感器检测到人员接近时，控制系统驱动电机带动门体沿轨道平移开启，人员通过后再自动关闭。

旋转式自动门则是通过电机驱动门体围绕中心轴旋转，实现人员的进出。

三、维护前的准备工作1、维护人员应具备相关的电气知识和机械维修技能，熟悉自动门的结构和工作原理。

2、准备好必要的工具，如扳手、螺丝刀、万用表、清洁剂等。

3、在维护前，应设置明显的警示标识，防止他人误操作自动门。

四、安全注意事项1、维护时必须切断自动门的电源，以防止触电事故。

2、在进行机械部件维修时，要确保门体处于稳定状态，防止意外移动造成伤害。

3、高空作业时，必须佩戴安全带和安全帽。

五、日常维护内容1、外观检查每天对自动门的外观进行检查，查看门体表面是否有划伤、变形、腐蚀等情况。

如有问题，及时进行修复或更换部件。

2、传感器清洁定期清洁传感器表面的灰尘和杂物，以确保其正常感应。

使用干净的软布轻轻擦拭，避免使用湿布或腐蚀性清洁剂。

3、轨道清洁与润滑清理轨道内的杂物和灰尘，检查轨道是否平整，有无变形。

然后涂抹适量的润滑油，以减少门体运行的阻力。

4、皮带和链条检查检查皮带和链条的松紧度，如有松弛，及时调整。

同时查看是否有磨损、裂纹等情况，必要时进行更换。

5、电气连接检查定期检查电气连接是否牢固，有无松动、氧化等现象。

如有问题，及时紧固或更换连接件。

六、定期维护内容1、电机检查每半年对电机进行一次检查，包括电机的运行声音、温度、电流等参数。

检查电机的电刷磨损情况，必要时进行更换。

2、控制系统检测每年对控制系统进行一次全面检测，检查控制板上的电子元件是否正常，程序是否运行稳定。

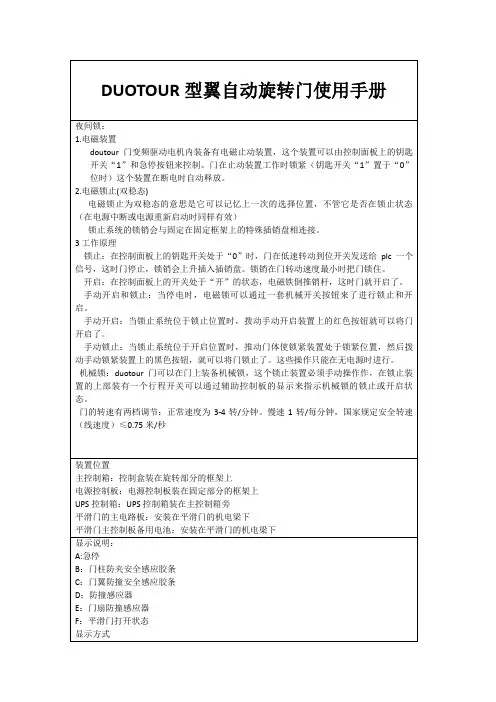

两翼自动旋转门控制系统使用说明书0 目录0 目录-------------------------------------------------------11 简介------------------------------------------------------12 技术描述--------------------------------------------------23 操作特性--------------------------------------------------5 5 简单维护故障排除------------------------------------------8 注意事项--------------------------------------------------10 1 简介1.1 安全操作在进行操作之前必须先阅读操作手册。

警告：尽量避免接触转动部分。

1.2 前言操作手册是专门为自动旋转门的用户提供的，它向你提供如下信息：门的操作门的结构门的维护1.3 使用须知本操作手册随自动旋转门控制系统一起提供给客户。

本操作手册的目的是告诉客户如何使用自动旋转门系统和进行故障的基本维护。

1.4 专业名词缩写本操作手册设计到的缩写名词解释如下：A 门柱防夹安全感应胶条B 固定门扉垂直防夹传感器C 移动门扉垂直防夹传感器D 红外减速对射安全光线E 红外停止对射安全光线F 感应式红外线运动探测器G 可编程控制器K 触摸屏1.5 自动旋转门操作部分残疾人减速（特需）按钮附加的紧急情况按钮触摸屏（平开门模式，运转模式，锁门模式等操作）注意：操作部件功能将在附图中提及。

2 两翼自动旋转门控制系统技术标准2.1安全设计A 门柱防夹安全感应胶条B 固定门扉垂直防夹传感器C 移动门扉垂直防夹传感器D 红外减速对射安全光线E 红外停止对射安全光线F 感应式红外线运动探测器G 可编程控制器K 触摸屏2.2控制系统要求：F 感应式红外线运动探测器：安装于门出入口的上方，当检测到有人或物信号时，旋转门开始旋转。
