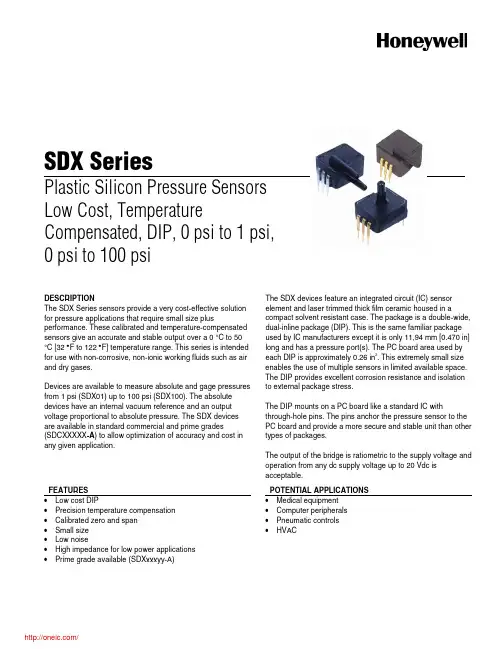

SDX Series

Plastic Silicon Pressure Sensors

Low Cost, Temperature

Compensated, DIP, 0 psi to 1 psi,

0 psi to 100 psi

DESCRIPTION

The SDX Series sensors provide a very cost-effective solution

for pressure applications that require small size plus

performance. These calibrated and temperature-compensated

sensors give an accurate and stable output over a 0 °C to 50

°C [32 °F to 122 °F] temperature range. This series is intended

for use with non-corrosive, non-ionic working fluids such as air

and dry gases.

Devices are available to measure absolute and gage pressures

from 1 psi (SDX01) up to 100 psi (SDX100). The absolute

devices have an internal vacuum reference and an output

voltage proportional to absolute pressure. The SDX devices

are available in standard commercial and prime grades

(SDCXXXXX-A) to allow optimization of accuracy and cost in

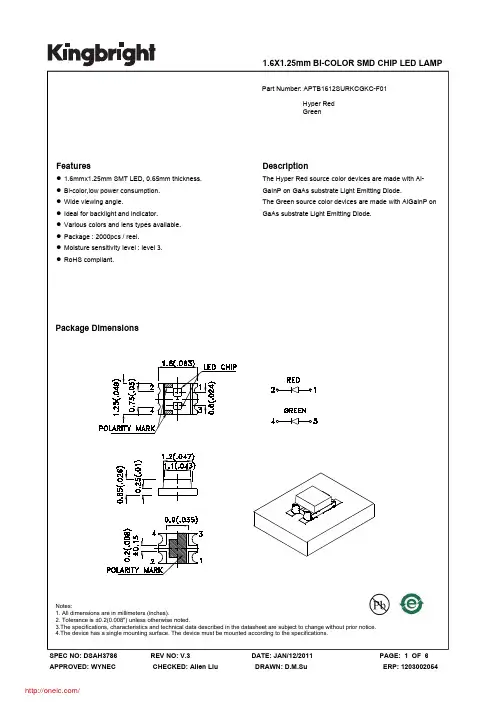

SPEC NO: DSAH3786 REV NO: V.3 DATE: JAN/12/2011 PAGE: 1 OF 6 APPROVED: WYNEC CHECKED: Allen Liu DRAWN: D.M.Su ERP: 1203002054 1.6X1.25mm BI-COLOR SMD CHIP LED LAMP Part Number: APTB1612SURKCGKC-F01 Hyper Red Green Features z1.6mmx1.25mm SMT LED, 0.65mm thickness. zBi-color,low power consumption. zWide viewing angle. zIdeal for backlight and indicator. zVarious colors and lens types available. zPackage : 2000pcs / reel. zMoisture sensitivity level : level 3. zRoHS compliant. Description The Hyper Red source color devices are made with Al-GaInP on GaAs substrate Light Emitting Diode. The Green source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.2(0.008") unless otherwise noted. 3.The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. 4.The device has a single mounting surface. The device must be mounted according to the specifications. /

DescriptionDesigned for pulse width modulated (PWM) control of DC motors, the A4950 is capable of peak output currents to ±3.5 A and operating voltages to 40 V.Input terminals are provided for use in controlling the speed and direction of a DC motor with externally applied PWM control signals. Internal synchronous rectification control circuitry is provided to lower power dissipation during PWM operation. Internal circuit protection includes overcurrent protection, motor lead short to ground or supply, thermal shutdown with hysteresis, undervoltage monitoring of VBB, and crossover-current protection.For high ambient operating temperature applications, an automotive grade device is offered (A4950K). The K grade device is tested across extended temperature and voltage ranges to ensure compliance in automotive or industrial applications. The A4950 is provided in a low-profile 8-pin SOICN package with exposed thermal pad (suffix LJ) that is lead (Pb) free, with 100% matte tin leadframe plating.

© Semiconductor Components Industries, LLC, 2010September, 2010 − Rev. 21Publication Order Number:NSR01F30/DNSR01F30NXT5G

Schottky Barrier Diode

These Schottky barrier diodes are optimized for low forwardvoltage drop and low leakage current. The DSN2 (Dual SiliconNo−lead) package is a chip level package using solderable metalcontacts under the package similar to DFN style packages. The DSNstyle package enables 100% utilization of the package area for activesilicon, offering a significant performance per board area advantagecompared to products in plastic molded packages. The low thermalresistance enables designers to meet the challenging task of achievinghigher efficiency and meeting reduced space requirements.Features•Very Low Forward Voltage Drop − 370 mV @ 10 mA•Low Reverse Current − 7.0 mA @ 10 V VR•100 mA of Continuous Forward Current•ESD Rating − Human Body Model: Class 3B − Machine Model: Class C•Very High Switching Speed•Low Capacitance − CT = 7 pF•This is a Halide−Free Device•This is a Pb−Free Device
