1.General description
The 74AVC1T45 is a single bit, dual supply transceiver with 3-state output that enablesbidirectional level translation. It features one data input-output port (A and B), a directioncontrol input (DIR) and dual supply pins (VCC(A) and VCC(B)). Both VCC(A) and VCC(B) canbe supplied at any voltage between 0.8V and 3.6V making the device suitable fortranslating between any of the low voltage nodes (0.8 V, 1.2V, 1.5V, 1.8V, 2.5V and3.3V).PinsAandDIRarereferencedtoVCC(A)andpinBisreferencedtoVCC(B).AHIGHonDIRallowstransmissionfromAtoBandaLOWonDIRallowstransmissionfromBtoA.
The device is fully specified for partial power-down applications using IOFF. The IOFFcircuitry disables the output, preventing any damaging backflow current through thedevice when it is powered down. In suspend mode when either VCC(A) or VCC(B) are atGND level, both A and B are in the high-impedance OFF-state.

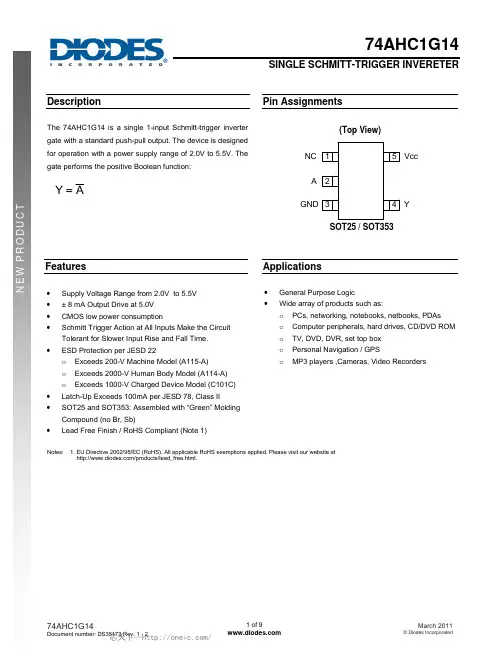

74AHC1G14SINGLE SCHMITT-TRIGGER INVERETER
74AHC1G14 Document number: DS35173 Rev. 1 - 2 1 of 9 March 2011 © Diodes Incorporated
NEW PRODUCT
Description
The 74AHC1G14 is a single 1-input Schmitt-trigger inverter
gate with a standard push-pull output. The device is designed
for operation with a power supply range of 2.0V to 5.5V. The gate performs the positive Boolean function:
AY=
Pin Assignments
SOT25 / SOT353NC
GNDYVcc(Top View)
5
4321
A
Features
• Supply Voltage Range from 2.0V to 5.5V
• ± 8 mA Output Drive at 5.0V
• CMOS low power consumption
• Schmitt Trigger Action at All Inputs Make the Circuit
Tolerant for Slower Input Rise and Fall Time.
• ESD Protection per JESD 22
o Exceeds 200-V Machine Model (A115-A)
o Exceeds 2000-V Human Body Model (A114-A)
o Exceeds 1000-V Charged Device Model (C101C)
© Semiconductor Components Industries, LLC, 2004August, 2004 − Rev. 51Publication Order Number:NCV8141/D NCV8141
5.0 V, 500 mA LinearRegulator with ENABLE,RESET, and Watchdog
The NCV8141 is a linear regulator suited for microprocessorapplications in automotive environments.This ON Semiconductor part provides the power for themicroprocessors along with many of the control functions needed intoday’s computer based systems. Incorporating all of these featuressaves both cost, and board space.The NCV8141 provides a low sleep mode current as compared tothe CS8141. Consult your local sales representative for a low sleepmode current version of the CS8140.
Features•5.0 V ±4.0%, 500 mA Output Voltage•Lower Quiescent Current•Improved Filtering for /RESET Functionality•mP Compatible Control Functions♦Watchdog♦RESET♦ENABLE•Low Dropout Voltage (1.25 V @ 500 mA)•Low Quiescent Current (7.0 mA @ 500 mA)•Low Noise, Low Drift•Low Current SLEEP Mode 50 mA (max)•Fault Protection♦Thermal Shutdown♦Short Circuit♦60 V Peak Transient Voltage•NCV Prefix for Automotive and Other Applications Requiring Siteand Control Changes•Pb−Free Package is Available*
© 2010 Fairchild Semiconductor Corporation
74VHC14Hex Schmitt InverterGeneral DescriptionThe VHC14 is an advanced high speed CMOS Hex Schmitt Inverter fabricated with silicon gate CMOS technol-ogy. It achieves the high speed operation similar to equiva-lent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. Pin configuration and function are the same as the VHC04 but the inputs have hysteresis between the positive-going and negative-going input thresholds, which are capable of transforming slowly changing input signals into sharply defined, jitter-free out-put signals, thus providing greater noise margin than con-ventional inverters.An input protection circuit ensures that 0V to 7V can be applied to the input pins without regard to the supply volt-age. This device can be used to interface 5V to 3V systems and two supply systems such as battery back up. This cir-cuit prevents device destruction due to mismatched supply and input voltages.Features■High Speed: tPD = 5.5 ns (typ) at VCC = 5V■Low power dissipation: ICC = 2 μA (Max) at TA = 25°C■High noise immunity: VNIH = VNIL = 28% VCC (Min)■Power down protection is provided on all inputs■Low noise: VOLP = 0.8V (Max)■Pin and function compatible with 74HC14
