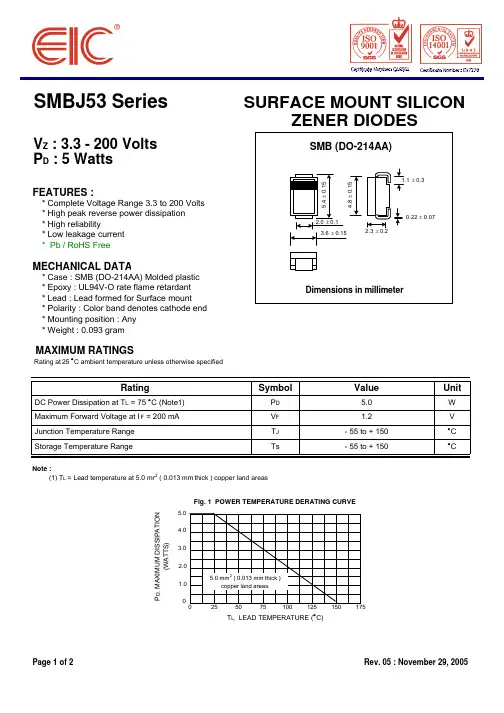

SMBJ53 SeriesSURFACE MOUNT SILICONZENER DIODESVZ : 3.3 - 200 VoltsPD : 5 WattsFEATURES : * Complete Voltage Range 3.3 to 200 Volts * High peak reverse power dissipation * High reliability * Low leakage current * Pb / RoHS FreeMECHANICAL DATA * Case : SMB (DO-214AA) Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Lead formed for Surface mount * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.093 gram MAXIMUM RATINGS Rating at 25 °C ambient temperature unless otherwise specifiedRatingSymbolValueUnit DC Power Dissipation at TL = 75 °C (Note1)PD5.0W Maximum Forward Voltage at IF = 200 mAVF1.2V Junction Temperature RangeTJ- 55 to + 150°C Storage Temperature RangeTs- 55 to + 150°CNote : (1) TL = Lead temperature at 5.0 mm2 ( 0.013 mm thick ) copper land areas0255075100125150175TL, LEAD TEMPERATURE (°C)Page 1 of 2Rev. 05 : November 29, 20051.02.03.04.05.0PD, MAXIMUM DISSIPA

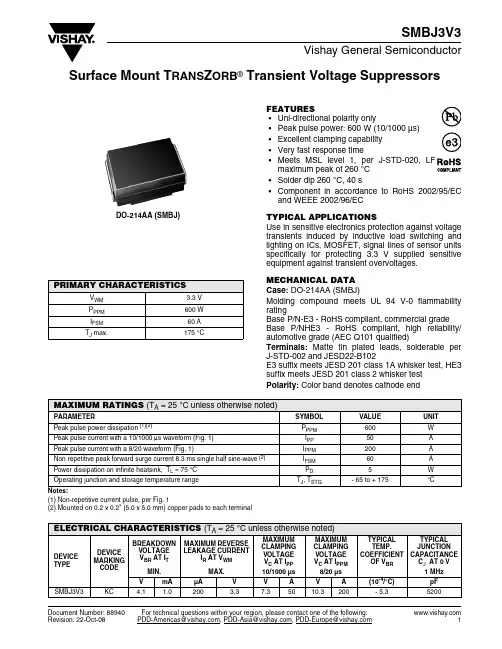

SMBJ3V3
Vishay General Semiconductor
Document Number: 88940
Revision: 22-Oct-08For technical questions within your region, please contact one of the following:
PDD-Americas@, PDD-Asia@, PDD-Europe@
1Surface Mount TRANSZORB® Transient Voltage Suppressors
FEATURES
•Uni-directional polarity only
•Peak pulse power: 600 W (10/1000 µs)
•Excellent clamping capability
•Very fast response time
•Meets MSL level 1, per J-STD-020, LF
maximum peak of 260 °C
•Solder dip 260 °C, 40 s
•Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
TYPICAL APPLICATIONS
Use in sensitive electronics protection against voltage
transients induced by inductive load switching and
lighting on ICs, MOSFET, signal lines of sensor units
specifically for protecting 3.3 V supplied sensitive
equipment against transient overvoltages.
SpecialistofOvervoltageProtector

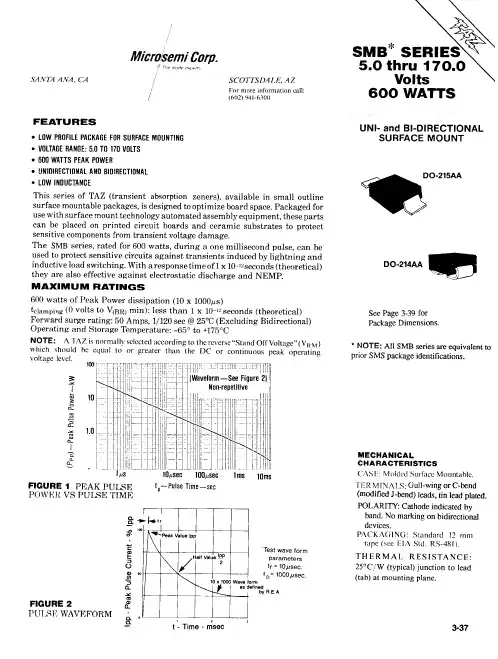

-1-SOCAY瞬态抑制二极管SMBJ26CA型号硕凯电子（Sylvia）一、产品图SpecialistofOvervoltageProtector
-2-二、特性1、为表面安装应用优化电路板空间2、低泄漏3、双向单元4、玻璃钝化结5、低电感6、优良的钳位能力7、600W的峰值功率能力在10×1000μ波形重复率（占空比）：0.01%8、快速响应时间：从0伏特到最小击穿电压通常小于1.0ps9、典型的，在电压高于12V时，反向漏电流小于5μA10、高温焊接：终端260°C/40秒11、典型的最大温度系数△Vbr=0.1%xVbr@25°Cx△T12、塑料包装有保险商实验室可燃性94V-013、无铅镀雾锡14、无卤化，符合RoHS15、典型失效模式是在指定的电压或电流下出现16、晶须测试是基于JEDECJESD201A每个表4a及4c进行的17、IEC-61000-4-2ESD15kV(空气)，8kV(接触)18、数据线的ESD保护符合IEC61000-4-2(IEC801-2)19、数据线的EFT保护符合IEC61000-4-4(IEC801-4)
三、应用范围TVS器件非常适合保护I/O接口，Vcc总线和其他应用于电信、计算机、工业和消费电子应用的易损电路。SpecialistofOvervoltageProtector
-3-四、功能图
五、UL认证编号
六、I-V曲线特性SpecialistofOvervoltageProtector
-4-七、产品尺寸
VOLTAGE RANGE: 6.5 V
POWER: 600Wa t Maximum Ratings@ TA= 25°C unless otherwise specified
Peak Pulse Power Dissipation(Non repetitive current pulse derated above TA=25°C)(Note1)PPK600W
Peak Forward Surge Current, 8.3ms Single Half SineWave
Superimposedon
RatedLoad(JEDECMethod)(Notes1,2,&3)IFSM100A
Instantaneous Forward Voltage @IPP= 35A VBR<100V(Notes 1, 2, & 3)VBR³100VVF3.55.0VV
Operating and Storage Temperature RangeTj,TSTG-55 to +150°C
Notes:1.Valid provided that terminals are kept at ambient temperature.2.Measured with 8.3ms single half sine-wave. Duty cycle = 4 pulses per minute maximum.3.Unidirectional units only.SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE
Glass Passivated Die Construction
Uni- and Bi-Directional Versions AvailableExcellent Clamping CapabilityFast Response Time
Plastic Material: UL Flammability
