JAVA BMP解码 超详细解释

java字符编码详细说明
首先，我们要了解"java字符编码详细说明"所涉及的内容。

Java字符编码主要关注的是如何在Java程序中正确地处理和转换字符数据。

这是因为不同的字符编码可能会影响程序如何解释和呈现文本数据。

Java提供了多种方式来处理字符编码，以确保数据的正确性。

其中，一些关键的编码方式包括：
1.UTF-8: 这是最常用的编码方式之一，因为它可以表示任何Unicode字符。

UTF-8能够向后兼容ASCII编码，因此它也是互联网上最常用的字符编码。

2.ISO-8859-1: 这是一个西欧语言的字符编码，它使用一个字节来表示一个
字符。

3.GB2312, GBK, GB18030: 这些都是用于表示简体中文字符的编码方式。

当我们处理字符数据时，需要特别注意编码的一致性。

如果源数据的编码方式和目标数据的编码方式不匹配，可能会导致乱码或其他不可预测的行为。

为了避免这种情况，我们可以在读取和写入文件、网络传输、数据库操作等操作时指定正确的字符编码。

总结来说，"java字符编码详细说明"主要关注的是如何在Java程序中正确处理和转换字符数据，特别是如何处理不同编码之间的转换以及如何确保编码的一致性。

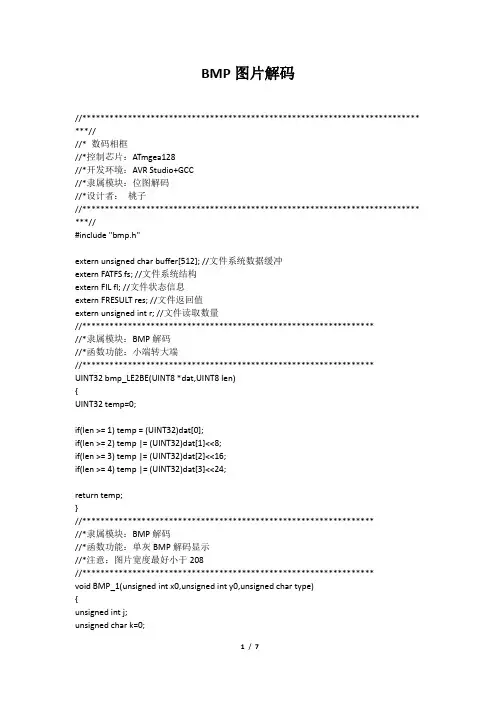

BMP图片解码//************************************************************************** ***////* 数码相框//*控制芯片：ATmgea128//*开发环境：AVR Studio+GCC//*隶属模块：位图解码//*设计者：桃子//************************************************************************** ***//#include "bmp.h"extern unsigned char buffer[512]; //文件系统数据缓冲extern FATFS fs; //文件系统结构extern FIL fl; //文件状态信息extern FRESULT res; //文件返回值extern unsigned int r; //文件读取数量//****************************************************************//*隶属模块：BMP解码//*函数功能：小端转大端//****************************************************************UINT32 bmp_LE2BE(UINT8 *dat,UINT8 len){UINT32 temp=0;if(len>= 1) temp = (UINT32)dat[0];if(len>= 2) temp |= (UINT32)dat[1]<<8;if(len>= 3) temp |= (UINT32)dat[2]<<16;if(len>= 4) temp |= (UINT32)dat[3]<<24;return temp;}//****************************************************************//*隶属模块：BMP解码//*函数功能：单灰BMP解码显示//*注意：图片宽度最好小于208//****************************************************************void BMP_1(unsigned int x0,unsigned int y0,unsigned char type){unsigned int j;unsigned char k=0;if(BMP.bmp_width& 0x001f)BMP.bmp_width +=32 - (BMP.bmp_width& 0x001f);if(type)TFT_Windons(x0,x0+BMP.bmp_width-1,y0,y0+BMP.bmp_hight-1);else{x0 = (240 - BMP.bmp_width)/2;y0 = (320 - BMP.bmp_hight)/2;TFT_Windons(x0,x0+BMP.bmp_width-1,y0,y0+BMP.bmp_hight-1);}while(1){res = f_read(&fl,buffer,512,&r);if(res || r==0) break;for(j=0;j<r;j++){for(k=8;k;k--){if(buffer[j] & (1 << (k-1)))TFT_Write_Data(0x00,0x00);elseTFT_Write_Data(0xff,0xff);}}}}//****************************************************************//*隶属模块：BMP解码//*函数功能：16位灰BMP解码显示//*注意：图片宽度最好小于232//****************************************************************void BMP_4(unsigned int x0,unsigned int y0,unsigned char type){unsigned int j;unsigned char color_H,color_L,i;const unsigned char table_RBGcolor[16] = {0xff,0xee,0xdd,0xcc,0xbb,0xaa,//经查表RGB三像素相同0x99,0x88,0x77,0x66,0x55,0x44,//从白到黑FF~00共16个0x33,0x22,0x11,0x00}; //段if(BMP.bmp_width& 0x0007)BMP.bmp_width +=8 - (BMP.bmp_width& 0x007);if(type)TFT_Windons(x0,x0+BMP.bmp_width-1,y0,y0+BMP.bmp_hight-1);else{x0 = (240 - BMP.bmp_width)/2;y0 = (320 - BMP.bmp_hight)/2;TFT_Windons(x0,x0+BMP.bmp_width-1,y0,y0+BMP.bmp_hight-1);}while(1){res = f_read(&fl,buffer,512,&r);if(res || r==0) break;for(j=0;j<r;j++){i = buffer[j]>> 4;color_H = (table_RBGcolor[i] & 0xf8) | (table_RBGcolor[i] >> 5);color_L = ((table_RBGcolor[i] << 3) & 0xe0) | (table_RBGcolor[i] >> 3);TFT_Write_Data(color_H,color_L);i = buffer[j]& 0x0f;color_H = (table_RBGcolor[i] & 0xf8) | (table_RBGcolor[i] >> 5);color_L = ((table_RBGcolor[i] << 3) & 0xe0) | (table_RBGcolor[i] >> 3);TFT_Write_Data(color_H,color_L);}}}//****************************************************************//*隶属模块：BMP解码//*函数功能：256位灰BMP解码显示//*注意：图片宽度最好小于236//****************************************************************void BMP_8(unsigned int x0,unsigned int y0,unsigned char type){const unsigned char table_Bcolor[4] = {0x00,0x55,0xaa,0xff};//经查表R像素const unsigned char table_GRcolor[8] = {0x00,0x24,0x48,0x6d,0x91,0xb6,0xda,0xff};//经查表GB像素相同unsigned int j;unsigned char color_H,color_L;if(BMP.bmp_width& 0x0003)BMP.bmp_width +=4 - (BMP.bmp_width& 0x03);if(type)TFT_Windons(x0,x0+BMP.bmp_width-1,y0,y0+BMP.bmp_hight-1);else{x0 = (240 - BMP.bmp_width)/2;y0 = (320 - BMP.bmp_hight)/2;TFT_Windons(x0,x0+BMP.bmp_width-1,y0,y0+BMP.bmp_hight-1);}while(1){res = f_read(&fl,buffer,512,&r);if(res || r==0) break;for(j=0;j<r;j++){color_H = (table_Bcolor[buffer[j]>>6] & 0xf8) | (table_GRcolor[(buffer[j] & 0x38)>>3] >> 5); color_L = ((table_GRcolor[(buffer[j] & 0x38)>>3] << 3) & 0xe0) | (table_GRcolor[buffer[j] & 0x07] >> 3);TFT_Write_Data(color_H,color_L);}}}//****************************************************************//*隶属模块：BMP解码//*函数功能：16位真彩BMP解码显示//****************************************************************void BMP_16(unsigned int x0,unsigned int y0,unsigned char type){unsigned int j=0;unsigned inttemp_color=0;if(BMP.bmp_width& 0x0001)BMP.bmp_width +=1;if(type)TFT_Windons(x0,x0+BMP.bmp_width-1,y0,y0+BMP.bmp_hight-1);else{x0 = (240 - BMP.bmp_width)/2;y0 = (320 - BMP.bmp_hight)/2;TFT_Windons(x0,x0+BMP.bmp_width-1,y0,y0+BMP.bmp_hight-1);}while(1){res = f_read(&fl,buffer,512,&r);if(res || r==0) break;for(j=0;j<r;j+=2){temp_color = ((buffer[j]&0xE0)<<1)|(buffer[j]&0x1F);TFT_Write_Data((buffer[j+1]<<1)|(temp_color>>8),temp_color&0x00FF);}}}//**************************************************************** //*隶属模块：BMP解码//*函数功能：24位真彩BMP解码显示//**************************************************************** void BMP_24(unsigned int x0,unsigned int y0,unsigned char type){unsigned int j=0;unsigned char temp[2];if(BMP.bmp_width& 0x0003)BMP.bmp_width +=4 - (BMP.bmp_width& 0x03);if(type)TFT_Windons(x0,x0+BMP.bmp_width-1,y0,y0+BMP.bmp_hight-1);else{x0 = (240 - BMP.bmp_width)/2;y0 = (320 - BMP.bmp_hight)/2;TFT_Windons(x0,x0+BMP.bmp_width-1,y0,y0+BMP.bmp_hight-1);}while(1){res = f_read(&fl,buffer,512,&r);if(res || r==0) break;temp[0] = buffer[510];temp[1] = buffer[511];for(j=0;j<r-2;j+=3){TFT_Write_Data((buffer[j+2]&0xf8)|(buffer[j+1]>>5),((buffer[j+1]<<3)&0xe0)|(buffer[j]>>3));}res = f_read(&fl,buffer,512,&r);if(res || r==0) break;TFT_Write_Data((buffer[0]&0xf8)|(temp[1]>>5),((temp[1]<<3)&0xe0)|(temp[0]>>3));temp[0] = buffer[511];for(j=1;j<r-1;j+=3){TFT_Write_Data((buffer[j+2]&0xf8)|(buffer[j+1]>>5),((buffer[j+1]<<3)&0xe0)|(buffer[j]>>3));}res = f_read(&fl,buffer,512,&r);if(res || r==0) break;TFT_Write_Data((buffer[1]&0xf8)|(buffer[0]>>5),((buffer[0]<<3)&0xe0)|(temp[0]>>3));for(j=2;j<r;j+=3){TFT_Write_Data((buffer[j+2]&0xf8)|(buffer[j+1]>>5),((buffer[j+1]<<3)&0xe0)|(buffer[j]>>3));}}}//**************************************************************** //*隶属模块：BMP解码//*函数功能：32位真彩BMP解码显示//**************************************************************** void BMP_32(unsigned int x0,unsigned int y0,unsigned char type){unsigned int j=0;if(type)TFT_Windons(x0,x0+BMP.bmp_width-1,y0,y0+BMP.bmp_hight-1);else{x0 = (240 - BMP.bmp_width)/2;y0 = (320 - BMP.bmp_hight)/2;TFT_Windons(x0,x0+BMP.bmp_width-1,y0,y0+BMP.bmp_hight-1);}while(1){res = f_read(&fl,buffer,512,&r);if(res || r==0) break;for(j=0;j<r;j+=4){TFT_Write_Data((buffer[j+2]&0xf8)|(buffer[j+1]>>5),((buffer[j+1]<<3)&0xe0)|(buffer[j]>>3));}}}//**************************************************************** //*隶属模块：BMP解码//*函数功能：BMP图片格式解码//**************************************************************** void dis_bmp(unsigned int x0,unsigned int y0,unsigned char type){do{res = f_read(&fl,buffer,512,&r);//读512个数据}while(res || r==0);BMP.bmp_offset = bmp_LE2BE((buffer + 10),4);//数据偏移量BMP.bmp_width = (UINT16)(bmp_LE2BE((buffer + 18),4));//图像宽度BMP.bmp_hight = (UINT16)(bmp_LE2BE((buffer + 22),4));//说明图像高度BMP.bmp_form = (UINT16)(bmp_LE2BE((buffer + 28),2));//说明图像格式do{res = f_lseek(&fl,BMP.bmp_offset);}while(res);if(type == 2){BMP.bmp_width>>= 1;BMP.bmp_hight >>= 1;}else if(type == 4){BMP.bmp_width>>= 2;BMP.bmp_hight >>= 2;}switch(BMP.bmp_form){case 1: BMP_1(x0,y0,type); break;case 4: BMP_4(x0,y0,type); break;case 8: BMP_8(x0,y0,type); break;case 16:BMP_16(x0,y0,type);break;case 24:BMP_24(x0,y0,type);break;case 32:BMP_32(x0,y0,type);break;default:break;}f_close(&fl);f_mount(0,NULL);}。

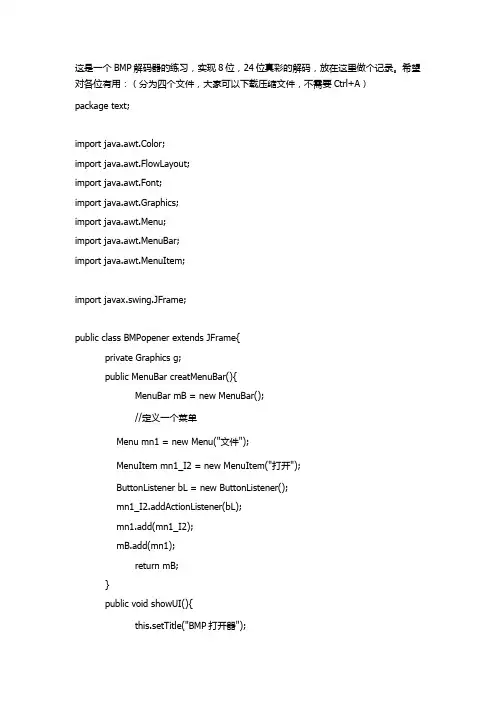

这是一个BMP解码器的练习，实现8位，24位真彩的解码，放在这里做个记录。

希望对各位有用：（分为四个文件，大家可以下载压缩文件，不需要Ctrl+A）package text;import java.awt.Color;import java.awt.FlowLayout;import java.awt.Font;import java.awt.Graphics;import java.awt.Menu;import java.awt.MenuBar;import java.awt.MenuItem;import javax.swing.JFrame;public class BMPopener extends JFrame{private Graphics g;public MenuBar creatMenuBar(){MenuBar mB = new MenuBar();//定义一个菜单Menu mn1 = new Menu("文件");MenuItem mn1_I2 = new MenuItem("打开");ButtonListener bL = new ButtonListener();mn1_I2.addActionListener(bL);mn1.add(mn1_I2);mB.add(mn1);return mB;}public void showUI(){this.setTitle("BMP打开器");this.setSize(1024,768);FlowLayout fl = new FlowLayout();this.setLayout(fl);MenuBar mB = this.creatMenuBar();this.setMenuBar(mB);this.setResizable(false);this.setDefaultCloseOperation(3);this.getContentPane().setBackground(Color.WHITE);this.setVisible(true);g = this.getGraphics();g.setFont(new Font("黑体",12,48));g.setColor(Color.red);g.drawString("欢迎使用", this.getHeight()/2-100,this.getWidth()/2);}public void paint(){super.paint(g);g.drawString("欢迎使用", this.getHeight()/2-100,this.getWidth()/2);}public static void main(String args[]){BMPopener bOpPopener = new BMPopener();bOpPopener.showUI();}}package text;import java.awt.event.ActionEvent;import java.awt.event.ActionListener;import java.io.File;import javax.swing.JFileChooser;public class ButtonListener implements ActionListener{JFileChooser fileChooser = new JFileChooser();File file;@Overridepublic void actionPerformed(ActionEvent e) {// TODO Auto-generated method stubfileChooser.showOpenDialog(null);file= fileChooser.getSelectedFile();String path = file.getAbsolutePath();System.out.print(path);JiemaBMP jBmp = new JiemaBMP(path);jBmp.showJiema();}}package text;import java.awt.Color;import java.awt.Graphics;import java.io.DataInputStream;import java.io.EOFException;import java.io.FileInputStream;import java.io.IOException;import javax.swing.JFrame;public class JiemaBMP extends JFrame{private String pathString;private Graphics g;private UserColor[][] userColors;private int unith = 23;private UserColor[] userTiaoseban;public JiemaBMP(String path) {this.pathString =path;}public void showJiema() {// TODO Auto-generated method stubtry{FileInputStream fis = new FileInputStream(pathString);DataInputStream dis = new DataInputStream(fis);if(dis.read()!= 'B'){throw new IOException("Not a .BMP file");}if(dis.read()!='M'){throw new IOException("Not a .BMP file");}//得到总大小int fileSize = readInt(dis);System.out.println("文件大小："+fileSize);System.out.println(readUsignedShort(dis));System.out.println(readUsignedShort(dis));//读取偏移量int bitmapOffset = readInt(dis);//读取当前结构体的大小System.out.println("bitmapOffset="+bitmapOffset);int bitmapInfoSize = readInt(dis);System.out.println("bitmapInfoSize"+bitmapInfoSize);//读取宽高int width = readInt(dis);int height = readInt(dis);System.out.println("width:"+width+"height:"+height);//读Plants总是1System.out.println(readUsignedShort(dis));//读位数int bitCount = readUsignedShort(dis);System.out.println("bitCount"+bitCount);//读取压缩方式int compressionType = readInt(dis);System.out.println("CompressionType:"+compressionType);//读取图片大小int imageSize = readInt(dis);//读分辨率readInt(dis);readInt(dis);//读位图使用的颜色数int colorsUsed = readInt(dis);int colorsImportant = readInt(dis);System.out.println("[colorused]= "+colorsUsed);// Read the pixels from the stream based on the compression type if(compressionType ==0){if(bitCount == 24||bitCount == 4){readRGB24(width, height, dis);}if(bitCount == 8||bitCount == 1){readRGB8(width, height, dis);}// if(bitCount == 4){// readRGB4(width, height, dis);// }// if(bitCount == 1){// readRGB1(width, height, dis);// }}}catch(Exception e){}}public void readRGB1(int width,int height,DataInputStream dis) throws IOException{}public void readRGB4(int width,int height,DataInputStream dis) throws IOException{}public void readRGB8(int width,int height,DataInputStream dis)throws IOException{this.setTitle(pathString);//设置一个大小this.setSize(width,height+unith);this.setResizable(false);this.setVisible(true);g = this.getGraphics();userTiaoseban = new UserColor[256];userColors = new UserColor[width][height];for(int i = 0;i<256;i++){int blue = dis.read();int green = dis.read();int red = dis.read();dis.read();userTiaoseban[i] = new UserColor(red, green, blue);System.out.println("加了="+i);}//System.out.println(userTiaoseban[217].red+userTiaoseban[217].green);//按行读取如果H,W为正则到这来for(int h = height-1;h>=0;h--){for(int w = 0;w<width;w++){// Read in the red, green, and blue componentsint num = dis.read();userColors[w][h] = userTiaoseban[num];if((userColors[w][h].red!=255)||(userColors[w][h].green!=255)||(userColors[w][h].bl ue!= 255)){g.setColor(newColor(userColors[w][h].red,userColors[w][h].green,userColors[w][h].blue));g.fillOval(w, h+unith, 1, 1);}}}}public void readRGB24(int width,int height,DataInputStream dis)throws IOException{this.setTitle(pathString);//设置一个大小this.setSize(width,height+unith);this.setResizable(false);this.setVisible(true);g = this.getGraphics();userColors = new UserColor[width][height];//System.out.println(userTiaoseban[217].red+userTiaoseban[217].green);//按行读取如果H,W为正则到这来for(int h = height-1;h>=0;h--){for(int w = 0;w<width;w++){// Read in the red, green, and blue componentsint blue = dis.read();int green = dis.read();int red = dis.read();userColors[w][h] = new UserColor(red, green, blue);if((userColors[w][h].red!=255)||(userColors[w][h].green!=255)||(userColors[w][h].bl ue!= 255)){g.setColor(newColor(userColors[w][h].red,userColors[w][h].green,userColors[w][h].blue));g.fillOval(w, h+unith, 1, 1);}}}}//构造一个整数的方法public final int readInt(DataInputStream dis) throws IOException{int ch1 = dis.read();int ch2 = dis.read();int ch3 = dis.read();int ch4 = dis.read();if((ch1|ch2|ch3|ch4)<0)throw new IOException();return ((ch4<<24)+(ch3<<16)+(ch2<<8)+(ch1<<0));}//构造一个读2个字节整数的方法public final int readUsignedShort(DataInputStream dis) throws IOException{ int ch1 = dis.read();int ch2 = dis.read();if((ch1|ch2)<0)throw new EOFException();return(ch2<<8)+(ch1<<0);}public final int disHH(int num){return (num&8)>>3;}public final int disHL(int num){return (num&4)>>2;}public final int disLH(int num){return (num&2)>>1;}public final int disLL(int num){return (num&1);}/** 定义一个将高位输出的方法(针对RGB4)*/public final int disH(int num){return num>>4;}/** 定义一个将低位输出的方法(针对RGB4)*/public final int disL(int num){int num1 = 15;return num&num1;}//重写重绘方法public void paint(Graphics g){super.paint(g);for(int h = userColors[0].length-1;h>=0;h--){for(int w=0;w<userColors.length;w++){if((userColors[w][h].red!=255)||(userColors[w][h].green!=255)||userColors[ w][h].blue!=255){g.setColor(newColor(userColors[w][h].red,userColors[w][h].green,userColors[w][h].blue));g.fillOval(w, h+unith, 1, 1);}}}}}package text;public class UserColor {public int red;public int green;public int blue;public UserColor(int red,int green,int blue){ this.red = red;this.green = green;this.blue = blue;}}。

java霍夫曼编码及解码霍夫曼编码是一种用于数据压缩的技术，它基于一种被称为霍夫曼树的二叉树结构。

下面是一个简单的Java 实现示例，包括霍夫曼编码和解码。

```javaimport java.util.HashMap;import java.util.Map;import java.util.PriorityQueue;class HuffmanNode implements Comparable<HuffmanNode> {char data;int frequency;HuffmanNode left, right;public HuffmanNode(char data, int frequency) {this.data = data;this.frequency = frequency;}@Overridepublic int compareTo(HuffmanNode o) {return this.frequency - o.frequency;}}public class HuffmanCoding {public static void main(String[] args) {String input = "hello world";Map<Character, Integer> frequencyMap = buildFrequencyMap(input);HuffmanNode root = buildHuffmanTree(frequencyMap);Map<Character, String> huffmanCodes = buildHuffmanCodes(root);String encoded = encode(input, huffmanCodes);System.out.println("Encoded: " + encoded);String decoded = decode(encoded, root);System.out.println("Decoded: " + decoded);}private static Map<Character, Integer> buildFrequencyMap(String input) {Map<Character, Integer> frequencyMap = new HashMap<>();for (char c : input.toCharArray()) {frequencyMap.put(c, frequencyMap.getOrDefault(c, 0) + 1);}return frequencyMap;}private static HuffmanNode buildHuffmanTree(Map<Character, Integer> frequencyMap) { PriorityQueue<HuffmanNode> priorityQueue = new PriorityQueue<>();for (Map.Entry<Character, Integer> entry : frequencyMap.entrySet()) {priorityQueue.add(new HuffmanNode(entry.getKey(), entry.getValue()));}while (priorityQueue.size() > 1) {HuffmanNode left = priorityQueue.poll();HuffmanNode right = priorityQueue.poll();HuffmanNode internalNode = new HuffmanNode('\0', left.frequency + right.frequency);internalNode.left = left;internalNode.right = right;priorityQueue.add(internalNode);}return priorityQueue.poll();}private static Map<Character, String> buildHuffmanCodes(HuffmanNode root) { Map<Character, String> huffmanCodes = new HashMap<>();buildCodesRecursive(root, "", huffmanCodes);return huffmanCodes;}private static void buildCodesRecursive(HuffmanNode node, String code, Map<Character, String> huffmanCodes) {if (node == null) {return;}if (node.data != '\0') {huffmanCodes.put(node.data, code);}buildCodesRecursive(node.left, code + "0", huffmanCodes);buildCodesRecursive(node.right, code + "1", huffmanCodes);}private static String encode(String input, Map<Character, String> huffmanCodes) { StringBuilder encoded = new StringBuilder();for (char c : input.toCharArray()) {encoded.append(huffmanCodes.get(c));}return encoded.toString();}private static String decode(String encoded, HuffmanNode root) {StringBuilder decoded = new StringBuilder();HuffmanNode current = root;for (char bit : encoded.toCharArray()) {if (bit == '0') {current = current.left;} else if (bit == '1') {current = current.right;}if (current.data != '\0') {decoded.append(current.data);current = root;}}return decoded.toString();}}```这个简单的示例演示了如何使用霍夫曼编码对字符串进行编码和解码。
