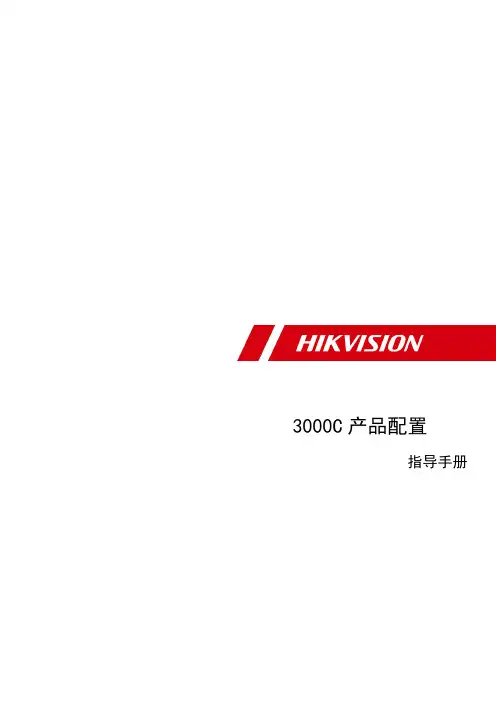

3000C产品配置指导手册版权所有©杭州海康威视数字技术股份有限公司2019。
保留一切权利。
本手册的任何部分，包括文字、图片、图形等均归属于杭州海康威视数字技术股份有限公司或其子公司（以下简称“本公司”或“海康威视”）。
未经书面许可，任何单位和个人不得以任何方式摘录、复制、翻译、修改本手册的全部或部分。
除非另有约定，本公司不对本手册提供任何明示或默示的声明或保证。
关于本手册本手册描述的产品仅供中国大陆地区销售和使用。
本手册作为指导使用。
手册中所提供照片、图形、图表和插图等，仅用于解释和说明目的，与具体产品可能存在差异，请以实物为准。
因产品版本升级或其他需要，本公司可能对本手册进行更新，如您需要最新版手册，请您登录公司官网查阅（）。
海康威视建议您在专业人员的指导下使用本手册。
商标声明为海康威视的注册商标。
本手册涉及的其他商标由其所有人各自拥有。
责任声明●在法律允许的最大范围内，本手册所描述的产品（含其硬件、软件、固件等）均“按照现状”提供，可能存在瑕疵、错误或故障，本公司不提供任何形式的明示或默示保证，包括但不限于适销性、质量满意度、适合特定目的、不侵犯第三方权利等保证；亦不对使用本手册或使用本公司产品导致的任何特殊、附带、偶然或间接的损害进行赔偿，包括但不限于商业利润损失、数据或文档丢失产生的损失。
●若您将产品接入互联网需自担风险，包括但不限于产品可能遭受网络攻击、黑客攻击、病毒感染等，本公司不对因此造成的产品工作异常、信息泄露等问题承担责任，但本公司将及时为您提供产品相关技术支持。
●使用本产品时，请您严格遵循适用的法律。
若本产品被用于侵犯第三方权利或其他不当用途，本公司概不承担任何责任。
●如本手册内容与适用的法律相冲突，则以法律规定为准。
前言本节内容的目的是确保用户通过本手册能够正确使用产品，以避免操作中的危险或财产损失。
在使用此产品之前，请认真阅读产品手册并妥善保存以备日后参考。
符号约定对于文档中出现的符号，说明如下所示。
Hikvision DS-2DE1A200IW-DE3(2.8/4mm) 2MP Network PTZ Camera can be widely used in multiple scenes, such as the corridor, office, convenience store, and restaurant, etc.Key Features•1/3" progressive scan CMOS•Up to 1920 × 1080@30fps resolution •Excellent low-light performance withpowered-by-DarkFighter technology•16× digital zoom•120 dB WDR, 3D DNR, EIS, Regional Exposure, Regional Focus•Up to 15 m IR distance•12 VDC, PoE (802.3af)•IP66•Support H.265+/H.265 video compression •Support ONVIF, ISAPI, CGI, HIKVISION SDK and Third-Party Management PlatformCamera ModuleImage Sensor 1/3" progressive scan CMOSMin. Illumination Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IRWhite Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/FluorescentLamp/Sodium LampGain Auto/ManualShutter Time 1/1 s to 1/30,000 sDay & Night IR Cut FilterDigital Zoom 16×Privacy Mask 24 programmable privacy masksFocus Mode Auto/Semi-automatic/ManualWDR 120 dB WDRLensFocal Length 2.8 mm, 4 mm, optionalField of View 2.8 mm: horizontal FOV 101.6°; vertical FOV 56°, diagonal FOV 120°4mm: horizontal FOV 80.7°; vertical FOV 43.5°, diagonal FOV 95°Working Distance 2.8 mm: > 0.7 m; 4 mm: > 1 m Aperture F1.6PTZMovement Range (Pan) 0° to 330°Pan Speed Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/sMovement Range (Tilt) From 0° to 90°Tilt Speed Configurable, from 0.1°/s to 100°/s Preset Speed: 100°/sProportional Zoom YesPresets 300Power-off Memory YesPark Action Preset3D Positioning YesPTZ Status Display YesPreset Freezing YesScheduled Task Preset, Dome Reboot, Dome Adjust Compression StandardVideo Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEGH.264 Type Baseline Profile/Main Profile/High ProfileH.264+ YesH.265+ YesVideo Bitrate 32 Kbps to 16384 KbpsAudio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCMAudio Bitrate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2) SVC YesSmart FeaturesBasic Event Motion Detection, Video Tampering Detection, ExceptionSmart Event Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception DetectionSmart Record ANR (Automatic Network Replenishment), Dual-VCAROI Main stream, sub-stream, and third stream respectively support four fixed areas. IRIR Distance Up to 15 mSmart IR YesImageMax. Resolution 1920 × 1080Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960,1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)Third Stream 50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)Image Enhancement HLC, BLC, 3D DNR, EIS, Regional Exposure, Regional FocusNetworkNetwork Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANRAlarm Linkage Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,RTCP, RTP, TCP/IP, DHCP, PPPoE, BonjourAPI ONVIF (Profile S, Profile G, Profile T), ISAPI, SDKSimultaneous Live View Up to 20 channelsUser/Host Up to 32 users3 levels: Administrator, Operator and UserSecurity Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption;IEEE 802.1x port-based network access control; IP address filteringClient iVMS-4200, iVMS-4500, iVMS-5200, Hik-ConnectWeb Browser IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+InterfaceAudio Interface 1-ch audio input (line in) and 1-ch audio output (line out)Network Interface 1 RJ45 10 M/100 M Ethernet, PoEGeneralLanguage (Web Browser Access ) 32 languages.English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)Power 12 VDC, 1.0 A (Max. 12 W)PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 12 W) Including max. 3.6W for IRWorking Temperature -10°C to 55°C (-14°F to 131°F)Working Humidity ≤ 90%Protection Level IP66 Standard, 2000V Lightning Protection, Surge Protection and Voltage Transient ProtectionMaterial Aluminum alloy, PC, PC+ABSDimensions Φ 124.3 mm × 76.9 mm (Φ 4.89" × 3.03")Weight Approx. 450 g (0.99 lb.)Available ModelDS-2DE1A200IW-DE3(2.8 mm), DS-2DE1A200IW-DE3(4 mm) DimensionsØ60.3[2.37"]1/4-20-UNC83.5[3.29"]46[1.81"]Unit: mm [inch]Accessory Optional:DS-1294ZJ-PT Wall MountDS-1297ZJPendant Mount (extendable)DS-1299ZJPendant MountDS-1297ZJ-ESPendant mount (extendable)DS-1297ZJ-M Pendant Mount (extendable) MSA-C1500IC12.0-18P-USMSA-C1500IC12.0-18P-GBMSA-C1500IC12.0-18P-JPPower adapterLAS60-57CN-RJ45Hi-PoE midspan。

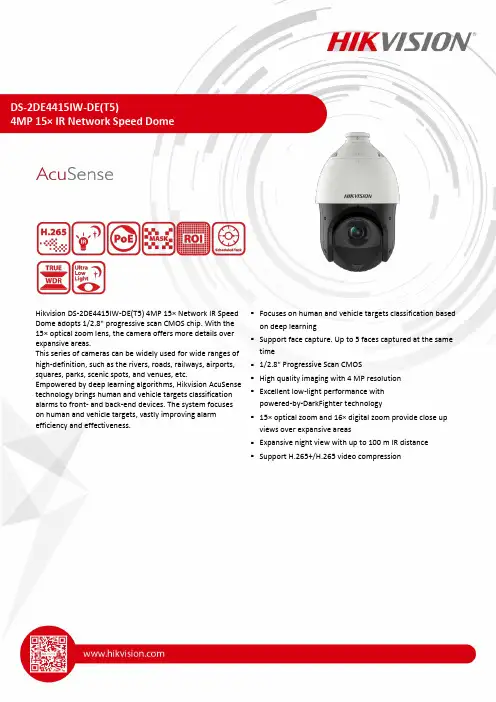

DS-2DE4415IW-DE(T5)4MP 15× IR Network Speed DomeHikvision DS-2DE4415IW-DE(T5) 4MP 15× Network IR Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 15× optical zoom lens, the camera offers more details over expansive areas.This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc. Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.⏹Focuses on human and vehicle targets classification based on deep learning⏹Support face capture. Up to 5 faces captured at the same time⏹1/2.8" Progressive Scan CMOS⏹High quality imaging with 4 MP resolution⏹Excellent low-light performance withpowered-by-DarkFighter technology⏹15× optical zoom and 16× digital zoom provide close up views over expansive areas⏹Expansive night view with up to 100 m IR distance⏹Support H.265+/H.265 video compression⏹DORIThe DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.DORI Detect Observe Recognize IdentifyDefinition25 px/m63 px/m125 px/m250 px/m Distance(Tele)1320.0 m (4330.7 ft)523.8 m (1718.5 ft)264.0 m (866.1 ft)132.0 m (433.1 ft)⏹SpecificationCameraImage Sensor 1/2.8" progressive scan CMOSMin. Illumination Color: 0.005Lux @ (F1.6, AGC ON); B/W: 0.001Lux @ (F1.6, AGC ON), 0 Lux with IR Shutter Speed 1/1 s to 1/30000 sSlow Shutter YesDay & Night IR cut filterZoom 15x optical, 16x digitalMax. Resolution 2560 × 1440LensFocus Auto, semi-auto, manualFocal Length 5 mm to 75 mmZoom Speed Approx. 2.3 sFOV Horizontal field of view: 55° to 4° (wide-tele), Vertical field of view: 33° to 2.2° (wide-tele), Diagonal field of view: 61.5° to 4.6° (wide-tele)Aperture Max. F1.6IlluminatorSupplement Light Type IRSupplement Light Range IR Distance: up to 100 mPTZMovement Range (Pan) 360°Movement Range (Tilt) -15° to 90° (auto flip)Pan Speed Pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s Tilt Speed Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s Proportional Pan YesPresets 300Patrol Scan 8 patrols, up to 32 presets for each patrolPattern Scan 4 pattern scansPower-off Memory YesPark Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan3D Positioning Yes PTZ Status Display Yes Preset Freezing YesScheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux outputVideoMain Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEGVideo Bit Rate 32 kbps to 16384 kbpsH.264 Type Baseline profile/Main profile/High profileH.265 Type Main profileScalable Video Coding (SVC) H.264 and H.265 encodingRegion of Interest (ROI) 8 fixed regions for each streamAudioAudio Compression G.711/G.722.1/G.726/MP2L2/PCMAudio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHzEnvironment Noise Filtering YesNetworkNetwork Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, WebsocketsAPI Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUPSimultaneous Live View Up to 20 channelsUser/Host Up to 32 users, 3 user levels: administrator, operator, and user Smooth Streaming YesSecurity Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)Client iVMS-4200, HikCentral Pro, Hik-Connect Web Browser Chrome 57.0+, Firefox 52.0+, Safari 11+, IE11 ImageImage Parameters Switch YesDay/Night Switch Day, Night, Auto, ScheduleImage Enhancement BLC, HLC, 3D DNRWide Dynamic Range (WDR) 120 dBDefog Digital defogImage Stabilization EISRegional Exposure YesRegional Focus YesImage Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browserPrivacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable SNR > 52 dBInterfaceEthernet Interface 1 RJ45 10M/100M self-adaptive Ethernet portOn-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB Alarm 1 input, 1 outputAudio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;1 output (line out), line level, output impedance: 600 ΩReset YesEventBasic Event Motion detection, video tampering alarm, exception, alarm input and outputSmart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detectionAlarm Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)Deep Learning FunctionFace Capture Detects up to 5 faces simultaneously.Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the facePerimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)GeneralDemist YesPower 12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR; PoE (802.3at)Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) Material ADC12Dimension Ø 164.5 mm × 290 mm (Ø 6.48" × 11.42")Weight Approx. 2 kg (4.41 lb)ApprovalEMC FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2019);KC (KN 32: 2015, KN 35: 2015)Safety UL (UL 62368-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017);BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);LOA (SANS IEC60950-1)Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)ProtectionIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection⏹Typical ApplicationHikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following description to choose for your using environment.This model has NO SPECIFIC PROTECTION.LevelDescriptionTop-level protectionHikvision products at this level are equipped for use in areas where professional anti-corrosion protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and more.Moderate protectionHikvision products at this level are equipped for use in areas with moderate anti-corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away from coastlines, as well as areas affected by acid rain.No specific protectionHikvision products at this level are equipped for use in areas where no specific anti-corrosion protection is needed.⏹Dimension⏹Available Model DS-2DE4415IW-DE(T5)⏹Accessory⏹IncludedDS-1618ZJ⏹OptionalDS-1602ZJ DS-1673ZJ DS-1671ZJ-SDM9 DS-1604ZJ-corner DS-1604ZJDS-1604ZJ-pole DS-1682ZJ DS-1604ZJ-BOX-CORNERDS-1681ZJ DS-1661ZJDS-1667ZJ DS-1005KI DS-1619ZJ DS-1660ZJ DS-1662ZJDS-1663ZJ DS-1604ZJ-BOX-POLEDS-1604ZJ-box DS-1100KI。

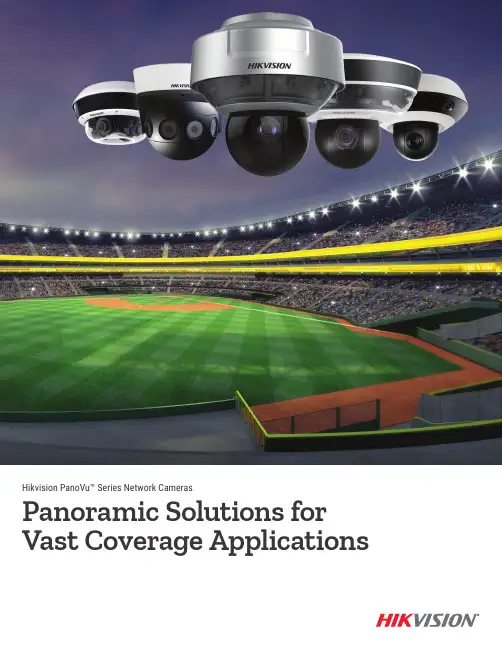

Panoramic Solutions for Vast Coverage Applications Hikvision PanoVu™ Series Network CamerasEffectively monitoring large areas such as public plazas, arenas, stadiums, parking lots, and busy traffic intersections poses various challenges. For large coverage areas, security personnel need to see more with just one camera — not just a panoramic image, but zoomed-in, detailed views as well.Traditionally, coverage for 360-degree panoramic video application required the installation of four cameras or a fisheye camera. Now, one Hikvision PanoVu flexible camera can replace four standard cameras. In addition, it provides ease of installation and costs savings using a single mounting with one Ethernet cable.PanoVu: One Camera forPanoramic Wide Area Coverage • Four camera setup• Complex installation & configuration • Single camera with four channels •Motorized zoom for details •Easy installation and configuration •Save on installation costs •All-in-one solution BEFORE WITH HIKVISION PANOVUWhile fisheye cameras can cover 360 degrees without dead zones, it is difficult to see details at their edge. Hikvision’s PanoVu panoramic solution provides users with a comprehensive 180- or 360-degree coverage, and forensic details.Hikvision designed the PanoVu 180-degree and the 360-degree Panoramic with PTZ Series all-in-onecameras to capture excellent panorama views and close-up details. Multiple sensors capture panoramicimages rendering 180-degree or 360-degree panoramic imaging with real-time ultra-HD resolution. Theintegrated design and high-speed pan-tilt-zoom action grants the user swift positioning over expansiveareas with the power to bring sharp details into focus. At the same time, the PanoVu series cameras utilizeHikvision’s ultra-low light DarkFighter technology, for color images in poorly lit environments.The PanoVu product family features high definition panoramic view cameras up to 32 MP . It also providessupplemental IR and panoramic lighting for clear images in extremely dark environments, and anamazing wide-tilt angle. In addition, because panoramic cameras demand more bandwidth and storagethan conventional cameras, Hikvision designed the PanoVu cameras to use H.265+ video compressiontechnology, for efficient video transmission and storage.The PanoVu Mini Series are compact size cameras with budget-friendly pricing, combined with ease ofinstallation and use. The Mini series includes market-proven features of other PanoVu lines, including highedge definition, low image distortion, and powerful PTZ functions. They are used in a wide range of indoorand outdoor applications.• Low resolution• Less detail in the edge• Can’t zoom in for details • Higher resolution • Detail in the edge • Image stitching76mm (3 inch)183mm(7.2 inch)243mm (9.5 inch)(10.6 inch)Indoor PanoVu miniOutdoor PanoVu miniNew PanoVu Additions:PanoVu Dual-Directional cameras are new to the Hikvision PanoVu productfamily. They feature two multi-megapixel cameras in a compact housingwith budget-friendly pricing. One Hikvision dual-directional camera canreplace two standard cameras. Applications include coverage of a hallwayor retail application, such as monitoring POS terminals, or use of one lens tomonitor the entrance and the other for the exit.Hikvision’s PanoVu panoramic multi-sensor cameras are easy to install, require a single installation using one Ethernet cable, and can provide coverage equal to four standard cameras.Cameras are available in several options, including 180-degree or 360-degree fields of view in 8 MP, or 32 MP resolution choices, and in flexible, mini, and dual-directional series.PanoVu FamilyPanoramic 180°/360°Image Stitched Flexible PanoVu MiniDual-Directional 161mm(6.5 inch)67mm(2.7 inch)Panoramic 180°/360° IR• Features four sensors running high frame rate• Full 180-degree view stitched together• Up to 32 MP resolution, popular uses are parking lots, entrances, or other “no dead zone” applications • 40x optical zoom PTZ for large PanoVuFlexible Series IR• Four individual sensors with a motorized 2.8 mm - 12 mm auto focus lens• Track design that allows four individual sensor gimbals to be independently placed• Popular uses include hallway intersections, providing a 270-degree view at abuilding corner, or any application that requires 360-degree coverage• Recess mount and smaller form factor are availablePanoVu Mini IR• Three sensors running high frame rate and one PTZ for detailed views • Compact sizes and budget-friendly pricing• Suitable for retail, office, and school applicationsDual-Directional Series IR• Dual-lens design to capture two separate wide angle views• Suitable for hallways, parking lots, and retail applicationsWith an all-in-one design, a single product enables front-end splicing, panoramic views, and precise details. Moreover, it delivers both panorama and every detail through full shot (180-degree or 360-degree) and close-up views (no additional server needed).Our easy-to-install dome camera saves time using one cable and a power supply. Characterized by flexibility and ease of operation, it provides a full range of options in the user interface such as ultra-high resolution panoramic views. It also captures the details dynamically in real-time and zoom in by simply clicking on an image.Innovative Technology,Simple Installation+==+===Combining several built-in horizontal cameras with PTZ, one PanoVu camera captures 360-degree or 180-degree panoramic views and detailed, high resolution close-up images with up to 36x optical zoom.Hikvision employs front-end image stitching technology in its unique, all-in-one PanoVu Series Cameras to deliver 180- and 360-degree panoramas without additional servers. The rendered panorama has no visible edges between the stitched images. Images maintain brightness and white balance, perfectly blended for a great user experience—so no graphical flaws hinder detailed imaging in the video.Certain Hikvision PanoVu camera models use DarkFighter ultra-low light technology to render color images in low light environments down to 0.005 lux, in 180- or 360-degree panoramic mode or PTZ.Supplemental lighting significantly enhances image quality in extremely dark environments. Traditional panoramic cameras have difficulty merging supplemental light with lens angle. Hikvision’s advanced PanoVu cameras overcome this challenge using wide-angle supplemental lighting to perfectly matching the lens angle and display vivid images.Panoramic Views and Detailed ImagesDarkFighter Ultra-Low Light Technology and Supplemental Lighting360 OVERVIEW + PTZPanoVu Series Cameras also feature Hikvision’s H.265+ video compression technology, reducing bandwidth and storage requirements by an average of 70 percent or more while maintaining consistent resolution, frame rates, and detail. It’s an efficient way to manage super high resolution video footage.With smart event and multi-target tracking algorithms, select PanoVu Cameras feature a wide range of smart functions in panoramic mode, including intrusion detection, line crossing detection, and region entrance and exit detection. Hikvision PanoVu cameras can send alarm signals linked to the PTZ for tracking, greatly improving security efficiency.Smart Codec – H.265+ Optimized CompressionSmart FeaturesWith intelligent and powerful features, the PanoVu Series Cameras can be used for vast coverage areas. The PanoVu Panoramic 180 or 360 series are ideal for monitoring large areas that typically would require multiple cameras such as airports, transit stations, gymnasiums, scenic ports, and public squares. Fixed lens cameras cover narrow fields of view with great details, but don’t take in the whole scene. Single-sensor fisheye cameras provide panoramic views at affordable prices, but are unable to get more detail at greater distances.Traditional multi-sensor panoramic cameras cover a wide field of view, but users need to manually arrange the images from different sensors in order to see a panorama. The overall user experience suffers from overlaps that duplicate images, gaps where coverage is missing, and tilted imaging that looks unrealistic to the human eye. Panoramic cameras with image stitching capability help to avoid dead zones and provide a panoramic full view of the scene. With the added PTZ, areas of interest can be focused and zoomed on to see important details.The PanoVu Flexible series cameras give you the ability to monitor from four independent views for up to 270-degrees of the scene. Without the need for multiple cameras, network connection requirements and installation costs are reduced. With zoom in capability and ability to monitor 270-degrees, this series is great for monitoring intersections, parking lots, lobbies, and building corners. ApplicationsCityGymAirport Squares Harbour Building Corner Intersection Parking LotLobbiesPanoVu Mini series feature a compact design that fits well in public areas and is cost-effective. This series works well for offices, classrooms, lobbies, and retail stores. The mini series provides a 270-degree view with fully adjustable settings to get just the view desired.The PanoVu Dual-Directional sensor series delivers two views from a single camera and fits perfectly for hallways, walkways, a wide range of businesses. It also supports monitoring of cashier stations for retailers of all sizes to monitor the POS terminal and the customer simultaneously.Retail StoresOfficesClassroomsCashier StationsHallway WalkwaySpecificationsPanoramic 180° SeriesDS-2CD6924F-IS8 MP (4×2 MP Stitched or Separate)Color: 0.007 @ ƒ/1.8B/W:0 with IRPanoramic 180°/360° with PTZ SeriesOutdoor 16MP 180° Panoramic withPTZ cameraPanoramic 180° SeriesDS-2PT5326IZ-DE DS-2PT3326IZ-DE38 MP (4×2 MP)8 MP (4×2 MP)Fixed Sensors: Color: 0.005 @ ƒ/1.6 PTZ: Color: 0.005 @ ƒ/1.6Fixed Sensors: Color: 0.05 @ ƒ/2.0 PTZ: Color: 0.05 @ ƒ/2.0Fixed: 4 mmPTZ: 5 to 50 mm (10x)PTZ: 2.8 to 12 mm (4x) 80.7°×3 / 43.5°128.5°×3 / 75.7°Flexible SeriesFlexible Series cont’dDS-2CD6D54G1-IZS DS-2CD6D54G1-ZS/RC16 MP (4×4 MP)16 MP (4×4 MP)Color: 0.0125 lux @ (F1.9, AGC ON); B/W: 0.0025 lux @ (F1.9, AGC ON) 0 lux with IR Color: 0.0125 lux @ (F1.9, AGC ON); B/W: 0.0025 lux @ (F1.9, AGC ON)Four 2.8 to 8 mm Four 2.8 to 8 mm49° to 100°, / 36.4° to 72°Dual-Directional SeriesHikvision USA Inc. 18639 Railroad Street City of Industry, CA 91748Hikvision Canada Inc.4848 Levy StreetSaint-Laurent, Quebec H4R 2P1Contact InformationToll-Free: +1 866-200-6690 (U.S. and Canada)Phone: +1 909-895-0400Email:***********************Connect with us:©2020 Hikvision USA Inc. and Hikvision Canada Inc. All rights reserved. Hikvision is a registered trademark of Hikvision Digital Technology Co., Ltd. in the US, Canada and other countries. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owners. Product specifications and availability are subject to change without Notice.Disclaimer: Hikvision USA Inc. products depicted herein are not FDA approved medical devices and are not intended for use in the diagnosis of disease or other conditions, or in the cure, mitigation, treatment, or prevention of disease. When configured correctly, the Hikvision products discussed herein can identify elevated human skin-surface temperature relative to a sample population. Hikvision’s Thermographic Cameras are designed for immediate detection and preliminary screening of elevated skin-surface temperature in high-traffic areas. When measuring core body temperature, please verify through the use of clinical measurement devices and/or by consulting a medical professional. Hikvision’s Thermographic Cameras must be used in accordance with local laws and regulations.100720HK。
海康威视方案摘要：海康威视（Hikvision）是全球领先的视频监控解决方案提供商之一。
他们提供的全面解决方案包括视频监控设备、视频管理软件和云平台。
本文将介绍海康威视的产品和解决方案，并探讨其在不同行业的应用。
引言：随着科技的不断发展，视频监控技术在各个领域中的应用越来越广泛。
无论是在公共安全领域、交通运输领域还是智能建筑领域，视频监控都发挥着重要的作用。
海康威视作为视频监控行业的领军企业，提供了全球领先的视频监控解决方案，为用户提供安全、智能的视频监控系统。
一、海康威视产品介绍1. 视频监控设备：海康威视提供了各类高品质的视频监控设备，包括网络摄像机、高清摄像机、红外摄像机等。
这些设备具有高分辨率、低噪声和良好的性能，在不同环境下都能够提供清晰的图像。
此外，海康威视的视频监控设备还具有很强的可靠性和稳定性，能够长时间工作而不出现故障。
2. 视频管理软件：海康威视的视频管理软件是用于管理和控制视频监控设备的工具。
该软件可以实时显示和录制监控画面，支持远程监控和远程访问，方便用户随时监控和管理监控系统。
此外，视频管理软件还具有智能分析功能，可以自动识别异常行为并提供报警信息。
3. 云平台：海康威视的云平台是一种基于云计算技术的视频监控解决方案。
用户可以通过云平台将多个视频监控设备连接起来，实现统一管理和控制。
同时，云平台还支持视频存储和远程访问，用户可以随时随地查看和管理监控画面。
二、海康威视解决方案1. 公共安全方案：海康威视为公共安全领域提供了一系列的解决方案。
例如，在城市安防方面，他们提供了车辆识别系统、人脸识别系统和视频监控系统，可以快速、准确地掌握城市交通和公共场所的动态信息。
此外，海康威视还为边境安全、机场安全和重大活动安保等方面提供了专业的解决方案。
2. 交通运输方案：在交通运输领域，海康威视的解决方案主要包括智能交通监控系统和智能停车管理系统。
智能交通监控系统可以实时监测交通状况和交通事件，提供实时的交通信息和智能交通控制。
HM-TD5537T-15/WThermographic Thermal & Optical Bi-spectrum Network MINI Positioning SystemHIKMICRO HM-TD5537T-15/W Thermographic Thermal & Optical Bi-spectrum Network MINI Positioning System equipped with built-in GPU which supports intelligent behavior analysis algorithm, can realize high-precision VCA detection and real-time alarm. It is applied to fire-prevention purposes in scenes such as transformer substation, recycling center, gas station, and factory. The pre-alarm system helps you discover unexpected events immediately and protects your property.Key Feature●Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance & exit●Temperature exception alarm for fire prevention●Fire detection algorithm●384 × 288 resolution 17 μm, VOx UFPA, NETD ≤ 35 mK (25°C, F# = 1.0)●Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR●High quality detector with 10 years guaranteeSpecificationThermal ModuleImage Sensor Vanadium Oxide Uncooled Focal Plane ArraysResolution 384 × 288Pixel Pitch 17 μmSpectral Range 8 μm to 14 μmNETD ≤ 35 mK (25°C, F# = 1.0)Focal Length 15 mmIFOV 1.13 mradAperture F1.0Field of View 24.55° × 18.54° (H × V)Min. Focusing Distance 0.5 mDigital Zoom × 2, × 4, × 8Optical ModuleImage Sensor 1/2.8" Progressive Scan CMOSResolution 2688 × 1520, 4 MPMin. Illumination Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON)Field of View 58.4° × 33.8° (H × V) to 2.14° × 1.2° (H × V)Focal Length 4.8 mm to 153 mm, 32 ×Aperture (Range) F1.2 to F4.4Focus Mode Semi-auto, manualDigital Zoom × 2, × 4, × 8, × 16Shutter Speed 1 s to 1/100,000 sWDR 120 dBOptical Defog YesImage EffectPicture in Picture Display partial image of thermal channel on the full screen of optical channel Target Coloration Yes. Supported in white hot and black hot mode.PTZMovement Range Pan: 360° Continuous Rotate; Tilt: From -90° to +90° (auto flip)Pan Speed Configurable, From 0.5°/s to 90°/sTilt Speed Configurable, From 0.5°/s to 40°/sProportional Zoom YesPresets 300Patrol Scan 8 patrols; Up to 32 presets per patrolPower Off Memory YesPark Preset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan PT Status Turn On/Turn OffScheduled Task Preset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux OutputIlluminatorIR Distance Up to 30 mIR Intensity and Angle Automatically adjustedSmart FunctionVCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), 10 scenes and 8 VCA rules for each scene.Temperature Measurement 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)Temperature Range -20°C to 550°C (-4°F to 1022°F) Temperature Accuracy Max. (± 2°C, ± 2%)Fire Detection Dynamic fire and smoke detection, up to 10 fire points and 10 smoke points detectable.Video and AudioMain Stream Optical channel50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720)Thermal channel50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 512, 384 × 288)Sub-stream Optical channel50 Hz: 25fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 576, 352 × 288) Thermal channel50 fps (704 × 576, 640 × 512, 384 × 288)Video Compression Main stream: H.265+/H.265/H.264+/ H.264 Sub-stream: H.265/H.264/MJPEGAudio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM NetworkProtocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoENetwork Storage MicroSD/SDHC/SDXC card (up to 128 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)API ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)Simultaneous Live View Up to 20 channelsUser/Host level Up to 32 users. 3 levels: administrator, operator, userSecurity User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filteringClient iVMS-4200, Hik-ConnectWeb Browser Live view (plug-in allowed): Internet Explorer 11 Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 + Local service: Chrome 57.0 +, Firefox 52.0 +InterfaceAlarm Input 2-ch inputs (0 to 5 VDC)Alarm Output 2-ch relay outputs, alarm response actions configurableAlarm Action Preset/patrol scan/SD card record/relay output/smart capture/FTP upload/email linkageAudio Input 1 Audio Output 1Communication Interface 1, RJ45 10 M/100 M self-adaptive Ethernet interface. 1, RS-485 interfaceGeneralMenu Language 32 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)Power Supply 24 VDC Power Consumption 20 WWorking Temperature/Humidity -40°C to 70°C (-40°F to 158°F) 90% or lessWiper YesProtection Level IP67 StandardTVS 6000V lightning protection, surge protection, voltage transient protectionDimensions 321 mm × 194 mm × 153 mm(12.64" × 7.64" × 6.02") Weight Approx. 4.8 kg (10.582 lb)DRI Range Table* The table is only for reference and the performance may vary according to different environment.* The optimal detection, recognition, and identification distances are calculated according to Johnson’s Criteria.Detection Range: In order to distinguish an object from the background, the object must be covered by 1.5 or more pixels. Recognition Range: In order to classify the object (animal, human, vehicle, etc.), the object must be covered by 6 or more pixels.Identification Range: In order to identify the object and describe it in details, the object must be covered by 12 or more pixels..Detection Range (Vehicles: 1.4 × 4.0 m) Detection Range (Humans: 1.8 × 0.5 m) Recognition Range (Vehicles: 1.4 × 4.0 m) Recognition Range (Humans: 1.8 × 0.5 m) Identification Range (Vehicles: 1.4 × 4.0 m) Identification Range (Humans: 1.8 × 0.5 m) 1353 m441 m338 m110 m169 m55 mSmart Function Table* The table is only for reference and the performance may vary according to different environment.VCA Range(Vehicles: 1.4 × 4.0 m) VCA Range (Humans: 1.8 × 0.5 m) Temperature Measurement (Object: 2 × 2 m) Temperature Measurement (Object: 1 × 1 m) Fire Detection (Object: 2 × 2 m) Fire Detection (Object: 1 × 1 m) 450 m150 m 353 m 176 m882 m441 mAvailable Model HM-TD5537T-15/WDimensionCOMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or regions, including without limitation, the United States, European Union, United Kingdom and/or other member countries of the Wassenaar Arrangement. Please consult your professional legal or compliance expert or local government authorities for any necessary export license requirements if you intend to transfer, export, re-export the thermal series products between different countries.。
