Extract from the onlinecatalogDFK-MSTBA 2,5/ 5-G-5,08Order No.: 1898868The figure shows a 10-position version of the producthttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1898868Header, nominal current: 12 A, rated voltage: 250 V, pitch: 5.08 mm, no. of positions: 5, mounting: Solderinghttp://Please note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads. Technical dataDimensions / positionsPitch 5.08 mmDimension a20.32 mmNumber of positions5Technical dataInsulating material group IIIaRated surge voltage (III/3) 4 kVRated surge voltage (III/2) 4 kVRated surge voltage (II/2) 4 kVRated voltage (III/2)320 VRated voltage (II/2)400 VConnection in acc. with standard EN-VDENominal current I N12 ANominal voltage U N250 VMaximum load current12 AInsulating material PBTInflammability class acc. to UL 94V0Certificates / ApprovalsApproval logoCULNominal voltage U N300 VNominal current I N10 AULNominal voltage U N300 VNominal current I N10 ACertification CB, CUL, GOST, UL, VDE-PZIAccessoriesItem Designation DescriptionAssembly0708263DFK-MSTB-SS Screw set, for securing the header to the housing wall, consists ofM 3 x 10 screw, spring washer and nut, 10 pieces each 1755477MSTB-BL Keying cap, for forming sections, plugs onto header pin, greeninsulating materialPlug/Adapter1734401CR-MSTB Coding section, inserted into the recess in the header or theinverted plug, red insulating materialAdditional productsItem Designation DescriptionGeneral1872729A-ICV 2,5/ 5-G-5,08Header, nominal current: 12 A, rated voltage: 250 V, pitch: 5.08mm, no. of positions: 5, mounting: Mounting rail1873087FKC 2,5/ 5-ST-5,08Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.08 mm, no. of positions: 5, type of connection: Spring-cage connection1902149FKCT 2,5/ 5-ST-5,08Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.08 mm, no. of positions: 5, type of connection: Spring-cage connection1873980FKCVR 2,5/ 5-ST-5,08Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.08 mm, no. of positions: 5, type of connection: Spring-cage connection1873689FKCVW 2,5/ 5-ST-5,08Plug component, nominal current: 12 A, rated voltage: 250 V,pitch: 5.08 mm, no. of positions: 5, type of connection: Spring-cage connection1777316FRONT-MSTB 2,5/ 5-ST-5,08Plug, nominal current: 12 A, rated voltage: 250 V, pitch: 5,08 mm,no. of positions: 5, type of connection: Screw connection 1786433IC 2,5/ 5-G-5,08Header, nominal current: 12 A, rated voltage: 320 V, pitch: 5.08mm, number of positions: 5, mounting type: soldering1785971ICV 2,5/ 5-G-5,08Header, nominal current: 12 A, rated voltage: 320 V, pitch: 5.08mm, number of positions: 5, mounting type: soldering1757048MSTB 2,5/ 5-ST-5,08Plug, nominal current: 12 A, rated voltage: 250 V, pitch: 5,08 mm,no. of positions: 5, type of connection: Screw connection 1776142MSTB 2,5/ 5-STZ-5,08Plug, nominal current: 12 A, rated voltage: 250 V, pitch: 5,08 mm,no. of positions: 5, type of connection: Screw connection 1808845MSTBC 2,5/ 5-ST-5,08Plug component, nominal current: 12 A, rated voltage: 320 V,pitch: 5.08 mm, no. of positions: 5, type of connection: Crimpconnection1809530MSTBC 2,5/ 5-STZ-5,08Plug component, nominal current: 12 A, rated voltage: 320 V,pitch: 5.08 mm, no. of positions: 5, type of connection: Crimpconnection1769049MSTBP 2,5/ 5-ST-5,08Plug, nominal current: 12 A, rated voltage: 250 V, pitch: 5,08 mm,no. of positions: 5, type of connection: Screw connection 1781014MSTBT 2,5/ 5-ST-5,08Plug, nominal current: 12 A, rated voltage: 250 V, pitch: 5,08 mm,no. of positions: 5, type of connection: Screw connection 1792278MVSTBR 2,5/ 5-ST-5,08Plug, nominal current: 12 A, rated voltage: 250 V, pitch: 5,08 mm,no. of positions: 5, type of connection: Screw connection1792786MVSTBW 2,5/ 5-ST-5,08Plug, nominal current: 12 A, rated voltage: 250 V, pitch: 5,08 mm,no. of positions: 5, type of connection: Screw connection 1917930QC 0,75/ 5-ST-5,08Plug component, 5.08 mm pitch, color: green, no. of positions 5,dimension a 20.32 mm1883284QC 1/ 5-ST-5,08Plug, nominal current: 10 A, rated voltage: 500 V, pitch: 5.08mm, number of positions: 5, connection method: Insulationdisplacement connection QUICKON1826319SMSTB 2,5/ 5-ST-5,08Plug, nominal current: 12 A, rated voltage: 250 V, pitch: 5,08 mm,no. of positions: 5, type of connection: Screw connection 1853049TMSTBP 2,5/ 5-ST-5,08Plug with screw flange, nominal current: 12 A, rated voltage: 250V, pitch: 5,08 mm, no. of positions: 5, type of connection: ScrewconnectionDrawingsDimensioned drawingAddressPHOENIX CONTACT GmbH & Co. KGFlachsmarktstr. 832825 Blomberg,GermanyPhone +49 5235 3 00Fax +49 5235 3 41200http://www.phoenixcontact.de© 2008 Phoenix ContactTechnical modifications reserved;。

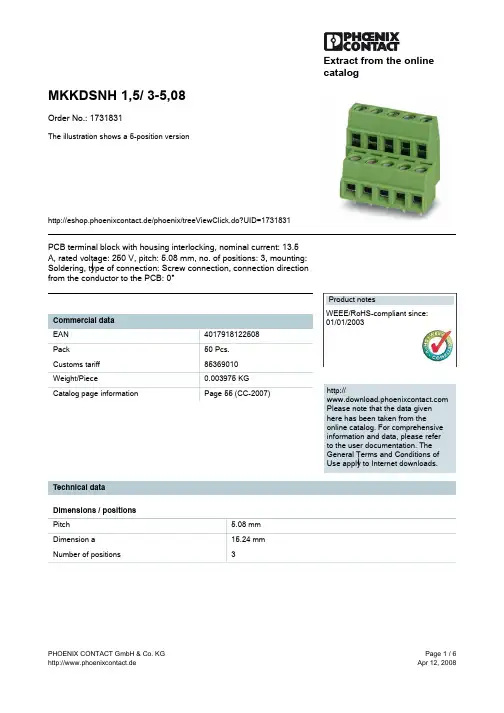

Extract from the onlinecatalogMKKDSNH 1,5/ 3-5,08Order No.: 1731831The illustration shows a 5-position versionhttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1731831PCB terminal block with housing interlocking, nominal current: 13.5 A, rated voltage: 250 V, pitch: 5.08 mm, no. of positions: 3, mounting: Soldering, type of connection: Screw connection, connection direction from the conductor to the PCB: 0°http://Please note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads. Technical dataDimensions / positionsPitch 5.08 mmDimension a15.24 mmNumber of positions3Pin dimensions0,5 x 1 mm Hole diameter 1.3 mm Screw thread M 3 Tightening torque, min0.5 NmTechnical dataInsulating material group IRated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/2)400 V Rated voltage (II/2)630 V Connection in acc. with standard EN-VDE Nominal current I N13.5 A Nominal voltage U N250 V Nominal cross section 1.5 mm2 Maximum load current13.5 A Insulating material PA Inflammability class acc. to UL 94V0 Internal cylindrical gage A1 Stripping length 6 mmConnection dataConductor cross section solid min.0.14 mm2 Conductor cross section solid max. 1.5 mm2 Conductor cross section stranded min.0.14 mm2 Conductor cross section stranded max. 1.5 mm2 Conductor cross section stranded, with ferrule0.25 mm2 without plastic sleeve min.Conductor cross section stranded, with ferrule1.5 mm2 without plastic sleeve max.Conductor cross section stranded, with ferrule0.25 mm2 with plastic sleeve min.Conductor cross section stranded, with ferrule1.5 mm2 with plastic sleeve max.Conductor cross section AWG/kcmil min.26 Conductor cross section AWG/kcmil max162 conductors with same cross section, solid min.0.14 mm22 conductors with same cross section, solid max.0.75 mm22 conductors with same cross section, stranded0.14 mm2min.2 conductors with same cross section, stranded0.75 mm2max.2 conductors with same cross section, stranded,0.25 mm2ferrules without plastic sleeve, min.2 conductors with same cross section, stranded,0.5 mm2ferrules without plastic sleeve, max.2 conductors with same cross section, stranded,0.5 mm2TWIN ferrules with plastic sleeve, min.2 conductors with same cross section, stranded,1 mm2 1st levelTWIN ferrules with plastic sleeve, max.Certificates / ApprovalsCULNominal voltage U N300 VNominal current I N10 AAWG/kcmil30-14ULNominal voltage U N300 VNominal current I N10 AAWG/kcmil30-14Certification CUL, GOST, ULAccessoriesItem Designation DescriptionBridges1733172EBP 3- 5Insertion bridge, fully insulated, for plug connectors with 5.0 or5.08 mm pitch, no. of positions: 3General1733169EBP 2- 5Insertion bridge, fully insulated, for plug connectors with 5.0 or5.08 mm pitch, no. of positions: 2Marking1051993B-STIFT Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm0804293SK 5,08/3,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 12 identicaldecades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for120 terminal blocks0805085SK 5,08/3,8:SO Marker card, special printing, self-adhesive, labeled acc. tocustomer requirements, 12 identical marker strips per card, max.25-position labeling per strip, color: white0805412SK 5,08/3,8:UNBEDRUCKT Marker cards, unprinted, with pitch divisions, self-adhesive, 10-section marker strips, 12 strips per card, can be labeled with theM-PENTools1205053SZS 0,6X3,5Screwdriver, bladed, matches all screw terminal blocks up to 4.0mm² connection cross section, blade: 0.6 x 3.5 mm, without VDEapprovalDrawingsDrilling diagramDimensioned drawingAddressPHOENIX CONTACT GmbH & Co. KGFlachsmarktstr. 832825 Blomberg,GermanyPhone +49 5235 3 00Fax +49 5235 3 41200http://www.phoenixcontact.de© 2008 Phoenix ContactTechnical modifications reserved;。

Extract from the onlinecatalogCCVA 2,5/12-G-5,08 RNP26THROrder No.: 1956182The figure shows a 10-position version of the producthttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1956182Headers, with engagement nose, pin length: 2.6 mm, 5.08 mm pitch, 12-pos.http://Please note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads. Technical dataDimensions / positionsPitch 5.08 mmDimension a55.88 mmNumber of positions12Pin dimensions 1 x 1 mmPin spacing 5.08 mmHole diameter 1.6 mmTechnical dataInsulating material group IIIaRated surge voltage (III/3) 4 kVRated surge voltage (III/2) 4 kVRated surge voltage (II/2) 4 kVRated voltage (III/2)320 VRated voltage (II/2)400 VConnection in acc. with standard EN-VDENominal current I N12 ANominal voltage U N250 VMaximum load current12 A (per position)Insulating material LCPInflammability class acc. to UL 94V0Certificates / ApprovalsApproval logoCULNominal voltage U N300 VNominal current I N10 AULNominal voltage U N300 VNominal current I N10 ACertification CUL, ULAccessoriesItem Designation DescriptionGeneral1954362CR-MSTB NAT HT HT coding section, is pushed into the recess on the header beforethe reflow process, made of highly temperature-resistant, beigeinsulating materialMarking1051993B-STIFT Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm0804293SK 5,08/3,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 12 identicaldecades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for120 terminal blocks0805085SK 5,08/3,8:SO Marker card, special printing, self-adhesive, labeled acc. tocustomer requirements, 12 identical marker strips per card, max.25-position labeling per strip, color: white0805412SK 5,08/3,8:UNBEDRUCKT Marker cards, unprinted, with pitch divisions, self-adhesive, 10-section marker strips, 12 strips per card, can be labeled with theM-PENPlug/Adapter1734401CR-MSTB Coding section, inserted into the recess in the header or theinverted plug, red insulating materialDrawingsApplication drawingDrilling diagramDimensioned drawingBottom view, free space for solder paste, 0.55mm deepAddressPHOENIX CONTACT GmbH & Co. KGFlachsmarktstr. 832825 Blomberg,GermanyPhone +49 5235 3 00Fax +49 5235 3 41200http://www.phoenixcontact.de© 2008 Phoenix ContactTechnical modifications reserved;。

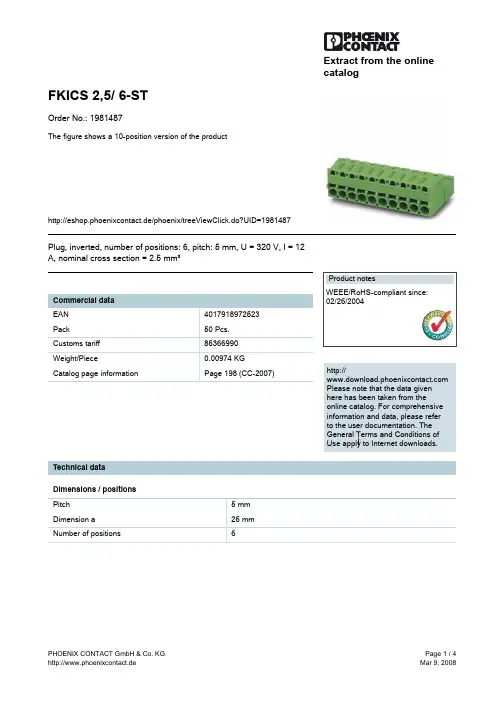

Extract from the onlinecatalogFKICS 2,5/ 6-STOrder No.: 1981487The figure shows a 10-position version of the producthttp://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1981487Plug, inverted, number of positions: 6, pitch: 5 mm, U = 320 V, I = 12 A, nominal cross section = 2.5 mm²http://Please note that the data givenhere has been taken from theonline catalog. For comprehensiveinformation and data, please referto the user documentation. TheGeneral Terms and Conditions ofUse apply to Internet downloads. Technical dataDimensions / positionsPitch 5 mmDimension a25 mmNumber of positions6Technical dataInsulating material group IRated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/2)320 V Rated voltage (II/2)630 V Connection in acc. with standard EN-VDE Nominal current I N12 A Nominal voltage U N320 V Nominal cross section 2.5 mm2 Maximum load current12 A Insulating material PA Inflammability class acc. to UL 94V0 Internal cylindrical gage A2 Stripping length10 mmConnection dataConductor cross section solid min.0.2 mm2 Conductor cross section solid max. 2.5 mm2 Conductor cross section stranded min.0.2 mm2 Conductor cross section stranded max. 2.5 mm2 Conductor cross section stranded, with ferrule0.25 mm2 with plastic sleeve min.Conductor cross section stranded, with ferrule1.5 mm2 with plastic sleeve max.Conductor cross section AWG/kcmil min.24 Conductor cross section AWG/kcmil max162 conductors with same cross section, stranded,0.5 mm2 TWIN ferrules with plastic sleeve, min.2 conductors with same cross section, stranded,1 mm2 TWIN ferrules with plastic sleeve, max.Certificates / ApprovalsApproval logoCULNominal voltage U N300 VNominal current I N10 AAWG/kcmil26-12ULNominal voltage U N300 VNominal current I N10 AAWG/kcmil26-12Certification CB, CUL, UL, VDE-PZI DrawingsDimensioned drawingAddressPHOENIX CONTACT GmbH & Co. KGFlachsmarktstr. 832825 Blomberg,GermanyPhone +49 5235 3 00Fax +49 5235 3 41200http://www.phoenixcontact.de© 2008 Phoenix ContactTechnical modifications reserved;。
