纹波电流抑制控制器LIS8110 特性∙专利的电流环路控制技术∙平均电流自适应追踪功能∙工频纹波电流消除功能∙输出开路，短路保护功能∙过温保护功能∙芯片前沿导通消隐功能（LEB） ∙芯片超低工作电流（110uA） ∙芯片宽输入电压范围∙芯片供电欠压和钳位保护功能 ∙芯片逐周期峰值电流保护功能 ∙内置200V MOS∙SOP-7封装概述LIS8110是一款工频纹波电流消除芯片，应用于驱动LED灯串，消除前级驱动器产生的工频纹波电流，实现无频闪高功率因数LED恒流方案。

LIS8110采用专利的控制技术，能够自动适应不同的LED输出电压和电流，消除LED电流纹波的同时，可以确保较低的损耗。

LIS8110内部集成200V 0.5Ω的MOS管，即使SOP-7封装，仍可实现600MA以下的输出电流，在消除工频纹波的同时，大大降低了系统成本。

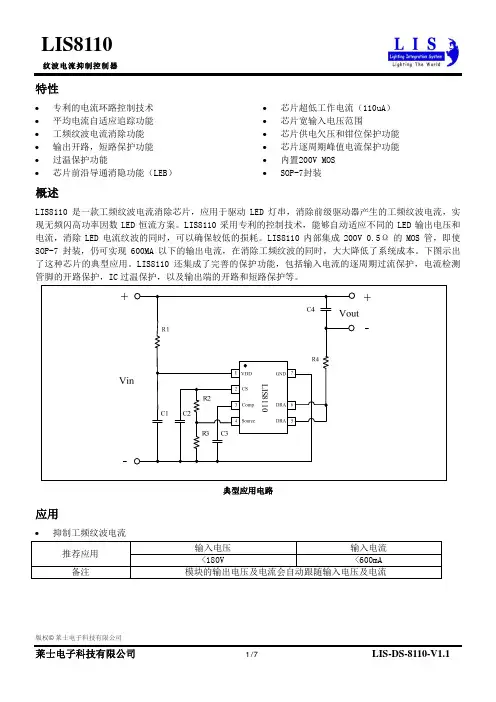

下图示出了这种芯片的典型应用。

LIS8110还集成了完善的保护功能，包括输入电流的逐周期过流保护，电流检测管脚的开路保护，IC过温保护，以及输出端的开路和短路保护等。

典型应用电路应用∙抑制工频纹波电流推荐应用 输入电压 输入电流 <180V <600mA备注 模块的输出电压及电流会自动跟随输入电压及电流功能框图引脚俯视图 (SOP-7)X引脚功能描述引脚顺序 引脚名 输入/输出 功能1 VDD 输入\输出 芯片供电2 CS 输入 电流检测3 Comp 输入\输出 系统补偿4 Source 输入\输出 内部MOS源极5 DRA 输入\输出内部MOS漏极6 DRA 输入\输出内部MOS漏极7 GND 输入\输出 芯片地极限工作范围电源电压 (引脚1)------------------------------------------------------------------------------------------ -0.3V~35V 最大结温（T JMAX）--------------------------------------------------------------------------------------- 150 o C工作环境温度（T a）-------------------------------------------------------------------------------------- -40 o C~85 o C 存储温度范围（TSTO）--------------------------------------------------------------------------------- -55 o C~150 o C 引线温度（无铅封装，焊接，10秒）---------------------------------------------------------------- 260 o CCS引脚电压范围------------------------------------------------------------------------------------------ -0.3V~7V Drain引脚电压范围--------------------------------------------------------------------------------------- -0.3V~200V标识和订购信息订购序号 封装类型 封装编带LIS8110-SP-G-TL SOP-7 Tape and Reel 2500电气参数（TA=25℃， unless otherwise stated， VDD=16V）符号 参数 测试条件 Min. Typ. Max. Unit供电I START启动电流 VDD=14V - - 50 AI OP工作电流 内部驱动浮空 - 110 150 uA UVLO(ON) 进入VDD欠压保护的阈值 从高往低扫描VDD电压 8.0 8.8 9.6 V UVLO(OFF) 退出VDD欠压保护的阈值 从低往高扫描VDD电压 14.8 15.6 16.4 V VDD_clamp VDD 钳位电压 I CC=3.5mA 23 V OVP VDD过压保护阈值 从低往高扫描VDD电压 26 28 30 V 时钟和频率FCLK 内部时钟频率 1.85 2 2.15 MHz Ƒwork最大工作频率 28 33 38 KHz Δf频率抖动范围 - ±6 - % 采样和时序t LEB导通前沿消隐时间 - 450 - nS Vth CS脚电压阈值 110 120 130 mV Vth_pro CS脚电压保护阈值 160 mV Ton_min 最小导通时间 500 nS Ton_max 最大导通时间 30 uS t SS软启动时间 - 2 - mS 保护OTP 过温保护 - 150 - o COOP 输出开路保护延迟时间 50 uSOSP 输出短路保护延迟时间 5 mS内部MOSBV DSS漏极-源极击穿电压 I D=250uA,Vgs=0V 200 V I DSS漏极-源极漏电流 V DS=600V,Vgs=0V 1 uA R DS(ON)漏极-源极静态导通阻抗 I D=1.0A, Vgs=10V 0.5 ΩTr 上升时间 10 nS Tf 下降时间 20 nS功能描述启动和供电LIS8110是通过供电电阻从线电压直接启动。
