显微镜简易使用手册——【蔡司精品】

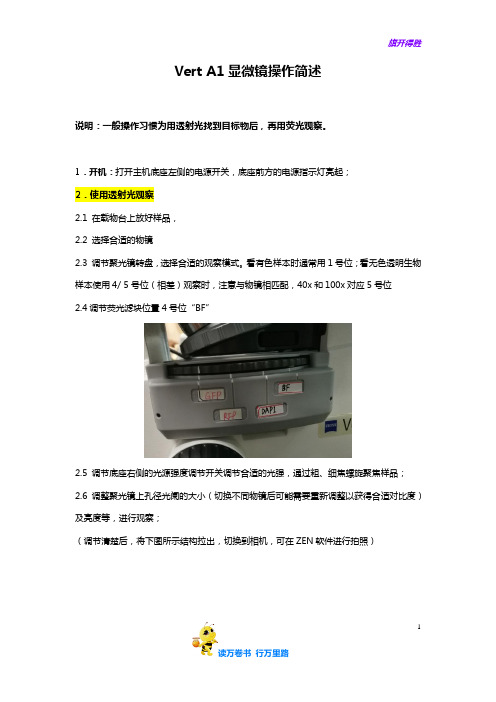

Vert A1显微镜操作简述说明：一般操作习惯为用透射光找到目标物后，再用荧光观察。

1．开机：打开主机底座左侧的电源开关，底座前方的电源指示灯亮起；2．使用透射光观察2.1 在载物台上放好样品，2.2 选择合适的物镜2.3 调节聚光镜转盘，选择合适的观察模式。

看有色样本时通常用1号位；看无色透明生物样本使用4/ 5号位（相差）观察时，注意与物镜相匹配，40x和100x对应5号位2.4调节荧光滤块位置4号位“BF”2.5 调节底座右侧的光源强度调节开关调节合适的光强，通过粗、细焦螺旋聚焦样品；2.6 调整聚光镜上孔径光阑的大小（切换不同物镜后可能需要重新调整以获得合适对比度）及亮度等，进行观察；（调节清楚后，将下图所示结构拉出，切换到相机，可在ZEN软件进行拍照）113.使用反射光：X-cite 荧光光源3.1 打开X-cite 灯箱电源开关（若确定使用荧光观察，开启显微镜时即可打开）， 3.2 将聚光镜上方的插板推至金属挡片位置，防止LED 灯对荧光信号产生干扰；3.3 选择合适的荧光滤片组，调节X-cite 灯箱上转轮选择合适的亮度档位等，进行观察；4. 使用完毕后，将物镜清洁，降至最低位置；5. 关闭X-cite 灯箱上的电源上开关，盖上防尘罩。

注：1、为延长X-cite 灯泡寿命，关闭和打开之间请保证间隔在30min 以上；2、短时间内不使用X-cit 荧光光源时，可将X-cite 灯箱上的亮度旋钮调至0档位（注意最后不用时要关掉电源）。

常用部件简介：透射光部分：光源：3——LED灯4——两孔的滤光片插板，一般安装：A：金属挡片，当使用荧光观察时，使用此挡片遮挡上方的LED灯，来防止LED灯受荧光激发后产生干扰荧光。

在使用透射光时需要移开。

B：色温片，使用LED透射光时，用来改变LED光源的色温，使其更接近日光。

聚光镜：1——孔径光阑，用于调节样本图像的对比度（非亮度，亮度调节请使用底座上的光强调节旋钮）；2——调节转盘，更换聚光镜内光阑的档位，如使用相差观察方式时，需要使用与物镜一致的档位（相差环）。

蔡司显微镜操作步骤1．检查电源线和灯箱接头是否接好,确保各个部件都正常插入光路中。

2．打开机体电源，调节光的亮度至适中。

3．把载物台降到最低，放入样品。

4．首先用低倍物镜观察样品。

先用粗调旋钮升高载物台，等到样品快清晰时改用微调旋钮把样品调清晰，然后再逐步切换到高倍，微调一下，使图像清晰。

5. 打开AxioVision SE64 Rel. 4.9软件，点击“预览”调出图像，微调旋钮把样品调清晰后点击“拍摄”。

6. 点击“控制区域”的比例尺选项，选定放大倍数，之后点击“标尺”进行标尺的添加。

7. 图像保存与拷贝。

8. 关机。

蔡司显微镜注意事项1．只有经过培训且能够独立熟练操作的人员方可使用，避免损坏机器。

2．调焦时注意不要使物镜碰到试样，以免划伤物镜。

3．在载物台垫片圆孔中心的位置远离物镜中心位置时不要切换物镜，以免划伤物镜。

4．亮度调整切忌忽大忽小，也不要过亮，影响灯泡的使用寿命，同时也伤害视力。

5.所有（功能）切换，动作要轻，要到位。

6. 转换倍数时，不要直接拨动物镜；而是拨动转盘；调节焦距，从低倍到高倍找焦平面，禁止直接用高倍找焦平面；高倍观察一定采用微调；7. 载物台支架旋钮、摄像头、加密狗和双滤光轮滑齿不要动。

8. 禁止使用USB、移动硬盘等可移动存储；9. 所有部件禁止用酒精擦拭；10.禁止带腐蚀液进入实验室。

11.关机时要将亮度调到最小。

12.关机不使用时，将物镜通过调焦机构调整到最低状态。

13.关机不使用时，不要立即该盖防尘罩，待冷却后再盖，注意防火。

德国蔡司显微镜（VARIO700）一操作流程
1放松底座的刹车装置，收拢各节横臂，旋紧制动手轮，推至手术床边。

2将制动手轮放松，根据手术部位安放显微镜，满意后立刻将底座的刹车刹牢，并将各制动手轮重新旋紧。

3插上电源插座，摆放好足控踏板，开启电源开关。

4按动自平衡按钮机器进行自平衡调节
5开始设置：设置显微镜到最小放大倍数。

5.1将显微镜移动到工作位置并根据物镜的焦距长度选择工作距离。

6调节瞳距：使用旋钮，根据您的瞳距调节目镜之间的距离，以保证两个目镜中的图像重合到一起。

7调节目镜：调节屈光度设置环到刻度0。

7.1如戴眼镜的操作者佩戴眼镜拟实施手术，请将屈光度设置环调节刻度到+5开始调节。

7.2戴眼镜者观察时，不需要旋出眼杯。

8根据机体说明书：自动调节显微镜白平衡。

9手术结束，应将亮度调至最小时才关闭电源开关，拔除电源线。

蔡司显微镜的使用流程1. 准备工作•确保蔡司显微镜的电源线已经插入电源插座，并将显微镜的电源打开。

•检查显微镜的镜头是否清洁，并使用布擦拭。

•检查显微镜的目镜和物镜是否正确安装。

2. 样品准备•将需要观察的样品放在显微镜的载物台上。

•确保样品平整，并没有移动或者摇晃。

3. 调整光源•通过显微镜的光源控制按钮，调整光源的亮度，使得样品中的细节能够清晰可见。

•根据需要，可以通过光源控制按钮调整光源的颜色。

4. 调整倍率•通过旋转物镜转盘，选择合适的倍率。

一般来说，较低的倍率可以提供较宽的视野，较高的倍率则可以提供更高的放大倍数。

•注意，在更换物镜时，需要用载物台上的样品进行对焦，以保证观察时的清晰度。

5. 对焦•使用调节轮实施初步对焦，获得大致的清晰图像。

•进一步调节调节轮，进行精细对焦，以便获得最清晰的图像。

•如果需要改变焦点深度，可以通过显微镜上的聚焦控制器进行调节。

6. 观察和记录•使用目镜调整显微镜，使自己的双眼能够同时观察到样品。

•用眼睛凝视样品，尽量维持稳定的观察角度，避免眼睛疲劳。

•如果需要，可以使用显微镜上的调节装置，将目镜与眼睛的距离调整到最舒适的位置。

•在观察过程中，可以通过显微镜上的调节轮来调整焦点。

•如果需要，可以使用显微镜上的标尺或刻度来测量样品的长度、面积等。

7. 关闭显微镜•观察结束后，将倍率调节到最低档位，并关闭光源。

•将样品从载物台上取下，清洁显微镜的各个部分。

•关闭显微镜的电源。

结论以上就是使用蔡司显微镜的基本流程。

在使用显微镜时，需要注意保持样品的干净和稳定，并留意调节光源和倍率的合适性，以获得更好的观察效果。

同时，在使用显微镜时，也要注意保护眼睛，避免长时间用眼造成的疲劳。
