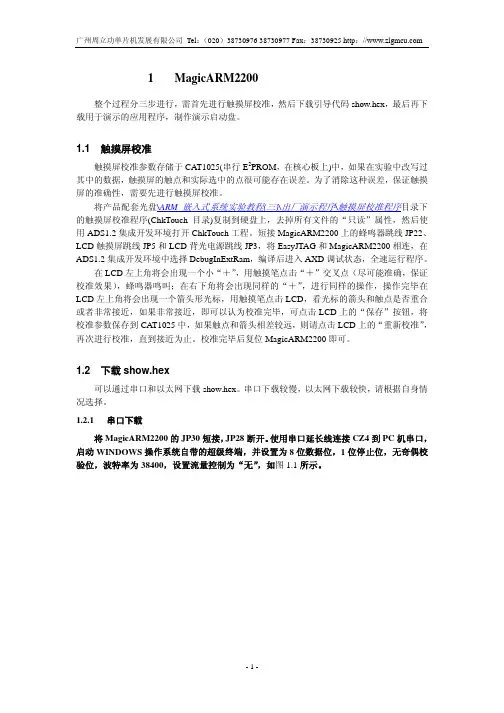

第1章 MagicARM2200出厂演示程序的烧写整个过程分三步进行，需首先进行触摸屏校准，然后下载引导代码show.hex，最后再下载用于演示的应用程序，制作演示启动盘。

1.1 触摸屏校准触摸屏校准参数存储于CAT1025(串行E2PROM，在核心板上)中，如果在实验中改写过其中的数据，触摸屏的触点和实际选中的点很可能存在误差。

为了消除这种误差，保证触摸屏的准确性，需要先进行触摸屏校准。

将产品配套光盘\ARM嵌入式系统实验教程(三)\出厂演示程序\触摸屏校准程序目录下的触摸屏校准程序(ChkTouch目录)复制到硬盘上，去掉所有文件的“只读”属性，然后使用ADS1.2集成开发环境打开ChkTouch工程。

短接MagicARM2200上的蜂鸣器跳线JP22、LCD触摸屏跳线JP5和LCD背光电源跳线JP3，将EasyJTAG和MagicARM2200相连，在ADS1.2集成开发环境中选择DebugInExtRam，编译后进入AXD调试状态，全速运行程序。

在LCD左上角将会出现一个小“＋”，用触摸笔点击“＋”交叉点（尽可能准确，保证校准效果），蜂鸣器鸣叫；在右下角将会出现同样的“＋”，进行同样的操作，操作完毕在LCD左上角将会出现一个箭头形光标，用触摸笔点击LCD，看光标的箭头和触点是否重合或者非常接近，如果非常接近，即可以认为校准完毕，可点击LCD上的“保存”按钮，将校准参数保存到CAT1025中，如果触点和箭头相差较远，则请点击LCD上的“重新校准”，再次进行校准，直到接近为止。

校准完毕后复位MagicARM2200即可。

1.2 下载show.hex可以通过串口和以太网下载show.hex。

串口下载较慢，以太网下载较快，请根据自身情况选择。

1.2.1 串口下载将MagicARM2200的JP30短接，JP28断开。

使用串口延长线连接CZ4到PC机串口，启动WINDOWS操作系统自带的超级终端，并设置为8位数据位，1位停止位，无奇偶校验位，波特率为38400，设置流量控制为“无”，如图1.1所示。
