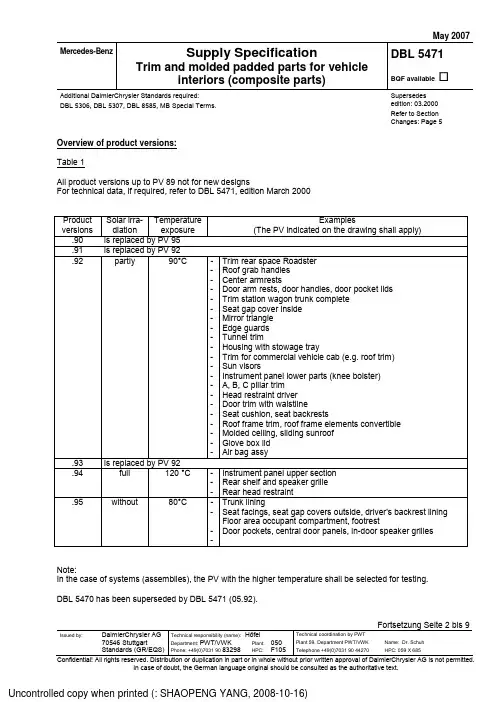

May 2007Mercedes-Benz Supply SpecificationTrim and molded padded parts for vehicleinteriors (composite parts) DBL 5471 BQF availableAdditional DaimlerChrysler Standards required:DBL 5306, DBL 5307, DBL 8585, MB Special Terms .Supersedes edition: 03.2000 Refer to Section Changes: Page 5Fortsetzung Seite 2 bis 9Issued by: DaimlerChrysler AG70546 Stuttgart Standards (GR/EQS) Technical responsibility (name): HöfelDepartment: PWT/VWK Plant: 050 Phone: +49(0)7031 90 83298 HPC: F105 Technical coordination by PWT Plant 59, Department PWT/VWK Name: Dr. Schuh Telephone +49(0)7031 90 44270HPC: 059 X 685 Confidential! All rights reserved. Distribution or duplication in part or in whole without prior written approval of DaimlerChrysler AG is not permitted.In case of doubt, the German language original should be consulted as the authoritative text.Overview of product versions:Table 1All product versions up to PV 89 not for new designsFor technical data, if required, refer to DBL 5471, edition March 2000Product versions Solar irra-diation Temperature exposureExamples(The PV indicated on the drawing shall apply) .90 is replaced by PV 95.91 is replaced by PV 92.92 partly 90°C -- - - - - - - - - - - - - - - - - - - - Trim rear space Roadster Roof grab handlesCenter armrestsDoor arm rests, door handles, door pocket lidsTrim station wagon trunk completeSeat gap cover insideMirror triangleEdge guardsTunnel trimHousing with stowage trayTrim for commercial vehicle cab (e.g. roof trim)Sun visorsInstrument panel lower parts (knee bolster)A, B, C pillar trimHead restraint driverDoor trim with waistlineSeat cushion, seat backrestsRoof frame trim, roof frame elements convertibleMolded ceiling, sliding sunroofGlove box lidAir bag assy.93 is replaced by PV 92.94 full 120 °C -- - Instrument panel upper section Rear shelf and speaker grilleRear head restraint.95 without 80°C -- - -Trunk lining Seat facings, seat gap covers outside, driver's backrest liningFloor area occupant compartment, footrestDoor pockets, central door panels, in-door speaker grillesNote:In the case of systems (assemblies), the PV with the higher temperature shall be selected for testing.DBL 5470 has been superseded by DBL 5471 (05.92).Page 2DBL 5471 : May 2007Abbreviated designation : e.g. Composite material DBL 5471.901. APPLICATIONSThis Specification is intended to facilitate the accelerated aging of assembly components by means of different storage parameters. It specifically applies to the assessment of surface materials of trim and molded padding used in vehicle interiors incl. the luggage compartment. Non-laminated plastic compo-nents shall be aged in accordance with DBL 5471 and assessed visually. In addition, DBL 5404 shall be observed for these components. Painted plastic parts shall be assessed according to DBL 7384.2. MATERIALSThe technical values of all starting materials shall correspond to the individual material DBLs, require-ments specifications and drawings.3. PROPERTIES3.1General requirements- - In line with the specifications of the Quality Management unit of the receiving plant, the components shall be free of manufacturing defects of any kind which would impair the processing and utilization properties or the appearance (e.g. free from release agents). Cleaning agents used during the manufac-turing process shall not cause any material/surface damage.Trim:The bond between the surface material and the substrate shall extend across the whole surface and shall be uniform, sufficiently strong and resistant to aging. The surface material shall be turned over and glued at the outside edges with sufficient strength and without disturbing overlaps. The pull-off force of any glued-on, riveted or integrated attachment or assembly parts (holders, clips or similar) shall corre-spond to the values indicated on the drawing, and the values shall be indicated in the ISIR.- Moldedpaddedparts:These shall be molded with correct dimensions in accordance with the drawing or the functional specifi-cations and demonstrate the specified hardness (indentation depth). The foam expansion shall be even and without noticeable pockets. The foam shall have completed all reactions after a storage time of the molded padded part of 24 hours at room temperature, i.e. it shall not be tacky nor brittle. The bond be-tween cover material and foam as well as between foam and substrates shall be firm enough to ensure that no separation can occur during assembly or use (e.g. as a result of release agent residues). This requires appropriate conditioning of the surface of the materials. The surfaces of the molded padded parts shall correspond to the specified design pattern.- The availability of a certificate of testing in accordance with the following method is specified as an over-riding requirement for adherence to the emission values for interior trim materials: VDA 278; threshold values DBL 8585.The user is responsible for checking whether the version in his possession is the latest version. Forinquires on threshold values, please apply to VDA278.DC-Info@.In particular in the case of substances listed in DBL 8585 Section 2.3, the supplier is required to con-tinuously minimize the concentration and emission at least in accordance with the state of the art, even when values have fallen below the required DBL threshold values.-In installed condition, the materials used shall comply with the following requirements when tested in accordance with the test instruction: "Formteile für den Fahrzeuginnenraum - Bestimmung der Abgabe von Formaldehyd, Ammoniak und Phenolen - Messverfahren in der 1 m³- Kammer“ (draft October 1994, issued by Arbeitskreis "Kfz.-Formteile - einfache Prüfmethoden“ under the leadership of FhG-WKI, Bien-roder Weg 54 E, D-38108 Braunschweig):- Formaldehyde emission: initial value max. 0,2 ppm, in equilibrium max. 0,05 ppm- Phenol emission: max. 0,04 ppm- Ammonia emission: minimalPage 3DBL 5471 : May 2007 Measurements shall be carried out on finished parts under the following testing conditions:- Temperature 65 °C- Relative humidity 11 %- Cabinet load 2 m² per m3- Change of air 0,5 h-1The consistency of production with regard to formaldehyde release shall be tested by means of a simple method and documented, e.g. bottle method (determination of formaldehyde release of molded parts by the bottle method, VDA recommendation 275- DKF, Ulrichstr. 14, D-74321 Bietigheim) or gas analysis method DIN-EN 717-2 (was: DIN 52 368 - Beuth Verlag GmbH, D-10772 Berlin). It is a condition, how-ever, that this value is determined already for the initial sample. For this reason, it shall also be indi-cated on the acceptance test certificate.3.2 Shape, dimensions, cut-outs and markingsIn accordance with drawing and/or template.3.3 ColorIn accordance with order, approval, reference sample and other specifications (DE/QM).3.4 GrainIn accordance with order MBN 31 0304.TECHNICAL DATARefer to Table 2, pages 6 to 9.METHODS5. TESTDIN/EN/ISO (refer to Table 2) or DBL 5306, Part II and DBL 5307.5.1 Separating force for laminated parts (cover material/substrate)The test shall be carried out in analogy with the separation test in accordance with DIN 53 357 immedi-ately after the specified storage periods. Test specimens shall be taken in longitudinal, transverse and diagonal directions and shall provide a representative cross-section of the complete part and shall bedocumented in the ISIR.The test specimens shall be prepared by sawing out pieces approx. 70 mm wide and approx. 200 mm long. For testing the separating force, cut the surface material through to the substrate 50 ± 1 mm wide with a knife in the longer direction of the test specimen.5.2 Foam adhesion for molded paddings (excerpt from DBL 5306.16)Strips 50 mm wide shall be cut into the narrow side of the molded padding, and the surface material(e.g. deep drawn films, molded skins) shall be pulled off at an angle of approx. 120° and at a rate ofapprox. 100 mm/5 s constantly and without sudden movements. The area-based foam adhesion on the reverse of the pulled-off materials and the surface of the substrate shall be assessed. As a representa-tive average, at least 75 % of the total surface of the molded padding shall be pulled off from variouslocations and assessed. Adhesion values are specified in the specific material DBL. Each individualstrip shall be assessed; the result shall be calculated by averaging. No individual strip shall lie morethan 50% below the foam adhesion. Where the visual foam adhesion between the molded skin and the foam yields a result lower than 75%, compliance can be proven by indicating the separating force value in N. Attach a spring balance (compression-tension measuring unit 0 to 50 N) to the test strip and de-termine the separating force under the test conditions indicated above. The test result shall not fall be-low the lower threshold value required in the specific material DBL (10 N/5 cm strip width). The test shall be performed on components which have been stored at 23 ± 5 °C for at least 48 h after foaming orwhich have been subjected to heat storage.Page 4DBL 5471 : May 20075.3 Climatic resistance testsAssessmentcriteria: The parts shall not demonstrate any changes interfering with the application in comparison with the as-supplied state (e.g.warping, flattening, deflection, shrinkage or extension of thefinished parts, detachment of the surface material and of thefastening and making-up parts, glue embrittlement, blistering,impressions and piercing, waviness, brittleness and cracking ordiscoloration (assessment in accordance with ISO 105-A02),tackiness, marked glossiness and grain flattening of thesurface material, marked swelling, spalling, layer and fiberseparation of the substrate or similar). Weld joints shall notseparate.S = Focus point test (see DBL 5306.104) shall always be performed.Temperature requirements deviating from the functional specification:There is a temperature differential between the surface and substrate in the vehicle. For climatic cham-ber storage, the requirements profile for the surface is higher.The components are stored unassembled and shall therefore not be used for the assessment of dimen-sional requirements.Test sequence:1.2. 3. 4. Alternating atmospheres All constant atmospheresSolar simulationLow temperature storage5.4 More precise indication of color fastness to light (hot light fastness) and aging (hot light aging) to artifi-cial light at high temperatures in accordance with DIN / EN / ISO 105-B06.Exposure conditions: 3 (normal); irradiance 1,2 W/m² (420nm)For type of apparatus C, filter system BS/SL shall be used.Color fastness (HLF)- Determination of end point: Exposure to ∆E 4,3+/-0,4 of reference 6 (exposed/to covered). Colormeasurement of reference with white reference tile as substrate.- Assessment: Comparison exposed specimen with original specimen for light sourceD65.Assessment with blue scale (references).Determination of aging (HLA)- Determination of end point: as for HLF, but with several consecutive cycles.For each cycle, a new reference 6 shall be used.- Assessment: Comparison exposed specimen with original specimen for light sourceD65.Assessment with gray scale in accordance with DIN EN 20105-A025.5 Abrasion resistance*1. To be tested in as-supplied condition2. To be tested following testing according to 5.3. in sequence 1, 2, 3 (item 3 only for PV 94)3. To be tested following hot light aging (HLA)4. To be tested on leather-faced parts following testing according to5.3 in sequence 1, 25. To be tested on leather-faced parts following hot light aging (HLA)5.6 Sun cream test* Required components: instrument panel, upper and lower sections, center consoles, door linings. Onlyfor films andmolded skin surfaces. Testing in as-supplied condition, not in aged condition.*) For Sections 5.5 and 5.6 also refer to DBL 5399Page 5DBL 5471 : May 20075.7 The contact staining problem shall be assessed in accordance with PAPP PWT 7329.5.8 The corrosion behavior of metallic components shall be assessed in accordance with test instruction PBVWT 217.6.DUTIES OF THE SUPPLIERRefer to MercedesBenz Special Terms No. 13 and No. 16, Purchase Conditions for Production Materi-als and Spare Parts for Motor Vehicles.7. SAMPLESRefer to MercedesBenz Special Terms No. 13.8. DELIVERIESRefer to MercedesBenz Special Terms No. 13 and DBL 5306, Section 104.9. MARKINGRefer to MercedesBenz Special Terms No. 4, No. 24, No. 27 and DBL 5306, Section 105.10. PACKAGING, FORM OF SUPPLY AND DELIVERY CONDITIONSRefer to Mercedes-Benz Special Terms No. 30.Freedom from silicones shall be assured in general.11. STORABILITYRefer to DBL 5306, Section 107.INSTRUCTIONS12. SPECIALRefer to DBL 5306, Section 108.13. COMPLAINTSRefer to MercedesBenz Special Terms No. 16 and Purchase Conditions for Production Materials and Spare Parts for Motor Vehicles.14. ENVIRONMENTAL PROTECTION REGULATIONS/INDUSTRIAL SAFETYRefer to MercedesBenz Special Terms No. 30, No. 36 and DBL 8585 Negative substance list for theselection of materials.Changes:PV 93 deleted, PV 92, PV 94 and PV 95 revised.Revision 01.2006Page 6DBL 5471 : May 2007Table 2:4. Technical data Product version requirements Test method90 91 92 93 94 95Conditioning of parts Parts shall only be tested after the reaction of the glue or foam has been completed (refer to data sheets). Ifno indications are made: storage 48 h min. at room temperature.General requirements for allalternatingatmospheres Time/temperature/relative humidityNote: All times are holding times. Tolerances: Temperature ± 1 K; relative humidity ± 3 %; rate of change of temperature, heating: approx. 1,5 K/min, cooling: approx. 1,5 K/min; crossover point temperature/relative hu-midity in heating and cooling phases at 40°C max./ 40% r.h. max.The recorded diagrams shall be documented for leather surfaces.Climatic resistance storage For requirements text, refer to Section 5.3, page 4 4.1Alternatingatmospheres4.1.1 Dry-warm/humid-cold(warm climate cycle test A)Film, skin andtextilesurfaces - - - - - S:+ 6 cycl. {2h / 80°C / max. 20%+ 1h / 23 ± 3°C / 50 ± 15%}Leathersurface - - - - - S:+30 cycl. {4h / 10°C / 92%+ 2h / 80°C / max. 20%}for series production monitoring10 cycl.4.1.2 Dry-warm/humid-cold(warm climate cycle test B)Film, skin and textile surfaces S:+S:+S:+S:+ fol-lowed by 2h 105 °C - -6 cycl. {2h / 90°C / max. 20%+ 1h / 23 ± 3°C / 50 ± 15%}Leathersurface S:+S:+S:+S:+ fol-lowed by 2h 105 °C - -30 cycl. {4h / 10°C / 92%+ 2h / 90°C / max. 20%}for series production monitoring10 cycl.4.1.3 Dry-hot/humid-cold(hot climate cycle test)Film, skin andtextilesurfaces - - - - S:+- 6 cycl. {2h / 120°C / max. 20%+ 1h / 23 ± 3°C / 50 ± 15%}Leathersurface - - - - S:+- 30 cycl. {4h / 10°C / 92%+ 2h / 105°C / max. 20%}for series production monitoring10 cycl.UPage 7DBL 5471 : May 2007 4. Technical data Product version requirements Test method(continued) 90 91 92 93 94 954.2 Constant atmospheres4.2.1 Dry-warm endurance test A(warm temperature test)- - - - - S:+7d / 80 °C / max. 20%4.2.2 Dry-warm endurance test B(warm temperature test)S:+S:+S:+S:+- - 7d / 90 °C / max. 20%4.2.3 Dry-hot endurance test(heat test)Film, skin andtextilesurfaces- - - - S:+- 7d / 120 °C / max. 10% Leathersurface S:+7d / 105 °C / max. 10%4.2.4 Humid-warm agingFilm, skin and textile surfaces, not for parts with leather surfaces S:+S:+S:+S:+S:+S:+21d / 40 °C / 92%4.3 Changeincolorafter climate storage 4.1 and 4.2Minimum Rating 4 - 5 4 - 5 4 - 5 4 - 5 4 - 5 4 - 5DIN/EN 20105-A024.4 Solar simulation DIN 75 2204.4.1 Indoor 1 - - - - + - Indoor 1 dry climate4.5 Color change after solarafter solar simulation 4.4Minimum Rating - - - - 4 -ISO 105-A024.6 Cold resistance DBL 5306.7.3;storage 24 h at -30 ±2 °C,4.6.1 Ball drop test + + + + + + Drop height: 200mm4.7 Hardness test The required indentation depth is specified on the relevant drawing for theindividual parts and shall be documented in the ISIR.DBL 5306.15.2 ????UPage 8DBL 5471 : May 20074. Technical data Product version requirements Test method(continued) 90 91 92 93 94 954.8 Layer separation force *Minimum N Refer to Sectio 5.1.n4.8.1 For substrates with rough surface (e.g. hardboard, pressed non-woven fabric etc.)and for covering materials with very high elongation (min. 45% elongation at 50N; e.g. knitted fabric) *If the separating forces are not reached, a waiver shall be agreed with DC and docu-mented. These shall be recorded in the ISIR.4.8.1.1 after storage in standard atmosphere 15 15 15 15 15 154.8.1.2 after climatic storage S: 12S: 12S: 12S: 12S: 12S: 12For storage, refer toSection 4.1, 4.2, 4.4 4.8.2 For substrates with smooth surface (e.g. injection-molded ABS, PUR-GF)4.8.2.1 after storage in standard atmosphere20 20 20 20 20 20but for film 50 50 50 50 50 504.8.2.2 after climatic storage S: 15S: 15S: 15S: 15S: 15S: 15For storage, refer tobut for film S: 50S: 50S: 50S: 50S: 50S: 50Section 4.1, 4.2, 4.44.9 Surface adhesion for molded padding Minimum %Section5.2,DBL5306.16; for storage, refer to4.9.1 Cover material to foam S: 75S: 75S: 75S: 75S: 75S: 75Section 4.1, 4.2, 4.4 4.9.2 Substrate to foam S: 75S: 75S: 75S: 75S: 75S: 754.10 Burningtest S: Fulfillment of requirements in accordance with DBL 5307, product ver-sion 10 / 20.DBL 5307.5.1 or 5.24.11 Abrasion resistance, only for film,skin or plastic surfacesMinimum Rating4.11.1 dry 4 4 4 4 4 4 DBL 5306.4.1 Refer to Section5.54.11.2 wet4.11.3 *MB stain remover 4.11.4 MBplasticscleaner 4.11.5 MBglasscleaner 3-43-43-43-43-43-43-43-43-43-43-43-43-43-43-43-43-43-43-43-43-43-43-43-4* 5 strokes without additionalweightBQF 7528.00BQF 6960.204.12 Sun cream testMaximum Rating 1 1 1 1 1 1 PAPP/PWT 7328 Refer to Section 5.64.13 Scratch resistance only for film,skin or plastic surfaces The surface shall demonstrate no or only a small scribing effect when mar-king with a finger nail.DBL 5306.3.14.14 Scratch exposure of surface withchisel, only for flexible cellular TPO and PVC sheeting No violation of surface.DBL 5306.3.2; for total load, referto individual material DBL, oth-erwise 1600gUPage 9DBL 5471 : May 2007 4. Technical data Product version requirements Test method(continued) 90 91 92 93 94 954.15 Color fastness (HLF)Minimum blue scale Rating 6 6 6-7 6-7 6-7 6DIN/EN/ISO 105-B064.16 Aging (HLA)Minimum gray scale Rating - - 4 periods 4 periods 4 periods3-4 -For test methods refer to Section5.4Requirement:Possible deviationCover product DBL shall determine the requirements for the finished part with regard to the rating and number of periods.If cover product DBL-PV is better in rating (with a number of periods of at least 4) than in the corresponding PV of DBL 5471, the following criteria shall apply:u Number of periods as specified in cover productDBL.u Rating max. deviation 0,5 downwards.If no cover product is specified, rating and number of periods of corresponding PV of DBL 5471 shall apply.4.17Emission analysis4.17.1 VOC value µg/g (ppm) 4.17.2 FOG value µg/g (ppm)Target value: ≤ 100Target value: ≤ 250DBL 8585VDA 278*Critical individual substances shall not exceed the limit/target valuesindicated in DBL 8585, Section 2.3.4.18 Odor testMaximum Rating 3 3 3 3 3 3 VDA 270; depending on compo-nent size4.18 Fogging test For the composite, the fogging values specified in the relevant DBL of thesurface materials apply. The relevant approval shall be available alreadybefore the approval of the relevant parts. If no allocation is possible or novalue has been specified, the following shall applyFogging test: Quantity of condensable substance: Maximum 1,0 mgFor the substrate materials the values specified in the DBL, if available,shall apply. If no allocation is possible or no value has been specified, thefollowing shall applyFogging test: Quantity of condensable substance: Maximum 2,0 mgDIN 75 201 * In the event of deviations, the value specified in the individual material DBLs shall apply.U。

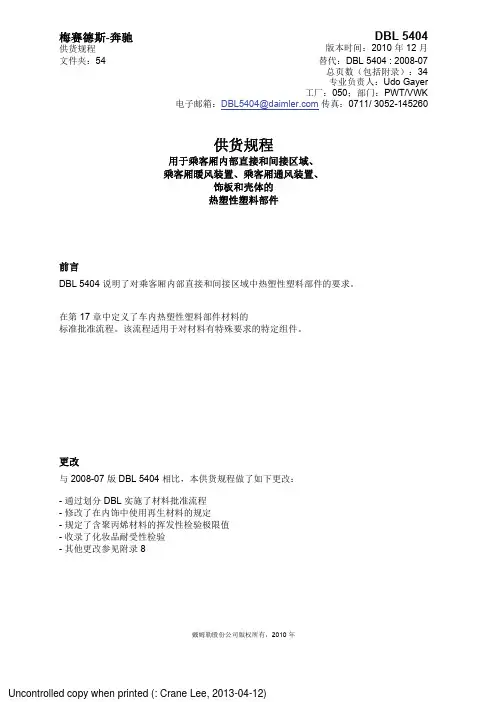

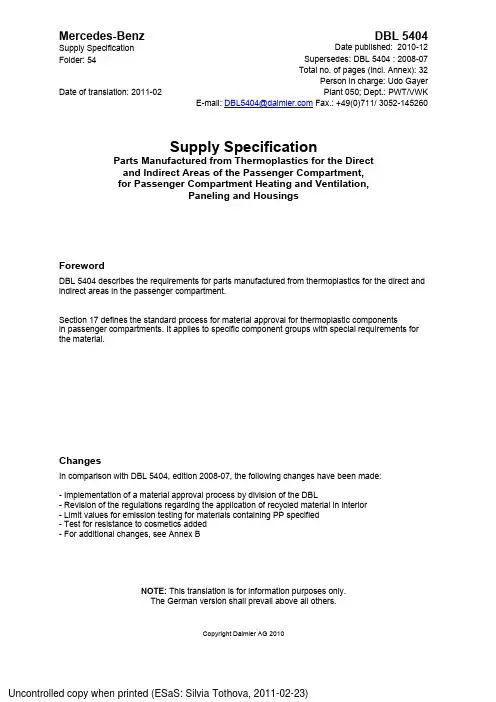

5404 Mercedes-Benz DBL Supply Specification Date published: 2010-12Folder: 54 Supersedes: DBL 5404 : 2008-07Total no. of pages (incl. Annex): 32Person in charge: Udo GayerDate of translation: 2011-02 Plant 050; Dept.: PWT/VWKE-mail: DBL5404@ Fax.: +49(0)711/ 3052-145260Supply SpecificationParts Manufactured from Thermoplastics for the Directand Indirect Areas of the Passenger Compartment,for Passenger Compartment Heating and Ventilation,Paneling and HousingsForewordDBL 5404 describes the requirements for parts manufactured from thermoplastics for the direct andindirect areas in the passenger compartment.Section 17 defines the standard process for material approval for thermoplastic componentsin passenger compartments. It applies to specific component groups with special requirements forthe material.ChangesIn comparison with DBL 5404, edition 2008-07, the following changes have been made:- Implementation of a material approval process by division of the DBL- Revision of the regulations regarding the application of recycled material in interior- Limit values for emission testing for materials containing PP specified- Test for resistance to cosmetics added- For additional changes, see Annex BNOTE: This translation is for information purposes only.The German version shall prevail above all others.Copyright Daimler AG 2010Contents1Scope (5)2Normative references (5)3Terms and definitions (6)4General requirements (6)5Abbreviated material designation for documentation (7)6Use of recycled materials in vehicle interiors (7)7Test methods (8)8Duties of the supplier (14)9Samples (14)10Deliveries (14)11Marking (14)12Packaging (14)13Storability (14)14Special instructions (14)15Complaints (14)16Table 03 - Technical data on component (15)17Material approval process (21)18Test methods (22)19Profiles of requirements (28)Annex A (30)Annex B (32)Product versions 00 to 89:Product versions 00 to 89 (Table 1) continue to describe the requirements for finished parts with free se-lection of raw material in analogy with the previous DBL 5404. For the requirements for a material of these product versions, refer to Table 3, whereby the tests to be performed are marked by an X or a numerical value.Product versions 90 to 99:Components made of thermoplastics in passenger interiors, with previous material approval process for the selection of the raw material type.For certain components/assemblies with specific requirements for the material, an obligation exists to use raw material types approved beforehand.During initial sampling, evidence of only the finished part properties listed in Table 3 shall be provided. For information on raw material types already approved, initially contact Production and Materials Engi-neering Sindelfingen, Interior Team.If the use of raw material types which have not yet been approved is intended, the approval process de-scribed in Section 17 shall be completed.Table 1 for materials without material approvalPV Material Material description Application examples21 ABS Acrylonitrile butadiene styrene with me-dium deflection temperature under load(application temperature max. approx.85°C)Glove box lid, paneling31 ABS Acrylonitrile butadiene styrene, high-impact modified deflection temperatureunder load (application temperature max.approx. 80°C) Door pocket, knee covering, tail lamp housing41 ABS Acrylonitrile butadiene styrene with highdeflection temperature under load (appli-cation temperature max. approx. 95°C)Door pocket, steering column trim51 ABS Acrylonitrile butadiene styrene, modifiedwith polycarbonate (application tempera-ture max. approx. 95°C) Covers, housings, paneling, glove box00 ABS-GF 15 Acrylonitrile butadiene styrene with 15 %glass fiber Stiffening parts on center console, air deflection flaps00 ABS+PA Blend of acrylonitrile butadiene styreneand polyamideTunnel trim, speaker grille00 ABS+PA-GF 20 Blend of acrylonitrile butadiene styreneand polyamide with 20 % glass fibersCarrier parts00 PA 6 Polyamide 6 dry impact resistant Air vent00 PA 6-GF15 Polyamide 6 with 15 % glass fibers Window frame lining00 PA 6-GF25 Polyamide 6 with 25% glass fibers Switch cap00 PARA6-(GF+MD)55 Polyacrylamide with 30 % glass fibersand 25 % mineral contentKinematic parts00 PBT+ASA-GF 15 Blend of polybutylene terephthalate andacrylonitrile styrene acrylic ester with 15%glass fibersDiffuse grate, centerfill00 PBT+ASA-GF 20 Blend of polybutylene terephthalate andacrylonitrile styrene acrylic ester with 20%glass fibersHousing floor00 PC Polycarbonate Instrument cluster, fascias, trimparts00 PC+ASA Blend of polycarbonate and acrylonitrile-styrene-acrylester with increased lightexposure requirements Draft stop, cover headrest for convertiblePV Material Material description Application examples10 ABS+PC Blend of acrylonitrile butadiene styrene andpolycarbonate (only for electrodepositionapplications)Electroplated components20 PC+ABS Blend of polycarbonate and AVS, reducedtemp. resistance (application temperaturemax. 105°C) + high notched impact strength Basic carrier center console, fas-cias, kinematic parts30 PC+ABS Blend of polycarbonate and acrylonitrile bu-tadiene styrene, high temperature resistance(application temperature max. 110°C) andnotched impact strengthPillar trim, first-aid box lid00 PC+ABS-GF10 Blend of polycarbonate and acrylonitrile bu-tadiene styrene with 10 % glass fibersDoor lining attachment strip00 PC+ABS-GF20 Blend of polycarbonate and acrylonitrile bu-tadiene styrene with 20 % glass fibersFascia for instrument cluster00 PC+PET-MX20 Blend of polycarbonate and polyethyleneterephthalate with 20 % mineralsPower outlet lid00 PE-HD Polyethylene, high density Defroster outlet, air ducting parts00 PE-LD Polyethylene, low density Defroster outlet, air ducting parts01 PE-(Sinter) Polyethylenerotation-sintered Air ducting parts10 PP Polypropylene copolymer with higher stiff-ness, modulus of elasticity ∼ 1500 MPaFootwell cover20 PP Polypropylene copolymer with lower stiff-ness, flexible, mod. of elasticity ∼ 700 MPaDust receptacles, caps00 PP-GF 20 Polypropylene with 20 % glass fibers Covers00 PP-GF 30 Polypropylene with 30 % glass fibers Power outlet00 PP-NF 50 Polypropylene with 50 % natural fibers Hooks, retainers00 PP-T10 Polypropylene with 10 % talcum Spare tire well cover00 PP-T15 Polypropylene with 15 % talcum Rear-end door trim00 PP-T20 Polypropylene with 20 % talcum Housing parts, cable ducts00 PP-T30 Polypropylene with 30 % talcum Instrument panel lower part, de-tachable parts00 PP-T40 Polypropylene with 40 % talcum Housing parts00 PP-M10 Polypropylene with 10 % minerals (e.g. Wol-lastonite)Side walls, covers00 PP-HI High-impact polypropylene (e.g. elastomermodified)Trim00 PP-HI-T20 High-impact polypropylene with 20 % talcum(e.g. elastomer modified)Trim00 PP-HI-M15 High-impact polypropylene with 15 % min-eral (e.g. elastomer modified)Trim (commercial vehicles)00 PP-HI-M25 High-impact polypropylene with 20 % min-eral (e.g. elastomer modified)Trim (commercial vehicles)00 PP-HC High crystalline polypropylene, improvedscratch resistanceTrunk sill, cable duct01 PPO Polyphenylene oxide (SB modified) Switch lever, window molding,waistrailsTable 2 for materials with material approvalPV Material Material description Application examples90 PP-HI-T17 Impact resistant polypropylene copolymerwith approx. 17 % talcum Visible grained trim parts with ma-terial approval91 PP-HI-T20 Impact resistant polypropylene copolymerwith approx. 20 % talcum, increased mo-dulus of elasticity, reduced scratch resis-tance and impact resistance Visible grained trim parts for large-area, more rigid parts with material approval (e.g. van)1 ScopeParts manufactured from thermoplastics for the direct and indirect areas of the passenger compartment, the air intake and the heating.2 Normative referencesDBL 5555 Finished Parts and Semi-Finished Products Made of Organic Polymer MaterialsTestMethodsandGeneralConditionsDBL 8585 General Requirements - Environmental Protection, Hazardous Substances,Substance List for the Selection of MaterialsNegativeDangerousGoods;DBL 5306 General Technical Delivery Conditions and Test Methodsfor Interior Equipment Materials and Similar ProductsDBL 5307 Flame Retardant Properties - Interior Trim Parts - Requirements andTest SpecificationsFMVSS 302 Federal Motor Vehicle Safety Standard – Flammability of Interior MaterialsMBN 33015-1 Identification Markings on Product Parts; Trademarks and Basic NumbersDIN EN ISO 178 Determination of Flexural PropertiesDIN EN ISO 527-1 Plastics - Determination of Tensile Properties - Part 1: General PrinciplesDIN EN ISO 527-2 Plastics - Determination of Tensile Properties - Part 2: Test Conditions for Mould-ing and Extrusion PlasticsDIN EN ISO 527-3 Plastics - Determination of Tensile Properties - Part 3: Test Conditions for Filmsand SheetsDIN EN ISO 527-4 Plastics - Determination of Tensile Properties - Part 4: Test Conditions for Iso-tropic and Orthotropic Fibre-Reinforced Plastic CompositesDIN EN ISO 527-5 Plastics - Determination of Tensile Properties - Part 5: Test Conditions for Unidi-rectional Fibre-Reinforced Plastic CompositesDIN EN ISO 22088-1 Plastics – Determination of Resistance to Environmental Stress Cracking (ESC) – Part 1: General Guidance (ISO 22088-3:2006)DIN EN ISO 22088-3 Plastics – Determination of Resistance to Environmental Stress Cracking (ESC) – Part 3: Bent Strip Method (ISO 22088-3:2006)DIN EN ISO 306 Plastics - Thermoplastic Materials - Determination of Vicat Softening Temperature (VST)DIN EN ISO 6603-2 Plastics – Determination of Puncture Impact Behavior of Rigid Plastics –Part 2: Instrumented Impact TestingDIN EN ISO 2813 Paints and Varnishes – Determination of Specular Gloss of Non-Metallic PaintFilms at 20°, 60° and 85°DIN IEC 60093 Methods of Test for Insulating Materials for Electrical Purposes; Volume Resistiv-ity and Surface Resistivity of Solid Electrical Insulating Materials (VDE 0303 Part30)DIN EN ISO 291 Plastics - Standard Atmosphere for Conditioning and Testing (ISO 291:2008)DIN EN ISO 1183-1 Plastics - Methods for Determining the Density of Non-Cellular Plastics - Part 1:Immersion Method, Liquid Pyknometer Method and Titration methodDIN EN ISO 1183-2 Plastics - Methods for Determining the Density of Non-Cellular Plastics -Part 2: Density Gradient Column MethodDIN EN ISO 1183-3 Plastics - Methods for Determining the Density of Non-Cellular Plastics - Part 3:Gas Pyknometer MethodDIN EN ISO 3451-1 Plastics – Determination of Ash – Part 1: General MethodsDIN EN 13130-4 Materials and Articles in Contact with Foodstuffs - Plastics Substances Subject to Limitation - Part 4: Determination of 1,3-Butadiene in PlasticsDIN EN ISO 105-B06 Textiles - Tests for Colour Fastness - Part B06: Colour Fastness and Ageing toArtificial Light at High Temperatures: Xenon Arc Fading Lamp TestDIN EN ISO 4628-1 Paints and Varnishes - Evaluation of Degradation of Coatings - Designation ofQuantity and Size of Defects, and of Intensity of Uniform Changes in Appearance.Part 1: General Introduction and Designation SystemDIN EN ISO 294-4 Injection Moulding of Test Specimens of Thermoplastic Materials. Part 4: Deter-mination of Moulding ShrinkageDIN 53435 Bending Test and Impact Test on Dynstat Test PiecesDIN 50011-1: 1978-01 Test of Materials, Structural Components and Equipments; Warming Cabinet,Definitions, RequirementsDIN 5031-3 Optical Radiation Physics and Illuminating EngineeringDIN 5033-4 Colorimetry; Spectrophotometric MethodDIN 75220 Aging of Automotive Components in Solar Simulation UnitsDIN 6174 Colorimetric Evaluation of Colour Coordinates and Colour DifferencesAccording to the Approximately Uniform CIELAB Colour SpaceDIN 67530 Reflectometer as a Means for Gloss Assessment of Plane Surface of Paint Coat-ings and PlasticsVDA 75202 Farbechtheitsprüfung und Alterungsverhalten gegen Licht bei hohen Tempera-turen (Color Fastness to Light Test and Aging Behavior against Light at HighTemperatures)VDA 278 Thermodesorption Analysis of the Organic Compounds of Non-Metallic Automo-bile MaterialsVDA 270 Determination of the Odour Characteristics of Trim Materialsin Motor VehiclesVDA 260 Components of Motor Vehicles – Marking of MaterialVDA 280-1 Farbmessung am Kraftfahrzeug – Farbmessung von Kunststoffoberflächen imFahrzeuginnenraum (Colorimetry for Motor Vehicles - Color Measurement ofPlastic Surfaces of Interiors for Motor Vehicles)3 Terms and definitionsversionPV ProductAP Profile of requirements (Anforderungsprofil)ImpactHI HighHumidityRH Relatived ThicknessMBST Mercedes-Benz Special TermsDBL Daimler-Benz Supply Specification (Liefervorschrift)Standard(Norm)MBN Mercedes-BenzBST Black Standard Temperature4 General requirementsFor safety requirements, homologation and quality, the existing statutory requirements and laws shall be complied with. In addition, the relevant requirements of Daimler AG apply.All materials, procedures, processes, components and systems shall conform to current statutory (gov-ernmental) requirements regarding constituents and recyclability.The parts shall be free of production defects of any type which would impair the processing and utilization properties or the appearance.In particular, surfaces and cut edges shall not release any substances (e.g. auxiliary production materials, release agents, contamination) which could lead to an impairment of the surface quality.Visible decorative plastic parts shall comply with the requirements of our styling unit with regard to surface gloss.With regard to constituents, the materials shall comply with current statutory regulations. For the relevant information regarding banned substances and declaration requirements, refer to DBL 8585.Emission testing of organic materials in interiors according to VDA 278:For individual substances, the limit values are listed in DBL 8585. The total emissions are determined by means of the VOC and Fog values. The material DBL for interior parts/materials contains pertinent mate-rial-related and product-version-related limit values.If no specification is given, the general requirements specified in DBL 8585 shall apply. The user is re-sponsible for checking whether the DBL version in his or her possession is the latest version.In particular in the case of substances listed in DBL 8585, the supplier is required to continuously monitor and adjust the concentrations and emissions in accordance with the state of the art.When submitting samples, the results of the emission analysis generated by the laboratory shall always be enclosed on a CD-ROM together with the related sample data sheet using the template* filed in the standards information system. The VDA 278 analysis shall correspond to the latest status of the compo-nent/material. It shall not be older than one year.For sampling in the Wörth plant, the CD-ROM shall be submitted by the testing institute on request.______________*Template in NormMaster: "MB-DATENBLATT_EMISSIONSANALYSE_VDA_278_2008-01“4.1 Product versions .00 to .89The component tests shall be performed by the supplier within the context of initial sampling. While the article is active, the supplier shall take appropriate measures such as process monitoring/documentation and periodic validation of the DBL tests to ensure the supplied parts conform to the approved samples.The supplier is responsible for selecting the appropriate raw material type and plastic supplier. In the case of any changes to the plastic type, renewed sampling shall be carried out.4.2 Product versions .90 to .99Procedure: refer to Section 175 Abbreviated material designation for documentation5.1 Product versions .00 to .89Abbreviated designations for drawings in the block for material: e.g. Thermoplastic PP-HI-T20 DBL 5404.005.2 Product versions .90 to .99Abbreviated designation for drawings in the block for material, e.g.: Thermoplastic with material approval PP-HI-T20 DBL 5404.906 Use of recycled materials in vehicle interiorsThe use of recycled materials is desired in principle.Evidence shall be provided to prove that recycled materials in vehicle interiors conform to the same re-quirements as new products on the finished part. In particular, compliance with the requirements regarding odor, fogging and emissions in accordance with VDA 278 / DBL 8585 shall be ensured.When recycled materials are used, there is an increased risk of possible fluctuations between the individ-ual delivered batches. Compliance with these DBL requirements shall therefore be ensured by appropriate quality measures across the complete delivery period, and documented.Reprocessable materials from the molder's process start-ups, tool changes and production faults (e.g. sprue cake) shall not enter the production process. Exceptions are, for blow molding processes, small quantities of reprocessable material from molded part trimmings, provided that the added quantity is clear-ly limited and that the requirements with regard to fogging, odor and emissions as specified in VDA 278 / DBL 8585 can be proven to be maintained on the finished part, at maximum permissible content.7 Test methodsTests Testspecification Remarks Density DIN EN ISO 1183Parts 1-3Section 7.1Residue on ignition DIN EN ISO 3451-1 Section 7.2Bending test DIN 53 435DIN EN ISO 178Section 7.3Impact test DIN 53 435 Section 7.4Water content DBL 5555 Section 7.5Tensile test DIN EN ISO 527 Section 7.6Hot storage temperature DBL 5555 Section 7.7Vicat softening temperature DIN EN ISO 306 Section 7.81,3-butadiene content DIN EN 13130-4 Section 7.9Fogging DBL 5306, method B Section 7.10Emission analysis VDA278DBL 8585Section 7.11Odor VDA 270-B3 Section 7.12Resistance to environmental stresscrackingSection 7.13Resistance to cosmetics Section 7.14Resistance to care products Section 7.15Hot light aging VDA 75202-3 A4DIN EN ISO 105-B06Section 7.16Burning test DBL 5307.10 Section 7.17Conditioning of materials containing polyamide Section7.187.1 DensityStandard: DIN EN ISO 1183 Parts 1-3Test conditions: Method A - buoyancy method7.2 Residue on ignitionStandard: DIN EN ISO 3451-1Testconditions:MethodA7.3 Bending testConditioning: For materials containing polyamide, refer to Section 7.187.3.1 Testing on componentsStandard: DIN53435(Dynstat)Dynstat-test pieces: 10 mm x 15 mm x d7.3.2 Tests for basic investigationsStandard: DIN EN ISO 178Test specimens: 80 mm x 10 mm x d7.4 Impact testStandard: DIN 53435 (Dynstat) Conditioning: For materials containing polyamide, refer to Section 7.18Test temperatures: 23°C / 50%RH -25°C7.4.1 Notched impact strength Dynstat test pieces: 10 x 15 mm x d, with notch (K)7.4.2 Impact strength Dynstat test pieces: 10 x 15 mm x d, without notch (G)7.5 Water contentStandard: DBL 5555 Test condition: Method AApplication: Only for materials containing PA (as-supplied condition)7.6 Tensile testStandard: DIN EN ISO 527 Conditioning: For materials containing polyamide, refer to Section 7.18Test specimens: 5A Test speeds: 50 mm/min for unfilled materials 10 mm/min for PP - T10 5 mm/min for filled materials 7.6.1 Modulus of elasticity Test specimens: 1B Test speed: 1 mm/min for testing of modulus of elasticity (only to be used for basic examinations)7.7 Hot storage temperatureStandard: DBL 5555 Test equipment: Warming cabinet DIN 50011-1 : 1978-01 Indications in test report: Test report in °C / Molded part change in % Limit value: max. 1,5% molded part change7.8 Vicat softening temperatureStandard: DIN EN ISO 306 Test conditions: VST B507.9 1,3-butadiene contentStandard: DIN EN 13130-4Application:Only for materials containing ABSConditioning:Following manufacture, the specimens shall be conditioned as soon as possible. Store the parts in standard atmosphere DIN EN ISO 291-23/50-2 (7d at 23°C/50% RH) for 7 days, and then weld air-tight in aluminum foil.Limit values for 1,3-butadiene:Material Unit SpecimenplateComponent Target valueABS* mg/kg < 1 < 5 < 1 ABS mg/kg < 1 < 3 < 1 PC/ABS mg/kg < 1 < 5 < 1 PA/ABS mg/kg < 1 < 5 < 1 GF material mg/kg < 5 < 15 < 5*only valid for ABS of product version .51 (target value for component <3 mg/kg)7.10 Fogging5306Standard: DBLTest conditions: Method B7.11 Emission analysisStandard: VDA 278Application: Only for materials containing ABS, ASA and PPConditioning: Following manufacture, the specimens shall be conditioned as soon as possible.Store the parts in standard atmosphere DIN EN ISO 291-23/50-2 (7d at23°C/50% RH) for 7 days, and then weld air-tight in aluminum foil.Material-specific limit values of total emissionsUnit VOC Fog Materials containing ABS or ASA (e.g. PC+ABS) µg/g 50 200Materials containing PP (e.g. PP-T30) µg/g 250 500Air ducts made of materials containing PP µg/g 150 400PP-HI-T17 / T20 in acc. with DBL 5404 PV 90 / 91 µg/g 200 300Evaluation individual substances: DBL 85857.12 Odor270Standard: VDAConditioning: Following manufacture, the specimens shall be conditioned as soon as possible.Store the parts in standard atmosphere DIN EN ISO 291-23/50-2 (7d at23°C/50% RH) for 7 days, and then weld air-tight in aluminum foil.Test conditions: Method B3 (small parts as agreed with VWK or the relevant proc-ess/materials engineering department of the Daimler receiving plant: method A3)7.13 Resistance to environmental stress cracking DIN EN ISO 22088-3 on unpainted plas-tic parts of the vehicle interiorFor the evaluation of materials in principle with regard to their resistance to environmental stress cracking in the event of contact with substances.If cleaning, sliding or lubricating compounds are used during the production process of the finished parts, the supplier shall ensure that plastics used have an adequate resistance to environmental stress cracking at 0,3% and 1% outer fiber strain.Test equipment:Bending device: in accordance with DIN EN ISO 22088-3Felts: EMPA, cat. no. 701(Empa Testmaterialien, Mövenstr. 12, CH-9015 St.Gallen)Kleenex: KIMWIPES Lite 200, Kimberly-Clark, Code 7101Test specimens: 30*70*thickness of component or specimen plateTest substances: All substances or auxiliaries used in the assembly and process (e.g. grease, anti-creak coatings, etc.).Test method:Condition the test specimens in standard atmosphere DIN EN ISO 291-23/50-2 for 48h (materials contain-ing polyamides, see Section 7.18).•Clamp the test specimens in the bending device.•Place the felts in the test substance for at least 15 min.•Place the felts in the center of the bent test specimen.•Exposure time 7 days in standard atmosphere•Following exposure, clean the tested surface with 1% washing-up liquid solution, rinse and dot dry using a Kleenex wipe.•Assess the test specimens immediately after dotting them dry.Evaluation :Assess the test specimens in clamped condition under a reflected-light stereomicroscope at approx. 10 x magnification.Rating Evaluationchange1 novisible2 surface becoming mattcracks3 fine4 heavy cracking, breaksRequirement:Rating1 is required for the parts, i.e. the parts shall not demonstrate any visible changes after the test.7.14 Resistance to cosmeticsThe resistance to cosmetics shall be tested on all visible surfaces of interior components and all those accessible during use of the vehicle.This test is intended for the assessment of interior surfaces with regard to their exposure to cosmetic pro-ducts.Test equipment:Test substance: Sunscreen test substance – For composition, refer to the latest version of DBL5399.Kleenex: KIMWIPES Lite 200, Kimberly-Clark, Code 7101Scales: Digital scale with resolution 0,001gpipettesApplication: DisposableTest method:•Apply three drops or 0,07g of the test substance to the component surface - Note: kneading com-pound may be used to form a ring as a border to prevent the sunscreen test substance from flowing away.•Store the wetted specimens in a circulating air cabinet (DIN 50011-1 : 1978-01) at 60°C for 24h. •Following storage, condition the specimens in standard atmosphere DIN EN ISO 291-23/50-2 for one hour. Then clean the specimens using a 1 % washing-up liquid solution and dry with Kleenex. Following cleaning, the specimens shall be assessed on the basis of the following definitions:7.14.1 Low exposure to cosmeticsParts with low/rare exposure from skin contact.A visual assessment shall be performed immediately after cleaning and after 24 ± 0,5 h in accordance with DIN EN ISO 4628-1.Rating Intensity of change0 unchanged, i.e. no perceptible change1 very slight, i.e. just perceptible change2 slight, i.e. clearly perceptible change3 moderate, i.e. very clearly perceptible change4 considerable, i.e. pronounced changechangemarked5 veryRequirement: Rating ≤27.14.2 Increased exposure to cosmeticsParts with frequent/intensive exposure from skin contact (e.g. arm rests, rocker switches)Move finger nail under slight pressure (approx. 3-4N) across the surface. Wipe using a moist cloth/leather, leave to dry for two minutes and evaluate.The surface shall be assessed following mechanical stress in accordance with DIN EN ISO 4628-1.Rating Intensity of change 0 unchanged, i.e. no perceptible change 1 very slight, i.e. just perceptible change 2 slight, i.e. clearly perceptible change 3 moderate, i.e. very clearly perceptible change 4 considerable, i.e. pronounced change 5 very marked changeRequirement: Rating ≤2Changes impairing the component function are not permissible. Changes beyond rating 2 shall be agreed with the component manager.7.15 Resistance to care productsThe resistance to care products shall be tested on all visible surfaces of interior components and all those accessible to the customer during cleaning work.In the case of parts which cannot be tested meaningfully using the crockmeter, the test exposure shall be simulated manually.Test equipment: Test apparatus Crockmeter (e.g.: AATCC Crockmeter CM-5, Atlas) Parameters: Loading weight 9NStroke length 50mm Number of strokes 30 double strokes Modification The finger holding the felts shall be drilled through axially, diameter 6-9mm.Felts: EMPA, cat. no. 701 (Empa Testmaterialien, Mövenstr. 12, CH-9015 St.Gallen) Paper tissues: Folding towels, single-ply, SCA Hygiene Paper No. 8.01.03 Kleenex: KIMWIPES Lite 200, Kimberly-Clark, Code 7101Test substances: For the composition of test substances 1-6, refer to the latest edition ofDBL 5399.Test method:Condition the test specimens in standard atmosphere DIN EN ISO 291-23/50-2 for 48h (materials contain-ing polyamides, see Section 7.18).• The test shall be performed at room temperature in accordance with DIN 50014. • Impregnate felt for at least 5min • Insert felt in finger• Briefly place on folding towel (approx. 1 sec) and lift off again immediately. • Perform care test using test substances / parameters indicated above.• Following exposure, clean the tested surface with 1% washing-up liquid solution, rinse and dot dryusing a Kleenex wipe.No. Test substance 1 MB glass cleaner 2 MB plastics cleaner3 MB cockpit care product4 MB leather cleaner5 Washing-up liquid6 Glass cleaner。
