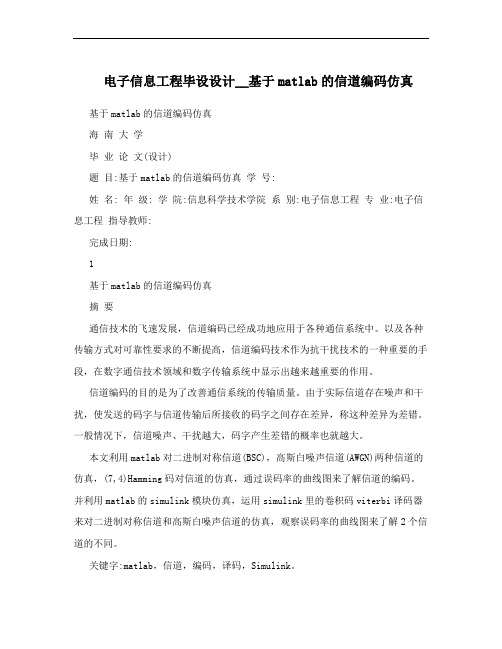

基于matlab的信道编码仿真

摘要

通信技术的飞速发展，信道编码已经成功地应用于各种通信系统中。以及各种传输方式对可靠性要求的不断提高，信道编码技术作为抗干扰技术的一种重要的手段，在数字通信技术领域和数字传输系统中显示出越来越重要的作用。

信道编码的目的是为了改善通信系统的传输质量。由于实际信道存在噪声和干扰，使发送的码字与信道传输后所接收的码字之间存在差异，称这种差异为差错。一般情况下，信道噪声、干扰越大，码字产生差错的概率也就越大。

本文利用matlab对二进制对称信道(BSC)，高斯白噪声信道(AWGN)两种信道的仿真，(7,4)Hamming码对信道的仿真，通过误码率的曲线图来了解信道的编码。并利用matlab的simulink模块仿真，运用simulink里的卷积码viterbi译码器来对二进制对称信道和高斯白噪声信道的仿真，观察误码率的曲线图来了解2个信道的不同。

关键字:matlab，信道，编码，译码，Simulink。

1

基于matlab的信道编码仿真

Abstract

With the rapid development of communication technology, channel

coding has been successfully applied to various communications systems. And a variety of transmission of the continuous improvement of

reliability requirements, anti-jamming channel coding technology as an important means of technology in the field of digital communications technology and digital transmission systems in a more and more important role.

The purpose of channel coding is to improve the transmission quality of communications systems. As the actual existence of the channel noise and interference, the transmitted codewords and channel transmission received after the difference between code words, said this difference

is wrong. Under normal circumstances, channel noise, the greater the interference, the code word generated the greater the probability of error.

In this paper, matlab binary symmetric channel (BSC), Gaussian white noise channel (AWGN) two channel simulation, (7,4) Hamming code simulation of the channel, through the bit error rate curve to understand the channel coding. Using matlab to simulink block simulation, using simulink in the viterbi decoder to convolutional codes on the binary symmetric channel and Gaussian white noise channel simulation, observation error rate graphs to understand the two different channels

Keywords: matlab, channel, coding, decoding, Simulink.
