LK330接插件和线规格1）：PH-200AP-3P L=160mm 1671线26#2）：EH-2P L=100mm 单头压剥线浸锡 1671线28#3）: C3-4P L＝50mm 1对1 1671线28# 4）：PH-3P L＝150mm 单头压剥线浸锡 1671线28#5）：5264－3P L=110mm 单头压剥线浸锡 1671线28# 06）: PH-5P L=200mm 1对1 1671线26# 7）：C9-8P L＝150mm 1对1 1、2线红；3、4线黑；5、6线黄；7、8线蓝 (7/8）不要线了 1671线24#或22# 8）：PH-2P ＝180mm 单头压剥线浸锡 1671线28#以下为接插件的座序号Comment Designator Footprint Quantity 备注1 SIP2 COVER SIP2-2.54 12 SIP2 RF SIP2-2.0 13 SIP3 CUTTER,SEN1SIP3-2.0 24 ZIP/FFC1.0LCD LCD18 15 SIP4 MOTOR0,MOTOR1SIP4-2.0 26 Header 8 POWER_IN SIP8-2.54 2（电源板要1个）7 SIP4 PS2 sip4 - 2.54 18 SIP3 SEN2 SIP3 - 2.54 19 FFC14 TPH PRINT14 110 SIP5 USB SIP5_USB-2.02（电源板要1个）编制:李爱国批准：时间：2011.11.18 时间：LK320排线规格1.3PH2.0切刀传感器线长11公分2.2PH2.0天线线长12公分3.6PH2.0键盘线线长8公分（2.0间距）同一方向4.6PH2.54电源线线长14公分（2.54间距）同一方向编制:李爱国批准：时间：2011.11.18 时间：LK560A/480排线规格1. J10电源座上的插排线 4根两黑两红线径2mm，线长：11cm2. J8电机端子插排线 5根桔红色黑色空红色黄色棕色线径1.2mm，线长：15cm3. J1 48和56打印头插排线规格相同 15根标准电缆带线径1mm，线长：12.5cm4. J9 300dpi打印头插排线 21根标准扁平线，线长：15cm5. J2报警和按键插排线 5根红色黑色黄色蓝色白色线径1mm线长：20cm6. J4打印头抬起检测插排线 2根红色黑色线径1mm 线长：15cm7. J3反射传感器插排线 4根蓝色黄色黑色红色线径1mm 线长：15cm8. J5透射传感器插排线 2根红色黑色空线径1mm 线长：15cm以上所标各种线色也可根据实际情况自选定，我已经在各种插座的管脚选择上做了区分。

元器件选型手册(接插件部分)-1

元器件选型手册(接插件部分)-1

元器件选型手册(接插件部分)浙江正泰仪器仪表有限责任公司目录前言 (2)一、普通单双排插针 (3)二、普通单双排插座 (4)三、其他插针插座 (5)3.1蜈蚣插座 (5)3.2圆孔插座 (5)3.3DIP芯片插座 (6)3.4弯针 (6)四、线对板连接器 (7)4.1单排针座连接器 (7)4.2简牛针座 (9)4.3牛角针座 (9)五、USB接口 (10)六、天线及连接线 (11)七、其他类型接插件 (12)7.1FPC连接器 (12)7.2凤凰端子 (13)7.3PS2插座 (13)7.4DF12系列连接器 (13)7.5RJ45模块化插孔 (14)7.6IC卡座 (14)7.7SIM卡座 (14)前言1.范围本手册对公司目前使用的接插件进行了分类，对接插件的描述进行了定义。

本手册仅用于公司产品设计选型时参考。

2.注意事项本手册中部分物料因在规定的字符条件下无法描述清楚，故采用出图纸的方式，使用时，可以在PLM系统上直接查看或者下载。

本手册中物料描述的尺寸均未标明公差，如实际使用时对尺寸要求很高，请联系厂家出具规格承认书，或者参考GB/T 1804-2000。

所有物料的SAP描述均不能超过40个字符(包括空格)。

一、普通单双排插针1.1SAP描述规范双排单塑插针 2.54mm,2*14P,隔两排抽两排,针长16.5,深圳联颖①名称②脚间距③引脚数④（类型）⑤针尺寸⑥品牌①名称：单排单塑插针、双排单塑插针、单排双塑插针、双排双塑插针；②脚间距：一般为2.54mm或2mm；③引脚数：排数*单排引脚数；④（类型）：如抽针，个别针加长等情况的说明，无特殊的可不写；⑤针尺寸：针长表示针两头之间的长度。

若PC=3mm默认不写，此时单塑插针，只需要写出针长；双塑插针，则需要写明针长和PA面长度；a1.2典型示例a PC面为针插入PCB的一端，PA面为远离PCB的一端。

二、普通单双排插座2.1 SAP描述规范双排插座 2.54mm,2*14P,隔两排抽两排,塑高8.5,深圳联颖①名称②脚间距③引脚数④（类型）⑤塑高⑥品牌①名称：双排插座、单排插座；②脚间距：一般为2.54mm或2mm；③引脚数：排数*单排引脚数；④（类型）：如抽针等情况的说明，无特殊的可不写；⑤塑高：塑高表示焊接后的插座高度，也就是塑壳高度。

器件选型手册接插件部分

器件选型手册接插件部分

元器件选型手册(接插件部分)浙江正泰仪器仪表有限责任公司目录前言 (2)一、普通单双排插针 (3)二、普通单双排插座 (4)三、其他插针插座 (5)3.1蜈蚣插座 (5)3.2圆孔插座 (5)3.3DIP芯片插座 (6)3.4弯针 (6)四、线对板连接器 (7)4.1单排针座连接器 (7)4.2简牛针座 (9)4.3牛角针座 (9)五、USB接口 (10)六、天线及连接线 (11)七、其他类型接插件 (12)7.1FPC连接器 (12)7.2凤凰端子 (13)7.3PS2插座 (13)7.4DF12系列连接器 (13)7.5RJ45模块化插孔 (14)7.6IC卡座 (14)7.7SIM卡座 (14)前言1.范围本手册对公司目前使用的接插件进行了分类，对接插件的描述进行了定义。

本手册仅用于公司产品设计选型时参考。

2.注意事项➢本手册中部分物料因在规定的字符条件下无法描述清楚，故采用出图纸的方式，使用时，可以在PLM系统上直接查看或者下载。

➢本手册中物料描述的尺寸均未标明公差，如实际使用时对尺寸要求很高，请联系厂家出具规格承认书，或者参考GB/T 1804-2000。

➢所有物料的SAP描述均不能超过40个字符(包括空格)。

一、普通单双排插针1.1SAP描述规范双排单塑插针2.54mm,2*14P,隔两排抽两排,针长16.5,深圳联颖①名称②脚间距③引脚数④（类型）⑤针尺寸⑥品牌①名称：单排单塑插针、双排单塑插针、单排双塑插针、双排双塑插针；②脚间距：一般为2.54mm或2mm；③引脚数：排数*单排引脚数；④（类型）：如抽针，个别针加长等情况的说明，无特殊的可不写；⑤针尺寸：针长表示针两头之间的长度。

若PC=3mm默认不写，此时单塑插针，只需要写出针长；双塑插针，则需要写明针长和PA面长度；a1.2典型示例描述单排单塑插针2.54mm,1*17P,PC=5,针长11.5,尤提乐对照图描述双排单塑插针2.54mm,2*16P,针长18,尤提乐对照图描述单排双塑插针2.54mm,1*4P,针长15.5,PA=PC=3,深圳联颖对照图描述双排双塑插针2.54mm,2*15P,针长27,PA=9,尤提乐对照图a PC面为针插入PCB的一端，PA面为远离PCB的一端。

接插件电子样本

接插件电子样本

连接电缆 / 电缆连接器
S
连接器尺寸
M8
08
M12
12
M23
23
芯数
3- 芯
3
4- 芯
4
5- 芯
5
11- 芯
B
19- 芯
J
连接头类型
母（插座）
F
公（插头）
M
电缆材料
电缆
无
PVC
V
PUR
U
TPE-S
A
电缆引出端
直头
G
弯头
W
电缆长度
无电缆
000
2 m （标配）
020
5m
050
10 m
100
电缆引出端
直头
尺寸 M12 M12 M12 M12 M12 M12 M12 M12 M12 M12 M12 M12 UNF1/2" UNF1/2" UNF1/2" UNF1/2" UNF1/2" UNF1/2"
插口
针脚 5芯 5芯 5芯 5芯 5芯 5芯 4芯 4芯 4芯 4芯 4芯 4芯 4芯 4芯 4芯 4芯 4芯 4芯
G
弯头
W
连接头类型
公（插头）
M
母（插座）
F
连接器尺寸
M8
08
M12
12
M23
23
连接器类型
常规
N
快速锁
Q
电缆 Φ4.0 - 5.1 mm
1
绞线 0.14-0.34 mm 2
2
电缆 Φ5.5 - 8.0 mm
3
应用
常规
N
食品
L
射频识别系统

常用接插件型号 图文 自己总结

常用接插件型号 图文 自己总结

常用接插件型号（图文）间距的叫SCN间距的叫SAN端子187端子护套2个间距公壳型号5557 母壳XH-8PFD-14P 间距ZH间距)EL特指间距，SM指间距DG1000-2P接插件LED显示屏/LED显示屏散件/P10半户外/16P排线压头 FC-16P接插件接插件间距 2*40P 双排针双排直针接插件针座端子接插件 SM 脚距线1007公端子接插件插簧插片铜接插件1+1接插件接插件DC3-10P接插件接插件间距对插接插件接插件焊接式公头 DB25接插件 EL 2P 条形连接器接插件接插件 RS232串口 DB9母头 DB9孔全铜接插件标准插簧插片护套元/套冷压接线端子两位接插件单排针，1*40P 排针接插件接插件焊接式公头 DB37 蓝色胶壳、针座、端子连接器、接插件系列接插件插件座间距fc-16P接插件KF/DG1000-2p 接插件/接插座/接线端子脚间距10MM接插件杜邦线20CM1P-1P2P接插件(脚间距DC3-10P 接插件下载座JST对插接插件母壳 2P（10个MOG接插件 l连接器 PH-2A针座(插座端子型车用连接器接插件线缆连接器连接件对接 2线串口头接插件DR9针式板载式焊接式弯针插座(母头) RS232杜邦（间距）双排胶壳，针座，端子连接器、接插件系列接插件KF2510-6P 间距接插件一套包括：头子+座子+簧片适配器适配座转换座 PLCC44转DIP40 PLCC-44芯(贴片)接插件航空插头连接器 GX16-2T（2芯）接插件接插件测试插头插座十字插香蕉插元一对红色接插件铜件两只脚焊板插片公端子接插件插簧插片铜橙色,接插件DB25 公头/针二排25芯接插头接插件FC-8P 排线头接插件间距一套插簧接插件铜件接插件白色插座 2510-3芯直脚KF2510端子接插件端子冷压头簧片5557 连接件接插件 8孔连线器插座塑料连接件对插件DC3-20P接插件端子）型车用连接器接插件接线器 4线连接件接插件间距一套接插件座子+线线长20CM接插件KF-4P 拔插式接线端子 KF2EDG 间距一套弯针SM-2P 对插锁紧接插件一套公壳+母壳+公簧片+母簧片USB A母连接头 A母插座 USB接插件接插件,连接器,针距端子座+插头+簧片一套PLCC 32贴片插座接插件连接器直插/插簧/插片/对插件/单线连接器/单线接插件航空插头/GX16-2芯/一套/ 电缆连接器接插件【不锈钢】16型高品质航插航空插头航空插座接插件电连接器 8芯防水对接端子防水对插连接器汽车防水接插件密封防水对插端子1套大号皮套鳄鱼夹电子接插件接线夹连线夹香蕉插座香蕉插头香蕉接头接插件测试接头B101连接器端子型/车用连接器/接插件/空中对接/摩托车 6PBNC插座铜镀金针BNC反接头 Q9头反接焊接方式摄像机视频接插件多孔接插件电子连接件车用电器连接插头插座 3孔4+1接插件双皇冠接插件－MINI USB座贴片迷你 MINI-5P 铁LED显示屏/LED显示屏散件/P10半户外/16P排线压头 FC-16P接插件接插件杜邦线20CM8P-8P香蕉插头质量好连接头测试头接插件 DIY电子实验制作配件连接器接插件SCSI68PIN双母头连接线接插件带护套接插件铜件连接器TJC3 XH-2AW(2位弯脚插座/90度)批发 P48-26芯大电流航空插头接头电缆接插件公母对接胶壳，端子，条形连接器，接插件，黑色，1套弯针接插件间距一套：插头+弯插座+端子 20MOG电源插头接插件电源座。

★常用接插件型号(图文)-自己总结

★常用接插件型号(图文)-自己总结

常用接插件型号（图文）2.54间距的叫SCN2.0间距的叫SAN端子187端子护套2个4.2间距公壳型号5557 母壳PH2.0XH-8PFD-14P 2.54间距CH3.96VH3.96ZH(1.5间距)EL特指4.5间距，SM指2.54间距DG1000-2P接插件LED显示屏/LED显示屏散件/P10半户外/16P排线压头FC-16P接插件接插件2.54间距2*40P 双排针双排直针5.08-301-2P 接插件针座端子接插件SM 脚距2.54 线1007 公端子接插件2.8插簧插片2.8MM 铜XH-2.54-2P接插件1+1接插件VH3.96-2P接插件DC3-10P接插件接插件间距4.5MM 对插接插件接插件焊接式公头DB25接插件EL 2P 条形连接器接插件CH3.96-5P接插件RS232串口DB9母头DB9孔全铜接插件标准6.3MM 插簧插片护套0.5元/套冷压接线端子5.0MM 两位接插件2.54单排针，1*40P 排针接插件2.54MM接插件焊接式公头DB37 蓝色PH2.0mm胶壳、针座、端子连接器、接插件系列XH2.54-3P接插件插件座间距2.54MMfc-16P接插件KF/DG1000-2p 接插件/接插座/接线端子脚间距10MM 接插件杜邦线20CM1P-1P2P接插件(脚间距5.08mm)DC3-10P 接插件下载座JST对插接插件母壳2P（10个MOG接插件l连接器2.0MM PH-2A针座(插座2.8端子型车用连接器接插件线缆连接器连接件对接2线串口头接插件DR9针式板载式焊接式弯针插座(母头) RS232杜邦（间距2.0mm）双排胶壳，针座，端子连接器、接插件系列接插件KF2510-6P 间距2.54接插件一套包括：头子+座子+簧片适配器适配座转换座PLCC44转DIP40 PLCC-44芯(贴片)接插件航空插头连接器GX16-2T（2芯）接插件接插件测试插头插座十字插香蕉插0.9元一对红色4.8接插件铜件两只脚焊板插片公端子接插件6.3插簧插片6.3MM 铜HT3.96-10P橙色,接插件DB25 公头/针二排25芯接插头接插件FC-8P 排线头接插件2.54间距一套6.3插簧接插件铜件接插件白色插座2510-3芯直脚KF2510端子接插件端子2.54MM冷压头簧片5557 连接件接插件8孔连线器插座塑料连接件对插件DC3-20P接插件6.3-4 (6.3端子）型车用连接器接插件接线器4线连接件XH2.54-2P接插件间距2.54MM 一套接插件XH2.54-10P 座子+线线长20CM接插件KF-4P 拔插式接线端子KF2EDG 间距5.08MM 一套弯针SM-2P 对插锁紧接插件一套公壳+母壳+公簧片+母簧片USB A母连接头A母插座USB接插件XH2.54-5P接插件,连接器,针距2.54MM 端子座+插头+簧片一套PLCC 32贴片插座接插件连接器4.8直插/插簧/插片/对插件/单线连接器/单线接插件航空插头/GX16-2芯/一套/ 电缆连接器接插件【不锈钢】16型高品质航插航空插头航空插座接插件电连接器8芯防水对接端子防水对插连接器汽车防水接插件密封防水对插端子1套大号皮套鳄鱼夹电子接插件接线夹连线夹香蕉插座香蕉插头香蕉接头接插件测试接头B101连接器2.8端子型/车用连接器/接插件/空中对接/摩托车6PBNC插座铜镀金针BNC反接头Q9头反接焊接方式摄像机视频接插件6.3多孔接插件电子连接件车用电器连接插头插座3孔4+1接插件双皇冠接插件－MINI USB座贴片迷你MINI-5P 铁LED显示屏/LED显示屏散件/P10半户外/16P排线压头FC-16P接插件接插件杜邦线20CM8P-8P香蕉插头质量好连接头测试头接插件DIY电子实验制作配件连接器接插件SCSI68PIN双母头连接线接插件6.3带护套接插件铜件连接器TJC3 2.54 XH-2AW(2位弯脚插座/90度)批发P48-26芯大电流航空插头接头电缆接插件SM2.5-3P公母对接胶壳，端子，条形连接器，接插件，黑色，1套弯针XH2.54-2P接插件间距2.54MM 一套：插头+弯插座+端子20MOG 电源插头接插件电源座。

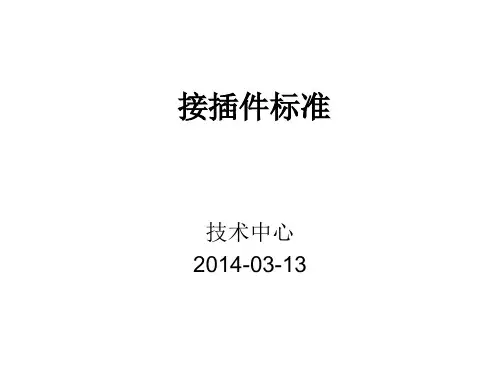

接插件标准

接插件标准
公称尺 寸 0.110X0. 020凹槽 0.110X0. 020孔 0.110X0. 032凹槽 0.110X0. 032孔 0.125X0. 032凹槽 0.125X0. 032 0.125X0. 020凹槽 0.125X0. 020孔 0.187X0. 020凹槽 A 0.024 0.012 0.024 0.012 0.024 0.012 0.024 0.012 0.025 0.015 0.025 0.015 0.025 0.015 0.025 0.015 0.035 0.024 B（min） 0.275 0.275 0.275 0.275 0.275 0.275 0.275 0.275 0.244 0.244 0.244 0.244 0.244 C 0.021 0.019 0.021 0.019 0.033 0.030 0.033 0.030 0.033 0.031 0.033 0.031 0.021 0.019 0.021 0.019 0.021 0.019 D 0.114 0.106 0.114 0.106 0.114 0.106 0.114 0.106 0.128 0.122 0.128 0.122 0.128 0.122 0.128 0.122 0.190 0.181 E1 0.071 0.051 0.071 0.051 0.071 0.051 0.071 0.051 0.070 0.056 0.070 0.056 0.070 0.056 0.070 0.056 0.110 0.091 E2 0.221 0.215 0.221 0.215 0.221 0.215 0.221 0.215 0.221 0.215 0.221 0.215 0.221 0.215 0.221 0.215 0.153 0.147 F 0.051 0.042 0.051 0.042 0.051 0.043 0.051 0.043 0.051 0.045 0.051 0.045 0.051 0.045 0.051 0.045 0.060 0.050 J 12º 8º 12º 8º 12º 8º 12º 8º 12º 8º 12º 8º 12º 8º 12º 8º 12º 8º 0.067 0.055 0.059 0.047 0.067 0.057 0.053 0.043 0.067 0.057 0.053 0.043 0.067 0.055 0.055 0.039 M 0.067 0.055 N 0.055 0.039 P 0.055 0.021 0.055 0.021 0.055 0.012 0.055 0.012 0.055 0.0.15 0.055 0.0.15 0.055 0.015 0.055 0.015 0.067 0.024 Q（min） 0.319 0.319 0.319 0.319 0.320 0.320 0.320 0.320 0.287 0.287 0.287 0.287 0.287

常用电器元器件安装尺寸1.31

常用电器元器件安装尺寸1.31
常用电器元器件安装尺寸
序号
设备名称
品牌
规格型号
安装尺寸
（长X宽）mm
备注
1
空开
施耐德、正泰
1P /1-63A
80X18
施耐德、正泰
2P /1-63A
80X36
施耐德、正泰
3P /1-63A
80X54
施耐德、正泰
4P /1-63A
80X72
2
空开+漏保
施耐德
1P+N /1-63A
90X54
施耐德
2P /1-63A
8
小继电器
HSINDA
943-1C-5V/12V/24V
19X15
9
继电器板卡
中泰
PS002
205X115
10
接线端子
友邦
UKJ-2.5
43X5
UKJ-4
43X6.2
UKJ-6
43X8.2
11
走线槽
30X25
宽X高
30X30
30X40
40X30
40X40
126X57
正泰
CJX2-4011…6511（3主）+JRS1-40…80（插入式）
180X77
5
中间继电器底座
施耐德
经济型RXZE1M2C
72X22
2PLeabharlann 施耐德经济型RXZE1M4C
72X29
4P
施耐德
分离式RXZE2S108M
79X27
2P
施耐德
分离式RXZE2S114M
79X27
4P
施耐德
分离式RXZE2S111M
2P

★常用接插件型号(图文)-自己总结

★常用接插件型号(图文)-自己总结
接插件插件座间距
fc-16P接插件
KF/DG1000-2p接插件/接插座/接线端子脚间距10MM
接插件杜邦线20CM1P-1P
2P接插件(脚间距
DC3-10P接插件下载座
JST对插接插件母壳2P（10个MOG
接插件l连接器针座(插座
端子型车用连接器接插件线缆连接器连接件对接2线
串口头接插件DR9针式板载式焊接式弯针插座(母头)RS232
接插件带护套接插件铜件
连接器(2位弯脚插座/90度)
批发P48-26芯大电流航空插头接头电缆接插件
公母对接胶壳，端子，条形连接器，接插件，黑色，1套
弯针接插件间距一套：插头+弯插座+端子20MOG
电源插头接插件电源座
16型高品质航插航空插头航空插座接插件电连接器8芯
防水对接端子防水对插连接器汽车防水接插件密封防水对插端子1套
大号皮套鳄鱼夹电子接插件接线夹连线夹
香蕉插座香蕉插头香蕉接头接插件测试接头B101
连接器端子型/车用连接器/接插件/空中对接/摩托车6P
BNC插座铜镀金针BNC反接头Q9头反接焊接方式摄像机视频接插件
橙色,接插件
DB25公头/针二排25芯接插头 接插件
FC-8P排线头接插件间距一套
插簧接插件铜件
接插件白色插座2510-3芯直脚
KF2510端子接插件端子冷压头簧片
5557连接件接插件8孔连线器插座塑料连接件对插件
DC3-20P接插件
端子）型车用连接器接插件接线器4线连接件
接插件间距一套
接插件座子+线线长20CM
多孔接插件电子连接件车用电器连接插头插座3孔
4+1接插件
双皇冠接插件－MINI USB座贴片迷你MINI-5P铁

导线,接线片,销钉查件号

导线,接线片,销钉查件号

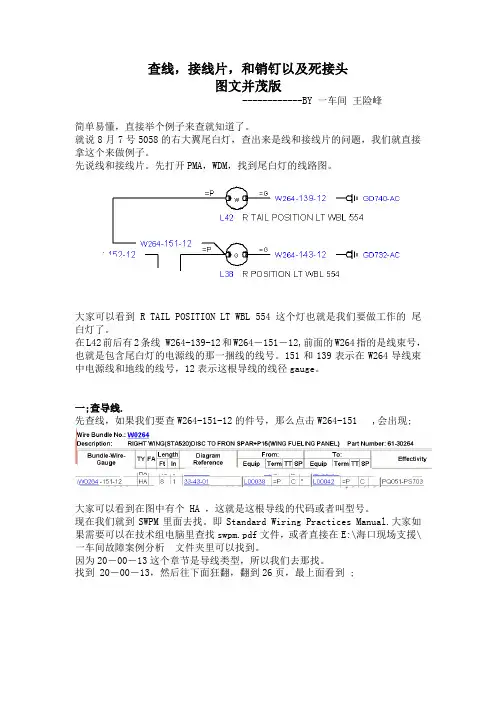

查线，接线片，和销钉以及死接头图文并茂版------------BY 一车间王险峰简单易懂，直接举个例子来查就知道了。

就说8月7号5058的右大翼尾白灯，查出来是线和接线片的问题，我们就直接拿这个来做例子。

先说线和接线片。

先打开PMA，WDM，找到尾白灯的线路图。

大家可以看到R TAIL POSITION LT WBL 554 这个灯也就是我们要做工作的尾白灯了。

在L42前后有2条线 W264-139-12和W264－151－12,前面的W264指的是线束号，也就是包含尾白灯的电源线的那一捆线的线号。

151和139表示在W264导线束中电源线和地线的线号，12表示这根导线的线径gauge。

一;查导线.先查线，如果我们要查W264-151-12的件号，那么点击W264-151 ,会出现;大家可以看到在图中有个 HA ，这就是这根导线的代码或者叫型号。

现在我们就到SWPM里面去找。

即Standard Wiring Practices Manual.大家如果需要可以在技术组电脑里查找swpm.pdf文件，或者直接在E:\海口现场支援\一车间故障案例分析文件夹里可以找到。

因为20－00－13这个章节是导线类型，所以我们去那找。

找到 20－00－13，然后往下面狂翻，翻到26页，最上面看到 ;这就是对HA线的解释。

大家可以看到 BMS 13-60 Type 7 Class 1.我们要查的线是W264-151-12，线径是12，那么这个线的件号就是BMS13-60T7C1G12 G是指线径gauge。

二;查接线片;现在查接线片。

还是上图，我们找尾白灯的接线片，发现有2根线w264-151-12和w264-139-12，2根线前分别有=p和＝G，P代表POWER，G代表GROUD，在SWPM20-30-11中，给出了波音系列飞机使用的各种接线片的件号，但是接线片件号的最终确定，还要结合WDM打开WDM，找到w264-151-12和w264-139-12显示的2根线具体数据。

常用接插件尺寸查询手册

常用接插件尺寸查询手册

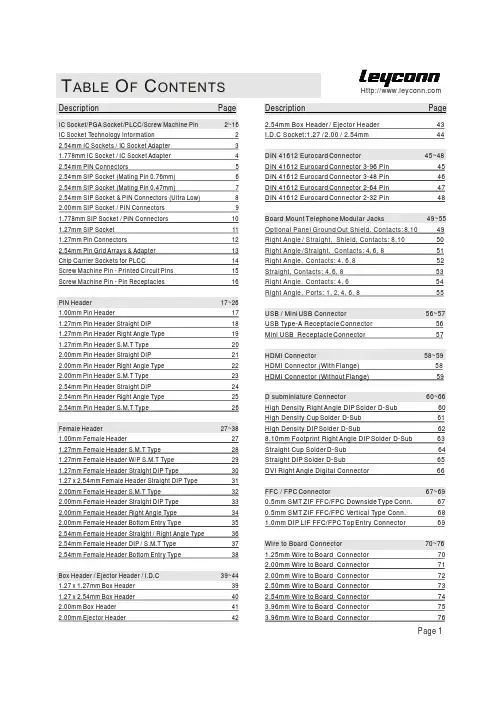

T ABLE O F C ONTENTSPage 1Description PageIC Socket/PGA Socket/PLCC/Screw Machine Pin 2~16IC Socket Technology Information22.54mm IC Sockets / IC Socket Adapter 31.778mm IC Socket / IC Socket Adapter 42.54mm PIN Connectors52.54mm SIP Socket (Mating Pin 0.76mm) 62.54mm SIP Socket (Mating Pin 0.47mm)72.54mm SIP Socket & PIN Connectors (Ultra Low)82.00mm SIP Socket / PIN Connectors 91.778mm SIP Socket / PIN Connectors 101.27mm SIP Socket 111.27mm Pin Connectors122.54mm Pin Grid Arrays & Adapter 13Chip Carrier Sockets for PLCC14Screw Machine Pin - Printed Circuit Pins 15Screw Machine Pin - Pin Receptacles 16PIN Header17~261.00mm Pin Header171.27mm Pin Header Straight DIP 181.27mm Pin Header Right Angle Type 191.27mm Pin Header S.M.T Type 202.00mm Pin Header Straight DIP 212.00mm Pin Header Right Angle Type 222.00mm Pin Header S.M.T Type 232.54mm Pin Header Straight DIP 242.54mm Pin Header Right Angle Type 252.54mm Pin Header S.M.T Type26Female Header27~381.00mm Female Header271.27mm Female Header S.M.T Type 281.27mm Female Header W/P S.M.T Type 291.27mm Female Header Straight DIP Type301.27 x 2.54mm Female Header Straight DIP Type 312.00mm Female Header S.M.T Type322.00mm Female Header Straight DIP Type 332.00mm Female Header Right Angle Type 342.00mm Female Header Bottom Entry Type352.54mm Female Header Straight / Right Angle Type 362.54mm Female Header DIP / S.M.T Type 372.54mm Female Header Bottom Entry Type 38Box Header / Ejector Header / I.D.C 39~441.27 x 1.27mm Box Header 391.27 x 2.54mm Box Header 402.00mm Box Header 412.00mm Ejector Header42Description Page2.54mm Box Header / Ejector Header 43I.D.C Socket:1.27 / 2.00 / 2.54mm 44DIN 41612 Eurocard Connector 45~48DIN 41612 Eurocard Connector 3-96 Pin 45DIN 41612 Eurocard Connector 3-48 Pin 46DIN 41612 Eurocard Connector 2-64 Pin 47DIN 41612 Eurocard Connector 2-32 Pin 48Board Mount Telephone Modular Jacks 49~55 49 50 51 52S 53 54 55USB / Mini USB Connector 56~57USB Type-A Receptacle Connector 56Mini USB Receptacle Connector 57HDMI Connector 58~59HDMI Connector (With Flange) 58HDMI Connector (Without Flange) 59D subminiature Connector 60~66High Density Right Angle DIP Solder D-Sub 60High Density Cup Solder D-Sub 61High Density DIP Solder D-Sub 628.10mm Footprint Right Angle DIP Solder D-Sub 63Straight Cup Solder D-Sub 64Straight DIP Solder D-Sub 65DVI Right A ngle Digital Connector 66FFC / FPC Connector 67~690.5mm SMT ZIF FFC/FPC Downside Type Conn. 670.5mm SMT ZIF FFC/FPC Vertical Type Conn. 681.0mm DIP LIF FFC/FPC Top Entry Connector 69Wire to Board Connector 70~761.25mm Wire to Board Connector 702.00mm Wire to Board Connector 712.00mm Wire to Board Connector 722.50mm Wire to Board Connector 732.54mm Wire to Board Connector 743.96mm Wire to Board Connector 753.96mm Wire to Board Connector 76Optional Panel Ground Out Shield, Contacts: 8,10 Right Angle / Straight, Shield, Contacts: 8,10Right Angle /Straight, Contacts: 4, 6, 8Right Angle, Contacts: 4, 6, 8traight, Contacts: 4, 6, 8Right Angle, Contacts: 4, 6Right Angle, Ports: 1, 2, 4, 6, 8IC socket / PCB Connectors/ PGA Socket / PLCC SocketPitch:2.54mm / 2.00m / 1.778mm /1.27mm / 1.00mmDue to technical progress, all the information provided is subject to change without prior notice. Page 2IC SocketPitch:2.54mmIC Solder AdapterSolder Type, SMT Type, Wire-WrapTechnical Specs:Insulator: Black glass filled polyester PBT-GF30-FR Flammability: UL 94V-OPIN(Sleeve): Brass CuZn36Pb3 (C36000)Contact clip (4 finger): Beryllium copper (C17200)Accepted pin : 0.40 to 0.56 mmForces(IC Socket): (polished steel gauge 0.43 mm) -- Insertion 2 N typ. -- Withdrawal 1 N typ.Mechanical life: min 500 cycles Rated current: 1 AContact resistance: max 10 mDielectric strength: min 1000 V RMS5263.5022.8666.0425.4081.286478.7422.8625.402833.0215.2435.5640.6445.7250.8053.3460.9663.5066.0463.50525048503640423258.4260.9663.5060.9615.2422.8615.2415.2438.1043.1848.2650.8015.2415.2415.2415.2440.6430.48322438.1027.9410.1615.2417.7817.7825.4017.7817.7817.7817.7817.7817.7812.7017.78Dim A Contact Dim B Dim CDim D IC SocketWire - WrapPage 3Due to technical progress, all the information provided is subject to change without prior notice.Technical Specs:Insulator: Black glass filled polyester PBT-GF30-FR Flammability: UL 94V-OPIN (Sleeve): Brass CuZn36Pb3 (C36000)Rated current: 1 AContact resistance: max 10 m1000 V RMSAccepted pin :0.40 to 0.56 mmForces: (polished steel gauge 0.43 mm)-- Insertion 2 N typ.-- Withdrawal 1 N typ.Mechanical life: min 100 cyclesIC Socket:Poles A B C16 14.6 7.62 10.128 25.2 10.16 12.730 27.0 10.16 12.732 28.8 10.16 12.748 43.1 10.16 12.720 18.1 15.24 17.6424 21.7 15.24 17.6428 25.2 15.24 17.6440 35.8 15.24 17.6442 37.7 15.24 17.6448 43.1 15.24 17.6452 46.7 15.24 17.6456 50.2 15.24 17.6464 57.3 15.24 17.6468 60.9 15.24 17.6464* 57.3 19.05 21.5 IC Socket Adapter:IC Socket - Solder Type Pitch:1.778mmIC Socket Adapter - Solder Type Pitch:1.778mmPage 4Due to technical progress, all the information provided is subject to change without prior notice.Flammability: UL 94V-OContact: Brass CuZn36Pb3 (C36000)Connecting pins : 0.47 mmMechanical life: min 500 cycles Rated current: 3 ADielectric strength: min1000 V RMSPage 5Due to technical progress, all the information provided is subject to change without prior notice.Flammability: UL 94V-OSleeve: Brass CuZn36Pb3 (C36000)Contact clip (6 finger): Beryllium copper (C17200)Mating pins:0.70 to 0.90 mm, 0.635 mm Forces: (polished steel gauge 0.76 mm)-- Insertion 2 N typ.-- Withdrawal 1 N typ.Mechanical life: min 500 cycles Rated current: 3 AContact resistance: max 10 mDielectric strength: min 1000 V RMSCoplanarity SMD max 0.1 mm (measured on terminations: 25 mmlong connectors)Page 6Due to technical progress, all the information provided is subject to change without prior notice.2Number of Contacts:Single row = 01 to 40Double row=02 to 803Dip Spacing:0=Single row 1=Double rowOrdering Code2XX 3X 4X 576X 7XX11411Series No.:141=SIP Socket6Plated(Sleeve / Contact):0 = Tin 200u" / Tin 200u"1 = Tin 200u" / Gold Flash 2 = Tin 200u" / Gold 5u"3 = Tin 200u" / Gold 15u"4 = Tin 200u" / Gold 30u"5 = Gold Flash / Gold Flash 5Insulator Height 7=7.00mm4Tail & Mounting Style:S=Straight DIP Type M=Straight S.M.T Type R =Right A ngle Type 7Pin TypeSee Page 15~16Flammability: UL 94V-OSleeve: Brass CuZn36Pb3 (C36000)Contact clip (6 finger): Beryllium copper (C17200)Mating pins:0.40 to 0.56 mmForces: (polished steel gauge 0.43 mm)-- Insertion 2 N typ.-- Withdrawal 1 N typ.Mechanical life: min 500 cycles Rated current: 3 AContact resistance: max 10 mDielectric strength: min 1000 V RMSCoplanarity SMD max 0.1 mm (measured on terminations: 25 mmlong connectors)Page 7Due to technical progress, all the information provided is subject to change without prior notice.2Number of Contacts:Single row = 01 to 40Double row=02 to 803Dip Spacing:0=Single row 1=Double rowOrdering Code2XX 3X 4X 5X 6X 7XX11411Series No.:141=SIP Socket6Plated(Sleeve / Contact):0 = Tin 200u" / Tin 200u"1 = Tin 200u" / Gold Flash 2 = Tin 200u" / Gold 5u"3 = Tin 200u" / Gold 15u"4 = Tin 200u" / Gold 30u"5 = Gold Flash / Gold Flash 5Insulator Height 3=3.00mm4Tail & Mounting Style:S=Straight DIP Type M=Straight S.M.T T ype R =Right A ngle Type 7Pin TypeSee Page 15~16Flammability: UL 94V-OSleeve: Brass CuZn36Pb3 (C36000)Contact clip (6 finger): Beryllium copper (C17200)Mating pins:0.40 to 0.56 mmForces: (polished steel gauge 0.43 mm)-- Insertion 2 N typ.-- Withdrawal 1 N typ.Mechanical life: min 500 cycles Rated current: 3 AContact resistance: max 10 mDielectric strength: min1000 V RMSPage 8Due to technical progress, all the information provided is subject to change without prior notice.2Number of Contacts:Single row = 01 to 40Double row=02 to 803Dip Spacing:0=Single row 1=Double rowOrdering Code2XX 3X 4X 5X 6X 7XX11411Series No.:141=SIP Socket6Plated(Sleeve / Contact):0 = Tin 200u" / Tin 200u"1 = Tin 200u" / Gold Flash 2 = Tin 200u" / Gold 5u"3 = Tin 200u" / Gold 15u"4 = Tin 200u" / Gold 30u"5 = Gold Flash / Gold Flash 5Insulator Height 1=1.30mm 2=1.90mm4Tail & Mounting Style:S=Straight DIP Type M=Straight S.M.T Type R =Right A ngle Type 7Pin TypeSee Page 15~16Flammability: UL 94V-OSleeve: Brass CuZn36Pb3 (C36000)Contact clip (6 finger): Beryllium copper (C17200)Mating pins:0.40 to 0.56 mmForces(SIP Socket): (polished steel gauge 0.43 mm) -- Insertion 2 N typ. -- Withdrawal 1 N typ.Mechanical life: min 500 cycles Rated current: 3 AContact resistance: max 10 mDielectric strength: min1000 V RMSPage 9Due to technical progress, all the information provided is subject to changewithout prior notice.Flammability: UL 94V-OSleeve: Brass CuZn36Pb3 (C36000)Contact clip (6 finger): Beryllium copper (C17200)Mating pins:0.40 to 0.56 mmForces(SIP Socket): (polished steel gauge 0.43 mm) -- Insertion 2 N typ. -- Withdrawal 1 N typ.Mechanical life: min 500 cycles Rated current: 3 AContact resistance: max 10 mDielectric strength: min1000 V RMSPage 10Due to technical progress, all the information provided is subject to change without prior notice.2Number of Contacts:Single row = 01 to 40Double row=02 to 803Dip Spacing:0=Single row 1=Double rowOrdering Code2XX 3X 4X 536X 7XX11X71Series No.:147=SIP Socket Pitch:1.778mm137=PIN Connectors Pitch:1.778mm6Plated(Sleeve / Contact):0 = Tin 200u" / Tin 200u"1 = Tin 200u" / Gold Flash 2 = Tin 200u" / Gold 5u"3 = Tin 200u" / Gold 15u"4 = Tin 200u" / Gold 30u"5 = Gold Flash / Gold Flash 6 = Gold 3u" / Gold 3u"7 = Gold 5u" / Gold 5u"8 = Gold 10u" / Gold 10u"5Insulator Height 3=3.00mm 4Tail & Mounting Style:S=Straight DIP Type M=Straight S.M.T Type R =Right A ngle Type 7Pin TypeSee Page 15~16Flammability: UL 94V-OSleeve: Brass CuZn36Pb3 (C36000)Contact clip (6 finger): Beryllium copper (C17200)Mating pins:0.38 to 0.50 mmForces: (polished steel gauge 0.41 mm) -- Insertion 0.5 N typ. -- Withdrawal 0.2 N typ.Mechanical life: min 500 cycles Rated current: 1 AContact resistance: max 20 m Dielectric strength: min 500 V RMSCoplanarity SMD max 0.1 mm (measured on terminations: 25 mmlong connectors)Page 11Due to technical progress, all the information provided is subject to change without prior notice.Flammability: UL 94V-OContact: Brass CuZn36Pb3 (C36000)Contact pin:•0.41mm Mechanical life: min 500 cycles Rated current: 1 ADielectric strength: min 1000 V RMS Coplanarity SMDterminations: max 0.1 mm (measured on 25 mm longconnectors)Page 12Due to technical progress, all the information provided is subject to change without prior notice.2Number of Contacts:Single row = 01 to 40Double row=02 to 803Dip Spacing:0=Single row 1=Double rowOrdering Code2XX 3X 4X 546X 7XX11331Series No.:133=PIN Connectors Pitch:1.27mm5Insulator Height 2=2.20mm 2=1.90mm 4Tail & Mounting Style:S=Straight DIP Type M=Straight S.M.T T ype R =Right A ngle Type 7Pin TypeSee Page 15~166PIN Plated:0 = Tin 200u" / Tin 200u"5 = Gold Flash / Gold Flash 6 = Gold 3u" / Gold 3u"7 = Gold 5u" / Gold 5u"8 = Gold 10u" / Gold 10u"Pin grid array Socket & AdapterPitch:2.54mmSolder TypeTechnical Specs:Insulator: Black glass filled polyester PBT-GF30-FRFlammability: UL 94V-OSleeve: Brass CuZn36Pb3 (C36000)Contact clip (4 finger): Beryllium copper (C17200)Accepted pin: 0.40 to 0.56 mmForces: (polished steel gauge 0.46 mm)-- Insertion 0.7 N typ.-- Withdrawal 0.4 N typ.Mechanical life: min 100 cyclesRated current: 1 AContact resistance: max 10 mDielectric strength: min 1000 V RMSCalculate with n1 = number of contacts in one line andn2 = characteristic size of the windowA = n1x2.54B = (n1-1)x2.54C = (n2x2.54)-0.40PGA basic body 11X11Number of contacts: 68PGA basic body 13X13Number of contacts: 84PGA basic body 13X13Number of contacts: 121PGA basic body 14X14Number of contacts: 132PGA basic body 17X17Number of contacts: 241PGA basic body 17X17Number of contacts: 169PGA basic body 16X16Number of contacts: 156PGA basic body 15X15Number of contacts: 145PGA basic body 20X20Number of contacts: 400PGA basic body 19X19Number of contacts: 306PGA basic body 19X19Number of contacts: 238PGA basic body 18X18Number of contacts: 225Ordering Code2XXX3X4X5XX6X115X2Number of Contacts:068=68 Pin306=306 Pin......1Series No.:152=Pitch 2.54mm PGA Socket151=Pitch 2.54mm PGA Socket Adapter3PGA basic body sizel:...... 7=7X78=8X8 9=9X90=10X10 A=11X11B=12X12 C=13X13D=14X14 E=15X15......4Insulator Material:1 =2 = PPSFR-4Page 13 Due to technical progress, all the information provided is subject to change without prior notice.6Plated(Sleeve / Contact):0 = Tin 200u" / Tin 200u"1 = Tin 200u" / Gold Flash2 = Tin 200u" / Gold 5u"3 = Tin 200u" / Gold 15u"4 = Tin 200u" / Gold 30u"5 = Gold Flash / Gold Flash6 = Gold 3u" / Gold 3u"7 = Gold 5u" / Gold 5u"8 = Gold 10u" / Gold 10u"7Pin TypeSee Page 15~16PLCC SocketSockets for Plastic Leaded Chip CarriersSMT Terminations / Sollder TypeTechnical Specs:Insulator: Black glass filled polyester PPS-GF30-FRFlammability: UL 94V-OContact: Phosphor bronzeContact pressure: min 1.5 N per contactMechanical life: min 50 cyclesRated current: 1 AContact resistance: max 20 mDielectric strength: min 600 V RMSInsulation resistance: min 5000 MCapacitance: max 2 pFCoplanarity SMDterminations: max 0.1 mmOrdering Code2XX3X45X6X7811296Height over PC Board0=3.80mm1=4.15mm2=4.60mm78Customer Request2Number of Contacts:20,28,32,44,52,68,841Series No.:129=PLCC Chip Carrier Socket5 Packing method:0 = Tube1 = T ape Reel3Tail& Mounting Style:S = Straight DIP TypeM = Straight S.M.T T ype4Body Color:1=BrownPage 14Due to technicalprogress, all the information provided is subject to change without prior notice.SCREW MACHINE PINS----Printed Circuit PinsDue to technical progress, all the information provided is subject to change without prior notice.Page 15SCREW MACHINE PINS----Pin ReceptaclesDue to technical progress, all the information provided is subject to change without prior notice. Page 16SPECIFICATIONS:Current Rating: 1.0 AMPContact Resistance: 30m Max Insulation Resistance: 500M Min Withstand V oltage: 500V AC/minute Operation T emperature: -40 to +105Max Process T emp: 230 for 30~60 secretary.MATERIALS:Contact Material: BrassContact Plating: Gold or Tin over 50Ni Insulator Material: Polyester(UL94V-0) Standard: LCPOrdering CodeSeries No.:3= Pin Header10XXX 918X 7X 6X 5XX 4X 3X 25131Pitch: 5= 1.00mm2Dip Spacing:1=Single row 2=Double row 4Number of Contacts:Single row = 01 to 50Double row=02 to 98 x0=100pin 5Insulator Height: 1 = 1.00mm 5 = 1.50mm3Contact Plated0=Tin 1=Gold Flash 2=Gold 3u" 3=Gold 5u"4=Gold 10u" 5=Gold 15u"6= Gold 30u"7Tail & Mounting Style:S=Straight DIP type M=Straight SMT type6Material Type0=PPS 3=Nylon-66 1=PBT 4=Nylon-6T 2=LCP 5=P A468Tiers of Body 1 = Single tier 2 = Double tier 3 = T riple tier9Pin LengthXXX=A+H+C10Page 17Due to technicalprogress, all the information provided is subject to change without prior notice.SPECIFICATIONS:Current Rating: 1.0 AMPContact Resistance: 30m Max Insulation Resistance: 1000M Min Withstand Voltage: 300VAC/minute Operation Temperature: -40 to +105MATERIALS:Contact Material: BrassContact Plating: Gold or Tin over 50Ni Insulator Material: Polyester(UL94V-0) Standard: PA 46••Ordering CodeSeries No.:3= Pin Header10XXX 9X 857X 6S 5XX 4X 3X 23131Pitch: 3= 1.27mm2Dip Spacing:1=Single row 2=Double row 4Number of Contacts:Single row = 01 to 50Double row=02 to 98 x0=100Pin 5Insulator Height:1 = 1.00mm2 = 2.00mm3 = 2.50mm 5 = 1.50mm 6 = 1.60mm 7 = 1.70mm 8 = 0.80mm 9 = 0.65mm3Contact Plated 0=Tin1=Gold Flash 2=Gold 3u" 3=Gold 5u"4=Gold 10u"5=Gold 15u"6= Gold 30u"7Tail & Mounting Style:S=Straight DIP type6Material Type 2=LCP 3=Nylon-664=Nylon-6T 5=PA468Tiers of Body 1 = Single tier 2 = Double tier 3 = T riple tier9Pin LengthXXX=A+B+C10Page 18Due to technical progress, all the information provided is subject to changewithout prior notice.SPECIFICATIONS:Current Rating: 1.0 AMPContact Resistance: 30m Max Insulation Resistance: 1000M Min Withstand Voltage: 300VAC/minute Operation T emperature: -40 to +105MATERIALS:Contact Material: BrassContact Plating: Gold or Tin over 50Ni Insulator Material: Polyester(UL94V-0) Standard: PA 46••Ordering CodeSeries No.:3= Pin Header10XXX 91857X 6R 5XX 4X 3X 23131Pitch: 3= 1.27mm2Dip Spacing:1=Single row 2=Double row 4Number of Contacts:Single row = 01 to 50Double row=02 to 98 x0=100Pin 5Insulator Height:1 = 1.00mm2 = 2.00mm3 = 2.50mm 5 = 1.50mm 6 = 1.60mm 7 = 1.70mm 8 = 0.80mm 9 = 0.65mm3Contact Plated 0=Tin1=Gold Flash 2=Gold 3u" 3=Gold 5u"4=Gold 10u"5=Gold 15u"6= Gold 30u"7Tail & Mounting Style:R=Right Angle DIP T ype6Material Type 2=LCP 3=Nylon-664=Nylon-6T 5=PA468Tiers of Body 1 = Single tier 2 = Double tier 3 = T riple tier9Pin LengthXXX=A+H+C10Page 19Due to technical progress, all the information provided is subject to changewithout prior notice.SPECIFICATIONS:Current Rating: 1.0 AMPContact Resistance: 30m Max Insulation Resistance: 1000M Min Withstand Voltage: 300VAC/minute Operation Temperature: -40 to +105MATERIALS:Contact Material: BrassContact Plating: Gold or Tin over 50Ni Insulator Material: Polyester(UL94V-0) Standard: PA 46••Ordering CodeSeries No.:3= Pin Header10XXX 9X 8X 7X 6M 5XX 4X 3X 23131Pitch: 3= 1.27mm2Dip Spacing:1=Single row 2=Double row 4Number of Contacts:Single row = 01 to 50Double row=02 to 98 x0=100Pin 5Insulator Height:1 = 1.00mm2 = 2.00mm3 = 2.50mm 5 = 1.50mm 6 = 1.60mm 7 = 1.70mm 8 = 0.80mm 9 = 0.65mm3Contact Plated 0=Tin1=Gold Flash 2=Gold 3u" 3=Gold 5u"4=Gold 10u"5=Gold 15u"6= Gold 30u"7Tail & Mounting Style:M=Straight SMT type6Material Type 2=LCP 3=Nylon-664=Nylon-6T 5=PA468Tiers of Body 1 = Single tier 2 = Double tier 3 = T riple tier9Pin LengthXXX=A+B+C10Page 20Due to technical progress, all the information provided is subject to changewithout prior notice.SPECIFICATIONS:Current Rating: 2.0 AMPContact Resistance: 30m Max Insulation Resistance: 1000M Min Withstand Voltage: 500VAC/minute Operation T emperature: -40 to +105MATERIALS:Contact Material: BrassContact Plating: Gold or Tin over 50Ni Insulator Material: Polyester(UL94V-0) Standard: PA46••Ordering CodeSeries No.:3= Pin Header10XXX 9X 8X 7X 6S 5XX 4X 3X 22131Pitch: 2= 2.00mm2Dip Spacing:1=Single row 2=Double row 4Number of Contacts:Single row = 01 to 40Double row=02 to 80 5Insulator Height: 2 = 2.00mm 5 = 1.50mm3Contact Plated0=Tin 1=Gold Flash 2=Gold 3u" 3=Gold 5u"4=Gold 10u" 5=Gold 15u"6= Gold 30u"7Tail & Mounting Style:S=Straight DIP type6Material Type0=PPS 3=Nylon-66 1=PBT 4=Nylon-6T 2=LCP 5=P A468Tiers of Body 1 = Single tier 2 = Double tier 3 = T riple tier9Pin LengthXXX=A+B+C10Page 21Due to technical progress, all the information provided is subject to changewithout prior notice.SPECIFICATIONS:Current Rating: 2.0 AMPContact Resistance: 30m Max Insulation Resistance: 1000M Min Withstand Voltage: 500VAC/minute Operation Temperature: -40 to +105MATERIALS:Contact Material: BrassContact Plating: Gold or Tin over 50Ni Insulator Material: Polyester(UL94V-0) Standard: PA46••Ordering CodeSeries No.:3= Pin Header10XXX 918X 7X 6R 5XX 4X 3X 22131Pitch: 2= 2.00mm2Dip Spacing:1=Single row 2=Double row 4Number of Contacts:Single row = 01 to 40Double row=02 to 80 5Insulator Height: 2 = 2.00mm 5 = 1.50mm3Contact Plated0=Tin 1=Gold Flash 2=Gold 3u" 3=Gold 5u"4=Gold 10u" 5=Gold 15u"6= Gold 30u"7Tail & Mounting Style:R=Right Angle DIP T ype6Material Type0=PPS 3=Nylon-66 1=PBT 4=Nylon-6T 2=LCP 5=P A468Tiers of Body 1 = Single tier 2 = Double tier 3 = T riple tier9Pin LengthXXX=A+H+C10Page 22Due to technical progress, all the information provided is subject to changewithout prior notice.SPECIFICATIONS:Current Rating: 2.0 AMPContact Resistance: 30m Max Insulation Resistance: 1000M Min Withstand Voltage: 500VAC/minute Operation T emperature: -40 to +105MATERIALS:Contact Material: BrassContact Plating: Gold or Tin over 50Ni Insulator Material: Polyester(UL94V-0) Standard: PA 46••Ordering CodeSeries No.:3= Pin Header10XXX 9X 8X 7X 6M 5XX 4X 3X 22131Pitch: 2= 2.00mm2Dip Spacing:1=Single row 2=Double row 4Number of Contacts:Single row = 01 to 40Double row=02 to 80 5Insulator Height: 2 = 2.00mm 5 = 1.50mm3Contact Plated0=Tin 1=Gold Flash 2=Gold 3u" 3=Gold 5u"4=Gold 10u" 5=Gold 15u"6= Gold 30u"7Tail & Mounting Style:M=Straight SMT type6Material Type0=PPS 3=Nylon-66 1=PBT 4=Nylon-6T 2=LCP 5=P A468Tiers of Body 1 = Single tier 2 = Double tier 3 = T riple tier9Pin LengthXXX=A+B+C10Page 23Due to technical progress, all the information provided is subject to changewithout prior notice.SPECIFICATIONS:Current Rating: 3.0 AMPContact Resistance: 30m Max Insulation Resistance: 1000M Min Withstand Voltage: 600VAC/minute Operation T emperature: -40 to +105MATERIALS:Contact Material: BrassContact Plating: Gold or Tin over 50Ni Insulator Material: Polyester(UL94V-0) Standard: PBT••Ordering CodeSeries No.:3= Pin Header10XXX 9X 8X 7X 6S 5XX 4X 3X 21131Pitch: 1= 2.54mm2Dip Spacing:1=Single row 2=Double row 4Number of Contacts:Single row = 01 to 40Double row=02 to 80 5Insulator Height: 3 = 2.50mm 5 = 1.50mm3Contact Plated0=Tin 1=Gold Flash 2=Gold 3u" 3=Gold 5u"4=Gold 10u" 5=Gold 15u"6= Gold 30u"7Tail & Mounting Style:S=Straight DIP Type6Material Type0=PPS 3=Nylon-66 1=PBT 4=Nylon-6T 2=LCP 5=P A468Tiers of Body 1 = Single tier 2 = Double tier 3 = T riple tier9Pin LengthXXX=A+B+C10Page 24Due to technical progress, all the information provided is subject to changewithout prior notice.SPECIFICATIONS:Current Rating: 3.0 AMPContact Resistance: 30m Max Insulation Resistance: 1000M Min Withstand Voltage: 600VAC/minute Operation T emperature: -40 to +105MATERIALS:Contact Material: BrassContact Plating: Gold or Tin over 50Ni Insulator Material: Polyester(UL94V-0) Standard: PBT••Ordering CodeSeries No.:3= Pin Header10XXX 918X 7X 6R 5XX 4X 3X 21131Pitch: 1= 2.54mm2Dip Spacing:1=Single row 2=Double row 4Number of Contacts:Single row = 01 to 40Double row=02 to 80 5Insulator Height: 3 = 2.50mm 5 = 1.50mm3Contact Plated0=Tin 1=Gold Flash 2=Gold 3u" 3=Gold 5u"4=Gold 10u" 5=Gold 15u"6= Gold 30u"7Tail & Mounting Style:R=Right Angle DIP T ype6Material Type0=PPS 3=Nylon-66 1=PBT 4=Nylon-6T 2=LCP 5=P A468Tiers of Body 1 = Single tier 2 = Double tier 3 = T riple tier9Pin LengthXXX=A+H+C10Page 25Due to technical progress, all the information provided is subject to change without prior notice.SPECIFICATIONS:Current Rating: 3.0 AMPContact Resistance: 30m Max Insulation Resistance: 1000M Min Withstand Voltage: 600VAC/minute Operation T emperature: -40 to +105MATERIALS:Contact Material: BrassContact Plating: Gold or Tin over 50Ni Insulator Material: Polyester(UL94V-0) Standard: PBT••Ordering CodeSeries No.:3= Pin Header10XXX 9X 857X 6M 5XX 4X 3X 21131Pitch: 1= 2.54mm2Dip Spacing:1=Single row 2=Double row 4Number of Contacts:Single row = 01 to 40Double row=02 to 80 5Insulator Height: 3 = 2.50mm 5 = 1.50mm3Contact Plated0=Tin 1=Gold Flash 2=Gold 3u" 3=Gold 5u"4=Gold 10u" 5=Gold 15u"6= Gold 30u"7Tail & Mounting Style:M=Straight SMT type6Material Type0=PPS 3=Nylon-66 1=PBT 4=Nylon-6T 2=LCP 5=P A468Tiers of Body 1 = Single tier 2 = Double tier 3 = T riple tier9Pin LengthXXX=A+H+C10Page 26Due to technical progress, all the information provided is subject to changewithout prior notice.SPECIFICATIONS:Current Rating: 1.0 AMPContact Resistance: 30m Max Insulation Resistance: 500M Min Withstand Voltage: 200VAC/minute Operation T emperature: -40 to +105Max Process Temp: 230 for 30~60 secretary.MATERIALS:Contact Material: Phosphor Bronze Contact Plating: Gold or Tin over 50Ni Insulator Material: Polyester(UL94V-0) Standard: LCP••Ordering CodeSeries No.:2= Female Header100918X 7X 6M 5XX 423225121Pitch: 5= 1.00mm2Dip Spacing:1=Single row 2=Double row 4Number of Contacts:Single row = 01 to 50Double row=02 to 98 x0=100 Pin 5Insulator Height: 2 = 2.0mm3Contact Plated 0=Tin1=Gold Flash 2=Gold 3u"3=Gold 5u"4=Gold 10u"5=Gold 15u"6= Gold 30u"7Tail & Mounting Style:M=Straight SMT type6Material Type 0=PPS 1=PBT 2=LCP 3=Nylon-664=Nylon-6T 5=PA468Color:1=Black9Customer Request10Page 27Due to technicalprogress, all the information provided is subject to change without prior notice.SPECIFICATIONS:Current Rating: 1.0 AMPContact Resistance: 30m Max Insulation Resistance: 1000M Min Withstand Voltage: 300VAC/minute Operation Temperature: -40 to +105MATERIALS:Contact Material: Phosphor Bronze Contact Plating: Gold or Tin over 50Ni Insulator Material: Polyester(UL94V-0) Standard: PA 46••Ordering CodeSeries No.:2= Female Header100918X 7X 6M 5XX 4X 3X 23121Pitch: 3= 1.27mm2Dip Spacing:1=Single row 2=Double row 4Number of Contacts:Single row = 01 to 50Double row=02 to 98 x0=100 Pin 5Insulator Height: 2 = 2.0mm 3 = 3.4mm 4 = 4.3mm 5 = 4.6mm3Contact Plated 0=Tin1=Gold Flash 2=Gold 3u"3=Gold 5u"4=Gold 10u"5=Gold 15u"6= Gold 30u"7Tail & Mounting Style:M=Straight SMT type6Material Type 0=PPS 1=PBT 2=LCP 3=Nylon-664=Nylon-6T 5=PA468Color:1=Black9Customer Request10H = 2.0mm H = 3.4mm H = 4.3mmH = 4.4mmPage 28Due to technical progress, all the information provided is subject to changewithout prior notice.。
