UPS说明书

万正电源ups说明书万正电源UPS说明书一、产品概述万正电源UPS（Uninterruptible Power Supply）是一种具备不间断电源功能的电力设备，用于提供可靠的电力保障，防止电力波动、电力中断或电力故障对设备运行造成的损害。

本产品具有高效、可靠、稳定的特点，适用于各种需要稳定供电环境的场所。

二、主要特性1.高效能：万正电源UPS采用先进的变频技术，能够提供高效能的电力保障，有效降低能耗。

2.可靠性：采用可靠的电源线路、电池和控制系统，能够提供连续、稳定的电力输出，保证设备的正常运行。

3.稳定性：具备稳定的输出电压和频率，能够抵御电力波动对设备的干扰，确保设备的正常运行。

4.安全性：内置过载保护、过电压保护、过热保护等安全保护机制，确保设备及用户的安全。

5.可扩展性：支持多台UPS机组的并联操作，能够根据用户需求进行扩容，提供更大的电力保障。

6.操作简便：采用友好的人机界面，配备简单直观的操作指示，方便用户进行使用和维护。

三、技术参数1.输入电压：220VAC±10%2.输出电压：220VAC±5%3.输出频率：50Hz±0.5Hz4.输出功率：1000VA/800W5. 转换时间：<10ms6.电池容量：12V/9AH×27.充电时间：<8小时8.保护功能：过载保护、过电压保护、过热保护等四、安装步骤1.将UPS设备放置在通风良好、干燥的地面上，确保设备稳定并能够正常散热。

2.连接输入电源线，将UPS的输入插头插入电源插座。

3.连接输出电源线，将UPS的输出插头插入设备的电源接口。

4.打开UPS的电源开关，此时UPS会开始供电设备。

5.如果需要进行并联操作，可根据说明书中的指引进行相应的操作。

五、注意事项1.使用UPS设备前，请仔细阅读本说明书，并按照要求正确安装和操作。

2.在长时间不使用UPS设备时，请及时将其断电并拔掉插头，以免长时间待机造成功耗和设备损坏。

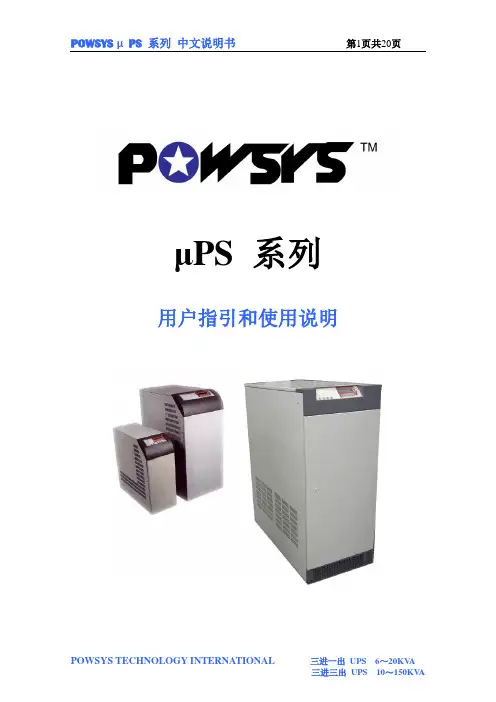

μPS 系列用户指引和使用说明目录安全报警 (3)总体特性 (4)主要的子系统控制面板开机自控测量实时通信记录简易的使用电池检测维修模式连接控制面板和指示 (8)液晶显示屏控制面板功能键信息键LED发光管指示安装 (15)现场条件和考虑因素连接开关接头安装操作 (18)开机设置实时时钟通信 (20)通信软件可提供的报告图表图1：UPS工作框图图2：默认指示状态图3：调制解调器接头的针脚的分配图4：电线的品级图5：通信设置的菜单图6：采集的状态的报告图7：采集的记录图8：PC板抽点检验和电压范围安全预警UPS无需用户维护，维护工作只能由经过培训的合格的技术人员进行。

任何情况下都不要打开UPS的机箱！即使UPS没有连接到市电，机体内有高压（电气）。

总体特性up系列三入/单出UPS采用脉宽调制（PWM）和16位微处理器控制技术提供可靠、成熟的保护，可抵御任何的市电电压波动或断电。

图1：UPS的工作框图在市电停电时，UPS可提供一定时间内的备用电源。

本系统对用户友好，操作简便而用户无需懂技术知识。

UPS为在线式，一旦启动，本单元可为任何负载提供110、220、230或240V的50或60Hz的稳定的电源（根据您的要求）。

当备用工作时（市电停电），UPS由电池供电并维持恒定的电压输出。

系统同时通过LED灯指示和声音信号告知操作人员市电停电。

UPS装备有一静态开关，使在逆变器负载过重（如电源冲击），或逆变器故障或其它原因的情况下，负载能正常工作。

UPS前面板上的液晶显示屏提供实时的，当前的工作状态，提供给用户关于UPS 的工作状态的全部信息。

通过RS232通信口，可在电脑显示器上看到同样的状态信息。

另外，可通过调制解调器和电话线把系统连接到远程的地方。

本单元包括两个子系统：机箱，包括各种电子装置：充电器、逆变器、静态开关、微处理器板、面板等。

电池箱，包括电池和开关。

主要的子系统该装置包括以下模块：充电器充电器提供424V±2V的稳定直流给装置。

在线式不间断电源UNINTERRUPTIBLE POWER SUPPLYPANPOWER User's Manual用户手册目录一、简介 (1)二、UPS工作原理方块图 (2)三、注意事项 (3)四、安装……………………………………………………………………………4-7动力连接.................................................................................5-6地线连接 (7)五、面板操作………………………………………………………………………8-125.1 LED状态指示 (8)5.2 按键操作…………………………………………………………………8-115.3 开/关机 (12)六、电脑监控………………………………………………………………………13-146.1 通讯线连接 (13)6.2 软件设置 (14)七、异常处理 (15)八、日常维护 (16)8.1 维护 (16)8.2 检查 (16)8.3 保修 (16)九、UPS技术规格 (17)十、UPS网络远程监控整体方案图 (18)十一、装箱清单 (18)一、简介1.CP系列UPS是真正在线式(TRUE ONLINE)不间断电源,隔离不稳定市电,如停电(BLOCKOUT)、杂讯(NOISE)、脉冲电压SPIKE&DIPS暂态过高电压(RTANSIENT)、低电压（BROWNOUT）高电压（OVERVOLTAGE）、电压突降或突升（SURGE—SAG）等电力问题，提供稳定的单相输出电源，是电脑及周边设备、程序控制系统、医疗设备、半导体厂设备、安全监视系统、化学工程设备、电台发射与接收系统、军用通讯、航空通讯系统及精密得要设备的最佳保护。

2.CP系列UPS采用20*2LCD模块及LED流程显示,可显示UPS规格、制造厂、序号、输入电压、输出电压、频率、电池电压、负载百分比、运转状态等，菜单式操作。

2.2.2 监控单元 整个UPS系统配置一套PM4监控系统： 1）PM4主监控 PM4主监控是监控系统的核心部分， 从PMX－JC监控单元和UPS系统中采集 系统各种数据并进行管理，它具有以下功能、特点：
人机接口
Ø 320*240 点阵 LCD 汉字菜单显示，对比度可调节。 Ø 采用触摸屏操作，可方便设置参数和查询信息。
防护等级：IP30； 耐压强度：2KV交流电1分钟不击穿； 绝缘电阻：≥10MΩ； 进出线方式：下进线下出线； MTBF 平均无故障时间：≥40000小时； 工作环境：温度：0～45℃； 湿度：0～93%不结露； 海拔：≤1500米。 柜体高度为2200mm，眉头高度为60mm，总高度为2260mm。 柜子采用下进线下出线方式，安装后的孔洞配合相关专业进行防火封堵。
PDF 文件使用 "pdfFactory Pro" 试用版本创建
浙江华源电气有限公司
模块化电力 UPS 使用说明书
一、电源柜整体说明
系统输入电源为AC380，输出电压为标准220V正弦波。UPS电源系统由输入 隔离变压器、整流模块、逆变器模块、切换模块和监控构成；电源系统主要部件 采用模块化功率部件，可实现完善的N+1备份功能、在线式热插拔及在线维修功 能。
二、系统组成。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。 2 。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。 三、电源柜接线说明。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。 7 。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。 四、 监控使用说明。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。 10 。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。

User ManualContentsContents (1)1 UPS (1)2 Rest Service (1)3 Status information (2)3.1 JSON (2)3.2 HTTP-Rest (3)4 Installation of application (3)5 Notes (4)1 UPSUPS means U ninterrupable P ower S upply. In case of a power failure theUPS assures the controlled shut down event of the device.This settings can be adjusted:-Shutdown time-Dimming time-Display brightness-Start of any desired programIf the mains returns before the PC shuts down, the adjusted times will be resetted. Therefore the sutdown wont be performed and the display returns to the default settings.If the mains returns, during the shutdown process, the device will be automatically restarted. If the device is meant to remain switched off, the following setting can be adjusted:usv.merker.set = 1 in the file C: \ Program Files \ Christ \ USV Control \ External References \ config.properties If the mains returns, after the shutdown process, the device will be automatically restarted, even if the described settings has been made.2 Rest ServiceThe settings of the UPS can be adjusted with the browser address http://localhost:9022Note: For older versions use the address http://localhost:5000The view shows the status of the UPS. The necessary settings can also be made. By pressing the "Save" button, the settings are accepted and take effect immediately. The default values are as follows:User Manual3 Status information3.1 JSONThe current status information can be called up in the root directory of partition C under "UsvControl.json".User Manual3.2 HTTP-RestThe current status information can also be checked via the HTTP rest interface http://localhost9022/api/gpiostate.Note: For older versions use the address http://localhost5000/api/gpiostate4 Installation of applicationNote: This is only necessary if a customer-specific image is installedIn order to use the functionalities mentioned above, two applications are required. These can be downloaded from various locations.The following link is for the application …USV Control“:https:///s/tWyzAkqmZoHtQNeDownload the …Observer“ with the correct driver from the FAQs on the homepage of Christ Electronic Systems. https:///index.php?id=650USV ControlAfter a start-up process of the panel, at least 5 seconds must be waited before the application may be started. This can be set, for example, with the TaskSchedular.The “USVControl.exe” must be run as an administrator. To do this, right-click on the “USVControl.exe” to access the properties and proceed as follows:Properties → Compatibility → Change Settings for all users → activate Run this program as an administratorObserverInstall the "Observer" application. Only the files and registry entries of the installation are required.The "Observer" application can be removed from the autostart: To do this, start the Task Manager with the key combination "Alt" + "Ctrl" + "Del". Then proceed as follows:Startup → Hardware Monitor Utility for IBASE → DisabledUser ManualDisclaimer ContactTechnical data are subject to modification and delivery subject to availability. Any liability that the data and illustrations are complete, actual or correct is excluded. Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner. Christ Electronic Systems GmbHAlpenstraße 3487700 MemmingenPhone:+49 8331 8371-0 (Main Office)+49 8331 8371-500 (Service)Mail:*****************Homepage:https://© Christ Electronic Systems GmbH5 Notes•If the shutdown is implemented in the customer application and the mains returns, the shutdown process must be aborted or the device must be shut down within 10 seconds. Otherwise the CPU can no longer start independently under certain circumstances. The time can be extended on request.•The following application must run in the background for the UPS to be controlled:-UsvControl.exe•It must be ensured that the customer application is ended quickly enough for the panel to shut down properly. Otherwise no protection against data loss can be guaranteed. Depending on the type of CPU and display, the UPS can buffer up to 30 seconds. Depending on the system, CPU utilization, display and peripherals, the buffer time can be significantly shorter. The exact buffer duration must be determinedanew in every application.。

U P S 不断电电源供给器智能在线网络保护不断电系统3KVA/6KVA/10KVA/12KVA/15KVA/20KVA/30KVA■产品使用手册■1. 导论------------------------------------------------------------------------------------------------22. 重要安全指示-----------------------------------------------------------------------------------23. UPS介绍------------------------------------------------------------------------------------------34. 产品介绍------------------------------------------------------------------------------------------55. 安装------------------------------------------------------------------------------------------------66. 操作说明-----------------------------------------------------------------------------------------87. 监控软件选配及计算机接口端口--------------------------------------------------------98. 保养及保存方法------------------------------------------------------------------------------109. 异常状况排除---------------------------------------------------------------------------------1110. 附录A 规格---------------------------------------------------------------------------------15在线式不断电系统电源供应器(UPS)提供一个连续且稳定的电源给需要保护的设备使用，使您的设备免于遭受下列电源的困扰。

负载指示，表示UPS电源所带负载。
电池充电/市电电压指示。
LINE
市电指示灯：此灯亮表示市电输入正常。
BYPASS
旁路指示灯：此灯亮表示负载电力直接由市电提供。
ON LINE
在线指示，表示UPS正将市电提供给所连接的设备。
ON BATTERY
电池指示灯：此灯亮表示负载电力由电池经UPS提供。

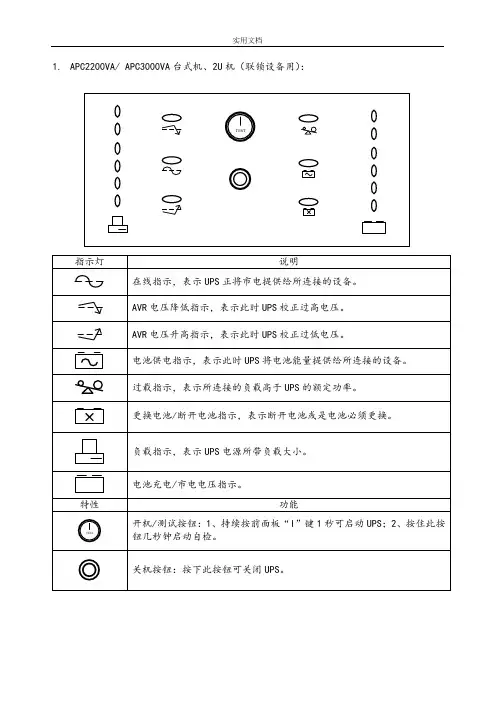

1、2、3、4
指示灯
说明
负载指示，表示UPS电源所带负载大小。
电池充电/市电电压指示。
在线指示，表示UPS正将市电提供给所连接的设备。
过载指示，表示所连接的负载高于UPS的额定功率。
电池供电指示，表示此时UPS将电池能量提供给所连接的设备。
故障指示灯：此灯亮表示UPS发生异常状况。
旁路指示灯：此灯亮表示负载电力直接由市电提供。
电池容量指示灯：1#~5#灯，表示在电池放电模式下电池容量。
UPS ON
逆变指示灯:此灯亮表示负载电力由市电或电池经UPS提供。
BATTERY
电池指示灯：此灯亮表示负载电力由电池经UPS提供。
BYPASS
旁路指示灯：此灯亮表示负载电力直接由市电提供。
AC INPUT
市电指示灯：此灯亮表示市电输入正常。
ALARM
故障指示灯：此灯亮表示UPS发生异常状况。
特性
功能
开机/消音按钮：1、持续按前面板“I”键1秒可启动UPS；2、在停电报警时按此按钮可停止报警。
关机按钮：持续按前面板此键1秒，就可以进行关机。
4.SANTEK ON-LINE_IKVA台式机（TDCS设备用）：
指示灯
说明
故障指示灯：此灯亮表示UPS发生异常状况
旁路指示灯：此灯亮表示负载电力直接由市电提供。

UPS软件和智能附件介绍
– 1、电源监控和管理软件 PowerChute Plus PowerChute Network Shutdown PowerChute Business Edition PowerChute Web Device Manager PowerChute Application Shutdown Utilities Management Platform Integration Enterprise Manager
第五章 UPS的监控与管理
– 2、UPS管理软件/智能附件的基本类型 按照通信方式划分，UPS管理软件和智 能附件大体可分为3类： 1）基于串行通信方式类产品； 2）基于Web产品； 3）基于SNMP的产品。该类产品与网 管产品发展密切相关，目前UPS厂家倡 导将电源管理系统的监控、管理集成到 整个计算机网络系统中。
第五章 UPS的监控与管理
– 6、J-Bus通信接口 J-Bus通信接口支持Modbus/Jbus协议， 将整个UPS管理集成在现场应用层；
– 7、USB通信接口
第五章 UPS的监控与管理
UPS软件、智能附件的类型与配置
– 1、对UPS软件、智能附件的一般性要求
通信方式； 数据采集及报告生成功能； 用户界面； 系统集成与数据保护问题。
第五章 UPS的监控与管理
电源保护由点面的转变; 对硬件和数据的保护网络可用性的保
护过程； 智能监控与管理是UPS技术发展的必然
趋势。
第五章 UPS的监控与管理
新技术的应用对电源保护技术提出了全新的 要求，体现在以下几个方面： – 1、强调UPS系统应具有良好的可用性； – 2、采用智能化UPS技术； – 3、对电源系统的可管理性提出更高的要求； – 4、降低电源系统的管理成本，提高电源系 统运行、维护的经济性。

第四章选件说明
4.1蓄电池组…………………………………………………………….…………………
4.2蓄电池柜……………………………………………………………………………...
4.3 SNMP卡………………………………………………………………………………
4.4网络软件……………………………………………………………………………...
6．一 台UPS在工作，热并入另一台UPS的操作步骤……………………………
7.在并机运行状态有一台故障UPS时，关闭该UPS的操作步骤………………….
第六章面板使用操作………………………………………….……………...
6.1主控屏幕……………………………………………………………………………...
6.2怎样观察实时管理测量………………………………………………………………
旁路输入
主路输入~输出
~
图1-6ECO工作模式
5．维修工作模式
对UPS系统及电池进行全面检修或设备故障维修时，可以通过闭合维护开关SW3，将负载转向维修旁路直接供电，以实现对负载不停电维护。维修时需要断开UPS内部的主电源输入开关SW1，旁路输入开关SW2和电池输入开关SW4以及输出开关SW5，实现UPS内部不带电而对负载仍然维持供电的维修工作模式。原理框图见1-7。
图1-1 UPS原理框图
1.2工作原理
如图1-1所示，UPS主要包括由整流模块（REC）和逆变模块（INV）旁路静态输入开关SW2、维修旁路空开SW3、输出隔离变压器和逆变静态开关、蓄电池组以及输入SW1/输出SW5空开等。单机主电路图1-2所示
UPS单机系统主电路如图1-2所示。
图1-2 UPS单机主电路原理图
逆变器采用DSP、MCU和DDC实时处理的全数字矢量控制技术，通过数字正弦波脉宽调制DSPWM六只IGBT功率开关器件，把直流电源变换成三相交流。输出经过△/Y0变压器、静态开关、空气断路器K4等功能单元，实现负载端与输入侧的隔离。

UPS不间断电源说明书
一、概述
UPS不间断电源（UPS）是一种电源系统，在正常的交流电源中断或电源质量变化时，能够保持装置的正常工作。

UPS可以将交流电源更换成另外一种电源，并将电压，频率和相位调整为匹配交流电源输出的相同参数。

因此，UPS不间断电源可以在交流电源发生中断或质量下降时，快速移动到另一种更稳定的电源，以保护电子设备免受电压波动、负荷突变或电源停电所带来的影响。

二、UPS不间断电源的功能
1.自动换电源功能：UPS不间断电源具有自动换电源功能，在交流电源电压输出异常或停电时，通过UPS的交流转直流单元将交流电源的电压和频率转换为DC电源，再通过UPS直流转交流单元将DC电压和频率调整为交流电压，实现自动换电源。

2.调节电压功能：UPS不间断电源不仅可以实现换电源，而且还能够调节电压。

当交流电源的电压波动时，UPS可以根据交流电源的参数将电压进行调节，以保证装置的正常工作，确保生产安全。

3.保护功能：UPS不仅可以提供自动换电源和调节电压的功能，还具有保护功能。

当电源发生中断或电源的质量下降时，UPS不间断电源可以保护电子设备免受电压波动、负荷突变或停电所带来的影响。

三、UPS不间断电源的优点
1.有效保。

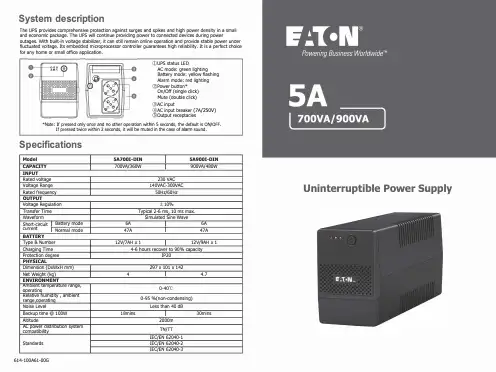

Q)UPS status LED AC mode: green lighting Battery mode: yellow flashing Alarm mode: red lighting
@Power button* On/Off (single click) Mute (double click)
@AC input @AC input breaker (7A/250V) ®Output receptacles
*Note: If pressed only once and no other operation within 5 seconds, the default is ON/OFF. If pressed twice within 2 seconds, it will be muted in the case of alarm sound.
System description
The UPS provides comprehensive protection against surges and spikes and high power density in a small and economic package. The UPS will continue providing power to connected devices during power outages. With built-in voltage stabilizer, it can still remain online operation and provide stable power under fluctuated voltage. Its embedded microprocessor controller guarantees high reliability. It is a perfect choice for any home or small office application.

1
本手册包含的信息涉及三进三出 UPS 的安装和操作内容。 在安装机器前请务必先阅读手册所有的相关内容。 UPS 的安装和保养服务人员须是经制造商（或代理商）认可的工程师。 违反以上规定造成人员的安全风险，不在设备制造商的担保范围以内。 三进三出 UPS 仅针对商业/工业用途设计，并不推荐应用于生活设施。 根据 IEC62040，机器属于低辐射 C3 类 UPS 产品。在室内，机器仍可能引起无线电干扰，出现 这种情况，用户需采取其他措施。 如果您按手册上程序操作时遇到任何问题，最好尽快向购买该产品的制造商和供应商寻求帮助。
单机UPS
三进三出 UPS 连接在交流输入电源与应用负载之间，并为负载提供不间断的交流电 源。通过高频双转换功率脉宽调制和全数字信号处理的联合控制，UPS输出交流电源的电 压和频率可以自由调节，而不受输入市电的干扰。
双转换在线式UPS
交流电源经主路断路器通过整流器变为直流电源。这直流电源一路供给DC/DC的电池 充电器，同时供给将直流电转换为纯净的独立的交流电的逆变器。市电掉电时，电池通过 逆变器向负载供电。万一逆变器失效或过载时，负载也可以是通过经旁路断路器和静态旁 路开关的旁路交流电供电。除此之外，如果UPS需要维护与保养，UPS可以闭合手动控制的 维修旁路断路器给负载供电。当需断开维修旁路空开时，UPS先要闭合其他空开才能确保 UPS正常运行。
选件....................................................................................................................................................... 46
三进三出10/15/20/25kVA 380V/400V/415V

ups说明书UPS说明书感谢您购买我们的UPS（不间断电源）产品。

本说明书将详细介绍UPS的配置、安装和使用方法，以及注意事项和维护保养等方面的信息。

在使用UPS之前，请您仔细阅读此说明书，以确保您正确地使用UPS，避免故障或安全问题。

一、产品的配置我们的UPS产品包括主机、电池、电源线、USB线和说明书。

提供的电源线和USB线已经可以满足大部分用户的需求；如果您的电源线和USB线没有满足您的需求，请联系我们的售后服务。

二、产品的安装1. 将UPS主机放置在干燥、通风、平稳的地方，并确保距离电源插座有一定的距离，以便操作和维修时方便。

2. 将电源线插入UPS主机的电源插座，并将另一端插入电源插座。

3. 将USB线插入UPS主机的USB插座，并将另一端插入计算机的USB接口。

4. 将UPS主机与计算机相连，并打开开关。

当UPS供电时，显示屏上会显示UPS的状态。

三、产品的使用1. UPS是一种不间断电源，可在断电时提供电力，以保护计算机和其他设备不受电压波动和断电的影响。

2. 当UPS供电时，显示屏上会显示UPS的状态。

当UPS需要更换电池时，会发出嗡嗡声。

此时，请及时更换UPS电池，以保证UPS的正常运行。

3. 在使用UPS时，请保持UPS主机通风良好，避免长时间运行。

当要长时间离开电脑时，关闭计算机并关闭UPS主机的开关以节省电力。

四、注意事项1. 当UPS供电时，虽然未关闭计算机，但请尽量避免进行大量数据处理或进行对电力的大量消耗的操作，以确保UPS的使用效果。

2. 当您需要长时间离开电脑时，请关闭UPS主机的开关以节省电力。

如果不需要使用UPS，可以将电源线和USB线拔出电源插座和计算机。

3. 请勿将UPS主机暴露在阳光直射或潮湿的环境中，并避免不良的环境影响，以避免电路、电感、电容等组件受损。

4. 请勿在没有专业人员指导的情况下，拆卸UPS主机部分组件，这样可能会导致电路、电感、电容损坏，影响UPS的正常运行。

InventorySafety and General InformationInspect the package contents upon receipt. Notify the carrier and dealer if there is any damage.SAVE THESE INSTRUCTIONS - This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. Failure to follow these instructions can result in equipment damage.UPS• This unit is designed for low power devices less than 50 Watts. When the UPS is on battery,the unit will shut down automatically to protect itself once the load on the UPS is greater than 50Watts.• This UPS is intended for indoor use only.• Do not operate this UPS in direct sunlight, in contact with fluids, or where there is excessivedust or humidity.• Be sure the air vents on the UPS are not blocked. Allow adequate space for properventilation.• The battery typically lasts for three to five years. Environmental factors impact battery life.Elevated ambient temperatures, poor quality AC power, and frequent short duration discharges will shorten battery life.• Connect the UPS power cable directly to a wall outlet.Mobile Power Pack (battery)• Do not short circuit this device. To avoid short circuit, keep the device away from any metalobjects (e.g., hair clips and keys).• It is normal that the battery will feel warm during heavy use.• Use this device as instructed to avoid electric shock; do not disassemble.• This unit is not user repairable; contact APC for tech support related issues.• Do not heat this device or throw it into a fire.• Do not drop or place the unit under a heavy object.• Keep this device away from high temperature, wet, or dusty environments.• During normal usage keep the device out in the open to allow excess heat to dissipate.• Charge M12USWH for 2.5 hours before initial use.• Keep the USB output port and micro-USB input port clean and free of obstruction.Getting StartedConnect the BatteryRemove all plastic films. With the USB ports positioned at the bottom, insert the mobile battery pack into the main unit.When the battery is inserted one LED will illuminate moving from the bottom to the top to confirm that the battery has been inserted properly.Using the UPSPress the POWER button located in frontof the UPS. The POWER button LED will illuminate and a single short beep will be audible to indicate that the UPS is turning on.The UPS provides surge protection and battery backup to low power equipment like modems, gateways, routers, cordless phone base units and V oIP base units.Note that high power devices like PCs or monitors may overload the UPS during a blackout. It is recommended that only low power devices be connected.Rotating OutletsBoth outlets can be rotated 90° and 45° to minimize adapter plug interference.USB charging portsThe three USB ports provide a total of 4.4A of DC power, and willprovide power even when the unit is on battery.Fast charging is available at the 2.4A USB port. This port integrates SmartCharging technology to maximize output according to the smartphone or tablet detected.Surge Only ModeThe battery can be removed and the UPS will continue to provide surge protection for the connected AC devices. When the battery is removed the POWER button LED will illuminate amber. In this mode the USB port will continue to provide charging power for smartphones and other USB devices.Mobile Power PackWhen removed from the UPS the battery can be used as a mobile power pack to charge devices in a mobile environment.To turn on the battery press the POWER button on the battery. The LEDs will illuminate to show battery capacity. After 20 seconds the unit will enter a power saving mode if it is not charging a device or being charged. If the unit is charging a device or being charged, after 20 seconds the LEDs will dim down to 10% brightness. Pressing the POWER button at any time will cause the LEDs to illuminate at 100% brightness for 20 seconds.Battery Charge and Capacity Information• Charge battery in the UPS for 2.5 hours prior to initial use. The battery will charge whetherthe UPS is on or off as long as there is AC power to the UPS.• Do not expect full battery runtime capability during the initial charge period.• To charge the battery using the micro-USB input, connect the battery to any USB chargingport. When separate from the UPS, battery charging is slower. When charging the battery using the USB port on a PC, the LEDs will flash more slowly to indicate slower rate of charge.• UPS runtime information is available on the APC Web site, .Mobile Power Pack Status IndicatorsUPS Status IndicatorsWall Mount Installation•Vertical installation, use 4 screws 15/16” (100 mm) in diame-ter. (Screws are not provided.)•Install the stabilizer feet using the 4 slots at the ends of each row of ventilation holes as seen in the figure below.•Orient the UPS to the desired location. Mount screws directly into stabi-lizer feet starting with the bottom pair.Capacity indicator LEDs UPS connector Mobile power pack (battery)Mobile Power Pack POWER buttonRotating outletsPower cordUSB cable Stabilizer feet (4 pcs)User Manual from the UPS and the battery.Plug the power cord into the back of the unit.Install the stabilizer feet using the 4 slots at the ends of each row of ventila-tion holesEventPOWER Button LED Audible Indicator On On Battery The LED flashes green.Not applicable Surge Only ModeThe LED illuminates amber.Not applicableLow Battery alarmThe UPS is supplying battery power and the battery is near a total discharge state.The LED illuminates green and flashes rapidly.The UPS emits 2 short beeps every 30 seconds.Replace BatteryThe battery is worn or needs to be replaced.The LED illuminates red only.None Overload ShutdownWhile on battery power an overloadcondition has occurred in one or more of the battery backup outlets while the UPS is operating on battery power.None Constant toneUSB Detected FaultAn error has occurred in the USB charger on the UPS.The LED alternatelyilluminates green / amber.None© 2015 APC by Schneider Electric. APC, the APC logo, and Back-UPS are owned by Schneider Electric Industries S.A.S., or their affiliated companies. All other trademarks are property of their respective owners.EN 990-966901/2015Voltage Sensitivity Adjustment (optional) The UPS detects and reacts to line voltage distortions by transferring to battery backup power to protect connected equipment. In situations where either the UPS or the connected equipment is too sensitive for the input voltage level it is necessary to adjust the transfer voltage.1.Connect the UPS to a wall outlet but make sure it is off.2.Press and hold the POWER button. After 10 seconds the POWER button LED will illuminatealternately green-red to indicate that the UPS is in Program mode.3.After releasing the POWER button the POWER button LED will illuminate either green,amber, or red to indicate the current sensitivity level. Press the POWER button to changesensitivity. Refer to the table below for an explanation of the sensitivity setting and transfervoltage sensitivity level that corresponds to each LED color.4.To exit Program mode wait five seconds and all LED indicators will extinguish. Programmode is no longer active.Mute Low Battery AlarmFollow the instructions below to adjust the audio setting of the UPS to enable or disable low battery alarm. To change the setting make sure the UPS is on.Make sure the unit is on. Press and hold the POWER button. Releasing the POWER button after hearing the 3rd short beep will toggle the low battery alarm mute function. The UPS will emit a short double beep to confirm that the low battery alarm has been disabled. If the UPS emits a 1- second beep it indicates that the low battery alarm is audible.Note: The default setting of the low battery alarm is audible.UPS SpecificationsMobile Power Pack (battery) SpecificationsReplace BatteryDeliver the used battery to a recycling facility.Replace the used battery with an APC by Schneider Electric approved battery.Replacement batteries can be ordered through the APC by Schneider Electric Website, . Battery replacement part for UPS BGE50ML is M12USWH. WarrantySchneider Electric IT (SEIT) warrants its products to be free from defects in materials andworkmanship for a period of three (3) years from the date of purchase. SE IT obligation under this warranty is limited to repairing or replacing, at its sole discretion, any such defective products. This warranty does not apply to battery wear from use, equipment that has been damaged by accident, negligence or misapplication or has been altered or modified in any way. SEIT standard procedure is to replace the original unit with a factory reconditioned unit. Customers who must have the original unit back due to the assignment of asset tags and set depreciation schedules must declare such a need at first contact with an SEIT Technical Support representative. SEIT will ship the replacement unit once the defective unit has been received by the repair department, or cross ship upon the receipt of a valid credit card number. The customer pays for shipping the unit to SEIT.SEIT pays ground freight transportation costs to ship the replacement unit to the customer. For full warranty information refer to .TroubleshootingServiceIf the unit requires service, do not return it to the dealer. Follow these steps:1.Review the Troubleshooting section of the manual to eliminate common problems.2.If the problem persists, contact Schneider Electric IT (SEIT) Customer Support through theAPC by Schneider Electric Web site, .a.Note the model number and serial number and the date of purchase.b.Call SEIT Customer Support and a technician will attempt to solve the problem over thephone. If this is not possible, the technician will issue a Returned Material AuthorizationNumber (RMA#).c.If the unit is under warranty, the repairs are free.d.Service procedures and returns may vary internationally. Refer to the APC by SchneiderElectric Web site for country specific instructions.3.Pack the unit in the original packaging whenever possible to avoid damage in transit. Neveruse foam beads for packaging. Damage sustained in transit is not covered under warranty.4.Always DISCONNECT THE UPS BATTERIES before shipping. The United StatesDepartment of Transportation (DOT), and the International Air Transport Association(IATA) regulations require that UPS batteries be disconnected before shipping. Theinternal batteries may remain in the UPS.5.Write the RMA# provided by Customer Support on the outside of the package.6.Return the unit by insured, pre-paid carrier to the address provided by Customer Support APC by Schneider Electric IT Customer Support WorldwideFor country specific customer support, go to the APC by Schneider Electric Web site,.EMC ComplianceThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.This UPS is certified to comply with California Battery Charger System regulations. Formore information go to/site/recycle/index.cfm/energy-efficiency/cec-battery-charger/LED Flashes SensitivitySettingInput Voltage Range(AC Operation)Recommended UseGreen LOW88 Vac to 142 Vac Use this setting with equipment that is less sensitive to fluctuations in voltage or waveform distortions.Red MEDIUM92 Vac to 139 Vac Factory default setting. Use this setting undernormal conditions.Amber HIGH96 Vac to 136 Vac Use this setting when connected equipment issensitive to voltage and waveform fluctuations.AC Input V oltage120 Vac NominalFrequency50/60 Hz + 3Hz auto-sensingBrownout Transfer92 Vac TypicalOver-voltage Transfer139 Vac TypicalProtection Resettable circuit breakerSurge Protection Computer gradeAC Output UPS Capacity 84 V A, 50 WTotal Amperage (AC outlets)0.7 AV oltage - On Battery115 Vac ± 8%Frequency - On Battery50/60 Hz + 1Transfer Time 6 ms Typical, 10 ms maximumUSB Output Output Current 1.0AOutput V oltage5VCharger Compatibility USB Battery Charging Specification 1.2Physical Net Weight 1.7 lb (0.8 kg)DimensionsLength x Width x Height 7.7 in x 7.0 in x 2.1 in (19.6 cm x 17.8 cm x 5.4 cm)Operating Temperature32º F to 104º F (0º C to 40º C) Storage Temperature5º F to 113º F (–15º C to 45º C) Operating Relative Humidity0 to 95% non-condensing humidity Operating Elevation0 to 10,000 ft (0 to 3000 m)Cord Lengths Power Cord59.0 in (150.0 cm) USB Cord11.0 in (27.9 cm)Type Lithium-ion batteryCapacity11400mAhRating41.2 WhInput current (Maximum)micro-USB: 2.1ARated input voltage5V dcOutput current USB1: 2.4A, USB2: 1.0AOutput voltage5VCapacity indicator light 5 level LEDsCapacity indicator brightness levels50% in the UPS. As mobile power pack 100% afterpressing the POWER button. 10% after 20 secondswhen charging a device or being charged. Charging time 2.5 hours (UPS), 8 hours (micro-USB) Dimensions (L x W x H) 5.1 x 2.9 x 0.9 in (13.0 x 7.4 x 2.2 cm)Weight0.6 lb (267g)Operating temperature32°F- 104°F (0°C- 40°C)Smart Charging (2.4A port only)Maximum output depends on the client device.Problem and Possible Cause SolutionThe UPS will not turn onThe UPS has not been turned on.Press the POWER button.The UPS is not connected to AC power,there is no AC power available at the walloutlet, or the AC power is experiencing abrownout or over voltage condition.Make sure the battery has been inserted into the UPSwhen attempting to turn on the UPS without AC power.In the event that the UPS receives no AC power and thebattery is connected, a cold-start can be initiated. Pressand hold the POWER button until the UPS emits twobeeps.The UPS is on, the POWER button illuminated redThe battery is worn or needs repair..Contact Schneider Electric IT (SEIT) Technical Supportfor more in depth troubleshooting..Connected equipment loses powerA UPS overload condition has occurred.Remove all nonessential equipment connected to theoutlets. Reconnect equipment to the UPS, one device at atime.The battery is completely discharged.Connect the UPS to AC power to allow the battery torecharge.The UPS may require service.Contact Schneider Electric IT (SEIT) Technical Supportfor more in depth troubleshooting.The UPS has an inadequate battery runtimeThe battery is not fully charged.The battery is near the end of useful lifeand should be replaced.Leave the UPS connected to AC power for 2.5 hourswhile the battery charges to full capacity.As a battery ages, the runtime capability decreases.Contact APC by Schneider Electric at the Web site, to order replacement batteries.USB charging is slowCharging a device using the UPS's USBcharger is slower than the device's originalUSB chargerThe amount of power a device draws depends on itscompatibility with the USB Battery ChargingSpecification 1.2. Compatible devices can draw morepower than devices that are less compatible. For devicesthat can charge using input greater than 1A make sure thatthe device is connected to the 2.4A USB charging port. USB charging stops and the POWER button LED alternately illuminates green / amberThe USB port on the UPS is overloaded orhas encountered an error.Disconnect device from the USB port on the UPS. USBcharging will resume when the LED turns green. ContactSEIT Technical Support if the LED continues to alternategreen / amber.USB charging stops and the battery pack capacity indicators LEDs all flash simultaneously One or two USB ports on the mobile powerpack is overloaded or has encountered anerror.Disconnect device(s) from the USB port(s) on the mobilepower pack. When the mobile power pack is not pairedwith the UPS the power pack will enter safe mode if theUSB error has not been resolved within 30 seconds. Battery charging is slowThe charging time of battery variesdepending on the charging connection.Charge the battery inside the UPS for best results. Usingthe micro-USB port to charge the battery will requiremore time. The speed is also dependent on the type ofUSB charger. Some USB chargers support 1A and othersup to 2.4A. More powerful chargers will reduce the timerequired. USB ports on a PC can also charge the batterybut older PCs only support 500mA which will result ineven more time to charge.。

请严格遵守本手册中和机器上的所有警告及操作说明并妥善保管本手册。

在没有阅读完所有的安全说明和操作说明以前，请不要操作本机器。

目录一简介1.1常用符号说明-----------------------------------------------------------------------------------------------------------------03 1.2安全注意事项-------------------------------------------------------------------------------------------------------------03 二产品介绍2.1UPS的分类与配置--------------------------------------------------------------------------------------------------------04 2.2UPS外观--------------------------------------------------------------------------------------------------------------------04 2.3工作原理简介--------------------------------------------------------------------------------------------------------------05 三安装3.1开箱检查-----------------------------------------------------------------------------------------------------------------------06 3.2安装注意事项-----------------------------------------------------------------------------------------------------------------06 3.3 接线----------------------------------------------------------------------------------------------------------------------------06 3.3.1 UPS输入输出接线-----------------------------------------------------------------------------------------------------06 3.3.2长效机UPS外接电池接线-------------------------------------------------------------------------------------------08 3.3.3连接通讯线--------------------------------------------------------------------------------------------------------------08 四运行操作4.1操作显示面板------------------------------------------------------------------------------------------------------------104.2运行模式------------------------------------------------------------------------------------------------------------------114.2.1 市电模式------------------------------------------------------------------------------------------------------------114.2.2 电池模式------------------------------------------------------------------------------------------------------------114.2.3 旁路模式------------------------------------------------------------------------------------------------------------124.3操作----------------------------------------------------------------------------------------------------------------------124.3.1 开关机操作---------------------------------------------------------------------------------------------------------124.3.2电池自检操作-------------------------------------------------------------------------------------------------------134.3.3 LED显示与警告---------------------------------------------------------------------------------------------------13 五维护----------------------------------------------------------------------------------------------------------------------------145.1 电池维护----------------------------------------------------------------------------------------------------------------145.2 UPS的功能检查-------------------------------------------------------------------------------------------------------14 六故障排除-----------------------------------------------------------------------------------------------------------------------15 七产品规格与性能--------------------------------------------------------------------------------------------------------------16 7.1 基本电气性能-------------------------------------------------------------------------------------------------------------16 7.2尺寸和重量-----------------------------------------------------------------------------------------------------------------16 7.3使用环境--------------------------------------------------------------------------------------------------------------------17 7.4 EMC-------------------------------------------------------------------------------------------------------------------------17 7.5 安规-------------------------------------------------------------------------------------------------------------------------17 7.6 行业标准-------------------------------------------------------------------------------------------------------------------17 八维修保证-----------------------------------------------------------------------------------------------------------------------18一简介1.1 常用符号说明下述符号有部分或者全部会出现在使用手册或使用过程中，请了解他们的含义。

UPS（不间断电源）操作说明
一、安全注意事项：
1、只可用单相三线（含接地线）插头连接UPS。

2、勿将电池任意解体或损坏，否则电解液溢出时，会有很强的腐蚀性，一旦误触时，对皮肤和眼睛均会造成伤害。

3、严禁用火对电池进行处理，否则会爆炸伤人。

4、将电池两端或短路会有高电压、大电流的危险。

5、电池之维护及更换应由受过UPS专业训练的人员来处理，其它人未经同意不得擅动。

二、警告：
1、UPS内含之电压具有潜在的危险性，请勿打开机壳。

UPS维修必须由制造商认可合格之技术人员执行。

2、请在室内使用UPS，且避免置于湿度过高、阳光直射、接近散热体及带电体的环境。

3、请勿倾倒入任何液体或杂物于UPS内部，。

4、请注意：即使UPS输入电源断开，UPS内部组件仍与电池有电路联系，有潜在危险。

所以在从事维修与保养工作前，要断开电池。

5、UPS除内含电池外，不得外加电池或任意扩大电池容量。

三、操作说明
1、将电源线插头插入市电插座。

市电插座接线应符合国家规定的左零线、右火线的规定，此时橙色灯点亮。

2、开启前面板上的电源按钮开关，本机即进行工作状态（橙色指示灯与绿色指示灯点亮）。

3、将电脑及显示器插入后面板的插座，注意所接负载容量总和不得超过本机的额定输出功率。

4、初次使用或停用超过三个月，应在使用前接入市电8小时以上使蓄电池充满，以保证足够后备供电时间。

四、信息查讯
本设备面板LED状态显示与蜂鸣器报警一览表。

POWSYS UPS 的使用和维护（供用户参考）工程部马建民1.UPS基本原理UPS电源实质个是一个交流-直流-交流的过程。

它先把输入的交流电通过由三相可控硅组成的全桥整流为脉动的直流，经滤波电容的滤波后，成为稳定的直流电。

直流电电压分别为145V、270V、432V三类，分别适应不同用户的要求。

然后，UPS再把直流电进行变换，使之成为稳频、稳压的交流电。

这种方式为在线式，我公司生产的UPS 均是在线式。

按行业区分，UPS分为电力类及商业类。

电力类直流电压多为270V（适应230V直流屏），少数为145V（适应110 V直流屏），输出均为单相；商业类直流电压一般为432V（与32节电池相配），输出为三相。

下图为UPS的工作原理框图当主路外电消失时，电池开始放电，UPS依靠电池的能量，继续工作，输出逆变后的电压。

当电池电压低于阈值电压或逆变部分损坏时，UPS转旁路运行，保持供电输出的连续。

维修旁路开关确保能在不断电的情况下，使维修人员对UPS能进行检修。

2．整流原理POWSYS UPS 全部采用三相整流电路，除一小部分小功率机（10KV A以内）采用三相半波外，绝大多数均为三相全波可控硅整流。

通过改变可控硅的导通角，实现对直流电压的控制，使其具有较高的稳定性。

一般情况下，直流电压的变化在5V以内。

商业类全部采用432V直流电压，滤波电容上外接32块电池，每节电池的浮充电压恰为13.5V。

电力类多数为270V直流电压，与230V的直流屏接口，由于接有反向二极管，只允许直流屏的电池放电，禁止向电池充电。

3. 逆变原理采用IGBT大功率模块，该模块输入采用场效应管，输出采用三极管。

这是因为场效应管输入阻抗高，开关损耗小，所以用在输入端不仅使推动电流极大地减小，而且驱动损耗也相应下降；然而，场效应管功率不能做得很大，三极管容易实现大功率，故输出采用三极管。

这种场效应管与三极管的双生子，被称之为IGBT。

目前，国际上大功率UPS的逆变电路全部采用IGBT模块。
