© Semiconductor Components Industries, LLC, 2012May, 2012 − Rev. 31Publication Order Number:NSI50350AD/DNSI50350ADT4G

Constant Current Regulator& LED Driver50 V, 350 mA + 10%, 11 W PackageThe linear constant current regulator (CCR) is a simple, economicaland robust device designed to provide a cost−effective solution forregulating current in LEDs. The CCR is based on Self-BiasedTransistor (SBT) technology and regulates current over a wide voltagerange. It is designed with a negative temperature coefficient to protectLEDs from thermal runaway at extreme voltages and currents.The CCR turns on immediately and is at 20% of regulation withonly 0.5 V Vak. It requires no external components allowing it to bedesigned as a high or low−side regulator. The high anode-cathodevoltage rating withstands surges common in Automotive, Industrialand Commercial Signage applications. The CCR comes in thermallyrobust packages and is qualified to AEC-Q101 standard and UL94−V0Certified.Also available in SMC: NSI50350AST3G.Features•Robust Power Package: 11 W•Wide Operating Voltage Range•Immediate Turn-On•Voltage Surge Suppressing − Protecting LEDs•AEC-Q101 Qualified and PPAP Capable, UL94−V0 Certified•SBT (Self−Biased Transistor) Technology•Negative Temperature Coefficient•These Devices are Pb−Free, Halogen Free/BFR Free and are RoHSCompliantTypical Applications•Automobile: Chevron Side Mirror Markers, Cluster, Display &Instrument Backlighting, CHMSL, Map Light•AC Lighting Panels, Display Signage, Decorative Lighting, ChannelLettering•Application Note AND8349/D − Automotive CHMSL•Application Notes AND8391/D, AND9008/D − Power Dissipation

Bezeichnung :description :A12,1 ± 0,5mmB7,3 ± 0,3mmC15,5 ± 0,75mmEigenschaften / propertiesWert / valueEinheit / unitTol.Impedanz @ 1 Wg./impedance @ 1 turnImpedanz @ 1 Wg./impedance @ 1 turnImpedanz @ 2 Wg./impedance @ 2 turnImpedanz @ 2 Wg./impedance @ 2 turn33%+ 20°C+ 140°C<= 6,9SMUUpdate06-06-28LFRoHS update04-10-11RTUpdate02-04-17JHNeugestaltung00-12-06NameÄnderung / modificationDatum / dateAWG26 - ø 0,5mm - Länge/length:165 mm100 MHz25 MHz25 MHztyp.± 25%Ztyp.................................................................................................................................................................................................................................................Würth ElektronikZ160Z D Prüfgeräte / test equipment:HP 4191 B für/for Z und/and material16092A - Klemme / clamp326100 MHzΩ± 25%85Ω A Mechanische Abmessungen / dimensions:Kunde / customer : 74270034FERRITHÜLSEAXIAL FERRITE BEADSArtikelnummer / part number :

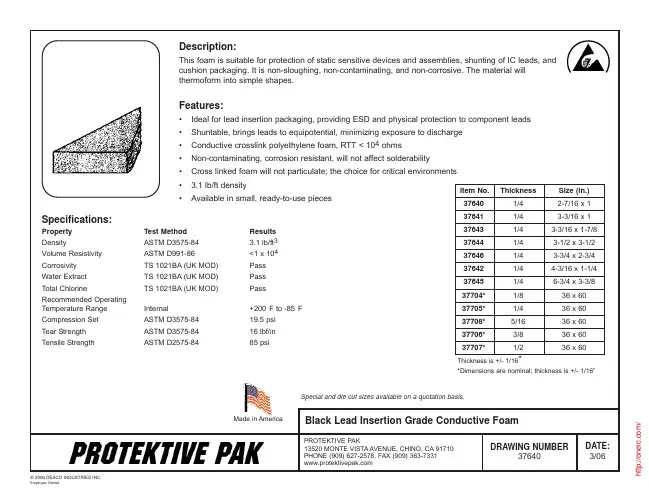

PROTEKTIVE PAK13520 MONTE VISTAAVENUE, CHINO, CA91710PHONE (909) 627-2578, FAX (909) DRAWING NUMBER37640DATE:3/06Black Lead Insertion Grade Conductive Foam

© 2006 DESCO INDUSTRIES INC.Employee OwnedMade in AmericaSpecial and die cut sizes available on a quotation basis.Description:

This foam is suitable for protection of static sensitive devices and assemblies, shunting of IC leads, andcushion packaging. It is non-sloughing, non-contaminating, and non-corrosive. The material willthermoform into simple shapes.

Features:

•Ideal for lead insertion packaging, providing ESD and physical protection to component leads

•Shuntable, brings leads to equipotential, minimizing exposure to discharge

•Conductive crosslink polyethylene foam, RTT< 104ohms

•Non-contaminating, corrosion resistant, will not affect solderability

04-2011, Rev. © 2011 Tyco Electronics Corporation,a TE Connectivity Ltd. companyDatasheets and product specification according to IEC 61810-1 and to be used only together with the ‘Definitions’ section.Datasheets and product data is subject to the terms of the disclaimer and all chapters of the ‘Definitions’ section, available at /definitions Datasheets, product data, ‘Definitions’ sec-tion, application notes and all specifications are subject to change.

1SCHRACKGeneral Purpose RelaysPCB Relays

n 1 pole 16A, 1 form C (CO) or 1 form A (NO) contactn Ambient temperature 105°Cn Sensitive coil 400mWn 5kV/10mm coil-contactn Reinforced insulationn WG version: Product in accordance to IEC 60335-1

Typical applications Oven control, cooking plate control

Approvals VDE REG.-Nr. 6106, UL E214025, cCSAus 14385Technical data of approved types on request
