DS-3200III+操作手册

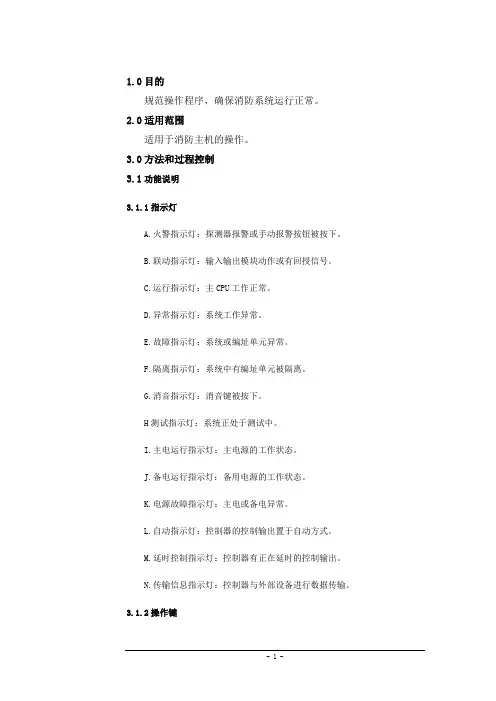

1.0目的规范操作程序，确保消防系统运行正常。

2.0适用范围适用于消防主机的操作。

3.0方法和过程控制3.1功能说明3.1.1指示灯A.火警指示灯：探测器报警或手动报警按钮被按下。

B.联动指示灯：输入输出模块动作或有回授信号。

C.运行指示灯：主CPU工作正常。

D.异常指示灯：系统工作异常。

E.故障指示灯：系统或编址单元异常。

F.隔离指示灯：系统中有编址单元被隔离。

G.消音指示灯：消音键被按下。

H测试指示灯：系统正处于测试中。

I.主电运行指示灯：主电源的工作状态。

J.备电运行指示灯：备用电源的工作状态。

K.电源故障指示灯：主电或备电异常。

L.自动指示灯：控制器的控制输出置于自动方式。

M.延时控制指示灯：控制器有正在延时的控制输出。

N.传输信息指示灯：控制器与外部设备进行数据传输。

3.1.2操作键A.消音键：消除控制器的报警音响。

B.检测键：预留。

C.自检键：瞬间点亮控制器面板上的所有指示灯。

D.复位键：清除系统当前状态，使整个系统重新工作运行。

3.1.3功能键A.F1～F5键：用于控制器编程操作。

B.0～9键：用于控制器编程操作。

C.Enter键、Esc键、方向键：用于控制器编程操作。

总线控制盘的指示灯和按键D.允许/禁止指示灯：表示该控制盘有效。

E.1～16号键输出指示灯：表明对应编号的按键已被按下。

F.1～16号键回授指示灯：表明收到对应编号联动设备动作的回授信号。

G.允许/禁止按键：切换有效/无效状态。

H.1～16号启动键：按下该键，启动对应的联动设备。

多线控制盘的指示灯和按键I.允许/禁止指示灯：表示该控制盘有效。

J.1～8号键输出指示灯：表明对应编号的按键已被按下。

K.1～8号键故障指示灯：表明控制盘到对应编号联动设备的线路异常。

L. 手动/自动键：只有置于“自动”时，该控制盘可接收自动启动信号（1组无源触点），启动对应的联动设备。

M.1～8号启动/停止键：按下该键，启动对应的联动设备。
