Nokia_5730_China_UG_zh-HK

基本参数型号 5730XM手机类型智能手机,音乐手机,拍照手机,3G手机上市时间 2009年手机制式 GSM,WCDMA手机频段 WCDMA(3G),GSM,GSM 850/900/1800/1900,HSDPA 手机外形侧滑盖主屏尺寸 2.4英寸主屏材质 TFT主屏色彩彩屏,1600万色主屏参数240×320像素(QVGA)CPU ARM11 369MHZ内存容量 100MB系统 Series 60第3版操作系统 Series 60标准配置诺基亚立体声耳机AD-54/HS-83,诺基亚8GB microSDHC存储卡MU-43,诺基亚MicroUSB数据线CA-101D,诺基亚高效充电器AC-8,说明书,光碟等通话时间 GSM:312分钟待机时间 GSM:300小时外壳颜色红黑尺寸112×51×15.4mm重量 135g基本功能铃声支持MP3铃声,支持mp3,aac,amr,wma,和弦等格式通讯录分组管理,支持S60标准化名片式通讯录信息功能 SMS短信,MMS短信,短信群发E-mail收发支持E-mail,支持SMTP,POP3,IMAP4等邮件协议输入法 QWERTY键盘输入,英文输入法游戏内置游戏办公功能支持文档阅读,支持TXT,Office(word,excel,ppt) 录音功能支持录音功能主要功能内置天线,时钟,内置震动,情景模式,免提通话,待机图片,来电图片识别,飞行模式,主题模式附加功能闹钟,日历,计算器,日程表,TXT阅读数据应用功能蓝牙支持蓝牙,蓝牙v2.0,A2DP蓝牙立体声数据业务 GPRS,EDGE,HSCSDJAVA 支持Java,Java MIDP 2.0,CLDC 1.1WAP上网 wap 2.0WWW浏览器支持WWW浏览器,支持诺基亚网络浏览器数据线支持数据线,micro USB接口,USB 2.0,3.5mm耳机接口扩展卡支持TF卡(microSD卡)WiFi(WLAN) 支持WiFi,支持802.11 b/g,大陆行货不支持WiFi功能GPS定位系统支持GPS,支持A-GPS网络辅助导航功能其它数据功能内置Modem拍照功能摄像头内置摄像头,卡尔·蔡司认证镜头摄像头像素 320万像素传感器类型 CMOS传感器闪光灯内置闪光灯,LED闪光灯拍摄模式白平衡:自动或可调(阳光,阴天,白炽光,萤光),自动曝光,拍摄模式:静态拍摄模式,短片模式及连拍模式照片质量支持最大2048×1536分辨率照片拍摄照片特效色彩模式:标准,棕色,鲜艳,負片,灰度(黑白)拍摄特色自动对焦,8倍数码变焦视频拍摄有声视频拍摄,支持640×352分辨率全屏有声视频拍摄多媒体娱乐功能多媒体 FM收音,3.5mm耳机接口MP3播放器支持MP3播放,内置播放器,支持WMA,MP3,eAAC+等音频格式播放(支持后台播放,播放列表编辑,可选预设,加重低音,古典,爵士,流行,摇滚等音乐播放模式,EQ音效调节及循环播放设置)视频播放支持视频播放,支持MPEG4,H.264/AVC,H.263/3GP,RealVideo等格式FM收音机网络收音机流媒体播放支持数字电视接收播放,支持TV-Out电视输出Flash播放支持,Flash Lite 3.0。

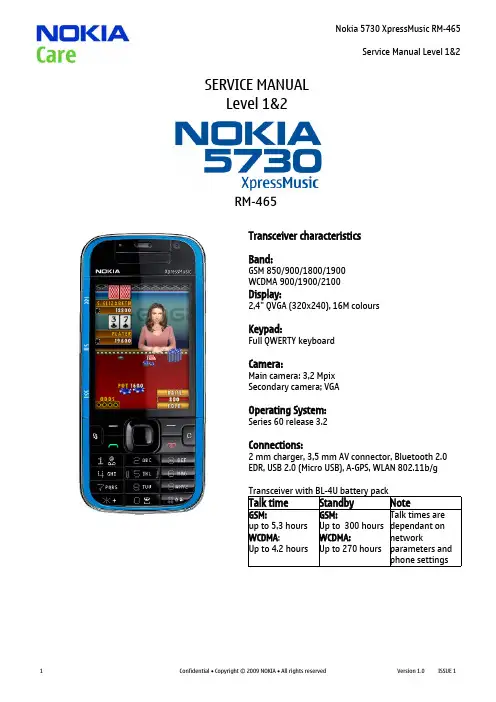

SERVICE MANUAL Level 1&2RM-465Transceiver characteristicsBand:GSM 850/900/1800/1900 WCDMA 900/1900/2100Display:2,4" QVGA (320x240), 16M coloursKeypad:Full QWERTY keyboardCamera:Main camera: 3,2 Mpix Secondary camera; VGAOperating System:Series 60 release 3.2Connections:2 mm charger, 3,5 mm AV connector, Bluetooth 2.0 EDR, USB 2.0 (Micro USB), A-GPS, WLAN 802.11b/gTransceiver with BL-4U battery packTalk timeStandby NoteGSM:up to 5,3 hours WCDMA :Up to 4.2 hours GSM: Up to 300 hours WCDMA: Up to 270 hours Talk times are dependant on networkparameters andphone settingsTable of contents1. Change history (3)2. Copyright (4)3. Warnings and cautions (5)3.1 Warnings (5)3.2 Cautions (5)4. ESD protection (6)5. Care and maintenance (7)6. Battery information (8)7. Exploded view (9)8. Service devices (10)9. SW-update (11)10. Disassembly instruction (12)11. Assembly hints (19)12. Solder components (21)1.CHANGE HISTORYDate Comments Status VersionNo.Approved 1.0 24.04.2009The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians tocarry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIAservice suppliers, and the content of it is confidential. Please note that NOKIA provides also otherguidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly andcomply with the given instructions.While every endeavor has been made to ensure the accuracy of this document, some errors mayexist. If you find any errors or if you have further suggestions, please notify NOKIA using theaddress below:CMO Operation & LogisticsTraining and Vendor DevelopmentMultimedia Creation & Supportmailto:Service.Manuals@Please keep in mind also that this documentation is continuously being updated and modified,so watch always out for the newest version.2.COPYRIGHTCopyright © 2009 Nokia. All rights reserved.Reproduction, transfer, distribution or storage of part or all of the contents in this document inany form without the prior written permission of Nokia is prohibited.Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks ofNokia Corporation. Other product and company names mentioned herein may be trademarks ortradenames of their respective owners.Nokia operates a policy of continuous development. Nokia reserves the right to make changesand improvements to any of the products described in this document without prior notice.Under no circumstances shall Nokia be responsible for any loss of data or income or any special,incidental, consequential or indirect damages howsoever caused.The contents of this document are provided “as is”. Except as required by applicable law, nowarranties of any kind, either express or implied, including, but not limited to, the impliedwarranties of merchantability and fitness for a particular purpose, are made in relation to theaccuracy, reliability or contents of this document. Nokia reserves the right to revise thisdocument or withdraw it at any time without prior notice.The availability of particular products may vary by region.IMPORTANTThis document is intended for use by qualified service personnel only.3.WARNINGS AND CAUTIONSPlease refer to the phone’s user guide for instructions relating to operation, care andmaintenance including important safety information. Note also the following:3.1Warnings1.CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINEMANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLEDEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RFENERGY.2.THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAINPOTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTINGAREAS ETC.3.OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAYINTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULTA PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.3.2Cautions1.Servicing and alignment must be undertaken by qualified personnel only.2. Ensure all work is carried out at an anti–static workstation and that an anti–static wriststrap is worn.e only approved components as specified in the parts list.4.Ensure all components, modules screws and insulators are correctly re–fitted after servicingand alignment.5.Ensure all cables and wires are repositioned correctly4.ESD PROTECTIONNokia requires that service points have sufficient ESD protection (against static electricity) when servicing the phone.Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced without ESD protection if the product is otherwise ready for use.To replace the covers ESD protection must be applied.All electronic parts of the product are susceptible to ESD. Resistors, too, can be damaged by static electricity discharge.All ESD sensitive parts must be packed in metallized protective bags during shipping and handling outside any ESD Protected Area (EPA).Every repair action involving opening the product or handling the product components must be done under ESD protection.ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area.For more information and local requirements about ESD protection and ESD Protected Area, contact your local Nokia After Market Services representative.5.CARE AND MAINTENANCEThis product is of superior design and craftsmanship and should be treated with care. Thesuggestions below will help you to fulfil any warranty obligations and to enjoy this product formany years.∙Keep the phone and all its parts and accessories out of the reach of small children.∙Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that will corrode electronic circuits.∙Do not use or store the phone in dusty, dirty areas. Its moving parts can be damaged.∙Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.∙Do not store the phone in cold areas. When it warms up (to its normal temperature), moisture can form inside, which may damage electronic circuit boards.∙Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.∙Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone.∙Do not paint the phone. Paint can clog the moving parts and prevent proper operation.∙Use only the supplied or an approved replacement antenna. Unauthorised antennas, modifications or attachments could damage the phone and may violate regulationsgoverning radio devices.All of the above suggestions apply equally to the product, battery, charger or any accessory.6.BATTERY INFORMATIONNote: A new battery’s full performance is achieved only after two or three complete charge anddischarge cycles! The battery can be charged and discharged hundreds of times but it willeventually wear out.When the operating time (talk-time and standby time) is noticeably shorter than normal, it istime to buy a new battery. Use only batteries approved by the phone manufacturer andrecharge the battery only with the chargers approved by the manufacturer.Unplug the charger when not in use. Do not leave the battery connected to a charger for longerthan a week, since overcharging may shorten its lifetime.If left unused a fully charged battery will discharge itself over time Temperature extremes canaffect the ability of your battery to charge.For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time byleaving the product switched on until it turns itself off (or by using the battery discharge facilityof any approved accessory available for the product).Do not attempt to discharge the battery by any other means Use the battery only for itsintended purpose.Never use any charger or battery which is damaged.Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object(coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal stripson the battery) for example when you carry a spare battery in your pocket or purse.Shortcircuiting the terminals may damage the battery or the connecting object.Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°Cand 25°C (59°F and 77°F).A phone with a hot or cold battery may temporarily not work, even when the battery is fullycharged. Batteries’ performance is particularly limited in temperatures well below freezing.Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.recycling).Do not dispose as household waste.7. EXPLODED VIEWOnly available as assemblyVer. 1.0These parts can not be reused after removalA1=LIGHT SWAP PACKAGE (I0204-I0206, I9998)A2=B-COVER ASSEMBLY (I0211-I0214)EARPIECE HOLDER METALI0007T9 KEYMAT ASSEMBLY I0003LCD AM 240x320I0006SLIDE MODULEI01012RS UI FLEX ASSEMBLY I0009EARPIECE I0008LIGHT SWAP PWBI0205QWERTY DOMESHEET ASSY I0204TYPE LABEL I02062RP AV FLEX ASSYI0207VOLUME SIDE KEY ASSYI0217GPS/BT WLAN ANTENNAI0215B-COVER I0214ANTENNA ASSEMBLY I0216USB/SD-DOOR I0218DONAU SPEAKERI0212IHF FRONT GASKETI0213AUDIO ACCENT BAND I0219SCREW 1.4X3.4I0011SCREW RF1.6X4.5I01042RT CAMERA FLEX ASSEMBLY I0208BATTERY COVERI0223SCREW 1.4X2.5I0010FLEX SLIDER I01032RU DYNAMIC FLEX I0102FLEX PLANE I0201SCREW 1.8X3I0221SCREW 1.4X4.5I0222QWERTY KEYMAT I0202ACCENT BAND QWERTY I0203DC JACK I0211A-COVER ASSEMBLY I0002WINDOW ASSYI00018. SERVICE DEVICESFLS-5 Flash DeviceCA-101 Service CableAC-4 Travel ChargerBL-4U BatterySS-198 UI flex assembly jigNMP standard toolkit (v2) For more information, refer to the Service Bulletin (SB-011) on NOKIA Online. Supplier or manufacturer contacts for tool re-order can be found in “Recommended service equipment” document on NOKIA Online.9.SW-UPDATEFlash concept- (Point of Sales)To use the FLS-5 Flash Dongle, follow the user guide inside the sales package.Please check always for the latest version of flash software, wich is available on Nokia Online.10.DISASSEMBLY INSTRUCTION1) Nokia 5730 XpressMusic disassembly.2) You must use the Nokia Standard Toolkit version2.3) Remove the BATTERY COVER.4) Slide the phone open. Unscrew the first TORX+ 4 (M1,8 x 3) screw. Then unscrew the three TORX+ 4 (M1,4 x 2,5) screws in the order shown. Discardthem.5) Release the A-COVER ASSEMBLY from the SLIDE MODULE using the SRT-6. Carefully open the shown corner.6) Carefully lift up the top side of the A-COVER and at the same time push it to the left so that ITU KEYMATlatches open. Check that ITU latches are not broken.7) Remember to protect the LCD with protective film.8) Separate the KEYMAT ASSEMBLY from the A-COVERASSEMBLY.9) Release the EARPIECE HOLDER and remove it with the tweezers. Then separate the EARPIECE from the EARPIECE HOLDER with the tweezers.10) Open the LCD connector from the 2 MX UI FLEX ASSEMBLY with the SS-93. Be careful not to damage the connector.11) Carefully release the LCD with the SRT-6.12) Carefully lift up the LCD and push it into direction shown.13) Slide the phone open. 14) Use the SRT-6 to release the clips holding theACCENT BAND QWERTY.15) Use the SS-93 to detach the QWERTY KEYMATadhesive on the right side. Pull the QWERTY KEYMATin the direction shown.16) Remove the USB-DOOR by pulling it to thedirection shown.17) Turn the phone and use the SRT-6 to remove theAUDIO ACCENT BAND from the B-Cover Assembly.TIP: Use the SRT-6 NOKIA text facing up.18) Separate the AUDIO ACCENT BAND.19) Unscrew these five TORX+ size 4 screws in the order shown. Discard them.20) Close the slide a bit until the two screwsbecome visible (small image). Unscrew these three TORX+ size 4 screws.21) Rotate the SLIDE ASSY and unscrew the TORX+ size 4 screw.22) Use the SS-93 to open the locking mechanism ofthe Camera connector. Take out the SIDEKEYFLEX with the tweezers.23) Pull out the Camera connector with the tweezers and remove the Camera Assembly. Be careful not to damage the connector.24) Open the locking mechanism of AV connector with the SS-93 and pull out the connector with the tweezers.25) Use the SS-93 to lift the engine module and carefully separate it from the B-COVER.26) Remove the FLEX PLANE from the engine board by opening a small clip with the dental tool.27) Open the DYNAMIC FLEX connector with the SRT-6. Be careful not to damage the connector.28) Separate the engine board and the SLIDEMODULE.29) Remove the FLEX SLIDER using the SS-93.30) Open the connector of the DYNAMIC FLEX and separate it from the SLIDE MODULE. Be careful to notto damage the connector.31) Detach the 2 MX UI FLEX ASSEMBLY from the SLIDE MODULE with the SS-93. Discard the 2MX UI FLEX ASSEMBLY, do not use it again. Remove the adhesive stains from the SLIDE MODULE. 32) Start releasing the QWERTY DOMESHEET with the dental tool. Carefully remove the QWERTY DOMESHEET. Make sure that the whole QWERTYDOMESHEET is removed.33) Lift up the AV FLEX ASSY with the SS-93 andremove the ASSY with the tweezers.34) Remove the GPS/BT WLAN ANTENNA with thetweezers.35) Remove the ANTENNA ASSEMBLY with thetweezers.36) Release the DC JACK with the charger and thenremove the DC JACK with the tweezers.37) Use the dental tool to release the IHF SPEAKER and the IHF SPEAKER gasket. 38) Carefully push both buttons of the SIDE KEY with SS-93 to release it. Then remove the SIDE KEY withthe tweezers.-END OF DISASSEMBLY- 39) Nokia 5730 XpressMusic disassembly is nowcomplete.11.ASSEMBLY HINTS1) When placing the QWERTY DOMESHEET make sure that these holes are aligned. 2) First push the DYNAMIC FLEX with the SS-93 into place against the FLEX PLANE as shown. Next,connect the connector to the PWB. Then slide theFLEX PLANE into the gap and fasten the small clip.3) When assembling the other end of the DYNAMIC FLEX make sure that the connector goes under the two clips shown. Connect the connector and then press the FLEX SLIDER into the correct place so that the small gap is facing the DYNAMIC FLEX.4) Tighten the screw to the torque of 16 Ncm.5) Tighten the screws to the torque of 16 Ncm in the order shown. After tightening the first screw close the slide a bit until the two screw holes become visible (small image). Tighten the two TORX+ size 4 screws.6) Tighten the five TORX+ size 4 to the torque of 20Ncm in the order shown.7) Tighten the first three TORX+ size 4 screws (M1,4 x 2,5) to the torque of 20 Ncm in the order shown. Then tighten the last TORX+ size 4 screw (M1,8 x 3) to the torque of 20 Ncm.Nokia 5730 XpressMusic RM-465Service Manual Level 1&221 Confidential ∙ Copyright © 2009 NOKIA ∙ All rights reservedVersion 1.0 ISSUE 1 12. SOLDER COMPONENTS V2431V2426V2427V2429X1000X1451X1001。

刷机有风险！！！刷机请谨慎！！！刷机前一定要做好充分的知识储备和心理准备，本教程只提供参考，自己不小心刷坏的概不负责闲来无事刷了一下机，从国行4.13刷到06.103,其实我的5320XM是移动定制的心机，当初买的时候不懂没辨别出来，软件版本才3.08，有不少BUG而且心里很不爽就自己刷到了国行4.13，4.13虽然也有点老但是比较稳定的系统版本，后面的5.16以及我要刷的06.103也存在部分BUG未解决，但是手痒就刷了。

一旦刷到06.103如果没有备份其他低版本系统的PM308文件的话，决不能降级！！！否则必挂，会有网络锁，再次刷机、强刷也无法解决，必须送客服用专用的工具解锁！！！所以考虑刷至06.103之前先用JAF备份现有系统版本的PM308文件，以防万一（我没有备份此文件，因为不管这个版本咋样都不打算降级了，闲再装个JAF麻烦，而且有些机子备份了也没用，降级后还会出现网络锁）。

只要不是刷到06.103均可以用JAF降级而且不会有网络锁，本次所用的凤凰刷机无法用于降级，只能平刷和升级！！！降级必成砖！！！工具：凤凰刷机软件（Phoenix Service Software 2010.24.008.43820-zh）这是别人破解以及汉化的版本，直接安装就可以了，会安装到C盘，无法更改路径（最好也别改安装路径），安装后半段360会报毒~~直接无视~~刷机包：1.5320_Nokia_firmware_RM-416_CareDP_7.0_SW06.103（主刷机包）2.5320_Nokia_firmware_RM-416_CHINA_06.103_v7.02（刷机补丁包，就是根据主刷机包做的，仅仅含有的Code比主刷机包多，我所用的Code就在这个包里）先安装主刷机包，再安装补丁包，安装主刷机包的时候会有安装路径选择，默认C盘，建议不动，否则凤凰可能识别不了其路径，再安装补丁包的时候会自动安装到主刷机包所安装的位置此版本的凤凰自带各种刷机的驱动无需安装诺基亚的PC套件、NSU等，如果已经安装了PC 套件也无需卸载，我的就没有卸载；相同硬件的不同Code可以互刷，但是不同硬件的决不能互刷，否则百分百刷成砖头！！！所谓硬件相同即是RIM-XXX相同即可，我的是RIM-416，只要是RIM-416的不同Code系统版本我都可以刷，这回我刷的是0579519国行蓝色。
