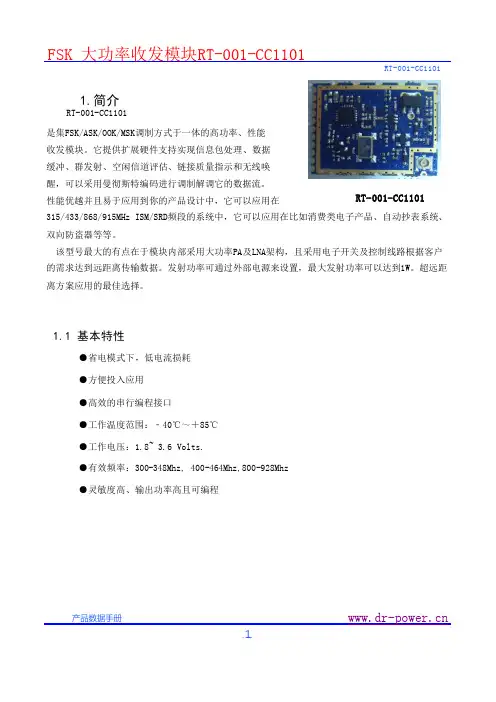

RT-001-CC11011.简介RT-001-CC1101是集FSK/ASK/OOK/MSK调制方式于一体的高功率、性能收发模块。
它提供扩展硬件支持实现信息包处理、数据缓冲、群发射、空闲信道评估、链接质量指示和无线唤醒，可以采用曼彻斯特编码进行调制解调它的数据流。
性能优越并且易于应用到你的产品设计中，它可以应用在 RT-001-CC1101315/433/868/915MHz ISM/SRD频段的系统中，它可以应用在比如消费类电子产品、自动抄表系统、双向防盗器等等。
该型号最大的有点在于模块内部采用大功率PA及LNA架构，且采用电子开关及控制线路根据客户的需求达到远距离传输数据。
发射功率可通过外部电源来设置，最大发射功率可以达到1W。
超远距离方案应用的最佳选择。
1.1 基本特性●省电模式下，低电流损耗●方便投入应用●高效的串行编程接口●工作温度范围：﹣40℃～＋85℃●工作电压：1.8~ 3.6 Volts.●有效频率：300-348Mhz, 400-464Mhz,800-928Mhz●灵敏度高、输出功率高且可编程产品数据手册.1.RT-001-CC1101 1.2 模块方框图图1.1 模块方框图1.3 评估套件本公司针对RT-1G0-PS------模块开发的多功能开发套件，体积小，功能完善，能够完成RT-1G0-PS性能评估及协议学习，缩短产品开发时间，是研发的极佳选择。
图1.2 开发套件总览1.4 主要功能介绍■ 配合测试仪器（高频信号源、频谱仪器）等，测试主要性能参数；■ 配合模块，室外测试，模拟空旷地，停车场，建筑群，等环境下进行距离测试；■ 通过读取RF Module和MCU之间的通讯数据。
了解数据传输的协议；产品数据手册RT-001-CC11011.5 基本配置■ JY-A1G-DK测试架（2个）；■ 标准SMA-315MHz、433MHz天线（任一频率1对）；■ 标准AA电池（4个）；■ 客户待评估模块（TX、RX各1个）；■ SMA双头高频线1根；2.系统级功能2.1 收发器ICCC1100是一种低成本真正单片的UHF收发器，为低功耗无线应用而设计。
CC1101射频的UHF收发器解析CC1101在CC1100主要改善部分改善杂散响应；更紧密的相位噪声更好的改善邻道功率（ACP ）的性能；饱和电平输入更高；更高效能的功率输出连续频率波段的扩展，CC1100: 400-464 MHz 和800-928 MHzCC1101: 387-464 MHz 和779-928 MHz产品简介CC1100/CC1101是Chipcon（已被TI收购）推出的一款低成本单片射频的UHF收发器。
该芯片电路主要设定为在315、433、868和915MHz 的ISM（工业，科学和医学）,集成了一个软件可编程的调制解调器。
该调制解调器支持2-FSK、GFSK和MSK调制格式，数据传输率最高可达500kbps。
通过开启集成在调制解调器上的前向误差校正选项，能使性能得到提升。
CC1100/CC1101硬件支持数据包处理、数据缓冲、突发数据传输、清晰信道评估、连接质量指示和电磁波激发MCU可以通过SPI 接口与CC1100进行命令和数据交换。
CC1100/CC1101主要应用于低功耗无线应用设计。
CC1101在CC1100基础上主要进行以下改进改善杂散响应,饱和电平输入更高；连续频率波段的扩展：CC1100: 400-464 MHz和800-928 MHz；CC1101: 387-464 MHz和779-928 MHz；CC1101和CC1100二者在软件编程上完全兼容；更高效能的功率输出，能量越集中，信号传输就越远；更紧密的相位噪声更好的改善邻道功率（ACP）的性能，改善了近距离信号堵塞现象。
虽然CC1100芯片还存在，但鉴于CC1101的改进特性，我公司研制的模块已经从09年开始全部采用CC1101芯片。
为便于用户开发，我们提供配套评估套件，为产品开发保驾护航，使无线应用开发大大加速，并避免不必要的误区。
基本特点工作电压：1.8-3.6V工作频率：（模块：387-464MHZ）瞬间最大工作电流: <30mA；最大发射功率: 10mW (+10dBm)；315/433/868/915MHZ的ISM频段;支持2-FSK、GFSK和MSK调制方式;接收灵敏度在1200波特率下-110dBm;最低工作速率1.2kbps,最高500kbps;单独的64字节RX和TX数据FIFO缓冲区；内置硬件CRC 检错可确保数据可靠传输；支持RSSI强弱信号检测和载波侦听功能；功耗低（RX中，15.6mA，2.4kbps,433MHz;快速频率变动合成器带来的合适的频率跳跃系统；通信地址（256个）工作频率都可以通过SPI编程设置；可编程控制的输出功率，对所有的支持频率可达+10dBm；WOR功能可设置待机、接收状态定时切换时间比例以降低功耗；典型主要应用车辆监控、遥控、遥测、水文气象监控无线标签、身份识别、非接触RF智能卡小型无线网络、无线抄表、门禁系统、小区传呼工业数据采集系统、无线232数据通信、无线485/422数据通信无线数据终端、安全防火系统、无线遥控系统、生参考例程更多功率参数设置可详细参考DATACC1101英文文档中第48-49页的参数表//INT8U PaTabel[8] ={0x04 ,0x04 ,0x04 ,0x04 ,0x04 ,0x04 ,0x04 ,0x04}; //-30dBm 功率最小//INT8U PaTabel[8] = {0x60 ,0x60 ,0x60 ,0x60 ,0x60 ,0x60 ,0x60 ,0x60};//0dBmINT8U PaTabel[8] ={0xC0 ,0xC0 ,0xC0 ,0xC0 ,0xC0 ,0xC0 ,0xC0 ,0xC0}; //10dBm 功率最大SPI读写操作INT8U SpiTxRxByte(INT8U dat){INT8U i,temp;temp = 0;SCK = 0;for(i=0; i<8; i++){if(dat & 0x80){MOSI = 1;}else MOSI = 0;dat <<= 1;SCK = 1;_nop_();_nop_();temp <<= 1;if(MISO)temp++;SCK = 0;_nop_();_nop_();}return temp;}SPI写寄存器操作void halSpiWriteReg(INT8U addr, INT8U value) { CSN = 0;while (MISO);SpiTxRxByte(addr); //写地址SpiTxRxByte(value); //写入配置CSN = 1;}SPI读寄存器操作INT8U halSpiReadReg(INT8U addr){INT8U temp, value;temp = addr|READ_SINGLE;//读寄存器命令CSN = 0;while (MISO);SpiTxRxByte(temp);value = SpiTxRxByte(0);CSN = 1;return value;}CC1101初始化设置RF_SETTINGS rfSettings ={0x00,0x08, // FSCTRL1 Frequency synthesizer control.0x00, // FSCTRL0 Frequency synthesizer control.0x10, // FREQ2 Frequency control word, high byte. 0xA7, // FREQ1 Frequency control word, middle byte. 0x62, // FREQ0 Frequency control word, low byte.0x5B, // MDMCFG4 Modem configuration.0xF8, // MDMCFG3 Modem configuration.0x03, // MDMCFG2 Modem configuration.0x22, // MDMCFG1 Modem configuration.0xF8, // MDMCFG0 Modem configuration.0x00, // CHANNR Channel number.0x47, // DEVIATN Modem deviation setting0xB6, // FREND1 Front end RX configuration.0x10, // FREND0 Front end RX configuration.0x18, // MCSM0 Main Radio Control State Machine configuration.0x1D, // FOCCFG Frequency Offset Compensation Configuration.0x1C, // BSCFG Bit synchronization Configuration.0xC7, // AGCCTRL2 AGC control.0x00, // AGCCTRL1 AGC control.0xB2, // AGCCTRL0 AGC control.0xEA, // FSCAL3 Frequency synthesizer calibration.0x2A, // FSCAL2 Frequency synthesizer calibration.0x00, // FSCAL1 Frequency synthesizer calibration.0x11, // FSCAL0 Frequency synthesizer calibration.0x59, // FSTEST Frequency synthesizer calibration.0x81, // TEST2 Various test settings.0x35, // TEST1 Various test settings.0x09, // TEST0 Various test settings.0x0B, // IOCFG2 GDO2 output pin configuration.0x06, // IOCFG0D GDO0 output pin configuration.0x04, // PKTCTRL1 Packet automation control.0x05, // PKTCTRL0 Packet automation control.0x00, // ADDR Device address.0x0c // PKTLEN Packet length.};数据接收流程操作INT8U halRfReceivePacket(INT8U *rxBuffer, INT8U *length) {INT8U status[2];INT8U packetLength;INT8U i=(*length)*4; //具体多少要根据datarate和length来决定halSpiStrobe(CCxxx0_SRX); //进入接收状态delay(2);while (GDO0){delay(2);--i;if(i<1)return 0;}if ((halSpiReadStatus(CCxxx0_RXBYTES) & BYTES_IN_RXFIFO)) //如果接的字节数不为0{packetLength = halSpiReadReg(CCxxx0_RXFIFO);//读出第一个字节，此字节为该帧数据长度if (packetLength <= *length)//如果所要的有效数据长度小于等于接收到的数据包的长度{halSpiReadBurstReg(CCxxx0_RXFIFO, rxBuffer, packetLength);//读出所有接收到的数据*length =packetLength;//把接收数据长度的修改为当前数据的长度// Read the 2 appended status bytes (status[0] = RSSI, status[1] = LQI)halSpiReadBurstReg(CCxxx0_RXFIFO, status, 2);//读出CRC校验位halSpiStrobe(CCxxx0_SFRX); //清洗接收缓冲区return (status[1] & CRC_OK); //如果校验成功返回接收成功}else{*length = packetLength;halSpiStrobe(CCxxx0_SFRX); //清洗接收缓冲区return 0;}}elsereturn 0;}数据发送流程操作void halRfSendPacket(INT8U *txBuffer, INT8U size){halSpiWriteReg(CCxxx0_TXFIFO, size);halSpiWriteBurstReg(CCxxx0_TXFIFO, txBuffer, size);//写入要发送的数据halSpiStrobe(CCxxx0_STX); //进入发送模式发送数据// Wait for GDO0 to be set -> sync transmittedwhile (!GDO0);// Wait for GDO0 to be cleared -> end of packetwhile (GDO0);halSpiStrobe(CCxxx0_SFTX);}无线应用注意事项(1)无线模块的VCC电压范围为1.8V-3.6V之间，不能在这个区间之外，超过3.6V将会烧毁模块。

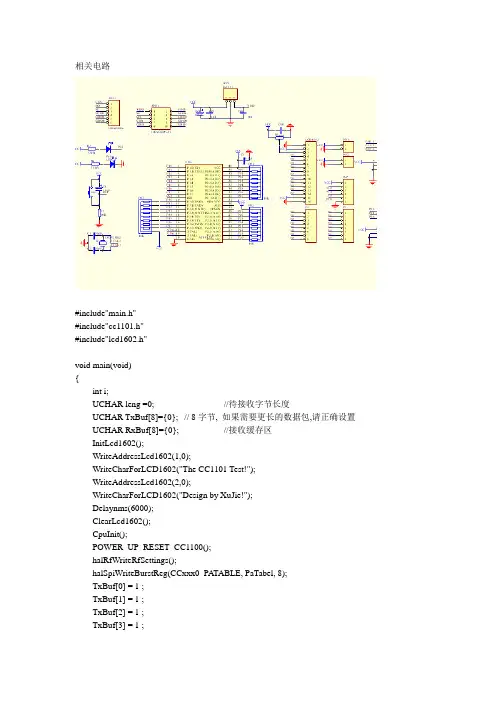

相关电路#include"main.h"#include"cc1101.h"#include"lcd1602.h"void main(void){int i;UCHAR leng =0; //待接收字节长度UCHAR TxBuf[8]={0}; // 8字节, 如果需要更长的数据包,请正确设置UCHAR RxBuf[8]={0}; //接收缓存区InitLcd1602();WriteAddressLcd1602(1,0);WriteCharForLCD1602("The CC1101 Test!");WriteAddressLcd1602(2,0);WriteCharForLCD1602("Design by XuJie!");Delaynms(6000);ClearLcd1602();CpuInit();POWER_UP_RESET_CC1100();halRfWriteRfSettings();halSpiWriteBurstReg(CCxxx0_PATABLE, PaTabel, 8);TxBuf[0] = 1 ;TxBuf[1] = 1 ;TxBuf[2] = 1 ;TxBuf[3] = 1 ;TxBuf[4] = 1 ;TxBuf[2] = 1 ;TxBuf[6] = 1 ;TxBuf[7] = 1 ;halRfSendPacket(TxBuf,8); // Transmit Tx buffer datadelay(6000);InitTimer0();// 显示格式// Bulb overturn at// ***** SEC later!WriteAddressLcd1602(1,0);WriteCharForLCD1602("Bulb overturn at"); WriteAddressLcd1602(2,6);WriteCharForLCD1602("SEC later!");while(1){led = 1; //指示灯一直熄灭，只有接收到数据时才闪烁leng =8; // 预计接受8 bytesResultToDisplay(SetTime);WriteAddressLcd1602(2,0);for(i=0;i<5;i++)WriteLcd1602(1,DisplayResult[i]);if(halRfReceivePacket(RxBuf,&leng)){if( RxBuf[1]==1) //确认，开始灭定时{led = 0;TR0 = 0;TR1 = 1;}if( RxBuf[2]==1){ //确认，开始亮定时led = 0;TR0 = 1;TR1 = 0;}if( RxBuf[3]==1) //时间加{led = 0;SetTime ++;}if( RxBuf[4]==1) //时间减{led = 0;SetTime --;}if( RxBuf[5]==1) //灯亮{led = 0;bulb = 0;}if( RxBuf[6]==1) //灯灭{led = 0;bulb = 1;}delay(1000);}RxBuf[1] = 0xff; // 接收正确数据后复位数据，防止旧数据对新数据影响RxBuf[2] = 0xff;RxBuf[3] = 0xff;RxBuf[4] = 0xff;RxBuf[5] = 0xff;RxBuf[6] = 0xff;}}/*---------------------------------------------定时器0函数：控制灯定时一定时间后点亮---------------------------------------------*/void Timer0() interrupt 1{TH0 = (65536-50000)/256; //50ms定时，定时20次，12M晶振约为1sTL0 = (65536-50000)%256;count0 ++;if(20==count0){count0 = 0;time0 ++;if(time0==SetTime){time0 = 0;led = 0;bulb = 0; //定时时间到，灯亮}}}/*---------------------------------------------定时器1函数：控制灯点亮时定时一段时间后熄灭---------------------------------------------*/void Timer1() interrupt 3{TH1 = (65536-50000)/256; //50ms定时，定时20次，12M晶振约为1s TL1 = (65536-50000)%256;count1 ++;if(20==count1){count1 = 0;time1 ++;if(time1==SetTime){time1 = 0;led = 0;bulb = 1; //定时时间到，灯灭}}}#ifndef _MAIN_H_#define _MAIN_H_#include<intrins.h>#include<string.h>#include<reg51.h>//宏定义#define UCHAR unsigned char#define UINT unsigned int#define ULONG unsigned longsbit led=P2^2; //LED指示灯，每接收到字节闪烁一次psbit bulb = P2^0;int SetTime = 0; //定时时间，单位：sint count0,count1,time0,time1; //定时器中断内部变量UCHAR DisplayResult[5]; //全局显示结果数组/**************************************************函数功能：延时函数:延时nms入口参数：y ms***************************************************/void Delaynms(UINT y){UINT x;for(;y>0;y--)for(x=110;x>0;x--);}/**************************************************函数功能：将长整型数据转换为字符数组形式以待显示***************************************************/void ResultToDisplay(int dat){DisplayResult[4] = dat%10+0x30;DisplayResult[3] = dat%100/10+0x30;DisplayResult[2] = dat%1000/100+0x30;DisplayResult[1] = dat%10000/1000+0x30;DisplayResult[0] = dat%100000/10000+0x30;}/*---------------------------------------------定时初始函数：初始值50000=50ms定时器0---------------------------------------------*/void InitTimer0(){TMOD = 0x11; //定时器0，定时器1工作方式1TH0 = (65536-50000)/256; //定时器0装初值TL0 = (65536-50000)%256;TH1 = (65536-50000)/256; //定时器1装初值TL1 = (65536-50000)%256;EA = 1; //开总中断ET0 = 1; //开Timer0中断ET1 = 1;}#endif#ifndef _CC1101_H_#define _CC1101_H_#define WRITE_BURST 0x40 //连续写入#define READ_SINGLE 0x80 //读#define READ_BURST 0xC0 //连续读#define BYTES_IN_RXFIFO 0x7F //接收缓冲区的有效字节数#define CRC_OK 0x80 //CRC校验通过位标志//***********************************CC1100接口*************************************************sbit G DO0 =P1^6;sbit G DO2 =P1^5;sbit MISO =P1^2;sbit MOSI =P1^3;sbit SCK =P1^4;sbit CSN =P1^1;//***********************************按键********************************************************//sbit KEY1 =P0^0;//sbit KEY2 =P0^1;//***********************************数码管位选**************************************************//sbit led3=P2^0;//sbit led2=P2^1;//sbit led1=P2^2;//sbit led0=P2^3;//***********************************蜂鸣器*******************************************************//sbit BELL=P3^4;//***************更多功率参数设置可详细参考DA TACC1100英文文档中第48-49页的参数表******************//UCHAR PaTabel[8] = {0x04 ,0x04 ,0x04 ,0x04 ,0x04 ,0x04 ,0x04 ,0x04}; //-30dBm 功率最小UCHAR PaTabel[8] = {0x60 ,0x60 ,0x60 ,0x60 ,0x60 ,0x60 ,0x60 ,0x60}; //0dBm//UCHAR PaTabel[8] = {0xC0 ,0xC0 ,0xC0 ,0xC0 ,0xC0 ,0xC0 ,0xC0 ,0xC0}; //10dBm 功率最大//***************************************************************************** ******************void SpiInit(void);void CpuInit(void);void RESET_CC1100(void);void POWER_UP_RESET_CC1100(void);void halSpiWriteReg(UCHAR addr, UCHAR value);void halSpiWriteBurstReg(UCHAR addr, UCHAR *buffer, UCHAR count);void halSpiStrobe(UCHAR strobe);UCHAR halSpiReadReg(UCHAR addr);void halSpiReadBurstReg(UCHAR addr, UCHAR *buffer, UCHAR count);UCHAR halSpiReadStatus(UCHAR addr);void halRfWriteRfSettings(void);void halRfSendPacket(UCHAR *txBuffer, UCHAR size);UCHAR halRfReceivePacket(UCHAR *rxBuffer, UCHAR *length);//***************************************************************************** ************// CC1100 STROBE, CONTROL AND STATUS REGSITER#define CCxxx0_IOCFG2 0x00 // GDO2 output pin configuration#define CCxxx0_IOCFG1 0x01 // GDO1 output pin configuration#define CCxxx0_IOCFG0 0x02 // GDO0 output pin configuration#define CCxxx0_FIFOTHR 0x03 // RX FIFO and TX FIFO thresholds#define CCxxx0_SYNC1 0x04 // Sync word, high UCHAR#define CCxxx0_SYNC0 0x05 // Sync word, low UCHAR#define CCxxx0_PKTLEN 0x06 // Packet length#define CCxxx0_PKTCTRL1 0x07 // Packet automation control#define CCxxx0_PKTCTRL0 0x08 // Packet automation control#define CCxxx0_ADDR 0x09 // Device address#define CCxxx0_CHANNR 0x0A // Channel number#define CCxxx0_FSCTRL1 0x0B // Frequency synthesizer control#define CCxxx0_FSCTRL0 0x0C // Frequency synthesizer control#define CCxxx0_FREQ2 0x0D // Frequency control word, high UCHAR#define CCxxx0_FREQ1 0x0E // Frequency control word, middle UCHAR#define CCxxx0_FREQ0 0x0F // Frequency control word, low UCHAR#define CCxxx0_MDMCFG4 0x10 // Modem configuration#define CCxxx0_MDMCFG3 0x11 // Modem configuration#define CCxxx0_MDMCFG2 0x12 // Modem configuration#define CCxxx0_MDMCFG1 0x13 // Modem configuration#define CCxxx0_MDMCFG0 0x14 // Modem configuration#define CCxxx0_DEVIATN 0x15 // Modem deviation setting#define CCxxx0_MCSM2 0x16 // Main Radio Control State Machine configuration#define CCxxx0_MCSM1 0x17 // Main Radio Control State Machine configuration#define CCxxx0_MCSM0 0x18 // Main Radio Control State Machine configuration#define CCxxx0_FOCCFG 0x19 // Frequency Offset Compensation configuration#define CCxxx0_BSCFG 0x1A // Bit Synchronization configuration#define CCxxx0_AGCCTRL2 0x1B // AGC control#define CCxxx0_AGCCTRL1 0x1C // AGC control#define CCxxx0_AGCCTRL0 0x1D // AGC control#define CCxxx0_WOREVT1 0x1E // High UCHAR Event 0 timeout#define CCxxx0_WOREVT0 0x1F // Low UCHAR Event 0 timeout#define CCxxx0_WORCTRL 0x20 // Wake On Radio control#define CCxxx0_FREND1 0x21 // Front end RX configuration#define CCxxx0_FREND0 0x22 // Front end TX configuration#define CCxxx0_FSCAL3 0x23 // Frequency synthesizer calibration#define CCxxx0_FSCAL2 0x24 // Frequency synthesizer calibration#define CCxxx0_FSCAL1 0x25 // Frequency synthesizer calibration#define CCxxx0_FSCAL0 0x26 // Frequency synthesizer calibration#define CCxxx0_RCCTRL1 0x27 // RC oscillator configuration#define CCxxx0_RCCTRL0 0x28 // RC oscillator configuration#define CCxxx0_FSTEST 0x29 // Frequency synthesizer calibration control#define CCxxx0_PTEST 0x2A // Production test#define CCxxx0_AGCTEST 0x2B // AGC test#define CCxxx0_TEST2 0x2C // Various test settings#define CCxxx0_TEST1 0x2D // Various test settings#define CCxxx0_TEST0 0x2E // Various test settings// Strobe commands#define CCxxx0_SRES 0x30 // Reset chip.#define CCxxx0_SFSTXON 0x31 // Enable and calibrate frequency synthesizer (if MCSM0.FS_AUTOCAL=1).// If in RX/TX: Go to a wait state where only the synthesizer is// running (for quick RX / TX turnaround).#define CCxxx0_SXOFF 0x32 // Turn off crystal oscillator.#define CCxxx0_SCAL 0x33 // Calibrate frequency synthesizer and turn it off// (enables quick start).#define CCxxx0_SRX 0x34 // Enable RX. Perform calibration first if coming from IDLE and// MCSM0.FS_AUTOCAL=1.#define CCxxx0_STX 0x35 // In IDLE state: Enable TX. Perform calibration first if// MCSM0.FS_AUTOCAL=1. If in RX state and CCA is enabled:// Only go to TX if channel is clear.#define CCxxx0_SIDLE 0x36 // Exit RX / TX, turn off frequency synthesizer and exit// Wake-On-Radio mode if applicable.#define CCxxx0_SAFC 0x37 // Perform AFC adjustment of the frequency synthesizer#define CCxxx0_SWOR 0x38 // Start automatic RX polling sequence (Wake-on-Radio)#define CCxxx0_SPWD 0x39 // Enter power down mode when CSn goes high.#define CCxxx0_SFRX 0x3A // Flush the RX FIFO buffer.#define CCxxx0_SFTX 0x3B // Flush the TX FIFO buffer.#define CCxxx0_SWORRST 0x3C // Reset real time clock.#define CCxxx0_SNOP 0x3D // No operation. May be used to pad strobe commands to two// UCHARs for simpler software.#define CCxxx0_PARTNUM 0x30#define CCxxx0_VERSION 0x31#define CCxxx0_FREQEST 0x32#define CCxxx0_LQI 0x33#define CCxxx0_RSSI 0x34#define CCxxx0_MARCSTATE 0x35#define CCxxx0_WORTIME1 0x36#define CCxxx0_WORTIME0 0x37#define CCxxx0_PKTSTA TUS 0x38#define CCxxx0_VCO_VC_DAC 0x39#define CCxxx0_TXBYTES 0x3A#define CCxxx0_RXBYTES 0x3B#define CCxxx0_PA TABLE 0x3E#define CCxxx0_TXFIFO 0x3F#define CCxxx0_RXFIFO 0x3F// RF_SETTINGS is a data structure which contains all relevant CCxxx0 registerstypedef struct S_RF_SETTINGS{UCHAR FSCTRL2; //自已加的UCHAR FSCTRL1; // Frequency synthesizer control.UCHAR FSCTRL0; // Frequency synthesizer control.UCHAR FREQ2; // Frequency control word, high UCHAR.UCHAR FREQ1; // Frequency control word, middle UCHAR.UCHAR FREQ0; // Frequency control word, low UCHAR.UCHAR MDMCFG4; // Modem configuration.UCHAR MDMCFG3; // Modem configuration.UCHAR MDMCFG2; // Modem configuration.UCHAR MDMCFG1; // Modem configuration.UCHAR MDMCFG0; // Modem configuration.UCHAR CHANNR; // Channel number.UCHAR DEVIATN; // Modem deviation setting (when FSK modulation is enabled).UCHAR FREND1; // Front end RX configuration.UCHAR FREND0; // Front end RX configuration.UCHAR MCSM0; // Main Radio Control State Machine configuration.UCHAR FOCCFG; // Frequency Offset Compensation Configuration.UCHAR BSCFG; // Bit synchronization Configuration.UCHAR AGCCTRL2; // AGC control.UCHAR AGCCTRL1; // AGC control.UCHAR AGCCTRL0; // AGC control.UCHAR FSCAL3; // Frequency synthesizer calibration.UCHAR FSCAL2; // Frequency synthesizer calibration.UCHAR FSCAL1; // Frequency synthesizer calibration.UCHAR FSCAL0; // Frequency synthesizer calibration.UCHAR FSTEST; // Frequency synthesizer calibration controlUCHAR TEST2; // Various test settings.UCHAR TEST1; // Various test settings.UCHAR TEST0; // Various test settings.UCHAR IOCFG2; // GDO2 output pin configurationUCHAR IOCFG0; // GDO0 output pin configurationUCHAR PKTCTRL1; // Packet automation control.UCHAR PKTCTRL0; // Packet automation control.UCHAR ADDR; // Device address.UCHAR PKTLEN; // Packet length.} RF_SETTINGS;/////////////////////////////////////////////////////////////////const RF_SETTINGS rfSettings ={0x00,0x08, // FSCTRL1 Frequency synthesizer control.0x00, // FSCTRL0 Frequency synthesizer control.0x10, // FREQ2 Frequency control word, high byte.0xA7, // FREQ1 Frequency control word, middle byte.0x62, // FREQ0 Frequency control word, low byte.0x5B, // MDMCFG4 Modem configuration.0xF8, // MDMCFG3 Modem configuration.0x03, // MDMCFG2 Modem configuration.0x22, // MDMCFG1 Modem configuration.0xF8, // MDMCFG0 Modem configuration.0x00, // CHANNR Channel number.0x47, // DEVIATN Modem deviation setting (when FSK modulation is enabled).0xB6, // FREND1 Front end RX configuration.0x10, // FREND0 Front end RX configuration.0x18, // MCSM0 Main Radio Control State Machine configuration.0x1D, // FOCCFG Frequency Offset Compensation Configuration.0x1C, // BSCFG Bit synchronization Configuration.0xC7, // AGCCTRL2 AGC control.0x00, // AGCCTRL1 AGC control.0xB2, // AGCCTRL0 AGC control.0xEA, // FSCAL3 Frequency synthesizer calibration.0x2A, // FSCAL2 Frequency synthesizer calibration.0x00, // FSCAL1 Frequency synthesizer calibration.0x11, // FSCAL0 Frequency synthesizer calibration.0x59, // FSTEST Frequency synthesizer calibration.0x81, // TEST2 Various test settings.0x35, // TEST1 Various test settings.0x09, // TEST0 Various test settings.0x0B, // IOCFG2 GDO2 output pin configuration.0x06, // IOCFG0D GDO0 output pin configuration. Refer to SmartRF?Studio User Manual for detailed pseudo register explanation.0x04, // PKTCTRL1 Packet automation control.0x05, // PKTCTRL0 Packet automation control.0x00, // ADDR Device address.0x0c // PKTLEN Packet length.};//***************************************************************************** ************//函数名：delay(unsigned int s)//输入：时间//输出：无//功能描述：普通廷时,内部用//***************************************************************************** ************static void delay(unsigned int s){unsigned int i;for(i=0; i<s; i++);for(i=0; i<s; i++);}void halWait(UINT timeout) {do {_nop_();_nop_();_nop_();_nop_();_nop_();_nop_();_nop_();_nop_();_nop_();_nop_();_nop_();_nop_();_nop_();_nop_();_nop_();} while (--timeout);}void SpiInit(void){CSN=0;SCK=0;CSN=1;}/****************************************************************************** ***********//函数名：CpuInit()//输入：无//输出：无//功能描述：SPI初始化程序/****************************************************************************** ***********/void CpuInit(void){SpiInit();delay(5000);}//***************************************************************************** ************//函数名：SpisendByte(UCHAR dat)//输入：发送的数据//输出：无//功能描述：SPI发送一个字节//***************************************************************************** ************UCHAR SpiTxRxByte(UCHAR dat){UCHAR i,temp;temp = 0;SCK = 0;for(i=0; i<8; i++){if(dat & 0x80){MOSI = 1;}else MOSI = 0;dat <<= 1;SCK = 1;_nop_();_nop_();temp <<= 1;if(MISO)temp++;SCK = 0;_nop_();_nop_();}return temp;}//***************************************************************************** ************//函数名：void RESET_CC1100(void)//输入：无//输出：无//功能描述：复位CC1100//***************************************************************************** ************void RESET_CC1100(void){CSN = 0;while (MISO);SpiTxRxByte(CCxxx0_SRES); //写入复位命令while (MISO);CSN = 1;}//***************************************************************************** ************//函数名：void POWER_UP_RESET_CC1100(void)//输入：无//功能描述：上电复位CC1100//***************************************************************************** ************void POWER_UP_RESET_CC1100(void){CSN = 1;halWait(1);CSN = 0;halWait(1);CSN = 1;halWait(41);RESET_CC1100(); //复位CC1100}//***************************************************************************** ************//函数名：void halSpiWriteReg(UCHAR addr, UCHAR value)//输入：地址和配置字//输出：无//功能描述：SPI写寄存器//***************************************************************************** ************void halSpiWriteReg(UCHAR addr, UCHAR value){CSN = 0;while (MISO);SpiTxRxByte(addr); //写地址SpiTxRxByte(value); //写入配置CSN = 1;}//***************************************************************************** ************//函数名：void halSpiWriteBurstReg(UCHAR addr, UCHAR *buffer, UCHAR count)//输入：地址，写入缓冲区，写入个数//输出：无//功能描述：SPI连续写配置寄存器//***************************************************************************** ************void halSpiWriteBurstReg(UCHAR addr, UCHAR *buffer, UCHAR count){UCHAR i, temp;temp = addr | WRITE_BURST;while (MISO);SpiTxRxByte(temp);for (i = 0; i < count; i++){SpiTxRxByte(buffer[i]);}CSN = 1;}//***************************************************************************** ************//函数名：void halSpiStrobe(UCHAR strobe)//输入：命令//输出：无//功能描述：SPI写命令//***************************************************************************** ************void halSpiStrobe(UCHAR strobe){CSN = 0;while (MISO);SpiTxRxByte(strobe); //写入命令CSN = 1;}//***************************************************************************** ************//函数名：UCHAR halSpiReadReg(UCHAR addr)//输入：地址//输出：该寄存器的配置字//功能描述：SPI读寄存器//***************************************************************************** ************UCHAR halSpiReadReg(UCHAR addr){UCHAR temp, value;temp = addr|READ_SINGLE;//读寄存器命令CSN = 0;while (MISO);value = SpiTxRxByte(0);CSN = 1;return value;}//***************************************************************************** ************//函数名：void halSpiReadBurstReg(UCHAR addr, UCHAR *buffer, UCHAR count)//输入：地址，读出数据后暂存的缓冲区，读出配置个数//输出：无//功能描述：SPI连续写配置寄存器//***************************************************************************** ************void halSpiReadBurstReg(UCHAR addr, UCHAR *buffer, UCHAR count){UCHAR i,temp;temp = addr | READ_BURST; //写入要读的配置寄存器地址和读命令CSN = 0;while (MISO);SpiTxRxByte(temp);for (i = 0; i < count; i++){buffer[i] = SpiTxRxByte(0);}CSN = 1;}//***************************************************************************** ************//函数名：UCHAR halSpiReadReg(UCHAR addr)//输入：地址//输出：该状态寄存器当前值//功能描述：SPI读状态寄存器//***************************************************************************** ************UCHAR halSpiReadStatus(UCHAR addr){UCHAR value,temp;temp = addr | READ_BURST; //写入要读的状态寄存器的地址同时写入读命令CSN = 0;while (MISO);value = SpiTxRxByte(0);CSN = 1;return value;}//***************************************************************************** ************//函数名：void halRfWriteRfSettings(RF_SETTINGS *pRfSettings)//输入：无//输出：无//功能描述：配置CC1100的寄存器//***************************************************************************** ************void halRfWriteRfSettings(void){halSpiWriteReg(CCxxx0_FSCTRL0, rfSettings.FSCTRL2);//自已加的// Write register settingshalSpiWriteReg(CCxxx0_FSCTRL1, rfSettings.FSCTRL1);halSpiWriteReg(CCxxx0_FSCTRL0, rfSettings.FSCTRL0);halSpiWriteReg(CCxxx0_FREQ2, rfSettings.FREQ2);halSpiWriteReg(CCxxx0_FREQ1, rfSettings.FREQ1);halSpiWriteReg(CCxxx0_FREQ0, rfSettings.FREQ0);halSpiWriteReg(CCxxx0_MDMCFG4, rfSettings.MDMCFG4);halSpiWriteReg(CCxxx0_MDMCFG3, rfSettings.MDMCFG3);halSpiWriteReg(CCxxx0_MDMCFG2, rfSettings.MDMCFG2);halSpiWriteReg(CCxxx0_MDMCFG1, rfSettings.MDMCFG1);halSpiWriteReg(CCxxx0_MDMCFG0, rfSettings.MDMCFG0);halSpiWriteReg(CCxxx0_CHANNR, rfSettings.CHANNR);halSpiWriteReg(CCxxx0_DEVIATN, rfSettings.DEVIATN);halSpiWriteReg(CCxxx0_FREND1, rfSettings.FREND1);halSpiWriteReg(CCxxx0_FREND0, rfSettings.FREND0);halSpiWriteReg(CCxxx0_MCSM0 , rfSettings.MCSM0 );halSpiWriteReg(CCxxx0_FOCCFG, rfSettings.FOCCFG);halSpiWriteReg(CCxxx0_BSCFG, rfSettings.BSCFG);halSpiWriteReg(CCxxx0_AGCCTRL2, rfSettings.AGCCTRL2);halSpiWriteReg(CCxxx0_AGCCTRL1, rfSettings.AGCCTRL1);halSpiWriteReg(CCxxx0_AGCCTRL0, rfSettings.AGCCTRL0);halSpiWriteReg(CCxxx0_FSCAL3, rfSettings.FSCAL3);halSpiWriteReg(CCxxx0_FSCAL2, rfSettings.FSCAL2);halSpiWriteReg(CCxxx0_FSCAL1, rfSettings.FSCAL1);halSpiWriteReg(CCxxx0_FSCAL0, rfSettings.FSCAL0);halSpiWriteReg(CCxxx0_FSTEST, rfSettings.FSTEST);halSpiWriteReg(CCxxx0_TEST2, rfSettings.TEST2);halSpiWriteReg(CCxxx0_TEST1, rfSettings.TEST1);halSpiWriteReg(CCxxx0_TEST0, rfSettings.TEST0);halSpiWriteReg(CCxxx0_IOCFG2, rfSettings.IOCFG2);halSpiWriteReg(CCxxx0_IOCFG0, rfSettings.IOCFG0);halSpiWriteReg(CCxxx0_PKTCTRL1, rfSettings.PKTCTRL1);halSpiWriteReg(CCxxx0_PKTCTRL0, rfSettings.PKTCTRL0);halSpiWriteReg(CCxxx0_ADDR, rfSettings.ADDR);halSpiWriteReg(CCxxx0_PKTLEN, rfSettings.PKTLEN);}//***************************************************************************** ************//函数名：void halRfSendPacket(UCHAR *txBuffer, UCHAR size)//输入：发送的缓冲区，发送数据个数//输出：无//功能描述：CC1100发送一组数据//***************************************************************************** ************void halRfSendPacket(UCHAR *txBuffer, UCHAR size){halSpiWriteReg(CCxxx0_TXFIFO, size);halSpiWriteBurstReg(CCxxx0_TXFIFO, txBuffer, size); //写入要发送的数据halSpiStrobe(CCxxx0_STX); //进入发送模式发送数据// Wait for GDO0 to be set -> sync transmittedwhile (!GDO0);// Wait for GDO0 to be cleared -> end of packetwhile (GDO0);halSpiStrobe(CCxxx0_SFTX);}void setRxMode(void){halSpiStrobe(CCxxx0_SRX); //进入接收状态}/*// Bit masks corresponding to STATE[2:0] in the status byte returned on MISO#define CCxx00_STATE_BM 0x70#define CCxx00_FIFO_BYTES_A V AILABLE_BM 0x0F#define CCxx00_STATE_TX_BM 0x20#define CCxx00_STATE_TX_UNDERFLOW_BM 0x70#define CCxx00_STATE_RX_BM 0x10#define CCxx00_STATE_RX_OVERFLOW_BM 0x60#define CCxx00_STATE_IDLE_BM 0x00static UCHAR RfGetRxStatus(void){UCHAR temp, spiRxStatus1,spiRxStatus2;UCHAR i=4;// 循环测试次数temp = CCxxx0_SNOP|READ_SINGLE;//读寄存器命令CSN = 0;while (MISO);SpiTxRxByte(temp);spiRxStatus1 = SpiTxRxByte(0);do{SpiTxRxByte(temp);spiRxStatus2 = SpiTxRxByte(0);if(spiRxStatus1 == spiRxStatus2){if( (spiRxStatus1 & CCxx00_STATE_BM) == CCxx00_STATE_RX_OVERFLOW_BM){halSpiStrobe(CCxxx0_SFRX);return 0;}return 1;}spiRxStatus1=spiRxStatus2;}while(i--);CSN = 1;return 0;}*/UCHAR halRfReceivePacket(UCHAR *rxBuffer, UCHAR *length){UCHAR status[2];UCHAR packetLength;UCHAR i=(*length)*4; // 具体多少要根据datarate和length来决定halSpiStrobe(CCxxx0_SRX); //进入接收状态//delay(5);//while (!GDO1);//while (GDO1);delay(2);while (GDO0){delay(2);--i;if(i<1)return 0;}if ((halSpiReadStatus(CCxxx0_RXBYTES) & BYTES_IN_RXFIFO)) //如果接的字节数不为0{packetLength = halSpiReadReg(CCxxx0_RXFIFO);//读出第一个字节，此字节为该帧数据长度if (packetLength <= *length) //如果所要的有效数据长度小于等于接收到的数据包的长度{halSpiReadBurstReg(CCxxx0_RXFIFO, rxBuffer, packetLength); //读出所有接收到的数据*length = packetLength; //把接收数据长度的修改为当前数据的长度// Read the 2 appended status bytes (status[0] = RSSI, status[1] = LQI)halSpiReadBurstReg(CCxxx0_RXFIFO, status, 2); //读出CRC校验位halSpiStrobe(CCxxx0_SFRX); //清洗接收缓冲区return (status[1] & CRC_OK); //如果校验成功返回接收成功}else{*length = packetLength;halSpiStrobe(CCxxx0_SFRX); //清洗接收缓冲区return 0;}}elsereturn 0;}#endif#ifndef _LCD1602_H_#define _LCD1602_H_#include"main.h"sbit lcd1602RSPort=P2^4; //寄存器选择位sbit lcd1602RWPort=P2^5; //读写选择位sbit lcd1602EPort=P2^6; //使能信号位#define LCD1602DA TAPORT P0 //数据端口/**************************************************函数功能：将模式设置指令或显示地址或数据写入液晶模块入口参数：DatState=0,写地址State=1,写数据***************************************************/void WriteLcd1602(UCHAR State,UCHAR Dat){lcd1602RSPort=State; //根据规定，RS和R/W同时为低电平时，可以写入指令lcd1602RWPort=0; //根据规定，RS为高电平且R/W为低电平时，可以写入数据lcd1602EPort=0; //E置低电平(写指令时，就是让E从0到1发生正跳变，所以应先置"0"_nop_();_nop_(); //空操作两个机器周期，给硬件反应时间LCD1602DATAPORT=Dat; //将数据送入数据端口，即写入指令或地址_nop_();_nop_();_nop_();_nop_(); //空操作四个机器周期，给硬件反应时间lcd1602EPort=1; //E置高电平_nop_();_nop_();_nop_();_nop_(); //空操作四个机器周期，给硬件反应时间lcd1602EPort=0; //当E由高电平跳变成低电平时，液晶模块开始执行命令}/**************************************************函数功能：指定字符显示的实际地址入口参数：AddrRow=1,写入第一行，Row=2,写入第二行***************************************************/void WriteAddressLcd1602(UCHAR Row,UCHAR Addr){if(Row==1)WriteLcd1602(0,0x80+Addr); //第一行位置的确定方法规定为"80H+地址码Addr"if(Row==2)WriteLcd1602(0,0x80+0x40+Addr); //第二行位置的确定方法规定为"80H+40H地址码Addr"}/**************************************************函数功能：LCD写入字符串***************************************************/void WriteCharForLCD1602(UCHAR *ch){while(*ch!=0&&ch>0x20)WriteLcd1602(1,*ch++);}/**************************************************函数功能：对LCD的显示模式进行初始化设置***************************************************/void InitLcd1602(){Delaynms(15); //延时15ms，首次写指令时应给LCD一段较长的反应时间WriteLcd1602(0,0x38); //3次写设置模式Delaynms(5);WriteLcd1602(0,0x38);Delaynms(5);WriteLcd1602(0,0x38);Delaynms(5);WriteLcd1602(0,0x0c);Delaynms(5);WriteLcd1602(0,0x06);Delaynms(5);WriteLcd1602(0,0x01);Delaynms(5);}/**************************************************函数功能：清零LCD1602***************************************************/void ClearLcd1602(){WriteLcd1602(0,0x01);Delaynms(5);}#endif。
