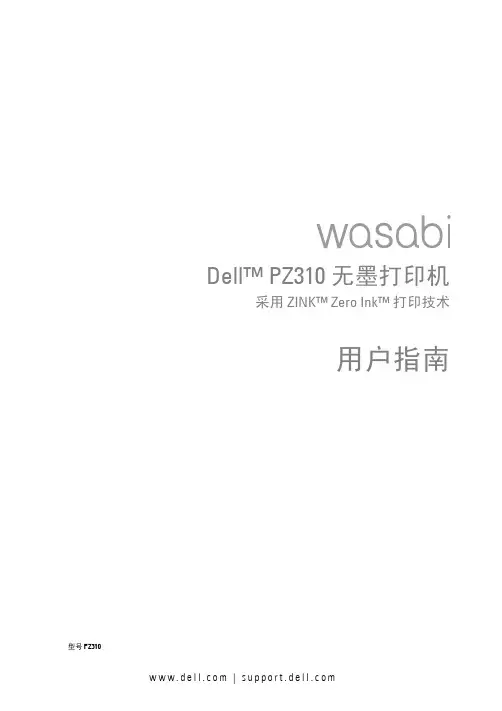

Dell™ PZ310 无墨打印机采用 ZINK™ Zero Ink™ 打印技术用户指南型号 PZ310w w w.d e l l.c o m|s u p p o r t.d e l l.c o m注释与须知注释: “注释”提供重要信息，帮助您更好地使用便携式打印机。
须知: “须知”提示对硬件可能造成的损害或数据的丢失，并指导您如何避免该问题。
警告：“警告”标识造成财产损失或人员伤亡的潜在危险。
____________________本指南中的信息若有更改，恕不另行通知。
©2008戴尔公司保留所有权利。
未经戴尔公司书面许可，严禁以任何形式复制这些资料。
本指南中使用的商标：Dell和DELL标志是戴尔公司的商标；Microsoft和Windows是微软公司的注册商标；Bluetooth 是 Bluetooth SIG, Inc. 公司拥有的注册商标，戴尔公司获授权使用；ZINK和Zero Ink均为 Zink Imaging, LLC 公司的商标。
本指南还可能使用其他商标和商品名称来指代拥有该等商标及品名的实体或其产品。
除自身拥有的商标和商品名称外，戴尔公司对其他商标和品名不拥有任何所有权益。
型号 PZ3102008 年 9月版本号 A00目录1您的 Dell™ 便携式打印机 (5)关于便携式打印机 (6)2插入电池并充电 (7)插入电池 (7)电池充电 (8)3装入 ZINK™ 相纸 (9)重要信息： ZINK 相纸 (10)4打印照片 (11)打印机开机 (11)使用 Bluetooth® 技术发送和打印照片 (12)使用 PictBridge 发送和打印照片 (15)重印照片 (16)5状态指示灯信息，故障排除和规格 (17)状态指示灯信息 (17)电源状态 (17)电池状态 (17)打印状态 (18)错误状态 (18)页数状态 (19)目录3故障排除 (20)规格 (21)6联系戴尔 (22)4目录您的 Dell TM 便携式打印机51您的 Dell™ 便携式打印机打开打印机包装，检查包装内的物品。

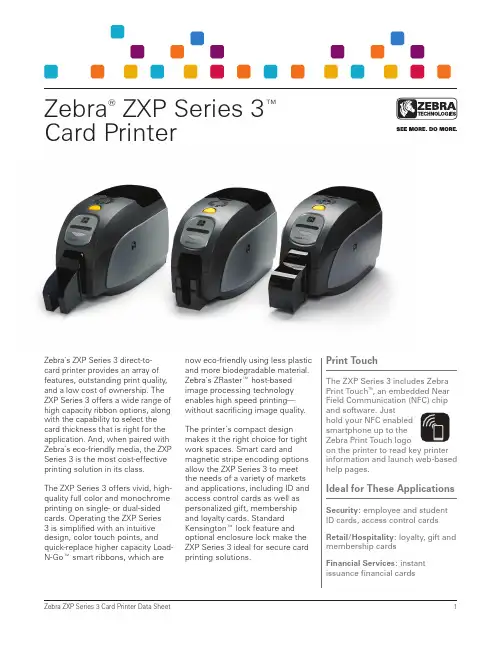

Zebra’s ZXP Series 3 direct-to-card printer provides an array of features, outstanding print quality, and a low cost of ownership. The ZXP Series 3 offers a wide range of high capacity ribbon options, along with the capability to select the card thickness that is right for the application. And, when paired with Zebra’s eco-friendly media, the ZXP Series 3 is the most cost-effective printing solution in its class.The ZXP Series 3 offers vivid, high-quality full color and monochrome printing on single- or dual-sided cards. Operating the ZXP Series3 is simplified with an intuitive design, color touch points, and quick-replace higher capacity Load-N-Go™ smart ribbons, which are now eco-friendly using less plasticand more biodegradable material.Zebra’s ZRaster™ host-basedimage processing technologyenables high speed printing—without sacrificing image quality.The printer’s compact designmakes it the right choice for tightwork spaces. Smart card andmagnetic stripe encoding optionsallow the ZXP Series 3 to meetthe needs of a variety of marketsand applications, including ID andaccess control cards as well aspersonalized gift, membershipand loyalty cards. StandardKensington™ lock feature andoptional enclosure lock make theZXP Series 3 ideal for secure cardprinting solutions.Print T ouchThe ZXP Series 3 includes ZebraPrint T ouch TM, an embedded NearField Communication (NFC) chipand software. Justhold your NFC enabledsmartphone up to theZebra Print T ouch logoon the printer to read key printerinformation and launch web-basedhelp pages.Ideal for These ApplicationsSecurity: employee and studentID cards, access control cardsRetail/Hospitality: loyalty, gift andmembership cardsFinancial Services: instantissuance financial cardsZebra ZXP Series 3 Card Printer Data Sheet*Specifications subject to change without notice. **Field upgradeable options©2014 ZIH Corp. All product names and numbers are Zebra trademarks, and Zebra, the Zebra head graphic and True Colours are registered trademarks of ZIH Corp. All rights reserved. Microsoft,Windows, Windows Vista and Windows Server are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. MIFARE is a registered trademark of Philips Semiconductors Gratkorn GMBH Ltd. Kensington is a registered trademark of ACCO Brands Corporation. All other trademarks are the property of their respective owners.Corporate Headquarters +1 800 423 0442******************Asia-Pacific Headquarters +65 6858 0722******************************EMEA Headquarters +44 (0)1628 556000******************Latin America Headquarters +1 847 955 2283******************(9/14)Other Locations / USA: California, Georgia, Illinois, Rhode Island, T exas, Wisconsin Europe: France, Germany, Italy, the Netherlands, Poland, Spain, Sweden, Turkey, United Kingdom Asia Pacific: Australia, China, Hong Kong, India, Indonesia, Japan, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, Vietnam Latin America: Argentina, Brazil, Colombia, Florida (LA Headquarters in USA), Mexico Africa/Middle East: Dubai, South AfricaSPECIFICATIONS AT A GLANCE*Printer NameZXP Series 3 Card Printer Printing Specifications• Dye-sublimation thermal transfer direct to card • F ull color or monochrome printing • S ingle- or dual-sided printing • 700 cph monochrome single-sided • 195 cph single-sided YMCKO • 140 cph dual-sided YMCKOK • E dge-to-edge printing on standard CR-80 media Standard Features• True Colours ® ix Series™ ZXP 3 high-performance ribbons with intelligent media technology• High capacity, eco-friendly Load-N-Go™ drop-in ribbon cartridges• ZRaster™ host-based image processing • A uto calibration of ribbon • U SB connectivity• M icrosoft ® Certified Windows ® drivers • P rint T ouch NFC tag for online printer documentation and tools • 100 card covered feeder (30 mil)• 45 card capacity output hopper (30 mil)• 16-character LCD operator control display • 300 dpi (11.8 dots/mm) print resolution • T wo-year warranty on printer • T wo-year (unlimited passes) original printhead • O ne-year hot swap (U.S. only)• K ensington ® secure lock slot Optional Features• Built-in 10/100 Ethernet connectivity**• Manual card feeder bezel• ZebraCare™ extended product warranty programs • Lockable enclosure with opaque output bin** Encoding Options and Specifications• Magnetic stripe encoder—ISO 7811 (new and pre-encoded); tracks 1, 2 and 3; high and low coercivity; stripe down; 30 mil cards only • ISO 7816 smart card contact station for third-party external contact encoders**• Combined MIFARE ® ISO 14443 (13.56 MHz) contactless and ISO 7816 Contact Encoder with EMV level 1 certification and PC/SC compliance (includes 50 card capacity [30 mil] output hopper)**• Encoding over USB and EthernetDrivers SupportedWindows ®XP (32 bit), Windows Vista ®(32 and 64 bit), Windows Server ® 2003 (32 bit), Windows 7® (32 and 64 bit), Windows Server 2008 (32 and 64 bit), Windows 8® and Win 8 Pro (32 and 64 bit), Windows Server 2012 (64 bit)Please see for up to-date listing of supported systems.Media SpecificationsNOTE : The ZXP Series 3 printer is designed to work only with Zebra True Colours ix Series high-performance ribbons • Z ebra intelligent technology automatically detects and authenticates ribbon • I ntegrated cleaning roller included with each ribbon • M edia Starter Kit (single-sided): 1 YMCKO ribbon, 200 30-mil PVC cards• Specially designed cleaning supplies simplify preventive maintenance True Colours ix Series ZXP 3 Ribbon • Y MCKO: 280 images/roll • ½ YMCKO: 400 images/roll • Y MCKOK: 230 images/roll • K dO: 700 images/roll • K rO: 700 images/roll • B lack Monochrome: 2000 images/roll • R ed Monochrome: 1700 images/roll • B lue Monochrome: 1700 images/roll • G old Monochrome: 1600 images/roll • S ilver Monochrome: 1600 images/roll • W hite Monochrome: 1400 images/roll Card CompatibilityNOTE: For optimum print quality and printerperformance, use of Genuine Zebra™ supplies is recommended. • C ard Thickness: 10-40 mil • C ard Size: CR-80, ISO 7810 format, T ype ID-1• C ard Material: PVC and PVC composite • S mart Card Contact – ISO 7816-1,2,3,4• S mart Card Contactless MIFARE ® ISO 14443A/B • S pot color or monochrome print only on < 20 mil card thickness Communications Interfaces • U SB V2.0 (cable included) - standard • B uilt-in 10/100 Ethernet - optional**Electrical Specifications• A uto-switching single-phase AC power • O perating range: 90-132VAC and 190-264VAC RMS • F requency range: 47-63 Hz • F CC Class A Physical Specifications (standard model) • H eight: 9.3” (236 mm)• W idth: 7.9” (200 mm)• D epth: 14.5” (368 mm)• W eight: 11.6 lbs (5.3 kg)Environmental Specifications• O perating T emperature: 60º F to 86º F (15º C to 30º C)• Storage T emperature: 23º F to 131º F (-5º C to 55º C)• Operating Humidity: 20% to 65% non-condensing• Storage Humidity: 20% to 70% non-condensing • Media Storage:- T emperature: 41º F to 77º F (5º C to 25º C) - Humidity: 35% to 65% non-condensing - Do not store in direct sunlightGenuine Zebra SuppliesGenuine Zebra supplies meet stringent quality standards and are recommended for optimal printing quality and proper printer performance.CardStudio ™ SoftwareZebra’s CardStudio™ is an easy-to-learn, easy-to-operate complete card design and card issuance software suite. It makes designing and printing high quality photo ID cards and other cards easy, with basic to advanced features, and support for all Zebra card printers. For more information, visit /cardstudio .。
MP 系列条码打印机用户手册MP-2140 / MP-2140Z / MP-3140版次：1.2 日期：2019年8月1日目录1.简介 (1)专属声明 (1)产品改良 (1)FCC相容声明 (1)免责声明 (1)2.开始使用 (2)拆封与检查 (2)包装内容物 (3)打印机概述 (4)前视图 (4)后视图 (5)内部检视 I (6)内部检视 II (7)连接电源 (8)装入纸张 (9)准备纸张 (9)装入纸卷 (9)纸张感测器 (16)装入碳带 (17)准备碳带 (17)装入碳带卷 (18)3.打印机操作 (24)按键 (25)打印机测纸 (25)打印自检页 (26)打印自检页-以MP-2140为例 (27)重设为原厂默认值 (29)4.通讯 (30)接口和需求 (30)USB 接口需求 (30)串口(RS-232)接口需求 (30)并口(Parallel)接口需求 (31)连接需求 (31)打印机通讯 (32)安装随插即用驱动程序 (仅适用于USB) (33)安装打印机驱动程序 (适用于USB以外的其它接口) 38 5. 故障排除与日常维护 (44)LED诊断 (44)纸张问题 (44)碳带问题 (45)其它问题 (45)常见问题 (46)传输问题 (47)恢复程序 (47)打印机维护 (48)清洁打印头 (49)清洁滚轴 (50)清洁纸张供应轴 (50)6. 产品规格 (51)一般规格 (51)字型、条码和图形规格 (53)打印机程序语言：PPLA (53)打印机程序语言：PPLB (54)打印机程序语言：PPLZ (55)接口规格 (56)USB界面 (56)串口接头 (57)并口接头 (58)1. 简介专属声明©2013 Argox Information Co., Ltd.本手册包含立象科技股份有限公司拥有之专属信息。
这些信息仅供负责操作及维护手册中所述之设备的相关人士参考及使用。

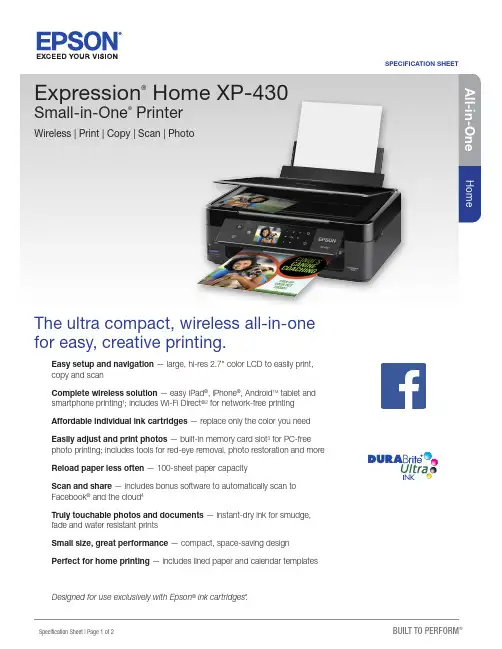

SPECIFICATION SHEETAll-in-OneHomeExpression ®Home XP-430Small-in-One ®PrinterWireless | Print | Copy | Scan | PhotoThe ultra compact, wireless all-in-one for easy, creative printing.Easy setup and navigation — large, hi-res 2.7" color LCD to easily print, copy and scanComplete wireless solution — easy iPad ®, iPhone ®, Android TMtablet andsmartphone printing 1; includes Wi-Fi Direct ®2for network-free printingAffordable individual ink cartridges — replace only the color you need Easily adjust and print photos — built-in memory card slot 3 for PC-free photo printing; includes tools for red-eye removal, photo restoration and more Reload paper less often — 100-sheet paper capacityScan and share — includes bonus software to automatically scan to Facebook ® and the cloud 4Truly touchable photos and documents — instant-dry ink for smudge, fade and water resistant printsSmall size, great performance — compact, space-saving design Perfect for home printing — includes lined paper and calendar templatesDesigned for use exclusively with Epson ® ink cartridges*.Photoelectric Device Color CIS line sensorOptical Resolution 1200 dpiHardware Resolution 2400 dpiMaximum Resolution 10,200 x 14,040 dpi interpolated Scanner Bit Depth 48-bit color / 24-bit output ConnectivityStandard ConnectivityHi-Speed USB 2.0Wi-Fi CERTIFIED™ (b/g/n)2Wi-Fi Direct2Operating Systems Windows® 10, Windows 8/8.1 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Vista® (32-bit, 64-bit), Windows XP SP3 or higher (32-bit),Windows XP Professional x64 EditionMac OS® X 10.6.8 – 10.11.x5, Internet access is required to install OS® X drivers and softwareMobile Printing / Epson Connect™Epson Email Print1Epson iPrint™ Mobile App1Epson Remote Print1OtherApple® AirPrint®1Google Cloud Print™1Input Paper Capacity 100 sheets plain paper GeneralColor Preview Monitor 2.7" LCDTemperatureOperating: 50 ° to 95 °F (10 ° to 35 °C)Storage: -4 ° to 104 °F (-20 ° to 40 °C)Relative HumidityOperating: 20 – 80%Storage: 5 – 85% (no condensation)Sound Level 37 dB(A)Rated Voltage AC 100 – 120 V/220 – 240 VRated Frequency 50 – 60 HzRated Current 0.5 AmpPower ConsumptionApprox. 12 W ISO 24712 (Standalone copy printing) Approx. 0.3 W (Power off), ENERGY STAR® qualifiedSafety ApprovalsSafety standards UL60950, CSA C22.2 No. 60950EMI FCC Part 15 subpart B class BCAN/CSA-CEI/IEC CISPR 22 class BCountry of Origin ThailandWeight and Dimensions (W x D x H)Printing: 15.4" x 20.8" x 11.0"Storage: 15.4" x 11.8" x 5.7"Weight: 9.0 lbWhat’s in the Box Expression Home XP-430 Small-in-One printer, instruction booklets, CD-ROM with drivers, power cord, four DURABrite® Ultra Ink cartridges6 (one Black ink cartridge and three color ink cartridges: Cyan, Magenta, Yellow) Software Included Epson printer driver, Epson Scan, Easy Photo ScanWarranty One-year limited warranty in the U.S. and CanadaSpecifications and terms are subject to change without notice. EPSON, DURABrite, Epson ESC/P, Expression and MicroPiezo are registered trademarks, EPSON Exceed Your Vision is a registered logomark and Better Products for a Better Future, Epson Connect and Epson iPrint are trademarks of Seiko Epson Corporation. Built to Perform and Small-in-One are registered trademarks of Epson America, Inc. AirPrint, Apple, iPad, Mac, Mac OS and OS X are trademarks of Apple Inc., registeredin the U.S. and other countries. Android and Google Cloud Print are trademarks of Google Inc. Wi-Fi Direct® is a registered trademark and Wi-Fi CERTIFIED™ is a trademark of Wi-Fi Alliance®. SmartWay is a registered trademark of the U.S. Environmental Protection Agency. All other product and brand names are trademarks and/or registered trademarks of their respective companies. Epson disclaims any and all rights in these marks. Copyright 2016 Epson America, Inc.Com-SS-Oct-13 CPD-51184 1/16RoHS compliantSave up to 50% on paper with manual two-sided printing5 Recyclable product8Epson America, Inc. is a SmartWay® Transport Partner9 Ordering InformationExpression Home XP-430 C11CE59201† Black and color print speeds are measured in accordance with ISO/IEC 24734. Actual print times will vary based on system configuration, software, and page complexity. For more information, visit /printspeed | 1 Most features require an Internet connection to the printer, as well as an Internet- and/or email-enabled device. For a list of Epson Connect enabled printers and compatible devices and apps, visit /connect | 2 Wi-Fi CERTIFIED; level of performance subject to the range of the router being used. Wi-Fi Direct may require printer software. | 3 Adapter may be required. | 4 Requires Easy Photo Scan software (included). Mac® version may require software download. | 5 Some applications and/or functions may not be supported under Mac OS X. | 6 Replacement cartridge yields are based on ISO/IEC 24711 tests in default mode printing continuously. Cartridge yields vary considerably for reasons including images printed, print settings, temperature and humidity. Yields may be lower when printing infrequently or predominantly with one ink color. All ink colors are used for printing and printer maintenance, and all colors have to be installed for printing. For print quality, part of the ink from the included cartridges is used for printer startup and a variable amount of ink remains in the cartridges after the “replace cartridge” signal. For details, see /cartridgeinfo | 7 Display permanence based on accelerated testing of prints displayed under glass in indoor display conditions; album permanence based on accelerated testing of prints in dark storage conditions. Actual print stability will vary according to media, printed image, display conditions, light intensity, temperature, humidity and atmospheric conditions. Epson does not guarantee the longevity of prints. For maximum print life, display all prints under glass or UV filter or properly store them. | 8 See our website for convenient and reasonable recycling options at /recycle | 9 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.*This product uses only genuine Epson-brand cartridges. Other brands of ink cartridges and ink supplies are not compatible and, even if described as compatible, may not function properly.Epson America, Inc.3840 Kilroy Airport Way, Long Beach, CA 90806Epson Canada Limited185 Renfrew Drive, Markham, Ontario L3R 6G3www.epson.ca。
便携式热敏打印机用户手册山东新北洋信息技术股份有限公司声明本手册内容未经同意内容不得随意更改，山东新北洋信息技术股份有限公司（以下简称新北洋）保留在技术、零部件、软件和硬件上改善产品的权利。
用户如果需要与产品有关的进一步信息，可以与新北洋或经销商联系。
本手册的任何章节没有新北洋的书面许可不得以任何形式、通过任何手段进行复制或传送。
版权本手册于2017年印制，版权属于新北洋。
中国印制。
1.0版本。
商标新北洋使用的注册商标是。
警告、注意警告必须遵守，以免伤害人体，损坏设备。
注意给出了打印机操作的重要信息及提示。
新北洋通过下列管理体系认证ISO9001 质量管理体系认证ISO14001环境管理体系认证OHSAS18001职业健康安全管理体系认证IECQ QC 080000有害物质过程管理体系认证联系方式地址：山东省威海市高技区火炬路169号保修、咨询电话：400-618-1368、800-860-1368 传真：+86—631—5656098QQ：4006181368网址：产品通过下列安全认证：安全须知在操作使用打印机之前，请仔细阅读下面的注意事项：1．安全警告警告：不要触摸打印机的撕纸刀。
警告：打印头为发热部件，打印过程中和打印刚结束，不要触摸打印头以及周边部件。
警告：不要触摸打印头表面和连接接插件，以免因静电损坏打印头。
2．注意事项1)打印机应远离水源并避免阳光、强光和热源的直射。
2)不要在高温，湿度大以及污染严重的地方使用和保存打印机。
3)避免将打印机放在有振动和冲击的地方。
4)如果打印机表面表面结露，在露水消除之前不要打开打印机的电源。
5)将打印机的充电器连接到一个适当的接地插座上。
避免与大型电机或其它能够导致电源电压波动的设备使用同一插座。
6)如果较长时间不使用打印机，请拿出打印机的电池。
7)避免水或导电的物质（例如：金属）进入打印机内部，一旦发生，应立即拿出电池。
8)打印机不得在无纸的状态下打印，否则将严重损害打印胶辊和热敏打印头。
w ww.g i ns ch a.cnStreamlined structure.Drop in paper loading, easy operation.Support thermal paper width 58mm, diameter 50mm, thickness 0.06~0.08mm.Rechargeable lithium battery:1800mAh~1900mAh/7.4V, long cycle life.Power adapter: 9V-1A, AC100-240V.Use supplied battery and power adapter, charge time will be 2.5~3.5h.Low-power mechanism.Automatic sleep mode function.Two kinds of Interface optional: USB+Bluetooth (standard ), USB+WIFI (optional)USB+Bluetooth: BT3.0 and BLE4.0, support Android and iOS B+WIFI: AP/STA/AP+STA mode to set up the networks.Support USB virtual COM port for developing and testing by patible with ESC/POS printing commands, support NV logo download printing, various 1D bar code and QR code.Low power consumption, good print quality, 50km mechanism lifespan.Support GB18030 Simplified Chinese, Big5 traditional Chinese, Korean, international character set and extended code pages.LED indicator (standard), LCD display(optional)LED can be showed abnormal condition of the printer, battery capacity status, charging and connection status ect.LCD can be showed the printer work status more directly.Freely offer DLL, SDK, Demo for developing.Only the supplied AC power adapter and lithium battery is allowed to use, otherwise it may cause device damage, battery leakage, fire, and even explosion.Do not put the battery into a fire or apply direct heat to it ordisassemble it, otherwise cause the battery leakage, fire, and even explosion.As the battery’s liquid is corrosive, if there any case of operational mistakes to cause leakage, please wash immediately with plenty of clean water if skin or clothes contact it carelessly. If entering eyes,wash with plenty of clean water at once and seek medical advice.Do not touch the paper tear-off knife.The print head is a heated part, please do not touch the print head and other parts around it during or after the printing process.Do not touch the print head and plug-in parts to avoid print head damage.Do not open the top cover when printing, otherwise may cause printer work failure.In order to get good print quality, and extend the device service life, we suggest that using the recommended thermal paper roll or which is the same quality of.Do not print when it’s out of paper, which will seriously damage the print head and rubber roller.Do not let water or conducting material (eg. Metal) into the printer, please turn off the power immediately if happened.Please make sure to charge the battery for 60% or above and then remove the battery from the printer and store separately if the printer will not be used for a long period of time.Please keep this manual for your reference.Safety warningSafety noticeMain Features:After unpacking the unit, please check that all the necessaryaccessories are included in the package.Unpacking1pcs 1pcs 1pcs 1pcs 1pcsUser’s manualPrinterLithium batteryUSB cablePower adapterPT-280 SeriesTechnique SpecPrinting Barcode Buffer Physical Properties Power EnvironmentReliabilityPrint method Print width Dot density Print speed Interface Paper width Paper diameter Paper thickness Print commands FontsCharacter sizeBarcodeData NV Flash Dimension Weight(including battery)Power adapter Lithium battery Charge period WorkEnvironment StorageEnvironment MechanismDirect thermal line 48mm384dot/line 60mm/s (max)USB+Bluetooth3.0/BLE4.0 (Standard)USB+WIFI (Optional)58mm50mm (max)0.06~0.08mmCompatible with ESC/POS GB18030, Big5, KoreanANK Font: Font A: 12*24dots Font B: 9*17dotsSimplified/Traditional Chinese Character, Korean: 24*24dotsUPC-A/UPC-E/EAN(JAN)13/EAN(JAN)8/C ODE39/CODABAR /ITF/CODE93/CODE128/QR code 4K bytes 60K bytes148.5*86*58.5mm 288gInput: AC100-220V output: DC 9V/1A 1800mAh~1900mAh/7.4V 2.5h-3.5hTemperature: 5～45℃, Humidity: 10～80%Temperature: -10～50℃, Humidity: 10～90%50kmw ww .g ai ns c.cn Printer parts:1.Error indicator (red)2.Battery status indicator (Green)3.Status indicator (Blue)4.Power button5.Feed buttonPaper Roll Installation a .Open the top cover as shown in the picture.b .Install the paper roll correctly as shown in the picture.c .Pull the leading edge 5mm of the paper outside the slot.d .Close the top cover.Battery Installation1. Specified battery.2. Install the battery as the picture showing direction.3. Push the battery into the slot until you hear it snap in place .Battery ChargingIndicators, Beeper and Buttons:1. Turn off the printer power.2. Plug the supplied power adapter into the printer’s powerinput socket properly, and then connect AC power.3. Turn on the printer power and then it starts to charge.NOTE: Charge the battery must be in the state of power-on.PrinterInput: AC100-220V Output: DC9V/1A6.Function key button7.Power portB port9.HookStatusERROR indicator (Red)Battery status indicator (Green)STATUSindicator (Blue)Beeper OFF Blinking OFF OFFOFF ON ON ONOFF OFF OFF ONNo Yes No NoPrinter power off.Printer power on, but out of paper.Printer is powered on and in normal print mode.Bluetooth/WiFi connected.Long press the power button for 3 seconds. Note:The printer can not be printed without using battery.Printer power ON/OFF.Press the POWER button and FUNC b u t t o n s i m u l t a n e o u s l y, w a i t f o r t h e green lights light in turn, then release the POWER button firstly. the red light and blue light lights up in turn, after the blue light dims, release the FUNC button; red light dims, the printer motor will vibrate.Factory data resetTo feed paper manually, press the FEED button.Paper feedHexadecimal DumpingPress the FEED button and the POWER button simultaneously, wait for all thelights are bright, then release the POWER button firstly, wait for STATUS indicator (blue light) dims, then release the FEED button.Print Self-test page Press the FEED button and the POWER button simultaneously, wait for all the lights are bright, then release the POWER button firstly; after the blue light and red light dims in turn, then release the FEED button, meanwhile the printer prints out "Hexadecimal Dump" page, then printer is changed to Dump mode.Interface informationTurn the printer, press the function button.on。

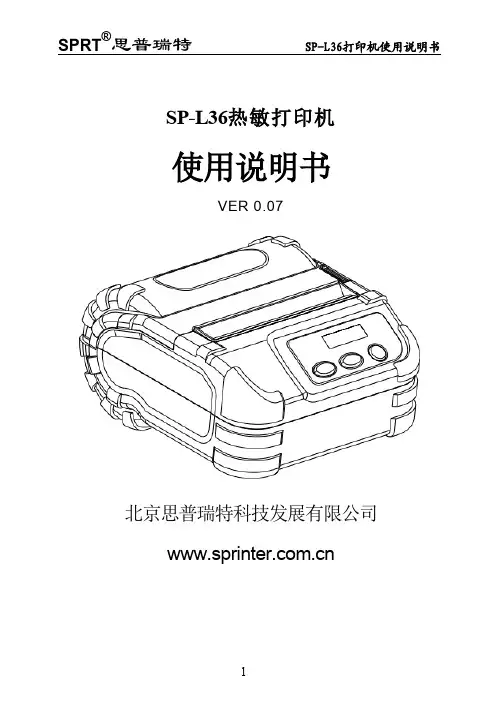

SP-L36热敏打印机使用说明书VER 0.07北京思普瑞特科技发展有限公司目录注意事项 (1)安全注意事项 (1)使用注意事项 (1)存放注意事项 (2)第一章打印机外观及型号 (3)1.1外观 (3)1.2型号 (3)第二章性能特点 (3)2.1打印性能 (3)2.2物理参数 (4)2.3环境参数 (4)2.4其他性能 (4)第三章使用方法 (5)3.1使用前的准备 (5)3.1.1 电池安装 (5)3.1.2 打印纸卷安装 (6)3.1.2 打印纸卷取下 (6)3.1.3其它 (7)3.2基本功能使用 (7)3.2.1 开机 (8)3.2.2 关机 (8)3.2.3 自检测 (8)3.2.4 走纸（手动进纸） (8)3.2.5 十六进制打印 (9)3.2.6打印机参数设置 (9)3.2.7 充电 (10)3.2.8进入程序升级模式 (10)3.3打印机参数设置 (11)3.4打印机标签传感器标定 (11)3.5打印机恢复默认配置 (11)3.6打印机连接及打印 (12)3.6.1 USB连接 (12)3.6.2 蓝牙连接 (12)3.6.3 wifi连接 (13)3.7蜂鸣器说明 (14)3.8液晶显示说明 (14)第四章其他信息 (16)4.1指令编程手册 (16)4.2预印刷黑标说明 (16)4.3标签纸说明 (17)附录A (18)附录B (20)注意事项在使用打印机之前，请仔细阅读本章内容！安全注意事项本打印机只能使用本公司提供的专用电池和电源适配器，否则可能引起产品损坏，电池漏液、起火甚至爆炸。
不要将电池投入火中，不要将电池短路、拆散或加热，否则可能导致电池漏液、起火甚至爆炸。
如果长时间不使用打印机，务必将电池从打印机中取出，否则可能导致电池漏液。
电池中的液体具有腐蚀性，如果操作不慎导致电池漏液并将液体粘到皮肤或衣物上，请立即用清水洗掉，如不慎进入眼睛内，请立即用大量清水彻底冲洗眼睛并去看医生。
M01/M02便携热敏打印机使用说明2009-08-31 北京炜煌科技发展有限公司版本控制信息版本日期拟稿和修改说明V01 2009-6-19 创建第1章 安全信息为有效、安全地使用您的打印机，请遵守以下规定。
在使用打印机前详细阅读操作指南，以掌握正确的使用方法。
将本[使用说明]放置在方便易取的位置，以便随时取出参阅和寻找问题解答。
1.1读者本手册的受众是系统软件开发人员、硬件设计人员和应用设计人员1.2关于本手册本文档分成多个章节，每个章节与主要的特性相对应。
1.3F 安全上的注意事项假如漠视下述注意内容，错误使用打印机的话，可能造成打印机损坏。
△ 注 意·如果出现卡纸情况，务必先断电，等待 10 秒钟，让机头冷却下来，才开始除掉塞纸。
·勿将本产品放置在潮湿或多尘的环境中，重压，不能堆放。
1.4F 使用上的注意事项1.4.1纸卷·必须使用符合要求的纸卷（带纸轴）。
勿选用末端被黏合在纸轴上的纸卷，否则打印机便无法正确测出纸卷末端，也可能对打印机构造成损害。
不要长时间打印数据。
第2章 操作说明2.1开机持续按住电源开关（面板左键）3秒钟，电源打开。
工作状态指示灯闪亮。
少于3秒钟电源不动作。
2.2关机在开机状态，按压电源开关（面板左键）3秒钟，电源关闭，工作状态指示灯熄灭。
少于3秒钟电源不动作。
2.3走纸按压走纸键（面板右键），按下开始进纸，放开停止进纸。
自检在关机状态下按压走纸键（面板右键），然后开机，可以打印自检2.4设置参数在关机状态下按下设置键（中间键），然后开机，可进入设置菜单，打印如下内容：1.Setup Infrared（设置红外）2.Setup 232（设置232串口）3.Print Direction（改变方向）4.Gray Adjust（改变灰度）5.Poweroff（关电源）6.Font&Codepage（选择字体或字符集）这时再按住设置键不放可听到咔哒声，当听到“咔哒”声响的次数与要选择的项目前标号数一致时松开按键，即进入该选项。
NEW! MP100 and MP300Mobile Printers Combining best in class print technology with industry leading labeling and software capabilities MP100PORTABLE LABEL PRINTER PARTNERNEW!MP100 and MP300Mobile PrintersCombining best in class print technologywith industry leading labeling and software capabilitiesMP1002Representative offering only, visit for complete listing of products.MP300MP100Windows is a registered trademark of Microsoft Corp. in the United States and/or other countries.EMPLUSProduct FeaturesPrinters and AccessoriesEasy-Mark ™ Network Easily create labels for network components and cabling that are ANSI/TIA-606 compliantConnect to Fluke LinkWare Live3visit • Fast-loading Label Cassette includes both label material and ribbon to make changing labels easy• Innovative label design allows labels to rotate for visibility from any angle, and for repositioning on the wire/cable to align legends and improve aesthetics• Labels can be easily installed on existing terminated wires and assemblies without disconnecting the wires/cablesTurn-Tell ®Label Cassettes• Fast-loading Label Cassette includes both label material and ribbon tomake changing labels easy• Self-laminating adhesive labels for wire/cable identification include a white print-on area and clear overlaminateDie-Cut Self Laminating Label CassettesPolymer Film (V1)-40°F to 200°F (-40°C to 93°C)Self-Laminating Vinyl (VA)-40°F to 150°F (-40°C to 66°C)4Representative offering only, visit for complete listing of products.Continuous Self-Laminating Labels• Fast-loading Label Cassette includes both label material and ribbon to make changing labels easy• Self-laminating adhesive labels for wire/cable identification include a whiteprint-on area and clear overlaminateContinuous Heat Shrink Labels• Fast-loading Label Cassette includes both label material and ribbon to make changing labels easy•Shrink ratio 3:1• Non-adhesive flattened heat shrinkable polyolefin for wire/cableidentification-40°C to 66°C (-40°F to 150°F)-40°C to 125°C (-40°F to 257°F)Self-Laminating Vinyl (VA)Heat Shrinkable Polyolefin (H1, H2)5visit • Fast-loading Label Cassette includes both label material and ribbon to make changing labels easy• Print custom pipe markers, voltage markers, signs, bin markers, and network identification labels on demand• For flat label applications onlyContinuous Tape CassettesNon-Adhesive Polyester Component Labels• Fast loading MP Label Cassette includes both label material and ribbon to make changing labels easy• Die-cut labels designed to proivde maximum aesthetic quality and apperance• Use for identifying patch panel, faceplates, punchdown blocks, and other network systems hardware-23°C to 155°C (-10°F to 311°F)Non-Adhesive Polyester (Y1)Competitive comparison based on published specifications.Epson Print TechnologyEpson is a global technology leader dedicated to becoming indispensable to society by connecting people, things and information with its efficient, compact and precision technologies.Combined with Panduit’s Labeling and Software CapabilitiesPanduit creates leading-edge labeling solutions for electrical and network environments, from the data center to the telecom room, from the jobsite to the plant floor, Panduit has you covered.Results in Best-in-Class PerformancePanduit has entered into a strategic partnership with Seiko Epson Corporation to jointly develop printer and labels for the industrial, construction and network infrastructure markets. The results of the partnership are printers with best-in-class print quality, speed, capabilities and label selection. The MP100 & MP300 printers and labels are the first of many products that will be jointly developed through this partnership.WORLDWIDE SUBSIDIARIES AND SALES OFFICESFor a copy of Panduit product warranties, log on to /warrantyPANDUIT CANADA Markham, Ontario ******************Phone: 800.777.3300PANDUIT EUROPE LTD.London, UK*******************Phone: 44.20.8601.7200PANDUIT SINGAPORE PTE. LTD.Republic of Singapore *****************Phone: 65.6305.7575PANDUIT JAPAN Tokyo, Japan********************Phone: 81.3.6863.6000PANDUIT LATIN AMERICA Guadalajara, Mexico *****************Phone: 52.33.3777.6000PANDUIT AUSTRALIA PTY. LTD.Victoria, Australia ******************Phone: 61.3.9794.9020©2020 Panduit Corp.ALL RIGHTS RESERVED.IDSG01--SA-ENG03/2021For more informationVisit us at ContactCustomerServicebyemail:**************or by phone: 800.777.3300。
© 3M 2009. All rights reserved.80-6016-0409-5 (0203.5)GP-2Important NoticeBefore utilizing any of 3M’s products, you should determine the suitability of the product for your intended use. You assume all risks and liability associated with such use. Warranty; Limited Remedy; Limited Liability.The 3M ™ TRP-303 Printer will be free from defects in material and manufacture for a period of one year from the date of purchase. Since print heads and cutters are consumable materials, these items are warranted for thirty (30) days from the date of purchase when used with compatible 3M products. All other 3M products will be free from defects in material and manufacture at the time of purchase, unless otherwise stated in the Product Literature. 3M MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE . If the products are defective within the warranty period stated above, 3M’s obligation and liability under this warranty are limited to repairing, replacing or refund of the purchase price, at 3M’s option, of any 3M’s products which, after normal and proper usage, are determined by 3M to be defective. This warranty does not extend to any 3M products which have been subjected to misuse, neglect accident or improper application, nor shall it extend to products which have been repaired or substantially altered outside of 3M’s manufacturing or repair facility. In no case shall 3M be liable for any indirect, special, incidental, or consequential damages based upon breach of warranty, breach of contract, negligence, strict liability or any other legal theory.3Electrical Markets Division6801 River Place Blvd.Austin, TX 78726-9000800 676 8381FAX 800 828 /electrical3M and Grafoplast are trademarks of 3M Company.Accessories and Supplies3M ™ Thermal Roll Printer TRP-303 accessory replacement parts are recommended to ensure the proper operation of the Thermal Roll Printer TRP-303. 3M ™ Thermal Roll Printer Black Ribbons are premium resintype that exhibit superior durability when compared to wax or resin-wax blend types. These ribbons have been chosen for their superior mark performance when used with heat shrink sleeves. All supplies and replacement parts for the 3M Thermal Roll Printer TRP-303 are listed below:UPC # (051128-)PC-RPL/TRP-3033M ™ Thermal Roll Printer Partial Cutter Replacement 58364FC-RPL/TRP-3033M ™ Thermal Roll Printer Full Cutter Replacement 58365PH-RPL/TRP-3033M ™ Thermal Roll Printer Thermal Print Head Replacement 58366PS-RPL/TRP-3033M ™ Thermal Roll Printer Power Supply Replacement 58367RBN-BLK-4/TRP-3033M ™ Thermal Roll Printer Black Ribbon 4 in. x 360 ft.58368RBN-BLK-2/TRP-3033M ™ Thermal Roll Printer Black Ribbon 2 in. x 360 ft.58369PR-RPL/TRP-3033M ™ Thermal Roll Printer Platten Roller Replacement 58384MS-RPL/TRP-3033M ™ Thermal Roll Printer Media Stand Replacement58385Ask about these additional identification systems from 3M.3M ™ ScotchCode ™ Tape Dispensers3M ™ ScotchCode ™ Write-On Dispensers3M ™ ScotchCode ™ Wire Marker Books 3M ™ Grafoplast ™ Si2K Identification System3M™ Thermal Roll Printer TRP-303Product BulletinHigh Qualityworkspaces. The Thermal Roll Printer TRP-303 can be(which can maintain the order of sequentialhas the same look and feel as WYSIWYG(“what you see is what you get”) programswith the capability to create bar codes andgraphics with alphanumeric characters.are standard.SpecificationsResolution 300 DPIPrint Speed Up to 4 ipsBench Space Requirements (L x W x H)22.5 in. x 8.1 in. x 8.9 in. / 571 mm x 206 mm x 226 mmOperating Temperature 41ºF to 104ºF (5ºC to 40ºC)Max. Print Width 4 in (101.6 mm)Ribbon Capacity110 meters, Max. 1.57 in. (40 mm) OD, 0.5 in. (12.7 mm) slotted coreInterface Internal Ethernet, USB 2.0, Centronics and RS-232CMedia Type Continuous heat shrink sleeveMedia Width & Thickness0.20 - 4.17 in. (5.0 - 106 mm) / 2.3 - 0.40 mil (0.06 – 1.0 mm)Memory Standard memory of 4 MB Flash, 8 MB SDRAM and a slot for a SD cardthat expands memory up to 4 GBRequired Operating Systems Windows® (95, 98, NT with Service Pack 6, 2000, XP)System Requirements Recommend at least 64 MB of RAM and 15 MB free hard-disk spaceProduct Number Description UPC # (051128-)TRP-303-PC-ES3M™ Thermal Roll Printer with Partial Cutter TRP-303-PC-ES58362TRP-303-FC-ES3M™ Thermal Roll Printer with Full Cutter TRP-303-FC-ES58363System Components• Printer Unit • Auto Switching Supply• CD with Labeling & Driver Software • USB Interface Cable• Quick Installation Guide • External Media Stand• Power Cord & Ribbon Take-Up Core • Full or Partial CutterWarranty period: The 3M TRP-303 Printer will be free from defects in material and manufacture for a period of one year from the date of purchase. Since print heads and cutters are consumable materials, these items are warranted for thirty (30) days from the date of purchase. See back page for full warranty statement. Printer head life: 16,404 yds. (15 km) of printed product, equivalent to more than 500,000 heat shrink marker sleeves of 1 inch in length.Key Features:• 3:1 shrink ratio• Minimum shrink temperature 100°C (212°F)• Meets the material requirements of SAE-AMS-DTL-23053 / 5• Marker permanence per SAE-AS81531 and MIL-STD-202 Method 215k when used with 3M Thermal Roll Printer Black Ribbon RBN-BLK series• Operating temperature -67ºF to +275ºF (-55ºC to +135ºC)• UL recognized and CSA certified at 125°C/66VProduct Number UPC # (051128-)Expanded ID(min.)Color Roll Length RecommendedUse ODNominal THHNWire SizeFP-303MS-1/8-WH-100583600.125” (3.18 mm)White100 feet (30.5 m)0.046”-0.106”(1.16 mm-2.70 mm)22 AWG - 16 AWGFP-303MS-3/16-WH-100583460.187” (4.75 mm)White100 feet (30.5 m)0.069”-0.159”(1.74 mm-4.04 mm)18 AWG - 12 AWGFP-303MS-1/4-WH-100583470.250” (6.36 mm)White100 feet (30.5 m)0.092”-0.213”(2.33 mm-5.40 mm)16 AWG - 10 AWGFP-303MS-3/8-WH-100583480.375” (9.53 mm)White100 feet (30.5 m)0.138”-0.319”(3.49 mm-8.10 mm)10 AWG - 6 AWGFP-303MS-1/2-WH-100583490.500” (12.70 mm)White100 feet (30.5 m)0.183”-0.425”(4.66 mm-10.80 mm)8 AWG - 2 AWGFP-303MS-3/4-WH-75583500.750” (19.05 mm)White75 feet (22.9 m)0.275”-0.638”(6.99 mm-16.19 mm)6 AWG - 3/0 AWGFP-303MS-1-WH-5058351 1.000” (25.40 mm)White50 feet (15.2 m)0.367”-0.850”(9.31 mm-21.59 mm)2 AWG - 350 MCMFP-303MS-1/8-YL-100583610.125” (3.18 mm)Yellow100 feet (30.5 m)0.046”-0.106”(1.16 mm-2.70 mm)22 AWG - 16 AWGFP-303MS-3/16-YL-100583530.187” (4.75 mm)Yellow100 feet (30.5 m)0.069”-0.159”(1.74 mm-4.04 mm)18 AWG - 12 AWGFP-303MS-1/4-YL-100583540.250” (6.36 mm)Yellow100 feet (30.5 m)0.092”-0.213”(2.33 mm-5.40 mm)16 AWG - 10 AWGFP-303MS-3/8-YL-100583550.375” (9.53 mm)Yellow100 feet (30.5 m)0.138”-0.319”(3.49 mm-8.10 mm)10 AWG - 6 AWGFP-303MS-1/2-YL-100583560.500” (12.70 mm)Yellow100 feet (30.5 m)0.183”-0.425”(4.66 mm-10.80 mm)8 AWG - 2 AWGFP-303MS-3/4-YL-75583570.750” (19.05 mm)Yellow75 feet (22.9 m)0.275”-0.638”(6.99 mm-16.19 mm)6 AWG - 3/0 AWGFP-303MS-1-YL-5058358 1.000” (25.40 mm)Yellow50 feet (15.2 m)0.367”-0.850”(9.31 mm-21.59 mm)2 AWG - 350 MCM。
使用说明- ZHAT235Science made smarterD -128076-D–2022/09AT235声阻抗仪操作手册Interacoustics中国销售公司-奥迪康国际贸易（上海）有限公司售后服务单位：奥迪康国际贸易（上海）有限公司注册地址：中国（上海）自由贸易试验区基隆路1号2026室联系地址：上海市张江高科技园区李冰路67弄2号邮编: 201203电话*************传真*************E-mail：************************生产厂家：丹麦国际听力设备公司目录1简介 (1)1.1关于本手册 (1)1.2用途 (1)1.3进行阻抗测听的禁忌症 (1)1.4产品说明 (2)1.5关于警告和注意事项 (3)2开箱和安装 (4)2.1开箱验货 (4)2.2标志 (5)2.3重要安全指示 (6)2.4故障 (7)2.5连接 (8)2.6校准鼓室容积 (8)2.7更换探头系统 (9)2.8连接 AT235 时的安全预防措施。
(10)2.9许可证 (12)2.10关于诊断套件 (12)3操作说明 (13)3.1耳塞的操作和选择 (14)3.2开启和关闭 AT235 (14)3.3探头状态 (15)3.4使用标准探头和临床探头系统 (16)3.5AT235 独立操作 (16)3.5.1AT235 独立操作面板 (16)3.5.2启动 (17)3.5.3仪器设置 - 语言、打印机、日期和时间等 (17)3.5.4测试和选择模块 (19)3.5.5鼓室声导抗测试屏幕 (19)3.5.5.1鼓室声导抗测试屏幕 (20)3.5.5.2反射测试屏幕 (22)3.5.6听力测试屏幕 (24)3.5.7启动和停止鼓室声导抗测试 (25)3.5.8保存 (26)3.5.9查看历史会话 (27)3.6在同步模式下运行（只适用于诊断套件） (28)3.6.1计算机电源配置 (28)3.6.2从 OtoAccess® 启动 (28)3.6.3从 Noah 4 启动 (28)3.6.4崩溃报告 (28)3.6.5仪器设置 (29)3.7使用同步模式 (30)3.7.1使用 IMP同步 (30)3.7.2使用 AUD同步 (32)3.7.3同步选项卡 (34)3.7.4客户上载 (35)3.7.5会话下载 (35)4维护 (37)4.1常规维护程序 (37)4.2常规维护程序 (38)4.3清洁探针 (39)4.4关于修理 (40)4.5保修 (40)4.6定期校准 (41)5规格 (42)5.1AT235 技术规格 (42)5.2校准性能： (45)5.3频率和强度范围 (49)5.4Pin Assignments (50)5.5电磁兼容性 (EMC) (51)1简介1.1 关于本手册本手册适用于 AT235 firmware 1.42.本产品的制造商：Interacoustics A/SAudiometer Allé 15500 MiddelfartDenmark电话：+45 6371 3555传真：+45 6371 3522电子邮件：***********************网址：1.2 用途AT235 是中耳分析仪，用于进行中耳的声阻抗测试。
The MPD31D are fast mobile label printers for use in the most rugged environments. They feature the latest wireless technology for easy,untethered use, increasing worker productivity.The MPD31D is a light weight mobile printer with best in-class performance and economical price. It can be used inmanufacturing, warehouse, logistics, retail, public utilities and healthcare.MPD31D is a 3-inch unit which can support 1D, QR code, image. It can also work with mobility devices as a total solution. Other benefits include:MPD31D can support both receipt and label printing. Compatible with black mark paper, gap label, seam paper, continuous paper, lineless paper.MOBILE PRINTER MPD31D3-Inch Mobile PrinterFEATURES AND BENEFITSUltra-rugged design: 1.5 m (4.9 ft) drop tested, tested to 1000 0.5 m (1.5 ft) tumbles, IP54 dust and moisture ingress and wide operating temperature range.Fast boot up and prints receipts up to 3.5 inches per second.High-capacity battery. Battery age provided as part of printer analytics.Can support both receipt and label printing.• Easy to CarrySmall size and light weight up to 368g, easy to carry in different scenarios • Powerful Performance90 mm/s (3.5ips) high-speed printing and strong battery power support printing 300 meters continuously.• Open IntegrationSupport various Intelligent Terminals, PDA integration printing. Provide Android, IOS to integrate with 3rd party terminals. Support customized local language for different regions.• Easy to change mediaFlexible label and receipt change, just 3 Steps within 1 min to change between two print modes.MECHANICALDimensions:105 mm x 108 mm x 51 mm (4.1 in x 4.3 in x 2.2 in)Printer Weight: 0.4 kg (0.9 lb) (with battery, no media)ELECTRICALPower Supply: 1 AC Connector case Sound: Beeper Adapter: 5V 2ABattery: 7.4V 2100mAhCharging Time: 3.5H (0°C ~40°C)Battery Operation Time: 72H (Stand-by time)RAM: 64 MB Flash: 64 MBDisplay: OLED Single Color: BlueMEDIAMedia Roll Width (±0.5): 79mm (3.11 in) / 61mm (2.4 in) / 45mm (1.77 in)Media Thickness: < 0.18 mm (0.007 in) Media Roll Dimension: < 43 mm (1.7 in) Media Height: 20 mm (0.8 in) to 300 mm (11.7 in)Effective Print Width: 72 mm (2.8 in) Media Types: Thermal paperMaximum Roll Capacity: Ø43mm (1.7 in) Paper Cutting Method: Tear BarFor optimum print quality and printer performance, use certified Honeywell media supplies.MEDIA LIST MPD Series Technical SpecificationsMPD Series | DTS | EN | LTR | Rev B | 03/23© 2023 Honeywell International Inc.For more informationHoneywell Safety and Productivity Solutions855 S Mint StCharlotte, NC 28202800-582-4263COMMUNICATIONS Micro USB, BT4.0+BLE OUTPUTCharacter Sets:Standard ASCII Font (9X17,12X24)Chinese characters (24×24)English (ASCII) ACCESSORIES• Label sw• Driver sw and CD • QSG/User Manual • Battery • USB Cable• Label Paper (Optional)• Belt Buckle (Optional)• Carrying Bag (Optional)• Shoulder Strap (Optional)REGULATIONCE, FCC, ROHS DOC, ROHS Test Report Barcode:1D: UPCA, UPCE, EAN13, EAN8, Code39, I25, CodeBar, Code93, Code128, Code11, MSI2D: QR Code, PDF417,DataMatrixENVIRONMENTALMeets IP54 dust and water ingress rating Drop Specification: 1.5 m (4.9 ft)Operating Temperature: -10°C to 50°C (14°F to 122°F)¹Storage Temperature: -20°C to 70°C (-4°F to 158°F)Charging Temperature: 0°C to 45°C (32°F to 113°F)Operating Humidity: 20 to 85% RH (non-condensing)Storage Humidity: 5 to 95% RH (non-condensing)SOFTWARE/FIRMWARE Compatibility: CPCL, TSPL, ZPL, ESC/POS Drivers: Microsoft® 8, and 10Label-Design Software Compatibility: BarTender®, NiceLabel®Software Development Kit: Android™ 4.1 and above; Apple iOS 7,8; Microsoft Windows® Desktop up to Windows 10, Windows Mobile and Windows CE; C++, C-Sharp, Java, ActiveX Control USAGE FEATURESIntelligent Backlit Icons: On/Off Button, Battery Charge, Battery Life, Media Status, Communication StatusMedia: Drop-in/easy-to-load media, adjustable media arms*For use in MPD Series printers equipped with linerless option only MPD31D CAN ENABLE• A warehouse operator to print product shipment label and enter what has been loaded/shipped easily, so as to minimize check time and cost.• A retail operator to print productreceiving label and enter what has been received.• A retail shelf operator to change the pricing label dynamically.• A courier to print and issue receipts to the customer on the spot.¹It is recommended to use low-temp mode to get better printing performance when the temperature is at or below 0°C .For a complete listing of all compliance approvals and certifications, please visit /PSScompliance For a complete listing of all supported barcode symbologies, please visit/PSS-symbologiesApple, Android, iOS, iPhone, Windows, Bluetooth, BarTender, and NiceLabel are trademarks orregistered trademarks of their respective owners.Direct ThermalLinered Labels -1" Core ID, 2.25"Roll OD 3.0" x 1.0", 405/roll - PERM 3.0" x 3.0", 145/roll - PERM 3.0" x 4.0", 110/roll - PERM Uncoated Direct Thermal Label 3” x 5”, 0.75" Core ID, 2.25"Roll OD, (0.125" gap),Duratherm IITop-coated Direct Thermal Label3” x 5”, 0.75" Core ID, 2.25"Roll OD, (0.125" gap),Duratherm IIIFloodcoat LabelDuratherm II Floodcoated (NTC)3.0" x 5"Duratherm III Floodcoated (TC)3.0" x 5"ORDERING。
热敏便携收据打印机MPT-III 系列北京瑞工科技发展有限公司目录注意事项 (3)第一章产品简介 (4)1．1打印机外观 (4)1.2型号说明 (4)1.3附件 (5)第二章性能特点 (6)2.1打印性能 (6)2.2物理参数 (6)2.3环境参数 (6)2.3其他性能 (6)第三章使用方法 (7)3.1使用前的准备 (7)3.1.1 电池安装 (7)3.1.2 打印纸卷安装 (7)3.2基本功能使用 (7)3.2.1 开机 (7)3.2.2 关机 (8)3.2.3 自检 (8)3.2.4 走纸（手动进纸） (8)3.2.5 充电 (8)3.3打印机设置 (8)3.4打印连接及打印 (8)3.4.1 串口连接 (8)3.4.2 原始红外和IrDA连接 (9)3.4.3 蓝牙（Bluetooth） (9)3.5指示灯及蜂鸣信号说明 (9)第四章其他信息 (10)4.1打印机开发手册 (10)4.2预印刷黑标说明 (10)注意事项在使用打印机之前，请仔细阅读本章内容！安全注意事项本打印机只能使用本公司提供的专用电池和电源适配器，否则可能引起产品损坏，电池漏液、起火甚至爆炸。
不要将电池投入火中，不要将电池短路、拆散或加热，否则可能导致电池漏液、起火甚至爆炸。
电池中的液体具有腐蚀性，如果操作不慎导致电池漏液并将液体粘到皮肤或衣物上，请立即用清水洗掉，如不慎进入眼睛内，请立即用大量清水彻底冲洗眼睛并去看医生。
打印时或刚打印结束时不要开启纸仓盖，用手或身体的任何部位接触打印机芯，以免过高的温度导致烫伤。
使用注意事项打印机不可浸入水中，也不要将其长时间暴露在雨中，否则可能导致打印机损坏。
打印过程中不得打开纸仓盖，否则可能导致打印机工作不正常。
在使用串口打印时，在打印过程中不能将串口线拔下，否则可能导致打印数据不完整。
在使用红外方式打印时，在打印过程中要将主设备的红外窗口对准打印机的红外视窗，距离不能超过50厘米，角度不能超过30度，否则可能导致打印乱码或无法打印。
厦门普瑞特科技有限公司热敏便携收据打印机MPT-III 便携蓝牙打印机系列厦门普瑞特科技有限公司目录注意事项 (3)第一章产品简介 (4)1．1打印机外观 (4)1.2型号说明 (4)1.3附件 (5)第二章性能特点 (6)2.1打印性能 (6)2.2物理参数 (6)2.3环境参数 (6)2.3其他性能 (6)第三章使用方法 (7)3.1使用前的准备 (7)3.1.1 电池安装 (7)3.1.2 打印纸卷安装 (7)3.2基本功能使用 (7)3.2.1 开机 (7)3.2.2 关机 (8)3.2.3 自检 (8)3.2.4 走纸（手动进纸） (8)3.2.5 充电 (8)3.3打印连接及打印 (8)3.3.1 串口连接 (8)3.3.2 原始红外和IrDA连接 (8)3.3.3 蓝牙（Bluetooth） (9)3.4指示灯及蜂鸣信号说明 (9)第四章其他信息 (10)4.1打印机开发手册 (10)4.2预印刷黑标说明 (10)注意事项在使用打印机之前，请仔细阅读本章内容！安全注意事项本打印机只能使用本公司提供的专用电池和电源适配器，否则可能引起产品损坏，电池漏液、起火甚至爆炸。
不要将电池投入火中，不要将电池短路、拆散或加热，否则可能导致电池漏液、起火甚至爆炸。
电池中的液体具有腐蚀性，如果操作不慎导致电池漏液并将液体粘到皮肤或衣物上，请立即用清水洗掉，如不慎进入眼睛内，请立即用大量清水彻底冲洗眼睛并去看医生。
打印时或刚打印结束时不要开启纸仓盖，用手或身体的任何部位接触打印机芯，以免过高的温度导致烫伤。
使用注意事项打印机不可浸入水中，也不要将其长时间暴露在雨中，否则可能导致打印机损坏。
打印过程中不得打开纸仓盖，否则可能导致打印机工作不正常。
在使用串口打印时，在打印过程中不能将串口线拔下，否则可能导致打印数据不完整。
在使用红外方式打印时，在打印过程中要将主设备的红外窗口对准打印机的红外视窗，距离不能超过50厘米，角度不能超过30度，否则可能导致打印乱码或无法打印。
虽然打印机可以在-10℃到50℃稳定工作，但过高的环境温度（45℃）或过低的环境温度（5℃）会导致打印质量降低。
过高的环境湿度（85％相对湿度以上）或过低的环境湿度（20％相对湿度以下）会导致打印质量降低。
使用劣质的打印纸或存放时间过长的打印纸可能造成打印质量降低，甚至损坏打印机。
打印机在黑标检测方式下工作时（打印印有黑标的预印刷票据时），要求预印刷在打印纸上的黑标符合黑标印刷规范（详见4.2 黑标检测说明），否则可能导致打印机无法准确检测黑标。
打印机在充电前尽量将电池电量用完后再充电，这样可以有效地保证电池的使用寿命。
存放注意事项打印机需存放在温度在-20℃到70℃、相对湿度在5％到95％的环境中。
如果长时间存放打印机，请务必取出打印机中的电池单独存放，否则可能导致电池失效、甚至漏液，进而损坏打印机。
普通热敏打印纸的存放时间较短，如果要打印需长期保存的单据，请选用长效热敏打印纸。
打印纸不要放在高温或阳光直射的地方储存，如果已经拆封，请放在避光的地方保存。
第一章 产品简介1．1打印机外观1.2. 状态指示灯3. RS232串口通讯插座4. 红外接口5. 打印机顶盖6. 电源按键7. 充电指示灯8. 电源接口9. 电池盒盖10. 皮带挂扣注:状态指示灯与充电指示灯均在两个按建下方,有红色与绿色来表示不同意义.1.2型号说明MPT-III 系列1.3附件标配件电池电源线电源充电器纸卷选配件皮套串口数据线第二章性能特点2.1 打印性能打印方式：行式热敏；打印纸宽：76/80mm；打印宽度：72mm分辨率：8点/mm（203dpi）；`每行点数：576点；打印速度：50～70mm/s；纸张厚度：60～80μm；可打印内容：汉字（支持GB18030所有汉字字符集，ASCII字符，全宽自定义字符若干，半宽自定义字符若干，条码CODE39、EAN13、EAN8、 CODABAR、CODE93、ITF，图形。
2.2 物理参数外观尺寸： 102×108×50mm；重量： 325g（不含纸卷）；纸卷直径：≤40mm；接口方式：原始IR（RAW_IR），VIR，IrDA（IrCOMM），RS232串口，蓝牙；具体型号不同可使用的接口不同。
参见型号说明2.3 环境参数工作温度：-10℃～50℃；工作湿度: 20%～85%；储藏温度：-20℃～70℃；储藏湿度：5%～95%。
2.3 其他性能装纸方式：蛤壳式装纸（装纸方法详见3.1.2 打印纸卷安装）；黑标定位：有（详见4.2 预印刷黑标说明）；缺纸检测：当纸用尽时打印机电源键与功能键都会闪烁,同时蜂鸣器会提示；打印控制指令：ESC/POS兼容指令集（详见《MPT-III便携式打印机开发手册》，该手册可向您的供应商索取；供电方式：1500mAH可充电锂电池电量报警：当充电电池电量将消耗完时，打印机的充电指示灯闪烁，同时会发出两声短促的鸣响，并且如果用户没有充电，会间隔发出一声鸣响以提示用户充电；充电：2～4小时即可充满；一次充电可用时间：12.5％打印密度下100～200m，25％打印密度下80～100m。
本参数仅做参考，电池在使用很久之后，可能导致容量下降，不能确保打印时间。
第三章使用方法3.1 使用前的准备3.1.1 电池安装1、将皮带扣向上捌起,电池盖打开，打开电池仓盖。
2、如图所示，将电池放入电池仓，注意不要将电池正负极装反；3、然后合上电池仓盖。
使用方法1、用手指向上推开盖按钮，稍许用力打开纸仓盖；2、如图将纸卷放入纸仓，注意纸的方向，如果放反，将导致无法打印；3、如图拉出部分纸卷，注意要将纸卷拉出纸仓外；4、将纸卷摆正后，合上顶盖。
3.2 基本功能使用3.2.1 开机关机状态下，按下电源键【POWER】2秒，打印机开机并进入工作状态，电源指示灯(红灯)亮。
注意：如果打印机功能指示灯(蓝灯)闪烁并且不缺纸，表示打印机的电量即将耗尽，如要继续使用，请尽快更换电池或充电。
充电方法参见3.2.5 充电。
3.2.2 关机开机状态下，按下电源键【POWER】持续2秒，打印机关机，所有指示灯熄灭。
3.2.3 自检用户拿到打印机后，可以随时对打印机进行自检，以检测打印机当前的设置和状态。
自检的方法如下：关机（如果打印机处于开机状态的话），然后按住走纸键【FEED】，再按电源【POWER】键开机，打印机即会打印出自检页，自检页中包含当前打印机的状态及打印机设置和打印的范例。
3.2.4 走纸（手动进纸）打印机在正常工作状态下，按下走纸键【FEED】，打印机开始走纸,，走纸50mm 米后停止走纸。
用户可以根据需要通过计算机上的专用软件MPT-III_CONFIG修改走纸长度。
当走纸长度设为0时，必须一直按住【FEED】按键打印机才走纸，松开【FEED】按键打印机停止走纸。
如果打印纸上印刷有本打印机认可的黑标，当打印机走到黑标处时，打印机即会自动停止走纸。
如果走纸长度被设为0，打印机走纸不受黑标影响。
3.2.5 充电打印机在使用一段时间后，打印机电池的电量会消耗光，当打印机电池的电量已经接近用完时，打印机的功能指示灯(蓝灯)会闪烁，同时打印机会发出报警声，此时用户要准备充电了，如果打印机在打印过程中自动关机了，用户如要继续使用，就必须充电。
充电的方法如下：将充电器的市电插头插入220V、50HZ的电源插座，然后将充电插头插入打印机的充电插座，打印机就开始充电，充电过程中，打印机的充电指示灯(蓝灯)会变闪烁，直到电池电量充满，充电指示灯熄灭。
在充电过程中，可以正常使用打印机。
3.3 打印连接及打印3.3.1 串口连接打印机的可选附件中含有DB-9串口线（另一端接打印机，为MINI DIN插头）。
3.3.2 原始红外和IrDA连接MPTI-III可以使用红外数据通讯技术与您的设备进行数据通讯。
红外数据通讯技术是红外数据协会（IrDA）开发并发展起来的一项用红外光作为通讯数据载体的一种无线数据通讯技术。
使用方法红外（IR）端口作为无线数据传输接口，因其功耗低、技术成熟、使用方便等等诸多原因现在为大多数便携式设备作为数据通讯的主要手段。
大部分的便携式设备都有红外（IR）端口，比如所有的WINCE掌上电脑、PALM掌上电脑、笔记本电脑，一部分手机、大部分便携式数据采集器，以及一小部分用于野外作业的测量仪器。
MPTI-II打印机的硬件兼容IrDA1.1规范，IrCOMM协议是IrDA协议的一个子协议，它在很多便携设备上得到使用。
原始红外数据通讯方式可以与带原始红外接口的设备连接打印。
IrCOMM方式可以和带IrCOMM协议的设备连接打印。
有关IrDA更多的相关知识请访问。
打印机不能同时工作在原始红外状态、VIR或和IrCOMM状态下，如果打印机不是工作在您所需要的状态下，必须对打印机重新设置后才能使用。
设置IR模式的方法参见3.3 打印机设置。
在使用原始红外（RAW-IR）和IrDA（IrCOMM）方式打印时，在打印过程中要将主设备的红外线对准打印机的红外视窗，距离不能超过50厘米（视主设备的不同可能有所区别），角度不能超过30度。
有关原始红外及IrCOMM开发的细节请参考《MPT-III PLUS便携式微型打印机开发手册》，该手册可向您的供应商索取。
3.3.3 蓝牙（Bluetooth）带蓝牙接口的手持终端、笔记本电脑以及其他信息终端可以通过蓝牙接口驱动MPT-III/BL打印。
使用方法1、通过蓝牙托盘（或者在控制面板）右键点击蓝牙图标，选择“添加Bluetooth设备"2、系统在经过一段时间后，显示找到"SPP_B"新设备3、选择”下一步“，选择第三点"输入自己的密码"，输入0000密码，直至添加完成4、完成后系统会显示添加了两个串口，一般第一个为输出端口，第二个为输入端口。
3.4指示灯及蜂鸣信号说明打印机有一个蜂鸣器和两个指示灯用于提示用户打印机的状态，指示灯用于表示打印机目前的状态，蜂鸣器用于提示打印机状态的变化。
两个指示灯分别为功能指示灯和充电指示灯，第四章其他信息4.1 打印机开发手册《MPT-III便携式微型打印机开发手册》是辅助MPT-III打印机开发者开发打印机应用的技术手册，该手册可向您的供应商索取。
该手册包涵了打印机的硬件接口（串行通讯口，红外接口）技术描述、打印控制指令集技术文档、以及其他如如何印刷黑标，使用黑标定位。
4.2 预印刷黑标说明如果用户使用预印刷黑标进行票据定位，印刷黑标时务必遵守以下黑标预印刷规范，否则可能导致打印机无法识别黑标。
黑标预印刷规范：印刷位置：如下图所示，黑标应印刷于文字面的右侧边缘。
