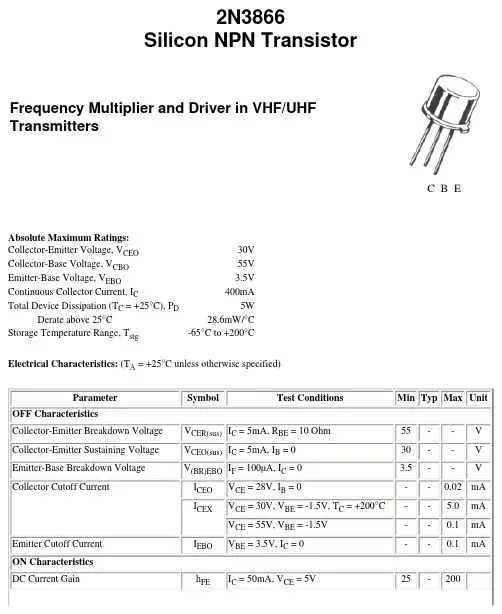

2N3866

Silicon NPN Transistor

Frequency Multiplier and Driver in VHF/UHF

Transmitters

C B E

Absolute Maximum Ratings:

Collector-Emitter Voltage, V

CEO 30V

Collector-Base Voltage, V

CBO 55V

Emitter-Base Voltage, V

EBO 3.5V

Continuous Collector Current, I

C 400mA

Total Device Dissipation (T

C = +25°C), P

D 5W

Derate above 25°C 28.6mW/°C

Storage Temperature Range, T

stg -65°C to +200°C

Electrical Characteristics: (T

A = +25°C unless otherwise specified)

ParameterSymbolTest ConditionsMinTypMaxUnit

OFF Characteristics

Collector-Emitter Breakdown VoltageV

CER(sus)I

C = 5mA, R

BE = 10 Ohm55--V

Collector-Emitter Sustaining VoltageV

CEO(sus)I

C = 5mA, I

B = 030--V

Emitter-Base Breakdown VoltageV

(BR)EBOI

F = 100µA, I

C = 03.5--V

Collector Cutoff CurrentI

CEOV

CE = 28V, I

B = 0--0.02mA

I

CEXV

CE = 30V, V

BE = -1.5V, T

C = +200°C--5.0mA

V

CE = 55V, V

BE = -1.5V--0.1mA

CBETO-92C

BE

BCC

SOT-223

E

NPN General Purpose Amplifier

This device is designed as a general purpose amplifier and switch.The useful dynamic range extends to 100 mA as a switch and to100 MHz as an amplifier.

Absolute Maximum Ratings* TA = 25°C unless otherwise noted

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:1) These ratings are based on a maximum junction temperature of 150 degrees C.2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.SymbolParameterValueUnits

VCEOCollector-Emitter Voltage40V

VCBOCollector-Base Voltage60V

VEBOEmitter-Base Voltage6.0V

ICCollector Current - Continuous200mA

TJ, TstgOperating and Storage Junction Temperature Range-55 to +150°C

 2001 Fairchild Semiconductor CorporationThermal Characteristics TA = 25°C unless otherwise noted
