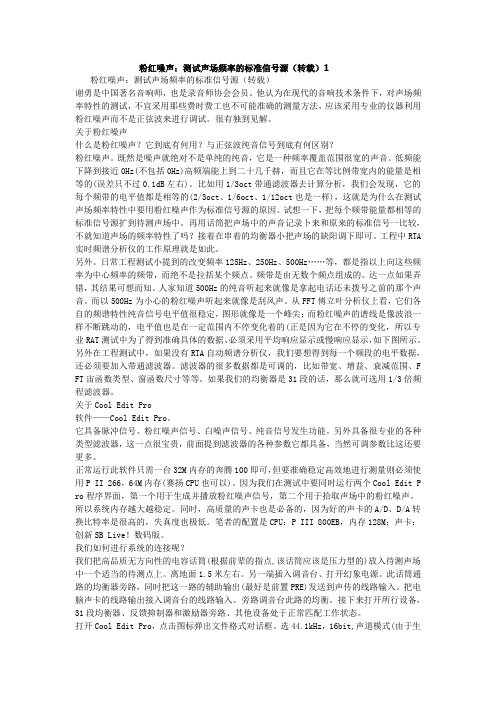

粉红噪声：测试声场频率的标准信号源（转载）1粉红噪声：测试声场频率的标准信号源（转载）谢勇是中国著名音响师，也是录音师协会会员。
他认为在现代的音响技术条件下，对声场频率特性的测试，不宜采用那些费时费工也不可能准确的测量方法，应该采用专业的仪器利用粉红噪声而不是正弦波来进行调试。
很有独到见解。
关于粉红噪声什么是粉红噪声？它到底有何用？与正弦波纯音信号到底有何区别？粉红噪声。
既然是噪声就绝对不是单纯的纯音，它是一种频率覆盖范围很宽的声音。
低频能下降到接近0Hz(不包括0Hz)高频端能上到二十几千赫，而且它在等比例带宽内的能量是相等的(误差只不过0.1dB左右)。
比如用1/3oct带通滤波器去计算分析，我们会发现，它的每个频带的电平值都是相等的(2/3oct、1/6oct、1/12oct也是一样)，这就是为什么在测试声场频率特性中要用粉红噪声作为标准信号源的原因。
试想一下，把每个频带能量都相等的标准信号源扩到待测声场中。
再用话筒把声场中的声音记录卜来和原来的标准信号一比较，不就知道声场的频率特性了吗？接着在串着的均衡器小把声场的缺阳调下即可。
工程中RTA 实时频谱分析仪的工作原理就是如此。
另外。
日常工程测试小提到的改变频率125Hz、250Hz、500Hz……等，都是指以上向这些频率为中心频率的频带，而绝不是拉括某个频点。
频带是由无数个频点组成的。
达一点如果弄错，其结果可想而知。
人家知道500Hz的纯音听起来就像是拿起电话还未拨号之前的那个声音。
而以500Hz为小心的粉红噪声听起来就像是刮风声。
从FFT傅立叶分析仪上看，它们各自的频谱特性纯音信号电平值很稳定，图形就像是一个峰尖；而粉红噪声的谱线是像波浪一样不断跳动的，电平值也是在一定范围内不停变化着的(正是因为它在不停的变化，所以专业RAT测试中为了得到准确具体的数据、必须采用平均响应显示或慢响应显示，如下图所示。
另外在工程测试中，如果没有RTA自动频谱分析仪，我们要想得到每一个频段的电平数据，还必须要加入带通滤波器。
声学知识之白噪音与粉红噪音解析或许你会觉得奇怪，噪音还有颜色？有的。
比如我们今天要讲解的自然界常见的＂白噪声＂和＂粉红噪声＂。
之所以叫白噪声，粉红噪声，是由光波的谱线图就是光谱图类比而来。
白噪声各频段的能量均匀（频谱类似太阳光谱即白光光谱），在人耳可听的频率范围内，具有相同能量的噪声称为白噪声。
白噪声广泛用于环境声学测量中。
粉红噪声是在低频段强在高频段弱的噪声（频谱图类似偏红的光谱即粉红光谱）。
白噪音所谓白噪音是指一段声音中的频率分量功率在整个人耳可听的频率范围（0～20KHz）内都是均匀的，具有相同能量的噪声。
由于人耳对高频敏感一点这种声音听上去是很吵耳的沙沙声。
电视机无信号时的背景噪声和调频收音机无台时的背景噪声均是白噪声。
白噪声广泛用于环境声学测量中，可用来测量扬声器和耳机的谐振和灵敏度等。
粉红噪音简单说来，粉红噪音的频率分量功率主要分布在中低频段。
粉红噪音从人耳中听到的是平直的频率响应——"非常悦耳的一种噪声"。
粉红噪音最常用于进行声学测试的声音，可以测试出音域是否平坦或过多或不足。
从频谱图分析，两种噪音的区别：图一是粉红噪声（pink noise）的频谱，图二是白噪声（white noise）的频谱，两个图的频率都是对数座标(X轴)我们知道，由于噪声频谱分配不同，使得在听感上会有差异。
由上图可知：1、从频谱仪的图形上看，白噪声在全频谱内是一条平直的线，在一定的范围内音频数据具有相同或类似的能量。
粉红噪声，从波形角度看，粉红噪音是分形的，是-3dB/Oct的斜率，以其倍数频率向下衰减。
即1倍频，2倍频……频率越高谱线高度越低。
粉红噪声与白噪声一样都是无规噪声，都具有连续的噪声谱，不同之处在于,粉红噪声的功率谱密度与频率成反比。
2、在对数坐标中，起输出为一水平线，白噪声的能量是以每倍频程增加3dB分布的，粉红噪声是均匀分布的；3、在线性坐标中，白噪声的能量分布是均匀的，粉红噪声是以每倍频程下降3dB分布的；噪声能量在每倍频程内是相等的。
