CCProxy客户端设置

Windows XP下双网卡配置方案一、软硬件需求●硬件：一台带有双网卡的PC，其中一个连接internet；另一个接局域网hub。

其中节局域网地址为：192.168.0.1/255.255.255.0●软件：操作系统：windows XP代理软件：CCProxy二、设置CCProxy：1、服务器的安装运行下载后的Ccproxysetup.exe 安装本软件（注：现在的最新版本为CCProxy-v6.6，推荐下载网站：霏凡）安装完成后，桌面有一个CCProxy的绿色图标：双击即可启动CCProxy了（如附图）。

绿色的网格坐标将会出现，黄色的曲线表示网络数据流量。

2、客户端设置前的准备工作1)确认客户端与服务器是连通的，能够互相访问。

2)确定代理服务器地址。

代理服务器地址就是安装代理服务器的机器的网络地址。

这个地址，是指服务器在局域网中的本地IP地址。

本地IP地址可以从CCProxy的设置对话框中得到。

设置对话框中的本地IP地址一般情况下可以用"自动检测"得到。

如果服务器安装了双网卡，则需要手工选取：取消"自动检测"，从列表中选取。

如果不能确认服务器的IP地址，也可以用服务器的机器名作为代理服务器地址。

3、局域网机器设置：※对TCP/IP协议的属性进行设置：方法：右击“网上邻居”，选择“属性”，双击网卡对应的“TCP/IP协议”，选择“DNS”标签。

设置如下：选中“启用DNS”；“主机”中填入服务器名称；并在下面的“DNS服务器搜索顺序”中填入服务器的IP地址，本例为“192.168.0.1”，然后单击[填加]；单击[确定]结束DNS设置；再次单击[确定]，结束对网络属性的设置。

这时需要重新启动计算机。

※重新启动后，设置IE浏览器代理上网1）流程：IE浏览器->菜单"工具"->"Internet选项"->"连接"->"局域网设置"->选中"使用代理服务器"->"高级"->"代理服务器设置"。

遥志代理服务器软件CCProxy功能列表设置简单,功能强大,完全支持Win98/WinMe/WinNT/Win2000/WinXP/Win2003/Win7/Win2008。

支持代理共享Modem、ISDN、ADSL、DDN、专线、蓝牙、二级代理等访问Internet。

支持HTTP、FTP、Gopher、SOCKS4/5、Telnet、Secure(HTTPS)、News(NNTP)、RTSP、MMS等代理协议。

支持浏览器通过HTTP/Secure/FTP(Web)/Gopher/SOCKS代理上网。

支持客户端使用Outlook、Outlook Express、Foxmail等通用邮件客户端软件代理收发邮件。

支持OICQ、ICQ、Yahoo Messenger、MSN、iMRC、联众游戏、股票软件通过HTTPS、SOCKS5代理上网。

支持CuteFTP、CuteFTP Pro、WS-FTP、FXP-FTP等FTP软件通过代理上网。

支持RealPlayer通过RTST代理接收视频，支持MediaPlayer通过MMS代理接收视频。

支持NetTerm通过Telnet代理上网。

支持Outlook通过News代理连接新闻服务器。

支持远程拨号、自动拨号、自动断线、自动关机功能。

支持二级代理，可以使代理服务器通过其他代理服务器上网。

双击界面上的绿色网格可以实时观测代理用户连接信息，强大的日志分析功能(可以分不同日志文件、不同用户、不同代理协议、过滤项来分析日志，支持分析结果输出),便于了解客户端浏览的网站的大概内容。

简单实用的帐号管理功能，可以针对不同用户定义不同的代理上网限制，并可以在不同时间段应用不同的过滤规则，满足上班时间和休息时间分别控制的要求。

帐号管理支持IP段设置方式和自动扫描帐号功能，建立帐号更轻松。

支持多种方式的代理身份验证方式混和管理:IP地址、MAC地址、用户名密码、域帐号管理。

支持HTTP和SOCKS5用户密码验证。

一、代理服务器CCProxy 简介代理服务器CCProxy于1999年6月问世，几年内经过多次升级、优化、完善，功能已经十分强大，操作也相当简单，得到了广大用户的特别亲睐。

是目前国内最流行的代理服务器软件，也是下载量最大的代理服务器软件。

代理服务器CCProxy可以应用于局域网内共享ADSL、宽带、专线、ISDN、普通拨号Modem、Cable Modem、双网卡、卫星、蓝牙、内部电话拨号和二级代理等任何网络接入方式共享上网。

目前能做到，只要局域网内有一台机器能够上网，其他机器就可以通过这台机器上安装的CCProxy来共享上网，最大程度的减少了硬件投入和上网费用，并能进行强大的客户端服务管理。

通过CCProxy可以浏览网页，下载文件，收发电子邮件，网络游戏，股票投资，QQ 联络等等，网页缓冲功能还能提高低速网络的网页浏览速度。

CCProxy在实现共享上网的同时，还提供了强大的管理功能，这些功能包括：控制局域网用户的上网权限，多达7种控制方式--- IP地址，IP段，MAC地址，用户名/密码，IP＋用户名/密码，MAC ＋用户名/密码，IP ＋MAC，并且支持7种方式任意组合、混合控制；能控制用户的上网时段--- 可以使有些用户在规定时间上网（可以精确到每星期、每一天、每一小时、每一分钟），在规定时间玩游戏、听音乐，在规定时间收发邮件，而同时又可以让有些用户能全天候上网；能对不同用户开放不同的上网功能--- 可以使有些用户只能浏览网页，有些用户只能收发邮件，而同时有些用户则能使用所有上网功能；可以给不同用户分配不同带宽，控制其上网速度和所占用的带宽资源，可以有效的控制有些用户因为下载文件而影响其他用户上网的现象，还可以统计每个用户每天的网络总流量；可以给不同用户设置网站过滤，特别可以保护青少年远离不健康网站；可以只允许用户上规定的网站，特别适合管理严格的企业；同时强大的日志功能可以有效的监控局域网上网记录。

1 帐号管理设置详细请参考遥志代理服务器CCProxy官方网站：在CCProxy的主界面上单击“帐号”按钮，将打开“帐号管理”对话框（如图1-1）。

图1-1在这里您可以设置帐号的验证类型（IP地址，MAC地址，用户/密码等）。

为代理客户端创建帐号或用户组。

对不同帐号设置不同的网站过滤规则以及时间安排等。

下面将对这些功能进行具体的介绍。

1.1 帐号设置（如图1-1）所示界面中的“允许范围”部分有两个选择“允许所有”和“允许部分”。

允许所有如果选择“允许所有”，那么意味着不对客户端的访问进行限制，只要能够与CCProxy服务器正常连通的客户端就可以通过CCProxy进行代理上网，虽然非常简单省事，但在这种模式下，无法对帐号进行有效的管理与控制，因此建议采用“允许部分”模式。

允许部分在“允许部分”模式下，必须先建立帐号，客户端才可以通过CCProxy服务器代理上网。

建立帐号之前，还必须先确认帐号的“验证类型”，系统提供了“IP地址”，“MAC地址”，“用户/密码”，“用户/密码＋IP地址”，“用户/密码＋MAC地址”以及“IP＋MAC”共6种验证方式，您可以根据需要自定义选择。

关于这几种验证类型的说明如下：1) IP地址：仅通过IP地址进行验证，只要是在帐号列表中的IP地址就可以使用代理。

2) MAC地址：仅通过MAC地址进行验证，只要是在帐号列表中的MAC地址就可以使用代理。

3) 用户/密码：客户端需要输入用户名和密码才可以使用代理。

4) 用户/密码＋IP地址：将用户/密码信息与IP地址进行绑定，也就是说一个帐号只能在其绑定的IP地址才可以使用。

5) 用户/密码＋MAC地址：将用户/密码信息与MAC地址进行绑定，也就是说一个帐号只能在其绑定的MAC地址才可以使用。

6) IP＋MAC：将IP地址与MAC地址进行绑定，也就是说一个IP地址只有设置在绑定MAC地址的网卡上才可以使用代理。

7) 新建帐号方面，CCProxy也提供了两种方式：单击“新建”按钮一个个新增；单击“自动扫描”批量新增。

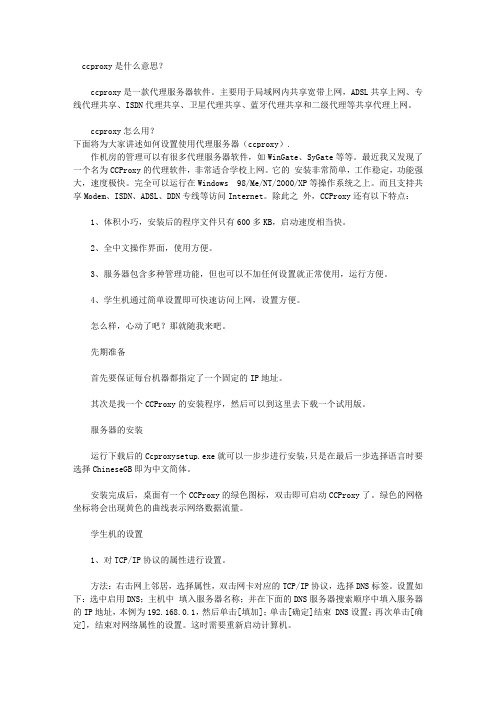

ccproxy是什么意思？ccproxy是一款代理服务器软件。

主要用于局域网内共享宽带上网，ADSL共享上网、专线代理共享、ISDN代理共享、卫星代理共享、蓝牙代理共享和二级代理等共享代理上网。

ccproxy怎么用？下面将为大家讲述如何设置使用代理服务器（ccproxy）.作机房的管理可以有很多代理服务器软件，如WinGate、SyGate等等。

最近我又发现了一个名为CCProxy的代理软件，非常适合学校上网。

它的安装非常简单，工作稳定，功能强大，速度极快。

完全可以运行在Windows 98/Me/NT/2000/XP等操作系统之上。

而且支持共享Modem、ISDN、ADSL、DDN专线等访问Internet。

除此之外，CCProxy还有以下特点：1、体积小巧，安装后的程序文件只有600多KB，启动速度相当快。

2、全中文操作界面，使用方便。

3、服务器包含多种管理功能，但也可以不加任何设置就正常使用，运行方便。

4、学生机通过简单设置即可快速访问上网，设置方便。

怎么样，心动了吧？那就随我来吧。

先期准备首先要保证每台机器都指定了一个固定的IP地址。

其次是找一个CCProxy的安装程序，然后可以到这里去下载一个试用版。

服务器的安装运行下载后的Ccproxysetup.exe就可以一步步进行安装，只是在最后一步选择语言时要选择ChineseGB即为中文简体。

安装完成后，桌面有一个CCProxy的绿色图标，双击即可启动CCProxy了。

绿色的网格坐标将会出现黄色的曲线表示网络数据流量。

学生机的设置1、对TCP/IP协议的属性进行设置。

方法：右击网上邻居，选择属性，双击网卡对应的TCP/IP协议，选择DNS标签。

设置如下：选中启用DNS；主机中填入服务器名称；并在下面的DNS服务器搜索顺序中填入服务器的IP地址，本例为192.168.0.1，然后单击[填加]；单击[确定]结束 DNS设置；再次单击[确定]，结束对网络属性的设置。

CCProxyProxy Server forWin98/NT/2000/XP/2003/Vista/Win7/2008 User Manual2010.021 Content1Content (1)2Introduction (3)3Main Features (4)4Installation (5)4.1Step 1 - LAN networks configuration (5)4.2Step 2 - Internet connection (6)4.3Step 3 - Install CCProxy software at server (7)4.4Step 4 - Configure IE browser proxy settings at clients (7)5Client Proxy Configuration (8)5.1IE (Internet Explorer) (8)5.2Firefox (10)5.3Outlook Express (11)5.4Outlook Express for Gmail (12)5.5Office Outlook (15)5.6Outlook Express for News (NNTP) (16)5.7CuteFTP (17)5.8CuteFtp Pro (17)5.9ICQ (17)5.10MSN Messenger (17)5.11Voice/video chat software (17)5.12NetMeeting (18)5.13Real Player (18)5.14Windows Media Player (19)5.15NetTerm for BBS telnet (22)5.16Java application for Game/Chat room (22)5.17Norton AntiVirus for live update (23)5.18AVG update (23)5.19Windows XP update (23)5.20Other software (23)6Account Management (25)6.1Account Manager (25)6.2Create New Account (25)6.3Web Filter (26)6.4Time Schedule (27)7Main interface (28)7.1Toolbar Zone (28)7.2Online Information Zone (28)7.3Product Logo Zone (28)7.4System Information Zone (28)8Options (29)9Advanced Options (30)9.1Dial-up Page (30)9.2Cache Page (30)9.3Cascading Page (30)9.4Log Page (31)9.5Mail Page (31)9.6Networks Page (31)9.7Others Page (32)10CCProxy Online Monitor (33)11Contact (34)2 IntroductionProxy Server CCProxy is easy-to-use and powerful Internet connection sharing software. Supporting broadband, DSL, dial-up, optical fiber, satellite, ISDN and DDN connections, it helps you build your own proxy server and share Internet access within the LAN efficiently and easily. CC Proxy Server can act as HTTP, mail, FTP, SOCKS, news and telnet proxy server. And it features powerful account management functions, including Internet access control, bandwidth control, Internet web filtering, content filtering and time control. It also provides web caching, online access monitoring, access logging and bandwidth usage statistics functions. CC Proxy is compatible with Win98, WinME, WinNT, Win2000, WinXP, Win2003, Vista, Win7 and Win2008.3 Main Features1. Modem, Cable Modem, ISDN, ADSL, Satellite, DDN and so on are supported.2. HTTP, FTP, Gopher, SOCKS4/5, Telnet, Secure (HTTPS), News (NNTP), RTSP andMMS proxy are supported.3. Port Mapping is supported.4. Web cache can enhance browsing speed. The size and refresh time of the cache canbe easily changed.5. Bandwidth control flexibly manages the traffic usage of clients.6. Time schedule can easily control the clients' on-line time7. Web filter can ban the specified web sites or content. It can also name specific websites for browsing.8. URL filtering prevents users from downloading files with designated extensions via IE.9. There are seven types of account authentication: IP address, IP range, MAC address,User Name/Password, IP + User Name/Password, MAC + User Name/Password and IP + MAC.10. Parent proxy function enables CCProxy to access the Internet via another proxy.11. Dial-On-Demand, remote dial up and auto disconnect are supported.12. Access Logging can keep a full record of the Internet access log.13. It enables IE and Netscape to access the Internet through HTTP/Secure/FTP(Web)/Gopher.14. SOCKS5 proxy support allows use of ICQ, MSN Messenger, Yahoo Messenger,CuteFTP, CuteFTP Pro and WS-FTP.15. Mail proxy supports Outlook, Eudora etc.16. Supports NetTerm accessing the Internet via Telnet proxy.17. Supports Outlook connecting to the News server via News proxy.18. Support SOCKS5 and web authentication.19. Support for Real Player RTSP proxy and Media Player MMS proxy.20. Built-in DNS can resolve domain names.21. Win98/WinMe/WinNT/Win2000/WinXP/Win2003/Vista/Win7/Win2008 compatible.22. Bandwidth usage statistics.4 Installation4.1 Step 1 - LAN networks configurationNormally, the clients and server are connected with A Hub, Wireless Hub, Switch or Router. The network protocol between the server and clients is TCP/IP. Therefore both the server and the clients have an IP address. The server IP address is static and fixed. The clients IP address can be fixed or dynamic which is obtained through DHCP. CCProxy only requires that the clients can ping through the server IP address. We know that the server may have multiple IP addresses, but must have one that is used to connect with other LAN clients. The IP address that is used to connect with the other LAN client is called the proxy server address. We generally assumed this to be 192.168.0.1.If the clients and server have not yet been setup to have a connection, we recommend allocate IP addresses like this at below:IP ADDRESS MASK GATEWAY DNSServer 192.168.0.1 255.255.255.0 empty emptyClient1 192.168.0.2 255.255.255.0 192.168.0.1 192.168.0.1Client2 192.168.0.3 255.255.255.0 192.168.0.1 192.168.0.1... ... ... ... ...Client99 192.168.0.100 255.255.255.0 192.168.0.1 192.168.0.1How to detect whether ping requests are transferring through between the clients and server? At the client, in the "start" menu -> "run" -> "cmd", assuming that the server IP is 192.168.0.1, in the command line, to type "ping 192.168.0.1" then press return. If the result is similar to that at below, it means the client is connected to the server successfully.PINGING 192.168.0.1 WITH 32 BYTES OF DATA:REPLY FROM 192.168.0.1: BYTES=32 TIME=2MS TTL=150REPLY FROM 192.168.0.1: BYTES=32 TIME=2MS TTL=150REPLY FROM 192.168.0.1: BYTES=32 TIME=7MS TTL=150REPLY FROM 192.168.0.1: BYTES=32 TIME=7MS TTL=150PING STATISTICS FOR 192.168.0.1:PACKETS: SENT = 4, RECEIVED = 4, LOST = 0 (0% LOSS),APPROXIMATE ROUND TRIP TIMES IN MILLI-SECONDS:MINIMUM = 2MS, MAXIMUM = 7MS, AVERAGE = 4MSIf the result is like that at below, it means the client cannot connect to the server.PINGING 192.168.0.1 WITH 32 BYTES OF DATA:REQUEST TIMED OUT.REQUEST TIMED OUT.REQUEST TIMED OUT.REQUEST TIMED OUT.PING STATISTICS FOR 192.168.0.1:PACKETS: SENT = 4, RECEIVED = 0, LOST = 4 (100% LOSS),If the client cannot connect to the server, you need to check the IP address settings and the connections to the Hub, Switch or Router on the clients and server.4.2 Step 2 - Internet connectionWe know that there are many ways of connecting to the Internet, which are for example, ADSL, optical fiber, satellite, broadband etc. CCProxy is not concerned about the manner in which the Internet connection is established, as long as the server is successful connected to the Internet.The simplest way to check the server can access the Internet is to input a web site address into the browser and see if the machine is able to access the web pages.Users frequently mentioned single and dual NIC. In fact, the CCProxy is not concerned with hardware equipment. Both single and multi-NIC cards are supported and there are no special settings.Special mention is that if the clients have been able to share the Internet, such as through the router, and hope to use the CCProxy to manage and control the clients' Internet access. You might need to do some changes on your hardware.For example:CLIENTS --- ROUTER --- SERVER|InternetorCLIENTS --- HUB (SWITCH) --- SERVER|Router --- InternetIn this case, the clients can access the Internet directly with the Routers bypass proxy server. That's to say, CCProxy cannot control the clients. We need to isolate the clientfrom Internet and force clients to access the Internet via the proxy server.We have two methods to realize this.Method 1:Add one NIC card on the server and change the LAN networks as:CLIENTS --- ROUTER --- SERVER --- INTERNETOrCLIENTS --- HUB (Switch) --- SERVER --- ROUTER --- INTERNETMethod 2:Configure the NAT in the router and block all LAN IP address accessing NAT except the server IP address. Only some advanced routers have this function. Please do this with the router's administrator.4.3 Step 3 - Install CCProxy software at serverPlease download the latest version of CCProxy installation package from our site first. Running the installation package at server will install CCProxy to C:\CCProxy by default. Launch CCProxy and open the "options", the proxy server address is displayed in the "Local LAN IP address". Please check whether it's the proxy server address or not. If not, please uncheck "Auto Detect". Select the correct proxy server IP address from the drop-down list and check the checkbox on the right side.Now, CCProxy has been installed on the server with default settings, CCProxy will permit all clients access Internet. If you want to manage the clients, please read "Account Management".If you get problem in launch CCProxy, please refer to "FAQs".4.4 Step 4 - Configure IE browser proxy settings atclientsAt the clients machine, please open IE menu "Tools", go to "Internet Options" -> "Connections" -> "LAN settings", select "proxy server", input the proxy server IP address in the "Address", 808 in the "Port". Select "local address bypass proxy". IE proxy setup is finished and we can access websites via the proxy now.For other network applications' proxy settings, please refer to "Client Proxy configuration".5 Client Proxy ConfigurationIn this section, we will talk about the proxy settings of client software. CCProxy is proxy server software. If the client wants to access the Internet via CCProxy, some proxy settings need to be set up in the client software. Below we provide guides for proxy settings for popular client software. Each guide is based on the assumption that the proxy address is 192.168.0.1. If you know other client software's proxy settings, please email us. We will publish them on our site for the benefit of other users.5.1 IE (Internet Explorer)Launch IE -> menu "Tools" -> "Internet Options" -> "Connections" -> "LAN settings" -> choose "use a proxy server" -> "advanced" -> "servers" -> add" server address" to "HTTP", "Secure", "FTP", "Gopher", Port is 808; add "server address" to "Socks", Port is 1080.Figure 5-1-1Figure 5-1-2Figure 5-1-35.2 FirefoxClick the menu "T ools" -> "Options", click the button “Advanced” and select the tab “Network”.Figure 5-2-1Click the button “Settings”, and fill the settings as below.Figure 5-2-25.3 Outlook Express1. Suppose email address is support@.Mailbox account name: supportPassword: ***********SMTP address: POP3 address: Proxy server address: 192.168.0.12. Open Outlook Express, click the "Tools" menu, and select "Accounts".3. Click “Add”, and then click “Mail …”4. Enter your name in the “Display name” field, and click “Next”.5. Enter your full email address in the “Email address” field, and click “Next”. Forexample, support@6. Enter the proxy server address in the “Incoming mail (POP3, IMAP or HTTP) server”field. For example, 192.168.0.1. Enter the proxy server address in the “Outgoing mail (SMTP) server” field. For example, 192.168.0.1.7. Click “Next”.8. Enter “your email account name” + “#” + “your email POP3 server address” in the“Account name” field. For example, support#. Enter your email password in the “Password” field, and click “Next”.9. Click “Finish”.10. Highlight 192.168.0.1 under “Account”, and click “Properties”.11. Click the “Servers” tab, and check the box next to “My server requires authentication”.Click “Settings”.12. Select “Log on using”. Enter “your email logon account name” + “#” + “your emailSMTP server address” in the “Account name” field. For example, support#. Enter your email logon password in the “Password”field.13. Click “OK”.14. Click “OK”.5.4 Outlook Express for GmailGmail is different from other email service. The POP3 and SMTP are using SSL connection. We have to use a different method to configure Gmail proxy settings in Outlook Express than other normal email account.1. Open the "Options" dialog box and click the "E" button to open the "Port Map" dialogbox (Figure 5-4-1).Figure 5-4-12. Add a port map rule for SMTP service of Gmail: fill "" in the "DestHost", "465" in the "Dest Port", "465" in the "Local Port" and select "TCP" in the "PortType". Click the "Add" button (Figure 5-4-2).Figure 5-4-23. Add a port map rule for POP3 service of Gmail: fill "" in the "Dest Host","995" in the "Dest Port", "995" in the "Local Port" and select "TCP" in the "Port Type".Click the "Add" button (Figure 5-5-3).Figure 5-4-34. Open outlook express account properties page and click the "Servers" tab. Supposeproxy server address is 192.168.0.1. Fill "192.168.0.1" in the "Incoming mail" and "Outgoing mail". Here we take "youngzsoft@" for demo and you need to use your gmail account in your case.Figure 5-4-45. Check the "My server requires authentication" and click the "Settings" button in"Servers" tab page. The "Outgoing Mail Server" dialog box will popup (Figure 5-4-5).Select the "Use same settings as my incoming mail server" and click the "OK" button.Figure 5-4-56. Click the "Advanced" tab and check the "SMTP SSL" and "POP3 SSL". Fill "465" inthe "SMTP" and "995" in the "POP3". Select the “This server requires a secure connection (SSL)” (Figure 5-4-6).Figure 5-4-67. Click the "OK" button.8. When you receive the Gmail account at the first time, the Outlook Express will popupthe confirm dialog box. Please confirm it.Figure 5-4-75.5 Office OutlookWe take Office Outlook 2003 for example.Email address: support@.Mailbox account: supportSMTP address: POP3 address: Proxy server address: 192.168.0.11. Download and install the latest updates for Outlook from Microsoft website:/en-us/officeupdate/default.aspx2. Open Outlook.3. Click the “T ools” menu, and select “E-mail Accounts …”4. Click “Add a new e-mail account”, and click “Next”.5. Choose “POP3” as your server type by clicking the radio button, and click “Next”.6. Fill in all necessary fields to include the following information:User InformationYour Name: Enter your name.E-mail Address: Enter your full email address, i.e. support@.Server InformationIncoming mail server (POP3): Enter the proxy server address, i.e. 192.168.0.1.Outgoing mail server (SMTP): Enter the proxy server address, i.e. 192.168.0.1.Logon InformationUser Name: Enter your email logon user name + # + your email POP3 serveraddress, i.e. support#.Password: Enter your email password7. Click “More Settings …” and then click the “Outgoing Server” tab.8. Check the box next to “My outgoing server (SMTP) requires authentication” andselect “Log on using”.User Name: Enter your email logon user name + # + your email SMTP serveraddress, i.e. support#Password: Enter your email password.9. Click “OK”.10. Click “Test Account Settings…” After receiving “Congratulations! All testscompleted successfully”, click “Close”.11. Click “Next”, and then click “Finish”.5.6 Outlook Express for News (NNTP)Choose the configured News server in Outlook Express, right click menu and select the “Properties” -> “Server”.Suppose the original server name is "". You need to change the server name to the proxy server's address. Select the "This server requests to log on", fill "#" in the “Account” and leave the "Password" blank. Check the "Remember Password".If the News server you log onto requires account and password, the account name shouldbe set to "original account name” + “#” + “original news server address".5.7 CuteFTPOpen menu "Edit" -> "Settings" -> "Connection" -> "Firewall", fill proxy server address in the "Host" and “2121” in the “Port”. Choose "USER user@site" in the "Type" and check the "Enable firewall access".5.8 CuteFtp ProOpen menu "Edit" -> "Global Settings" -> "Connection" -> "SOCKS4 & 5".Choose "Use the highlighted Socks server when connecting"; click button "Add", delete "<New>" in Host, fill in proxy server address. Port is 1080.Don't choose "Use Authentication". Choose "Socks5".5.9 ICQLaunch ICQ -> Menu "Main" -> Preferences -> "Connection":Select "Use Firewall" in "Server" tab. Select "Socks5" in "Proxy" tab."Firewall": Select "Socks5". Fill proxy address in "Host", "Port" is 1080. Select "use proxy to resolve hostnames".5.10 MSN MessengerMenu "Tool" -> "Options" -> In "Connection" tab, check "I use proxy server", choose SOCKS 5 in type, fill local proxy servers IP address in "Server". Port is 1080.5.11 Voice/video chat softwareYou need to install SocksCap32 at client, add voice chat software into SocksCap32 and launch it from SocksCap32.For specific guide, please refer to /sockscap/. Currently CCProxy cannot support MSN and Yahoo voice/video chat. If you want to use voice/video chat, we suggest you use skype. In skype, the Internet Explorer proxy settings are used.5.12 NetMeetingAs NetMeeting doesn't support proxy setting, SocksCap is needed. For more details, please refer to /sockscap/.5.13 Real PlayerTake RealPlayer 10.5 for example:Proxy server address is 192.168.0.1.HTTP/RTSP proxy port is 808.Menu "View" -> "Preferences" -> "Proxy"Figure 5-13-1Click the button “Change Settings” in the “Streaming Settings”. Set the settings as below (Figure 5-13-2):Figure 5-13-2 5.14 Windows Media PlayerPlease upgrade the Media Player to version 11 first. Proxy Server address: 192.168.0.1.SOCKS/MMS proxy port: 1080HTTP proxy port: 808Click the menu "Tools" -> "Options" -> "Network"Figure 5-14-1Select the “HTTP” in the “Streaming proxy settings”, click the button “Configure…” and set the settings as below (Figure 5-14-2):Figure 5-14-2Click the button “OK” and select the “RTSP” in the “Streaming proxy settings”, click the button “Configure…” and set the settings as below (Figure 5-14-3):Figure 5-14-35.15 NetTerm for BBS telnetOpen menu "File"-> "Phone Directory".Choose the BBS in the list you want to log on. E.g. .Follow info will be shown: Host Name is ; No entry in Host/IP and telnet port is 23. Fill in proxy server address in Host/IP. Click button "Connect". Follow info will be showed on blue screen: CCProxy Telnet>CCProxy...Input "open ", click "Enter" key. Now you can log on . 5.16 Java application for Game/Chat roomFirst of all, you need to install Sun JRE (Java Runtime Environment). You can download it free at .After installation:1. Go to Control Panel2. Double click the "Java Plug-in" icon3. Click the "Proxies" Tab4. Make sure that the "Use Browser Settings" checkbox is checked. If it is not, then check it and hit the "Apply" button to save your changes. Doing this will cause the JRE to use the Web browser's proxy settings for all Internet connections.5. Close all browser windows. Restart the browser and try to load the applet.5.17 Norton AntiVirus for live updateFirst, set HTTP proxy in IE. Open Live Update in Norton AntiVirus.Popup "Live Update" dialog box and click button "Configure".Popup dialog box "Live Update Configuration".In "ISP" tab, check "the Internet Options in Control Panel".In "Proxy" tab, check "I want to use my Internet Explorer Proxy Settings".5.18 AVG updateSuppose proxy address is 192.168.0.1.AVG -> Update Manager -> Settings -> Proxy -> User proxy server, Server: 192.168.0.1, Port 808.5.19 Windows XP updateSuppose proxy address is 192.168.0.1 and http port is 808.1. Click Start, click Run, type cmd, and then click OK.2. At the command prompt, type proxycfg -p 192.168.0.1:808, and then press ENTER. (Or type proxycfg -u, and then press ENTER)5.20 Other softwareIf the software has the proxy option (generally in network settings or system settings) forproxy configuration, you can configure the proxy according to the relative protocols and ports. Generally you can use SOCKS proxy settings (port is 1080) or HTTP proxy settings (port is 808). Also you can search proxy settings in google. For example, you can search "skype proxy settings" to find out how to set up proxy for skype.Otherwise, you will need to install SocksCap32, software from NEC on the client and add this software to SocksCap32.For specific guide, please refer to /sockscap/6 Account ManagementIn this section we will talk about the account management of CCProxy. CCProxy features powerful Internet access control function. It helps the administrator to manage clients easily and efficiently. You can click the "Account" button on the toolbar of CCProxy to manage your account. The account management includes "Account List", "Web Filter" and "Time Schedule". We will introduce all of them in detail below.6.1 Account ManagerPermitted Category: There are two options - "Permit All" and "Permit Only". "Permit All" means all proxy clients can access the Internet via CC Proxy. "Permit Only" means only the clients which have been given permission can access the Internet via CC Proxy. Auth Type: CCProxy account authentication supports IP Address, MAC Address and User/Password. Each account can be authenticated with these auth types. The "User/Password " authentication is only valid to web proxy and socks5 proxy service. Web Filter: The administrator can define the filter rule here. CCProxy supports "Web Site Filter"(Permit or forbidden), "Forbidden URL"(Web URL filter) and "Forbidden Content"(Web Content Filter).Time Schedule is used to control the clients' on-line time.New, Edit, Delete and Select All: These are used to create, edit or delete the account list.Auto Scan: This is used to scan the computers on the LAN and get the computers' information automatically. For example, computer name, IP address and MAC address. Export and Import: Export is used to save the account list information to a specific folder. Import is used to load account information from a specific file. These two features function just like the backup and restore operations of account list.NT User Auth: If you check this box, CCProxy will import the Active Directory accounts automatically. You can input the AD server name in the edit box. "." means local server. Flow Stats displays the bandwidth usage of each account.6.2 Create New Account"Account -> Permit Category -> Permit Only -> New".Enable is used to enable or disable the account.User/Group Name is used to define each account. It's also used as the username for User/password authentication.Password is used to define the account's password.IP Address/IP Range: you can input a single IP or IP range. For example: 192.168.0.1 or192.168.0.1-192.168.0.10.MAC Address is used to define the client's MAC address. Click the "?" to get the MAC address by the IP address or computer name.As Group means this account is defined as a group account.Belongs to Group: you can add this account to any defined group.Maximum Connections refers to the maximum simultaneous connections. The value -1 means no limitation.Download Bandwidth refers to the maximum download bandwidth of each connection. The value -1 means no limitation.Upload Bandwidth refers to the maximum upload bandwidth of each connection. The value –1 means no limitation.Services is used to choose the permitted services of this account.Web Filter: you can choose a defined web filter here.Time Schedule: you can choose a defined time schedule here.Auto disable at: the account will be disabled at this defined time automatically.6.3 Web FilterWeb filter can effectively restrict clients access to particular web sites."Account -> Web Filter"Web Filter includes Site Filter, URL Filter and Content Filter.Web Filter Name is used to define different web filter rules.Site Filter: Input the sites you want to filter in the edit box. Site filter supports wildcard character (*,?). Multiple sites should be divided by semicolon. For example:*;???;www.*.org.Also you can define port filter. For example:*:433, *:80;*:*;You can also input a web filter file name here. The web filter file format is one web filter for one line. For example:*;*;*:*;*:433;Advanced DNS Filter: You can enter opendns dns address here and filter the website by opendns.Permitted Sites: clients can only access sites which are included in the site filters. Forbidden Sites: clients can not access sites which are included in the site filters. Forbidden URL: You can define the URL filter here. You can input whole or partial URLs. For example:/;*.zip;*.exe;*/mail/;Forbidden URL is different from Site Filter. Site Filter only applies to the web host name and port, whereas Forbidden URL applies to the whole URL address.Content Prohibited can filter web pages with specific characters. If the web pageincludes such characters, it will be banned. Input the characters you want to name in the edit box. Multiple characters should be divided by semicolon. For example: chat;travel. Note: This step is only to define a web filter rule. If you want to apply it to a specific account, you should edit the account's property and select the web filter rule for this account.6.4 Time ScheduleTime schedule is used to control the clients' on-line time."Account -> Time Schedule"Time Schedule Name is used to define different time schedule rules.Sunday to Saturday: This is used to set different on-line time schedules for business days. You can edit time schedule directly in the edit box or click the button besides edit box. In the popup "Time T able" dialog box, there are 24 time range choices. Note:"01:00" means Internet access is allowed from 00:00 to 01:00. "Apply to," means the time control of the day is only effective for checked choices.Note: This step is only to define a time schedule rule. If you want to apply it to the specific account, you should edit the account's property and select the time schedule rule for this account.。

CCProxy 使用及配置明细
一、 配置主机端
1、 配置主机IP 地址：
2、 主机CCProxy 设置
① ：设置主界面
设置时注意端口，默认为808，如出现账号验证失败，则可以改成：8080
此处IP 填写主机IP ，保持固定不变
此处IP 填写局域网
内使用的网关
IP
这两处的ip 电信的填这两个，联通的见下图
②设置账号/添加账号
点击：自动扫描，把客户端的ip确定，然后起始IP输入客户端的地址，结束IP输入客户端的地址，点击开始，然后关闭。

添加完毕后然后点击“编辑”按钮，进入单用户具体设置：
按照以上设置好了之后，点击“保存”，“确定”
二、配置客户端
1、首先配置客户端IP地址：
桌面-网上邻居-单击右键，属性-本地连接-点击右键，属性-TCP/IP协议-配置界面如图：
2、配置客户端IE选项此处IP填写客户端IP，保持固定不变
此处IP填写局域网内使用的网关IP
此处填写
要使用的主机的IP地址
注意此处的端口
设置与主机的相
同，地址设置主机
的IP地址
OK！大功告成！你可以正常使用局域网通过代理服务器上网了！。

实验13：代理服务器型共享上网一、实验目的1．掌握CCProxy代理服务器的设置；2．掌握利用CCProxy代理服务器共享上网时的客户端配置。

二、实验环境1. CCProxy代理软件2. 电脑两台3. 网卡两块三、实验内容代理服务器型共享上网四、CCPROXY软件介绍CCProxy代理软件安装过程也非常简单，全部点击“Next”即可，安装完后CCProxy自动运行，界面如图1所示:注意一点:在此软件安装完成后，出现这样的提示:邮件代理启动失败!这一般都是因为机子里安装了防火墙之类的程序，因此造成端口冲突。

你需要开放25、110、53、80、8011、5353这几个端口。

一.共享上网代理服务器端配置事项:一般服务器端需要配置的就是设定一个固定IP地址;还有就是针对网络具体情况对CCProxy作些设置:点击主界面的“设置”，进入如图所示窗口:1.比如公司里不准员工上班时玩QQ、玩游戏等，那么就去掉“SOCKS/MMS”一项前面的勾即可;再比如某个时间段不让员工浏览网页，就去掉“http/RTSP”前面的勾;最下一排“NT服务”的意思是，如果你用作代理的服务器安装的是Windows NT或2000 Server系统，那么当勾选了“NT服务”后即便开机不启动CCProxy，也同样可以代理!另外，最右边一排端口号是此软件用于代理的默认端口号，一般不作改动，以下是对这些端口的说明: HTTP: 808 ? 用于浏览器上网RTSP: 808-用于Real PlayerSecure: 808 -用于浏览器连接安全站点FTP (Web): 808 -用于浏览器连接FTP站点Gopher: 808-用于浏览器连接Gopher站点SOCKS: 1080-用于部分网络客户端软件(如QQ，联众)MMS: 1080-用于Media PlayerFTP: 2121-用于FTP客户端软件连接FTP站点(如CuteFTP)Telnet: 23-用于某些Telnet客户端软件，如(CTerm)新闻: 119-用于outlook连接新闻服务器2.如果我们要每天规定一个时间断开网络，但同时又要有部分电脑能上网，可以这样办:在CCProxy主界面中选择“账号-时间安排”，先在“允许范围”里选择“允许部分”以设定在断网后还可继续使用的电脑;然后点右边的“新建”，打开如图的窗口，如图所示，可以通过指定IP地址、设定时间安排和使用到期时间这三项达到以上的目的。

CCProxy server 代理共享上网及管理软件。

安装说明：安装环境：双网卡1.代理服务器ccproxy须两块网卡一快网卡连接外网（进）另一块网卡连接局域网（出），ccproxy 是一款功能强大的代理共享管理软件，所以代理服务器要使用两块网卡。

2.确认服务器和局域网连接通畅，能够相互ping成功.3.服务器局域网的网卡IP和外网网卡IP在不同网段内，局域网的网卡只设置IP 地址和子网掩码，以防止路由冲突。

4.客户端的IP地址和服务器局域网的网卡IP在同一个网段内，网关和dns为局域网网卡的IP地址。

服务器设置：5.下载最新版本CCProxy代理软件下载后在服务器安装，默认全部点击next完成安装。

CCPROXY安装成功后，如果没有出现报错信息或端口冲突，接下来直接设置客户端就可以了。

（对公司的安全有较高需求可以设置点击面版的账号按扭您可以通过“新建”将用户添加进去，或通过“自动扫描”直接添加用户，包括用户的“验证类型”、“时间安排”以及通过“网站过滤”设置屏蔽特定网站和内容，允许用户上指定的网站，或禁止用户上某些网站.根据公司的要求来设置。

）客户端设置：Proxy安装完毕.接下来设置客户端IE.假设安装代理服务器CCProxy机器的局域网网卡的IP地址是:192.168.0.1,在客户机上选择IE浏览器->菜单"工具"->"Internet选项"->"连接"->"局域网设置"->选中"使用代理服务器"->"高级"->"代理服务器设置"。

取消"对所有协议均使用相同的代理服务器"。

在"HTTP"中填上代理服务器地址192.168.0.1，端口为808；在"Secure"中填上代理服务器地址192.168.0.1，端口为808；在"FTP"中填上代理服务器地址192.168.0.1，端口为808；在"Gopher"中填上代理服务器地址192.168.0.1，端口为808；在"Socks"中填上代理服务器地址192.168.0.1，端口为1080。

服务器端配置：
1.解压CCProxy打开文件夹找到
2.双击打开点击设置按钮进入设置界面
3.选择设置本机局域网地址点击自动检测
4.点击高级按钮进入界面选择网络配置服务器绑定IP，选用内网地址绑定。

点击确定
5.继续确定
7.选择账号进入界面
.
8.选中当前地址段若地址不存在则新建一个地址段，点击编辑：
9.输入内网地址段并选择传输协议：如图
10.选中网站过滤并点击后面的E键进入网站设置：
11.选中过滤网站和允许站点在text框中输入应龙健康档案地址125.73.184.115，如图
12.点击确定——>确定——>确定完成服务端的配置客户端配置：
1.打开IE浏览器选择工具——>internet选项
2.选择连接——>局域网设置
3.设置代理服务器如图
4.点击确定完成客户端设置。
