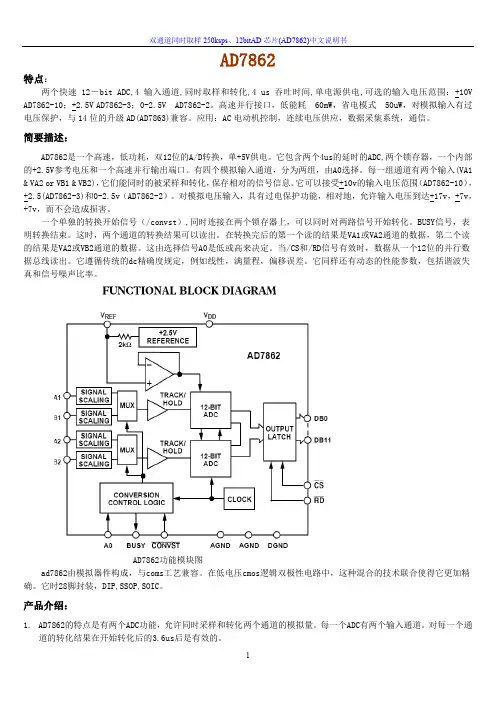

AD7862特点：两个快速12－bit ADC,4输入通道,同时取样和转化,4 us吞吐时间,单电源供电,可选的输入电压范围：+10V AD7862-10；+2.5V AD7862-3；0-2.5V AD7862-2。

高速并行接口，低能耗 60mW，省电模式 50uW，对模拟输入有过电压保护，与14位的升级AD(AD7863)兼容。

应用：AC电动机控制，连续电压供应，数据采集系统，通信。

简要描述：AD7862是一个高速，低功耗，双12位的A/D转换，单+5V供电。

它包含两个4us的延时的ADC,两个锁存器，一个内部的+2.5V参考电压和一个高速并行输出端口。

有四个模拟输入通道，分为两组，由A0选择。

每一组通道有两个输入(VA1 & VA2 or VB1 & VB2)，它们能同时的被采样和转化，保存相对的信号信息。

它可以接受+10v的输入电压范围（AD7862-10），+2.5(AD7862-3)和0-2.5v（AD7862-2）。

对模拟电压输入，具有过电保护功能，相对地，允许输入电压到达+17v，+7v，+7v，而不会造成损害。

一个单独的转换开始信号（/convst）,同时连接在两个锁存器上，可以同时对两路信号开始转化。

BUSY信号，表明转换结束。

这时，两个通道的转换结果可以读出。

在转换完后的第一个读的结果是VA1或VA2通道的数据，第二个读的结果是VA2或VB2通道的数据。

这由选择信号A0是低或高来决定。

当/CS和/RD信号有效时，数据从一个12位的并行数据总线读出。

它遵循传统的dc精确度规定，例如线性，满量程，偏移误差。

它同样还有动态的性能参数，包括谐波失真和信号噪声比率。

AD7862功能模块图ad7862由模拟器件构成，与coms工艺兼容。

在低电压cmos逻辑双极性电路中，这种混合的技术联合使得它更加精确。

它时28脚封装，DIP,SSOP,SOIC。

产品介绍：1.AD7862的特点是有两个ADC功能，允许同时采样和转化两个通道的模拟量。
