下载文档原格式
IDI2015C单相电参数综合测量仪用 户 手 册青岛仪迪电子有限公司QINGDAO IDI ELECTRONICS CO.,LTD.02000083号检定规程：JJG（航天）34—1999中国航天工业总公司交流数字电压表检定规程 JJG（航天）35—1999中国航天工业总公司交流数字电流表检定规程JJG780—1992国家交流数字功率表检定规程执行标准：Q/02YDY006—2005 MD20A单相电参数综合测量仪企业标准目 录前 言 (1)第一章 安全规则1.1 一般规定 (2)1.2 维护和保养 (2)第二章 使用安装2.1 包装拆封 (3)2.2 包装箱中的内容 (3)2.3 测量仪电源电压 (3)2.4 测量仪的初步检查 (3)第三章 产品概述及技术指标3.1 产品分类 (4)3.2 整机规格 (4)3.3 技术指标 (5)3.4 测量范围 (5)第四章 测量仪面板说明4.1 单相电参数综合测量仪前面板示图及说明 (7)4.2 单相电能量综合测量仪前面板示图及说明 (8)第五章 使用说明5.1 测量仪的测量接线图 (11)5.2 后面板说明 (11)5.3 被测负载的连接 (11)5.4 测量仪的开机 (11)5.5 被测负载电源连接 (11)5.6合上负载电源的开关 (12)5.7 接通被测负载的电源开关 (12)5.8 结果处理 (12)5.9自动报警功能 (12)5.10数据锁存功能 (14)5.11 串行通讯功能 (14)第六章 维护指南6.1 测量仪日常维护 (16)6.2常见故障及排除 (16)6.3品质保证 (16)附录1：测量仪的检定方法 (17)附录2：输入输出配线要求 (19)本说明仅适用常规产品，如有技术改进，恕不另行通知专业品质唯一坚持前 言IDI2015C单相电参数综合测量仪是仪迪电子公司电参数综合测量仪的换代产品，该系列产品以16位单片机技术为核心，内部采用超大规模集成电路，使体积进一步减少，故障点大幅度降低，在工艺上做到精密、细致，使用上做到安全、方便、简捷，在同行业中处于领先地位。
使用说明书感谢您选购中创电测电力线网络分析仪，本仪器基于中创电测的高科技设计理念和高标准要求，为您提供高品质和高性能的现场使用体验。
本使用说明书专门用于帮助您了解设备的用途、功能以及特性。
请先阅读说明文件●适应设备之前，请先仔细阅读全部安全注意事项和本说明书，以确保安全和正确使用。
●本说明书中的说明基于设备的默认设置。
●本说明书中所用的图像和屏幕截图可能与实际产品的外观略有差异。
●本说明书中的内容可能与产品略有差异，如有变更，恕不另行通知。
●请访问公司网站，获取说明书的最新版本。
●可用功能和附加服务可能因国家、地区或者硬件规格而异。
●请妥善保存本说明书以供日后参考。
目录/CONTENTS前言 (3)1产品概览 (4)2产品说明 (4)3产品功能 (5)4使用入门 (7)5安全信息 (11)6质量保证及售后服务 (13)7有毒有害物质表 (14)前言在低压配电的营业管理中，台区线超标一直以来都是让人头痛的问题，在实际工作中，没有合适手段解决线损超标，只能采用“拉闸验电”的方式进行核查。
从核查结果看，除窃电外，多数原因是用户电表档案错误造成的。
电表档案错误以及变压器供电线路混乱已经成了一个久治不绝的问题。
自远程自动抄表技术出现后，电力线载波通讯方案被大面积推广，抄表员不再走街串巷抄表，省时省力；好处明显但问题暴露的也很突出，除了部分台区线损依旧偏大外，很多台区的抄表成功率也达不到验收标准，电表档案错误导致线损超标的问题依旧无法解决。
由此看出，在营销管理中电表档案准确性是何等重要。
为解决电表档案准确性问题，国内很多公司开始研制相应解决方案。
台区识别仪是此类问题解决方案的代表，基本的实现方式是结合电流钳，采用截波扩频调制技术，这种实现方式从根本上不能解决电表档案准确性的问题，原因为高频调制的截波信号能够通过高压线、电缆、地线串扰到其它变压器，不能保证通讯信号的跨台区传输问题。
使用这种方案的识别仪来解决档案问题，其结果可想而知。
目录一、安全规则及注意事项 (1)二、简介 (2)三、量程及精度 (2)四、技术规格 (3)五、仪表结构 (5)六、操作方法 (6)6.1、电池电压检查 (6)6.2、电压测试 (6)6.3、操作说明 (6)6.4、漏电开关测试接线方法 (7)6.5背光控制 (8)6.6、数据锁定/存储 (8)6.7、数据查阅/删除 (8)七、装箱单 (9)一、安全规则及注意事项感谢您购买了本公司漏电开关测试仪，在你初次使用该仪器前，为避免发生可能的触电或人身伤害，请一定：详细阅读并严格遵守本手册所列出的安全规则及注意事项。
✧任何情况下，使用本仪表应特别注意安全。
✧测量时，移动电话等高频信号发生器请勿在仪表旁使用，以免引起误差。
✧注意本仪表机身的标贴文字及符号。
✧使用前应确认仪表及附件完好，仪表、测试线绝缘层无破损、无裸露、无断线才能使用。
✧测量过程中，严禁接触裸露导体及正在测量的回路。
✧确认导线的连接插头已紧密地插入仪表接口内。
✧请勿在易燃性场所测量，火花可能引起爆炸。
✧仪表在使用中，机壳或测试线发生断裂而造成金属外露时，请停止使用。
✧请勿于高温潮湿，有结露的场所及日光直射下长时间放置和存放仪表。
✧给仪表更换电池时，请确认测试线已移离仪表，仪表处于关机状态。
✧仪表显示电池电压低符号“”，应及时充电或者更换电池。
✧电池盖打开时，及打雷时，请勿进行测量。
✧注意本仪表所规定的测量范围及使用环境。
✧使用、拆卸、校准、维修本仪表，必须由有授权资格的人员操作。
✧由于本仪表原因，继续使用会带来危险时，应立即停止使用，并马上封存，由有授权资格的机构处理。
✧”安全警告标志，使用者必须严格依照本手册内容进行安全操作。
二、简介VICTOR7200A漏电开关测试仪，又叫漏电开关检测仪、漏电保护器测试仪、剩余电流动作保护器检测仪、剩余电流动作保护器测试仪、是工程质量监督站和建筑公司必备的检测仪器，可以测量漏电开关的动作时间和动作电流。
infOrMatiOn in tHis dOcuMent is suBject tO cHange witHOut nOtice. as Our prOducts are suBject tO cOntinuOus iMprOveMent, L19LD800 SeriesW W W.L O R E X C C T V.C O MQuick start guide r2PACKAGE CONTENTS ANDINSTALLATION GUIDE:☠ System Contents:1 - 19” 8 Channel LCD Monitor with pre-installed HDD *4 - High Res. Color Cameras *4 - 100 ft (30M) Extension Cables *4 - Camera Stands with Mounting Screws *1 - 10 ft Ethernet Cable Intermediateeasyunder 30 minutes under 60 minutes HardwareHi Speedover 60 minutesTimeunder 30 minutes under 15 minutes under 60 minutes Hand Tools Hardware Skills - IntermediateTimeSTEP 3Skill LevelTimeunder 30 minutes under 15 minutes under 60 minutesHand Tools HardwareRouterTimeSkills - Advanced* Installation time may vary based on applicationdevice cOnnectiOns (stand removed)2ascrews2the system has an efficient back panel control that provides a cable management solution.By design the connectors are not easily accessible, in order to secure the connections.it is recommended to remove the stand for initial set-up by simpy unscrewing four screws with a standard screw driver.OPTIONAL - REMOVE MONITOR STANDtilt the monitor (40˚) to allow for easier access to the connectors.TILT MONITOR13your system includes 4 high resolution 6 pin din cameras.CONNECT CAMERAS TO THE MONITORconnect one end of the ethernet cable to one of the router’s (notincluded) Lan pOrts and the other end to the Monitor’s network portlocated at the bottom of the monitor. see picture below showing ageneric Lan/wan connection.CONNECT ETHERNET CABLE4connect one end of the power adaptor to the monitor, the other endto an electrical outlet. this unit powers On once it is plugged in to thepower outlet.tip: Once you are done with the connections, remember to screw thestand back on.CONNECT POWER CABLE5WAN (WIDEAREA NETWORK)LAN (LOCAL AREA NETWORK)TO YOUR COMPUTERTO YOUR MONITORBACK OF THE ROUTER SHOWN6CONTINUEDtip: test the cameras prior to selectinga permanent mounting location bytemporarily connecting the camerasand cables to your system.* connect cameras to extension cablesby aligning the arrows. plug in camerasand cables before mounting the cameras.nOte: the arrow mark on top of the flat side ofthe camera and cable connectors should faceup while inserting to the Monitor.connect the first camera to the cH1 input. follow the same steps toconnect the additional cameras.4aUNIvERSAL DIN TO BNC CABLECONTINUEDthe unit will automatically begin loading when power is connected to the system.INITIAL LOADING SEQUENCEcb7aclick the Menu button on the front panel of the Monitor (or the remote controller) to enter the Main Menu. from the Main Menu move to systeM and press the enter button to go to the date/tiMe menu to activate menu options.SET THE DATE & TIME9Congratulations! You have completed Step 1 successfully. You can now view, record and Make sure that the Date and Time are set prior to recording.• Menu Button – accesses the setup menu, and returns to previous menu options.• navigation controls - Move up/down/Left/right.• enter Button - press this button to select and change the values in a menu option.nOte: after you see all four (4) camera images on your monitor screen, remove the protective film from camera(s) and monitor screen.a. during the loading sequence, the system will perform a Hard drive and firmware check and the screen will display the text message “systeM cHeck”.b. Once the system checks are completed, the screen will display the text message “initiaLiZing systeM” before completing the loading process.c. the unit will initially load to a split screen view, displaying all 8 cameras (if available) and a system legend in a 3x3 screen view.MENU NAVIGATION CONTROLS8MenunOte: this may take up to 60 seconds. please wait until the system completes loading.STEP 2 - SET UP LOCAL VIEWING ON YOUR PCnOte: the system will lease networking information from your router. if you wish to set your information manually, then set the dHcp MOde to ManuaL. please consult your Hardware Manual for further Menu options.1insert the Lorex client 3.0 software cd into your local computer’s cd rOM drive and proceed with the installation.INSTALL SOFTWARE(on your local computer)computer - not includedtHis step reLates tO reMOte viewing Over tHe Lan (LOcaL area netwOrk) By using a pc LOcated On tHe saMe netwOrk as tHat Of tHe systeM.2STEP 2 - SET UP LOCAL VIEWING ON YOUR PCCONTINUEDfollow the installation screens to complete Lorex client 3.0 software installation.LOREX CLIENT 3.0 SOFTWARE34LorexClientLorexPlayerclick the Menu button and select the new item.ADD A LOCAL SITE:(on your local computer)5tip: when you run Lorexclient on windows xp operating system, you will see the windows security alert. please click unblock to run the application.please refer to your Lorex client 3.0 software Manual for instructions about using Lorex Backup player and storage calculator.STEP 2 - SET UP LOCAL VIEWING ON YOUR PCCONTINUEDenter a name and site information for the remote site. 1. enter a name of the site (e.g. Office)2. enter the user id (admin by default)3. enter the user password (blank by default)4. enter the dvr/Monitor tcp/ip port (3000 by default)5. enter the ip address recorded in step 2-16. click add to add the remote site7. click exitENTER SETUP INFORMATION(on your local computer)6781234567OfficeSTEP 3 - SET UP INTERNET REMOTE MONITORINGPORT FORWARD YOUR ROUTER1port forward your router first before proceeding with the set-up (ports 80, 3000, 3001, 3002, 3003).all routers are different. to port forward your router, please refer to your router’s user manual.a router configuration guide is available on your Lorex client software cd and also on /support in the consumer’s guide section.CREATE ACCOUNTfrom the website, click the create accOunt option.3router - not included2STEP 3 - SET UP INTERNET REMOTE MONITORING CONTINUEDCOMPLETE NEW ACCOUNT INFORMATION41. fOr prOduct License select the L19Ld800 series option from the drop down menu.2. fOr prOduct cOde enter the Monitor’s Mac address (recorded in step 2-1).3. fOr urL reQuest enter a unique urL name (e.g. myurl). nOte: urL name should not be more than 15 characters.123REGISTRATION EMAILan automated registratiOn cOnfirMatiOn eMaiL will be sent to your email. print and save this confirmation. you will need this information to access your system remotely.5Service Provider: Domain Name: User ID: tomsmith1Password: (your password)ENTER DDNS SET-UP ON YOUR MONITOROnce the ddns settings have been configured online, the information must be entered on the system toallow for remote connection via the Lorex software (or through internet explorer).access the Main Menu setup screens by pressing the Menu key on the front panel of your monitor (or remote control) and navigate to the netwOrk option and press enter. On the netwOrk setup screen scroll down and select ddns. press the enter button to access the ddns network settings.67VIRTUAL KEYBOARD CONTROLthe virtual keyboard control becomes available when keyboard input (a~Z, 0~9) is needed for entering information such as names, network information, etc.• navigate using the arrow keys on the front panel or by using the remote control or a mouse.• use the enter key to choose the letters and numbers.• select the Ok button once the setup is completed.SET THE DDNS SETTINGSnOte: use arrow keys to move to each item. press enter key to select and change settings.enter the dOMain naMe sent to you in the registratiOn cOnfirMatiOn eMaiL (i.e. ) leaving out the part of the urL.8910Lorex client and Lorexplayer icons will appear on your desktop.RUN THE LOREX CLIENT 3.0 SOFTWARE(on your remote computer)double-click the Lorex client icon on your desktop to run the program.the log-in window may appear before the main program window loads.enter your password to start the program.nOte: initial password is blank12LorexClient LorexPlayer13follow the installation screens to complete Lorex client 3.0software installation.LOREX CLIENT 3.0 SOFTWARE(on your remote computer)11tip: when you run Lorexclient on windows xp operating system, youwill see the windows security alert. please click unblock to run theapplication.please refer to your Lorex client 3.0 software Manual for instructionsabout using Lorex Backup player and storage calculator.14CONNECTION(on your remote computer)select the site you want to connect to from the remote site list, and then click the connect button to initiate connection. Once connected, you will see images from the remote system.15Congratulations! You have completed Step successfully. You can now view, playback images and remotely control enter a name and site information for the remote site.1. enter a name of the site (e.g. Office)2. enter the user id (admin by default)3. enter the user password (blank by default)4. enter the dvr/Monitor tcp/ip port (3000 by default)5. enter the dOMain naMe sent to you in the registratiOn cOnfirMatiOn eMaiL (e.g. ) leaving out the part of the urL.6. click add to add the remote site7. click exitENTER SETUP INFORMATION (on your remote computer)nOte: the ddns service supports dynamic ip addresses for remote connection. when this feature is configured on the remote system, you can access it remotely using the domain name instead of ip address. to use this feature, the system should be registered on the Lorex ddns server.alternatively, if you have a static ip address you can enter it here.please refer to the LOrex cLient Manual for network setup and configuration.1234567Office myurlfOrMatting tHe new Hard drive:the new Hard drive Must be formatted. if a new Hard drive is detected, the system will prompt you to fOrMat the drive.HDD INSTALLATIONthe system comes with a pre-installed Hard drive, however the unit will work with a replacement single Hard drive (up to 750gB).nOte: Make sure that the system is Off and the power cable has been disconnected before changing the Hard drive. for detailed instructions, check your user’s manual included with the system.pre-installed Hdd setting tHe new drive tO Master:• refer to the general jumper pin setting on Hdd surface (generally located on a sticker on the top of the drive).• set the jumper pin set to Master (1 drive). nOte: use a Hard drive Model with a power supply rated udMa66 or higher.cOnnecting tHe ide caBLe:• confirm the ide cable is securely connected within the system.RECOMMENDED TIPSCONNECTING A MOUSEconnect a mouse to one of the usB ports located on the front of the unit. the mouse behaves in the same way as a pc mouse - using Left click, right click and center wheel. for detailed information, please check the system user’s Manual.nOte: a three button mouse is required for the full range of mouse functionality to be available.center wHeeLREMOTE CONNECTION USING A MOUSE DRAG & DROP IN LOREX CLIENT SOFTWAREselect a previously configured location from the “remote site” window, and simply drag it to the location of live view-ing (camera display) portion of the screen. all cameras fromthe remote system will be displayed. you can also drag spe-cific cameras to any available square in the Live view area, as shown in the picture.the software has an advanced feature which allows you to connect to multiple sites and view cameras from different locations simultaneously on one screen (maximum of 16cameras). simply drag the specific cameras from each site you wish to connect to into the live viewing area.RECOMMENDED TIPS CONTINUEDOn the screen save menu, use arrowkey to move to each item. press enterkey to select and change.1. enable screen saver by setting On/Off item to On.2. select type (tiMe or autO):tiMe causes the system to turn on thepower of screen once the time issame as the value in the screen Onfield and turn off the power of screenonce the time is same as the value inthe screen Off field.autO causes it to turn off the power of screenonce there isn’t any user operation in the sys-tem for tiMe Out. the tiMe Out options are:1 Min, 5 Min, 10 Min, 30 Min, and 1 HOur.SCREEN SAVE MENU3. enter time period:in case that the type is tiMe, enter time in thescreen Off field to determine the time youwant the Main display Off.nOte: in case of tiMe, you can turn on thepower of screen by pressing the pOwer key onthe front panel while the screen save mode.4. select autO tiMe Outin case that the type is autO, select an itemin the tiMe Out field to determine the timeoutyou want the Main display Off.nOte: in case of autO, the system turns on thepower of screen by detecting any user opera-tion while the power saving mode.5. press Menu key to save settings and exitmenu.It’s all on the Webfor detailed setup information, please refer to your user’s Manual. for additional information about determining your ip address, configuring your router, and port forwarding, please visit our website /support and click consumer guides section or view guides from the cd included with your system.emailsupport:*********************toll free technical support - north america: 1-888-42 LOrex (1-888-425-6739)toll free technical support - international (outside of north america): 00-800-425-6739-0 Lorex international website - PRODUCT SUPPORTSpecification SheetUser’s ManualLorex Client Software Manual Quick Start GuidePort forwarding GuideBasics of Remote VideoAccess GuidePRODUCT SUPPORT 。
蓄电池充放电综合监测仪说明书武汉国电华美电气有限公司电话：84663808邮箱：官网： 地址：武汉市汉南区华顶工业园A25-1统一热线：4000-935-230目录一、设备特点 (2)二、基本工作原理 (6)三、使用与操作说明 (8)四、测试条件 (8)五、操作界面说明 (11)六、上位机软件 (20)七、常见故障及排查方法 (25)一、设备特点在所有信息化、自动化程度不断提高的运行设备、运行网络系统中,不间断供电是一个最基础的保障.而无论是交流还是直流的不间断供电系统，蓄电池作为备用电源在系统中起着极其重要的作用。
平时蓄电池处于浮充备用状态，一旦交流电失电或其它事故状态下，蓄电池则成为负荷的唯一能源供给者。
我们知道,蓄电池除了正常的使用寿命周期外，由于蓄电池本身的质量如材料、结构、工艺的缺陷及使用不当等问题导致一些蓄电池早期失效的现象时有发生。
为了检验蓄电池组的可备用时间及实际容量，保证系统的正常运行，根据电源系统的维护规程,需要定期或按需适时的对蓄电池组进行容量的核对性放电测试,以早期发现个别的失效或接近失效的单体电池予以更换,保证整组电池的有效性;或者对整组电池的预期寿命作出评估.我公司经多年研制，以其专有技术，开发成功系列化的、智能化程度和精度极高的蓄电池组容量测试仪。
本测试仪可在蓄电池在线状态下,作为放电负载,通过连续调控放电电流，实现设定值的恒流放电。
在放电时，当蓄电组端电压或单体电压,跌至设定下限值、或设定的放电时间到、或设定的放电容量到,仪器自动停止放电,并记录下放电过程中有价值的、连续的过程实时数据.本测试仪系统对单体电池的电压监测信息,采用无线中继接入,简单、安全、精确。
本仪器有非常人性化的人机界面,不仅可以在菜单的提示下完成各种设置和数据查詢,而且放电的过程数据,均保存在设备的内存中,通过数据接口可以读取、转存,并通过上位机的专用软件,对数据进行分析,生成需要的曲线和报表.本仪器有非常友好的人机界面,不仅可以在菜单的提示下完成各种设置和数据查詢,而且放电的过程数据,均保存在设备的内存中,通过数据接口可以读取、转存,并通过上位机的专用软件,对数据进行分析,生成需要的曲线和报表。
一、使用说明1、概要1．1使用注意事项1、本仪表使用的LCD不能挤压、碰撞，仪表最好能固定在仪表柜上。
2、本仪表的键盘采用的是薄膜键盘，操作时，用手指轻按，不要用尖锐的物体挤压薄膜。
3、本仪表的安装地点不应有强电磁干扰，若仪表周围有强电磁干扰，请将仪表及与仪表相连的信号线屏蔽。
4、应在一次记录时间的有效范围内，提前读取数据，以免记录时间超出记录范围后，前期记录数据被覆盖掉。
5、仪表使用前请将时间校对准确，正常使用后不得再去调整时间。
6、在仪表长期不使用，应存放在暗处、避强光、干燥、温度在-10℃到+35℃之间的环境中。
1．2仪表功能简介1、实时数据采集、记录，历史测量数据查询。
2、图形LCD显示，表现丰富。
实时数据、历史数据都采用曲线显示。
五种曲线分辨率：128*40、128*80、128*120、128*160、128*200 ，可由用户根据测量范围及实际测量值进行调整，从而得到更细致的曲线显示效果。
3、测量值数字显示，百分比光柱指示，上下限报警，报警状态指示。
4、手动查询、自动查询、按用户给定时间查询、最后40次报警记录查询等四种历史纪录查询模式。
5、各通道记录时间动态分配，关闭的通道的数据存储空间自动分配给打开的通道，有效提高了储存空间的利用率，并在单通道、两通道运行时有效延长记录时间。
6、数据采用非易失性存储器存储，掉电后数据仍永久保存。
7、采用硬件实时时钟，掉电后仍能正常运行10年，并带闰年补偿。
7、允许多种输入类型。
1．3仪表主要性能指标1、基本误差：±0.2%F.S±1个字2、输入信号及测量范围：热电偶: K(0--1300℃)、S(0--1700℃)、B(0--1800℃)、T(-200--400℃)、E(-200--1000℃)、J(0--800℃)、Wre325(0--2300℃)、N(0--1300℃) 热电阻：Pt100(-200--600℃)、Cu50(-50--150℃)标准电流：0--10mA、4--20mA、0--20mA标准电压：0-5V、1-5V、0--10V3、冷端补偿误差：±1℃4、分辨力：1℃、0.1℃5、采样周期：1秒6、电源电压：85V-264V7、环境温度：-10-50℃8、环境湿度：<85% RH1．4面板简介A型：96*96mm○1：显示区○2：翻页、取消及小数点设键○3：确定键○1○4：菜单光标左移键○2○5：参数值增加键○3○6：菜单光标右移键○4○7：参数值减少键○5○6○7D型：160*80mm③①④⑥⑦⑤②1．5仪表显示界面介绍本仪表的用户界面主要由四大部分组成：实时曲线、多通道数显、历史曲线、参数设置，每一部分又由若干界面组成。

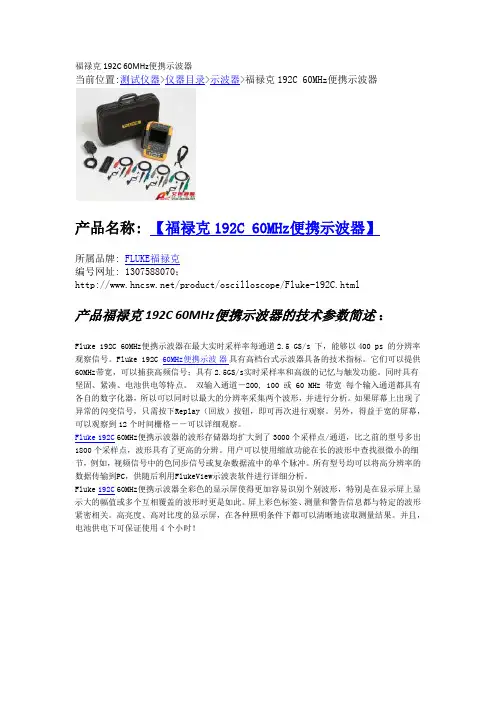

福禄克192C 60MHz 便携示波器当前位置:测试仪器>仪器目录>示波器>福禄克192C 60MHz 便携示波器产品名称: 【福禄克192C 60MHz 便携示波器】 所属品牌: FLUKE 福禄克编号网址: 1307588070；/product/oscilloscope/Fluke-192C.html产品福禄克192C 60MHz 便携示波器的技术参数简述Fluke 192C 60MHz 便携示波器在最大实时采样率每通道2.5 GS/s 下，能够以400 ps 的分辨率观察信号。
Fluke 192C ：60MHz 便携示具有高档台式示波器具备的技术指标。
它们可以提供60MHz 带宽，可以捕获高频信号；具有2.5GS/s 实时采样率和高级的记忆与触发功能。
同时具有坚固、紧凑、电池供电等特点。
双输入通道－200, 100 或 60 MHz 带宽 每个输入通道都具有各自的数字化器，所以可以同时以最大的分辨率采集两个波形，并进行分析。
如果屏幕上出现了异常的闪变信号，只需按下Replay （回放）按钮，即可再次进行观察。
另外，得益于宽的屏幕，可以观察到12个时间栅格－－可以详细观察。
波器Fluke 192C 60MHz 便携示波器的波形存储器均扩大到了3000个采样点/通道，比之前的型号多出1800个采样点，波形具有了更高的分辨。
用户可以使用缩放功能在长的波形中查找很微小的细节，例如，视频信号中的色同步信号或复杂数据流中的单个脉冲。
所有型号均可以将高分辨率的数据传输到PC ，供随后利用FlukeView 示波表软件进行详细分析。
Fluke 192C 60MHz 便携示波器全彩色的显示屏使得更加容易识别个别波形，特别是在显示屏上显示大的幅值或多个互相覆盖的波形时更是如此。
屏上彩色标签、测量和警告信息都与特定的波形紧密相关。
高亮度、高对比度的显示屏，在各种照明条件下都可以清晰地读取测量结果。
