6 实验七 前馈-反馈调节系统(模拟系统)解析

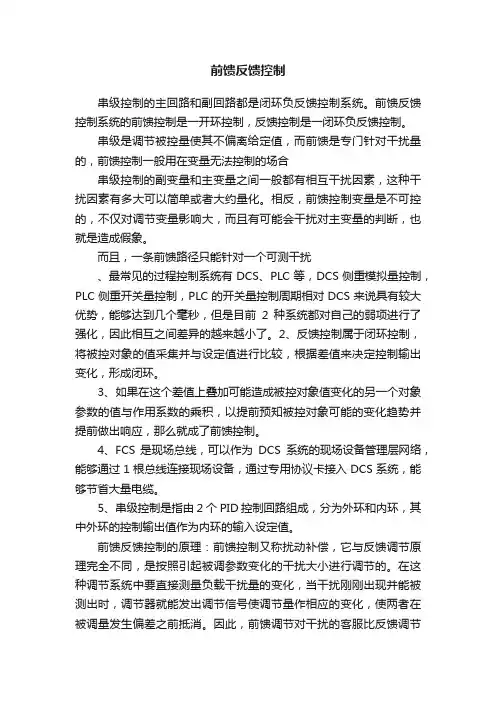

前馈反馈控制串级控制的主回路和副回路都是闭环负反馈控制系统。

前馈反馈控制系统的前馈控制是一开环控制，反馈控制是一闭环负反馈控制。

串级是调节被控量使其不偏离给定值，而前馈是专门针对干扰量的，前馈控制一般用在变量无法控制的场合串级控制的副变量和主变量之间一般都有相互干扰因素，这种干扰因素有多大可以简单或者大约量化。

相反，前馈控制变量是不可控的，不仅对调节变量影响大，而且有可能会干扰对主变量的判断，也就是造成假象。

而且，一条前馈路径只能针对一个可测干扰、最常见的过程控制系统有DCS、PLC等，DCS侧重模拟量控制，PLC侧重开关量控制，PLC的开关量控制周期相对DCS来说具有较大优势，能够达到几个毫秒，但是目前2种系统都对自己的弱项进行了强化，因此相互之间差异的越来越小了。

2、反馈控制属于闭环控制，将被控对象的值采集并与设定值进行比较，根据差值来决定控制输出变化，形成闭环。

3、如果在这个差值上叠加可能造成被控对象值变化的另一个对象参数的值与作用系数的乘积，以提前预知被控对象可能的变化趋势并提前做出响应，那么就成了前馈控制。

4、FCS 是现场总线，可以作为DCS系统的现场设备管理层网络，能够通过1根总线连接现场设备，通过专用协议卡接入DCS系统，能够节省大量电缆。

5、串级控制是指由2个PID控制回路组成，分为外环和内环，其中外环的控制输出值作为内环的输入设定值。

前馈反馈控制的原理：前馈控制又称扰动补偿，它与反馈调节原理完全不同，是按照引起被调参数变化的干扰大小进行调节的。

在这种调节系统中要直接测量负载干扰量的变化，当干扰刚刚出现并能被测出时，调节器就能发出调节信号使调节量作相应的变化，使两者在被调量发生偏差之前抵消。

因此，前馈调节对干扰的客服比反馈调节及时。

但是前馈控制是开环控制，其控制效果需要通过反馈加以检验。

前馈控制器在测出扰动之后，按过程的某种物质或能量平衡条件计算出校正值。

如果前馈支路出现扰动，经过流量计测量之后，测量得到干扰的大小，然后在反馈支路通过调整调节阀开度，直接进行补偿。

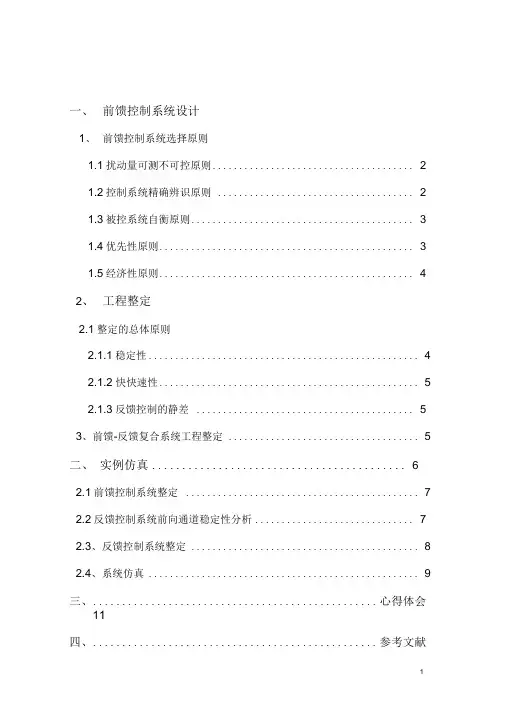

过程控制课程设计--前馈-反馈控制系统的设计与整定北华航天工业学院课程设计报告（论文）设计课题：过程控制专业班级：学生姓名：指导教师：设计时间：201311.25-2013.12.06北华航天工业学院电子工程系过程控制课程设计任务书指导教师：教研室主任：2013年12月6日内容摘要自本世纪30年代以来，自动化技术获得了惊人的成就，已在工业和国民经济各行各业起着关键的作用。
