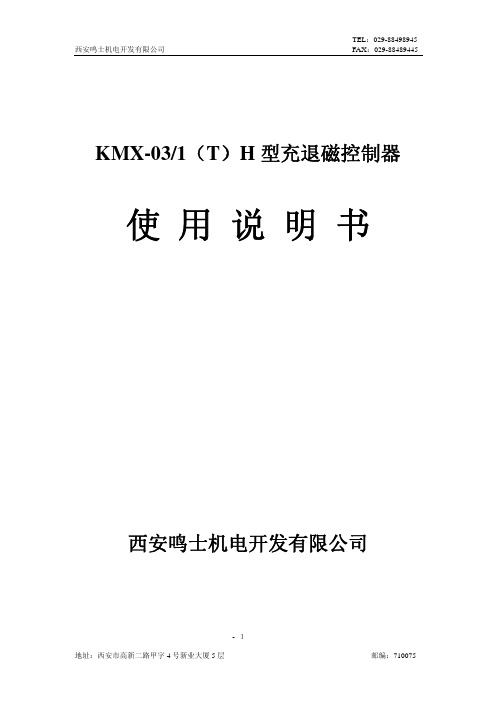

KMX-03/1（T）H型充退磁控制器使用说明书西安鸣士机电开发有限公司一、 概述KMX －03/1（T ）H 充退磁控制器是在我公司原KMX 系列产品的基础上，进行了重新设计，其特点如下：1．充、退磁操作可通过三位开关进行；2．根据给定的退磁曲线自动完成退磁过程，能使每块吸盘达到最佳的退磁效果。
二、型号及技术参数型号额定输入电压(V)输出电压(V)最大输出电流(A)退磁时间(S)KMX-03/1（T ）HAC127V DC0~110V3A8S注：选择KMX 系列的最大输出电流一定要大于控制吸盘的最大额定电流值。
KMX-03/1TH 无连锁功能三、 使用条件1．环境温度：－10℃～＋40℃； 2．相对湿度：≤90％（20℃）；3．环境：使用地点应无易燃、易爆、导电尘埃及腐蚀性气体； 4．输入电压波动范围：±10％以内；5．磨削工件时，注意不要使冷却水、铁末、粉尘进入电器箱内，以免引起电器短路。
四、 安装、调试1、 对电磁吸盘的要求：1.1 电气参数与控制器相匹配，吸盘的额定电流＝ ；吸盘内阻值1101.2 线圈内部无匝间短路及开路现象；1.3 用500V 兆欧表测量，磁盘对地绝缘电阻应不低于1MΩ。
2、 接线方法（参见外接线图，端子号码印于印制板上）2.1 外接线端子图： 注：LED1、LED2为发光二极管，用于外接指示(可选)。
LED1—充磁指示 LED2—退磁指示LED2DC0~110V AC220V 3.3K/2W2.2 3＃、4＃接交流输入。
2.3 1＃、2＃为直流输出。
2.4 5＃、7＃、8＃ 用于工作状态控制。
工作状态有三种：充磁（5#、8#接通）、停磁、退磁（5#、7#接通）。
停磁时，5＃、7＃、8＃都不接通，因此，需用三位开关。
2.5 5＃、9＃、10＃为外接输出电压调节用的电位器，9＃为滑动端，（可根据需要决定是否选用）。
2.6 根据需要决定是否外接状态指示。
2.7 11＃,12＃为欠电流（欠磁）保护用继电器触点，以便与主机磨头和磁盘旋转联锁，防止因失磁造成伤害。

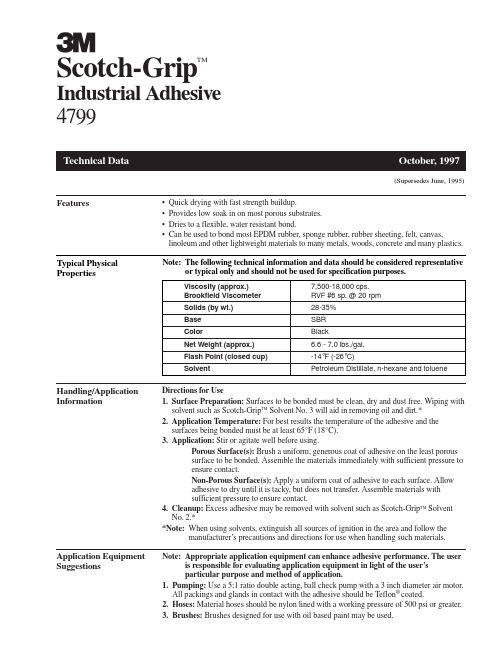

3Scotch-Grip TMIndustrial Adhesive4799Features•Quick drying with fast strength buildup.•Provides low soak in on most porous substrates.•Dries to a flexible, water resistant bond.•Can be used to bond most EPDM rubber, sponge rubber, rubber sheeting, felt, canvas,linoleum and other lightweight materials to many metals, woods, concrete and many plastics.Handling/Application Information D irections for Use1.Surface Preparation: Surfaces to be bonded must be clean, dry and dust free. Wiping withsolvent such as Scotch-Grip TM Solvent No. 3 will aid in removing oil and dirt.*2.Application Temperature: For best results the temperature of the adhesive and thesurfaces being bonded must be at least 65°F (18°C).3.Application: Stir or agitate well before using.Porous Surface(s): Brush a uniform, generous coat of adhesive on the least poroussurface to be bonded. Assemble the materials immediately with sufficient pressure toensure contact.Non-Porous Surface(s): Apply a uniform coat of adhesive to each surface. Allowadhesive to dry until it is tacky, but does not transfer. Assemble materials withsufficient pressure to ensure contact.4.Cleanup: Excess adhesive may be removed with solvent such as Scotch-Grip TM SolventNo. 2.**Note:When using solvents, extinguish all sources of ignition in the area and follow the manufacturer’s precautions and directions for use when handling such materials.(Supersedes June, 1995)Typical Physical Properties Note:The following technical information and data should be considered representative or typical only and should not be used for specification purposes.Viscosity (approx.)7,500-18,000 cps.Brookfield Viscometer RVF #6 sp. @ 20 rpmSolids (by wt.)28-35%Base SBRColor BlackNet Weight (approx.) 6.6 - 7.0 lbs./gal.Flash Point (closed cup)-14°F (-26°C)Solvent Petroleum Distillate, n-hexane and toluene Note:Appropriate application equipment can enhance adhesive performance. The user is responsible for evaluating application equipment in light of the user’sparticular purpose and method of application.1.Pumping: Use a 5:1 ratio double acting, ball check pump with a 3 inch diameter air motor.All packings and glands in contact with the adhesive should be Teflon®coated.2.Hoses: Material hoses should be nylon lined with a working pressure of 500 psi or greater.3.Brushes: Brushes designed for use with oil based paint may be used.Application Equipment SuggestionsScotch-GripTMIndustrial Adhesive 4799180°PEEL STRENGTH – Canvas/SteelTimeTest Value@ 75°F (24°C)Temp.(lbs./in. width)1 day 75°F (24°C)15.53 days 75°F (24°C)225 days 75°F (24°C)257 days 75°F (24°C)25.52 wk.75°F (24°C)27.53 wk.75°F (24°C)28after 3 wk.-30°F (-34°C)14after 3 wk.150°F (66°C)8.5after 3 wk.180°F (82°C)5Typical Adhesive Performance CharacteristicsNote:The following technical information and data should be considered representativeor typical only and should not be used for specification purposes.Storage: Store product at 60-80°F (16-27°C) for maximum storage life. Higher temperatures reduce normal storage life. Lower temperatures cause increased viscosity of a temporary nature. Rotate stock on a “first in-first out” basis.Shelf Life: When stored at the recommended conditions and kept in the original, unopened container, this product has a shelf life of 1 year from date of shipment.Storage and Shelf Life3Adhesives Division3M Center, Building 220-7E-05St. Paul, MN 55144-10001-800-364-3577 or 612-737-6501T eflon is a registered trademark of E.I. DuPont de Nemours Co.Printed in U.S.A.©3M 199778-6900-2823-4For Additional Product Safety and Health Information, See Material Safety Data Sheet, or call:Recycled Paper 40% pre-consumer 10% post-consumerT o request additional product information or to arrange for sales assistance, call toll free 1-800-362-3550.Address correspondence to: 3M Adhesives Division, 3M Center, Building 220-7E-05, St. Paul, MN 55144-1000. Our fax number is 612-733-9175. In Canada, phone: 1-800-364-3577. In Puerto Rico,phone: 1-809-750-3000. In Mexico, phone: 5-728-2180.For Additional Information 3M MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANT ABILITY OR FITNESS FOR A P ARTICULAR PURPOSE. User is responsible for determining whether the 3M product is fit for a particular purpose and suitable for user’s method of application. Please remember that many factors can affect the use and performance of a 3M Adhesives Division product in a particular application. The materials to be bonded with the product, the surface preparation of those materials, the product selected for use, the conditions in which the product is used, and the time and environmental conditions in which the product is expected to perform are among the many factors that can affect the use and performance of a 3M product. Given the variety of factors that can affect the use and performance of a 3M product, some of which are uniquely within the user’s knowledge and control, it is essential that the user evaluate the 3M product to determine whether it is fit for a particular purpose and suitable for the user’s method of application.Important NoticeIf the 3M product is proved to be defective, THE EXCLUSIVE REMEDY , A T 3M’S OPTION, SHALL BE TO REFUND THE PURCHASE PRICE OF OR TO REP AIR OR REPLACE THE DEFECTIVE 3M PRODUCT . 3M shall not otherwise be liable for loss or damages, whether direct, indirect, special,incidental, or consequential, regardless of the legal theory asserted, including negligence, warranty, or strict liability.Limitation of Remedies and LiabilityThis Adhesives Division product was manufactured under a 3M quality system registered to ISO 9002standards.Refer to Product Label and Material Safety Data Sheet for Health and Safety Information before using this product.Precautionary Information。
3M ™ Versaflo ™M-Series Headgear for Powered and Supplied Air Respirators/VersafloAdvanced protective headgear. Applied to making work more comfortable.Easy maintenanceEasily removable parts allow simple cleaning, maintenance and replacement.Easily adjustable suspensionFeaturing an articulating ratchet suspension, M-Series products can be easily adjusted for the comfort of each individual user. The smooth ratchet mechanism allows for precise tightening control.VersatilityTo suit a wide range of needs, industries andapplications, Versaflo ™M-Series headgear offer faceseals, covers and shrouds in a variety of fabrics. Accessories include earmuffs,peel-offs and a chin strap.23M ™ Versaflo ™M-Series headgear for powered and supplied air respirators are lightweight, compact and easy to maintain while helping to provide the wearer with protection from a range of hazards. Their versatility and comfort help make them popular for many applications.Dependable protection, exceptional comfort and ease of useDirected airflowA built-in air deflector allows users to direct the location of the airflow inside the headgear for increased control and comfort.Modern, well-balanced, comfortable designVersaflo ™M-Series headgear is lightweight, with excellentbalance. The suspension includes six-point textile straps (four-point straps for 3M ™ Versaflo ™ M-206 Faceshield) for excellent comfort and weight distribution.Coated visor with The visor design combines excellent peripheral and downward vision with good optical clarity. Coated visoroption provides added chemical and scratch resistance in certain environments.33M ™ Versaflo ™ M-Series Faceshields, Hard Hats and Helmets* W eight is complete assembly.** C onsult 3M Technical Data Bulletin #175 and the M-Series User Instructions for additional information on the Assigned Protection Factor (APF) of 1,000. In Canada, follow CSA Z94.4 or the requirements of the authority having jurisdiction in your region.M-206M-2073M ™ Versaflo ™ M-Series Complete System Kits1 | Choose your headtop42 | Choose the appropriate breathing tube37309 Sm/Med (Approx. 28")37310 Med/Lg Length Adjusting53M Automotive Aftermarket Division (AAD) product numbers are found in grey type on selected products.* C onsult 3M Technical Data Bulletin #175 and the M-Series User Instructions for additional information on the Assigned Protection Factor (APF) of 1,000. In Canada, follow CSA Z94.4 or the requirements of the authority having jurisdiction in your region. ** Future configuration with TR-600 models.† ANSI Z89.1-2009 Type II Class G. CAN/CSA Z94.1-05 Class G protective helmets.†† For TR-300 Models — operating altitude approx. sea level to 2,600 ft. (800m). For altitudes above 2,600 ft., contact 3M. For TR-600 Models — operating altitude approx. -328 to 16,404 ft, (-100 to 5,000m). For altitudes outside this range, contact 3M.‡ L-705SG, L-901SG and L-905SG assemblies meet the requirements of ANSI Z89.1-2009 Type II, Class G protective helmets. L-901SG and L-905SG assemblies also meet the requirements of CAN/CSA Z94.1-05 for Class G protective helmets. Note the L-140 chin strap must be used for ANSI Z89.1-2009 Type II (protection from side impacts). Consult User Instructions before use.‡‡V-199 adapter included in assembly and also sold separately.3 | Choose your air delivery unit25 ft. W-9435-25/25 ft. W-2929-2525 ft. W-3020-25/6Build your own Versaflo ™ system, or choose from one of our complete system kits.These kits offer the convenience of a complete system tailored to your application — all in one box.A complete Powered Air Purifying Respirator ready-to-use kit provides a simple way to purchase a complete PAPR system for use in rugged environments such as industrial, demolition, grinding, metal finishing and casting operations. Includes: M-307 Respiratory Hard Hat, a TR-600 series PAPR kit with Breathing Tube, High Durability Belt, and more.A complete particulate PAPR system for applications wherecombined respiratory, eye, face and hearing protection is required or desired. Includes an M-206 Respiratory Faceshield, TR-306N PAPR with High Durability Leather Belt, BT-30 Length Adjusting Breathing Tube, HE filter, spark arrestor/prefilter, headgear-mounted earmuffs and battery charger. A complete PAPR solution for painters. Includes a GVP-CB PAPR Assembly (including battery, comfort belt and charger),a GVP-441 OV/HE Filter with GVP-119 shower cover, a BT-20LBreathing Tube with BT-922 Breathing Tube Cover and an M-206 Faceshield.For painters who want to use a Supplied Air Respirator.Includes a V-100 Vortex Cooling Assembly, a BT-20L Breathing Tube with BT-922 Breathing Tube Cover and an M-206 Faceshield. A supplied air hose (sold separately) is required to complete the NIOSH-approved system. Contact 3M Technical Service for information on air source options and air quality requirements.Heavy Industry PAPR KitHeavy Industry PAPR KitBelt-Mounted PAPR KitPainter’s Supplied Air Respirator KitTR-600-HIKTR-300-LIKGVP-PSK2/37335SA-100-PSK/373363M ™ Versaflo ™ M-Series Complete System Kits7 Parts and AccesoriesPlease recycle. Printed in USA © 2015, 2017 3M. All rights reserved. 70-0715-7440-7 (rev5)3M, GVP, Speedglas, Versaflo and Vortemp are trademarks of 3M Company, used under license in Canada.For more informationIn U.S.Technical Service 1-800-243-4630Hours of Operation: 8:00 a.m.–4:30 p.m. CST Customer Care Center 1-800-328-1667Hours of Operation: 7:00 a.m.–5:00 p.m. CST Internet /WorkerSafety /VersafloIn CanadaTechnical Service 1-800-267-4414Hours of Operation: 8:00 a.m.–4:30 p.m. EST Customer Care 1-800-364-3577Hours of Operation: 7:30 a.m.–6:00 p.m. EST Internet 3M.ca/safety3M General Offices3M Center, Building 235-2W-70St. Paul, MN 3M PSD products are for occupational use only.Parts and Accesories, continued。
3M Advanced Materials DivisionIntroductionThe demand for maximum powerdensity, i.e. the transmission of greater force and torque in increasingly compact designs, poses a major challenge to engineers across a variety of industries. 3M Technical Ceramics manufactures friction-enhancing solutions for joining components to withstand highershear forces or transmit higher torque in bolt connections. 3M ™ Friction Shims offer a simple and cost-effective way to reliably transmit up to 4x higher torques or forces thanconventional systems without requiring modifications to the joint design.3M friction shims are metal foils with a coating of electroless nickel embedded with diamond particles. The diamonds indent into the metal mating surface and create a micro-scale interlock. The shims themselves are easy to assemble and can bereused after disassembly. 3M friction shims are thin enough to fit within close engineering tolerances, creating possibilities for lightweight compact design while increasing maximum load and peak torque in bolt connections.3M friction shims have proveneffective in a wide variety of industries, including general mechanicalengineering, machine tools, marine engineering, wind and water power generators, turbines, automotive engineering and motor sports. Our technical specialists have many years of application experience, and conduct in-house laboratory and bench tests to ensure that 3M friction shims meet our customers’ specific requirements.Features• I ncreases the coefficient of static friction• F unction of 3M friction shims is not affected by an oil film • Can be easily retrofitted • Prevents fretting • Highly reproducible • C olor option for distinctive appearance• S him geometries can be tailored to customer specificationApplication• Frictional joints • Flange joints• Joints with central bolt • Bolt connections • Fastener systemsApplication NotesWhen 3M friction shims are used please note:• F or maximum performance, the mating surfaces must have roughness values Rz as given in the technical data sheet.• C ontact pressure of at least 50 MPa is recommended.• W hen designing the joint,ensure that the counterparts to be joined are in full contact.• O nly use in applications with static friction in the contact area.• T he coefficient of static friction depends on a large number ofdifferent parameters. It is therefore always advisable to carry out application tests with assistance from 3M Technical Ceramics.• 3M Technical Ceramics offers support in defining a suitable assembly concept.3M ™Friction Shims3M ™ Friction Shims and SEM microphotoof nickel-diamond coatingHandling Instructions• S tore 3M™ Friction Shims onlyin original packaging.• D on’t handle 3M friction shimsas bulk unless a clip variant isused that has been specifically designed for bulk storage.• D on’t expose 3M friction shimsto temperatures above 400°C.• D ry storage recommended.• D on’t bend 3M friction shims.• N o mechanical treatmentof 3M friction shims.• B efore assembling 3M friction shims, make sure no dirt residue is present.• C heck correct quantityduring assembly.• A void relative movementof shims on surface.Matrix3M™ Friction Shim Diagram Typical Coefficient of Friction (Not for specification purposes)Figure 2. Results of a series of tests onthe coefficient of static friction with and without 3M™ Friction Shims. The shadedareas of the bar show the variation.Figure 1. Tribosystem with 3M friction shim. (This figure is intended as a guide. On request, we can provide you with a drawing frame for your specification.)0.10.20.30.40.50.60.70.8 0.03M is a trademark of 3M Company. Used under license by 3M subsidiaries and affiliates.Please recycle. Printed in USA © 3M 2018. All rights reserved. Issued: 7/18 14365HB 98-0050-0042-1 Rev. F3M Technical CeramicsZweigniederlassung der 3M Deutschland GmbH Max-Schaidhauf-Str. 25, 87437 Kempten, Germany Phone +49 (0)831 5618-0Web www.3M.de/Technical-CeramicsWarranty, Limited Remedy, and Disclaimer: Many factors beyond 3M’s control and uniquely within user’s knowledge and control can affect the use and performance of a 3M product in a particular application. User is solely responsible for evaluating the 3M product and determining whether it is fit for a particular purpose and suitable for user’s method of application. User is solely responsible for evaluating third party intellectual property rights and for ensuring that user’s use of 3M product does not violate any third party intellectual property rights. Unless a different warranty is specifically stated in the applicable product literature or packaging insert, 3M warrants that each 3M product meets the applicable 3M product specification at the time 3M ships the product. 3M MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED WARRANTY OF NON-INFRINGEMENT OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOM OR USAGE OF TRADE. If the 3M product does not conform to this warranty, then the sole and exclusive remedy is, at 3M’s option, replacement of the 3M product or refund of the purchase price.Limitation of Liability: Except where prohibited by law, 3M will not be liable for any loss or damages arising from the 3M product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.Technical Information: Technical information, recommendations, and other statements contained in this document or provided by 3M personnel are based on tests or experience that 3M believes are reliable, but the accuracy or completeness of such information is not guaranteed. Such information is intended for persons with knowledge and technical skills sufficient to assess and apply their own informed judgment to the information. No license under any 3M or third party intellectual property rights is granted or implied with this information.3M Advanced Materials Division 3M CenterSt. Paul, MN 55144 USAP hone 1-800-367-8905Web /frictionshims。
KMX-50/3S电磁吸盘用充退磁控制器(智能型)使用说明书西安鸣士机电开发有限公司一、概述平面磨床的充退磁问题一直困扰着磨床生产和使用厂家，以前采用变压整流后通过开关手控进行充退磁，不仅操作繁琐，费力费时，而且充退磁效果很不理想。
加工合金材料及热处理过的材料残磁很大，影响工件的加工精度和工作效率，使磨床的加工范围受到限制，不能满足现代机械制造业的要求。
针对这些问题，我公司精心设计生产了KMX 系列充退磁控制器，有效地解决了平面磨床的充退磁问题，其基本特性和功能如下：采用单片机控制，实现无触点输出，增加了可靠性；充磁输出电流连续可调，可满足不同磨床吸盘加工不同工件对磁力的要求；按退磁曲线自动完成退磁过程，能使每块吸盘达到最佳的退磁效果；退磁时间长短可调，使磨床加工不同的材料均能取得最佳的退磁效果；具有过压、过流、短路、过热等保护功能；具有欠电流保护功能，可通过主机和磁盘联锁实现欠磁保护，以保证设备和人员的安全；故障代码显示，方便排除故障。
体积小，安装调试方便。
二、型号及技术参数 型号额定输入 电压(V) 输出电压 (V)最大输出 电流(A)退磁时间 (S) KMX-50/3S 三相380V AC DC0~110V 50A12~36S 注：1. 本公司可为用户设计、生产特殊要求的产品；2. 选择KMX 系列的最大输出电流一定要大于吸盘的最大额定电流值。
使用条件：环境温度：－10℃～＋40℃； 相对湿度：≤90％（20℃）；环境：使用地点应无易爆导电尘埃及腐蚀性气体；输入电压波动范围：±10％以内；安装方式：垂直安装，并保持证控制器上方风机处通风良好。
干磨工件时，注意不要使铁末、粉尘进入电器箱内，以免引起电器短路。
安装、调试：对电磁吸盘的要求： 电气参数与控制器相匹配，吸盘的额定电流＝ ； 线圈内部无匝间短路及开路现象；用500V 兆欧表测量，磁盘对地绝缘电阻应不低于1M Ω。
建议：新机床的设计采用及老机床的改造应加相应功率的隔离变压器。
