工业自喷漆使用说明书

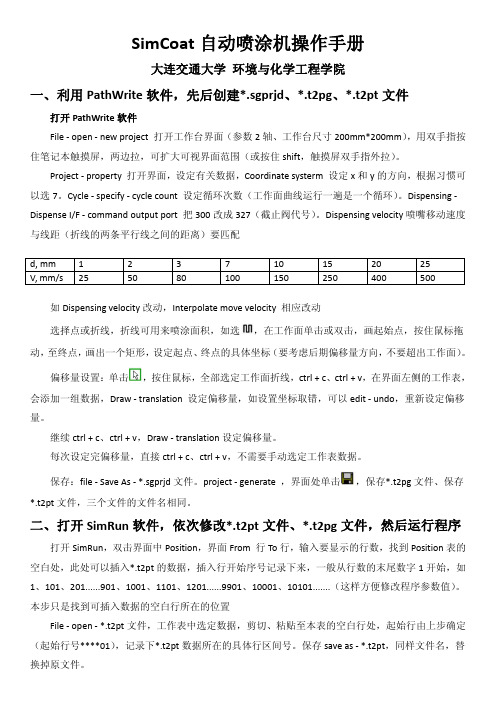

SimCoat自动喷涂机操作手册大连交通大学环境与化学工程学院一、利用PathWrite软件，先后创建*.sgprjd、*.t2pg、*.t2pt文件打开PathWrite软件File-open-new project打开工作台界面（参数2轴、工作台尺寸200mm*200mm），用双手指按住笔记本触摸屏，两边拉，可扩大可视界面范围（或按住shift，触摸屏双手指外拉）。

Project-property打开界面，设定有关数据，Coordinate systerm设定x和y的方向，根据习惯可以选7。

Cycle-specify-cycle count设定循环次数（工作面曲线运行一遍是一个循环）。

Dispensing-Dispense I/F-command output port把300改成327（截止阀代号）。

Dispensing velocity喷嘴移动速度与线距（折线的两条平行线之间的距离）要匹配d,mm123710152025V,mm/s255080100150250400500如Dispensing velocity改动，Interpolate move velocity相应改动选择点或折线，折线可用来喷涂面积，如选，在工作面单击或双击，画起始点，按住鼠标拖动，至终点，画出一个矩形，设定起点、终点的具体坐标（要考虑后期偏移量方向，不要超出工作面）。

偏移量设置：单击，按住鼠标，全部选定工作面折线，ctrl+c、ctrl+v，在界面左侧的工作表，会添加一组数据，Draw-translation设定偏移量，如设置坐标取错，可以edit-undo，重新设定偏移量。

继续ctrl+c、ctrl+v，Draw-translation设定偏移量。

每次设定完偏移量，直接ctrl+c、ctrl+v，不需要手动选定工作表数据。

保存：file-Save As-*.sgprjd文件。

project-generate，界面处单击，保存*.t2pg文件、保存*.t2pt文件，三个文件的文件名相同。

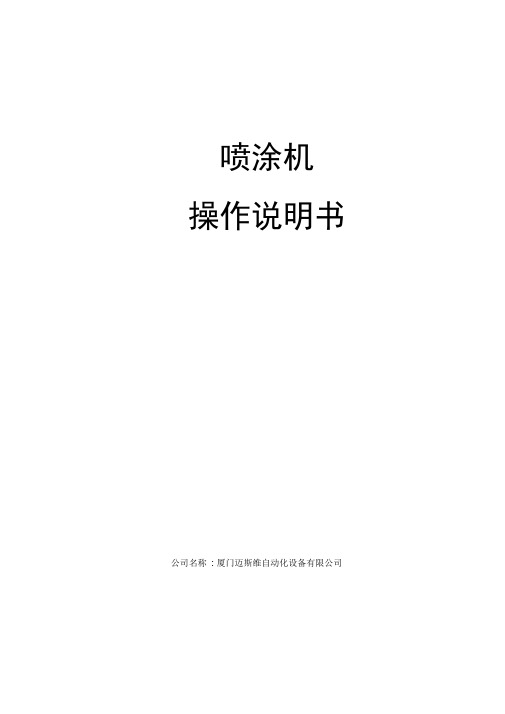

喷涂机操作说明书公司名称: 厦门迈斯维自动化设备有限公司公司地址：厦门市集美区杏林高浦西潭路34 号之目录1安装机台..................................... 3…i- ......................................................................................................................................... i电源......................................................................................1-2气压源 ........................................................................1- 3 使用注意事项 ................................................................2操作画板.........................................2- 1主要操作画板 .................................................................3软件画面操作.....................................3- 1主画面 .......................................................................3-2参数设置画面 ..................................................................3-3点胶参数画面 ..................................................................3- 4示教画面 .....................................................................4附件 .............................................4- 1接点列表 .....................................................................4-2电控图........................................................................1安装机台1- 1电源本机台使用单相220V 50HZ电源1-2气压源本机台使用5 Kg/cm2气压源1-3 使用注意事项操作前请详细阅读本手册，并确实检查防护装置之功能完整并注意有关安全规定，以提供操作时之安全保障。

第1篇一、目的为确保自动喷漆作业的安全、高效和质量，特制定本操作规程。

二、适用范围本规程适用于本车间所有自动喷漆设备的使用和维护。

三、操作程序1. 准备工作- 操作人员应经过专业培训，熟悉自动喷漆设备的操作原理和性能。

- 检查设备是否处于正常工作状态，包括电源、气源、控制系统等。

- 确保喷漆房内通风良好，温度、湿度符合要求。

2. 喷涂作业- 根据工件材质、颜色和涂装要求，选择合适的油漆和稀释剂。

- 调整喷枪与工件的距离、角度和压力，确保喷涂均匀。

- 检查喷枪雾化效果，如发现异常及时调整。

- 按照喷涂工艺流程进行作业，确保涂层质量。

3. 烘烤作业- 喷涂完成后，将工件放入烤漆房，启动烘烤程序。

- 根据油漆种类和涂层厚度，调整烘烤温度和时间。

- 烘烤过程中，注意观察工件表面变化，确保涂层干燥均匀。

4. 冷却作业- 烘烤完成后，待工件自然冷却至室温。

- 冷却过程中，避免工件受到撞击或划伤。

5. 清理作业- 喷涂作业结束后，清理喷枪、喷漆房和设备周边。

- 清理过程中，注意安全，避免油漆溅射。

四、注意事项1. 安全操作- 操作人员必须穿戴防护用品，如防护服、手套、口罩等。

- 严禁在喷漆房内吸烟、饮食，严禁使用明火。

- 注意喷漆房内通风，避免中毒。

2. 设备维护- 定期检查设备，确保其正常运行。

- 发现设备故障，及时报修。

3. 环保要求- 严格按照环保法规，处理油漆废液、废气等废弃物。

- 减少对环境的污染。

五、应急处理1. 火灾- 发现火灾，立即报警并使用灭火器进行灭火。

- 人员迅速撤离现场，确保安全。

2. 中毒- 发现人员中毒，立即将中毒者移至通风处。

- 鼓励中毒者深呼吸，给予氧气吸入。

- 立即报警，寻求专业救援。

六、培训与考核1. 操作人员必须接受专业培训，掌握自动喷漆设备的操作技能和安全知识。

2. 定期对操作人员进行考核，确保其熟练掌握操作规程。

七、附则本规程由车间主任负责解释和修订。

本规程自发布之日起实施。

目录Contents 一：产品概述Machine Instruction二：技术规格说明Instruction of Technology Data三：操作指导书Operation manual四：常见故障处理Common Fault Troubleshooting五：维护与保养Preventive Maintenance and Repairing六：主要备件清单Main spare part list七：安全要求Safe Requirement一：概述Overview本公司生产的助焊剂全自动喷涂设备主要分外置机和内置机，客户可根据实际需要进There are two types machine model to be selected by customer, it is internal and external machine.行选择。

本说明书以GDFS-400W标准型为基础进行阐述。

The operation manual is base on GDFS-400W operation.产品特点Machine feature：1：采用图片处理的方式选择需要喷涂的区域，操作简单，定位精确；With image processing to choose need spraying area, simple operation, and precise position.相对于传统的多点测量编程，可减少误差，节省时间；Programming time is very short and Zero missing comparing the traditional flux machine.2：对于PCB板上需要重点喷涂区域可以进行定点喷涂；；For more flux require area that machine can spray it with fixed point spraying method.相对传统的全局喷涂，此项功能可大大减少助焊剂的使用量，节约成本；Compare to traditional global spraying, the function can save more flux.3：采用精密步进电机和高精度感应器的双轴喷涂平台，喷头可随承载PCB板的轨道同时X-Y table is using high accuracy step motor and driver, Spray head can follow pallet conveyor 同向运动，弥补了传统单轴喷涂的盲区。

第1篇一、目的为确保自动喷涂设备的安全、高效运行，保障操作人员的人身安全，防止设备损坏和环境污染，特制定本操作规程。

二、适用范围本规程适用于公司所有自动喷涂设备的使用和维护。

三、操作人员要求1. 操作人员必须经过专业培训，熟悉自动喷涂设备的操作规程和安全注意事项。

2. 操作人员应穿戴好个人防护用品，如防尘口罩、防护眼镜、防静电鞋等。

3. 操作人员应了解本规程内容，并在操作过程中严格遵守。

四、操作步骤1. 准备工作（1）检查设备各部分是否完好，如喷枪、喷杯、输送带等。

（2）检查电源、气源、液压系统是否正常。

（3）检查设备周围环境，确保无安全隐患。

2. 设备启动（1）打开设备电源，启动控制系统。

（2）检查控制系统是否正常工作。

（3）打开压缩空气，调节压力至规定值。

3. 喷涂作业（1）根据工件材质和喷涂要求，选择合适的涂料和喷枪。

（2）调整喷涂参数，如喷枪与工件距离、喷涂速度等。

（3）启动输送带，将工件送入喷涂区域。

（4）开启喷枪，进行喷涂作业。

（5）喷涂过程中，注意观察工件表面涂层质量，及时调整喷涂参数。

4. 喷涂结束（1）关闭喷枪，停止喷涂作业。

（2）将工件送出喷涂区域。

（3）检查工件表面涂层质量，确认合格后进行下一道工序。

5. 设备关闭（1）关闭压缩空气，释放压力。

（2）关闭设备电源，关闭控制系统。

（3）清理工作现场，保持设备整洁。

五、注意事项1. 操作人员应遵守设备操作规程，不得擅自更改设备参数。

2. 喷涂过程中，严禁操作人员离开工作场所，确保设备安全运行。

3. 严禁在设备附近吸烟、使用明火，防止火灾事故发生。

4. 定期检查设备，发现异常情况及时上报并处理。

5. 操作人员应定期参加安全教育培训，提高安全意识。

六、维护保养1. 每班工作结束后，清理设备，保持设备整洁。

2. 每周检查设备各部分磨损情况，及时更换磨损件。

3. 每月对设备进行一次全面保养，包括润滑、清洁、检查等。

4. 每年对设备进行一次全面检修，确保设备安全、稳定运行。

自动喷涂机操作规程1. 目的本文档旨在规范并确保自动喷涂机的安全、高效操作，提高喷涂作业的质量和效率。

2. 适用范围本操作规程适用于所有操作自动喷涂机的人员。

3. 安全措施3.1 使用前必须穿戴个人防护装备，包括防护眼镜、手套和防护服。

3.2 在操作过程中确保操作环境通风良好，避免吸入有害气体。

3.3 定期检查自动喷涂机的安全装置，确保其正常运行。

3.4 禁止擅自更改喷涂机的安全设置和参数，如需调整应由专业人员操作。

4. 操作步骤4.1 确保自动喷涂机连接到电源，并确认电源电压和频率与机器要求相符。

4.2 检查喷涂介质的储存情况和质量，确保其符合要求。

4.3 打开自动喷涂机，并根据使用手册将喷嘴和气压进行调整。

4.4 把待喷涂的物品放置在合适的位置，并确保物品表面干净、平整。

4.5 将喷涂介质倒入喷涂机的喷涂中，并遵循使用手册中的喷涂介质添加要求。

4.6 根据需要调整喷涂机的工作速度和喷涂面积。

4.7 在操作完成后，关闭自动喷涂机，并进行清洁、维护工作。

4.8 定期对自动喷涂机进行保养和维修，保证其正常运行。

5. 注意事项5.1 使用过程中严禁将手放入喷涂机内部或靠近喷嘴，避免意外伤害。

5.2 喷涂前应检查周围环境是否安全，并确保没有易燃物品存在。

5.3 长时间操作自动喷涂机时应进行适量休息，避免疲劳造成事故。

5.4 禁止将喷涂介质倒入非指定中，避免混乱和误用。

6. 附则本操作规程由操作人员严格遵守，如有违规操作或发现安全隐患，应立即汇报相关负责人并采取相应措施。

以上为自动喷涂机操作规程的内容，请所有操作人员务必遵守，确保安全和效率。

点漆车间自动点漆作业指导书
1、检查压力桶内的油漆颜色是否正确，油漆量是否
足够，不够要先加油漆。

2、开机，将机器归到原点。

3、将控制器调到要点漆的点数。

4、检查机上和压力桶上的压力表气压是否在正常。

5、将2个喷漆开关打开，把油管内的空气排出
6、将4个点漆机阀的油漆流量调到适合的大小。

7、试做，先点一板看骨牌孔内的油漆是否饱满，有
没有气泡，颜色是否正确，骨牌表面是否保持干净。

8、生产时要检查骨牌点数的大小点方向是否一致。

9、点漆2小时要将压力桶内的油漆搅拌一次。

10、下班时将电源关闭，机器保养好。

编制/日期：审批/日期：。

工业漆使用说明
1、使用前请充分摇匀罐内油漆后再开盖使用。

2、若此漆太浓请使用专用稀释剂进行稀释，刷涂可不加稀料，喷涂时加入量不得超过25%，请按需要量调漆，加入稀料后务必尽快用完，否则时间太长会造成沉底、分层。

3、使用前必须用200目滤网过滤后再使用。

4、被涂物表面应为干净、干燥，无油污、粉尘的中性物面。

5、要求厚涂必须薄涂多次，一次涂装不可过厚否则表干里不干导致慢干，第二遍涂刷时必须待第一遍完全干透才可。

6、施工现场必须保持良好的通风，施工温度为5。

C-50.C。

7、储存在阴凉干燥处，保质期为一年，超期未变质仍可使用。

8、若发现产品质量问题，请将检验批号告知本厂，以便查究。

/设备名称:制定：批准：8：批量生产。

大批量生产，并填写特殊过程控制表。

3： 换油。

控制电箱手动界面开启后排4个喷枪，将后排喷枪中滞留的水或其他油漆排尽（喷枪喷出来是新更换的油）。

手柄手动模式下在“输入/输出界面”翻至“0G#003”页，选择“OUT#0017-0021”后面圆圈，点击“选择”按钮，圆圈变成黑色，将机械手中5个喷枪中水排尽。

机械手装枪顺序默认为从左往右依次是17 18 19 20号小枪、21号大枪。

换油过程中关闭喷枪雾化气压，避免过程中油雾污染设备。

4： 参数设置。

参照技术文件要求设置传输带速度、气压、油量大小、油雾大小、靠档位置。

5： 喷枪调整。

根据产品调整喷枪位置，17-20号枪同时覆盖4条槽，后排4个枪喷通槽。

根据产品造型需求，在控制电箱手动界面选择打开需要的喷枪。

6：选择程序。

手动模式下在程序界面选择加工的程序，移动至前三行。

开启烘干隧道。

在控制电箱调节到自动模式，手柄打到自动模式并接通伺服。

启动程序9：洗机。

下班前参照第三步操作，用水将喷枪中油漆排尽。

加工范围： 长≤2200，宽≤900，高≤70目的: 使作业工序标准化,提升机械手工作效率，减少设备故障发生。

作业内容：1： 准备工作。

根据订单需求更换压力罐中油漆。

2： 启动机器。

打开机器总电源及两个抽风机电源。

开启热风隧道加热。

7：试机。

先喷一件试机板，检查喷油位置是否正确，油量是否合适。

无异常后再喷首件，首件烘干后检查合格才能批量生产。

标 准 作 业 指 导 书SOP-042版次:A/12022/4/16页数:1/1工序名称:自动喷涂线设备编号：B-025手动档自动档点击选择程序手动开枪伺服已接通程序已启动程序第0003行点击翻页。
